Citroen C CROSSER 2009.5 1.G Repair Manual

II
!
C O M F O R T
61
EXTERIOR MIRRORS
Adjustment
The mirrors can be adjusted when the
ignition switch is in the "ON" or "ACC"
position.

 Move control A to the right or to the
left to select the corresponding mirror.

 Direct control B in all four directions
to adjust the mirror.
When adjustment is complete, return
control A to the central position. Electric folding/unfolding
- from inside, with the ignition switch
in the "ON" or "ACC" position :

 by pressing the control C .
- from inside, with the ignition switch in the "LOCK" position:

 by pressing the control C, within
30 seconds.
- from outside using the remote control:
 by pressing the "closed padlock "
button briefl y 3 times to fold them,

 by pressing the "open padlock"
button briefl y 3 times to unfold
them.
The folding and unfolding of the exte-
rior mirrors can be confi gured via the
colour display "Equipment" menu or
deactivated by a CITROËN dealer. The mirrors can also be folded
manually.
If you have folded the mirrors us-
ing the control C , you must use this
control to unfold them, otherwise the
mirrors will not be locked correctly.
If you switch the engine off then re-
start it with the mirrors folded, they
will unfold automatically when the
vehicle reaches 20 mph (30 km/h).
If the mirrors have been folded manu-
ally or electrically after starting the
engine, they are not unfolded auto-
matically.
In this case:

 Press the control C to unfold them.

II
!
C O M F O R T
62
INTERIOR MIRROR
Adjust the mirror by moving it up or
down and/or to the left or right.
The interior mirror has two positions:
- day (normal),
- night (anti-dazzle).
To change from one to the other, push
or pull the lever on the lower edge of
the mirror.
MANUAL STEERING WHEEL
HEIGHT ADJUSTMENT

 Pull the locking lever downwards
(position B ) while supporting the
steering wheel.

 Adjust the steering wheel to the re-
quired height.

 Lock the steering wheel by pushing
the lever upwards (position A ).
SUN VISOR
The sun visors fold forwards, and to the
side when they are unhooked.
They are fi tted with a courtesy mirror
and a ticket holder.
As a safety precaution, it is im-
perative that these operations
are carried out while the vehicle
is stationary.

II
C O M F O R T
63
AREAS FOR TOLL CARDS/CAR
PARK TICKETS
The athermic windscreen has a non-re-
fl ective zone located above the base of
the interior mirror.
It is intended for affi xing toll cards and/
or car park tickets.
MAT
When removing the mat on the driver's
side, move back the seat as far as pos-
sible and remove the fi xings.
When refi tting, position the mat correctly
on the pin and clip the fi xings. Check
that the mat is secured fi rmly.
To prevent any risk of jamming under
the pedals:
- only use mats suited to the fi xings already present in the vehicle; it is
imperative that these fi xings are
used.
- never fi t one mat on top of another.

II
64
FRONT INTERIOR LAYOUT

1. Spectacles storage.

2. Upper glove box with air
conditioning.

3. Lower glove box with lock.

4. 12 volt socket (120 W max).

5. Armrest with storage
compartments.
12 volt socket (120 W max).

6. Cup holder.

7. Removable ashtray.

8. Bottle holder.

9. Enclosed storage compartment.

10. Cup holder.

II
C O M F O R T
65

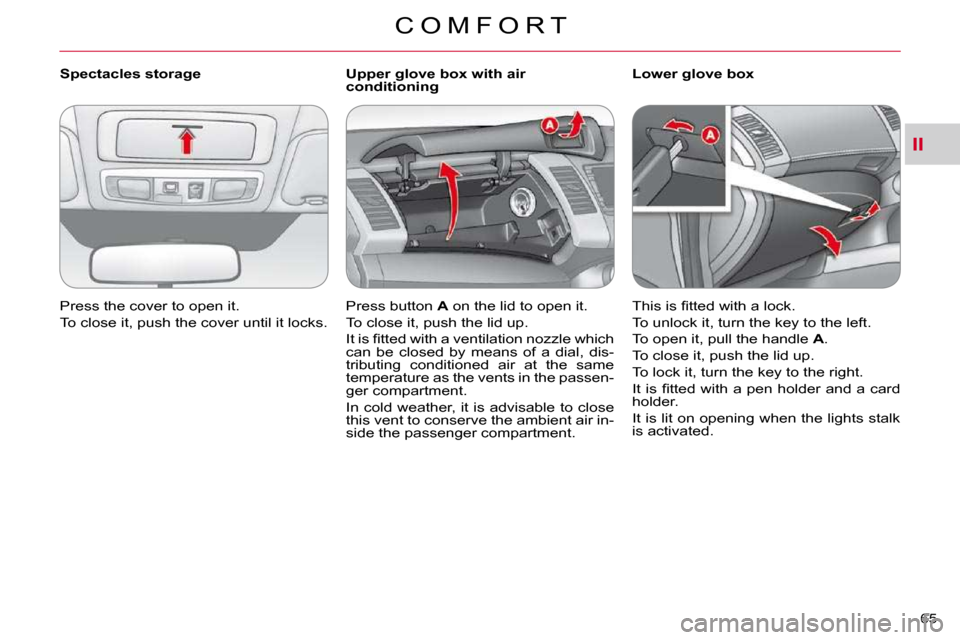

Spectacles storage
Press the cover to open it.
To close it, push the cover until it locks.
Upper glove box with air
conditioning
Press button A on the lid to open it.
To close it, push the lid up.
It is fi tted with a ventilation nozzle which
can be closed by means of a dial, dis-
tributing conditioned air at the same
temperature as the vents in the passen-
ger compartment.
In cold weather, it is advisable to close
this vent to conserve the ambient air in-
side the passenger compartment. Lower glove box
This is fi tted with a lock.
To unlock it, turn the key to the left.
To open it, pull the handle
A .
To close it, push the lid up.
To lock it, turn the key to the right.
It is fi tted with a pen holder and a card
holder.
It is lit on opening when the lights stalk
is activated.

II
!
C O M F O R T
66

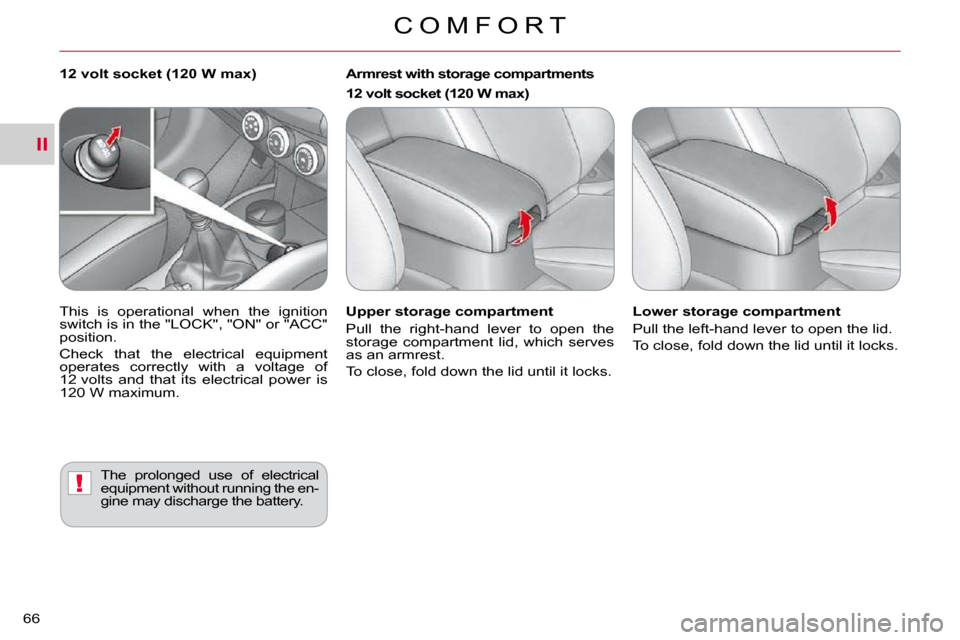

Upper storage compartment
Pull the right-hand lever to open the
storage compartment lid, which serves
as an armrest.
To close, fold down the lid until it locks. Lower storage compartment
Pull the left-hand lever to open the lid.
To close, fold down the lid until it locks.
12 volt socket (120 W max)
This is operational when the ignition
switch is in the "LOCK", "ON" or "ACC"
position.
Check that the electrical equipment
operates correctly with a voltage of
12 volts and that its electrical power is
120 W maximum.
The prolonged use of electrical
equipment without running the en-
gine may discharge the battery.
Armrest with storage compartments
12 volt socket (120 W max)

II!
C O M F O R T
67

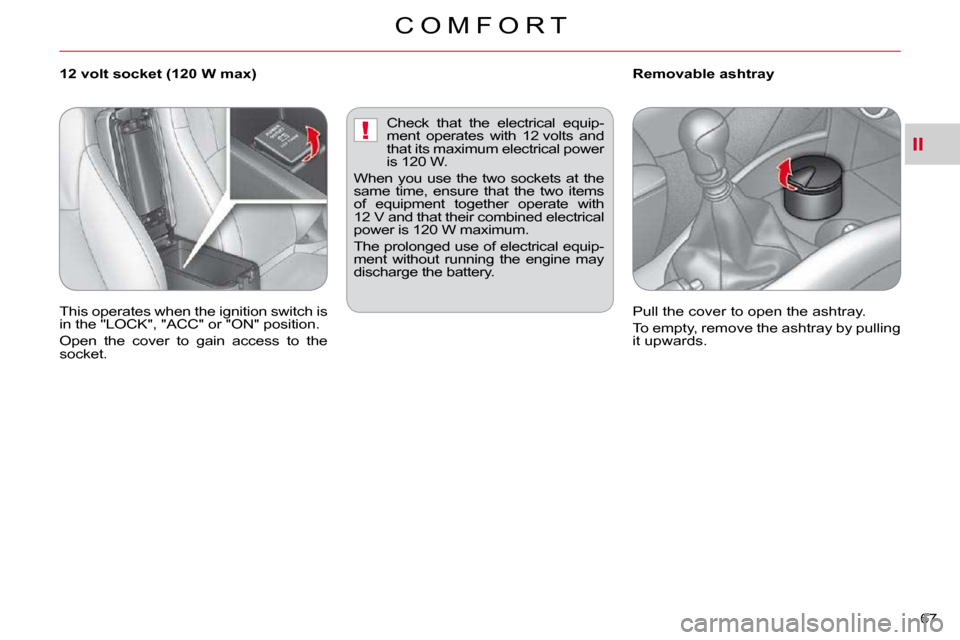

12 volt socket (120 W max) Removable ashtray
This operates when the ignition switch is
in the "LOCK", "ACC" or "ON" position.
Open the cover to gain access to the
socket. Check that the electrical equip-
ment operates with 12 volts and
that its maximum electrical power
is 120 W.
When you use the two sockets at the
same time, ensure that the two items
of equipment together operate with
12 V and that their combined electrical
power is 120 W maximum.
The prolonged use of electrical equip-
ment without running the engine may
discharge the battery.
Pull the cover to open the ashtray.
To empty, remove the ashtray by pulling
it upwards.

II
C O M F O R T
68

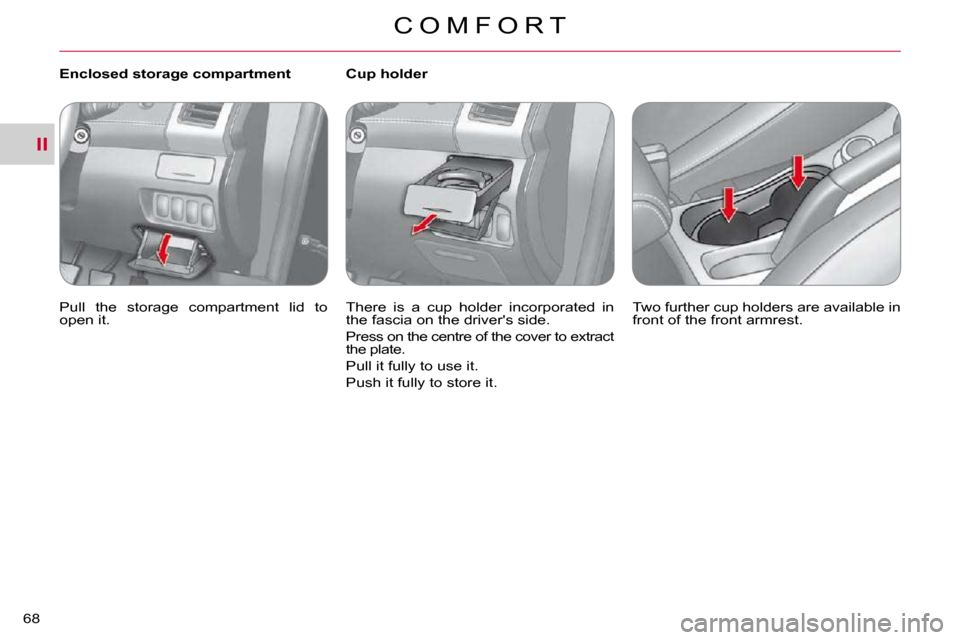

Enclosed storage compartment
Pull the storage compartment lid to
open it. Cup holder
There is a cup holder incorporated in
the fascia on the driver's side.
Press on the centre of the cover to extract
the plate.
Pull it fully to use it.
Push it fully to store it.
Two further cup holders are available in
front of the front armrest.

II
C O M F O R T
69

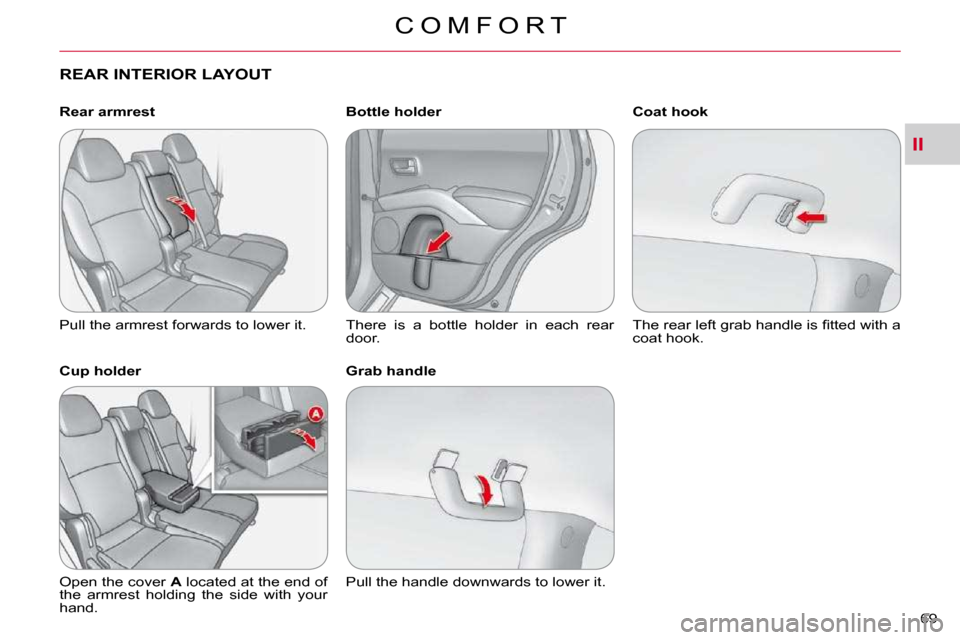

REAR INTERIOR LAYOUT
Rear armrest
Pull the armrest forwards to lower it.
Cup holder
Open the cover A located at the end of
the armrest holding the side with your
hand. Bottle holder
There is a bottle holder in each rear
door.
Grab handle
Pull the handle downwards to lower it.
Coat hook
The rear left grab handle is fi tted with a
coat hook.

II
70

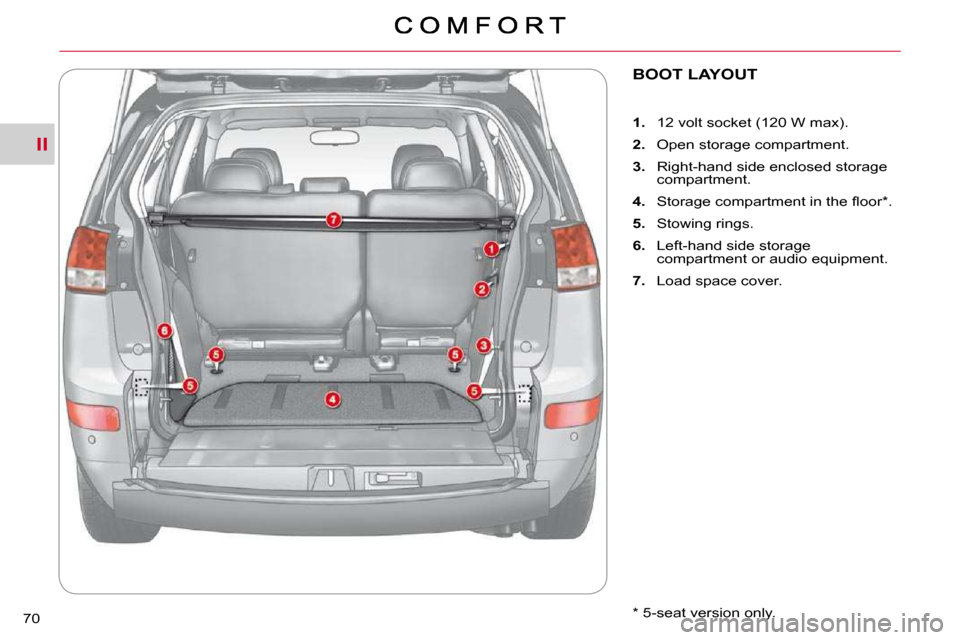

BOOT LAYOUT

1. 12 volt socket (120 W max).

2. Open storage compartment.

3. Right-hand side enclosed storage
compartment.

4. Storage compartment in the fl oor * .

5. Stowing rings.

6. Left-hand side storage
compartment or audio equipment.

7. Load space cover.
* 5-seat version only.
