Page 81 of 230
III
!
A C C E S S
78
Disarming the passenger and rear
electric window switches Reinitialising the electric windows
Following reconnection of the battery or
after the safety auto-reverse has been
triggered three times in succession, you
must reinitialise the safety auto-reverse
function:
with the door closed, lower the window
completely then raise it again, it will rise
in steps of a few centimetres each time
the switch is pressed, repeat the op-
eration until the window is fully closed,
continue to press the switch for at least
one second after reaching the window
closed position.
Always remove the key from the
ignition when leaving the vehi-
cle, even for a short time.
In the event of contact during opera-
tion of the windows, you must reverse
the movement of the window. To do
this, press the switch concerned.
When the driver operates the passen-
ger electric window switches, he must
ensure that no one is preventing cor-
rect closing of the windows.
The driver must ensure that the pas-
sengers use the electric windows
correctly.
Be aware of children when operating
the windows.
For the safety of your children, press
switch 5 to prevent operation of the
passenger and rear electric windows
irrespective of their position.
When the button is pressed down,
disarming is active.
When the button is raised, disarming is
deactivated.
When the button is pressed down, you
can open or close all of the windows
using the switches on the driver's
door.
The safety auto-reverse function is
not active during these operations.
Page 82 of 230
III
A C C E S S
79
DOORS
From outside
After unlocking the vehicle using the
remote control or the key, pull the
door handle. From inside
Pull the front or rear door control to
open the door.
If the doors are locked, opening the
driver's door unlocks all of the doors.
The front passenger door or the rear
d o o r s m u s t fi r s t b e u n l o c k e d m a n u a l l y
using the locking control before being
opened.
Closing
If a door is not closed correctly,
this warning light comes on on
the instrument panel display
until the door concerned is
closed.
Manual centralised control
System which provides full manual
locking or unlocking of the doors and
tailgate from the inside.
Locking
Press the front of button A to lock
the vehicle.
If the driver's door is open when
you operate the central locking from
inside, all of the doors lock with the
exception of the driver's door.
Unlocking
Press the rear of button A to unlock
the vehicle.
Opening
Page 83 of 230
III
A C C E S S
80
Opening
After unlocking the vehicle using the
remote control or the key, press the
handle A and raise the tailgate.
TAILGATE
Closing
Pull the handle B downwards to
guide the tailgate,
release the handle and press the
exterior surface of the tailgate gently
to close it.
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the central locking.
Locking the driver's door
Insert the key in the lock, then turn it
to the left.
Unlocking the driver's door
Insert the key in the lock, then turn it
to the right. Unlocking the front and rear doors
(from inside)
Tilt the interior control B rearwards.
Using the key
Locking the front passenger door
and the rear doors (from inside)
Tilt the interior control B forwards.
Page 84 of 230
III
A C C E S S
80
Opening
After unlocking the vehicle using the
remote control or the key, press the
handle A and raise the tailgate.
TAILGATE
Closing
Pull the handle B downwards to
guide the tailgate,
release the handle and press the
exterior surface of the tailgate gently
to close it.
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the central locking.
Locking the driver's door
Insert the key in the lock, then turn it
to the left.
Unlocking the driver's door
Insert the key in the lock, then turn it
to the right. Unlocking the front and rear doors
(from inside)
Tilt the interior control B rearwards.
Using the key
Locking the front passenger door
and the rear doors (from inside)
Tilt the interior control B forwards.
Page 85 of 230
III
81
"Tailgate open" warning
This warning light comes on on
the instrument panel display when
the tailgate is not closed correctly. LOWER TAILGATE
Opening
Push the handle C to the right and
tilt the tailgate D gently.
Closing
Raise the tailgate D , push it to close
it, then check that it is secured
correctly. Before opening the tailgate, ensure
that no one is within the radius of
opening.
For reasons of safety and correct
operation, do not drive with the
tailgate open.
If the battery is disconnected, the
tailgate cannot be opened.
Do not climb onto the lower tailgate
and do not subject it to heavy knocks,
it may be damaged.
Always close the lower tailgate and
check that it is secured correctly be-
fore closing the main tailgate.
When closing the lower tailgate,
ensure that no person or object is in
the proximity of the moving parts to
avoid any risk of injury or damage.
Do not open the lower tailgate when
a t o w b a r i s fi t t e d .
Maximum authorised weight on the
lower tailgate when open:
200 kg .
Tailgate release
This enables the tailgate to be unlocked
in the event of a central locking fault.
- Fold back the rear seats to gain
access to the tailgate release from
inside the boot.
- Remove the plastic cap from the opening A in the tailgate interior
pillar.
- Move the control B to the right to
unlock and open the tailgate.
Page 86 of 230
III
81
"Tailgate open" warning
This warning light comes on on
the instrument panel display when
the tailgate is not closed correctly. LOWER TAILGATE
Opening
Push the handle C to the right and
tilt the tailgate D gently.
Closing
Raise the tailgate D , push it to close
it, then check that it is secured
correctly. Before opening the tailgate, ensure
that no one is within the radius of
opening.
For reasons of safety and correct
operation, do not drive with the
tailgate open.
If the battery is disconnected, the
tailgate cannot be opened.
Do not climb onto the lower tailgate
and do not subject it to heavy knocks,
it may be damaged.
Always close the lower tailgate and
check that it is secured correctly be-
fore closing the main tailgate.
When closing the lower tailgate,
ensure that no person or object is in
the proximity of the moving parts to
avoid any risk of injury or damage.
Do not open the lower tailgate when
a t o w b a r i s fi t t e d .
Maximum authorised weight on the
lower tailgate when open:
200 kg .
Tailgate release
This enables the tailgate to be unlocked
in the event of a central locking fault.
- Fold back the rear seats to gain
access to the tailgate release from
inside the boot.
- Remove the plastic cap from the opening A in the tailgate interior
pillar.
- Move the control B to the right to
unlock and open the tailgate.
Page 87 of 230
III
A C C E S S
82

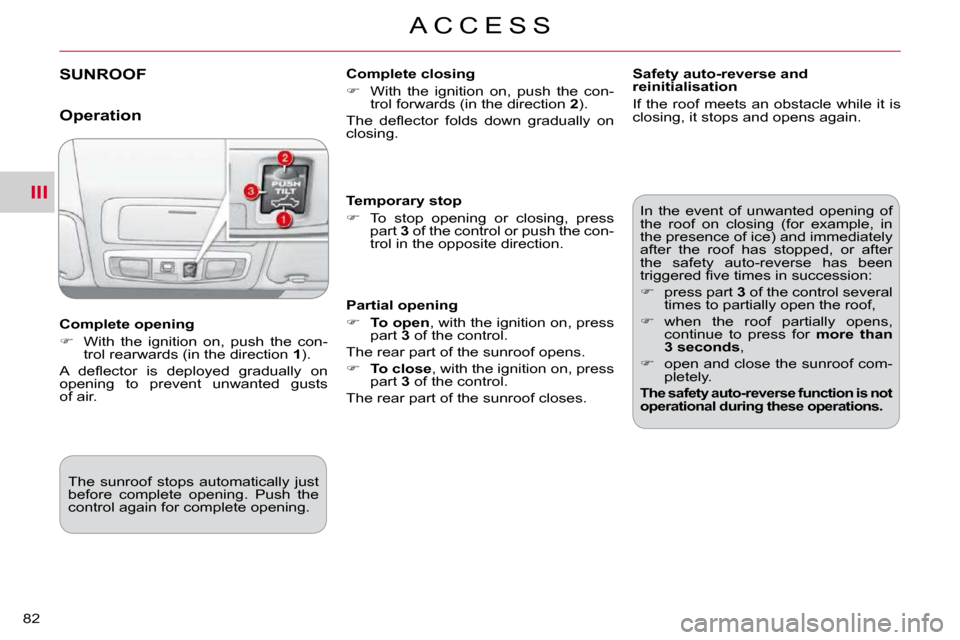

SUNROOF Complete closing
With the ignition on, push the con-
trol forwards (in the direction 2 ).
T h e d e fl e c t o r f o l d s d o w n g r a d u a l l y o n
closing.
Complete opening
With the ignition on, push the con-
trol rearwards (in the direction 1 ).
A d e fl e c t o r i s d e p l o y e d g r a d u a l l y o n
opening to prevent unwanted gusts
of air. Temporary stop
To stop opening or closing, press
part 3 of the control or push the con-
trol in the opposite direction.
Partial opening
To open , with the ignition on, press
part 3 of the control.
The rear part of the sunroof opens.
To close , with the ignition on, press
part 3 of the control.
The rear part of the sunroof closes. Safety auto-reverse and
reinitialisation
If the roof meets an obstacle while it is
closing, it stops and opens again.
The sunroof stops automatically just
before complete opening. Push the
control again for complete opening.
Operation
In the event of unwanted opening of
the roof on closing (for example, in
the presence of ice) and immediately
after the roof has stopped, or after
the safety auto-reverse has been
t r i g g e r e d fi v e t i m e s i n s u c c e s s i o n :
press part 3 of the control several
times to partially open the roof,
when the roof partially opens,
continue to press for more than
3 seconds ,
open and close the sunroof com-
pletely.
The
safety
auto-reverse
function is not
operational during
t
hese operations.
Page 88 of 230
III
!
!
A C C E S S
83

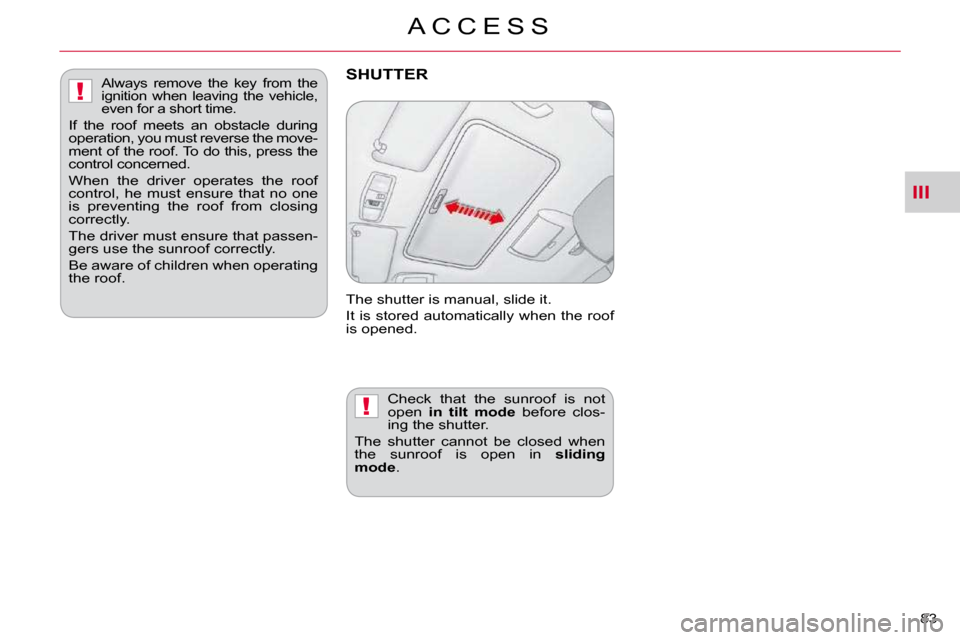

SHUTTER
The shutter is manual, slide it.
It is stored automatically when the roof
is opened. Check that the sunroof is not
open in tilt mode before clos-
ing the shutter.
The shutter cannot be closed when
the sunroof is open in sliding
mode .
Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
If the roof meets an obstacle during
operation, you must reverse the move-
ment of the roof. To do this, press the
control concerned.
When the driver operates the roof
control, he must ensure that no one
is preventing the roof from closing
correctly.
The driver must ensure that passen-
gers use the sunroof correctly.
Be aware of children when operating
the roof.
Page 89 of 230
III
!
!
A C C E S S
83
SHUTTER
The shutter is manual, slide it.
It is stored automatically when the roof
is opened. Check that the sunroof is not
open in tilt mode before clos-
ing the shutter.
The shutter cannot be closed when
the sunroof is open in sliding
mode .
Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
If the roof meets an obstacle during
operation, you must reverse the move-
ment of the roof. To do this, press the
control concerned.
When the driver operates the roof
control, he must ensure that no one
is preventing the roof from closing
correctly.
The driver must ensure that passen-
gers use the sunroof correctly.
Be aware of children when operating
the roof.
Page 90 of 230
III
!
A C C E S S
84
FUEL TANK Opening the cap may trigger an air
intake noise. This vacuum, which is
completely normal, is caused by the
sealing of the fuel circuit.
T o fi l l t h e t a n k s a f e l y :
it is imperative that the engine is
switched off,
pull the control A located at the
bottom right of the driver’s seat to
r e l e a s e t h e f u e l fi l l e r fl a p ,
o p e n t h e f u e l fi l l e r fl a p B ,
turn the cap C to the left,
W h e n y o u h a v e fi l l e d t h e t a n k :
r e fi t t h e c a p , i n s e r t i n g t h e u p p e r p a r t
fi r s t ,
screw in the cap to the right,
c l o s e t h e fl a p .
E n s u r e t h a t t h e f u e l fi l l e r fl a p i s c l o s e d
correctly.
remove the cap C ,
fi l l t h e t a n k , b u t do not continue af-
ter the 3rd cut-off of the nozzle ;
this could cause malfunctions.
Low fuel level
Filling
A l a b e l , a f fi x e d o n t h e i n s i d e o f t h e fl a p ,
reminds you of the type of fuel to be
used in relation to your engine.
More than 5 litres of fuel must be
added in order to be registered by the
fuel gauge. When the tank minimum lev-
el is reached, this indication
appears on the instrument
p a n e l d i s p l a y . W h e n i t fi r s t
comes on, approximately
10 litres of fuel remain.
The symbol fl a s h e s s l o w l y (approxi-
mately once per second).
When the symbol begins to
fl a s h r a p i d l y (approximately
twice per second), there is not
much fuel remaining in your tank
(approximately 5 litres).
I t i s e s s e n t i a l t o fi l l t h e t a n k t o a v o i d
running out of fuel.
This symbol indicates that the
fuel tank cap is located on the
left-hand side of the vehicle.
Location of the cap
1. Opening.
2. Closing.
Capacity of the tank: approximately
60 litres.
