warning CITROEN C-ELYSÉE 2016 Handbook (in English)

59
Storage box
F Raise the boot carpet for access to the storage box.
This has areas for the storage of a box of spare
bulbs, a first aid kit, two warning triangles...
It also contains the vehicle tools, the temporary
puncture repair kit...
4
Fittings

61
Starting-switching off the engine
It has 3 positions:
- p osition 1 (Stop) : insert and removing the
key,
-

p
osition 2 (Ignition on) : steering column
unlocked, ignition on, Diesel preheating,
engine running,
-

p
osition 3 (Star ting) .
Ignition switch
It allows the use of the vehicle's electric
equipment or portable devices to be charged.
Once the state of charge of the battery drops
to the reserve level, the system switches to
energy economy mode: the power supply is
cut off automatically to preserve the remaining
battery charge.
Ignition on positionAnti-theft protection
Electronic engine immobiliser
The key contains an electronic chip which has
a special code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
This electronic engine immobiliser locks the
engine management system a few minutes
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the screen.
Keep safely, away from your vehicle,
the label attached to the keys given to
you on acquisition of the vehicle. Avoid attaching heavy objects to the
key, which would weigh down on its
blade in the ignition switch and could
cause a malfunction.
In this case, your vehicle will not start; contact
a CITROËN dealer as soon as possible.
5
driving

62
In certain cases, you may have to apply
more force to the steering (wheels on
full lock, for example).
Starting the engine
F With a petrol engine, operate the starter motor by turning the key to position 3
without pressing the accelerator pedal,
until the engine starts. Once the engine is
running, release the key. F

W
ith a Diesel engine, turn the key to
position 2 , ignition on, to operate the
engine pre-heating system.
With the parking brake applied and the gearbox
in neutral or position N or P
:
F
d
epress the clutch pedal fully (manual
gearbox),

or
F
p
ress the brake pedal firmly (electronic or
automatic gearbox),
F
i
nsert the key into the ignition switch; the
system recognises the code,
F
u
nlock the steering column by
simultaneously turning the steering and the
key.
Wait until this warning lamp goes off in the
instrument panel then operate the starter
motor by turning the key to position
3
without pressing the accelerator pedal,
until the engine starts. Once the engine is
running, release the key.
If the engine does not start straight
away, switch off the ignition. Wait a
few moments before operating the
starter motor again. If the engine does
not start after several attempts, do not
keep trying: you risk damaging the
starter motor or the engine. Contact
a CITROËN dealer or a qualified
workshop. In wintry conditions, the warning lamp
can stay on for a longer period. When
the engine is hot, the warning lamp
does not come on. Never leave the engine running in
an enclosed area without adequate
ventilation: internal combustion
engines emit toxic exhaust gases,
such as carbon monoxide. Danger of
intoxication and death.
In very severe wintry conditions
(temperatures below -23°C), to ensure
the correct operation and durability of
the mechanical components of your
vehicle, engine and gearbox, it is
necessary to leave the engine running
for 4 minutes before moving off. In temperate conditions, do not leave
the engine at idle to warm up but move
off straight away and drive at moderate
speed.
Driving

64
Parking brake
Application
F Pull the parking brake lever up to immobilise your vehicle.
Release
F Pull the parking brake lever up gently, press the release button then lower the
lever fully.
When parking on a slope, direct your
wheels against the kerb, apply the
parking brake, engage a gear and
switch off the ignition.
When the vehicle is being driven, if this warning
lamp and the STOP warning lamp come
on, accompanied by an audible signal and
a message in the screen, indicating that the parking
b rake is still on or has not been fully released.
Driving

66

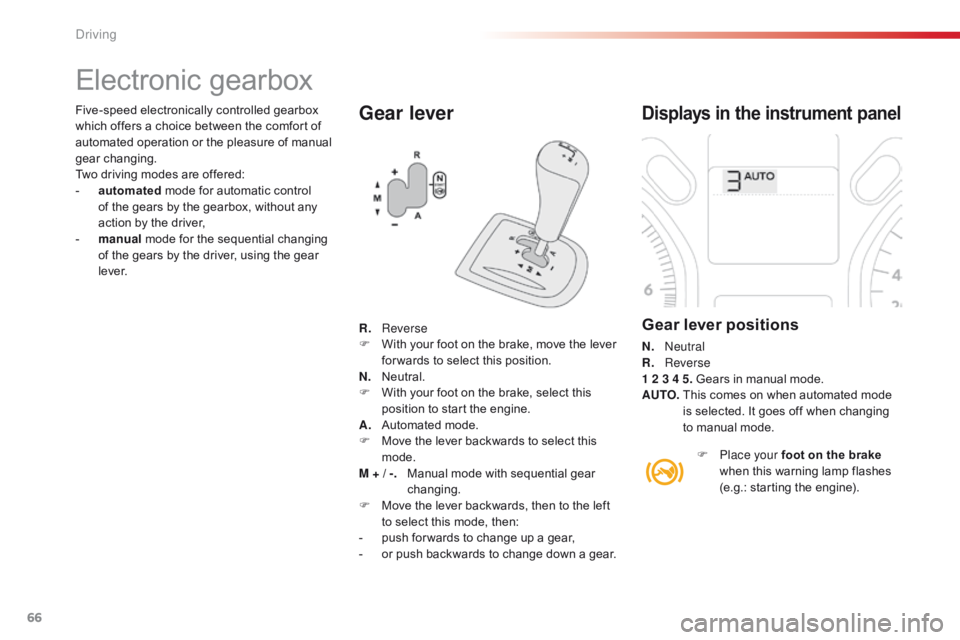

Gear lever
Electronic gearbox
Displays in the instrument panel
Gear lever positions
N. neutral
R. R everse
1 2 3 4 5. Gears in manual mode.
AUTO.

T
his comes on when automated mode
is selected. It goes off when changing
to manual mode.
R.
R

everse
F
W
ith your foot on the brake, move the lever
for wards to select this position.
N.
N

eutral.
F

W

ith your foot on the brake, select this
position to start the engine.
A.
A

utomated mode.
F

M

ove the lever backwards to select this
mode.
M + / -.

M

anual mode with sequential gear
changing.
F

M

ove the lever backwards, then to the left
to select this mode, then:
-

p

ush for wards to change up a gear,
-

o

r push backwards to change down a gear.
Five-speed electronically controlled gearbox
which offers a choice between the comfort of
automated operation or the pleasure of manual
gear changing.
Two driving modes are offered:
-

a

utomated
mode for automatic control
of the gears by the gearbox, without any
action by the driver,
-

m

anual
mode for the sequential changing
of the gears by the driver, using the gear
l eve r.
F
P
lace your foot on the brake
when this warning lamp flashes
(e.g.: starting the engine).
Driving

68
Automated mode
AUTO and the gear engaged appear
in the instrument panel.
Manual mode
The gears engaged appear in
succession in the instrument panel.
The gearbox then operates in auto-adaptive
mode, without any action on the part of the
driver. It continuously selects the most suitable
gear taking account of:
-

o

ptimisation of fuel consumption,
-

d

riving style,
-

r

oad conditions,
-

v

ehicle load.
For optimum acceleration, when overtaking
another vehicle for example, press the
accelerator pedal fully down, beyond the point
of resistance. The gear change requests are only carried out
if the engine speed permits.
It is not necessary to release the accelerator
pedal during gear changes.
When braking or slowing down, the gearbox
changes down automatically so that the vehicle
picks up in the right gear.
Under full acceleration, the change up will
not take place unless the driver operates the
gear lever (unless the engine is close to its
maximum speed).
ne

ver select neutral (position N ) when
moving. You can change mode at any time by
moving the gear lever from A to M or
the other way round.
ne

ver select neutral (position N ) when
moving. You can change mode at any time by
moving the gear lever from A to M or
the other way round.
F

Sel

ect position A
. F

Sel

ect position M
.
Reverse
To engage reverse, the vehicle must be
immobilised with your foot on the brake.
F

Sel
ect position R .
At low speed, if reverse gear is requested,
the
N warning lamp flashes and the gearbox
goes into neutral automatically.
To engage reverse, put the gear lever into
position N , then to position R .
There is an audible signal on
engagement of reverse.
Driving

69
AUTO and - appear in the instrument
panel.
F

Sel

ect position N .
F

P

ress the brake pedal.
F

W

ait for around 30 seconds until N or a
gear appears in the instrument panel.
F

M

ove the gear lever to position A , then to
position N .
F

W

ith your foot still on the brake pedal, start
the engine.
The gearbox is operational again.
Reinitialisation
Following disconnection of the battery, it is
necessary to reinitialise the gearbox.
F

S
witch on the ignition.
Before doing anything under the
bonnet, ensure that the gear lever is in
neutral (position N ) and that the parking
brake is applied. In exceptional circumstances, the
gearbox may need an automatic
reinitialisation: starting and gear
changing are no longer possible.
AUTO and - appear in the
instrument panel.
For all parking situations, you must
apply the parking brake to immobilise
the vehicle.
When immobilising the vehicle with the
engine running, you must put the gear
lever into neutral (position N ).
Before switching off the engine:
-
c
hange to position N to be in neutral,


or
-

l

eave the vehicle in gear; in this case the
vehicle cannot be moved.
Follow the procedure described above.
Stopping the vehicle
With the ignition on, if this warning
lamp comes on and AUTO
flashes, accompanied by an audible signal and
a message in the multifunction screen, this
indicates a gearbox fault.
Have it checked by a CITROËN dealer or a
qualified workshop.
Operating fault
5
Driving

71
F Apply the parking brake.
F Sel ect position P or N .
F

S
tart the engine.
If this procedure is not followed, there is an
audible signal, accompanied by the display of
an warning message.
F

W
ith the engine running, press the brake
pedal.
F

R
elease the parking brake.
F

Sel
ect position R , D or M.
F

G
radually release the brake pedal.
The vehicle moves off immediately.
Moving off
When the engine is running at idle,
with the brakes released, if position R ,
D or
M is selected, the vehicle moves
even without the accelerator being
pressed.
When the engine is running, never
leave children in the vehicle without
supervision.
When carrying out maintenance with
the engine running, apply the parking
brake and select position P .
If position N is selected inadvertently
while driving, allow the engine to
return to idle then select position D to
accelerate.
ne

ver select position N while the
vehicle is moving.
ne

ver select positions P or R unless
the vehicle is completely stationary.
Automatic operation
F Select position D for automatic changing
of the four gears.
The gearbox then operates in auto-adaptive
mode, without any intervention on the part
of the driver. It continuously selects the most
suitable gear according to the style of driving,
the profile of the road and the load in the
vehicle.
For maximum acceleration without touching the
gear lever, press the accelerator pedal down
fully (kick down). The gearbox changes down
automatically or maintains the gear selected
until the maximum engine speed is reached.
On braking, the gearbox changes down
automatically to provide efficient engine
braking.
If you release the accelerator sharply, the
gearbox will not change to a higher gear for
safety reasons.
If the ambient temperature is
below

-23°C, the engine should be left
at idle for four minutes, to ensure the
correct operation and life of the engine
and gearbox.
5
driving

73
Invalid value during manual
operation
This symbol is displayed if a gear
is not engaged correctly (selector
between two positions).
Stopping the vehicle
Before switching off the engine, you can
engage position P or N to place the gearbox in
neutral.
In both cases, apply the parking brake to
immobilise the vehicle.
Operating fault
When the ignition is on, the
lighting of this warning lamp,
accompanied by an audible signal and a
message in the multifunction screen, indicates
a gearbox fault.
In this case, the gearbox switches to back-up
mode and is locked in 3rd gear. You may feel
a substantial knock when changing from P
to R and from N to R . This will not cause any
damage to the gearbox.
Do not exceed 60 mph (100 km/h), local speed
restrictions permitting.
Contact a CITROËN dealer or a qualified
workshop as soon as possible. There is a risk of damage to the
gearbox:
-

i
f you press the accelerator and
brake pedals at the same time,
-

i
f you force the movement of the
gear lever from the P position to
another position when the battery is
flat.
To reduce fuel consumption when at
a prolonged standstill with the engine
running (traffic jam...), put the gear lever
in the N position and apply the parking
brake.
If the lever is not in position P , when the
driver's door is opened or approximately
45 seconds after the ignition is switched
off, a warning message appears in the
screen.
F

R

eturn the lever to position P ; the
message disappears.
When driving on flooded roads or when
crossing a ford, proceed at walking
pace.
5
Driving

80
In bad weather or in winter, ensure
that the sensors are not covered with
mud, ice or snow. When reverse gear is
engaged, an audible signal (long beep)
indicates that the sensors may be dirty.
Certain sound sources (motorcycle,
lorry, pneumatic drill, etc.) may trigger
the audible signals of the parking
sensor system.In the event of a malfunction of
the system, when reverse gear
is engaged this warning lamp
is displayed in the instrument panel and/or a
message appears in the screen, accompanied
by an audible signal (short beep).
Contact a CITROËN dealer or a qualified
workshop.
Operating fault
The function will be deactivated
automatically if a trailer is being towed
or a bicycle carrier is fitted (vehicle
fitted with a towbar or bicycle carrier
recommended by CITROËN).
Deactivation / Activation of the
rear parking sensors
The function is deactivated or
activated via the vehicle configuration
menu.
The status of the function is stored
when the ignition is switched off.
For more information on access to the parking
sensors menu, refer to the "Personalisation -
Configuration" part of the "Monitoring" section.
Driving
