CITROEN C-ELYSÉE 2017 Handbook (in English)

109
Stopping the vehicle
Before switching off the engine, you can:
- m ove to position N to engage neutral,
or
-

l
eave the gear engaged; in this case, it will
not be possible to move the vehicle.
For all parking situations, you must apply
the parking brake to immobilise the
vehicle.
In case of immobilization of the vehicle,
engine running, absolutely put the gearbox
in neutral N .
Before working in the engine
compartment, ensure that the gear
selector is in neutral N and the parking
brake is applied.
Reinitialisation
Following disconnection of the battery, you
have to reinitialise the gearbox.
F
S
witch on the ignition.AUTO and - appear in the
instrument cluster.
F

Sel
ect position N .
F

P
ress the brake pedal.
F

W
ait for approximately 30 seconds until N
or a gear appears in the instrument cluster.
F

M
ove the gear selector to position A , then
to position N .
F

W
ith your foot still on the brake pedal, start
the engine.
The gearbox is operational again. Exceptionally, it may be necessary to
reinitialise the gearbox automatically: in
such a case the vehicle won't start and no
gear change will happen.
Malfunction
or
With the ignition on, if this warning
light comes on and AUTO
flashes,
accompanied by an audible signal
and a message in the multifunction
screen, this indicates a gearbox
fault.
Have them checked by a
CITROËN dealer or a
qualified workshop. AUTO
and - appear in the
instrument cluster.
Follow the procedure described above.
6
Driving

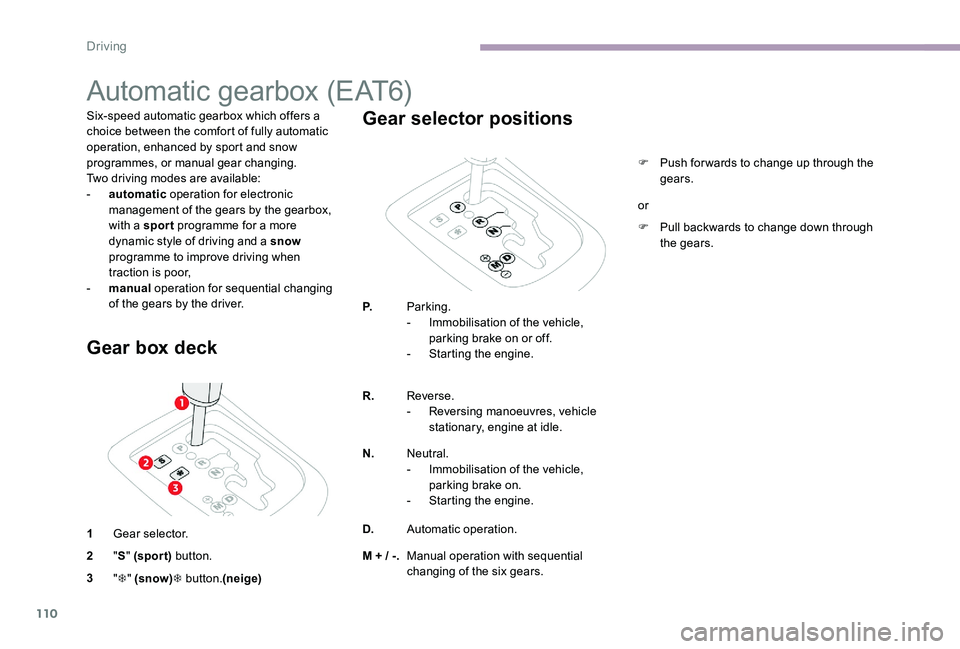

110
Automatic gearbox (EAT6)
Six-speed automatic gearbox which offers a
choice between the comfort of fully automatic
operation, enhanced by sport and snow
programmes, or manual gear changing.
Two driving modes are available:
-
a
utomatic operation for electronic
management of the gears by the gearbox,
with a spor t programme for a more
dynamic style of driving and a snow
programme to improve driving when
traction is poor,
-

man
ual operation for sequential changing
of the gears by the driver.
Gear box deck
1 Gear selector.
2 "S " (spor t) button.
3 "T " (snow) T button. (neige)
Gear selector positions
P.Parking.
-
I mmobilisation of the vehicle,
parking brake on or off.
-
S

tarting the engine.
R. Reverse.
-

R
eversing manoeuvres, vehicle
stationary, engine at idle.
N. Neutral.
-

I
mmobilisation of the vehicle,
parking brake on.
-
S

tarting the engine.
D. Automatic operation.
M + / -. Manual operation with sequential
changing of the six gears. F

P
ush for wards to change up through the
gears.
F
P
ull backwards to change down through
the gears.
or
Driving

111
Starting the vehicle
F Apply the parking brake.
F Sel ect position P or N .
F

S
tart the engine.
If these conditions are not met, there is an
audible signal, accompanied by the display of a
warning message.
F

W
ith the engine running, press the brake
pedal.
F

R
elease the parking brake.
F

Sel
ect position R , D or M.
F

G
radually release the brake pedal.
The vehicle moves off immediately. If position N is selected inadvertently while
driving, allow the engine to return to idle
then select position D before accelerating.
If the temperature is below -23°C, the
engine should be left at idle for four
minutes, to ensure the correct operation
and life of the engine and gearbox.
Displays in the instrument panel
When you move the selector to select a
position, the corresponding indicator is
displayed in the instrument panel.
P.
Parking.
R. Reverse.
N. Neutral.
D. Drive.
S. Sport programme.
T . Snow
programme.
1 2 3 4 5 6. Gears engaged during manual
operation.
-. Invalid value during manual
operation.
Foot on brake
F Press the brake pedal when this
indicator light is displayed in the
instrument panel (e.g.: starting
the engine).
When the engine is running at idle, with
the brakes released, if position R, D or
M is selected, the vehicle moves even
without the accelerator being pressed.
When the engine is running, never leave
children in the vehicle without supervision.
When carrying out maintenance with the
engine running, apply the parking brake
and select position P .
6
Driving

112
Automatic operation
F Select position D for automatic changing
of the six gears.
The gearbox then operates in auto-adaptive
mode, without any action needed from the
driver. It continuously selects the most suitable
gear according to the style of driving, the profile
of the road and the load in the vehicle.
To obtain maximum acceleration without
touching the selector, press the accelerator
pedal all the way down (kick down). The
gearbox changes down automatically or
maintains the gear selected until the maximum
engine speed is reached.
When braking, the gearbox changes down
automatically to provide effective engine
braking.
If you release the accelerator sharply, the
gearbox will not change to a higher gear for
safety reasons.
Never select position N while the vehicle
is moving.
Never select positions P or R unless the
vehicle is completely stationary.Reverse gear
When selecting reverse R with the ignition
on, the rear parking sensors are activated
automatically.
For more information on Rear parking
sensors , refer to the corresponding section.
Autonomous traction function
(moving without using the
accelerator)
This function facilitates manoeuvring of the
vehicle at low speed (when parking, in traffic
jams, …).
With the engine at idle, parking brake released
and position D , M or R selected, the vehicle
moves as soon as you take your foot off
the brake pedal (even without pressing the
accelerator).
Sport and snow
programmes
These two special programmes supplement the
automatic operation in very specific conditions
of use.
Sport programme "S"
F Press button S, after starting the engine.
The gearbox automatically favours a dynamic
style of driving.
S appears in the instrument panel.
Driving

113
Manual operation
F Select position M for sequential changing
of the six gears.
F

M
ove the selector towards the + sign to
change up a gear.
F

M
ove the selector towards the - sign to
change down a gear.
It is only possible to change from one gear to
another if the vehicle speed and engine speed
permit; otherwise, the gearbox will operate
temporarily in automatic mode.
D disappears and the gears
engaged appear in succession in
the instrument panel.
If the engine speed is too low or too high, the
gear selected flashes for a few seconds, then
the actual gear engaged is displayed.
It is possible to change from position D
(automatic) to position M (manual) at any time.
When the vehicle is stationary or moving
very slowly, the gearbox engages first gear
automatically.
The sport and snow programmes are
inactive in manual operation.Invalid value during manual
operation
This symbol is displayed if a gear
is not engaged correctly (selector
between two positions).
Snow programme T
F Press the " T" button, after starting the
engine.
The gearbox adapts to driving on slippery
roads.
This programme improves starting and traction
when grip is poor.
At any time, press the selected button
again to quit the programme engaged and
return to auto-adaptive mode. T appears in the instrument panel.
6
Driving

114
Stopping the vehicle
Before switching off the engine, you can
engage position P or N to place the gearbox in
neutral.
In both cases, apply the parking brake to
immobilise the vehicle.If the selector is not in position P , when the
driver's door is opened or approximately
45 seconds after the ignition is switched
off, a warning message appears in the
screen.
F

R
eturn the selector to position P ; the
message disappears.
When driving on flooded roads or when
crossing a ford, proceed at walking pace.
Malfunction
or When the ignition is on, the lighting
of this warning light, accompanied
by an audible signal and a message
in the screen, indicates a gearbox
fault.
In this case, the gearbox goes into back-up
mode by staying in 3rd gear. You may feel a
substantial knock when changing from P to
R and from N to R . This will not cause any
damage to the gearbox.
Do not exceed 60 mph (100 km/h), local speed
restrictions permitting.
Contact a
CITROËN dealer or a qualified
workshop as soon as possible. There is a risk of damage to the gearbox:
-

i
f you press the accelerator and brake
pedals at the same time,
-
i
f you force the movement of the
selector from the P position to another
position when the battery is dead.
To reduce fuel consumption when at
a prolonged standstill with the engine
running (traffic jam, etc.), put the
selector in the N position and apply the
parking brake.
Driving

115
Gear shift indicator
System which reduces fuel consumption by
advising the driver when to change up.With an electronic or automatic gearbox,
the system is only active in manual mode.
Operation
Depending on the driving situation and your
vehicle's equipment, the system may advise
you to skip one (or more) gear(s). You can
follow this instruction without engaging the
intermediate gears.
Gearshift recommendations should not be
considered obligatory. The configuration of the
road, the amount of traffic and safety remain
determining factors when choosing the best
gear. The driver thus remains responsible
for deciding whether to follow or ignore the
system's instructions.
This function cannot be deactivated. Example:
-

Y
ou are in third gear.
-
Y
ou press the accelerator pedal.
-
T
he system may suggest that you engage
a higher gear.
The information appears in the instrument
panel in the form of an arrow. The system adapts its gear change
recommendation according to the
driving conditions (slope, load, etc.)
and the demands of the driver (power,
acceleration, braking, etc.).
The system never suggests:
-
e

ngaging first gear,
-
enga
ging reverse gear,
-
enga
ging a lower gear.
On vehicles fitted with a manual gearbox,
the arrow is accompanied by the
recommended gear.
6
Driving

116
Stop & Start
The Stop & Start system puts the engine
temporarily into standby - STOP mode - during
stops in the traffic (red lights, traffic jams, or
other...). The engine restarts automatically -
START mode - as soon as you want to move
off. Restarting occurs instantly, quickly and
silently.
Per fect for urban use, the Stop & Start system
reduces fuel consumption and exhaust
emissions as well as the noise level when
stationary.Operation
Going into engine STOP mode
For your comfort, during parking
manoeuvres, STOP mode is not available
for a few seconds after coming out of
reverse gear.
The STOP mode does not affect the
operation of vehicle systems such as
braking, power steering...
Never refuel with the engine in STOP
mode; you must switch off the ignition
using the key.With an electronic gearbox, the
"ECO" indicator illuminates in the
instrument panel and the engine
goes into standby when and the
brake pedal is pressed or the gear
selector is moved into position N
while the vehicle is stationary.
Special cases: STOP mode not
available
STOP mode is not invoked when:
-
T he driver's door is open.
-

T
he driver's seat belt is not fastened.
-

T
he engine is needed to maintain a
comfortable temperature in the passenger
compartment.
-

D
emisting is active.
-
S

ome special conditions (battery charge,
engine temperature, braking assistance,
climate control...) need it to control the
system.
The "ECO" warning light flashes for
a few seconds, then goes off.
This operation is perfectly normal.
Driving

117
Manual deactivation /
reactivation
In certain circumstances, such as the need
to maintain the temperature in the passenger
compartment, it may be useful to deactivate the
Stop & Start system.
The system can be deactivated at any time,
once the ignition is switched on.
If the engine is in STOP mode, it then restarts.
The Stop & Start system is reactivated
automatically every time the ignition is switched
on.Going into engine START mode
- you release the brake pedal with the gear selector in position A or M ,
-

y
ou are in position N with the brake pedal
released and you move the gear selector to
position A or M,
-
y

ou engage reverse.With an electronic gearbox, the
"ECO" warning light goes off and the
engine restarts automatically when:
Special cases: START mode
invoked automatically
As a safety measure or to maintain comfort
levels in the vehicle, START mode is invoked
automatically when:
-
Y

ou open the driver's door.
-
Y

ou unfasten the driver's seat belt.
-

T
he speed of the vehicle exceeds 2 mph
(3
km/h) with an electronic gearbox.
-
S

ome specific conditions (battery charge,
engine temperature, braking assistance,
climate control, etc.) need it to ensure
control of a system or the vehicle.
The "ECO" warning light flashes for
a few seconds, then goes off.
This operation is perfectly normal.
6
Driving

118
With button
Press this button to deactivate the system.
Deactivation is confirmed by the illumination of
the indicator light of the button and the display
of a message.
Pressing the button again reactivates the
system.
The indicator light of the button goes off,
accompanied by the display of a message.
With the touch screen
Press MENU.
In the Driving / Vehicle menu, activate/
deactivate " Stop and Star t System ".
Opening the bonnet
Driving on flooded roads
Before driving through a flooded road, it is
strongly recommended that you deactivate
the Stop & Start.
For more information on Driving advice ,
particularly on flooded roads, refer to the
corresponding section. Before doing anything under the bonnet,
deactivate the Stop & Start system to
avoid the risk of injury related to an
automatic change to START mode.
Malfunction
In the event of a fault in the system,
the indicator light in the "ECO OFF"
button flashes for a moment, then
illuminates continuously.
Have them checked by a
CITROËN dealer or a
qualified workshop.
In the event of a fault in STOP mode, the
vehicle may stall. All of the instrument panel
warning lights come on. It is then necessary to
switch the ignition off and to restart the engine
using the key.
The Stop & Start system requires a
12

V battery of specific technology and
specification.
All work on this type of battery must be
carried out only by a
CITROËN dealer or a
qualified workshop.
For more information on the 12 V batter y ,
refer to the corresponding section.
Driving
