Driving
Practical information In the event of a breakdown
Technical dataAudio and telematics
Alphabetical index
.
Contents

126
Deactivation / Activation
The function is deactivated or activated via the
vehicle configuration menu.
With audio system
In the "Personalisation -
Configuration " menu, activate/
deactivate " Parking sensors ".
With the touch screen
Press MENU.
In the " Driving / Vehicle " menu,
activate/deactivate " Parking
sensors ".
The function will be deactivated
automatically if a trailer is being towed or
a bicycle carrier is fitted (vehicle fitted with
a tow bar or bicycle carrier recommended
by
CITROËN).
Malfunction
or In the event of a system fault
when engaging the reverse gear,
this warning light is displayed in
the instrument cluster and/or a
message appears in the screen,
accompanied by an audible signal
(short beep).
Contact a
CITROËN dealer or a qualified
workshop.
In bad or wintry weather, ensure that the
sensors are not covered by mud, ice or
snow. When reverse gear is engaged, an
audible signal (long beep) indicates that
the sensors may be dirty.
Certain sound sources (motorcycle,
lorry, pneumatic drill, etc.) may trigger
the audible signals of the parking sensor
system.
Driving

139
Towing a trailer
Your vehicle is primarily designed for
transporting people and luggage, but it may
also be used for towing a trailer.We recommend the use of genuine
CITROËN tow-bars and their harnesses
that have been tested and approved from
the design stage of your vehicle, and that
the fitting of the tow-bar is entrusted to a
CITROËN dealer or a qualified workshop.
If the tow-bar is not fitted by a CITROËN
dealer, it must still be fitted in accordance
with the vehicle manufacturer's
instructions. Driving with a trailer places greater
demands on the towing vehicle and
requires extra care from the driver.
For more information on Driving advice
,
particularly when towing, refer to the
corresponding section.
Please respect the maximum authorised
towable weights indicated on the
registration certificate or in your vehicle’s
technical data.
Very cold climate
screen(s)
(Depending on the country of sale.)
Removable device(s) which prevent snow
accumulating at the radiator cooling fan.
Depending on the version, you have one or two
screens.
Fitting
F Place the very cold climate screen in front of the front bumper.
F

P
ress around its edge to engage its fixing
clips one by one.
Removing
F Use a screwdriver as a lever to release each of the fixings of each screen in turn.
Do not forget to remove the very cold
climate screen (or screens) in case of:
-

t
he ambient temperature exceeds
10°C,
-
w

hen towing,
-

S
peed above 75 mph (120 km/h).
Observe the legislation in force in the
country in which you are driving. For more information on Weights
(and the
towed loads which apply to your vehicle)
refer to the corresponding section.
7
Practical information

151
F Check that the compressor switch is at the "O " position.
F

U
ncoil fully the electric cable, stowed under
the compressor.
If after around 5 to 7 minutes the pressure
of 2 bars is not attained, this indicates
that the tyre is not repairable; contact a
CITROËN dealer or a qualified workshop
for assistance. F

P
lace the switch in the "
O" position.
F
R
emove the kit.
F

C

onnect the compressor's electrical
connector to the vehicle's 12 V socket.
F

S

witch on the ignition.
F
D
rive immediately for approximately
three miles (five kilometres), at reduced
speed (between 15 and 35 mph (20 and
60 km/h)), to plug the puncture.
F
S
top to check the repair and the tyre
pressure using the kit.
F

S

tart the compressor by turning the switch
to the " l" position until the pressure of the
tyre reaches 2.0 bars. The sealant product
is injected under pressure into the tyre; do
not disconnect the hose of the valve during
this operation (risk of blowback).
8
In the event of a breakdown

178
Towing your vehicle
F On the front bumper, unclip the cover by pressing on its left side.
F

S
crew the towing eye completely.
F

I
nstall the towing bar. With a manual transmission: move the
gear lever into neutral.
With an automatic or electronic gearbox,
place the gear selector into position N
.
Failure to observe this instruction could
result in damage to certain components
(braking, transmission...) and the absence
of braking assistance the next time the
engine is started.
F

U
nlock the steering by turning the ignition
key one notch and release the parking
brake.
F

S
witch on the hazard warning lamp on both
vehicles.
F

S
et off gently, drive slowly and for a short
distance.
Towing another vehicle
This towing is strictly prohibited (risk of
damaging your vehicle).
In the event of a breakdown

179
Engines and
specifications
The engine specifications (displacement, max.
power, max. speed, energy, CO
2 emissions,
etc.) associated with your vehicle are
mentioned in the registration certificate, and in
the commercial documents.
These characteristics correspond to the values
type-approved on a test bed, under conditions
defined in European legislation (Directive
1999/99/EC).
For more information, contact a
CITROËN
dealer or a qualified workshop.
Weights and towed
loads
The weights and towed loads relating to your
vehicle are stated in the registration certificate,
and in the sales documentation.
These values are also shown on the
manufacturer's nameplate or label.
For more information, contact a
CITROËN
dealer or a qualified workshop.
The mass in working order is equal to the
weight when empty + driver (75 kg).
The GTW values and the towable loads
listed are valid for a maximum altitude of
1,000


additional metres.
The weight of the braked trailer can be
increased, within the GTW limit, if the GV W
of the towing vehicle is reduced by an equal
amount.
The recommended nose weight corresponds
to the weight permitted on the tow-bar
(dismantlable with or without a tool).
GV W: Gross vehicle weight, the maximum
authorised vehicle weight.
GT W: Gross train weight High ambient temperatures may result
in a reduction in the per formance of the
vehicle to protect the engine. When the
ambient temperature is above 37°C, limit
the weight towed.
Towing with a towing vehicle which is only
slightly laden may negatively affect its
handling.
Towing a trailer increases the braking
distance.
The speed of a towing vehicle must not
exceed 62 mph (100 km/h) (comply with
the legislation in force in your country).
When the ambient temperature is high,
leaving the engine running for 1 to
2
minutes after stopping the vehicle to
allow it to cool is recommended.
9
Technical data

180
Petrol
EnginesPureTech 82PureTech 82 S&S V T i 115
Gearboxes Manual 5-speed
(BVM5) Electronic (5-speed)
(ETG5) Manual 5-speed
(BVM5) Automatic 6-speed
( E AT 6)
Code EB2 F MAEC5 F
Version variant types: DD... HMZ6HMZ6/PS NFP0
NFP6NFPT
Capacity (cm
3) 1,1 9 91,1 9 9 1,5 87
Max power: EU standard (kW)* 6060 85
Fuel Unleaded 91 RON to
98 RON Unleaded 91 RON to
98 RON Unleaded 91 RON to 98 RON
Braked trailer (within the GTW limit)
on a 10% or 12% gradient 450
500 750
Unbraked trailer 450450 580
Recommended towing bar weight 5555 55
* The maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation (Directive 1999/99/EC).
Technical data

181
Diesel
EngineHDi 92BlueHDi 100
Gearboxes Manual 5-speed
(BVM5) Manual 5-speed
(BVM5)
Code DV6 DM (euro 4)DV6 DDV6 FD
Version variant types: DD... 9HJC9HP0BHY6
Capacity (cm
3) 1,5 6 01,5 6 0
Max power: EU standard (kW)* 6873
Fuel DieselDiesel
Braked trailer (within the GTW limit)
on a 10% or 12% gradient 750
750
Unbraked trailer 580580
Recommended towing bar weight 5555
*

T

he maximum power corresponds to the value type approved on a engine bench, under conditions defined by European legislation (Directive
1999/99/EC).
9
Technical data

221

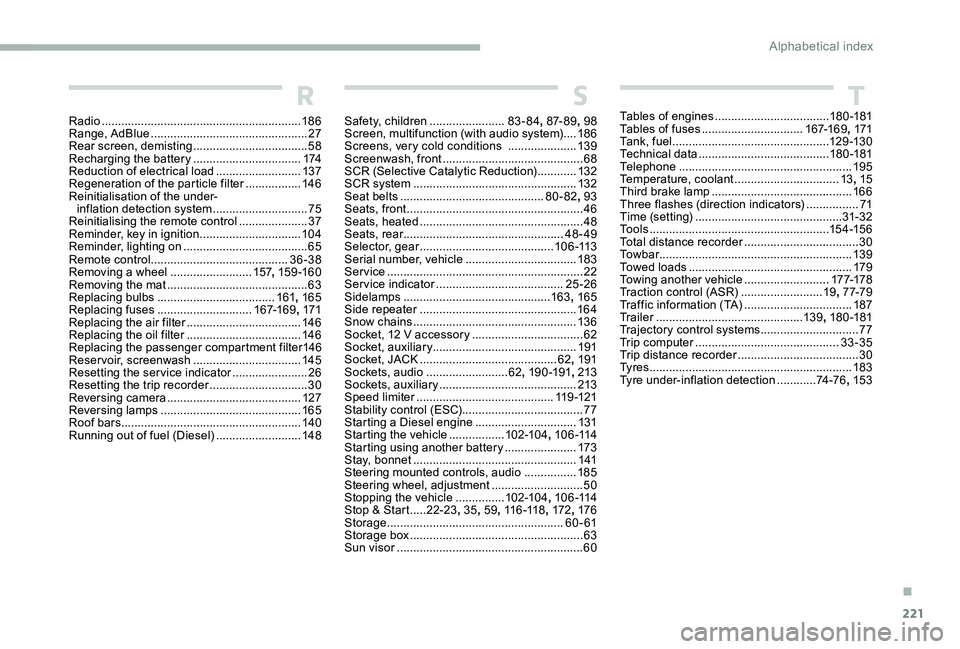

Radio ............................................................. 18 6
Range, AdBlue ................................................ 27
Rear screen, demisting


...................................58
Recharging the battery


.................................174
Reduction of electrical load


..........................137
Regeneration of the particle filter
.................146
Reinitialisation of the under- inflation detection system


.............................75
Reinitialising the remote control
..................... 37
R

eminder, key in ignition
...............................10

4
Reminder, lighting on
...................................... 65
R

emote control

.......................................... 36-38
Removing a wheel
.........................157, 15 9 -16 0
Removing the mat


........................................... 63
Replacing bulbs
.................................... 16

1, 165
Replacing fuses


............................. 167-169, 171
Replacing the air filter
................................... 14

6
Replacing the oil filter
................................... 14

6
Replacing the passenger compartment filter


146
Reservoir, screenwash


.................................145
Resetting the service indicator


.......................26
Resetting the trip recorder


..............................30
Reversing camera
...............................

..........127
Reversing lamps
..............................

.............165
Roof bars


....................................................... 140
Running out of fuel (Diesel)
..........................148Safety, children
.......................83-84, 87- 8 9 , 98
Screen, multifunction (with audio system)
....18 6
Screens, very cold conditions

.....................13

9
Screenwash, front


...........................................68
SCR (Selective Catalytic Reduction)


............132
SCR system
..................................................132
Seat belts


............................................80-82, 93
Seats, front
...............................

.......................46
Seats, heated


..................................................48
Seats, rear


.................................................48-49
Selector, gear


.........................................1 0 6 -113
Serial number, vehicle


..................................183
Service


............................................................22
Service indicator


.......................................25 -26
Sidelamps
............................................. 16

3, 165
Side repeater


................................................16 4
Snow chains


..................................................13 6
Socket, 12 V accessory
..................................62
Socket, auxiliary
............................................ 19

1
Socket, JACK


..........................................62, 191
Sockets, audio
......................... 62

, 19 0 -191, 213
Sockets, auxiliary
...............................

...........213
Speed limiter
.......................................... 11

9 -12 1
Stability control (ESC)..................................... 77
Starting a Diesel engine
............................... 13

1
Starting the vehicle
................. 10

2-104, 1 0 6 -114
Starting using another battery


......................173
Stay, bonnet


..................................................141
Steering mounted controls, audio
................ 18

5
Steering wheel, adjustment
............................ 50
S

topping the vehicle

...............102-104, 1 0 6 -114
Stop & Start


.....22-23 , 35, 59, 11 6 -118 , 172, 176
Storage


......................................................60 - 61
Storage box


.....................................................63
Sun visor
...............................

..........................60Tables of engines
...................................
180 -181
Tables of fuses ...............................167-169, 171
Ta n k , f u e l


................................................12 9 -13 0
Technical data


........................................180 -181
Telephone
..............................

.......................195
Temperature, coolant


................................13, 15
Third brake lamp


...........................................166
Three flashes (direction indicators)
................ 71
T

ime (setting)

.............................................31- 32
To o l s


.......................................................15 4 -15 6
Total distance recorder


...................................30
To w b a r
...............................

............................13 9
Towed loads


..................................................179
Towing another vehicle


..........................17 7-178
Traction control (ASR)


.........................19, 7 7-79
Traffic information (TA)


.................................187
Tr a i l e r
...............

..............................13 9, 18 0 -181
Trajectory control systems

..............................77
T

rip computer

............................................33-35
Trip distance recorder
..................................... 3

0
Ty r e s


..............................................................183
Tyre under-inflation detection


............74 -76, 153
STR
.
Alphabetical index
