INSTRUMENTS and CONTROLS Following this operation, if you wish
to disconnect the battery, lock the
v e h i c l e a n d w a i t a t l e a s t fi v e m i n -
utes for the zero reset to be taken
into account.
Maintenance indicator zero reset
After each service, the maintenance in-
dicator must be reset to zero.
To do this, carry out the following pro-
cedure:
switch off the ignition,
press and hold the trip distance re-
corder zero reset button,
switch on the ignition; the distance
recorder display begins a count-
down,
when the display indicates "=0" , re-
lease the button; the spanner disap-
pears.
The distance remaining may be
weighted by the time factor, depend-
ing on the driver's driving habits.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.
Service overdue
For 5 seconds after the ignition is
switched on,
t h e s p a n n e r fl a s h e s to
indicate that the service must be carried
out as soon as possible.
Example: the service is overdue by 300 km. For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains lit . Retrieving the service information
You can access the service information
at any time.
Press the trip distance recorder zero
reset button.
The service information is displayed for
a few seconds, then disappears.
Page 22 of 207
i
25
INSTRUMENTS and CONTROLS
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.
Engine oil level indicator
System which informs the driver of the
validity or invalidity of the engine oil
level.
This information is indicated for a few
seconds when the ignition is switched
on, after the service information.
Oil level correct
Lack of oil
Oil level gauge fault
Dipstick
T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f
"OIL" , linked with the service warning
light, accompanied by an audible signal
and a message on the multifunction dis-
play.
I f t h e l a c k o f o i l i s c o n fi r m e d b y a c h e c k
using the dipstick, it is essential that the
level is topped up to prevent damage to
the engine.
T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f "OIL--" .
Consult a CITROËN dealer.
Refer to the "Checks" section to locate
t h e d i p s t i c k a n d t h e o i l fi l l e r c a p o n y o u r
engine.
There are 2 marks on the
dipstick:
- A = max; never exceed
this level,
- B = min; top up the level
v i a t h e o i l fi l l e r c a p , u s -
ing the type of oil suited
to your engine.
Page 23 of 207
26
INSTRUMENTS and CONTROLS

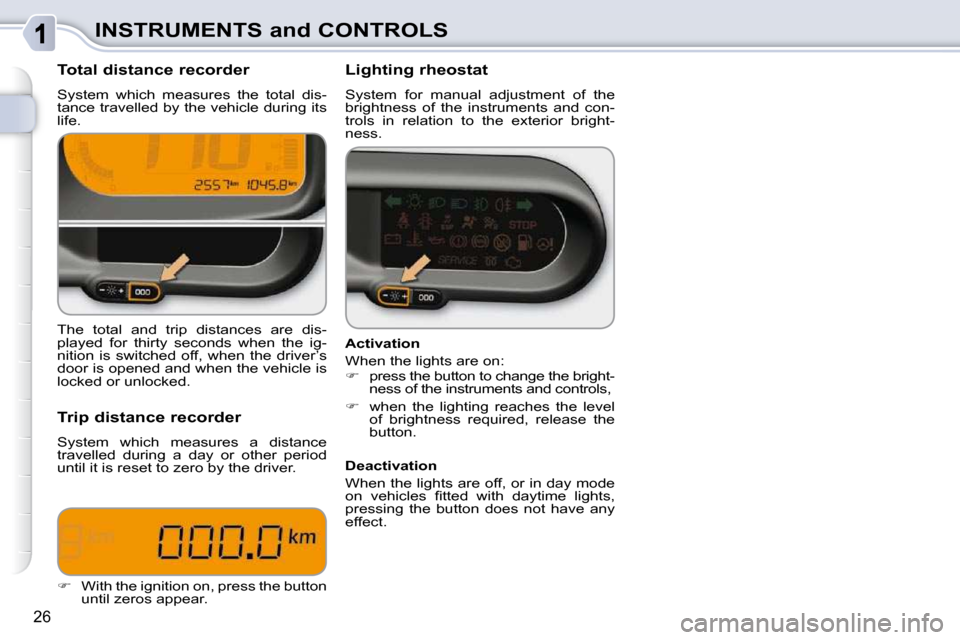

Total distance recorder
System which measures the total dis-
tance travelled by the vehicle during its
life. Lighting rheostat
System for manual adjustment of the
brightness of the instruments and con-
trols in relation to the exterior bright-
ness.
The total and trip distances are dis-
played for thirty seconds when the ig-
nition is switched off, when the driver’s
door is opened and when the vehicle is
locked or unlocked.
Trip distance recorder
System which measures a distance
travelled during a day or other period
until it is reset to zero by the driver.
With the ignition on, press the button
until zeros appear. Activation
When the lights are on:
press the button to change the bright-
ness of the instruments and controls,
when the lighting reaches the level
of brightness required, release the
button.
Deactivation
When the lights are off, or in day mode
o n v e h i c l e s fi t t e d w i t h d a y t i m e l i g h t s ,
pressing the button does not have any
effect.
Page 24 of 207
27
MULTIFUNCTION DISPLAYS
Displays on the screen
This displays the following information:
- the time,
- the date,
- t h e o u t s i d e t e m p e r a t u r e ( t h i s fl a s h e s if there is a risk of ice),
- the status of the accesses (doors, boot, etc.),
- the trip computer (refer to the end of the section).
Warning messages or information mes-
sages may appear temporarily. These
can be cleared by pressing the "ESC"
button.
(WITHOUT AUDIO EQUIPMENT)
Controls General menu
There are three display control buttons:
- "ESC" to abandon the operation in
progress,
- "MENU" to scroll through the men-
us or sub-menus,
- "OK" to select the menu or sub-
menu required.
Press the "MENU" button to scroll
through the various menus of the
general menu :
- v e h i c l e c o n fi g u r a t i o n ,
- options,
- display settings,
- languages,
- units.
Press the "OK" button to select the
menu required.
Page 25 of 207
!
i
28
MULTIFUNCTION DISPLAYS
V e h i c l e c o n fi g u r a t i o n
Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not ac-
tive, faulty). Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-Brasil,
Türkçe, Deutsch, English, Espanol).
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100km, mpg or
km/l).
Once you have selected a setting,
press the "OK" button to change its
value.
Wait for approximately ten sec-
onds without any action to allow
the changed data to be recorded or
press the "ESC" button to cancel.
The display then returns to the normal
display.
O n c e t h e " V e h i c l e c o n fi g u r a t i o n " m e n u
has been selected, you can activate or
deactivate the following equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- "guide-me-home" lighting (refer to the "Visibility" section). Once the fuel consumption unit has
been changed to mpg, the informa-
tion relating to speed and distance
also changes to miles.
For safety reasons, it is imperative
t h a t c o n fi g u r a t i o n o f t h e m u l t i f u n c -
tion displays by the driver takes
place when stationary.
Page 26 of 207
29
MULTIFUNCTION DISPLAYS
MONOCHROME SCREEN A
(WITH AUDIO EQUIPMENT)
Controls
Displays on the screen
This displays the following information:
- the time,
- the date,
- t h e o u t s i d e t e m p e r a t u r e ( t h i s fl a s h e s if there is a risk of ice),
- the status of the accesses (doors, boot...),
- the audio sources (radio, CD...),
- the trip computer (refer to the end of the section).
Warning messages or information mes-
sages may appear temporarily. These
can be cleared by pressing the "ESC"
button. General menu
Press the "MENU" button to gain
access to the general menu , then
press the " " or " " buttons to
scroll through the various menus:
- radio-CD,
- v e h i c l e c o n fi g u r a t i o n ,
- options,
- display settings,
- languages,
- units.
Press the "OK" button to select the
menu required.
From the audio equipment control pan-
el, you can:
press the "MENU" button to gain
access to the general menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "MODE" button to change
the permanent application (trip com-
puter, audio source ...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress. Radio-CD
With the audio equipment switched on,
once the "Radio-CD" menu has been
selected you can activate or deactivate
the functions linked with use of the radio
(RDS, REG) or the CD (introscan, shuf-
fl e , C D r e p e a t ) .
For further details concerning the "Radio-
CD" application, refer to the Audio system
part of the "Audio and Telematics" section.
Page 27 of 207
!
i
30
MULTIFUNCTION DISPLAYS Once the fuel consumption unit has
been changed to mpg, the informa-
tion relating to speed and distance
also changes to miles.
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).
Once you have selected a setting,
press the " " or " " buttons to
change its value.
Press the " " or " " buttons to
switch respectively to the previous
or next setting.
Press the "OK" button to record the
change and return to the normal dis-
play or press the "ESC" button to
cancel.
V e h i c l e c o n fi g u r a t i o n
Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not ac-
tive, faulty).
O n c e t h e " V e h i c l e C o n fi g u r a t i o n " m e n u
has been selected, you can activate or
deactivate the following equipment:
- wiper linked with reverse gear (refer
to the "Visibility" section),
- "guide-me-home" lighting (refer to the "Visibility" section).
For safety reasons, it is imperative
t h a t c o n fi g u r a t i o n o f t h e m u l t i f u n c -
tion displays by the driver takes
place when stationary.
Page 28 of 207
MULTIFUNCTION DISPLAYS
MONOCHROME SCREEN
A LINKED TO THE MYWAY
SYSTEM COLOUR SCREEN
General menu
Displays on screen A
This displays the following information:
- t h e o u t s i d e t e m p e r a t u r e ( t h i s fl a s h - es if there is a risk of ice),
- the trip computer (refer to the end of the section).
Warning messages or information mes-
sages may appear temporarily. These
can be cleared by pressing the "ESC"
button. Controls
There are three display control buttons:
- "ESC" to abandon the operation in
progress,
- "MENU" to scroll through the men-
us or sub-menus,
- "OK" to select the menu or sub-
menu required.
Press the "MENU" button to scroll
through the various menus of the
general menu :
- v e h i c l e c o n fi g u r a t i o n ,
- options,
- languages,
- units.
Press the "OK" button to select the
menu required.
V e h i c l e c o n fi g u r a t i o n
O n c e t h e " V e h i c l e c o n fi g u r a t i o n " m e n u
has been selected, you can activate or
deactivate the following equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- "guide-me-home" lighting (refer to the "Visibility" section),
Page 29 of 207
i
i
!
!
32
MULTIFUNCTION DISPLAYS
Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not ac-
tive, faulty).
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or km/l). Displays on MyWay system
colour screen
"SETUP" menu
Date and time
This menu allows you to adjust the date
and time, and their format (refer to the
"Audio and telematics section").
Display
This menu allows you to adjust the
brightness of the display, the display
contrast and the colour of the map (day/
night and auto mode).
System parameters
This menu allows you to restore the fac-
tory settings, to display the software ver-
sion and to activate the scrolling texts.
This displays the following information:
- time,
- date,
- audio functions,
- guidance system information.
The chosen language will also be
used on the MyWay system colour
screen.
Once the fuel consumption unit
has been changed to mpg, the
information relating to speed and
distance also changes to miles.
For safety reasons, it is imperative
t h a t c o n fi g u r a t i o n o f t h e m u l t i f u n c -
tion displays by the driver takes
place when stationary. For safety reasons, it is imperative
t h a t c o n fi g u r a t i o n o f t h e m u l t i f u n c -
tion displays by the driver takes
place when stationary.
Press the SETUP button to access the
"SETUP" menu. It gives you access to
the following functions:
- Date and time,
- Display,
- System parameters.
Page 30 of 207
33
MULTIFUNCTION DISPLAYS
Displays on the screen
This displays the following information:
- the time,
- the date,
- t h e o u t s i d e t e m p e r a t u r e ( t h i s fl a s h - es if there is a risk of ice),
- the status of the accesses (doors, boot, etc.),
- the audio sources (radio, CD, USB socket, etc.),
- the trip computer (refer to the end of the section).
Warning messages or information mes-
sages may appear temporarily. These
can be cleared by pressing the "ESC"
button. From the audio equipment control panel,
you can:
press the "MENU" button to gain
access to the general menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "MODE" button to change
the permanent application (trip com-
puter, audio source...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress. General menu
Press the "MENU" button to gain
access to the general menu :
- audio functions,
- the trip computer (refer to the end of the section),
- p e r s o n a l i s a t i o n - c o n fi g u r a t i o n ,
Press the " " or " " buttons to se-
l e c t t h e m e n u r e q u i r e d , t h e n c o n fi r m
by pressing the "OK" button.
MONOCHROME SCREEN C
(WITH AUDIO EQUIPMENT)
Controls
"Audio functions" menu
With the audio equipment switched on,
once this menu has been selected you
can activate or deactivate the functions
linked with use of the radio (RDS, REG,
R a d i o T e x t ) , t h e C D ( i n t r o s c a n , s h u f fl e ,
CD repeat) or the MP3 player (USB
socket).
For further details concerning the "Audio
functions" application, refer to the Audio
systems part of the "Audio and Telematics"
section.
