209
For more information on the operation and use of your LPG vehicle, refer to the specific insert attached to the other vehicle documents.

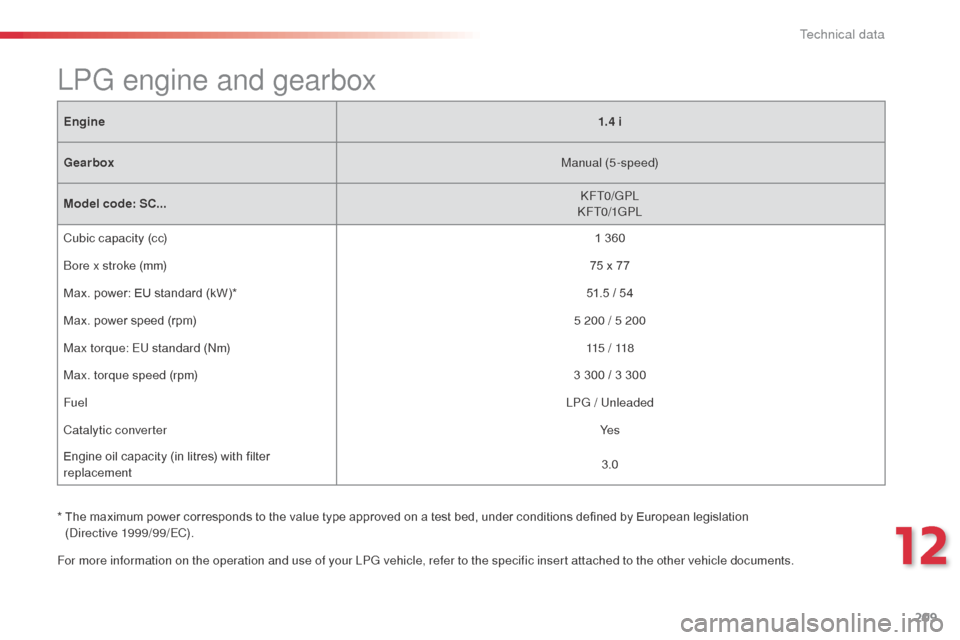

LPG engine and gearbox
Engine1.4 i
Gearbox Manual (5-speed)
Model code: SC...
kF

T0/GPL
kF

T0/1GPL
Cubic capacity (cc) 1 360
bo

re x stroke (mm) 75 x 77
Max. power: EU standard (kW)* 51.5 / 54
Max. power speed (rpm) 5 200 / 5 200
Max torque: EU standard (
nm

) 115 / 118
Max. torque speed (rpm) 3 300 / 3 300
Fuel LPG / Unleaded
Catalytic converter Ye s
Engine oil capacity (in litres) with filter
replacement 3.0
*

T
he maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation
(
d

irective 1999/99/EC).
12
Technical data

210
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load..
LPG weights and towed loads (in kg)
Engine1.4 i
Gearbox Manual (5-speed)
Model code: SC...
kF

T0/GPL
kF

T0/1GPL
-

U
nladen weight 1 070
-

K
erb weight 1 145
-

G
ross vehicle weight
(GV W) 1 529
-

G
ross train weight (GTW)
o

n a 12 % slope 2 329
-

B
raked trailer (within GTW limit)
o

n a 12 % slope 1 000
-

B
raked trailer* (with load transfer within the
GTW limit) 1 000
-
U

nbraked trailer 500
-

R
ecommended nose weight 44
*

T
he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Technical data

211
* The maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation (d irective 1999/99/EC).

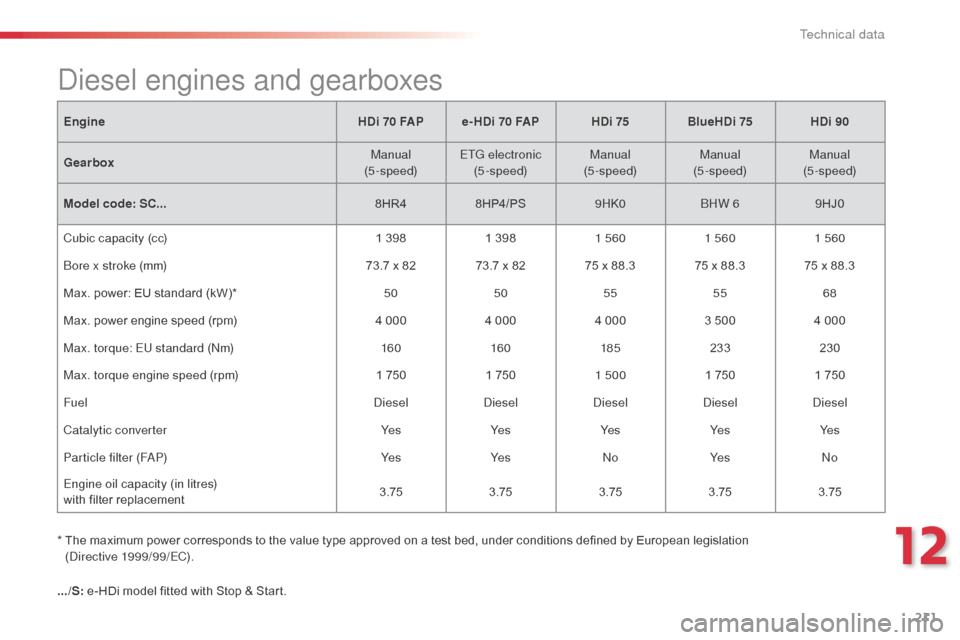

diesel engines and gearboxes
Engine HDi 70 FAP e- HDi 70 FAPHDi 75 BlueHDi 75 HDi 90
Gearbox Manual
(5-speed) ETG electronic
(5-speed) Manual
(5-speed) Manual
(5-speed) Manual
(5-speed)
Model code: SC... 8HR48HP4/PS 9H
k

0
bH
W 69HJ0
Cubic capacity (cc) 1 3981 3981 560 1 5601 560
bo

re x stroke (mm) 73.7 x 82 73.7 x 82 75 x 88.3 75 x 88.3 75 x 88.3
Max. power: EU standard (kW)* 5050555568
Max. power engine speed (rpm) 4 0004 0004 000 3 5004 000
Max. torque: EU standard (
nm

)160160 185233 230
Max. torque engine speed (rpm) 1 7501 7501 500 1 7501 750
Fuel
die

sel
die
sel
die
sel
die
sel
die
sel
Catalytic converter Ye sYe sYe sYe sYe s
Particle filter (F
aP

) Ye sYe s
n

oYe s
n

o
Engine oil capacity (in litres)
with filter replacement 3.75
3.753.753.753.75
.../S: e-HDi model fitted with Stop & Start.
12
Technical data

212
.../S: e-HDi model fitted with Stop & Start.
*
T
he maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation
(
d
irective 1999/99/EC).
Engine
HDi 90 FAPe- HDi 90 FAP BlueHDi 100e- HDi 115 FAP
Gearbox Manual
(5-speed) Manual
(5-speed) ETG electronic
(6-speed) Manual
(5-speed) Manual
(6-speed)
Model code: SC... 9HP09HP k
/
S
9HP8/PS
bH
Y 6 / S
9HR8/S
Cubic capacity (cc) 1 5601 5601 5601 560
bo
re x stroke (mm)
75 x 88.375 x 88.375 x 88.3 75 x 88.3
Max. power: EU standard (kW)* 6868 7384
Max. power engine speed (rpm) 4 0004 000 3 7503 600
Max. torque: EU standard (
nm
)
230 230254270
Max. torque speed (rpm) 1 7501 7501 7501 750
Fuel
die
sel
die
sel
die
sel
die
sel
Catalytic converter Ye sYe sYe sYe s
Particle filter (F
aP
)
Ye sYe sYe sYe s
Engine oil capacity (in litres)
with filter replacement 3.75
3.753.753.75
diesel engines and gearboxes
Technical data

213
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

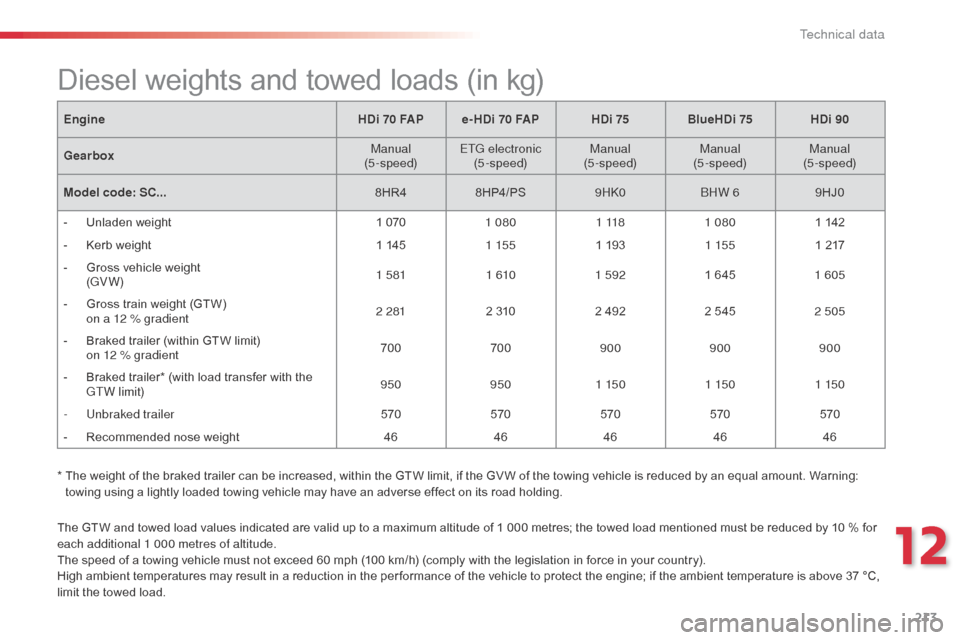

Diesel weights and towed loads (in kg)
EngineHDi 70 FAP e- HDi 70 FAPHDi 75 BlueHDi 75 HDi 90
Gearbox Manual
(5-speed) ETG electronic
(5-speed) Manual
(5-speed) Manual
(5-speed) Manual
(5-speed)
Model code: SC... 8HR48HP4/PS 9H
k

0
bH
W 69HJ0
-

U
nladen weight 1 0701 080 1 1181 080 1 142
-

K
erb weight 1 1451 155 1 1931 155 1 217
-

G
ross vehicle weight
(GV W) 1 581
1 6101 592 1 645 1 605
-

G
ross train weight (GTW)
o

n a 12 % gradient 2 281
2 3102 492 2 545 2 505
-

B
raked trailer (within GTW limit)
o

n 12 % gradient 700
700900 900900
-

B
raked trailer* (with load transfer with the
GTW limit) 950
9501 150 1 1501 150
-
U

nbraked trailer 570570570570570
-

R
ecommended nose weight 4646464646
*

T
he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount. Warning:
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
12
Technical data

214
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
Diesel weights and towed loads (in kg)
EngineHDi 90 FAPe- HDi 90 FAP BlueHDi 100e- HDi 115 FAP
Gearbox Manual
(5-speed) Manual
(5-speed) ETG electronic
(6-speed) Manual
(5-speed) Manual
(6-speed)
Model code: SC... 9HP09HP
k
/
S9HP8/PS
bH

Y 6 / S9HR8/S
-

U
nladen weight 1 0801 0851 090 1 0851 090
-

K
erb weight 1 1551 160 1 1651 160 1 165
-

G
ross vehicle weight
(GV W) 1 608
1 6251 634 1 6521 648
-

G
ross train weight (GTW)
o

n a 12 % slope 2 508
2 5252 534 2 5522 548
-

B
raked trailer (within the GTW limit)
o

n a 12 % slope 900
900900900900
-

B
raked trailer* (with transfer of load within
the GTW limit) 1 150
1 1501 1501 1501 150
-
U

nbraked trailer 570570570570570
-

R
ecommended nose weight 4646464646
*

T
he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount. Warning:
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Technical data

215

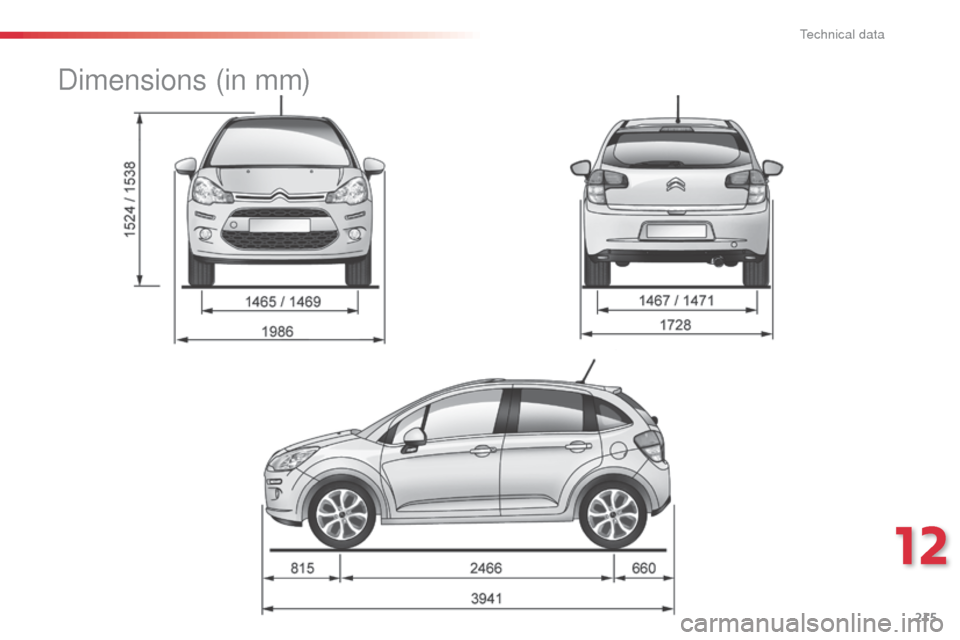

dimensions (in mm)
12
Technical data

216
Identification markings
B. Vehicle identification number on the bottom edge of the windscreen aper ture.
This number is indicated on a self-adhesive
label which is visible through the windscreen. C. Manufacturer's label.
The self-destroying label on the left hand
centre pillar carries the following information.
-

t
he name of the manufacturer,
-
t
he European type approval number,
- t he vehicle identification number (VIn) ,
- t he gross vehicle weight,
-

t
he gross train weight,
-

t
he maximum front axle weight,
-

t
he maximum rear axle weight.-

t
he tyre pressures, for unladen and laden
conditions,
-
t
he tyre sizes (including the load index and
speed rating of the tyre),
-
t
he spare tyre inflation pressure,
-
t
he paint colour code.
The tyre pressures must be checked
when the tyres are cold, at least once
a month.
Low tyre pressures increase fuel
consumption.
A.

V
ehicle identification number (VIN)
under the bonnet.
This number is engraved on the bodywork near
the passenger compartment filter. Various visible markings for the identification of your vehicle.
D. Tyre/paint label.
This label on the left centre pillar, driver's side,
carries the following information:
Technical data

217

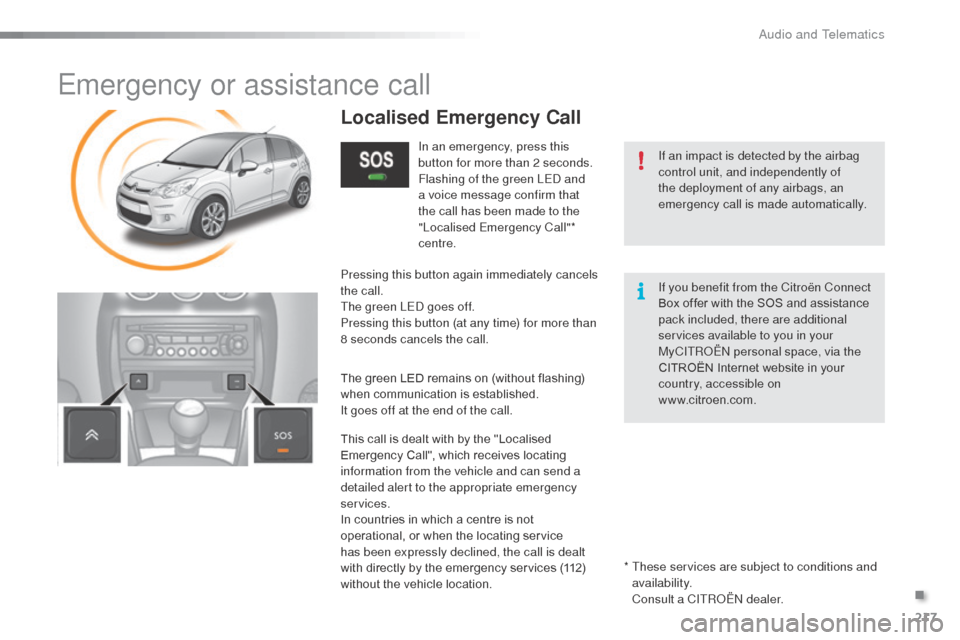

Emergency or assistance call
If an impact is detected by the airbag
control unit, and independently of
the deployment of any airbags, an
emergency call is made automatically.
Localised Emergency Call
In an emergency, press this
button for more than 2 seconds.
Flashing of the green LE
d
and
a voice message confirm that
the call has been made to the
"Localised Emergency Call"*
centre.
Pressing this button again immediately cancels
the call.
The green LE
d

goes off.
Pressing this button (at any time) for more than
8 seconds cancels the call.
The green LED remains on (without flashing)
when communication is established.
It goes off at the end of the call.
This call is dealt with by the "Localised
Emergency Call", which receives locating
information from the vehicle and can send a
detailed alert to the appropriate emergency
services.
In countries in which a centre is not
operational, or when the locating service
has been expressly declined, the call is dealt
with directly by the emergency services (112)
without the vehicle location. *

T
hese services are subject to conditions and
availability.
C

onsult a CITR
oËn d
ealer.
If you benefit from the Citroën Connect
Box offer with the SOS and assistance
pack included, there are additional
services available to you in your
MyCITR
oËn

personal space, via the
CITROËN Internet website in your
country, accessible on
www.citroen.com.
.
audio and Telematics

218
Localised Assistance Call
If you purchased your vehicle outside
the CITROËN dealer network, we
invite you to have a dealer check the
configuration of these services and, if
desired, modified to suit your wishes.
In a multi-lingual country, configuration
is possible in the official national
language of your choice.
For technical reasons, particularly
to improve the quality of Telematic
services to customers, the
manufacturer reserves the right to
carry out updates to the vehicle's
on-board telematic system.
Press this button for more than
2 seconds to request assistance
if the vehicle breaks down.a
voice message confirms that
the call has been started*.
Pressing this button again immediately cancels
the request.
The cancellation is confirmed by a voice
message.
Operation of the system
When the ignition is switched
on, the green LEd comes on for
3 seconds indicating that the
system is operating correctly.
If the orange LE
d

is on continuously: the
backup battery must be replaced.
In either case, contact a CITR
oËn

dealer.
If the orange LE
d

flashes: there
is a system fault.
*

T

hese services are subject to conditions and
availability.
C

onsult a CITR
oËn d
ealer.
Audio and Telematics
