Page 141 of 282
119
IX
D R I V I N G
CRUISE CONTROL
System which automatically main-
tains the vehicle speed programmed
by the driver, without any action on
the accelerator pedal.
The cruise control is switched on
manually: the vehicle speed must be
at least 25 mph (approx. 40 km/h)
and you must engage:
- fourth gear on a manual gear-box,
- second gear, in sequential mode, on an electronic gearbox or au-
tomatic gearbox,
- position A on an electronic gear-
box or D on an automatic gear-
box.
The cruise control cannot, in any cir-
cumstances, take the place of the
observance of speed limits or of the
vigilance and responsibility of the
driver. Steering wheel controls
The cruise control switches are lo-
cated on the left-hand side of the
steering wheel.
Displays on the instrument panel
The programmed information is
grouped together in zone
A of the
instrument panel display. Programming
Rotate the control
1 to the "REG"
position.
Activation
On selection of the function via con-
trol 1, no cruise speed has yet
been memorised.
Once the desired speed has been
reached using the accelerator, press
button 2 or button 4 . The cruise
speed is then memorised. It is dis-
played in zone A of the instrument
panel.
You can then release the accelera-
tor pedal. The vehicle will automati-
cally keep to the speed chosen.
The speed of your vehicle may vary
slightly in relation to that memo-
rised.
You can adjust the memorised speed
on the instrument panel display by
pressing on:
button 4 to increase the speed,
button 2 to decrease the speed.
Successive presses modify the
cruise speed in steps of 1 mph and a
sustained press in steps of 3 mph.
Page 142 of 282
120
IX
D R I V I N G
Deactivation
Either by pressing on the brake
pedal or on the clutch pedal.
Or by pressing button 3 .
Or if either the ESP or the ASR
system is active.
The cruise control is not active if the
gear lever is in neutral.
These actions cause the information
"OFF" to appear on the instrument
panel display.
These actions do not cancel the
cruise speed which remains dis-
played in the instrument panel.
Reactivation
By recall of the memorised
speed
After a disengagement, press on button 3 . Your vehicle automati-
cally returns to the memorised
cruise speed which is displayed
in zone A .
If the memorised cruise speed is higher than the current speed,
the vehicle will accelerate to
reach the former.
By selection of the current
speed
Press on button 2 or 4 once the
desired speed has been reached.
The information "OFF" will then
disappear from the instrument
panel display. Overriding the programmed
speed
During the operation of cruise con-
trol, it is always possible to use the
accelerator to go faster than the
cruise speed (for example to over-
take another vehicle). The speed
displayed in zone
A fl a s h e s .
You have only to release the accel-
erator pedal to return to the cruise
speed.
Return to normal driving
By an action on the control 1 from
position "REG" to position 0 .
By the engine stopping.
The cruise speed previously chosen
is no longer memorised. Operating fault
If there is a malfunction, a mes-
sage will display accompanied by
an audible signal and lighting of the
service warning lamp.
Have it checked by a CITROËN
dealer.
If during the operation of cruise
control, the system is unable to
keep within the memorised speed
(for example on a steep descent),
t h e n t h e s p e e d fl a s h e s . A d a p t y o u r
speed as necessary. Cruise control should only be used
when the driving conditions allow
you to drive at a constant speed.
D o n o t u s e i t i n h e a v y t r a f fi c , o r o n
dangerous or slippery roads.
The driver must remain attentive
and in full control of his vehicle.
You are recommended to keep
your feet within range of the ped-
als.
To avoid any risk of interfering with
the pedals:
- c h e c k t h a t t h e fl o o r m a t i s c o r -
rectly positioned,
- n e v e r u s e m o r e t h a n o n e fl o o r mat.
Page 144 of 282
122
IX
D R I V I N G
VISUAL AND AUDIBLE FRONT AND/OR REAR PARKING ASSISTANCE
System consisting of four proximity
sensors, installed in the front and/or
rear bumper.
It detects any obstacle (person, ve-
hicle, tree, barrier...) located behind
the vehicle, however, it will not be
able to detect obstacles located im-
mediately below the bumper.
An object, such as a stake, a road-
works cone or any other similar ob-
ject may be detected at the start of
the manoeuvre but may no longer
be detected when the vehicle moves
nearer to it. The parking assistance is
switched
off :
- when you exit reverse gear,
- when the speed is higher than 6 mph (10 km/h) in forward gear,
- when the vehicle has been sta- tionary for more than three sec-
onds in forward gear.
The parking assistance system
cannot, in any circumstances, re-
place the need for vigilance and
responsibility on the part of the
driver.
The parking assistance is
switched
on :
- by engaging reverse gear,
- at a speed below 6 mph (10 km/h) in forward gear.
This is accompanied by an audible
signal and/or displaying of the vehi-
cle on the multifunction screen.
The proximity information is indicat-
ed by:
- an audible signal which be- comes more rapid as the vehicle
approaches the obstacle,
- a diagram on the multifunction screen, with blocks which move
closer to the vehicle.
The obstacle is located in relation to
the emission of the audible signal by
the speakers; front or rear and right
or left.
When the distance between the ve-
hicle and the obstacle is less than
a p p r o x i m a t e l y t w e n t y - fi v e c e n t i m e -
tres, the audible signal becomes
continuous and/or the "Danger"
symbol appears, depending on the
multifunction screen version.
Page 145 of 282
123
IX
D R I V I N G
In bad weather or in winter, ensure
that the sensors are not covered
with mud, ice or snow. When re-
verse gear is engaged, an audible
signal (long beep) indicates that
the sensors may be dirty.
Reactivation
Press button A again, the warn-
ing lamp switches off, the system
is reactivated.
Deactivation Operating fault
If an operating fault occurs, this warn-
ing lamp is displayed on the instrument
panel and/or a message appears on
the multifunction screen, accompa-
nied by an audible signal (short beep),
when reverse gear is engaged.
Consult a CITROËN dealer.
Press button A , the warning lamp
comes on, the system is fully de-
activated.
The system will be deactivated au-
tomatically when a trailer is being
towed or when a bicycle carrier is
fi t t e d ( v e h i c l e fi t t e d w i t h a t o w b a r
or bicycle carrier recommended by
CITROËN).
Page 196 of 282
172
11
22
10101111
131314141515
33445566778899
1212

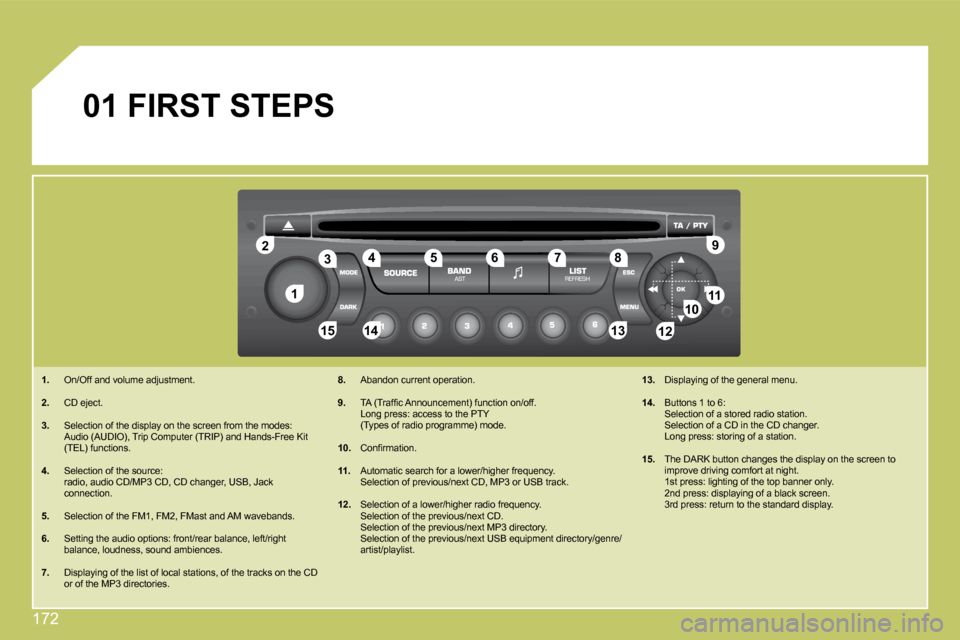

01 FIRST STEPS
1. On/Off and volume adjustment.
2. CD eject.
3. Selection of the display on the screen from the modes: Audio (AUDIO), Trip Computer (TRIP) and Hands-Free Kit (TEL) functions.
4. Selection of the source: r a d i o , a u d i o C D / M P 3 C D , C D c h a n g e r , U S B , J a c k connection.
5. Selection of the FM1, FM2, FMast and AM wavebands.
6. S e t t i n g t h e a u d i o o p t i o n s : f r o n t / r e a r b a l a n c e , l e f t / r i g h t balance, loudness, sound ambiences.
7. D i s p l a y i n g o f t h e l i s t o f l o c a l s t a t i o n s , o f t h e t r a c k s o n t h e C D or of the MP3 directories.
8. Abandon current operation.
9. T A ( T r a f fi c A n n o u n c e m e n t ) f u n c t i o n o n / o f f . L o n g p r e s s : a c c e s s t o t h e P T Y ( T y p e s o f r a d i o p r o g r a m m e ) m o d e .
10. C o n fi r m a t i o n .
11. A u t o m a t i c s e a r c h f o r a l o w e r / h i g h e r f r e q u e n c y . S e l e c t i o n o f p r e v i o u s / n e x t C D , M P 3 o r U S B t r a c k .
12. S e l e c t i o n o f a l o w e r / h i g h e r r a d i o f r e q u e n c y . Selection of the previous/next CD. Selection of the previous/next MP3 directory. S e l e c t i o n o f t h e p r e v i o u s / n e x t U S B e q u i p m e n t d i r e c t o r y / g e n r e /artist/playlist.
13. D i s p l a y i n g o f t h e g e n e r a l m e n u .
14. B u t t o n s 1 t o 6 : Selection of a stored radio station. S e l e c t i o n o f a C D i n t h e C D c h a n g e r . L o n g p r e s s : s t o r i n g o f a s t a t i o n .
15. T h e D A R K b u t t o n c h a n g e s t h e d i s p l a y o n t h e s c r e e n t o i m p r o v e d r i v i n g c o m f o r t a t n i g h t . 1 s t p r e s s : l i g h t i n g o f t h e t o p b a n n e r o n l y . 2 n d p r e s s : d i s p l a y i n g o f a b l a c k s c r e e n . 3rd press: return to the standard display.
Page 197 of 282
173

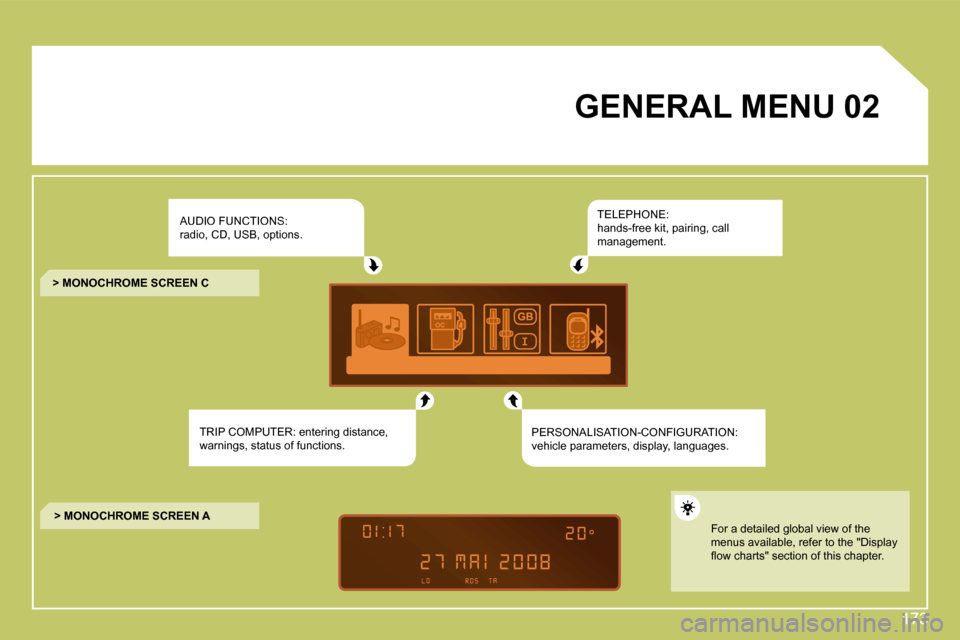

02 GENERAL MENU
AUDIO FUNCTIONS: r a d i o , C D , U S B , o p t i o n s .
T R I P C O M P U T E R : e n t e r i n g d i s t a n c e , w a r n i n g s , s t a t u s o f f u n c t i o n s .
TELEPHONE: h a n d s - f r e e k i t , p a i r i n g , c a l l m a n a g e m e n t .
PERSONALISATION-CONFIGURATION: v e h i c l e p a r a m e t e r s , d i s p l a y , l a n g u a g e s .
> MONOCHROME SCREEN C
> MONOCHROME SCREEN A F o r a d e t a i l e d g l o b a l v i e w o f t h e menus available, refer to the "Display fl o w c h a r t s " s e c t i o n o f t h i s c h a p t e r .
Page 198 of 282
174
11
22
33
44
22
44
33
11

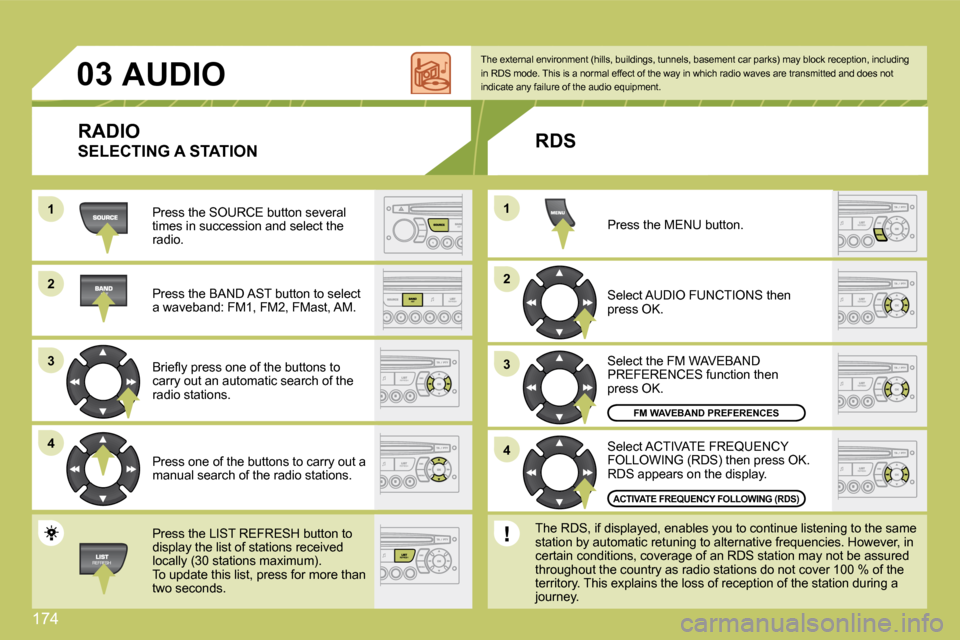

03 AUDIO
Press the SOURCE button several times in succession and select the radio.
P r e s s t h e B A N D A S T b u t t o n t o s e l e c t a waveband: FM1, FM2, FMast, AM.
B r i e fl y p r e s s o n e o f t h e b u t t o n s t o carry out an automatic search of the radio stations.
Press one of the buttons to carry out a manual search of the radio stations.
Press the LIST REFRESH button to display the list of stations received locally (30 stations maximum). To update this list, press for more than two seconds.
S e l e c t A C T I V A T E F R E Q U E N C Y FOLLOWING (RDS) then press OK. RDS appears on the display.
S e l e c t t h e F M W A V E B A N D PREFERENCES function then press OK.
Select AUDIO FUNCTIONS then press OK.
Press the MENU button.
FM WAVEBAND PREFERENCES
ACTIVATE FREQUENCY FOLLOWING (RDS)
T h e e x t e r n a l e n v i r o n m e n t ( h i l l s , b u i l d i n g s , t u n n e l s , b a s e m e n t c a r p a r k s ) m a y b l o c k r e c e p t i o n , i n c l u d i n g in RDS mode. This is a normal effect of the way in which radio waves are transmitted and does not indicate any failure of the audio equipment.
RDS
T h e R D S , i f d i s p l a y e d , e n a b l e s y o u t o c o n t i n u e l i s t e n i n g t o t h e s a m e s t a t i o n b y a u t o m a t i c r e t u n i n g t o a l t e r n a t i v e f r e q u e n c i e s . H o w e v e r , i n c e r t a i n c o n d i t i o n s , c o v e r a g e o f a n R D S s t a t i o n m a y n o t b e a s s u r e d t h r o u g h o u t t h e c o u n t r y a s r a d i o s t a t i o n s d o n o t c o v e r 1 0 0 % o f t h e t e r r i t o r y . T h i s e x p l a i n s t h e l o s s o f r e c e p t i o n o f t h e s t a t i o n d u r i n g a journey.
RADIO
SELECTING A STATION
Page 199 of 282
175
11
22
11
22
S o m e a n t i - p i r a t i n g s y s t e m s , o n o r i g i n a l d i s c s o r C D s c o p i e d u s i n g a p e r s o n a l r e c o r d e r , m a y c a u s e f a u l t s w h i c h a r e n o r e fl e c t i o n o n t h e q u a l i t y o f t h e o r i g i n a l player. W i t h o u t p r e s s i n g t h e E J E C T b u t t o n , i n s e r t a C D i n t h e p l a y e r , p l a y b e g i n s a u t o m a t i c a l l y .
To play a disc which has already been inserted, press the SOURCE button several times in succession and select CD.
Press one of the buttons to select a t r a c k o n t h e C D . Press the LIST REFRESH button to d i s p l a y t h e l i s t o f t r a c k s o n t h e C D . Press and hold one of the buttons for fast forward or rewind play.
Insert an MP3 compilation in the player. The audio equipment searches for all of the music t r a c k s , w h i c h m a y t a k e a n y t h i n g b e t w e e n a f e w s e c o n d s a n d s e v e r a l t e n s o f s e c o n d s , b e f o r e p l a y b e g i n s .
O n a s i n g l e d i s c , t h e C D p l a y e r c a n r e a d u p t o 2 5 5 M P 3 fi l e s s p r e a d o v e r 8 d i r e c t o r y l e v e l s . H o w e v e r , i t i s a d v i s a b l e t o k e e p t o a l i m i t o f two levels to reduce the access time before the CD is played. W h i l e t h e C D i s b e i n g p l a y e d , t h e d i r e c t o r y fl o w c h a r t i s n o t f o l l o w e d . A l l o f t h e fi l e s a r e d i s p l a y e d o n a s i n g l e l e v e l .
To play a disc which has already been inserted, press the SOURCE button several times in succession and select CD.
Press one of the buttons to select a t r a c k o n t h e C D . Press the LIST REFRESH button to display the list of directories of the MP3 compilation. Press and hold one of the buttons for fast forward or rewind play.

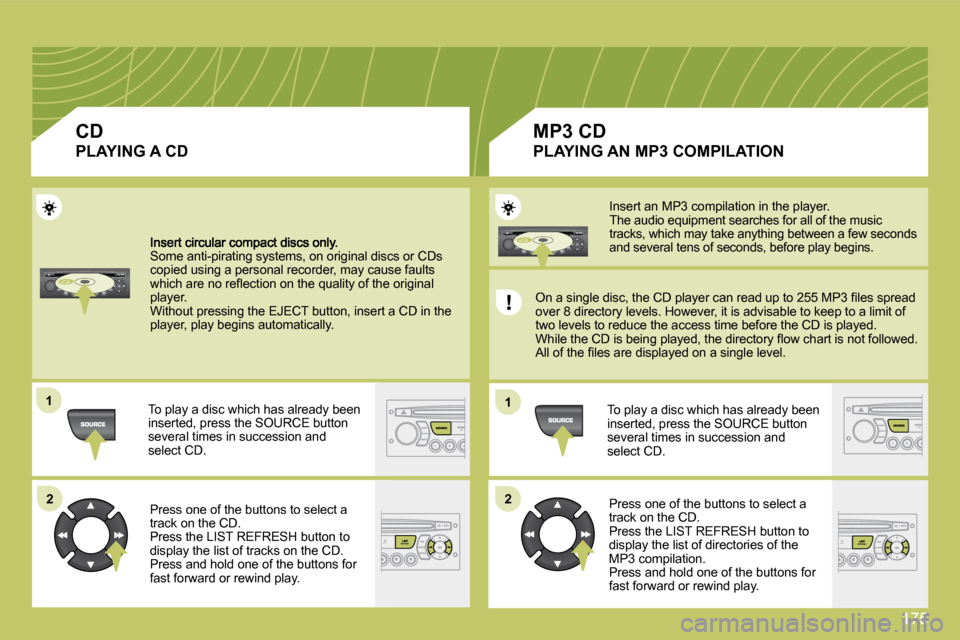

CD
PLAYING A CD
MP3 CD
PLAYING AN MP3 COMPILATION
Page 201 of 282
177
11
22

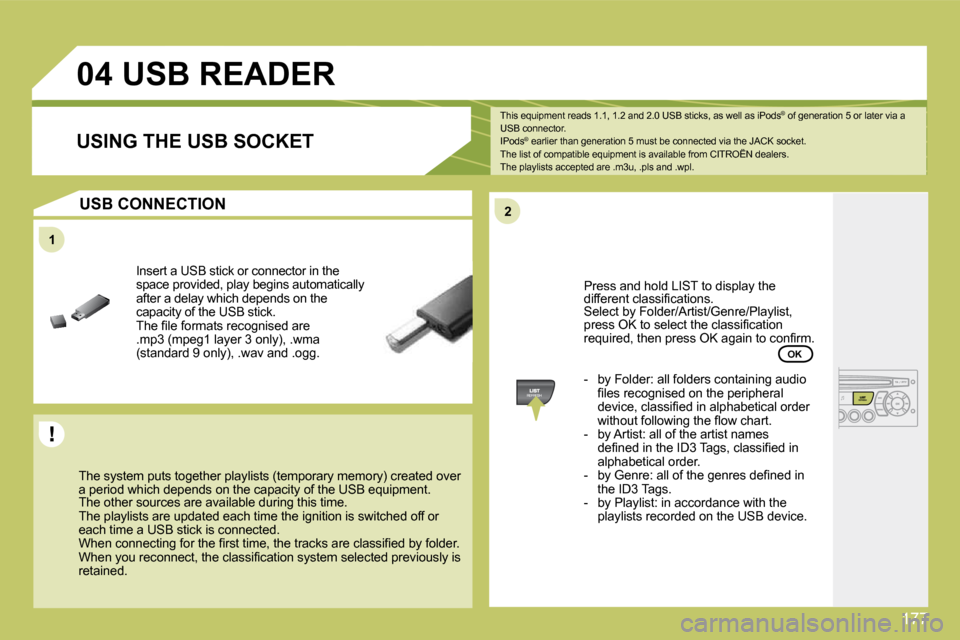

04 USB READER
T h e s y s t e m p u t s t o g e t h e r p l a y l i s t s ( t e m p o r a r y m e m o r y ) c r e a t e d o v e r a p e r i o d w h i c h d e p e n d s o n t h e c a p a c i t y o f t h e U S B e q u i p m e n t .
I n s e r t a U S B s t i c k o r c o n n e c t o r i n t h e s p a c e p r o v i d e d , p l a y b e g i n s a u t o m a t i c a l l y after a delay which depends on the c a p a c i t y o f t h e U S B s t i c k . T h e fi l e f o r m a t s r e c o g n i s e d a r e . m p 3 ( m p e g 1 l a y e r 3 o n l y ) , . w m a ( s t a n d a r d 9 o n l y ) , . w a v a n d . o g g .
Press and hold LIST to display the d i f f e r e n t c l a s s i fi c a t i o n s . Select by Folder/Artist/Genre/Playlist, p r e s s O K t o s e l e c t t h e c l a s s i fi c a t i o n required, then pres s O K a g a i n t o c o n fi r m .
- b y F o l d e r : a l l f o l d e r s c o n t a i n i n g a u d i o fi l e s r e c o g n i s e d o n t h e p e r i p h e r a l d e v i c e , c l a s s i fi e d i n a l p h a b e t i c a l o r d e r w i t h o u t f o l l o w i n g t h e fl o w c h a r t . - by Artist: all of the artist names d e fi n e d i n t h e I D 3 T a g s , c l a s s i fi e d i n alphabetical order. - b y G e n r e : a l l o f t h e g e n r e s d e fi n e d i n t h e I D 3 T a g s . - by Playlist: in accordance with the p l a y l i s t s r e c o r d e d o n t h e U S B d e v i c e .
T h i s e q u i p m e n t r e a d s 1 . 1 , 1 . 2 a n d 2 . 0 U S B s t i c k s , a s w e l l a s i P o d s ® o f g e n e r a t i o n 5 o r l a t e r v i a a ® U S B c o n n e c t o r . IPods ® e a r l i e r t h a n g e n e r a t i o n 5 m u s t b e c o n n e c t e d v i a t h e J A C K s o c k e t . ® The list of compatible equipment is available from CITROËN dealers. The playlists accepted are .m3u, .pls and .wpl.
USING THE USB SOCKET
USB CONNECTION
OK
T h e o t h e r s o u r c e s a r e a v a i l a b l e d u r i n g t h i s t i m e . T h e p l a y l i s t s a r e u p d a t e d e a c h t i m e t h e i g n i t i o n i s s w i t c h e d o f f o r e a c h t i m e a U S B s t i c k i s c o n n e c t e d . W h e n c o n n e c t i n g f o r t h e fi r s t t i m e , t h e t r a c k s a r e c l a s s i fi e d b y f o l d e r . W h e n y o u r e c o n n e c t , t h e c l a s s i fi c a t i o n s y s t e m s e l e c t e d p r e v i o u s l y i s retained.
Page 202 of 282
178
33
04
44
11
55

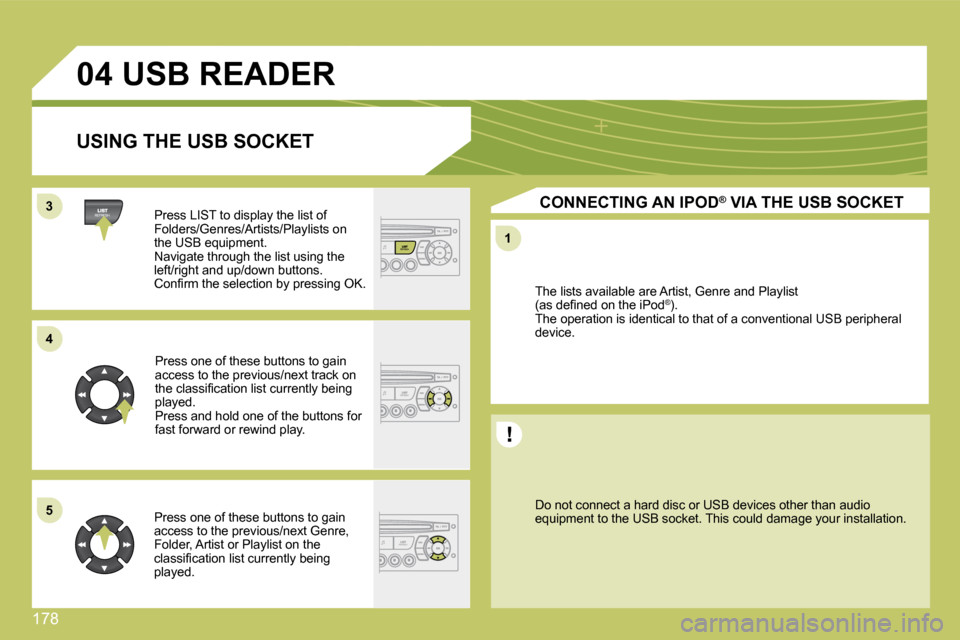

USB READER
USING THE USB SOCKET
Press LIST to display the list of Folders/Genres/Artists/Playlists on t h e U S B e q u i p m e n t . N a v i g a t e t h r o u g h t h e l i s t u s i n g t h e l e f t / r i g h t a n d u p / d o w n b u t t o n s . C o n fi r m t h e s e l e c t i o n b y p r e s s i n g O K . The lists available are Artist, Genre and Playlist ( a s d e fi n e d o n t h e i P o d ® ). ®
T h e o p e r a t i o n i s i d e n t i c a l t o t h a t o f a c o n v e n t i o n a l U S B p e r i p h e r a l device.
D o n o t c o n n e c t a h a r d d i s c o r U S B d e v i c e s o t h e r t h a n a u d i o e q u i p m e n t t o t h e U S B s o c k e t . T h i s c o u l d d a m a g e y o u r i n s t a l l a t i o n .
CONNECTING AN IPOD ®AN IPOD AN IPOD VIA THE USB SOCKET ®
P r e s s o n e o f t h e s e b u t t o n s t o g a i n a c c e s s t o t h e p r e v i o u s / n e x t t r a c k o n t h e c l a s s i fi c a t i o n l i s t c u r r e n t l y b e i n g played. Press and hold one of the buttons for fast forward or rewind play.
P r e s s o n e o f t h e s e b u t t o n s t o g a i n access to the previous/next Genre, Folder, Artist or Playlist on the c l a s s i fi c a t i o n l i s t c u r r e n t l y b e i n g played.
