display Citroen C4 2008.5 1.G Owner's Guide
[x] Cancel search | Manufacturer: CITROEN, Model Year: 2008.5, Model line: C4, Model: Citroen C4 2008.5 1.GPages: 282, PDF Size: 12.65 MB
Page 83 of 282
74
V I S I B I L I T Y
V
AUTOMATIC ADJUSTMENT OF THE XENON HEADLAMPS
In order to avoid causing a nuisance
to other road users, this system cor-
rects the height of the xenon head-
lamps beam automatically and when
stationary, in relation to the load in
the vehicle.
If a malfunction oc-
curs, this warning lamp
is displayed on the
instrument panel, ac-
companied by an audible signal and a
message on the multifunction screen.
The system then places your head-
lamps in the lowest position.
If a malfunction occurs, do not
touch the xenon bulbs. Contact a
CITROËN dealer.
When the dipped or main beam
headlamps are on, this function ena-
bles the light beam to follow the di-
rection of the road.
The use of this function, coupled
with the xenon headlamps only,
considerably improves the quality of
your lighting when cornering.
with directional lighting
without directional lighting Programming
The function is activat-
ed or deactivated via
the multifunction screen
c o n fi g u r a t i o n m e n u .
Operating fault If a malfunction occurs, this
w a r n i n g l a m p fl a s h e s o n t h e
instrument panel, accompa-
nied by a message on the
multifunction screen.
Consult a CITROËN dealer.
When stationary or moving at very
low speed or when reverse gear is
engaged, the system is inactive.
The status of the system remains
in the memory when the ignition is
switched off.
O n v e h i c l e s fi t t e d w i t h d a y t i m e
running lights, the function is acti-
vated if the lighting stalk is in the
"AUTO" or "Dipped/main beam
headlamps" position. In position
"0" , the function is not activated.
Page 91 of 282
81
VI
F I T T I N G S

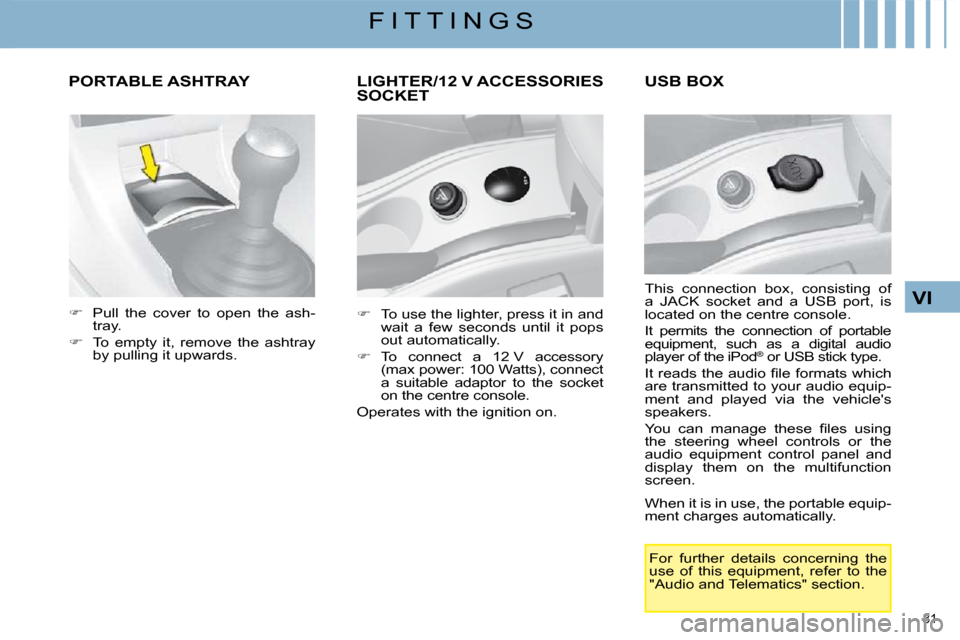

PORTABLE ASHTRAY
Pull the cover to open the ash-
tray.
T o e m p t y i t , r e m o v e t h e a s h t r a y
by pulling it upwards.
LIGHTER/12 V ACCESSORIES SOCKET
T o u s e t h e l i g h t e r , p r e s s i t i n a n d
wait a few seconds until it pops
out automatically.
To connect a 12 V accessory
( m a x p o w e r : 1 0 0 W a t t s ) , c o n n e c t
a suitable adaptor to the socket
on the centre console.
Operates with the ignition on.
USB BOX
T h i s c o n n e c t i o n b o x , c o n s i s t i n g o f
a J A C K s o c k e t a n d a U S B p o r t , i s
located on the centre console.
It permits the connection of portable
e q u i p m e n t , s u c h a s a d i g i t a l a u d i o
player of the iPod ®
or USB stick type.
I t r e a d s t h e a u d i o fi l e f o r m a t s w h i c h
are transmitted to your audio equip-
ment and played via the vehicle's
speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g
the steering wheel controls or the
audio equipment control panel and
display them on the multifunction
screen.
W h e n i t i s i n u s e , t h e p o r t a b l e e q u i p -
ment charges automatically.
For further details concerning the
u s e o f t h i s e q u i p m e n t , r e f e r t o t h e
"Audio and Telematics" section.
Page 97 of 282
81
VI
F I T T I N G S
PORTABLE ASHTRAY
Pull the cover to open the ash-
tray.
T o e m p t y i t , r e m o v e t h e a s h t r a y
by pulling it upwards.
LIGHTER/12 V ACCESSORIES SOCKET
T o u s e t h e l i g h t e r , p r e s s i t i n a n d
wait a few seconds until it pops
out automatically.
To connect a 12 V accessory
( m a x p o w e r : 1 0 0 W a t t s ) , c o n n e c t
a suitable adaptor to the socket
on the centre console.
Operates with the ignition on.
USB BOX
T h i s c o n n e c t i o n b o x , c o n s i s t i n g o f
a J A C K s o c k e t a n d a U S B p o r t , i s
located on the centre console.
It permits the connection of portable
e q u i p m e n t , s u c h a s a d i g i t a l a u d i o
player of the iPod ®
or USB stick type.
I t r e a d s t h e a u d i o fi l e f o r m a t s w h i c h
are transmitted to your audio equip-
ment and played via the vehicle's
speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g
the steering wheel controls or the
audio equipment control panel and
display them on the multifunction
screen.
W h e n i t i s i n u s e , t h e p o r t a b l e e q u i p -
ment charges automatically.
For further details concerning the
u s e o f t h i s e q u i p m e n t , r e f e r t o t h e
"Audio and Telematics" section.
Page 115 of 282
96
VIII
S A F E T Y
TYRE UNDER-INFLATION DETECTION
S e n s o r s fi t t e d i n e a c h v a l v e c h e c k
the tyre pressure during driving and
trigger a warning in the event of
malfunction (speed above 12 mph
(20 km/h)).
Flat tyre T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system is an aid to driving which
does not replace the vigilance or
responsibility of the driver. Puncture
The service warning lamp
comes on in the instru-
ment panel, accompanied
by an audible signal and
a message on the multi-
function screen locating
the wheel concerned.
Check the tyre pressures as soon as
possible. This check must be carried
out when the tyres are cold. The
STOP warning lamp
comes on in the instrument
panel, accompanied by an
audible signal and a mes-
sage on the multifunction
screen locating the wheel
concerned.
Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punc-
t u r e d o r v e r y d e fl a t e d t y r e ) , a n d
have the tyre pressure checked as
soon as possible.
Sensor(s) not detected or faulty
The service warning lamp
comes on in the instrument
panel, accompanied by an
audible signal and a mes-
sage on the multifunction
screen locating the wheel
or wheels which are not detected or
indicating a fault in the system.
Have the faulty sensor(s) checked
by a CITROËN dealer. All repairs and changing of tyres
o n a w h e e l fi t t e d w i t h t h i s s y s t e m
must be carried out by a CITROËN
dealer.
If, when changing a tyre, you in-
stall a wheel which is not detected
b y y o u r v e h i c l e ( e x a m p l e : fi t t i n g
of snow tyres), you must have the
system reinitialised by a CITROËN
dealer.
This system does not eliminate
the need to have the tyre pres-
sure checked regularly (refer to the
" T e c h n i c a l d a t a - § I d e n t i fi c a t i o n
features" section) to ensure that
the optimum dynamic perform-
ance of the vehicle is maintained
and prevent premature wear of the
tyres, particularly in arduous driv-
ing conditions (heavy load, high
speed).
The tyre pressures must be
checked cold, at least once a
month. Remember to check the
pressure of the spare wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
s y s t e m m a y e x p e r i e n c e t e m p o r a r y
interference due to radio-electric
emissions on a frequency close to
that used by the system.
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
s e n s o r a r e fi t t e d .
T h e s p a r e w h e e l i s n o t fi t t e d w i t h a
sensor.
Page 129 of 282
108
IX
D R I V I N G
Displays on the instrument
panel
- The selector position is displayed in the instrument panel, on the
left on multifunction screens A
and C and on the right on the
NaviDrive multifunction screen.
- A background-lit position grille associated with the selector al-
lows you to view the position se-
lected. Moving off
When the ignition is on, light-
ing of the service warning lamp,
accompanied by
an audible
sig-
nal and the message "Gearbox
faulty" indicates a malfunction.
Consult a CITROËN dealer.
For safety:
Position N can only be disen-
gaged if you are pressing the
brake pedal.
If the gearbox is in position N
but the selector position is dif-
ferent, reposition the selec-
tor on N in order to be able to
start.
To start the engine, the selector
has to be in position N .
P r e s s fi r m l y o n t h e b r a k e p e d a l .
Operate the starter.
When the engine is running,
place the selector on R , A or M
as desired.
Check, in the instrument panel,
the position engaged.
Release the brake pedal and ac-
celerate.
If the selector is not in position N ,
and/or if the brake pedal is not
pressed, the corresponding warning
lamp(s) are displayed and a mes-
sage informs you that at least one of
these two conditions is not met.
In this case, the engine will not start,
recommence the above procedure.
Engaging reverse gear
To engage reverse gear, move the
selector to R .
Only attempt to
select
reverse gear
when the vehicle is stationary.
If the vehicle is moving rapidly, if an in-
advertent attempt to engage reverse
gear is made, the warning lamp N will
fl a s h a n d y o u r v e h i c l e w i l l g o a u t o -
matically into neutral. To re-engage a
gear, you have only to reposition the
selector on A , M or R .
Reverse gear
Page 134 of 282
113
IX
D R I V I N G

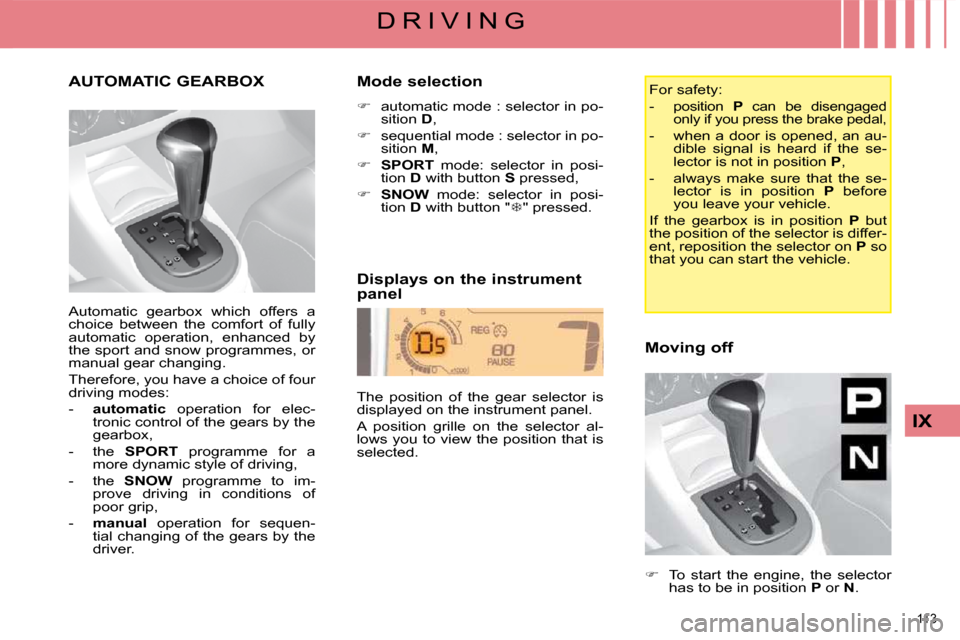

AUTOMATIC GEARBOX
Automatic gearbox which offers a
choice between the comfort of fully
automatic operation, enhanced by
the sport and snow programmes, or
manual gear changing.
Therefore, you have a choice of four
driving modes:
- automatic operation for elec-
tronic control of the gears by the
gearbox,
- the SPORT programme for a
more dynamic style of driving,
- the SNOW programme to im-
prove driving in conditions of
poor grip,
- manual operation for sequen-
tial changing of the gears by the
driver. Mode selection
automatic mode : selector in po-
sition D ,
sequential mode : selector in po-
sition M ,
SPORT mode: selector in posi-
tion D with button S pressed,
SNOW mode: selector in posi-
tion D with button " " pressed.
Displays on the instrument
panel
The position of the gear selector is
displayed on the instrument panel.
A position grille on the selector al-
lows you to view the position that is
selected.
To start the engine, the selector
has to be in position P or N .
For safety:
-
position
P can be disengaged
only if you press the brake pedal,
- when a door is opened, an au- dible signal is heard if the se-
lector is not in position P ,
- always make sure that the se- lector is in position P before
you leave your vehicle.
If the gearbox is in position P but
the position of the selector is differ-
ent, reposition the selector on P so
that you can start the vehicle.
Moving off
Page 137 of 282
116
IX
D R I V I N G

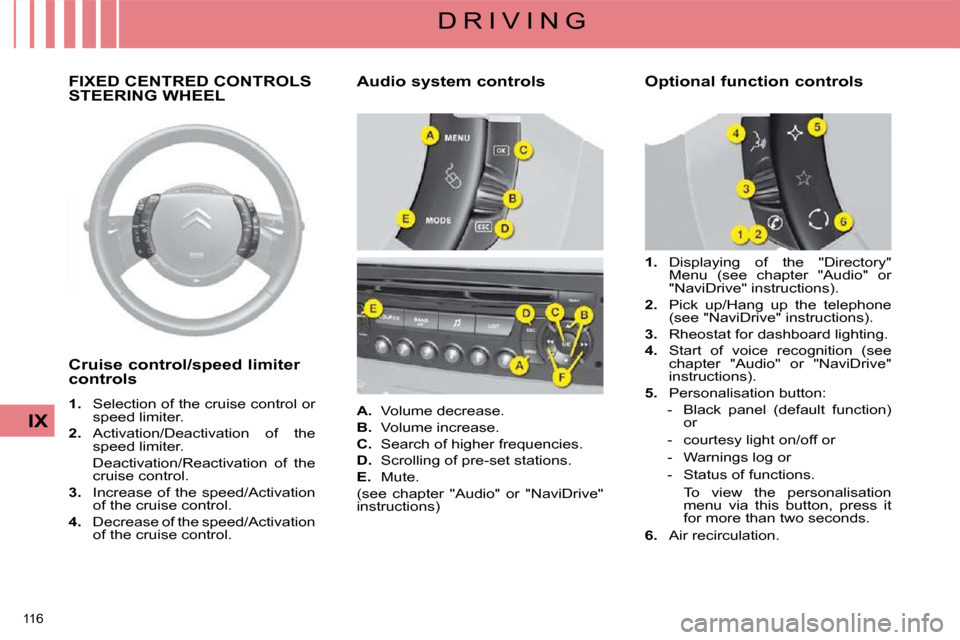

FIXED CENTRED CONTROLS STEERING WHEEL
Cruise control/speed limiter
controls
1. Selection of the cruise control or
speed limiter.
2. Activation/Deactivation of the
speed limiter.
Deactivation/Reactivation of the cruise control.
3. Increase of the speed/Activation
of the cruise control.
4. Decrease of the speed/Activation
of the cruise control. Audio system controls
A. Volume decrease.
B. Volume increase.
C. Search of higher frequencies.
D. Scrolling of pre-set stations.
E. Mute.
(see chapter "Audio" or "NaviDrive"
instructions) Optional function controls
1. Displaying of the "Directory"
Menu (see chapter "Audio" or
"NaviDrive" instructions).
2. Pick up/Hang up the telephone
(see "NaviDrive" instructions).
3. Rheostat for dashboard lighting.
4. Start of voice recognition (see
chapter "Audio" or "NaviDrive"
instructions).
5. Personalisation button:
- Black panel (default function) or
- courtesy light on/off or
- Warnings log or
- Status of functions.
To view the personalisation menu via this button, press it
for more than two seconds.
6. Air recirculation.
Page 138 of 282
117
IX
D R I V I N G
*
To comply with legislation in certain coun-
tries, the "Menu" control may be deacti-
vated while the vehicle is in motion.

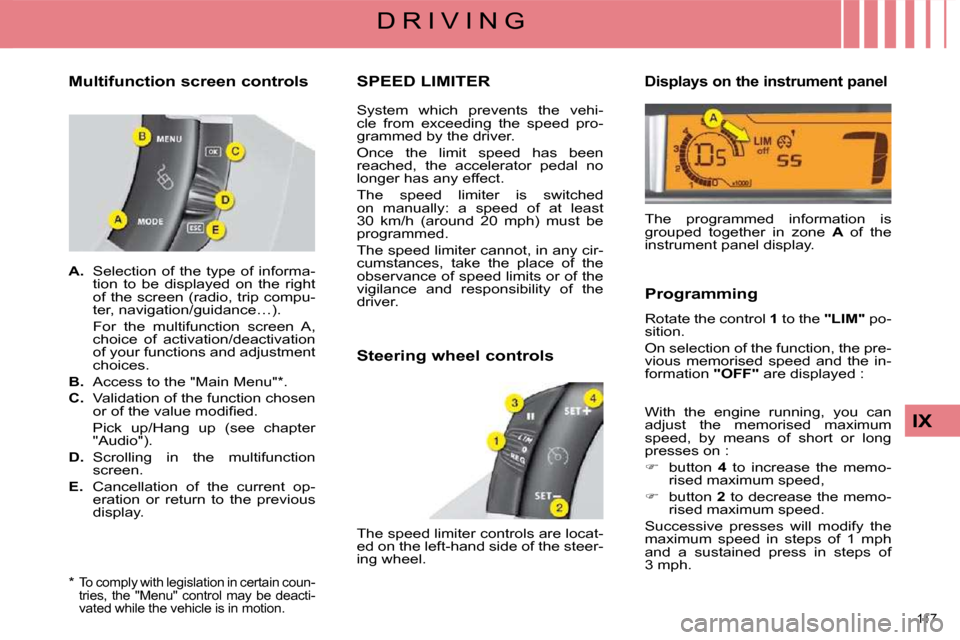

Multifunction screen controls
A. Selection of the type of informa-
tion to be displayed on the right
of the screen (radio, trip compu-
ter, navigation/guidance…).
For the multifunction screen A, choice of activation/deactivation
of your functions and adjustment
choices.
B. Access to the "Main Menu" * .
C. Validation of the function chosen
o r o f t h e v a l u e m o d i fi e d .
Pick up/Hang up (see chapter "Audio").
D. Scrolling in the multifunction
screen.
E. Cancellation of the current op-
eration or return to the previous
display. SPEED LIMITER
System which prevents the vehi-
cle from exceeding the speed pro-
grammed by the driver.
Once the limit speed has been
reached, the accelerator pedal no
longer has any effect.
The speed limiter is switched
on manually: a speed of at least
30 km/h (around 20 mph) must be
programmed.
The speed limiter cannot, in any cir-
cumstances, take the place of the
observance of speed limits or of the
vigilance and responsibility of the
driver.
Steering wheel controls
The speed limiter controls are locat-
ed on the left-hand side of the steer-
ing wheel.
Displays on the instrument panel
The programmed information is
grouped together in zone A of the
instrument panel display.
Programming
Rotate the control 1 to the "LIM" po-
sition.
On selection of the function, the pre-
vious memorised speed and the in-
formation "OFF" are displayed :
With the engine running, you can
adjust the memorised maximum
speed, by means of short or long
presses on :
button 4 to increase the memo-
rised maximum speed,
button 2 to decrease the memo-
rised maximum speed.
Successive presses will modify the
maximum speed in steps of 1 mph
and a sustained press in steps of
3 mph.
Page 139 of 282
117
IX
D R I V I N G
*
To comply with legislation in certain coun-
tries, the "Menu" control may be deacti-
vated while the vehicle is in motion.
Multifunction screen controls
A. Selection of the type of informa-
tion to be displayed on the right
of the screen (radio, trip compu-
ter, navigation/guidance…).
For the multifunction screen A, choice of activation/deactivation
of your functions and adjustment
choices.
B. Access to the "Main Menu" * .
C. Validation of the function chosen
o r o f t h e v a l u e m o d i fi e d .
Pick up/Hang up (see chapter "Audio").
D. Scrolling in the multifunction
screen.
E. Cancellation of the current op-
eration or return to the previous
display. SPEED LIMITER
System which prevents the vehi-
cle from exceeding the speed pro-
grammed by the driver.
Once the limit speed has been
reached, the accelerator pedal no
longer has any effect.
The speed limiter is switched
on manually: a speed of at least
30 km/h (around 20 mph) must be
programmed.
The speed limiter cannot, in any cir-
cumstances, take the place of the
observance of speed limits or of the
vigilance and responsibility of the
driver.
Steering wheel controls
The speed limiter controls are locat-
ed on the left-hand side of the steer-
ing wheel.
Displays on the instrument panel
The programmed information is
grouped together in zone A of the
instrument panel display.
Programming
Rotate the control 1 to the "LIM" po-
sition.
On selection of the function, the pre-
vious memorised speed and the in-
formation "OFF" are displayed :
With the engine running, you can
adjust the memorised maximum
speed, by means of short or long
presses on :
button 4 to increase the memo-
rised maximum speed,
button 2 to decrease the memo-
rised maximum speed.
Successive presses will modify the
maximum speed in steps of 1 mph
and a sustained press in steps of
3 mph.
Page 140 of 282
118
IX
D R I V I N G
Activation
When the desired maximum speed
is displayed, press button 3 so that
the limitation is activated.
The information "OFF" then disap-
pears from the instrument panel dis-
play.
While the function is active, press-
ing the accelerator pedal will not en-
able the programmed speed to be
exceeded, except if you press the
pedal hard down to beyond the end-
of-travel switch.
The speed of your vehicle may vary
slightly in relation to that memo-
rised.
Deactivation
Press on button 3 .
This action causes the information
"OFF" to appear on the instrument
panel display.
This action does not cancel the
memorised maximum speed which
remains displayed in zone A of the
instrument panel. Override of the programmed
speed
The accelerator pedal is equipped
with an end-of-travel switch. If you
action this switch by pressing the
pedal hard down, you can exceed
the memorised maximum speed at
any time.
During the time the speed is be-
ing exceeded, the displayed speed
fl a s h e s .
You have only to release the ac-
celerator pedal to return below the
maximum speed and render the
function active again.
If during the operation of the speed
limiter, the system is unable to keep
within the maximum speed (for
example on a steep descent or un-
der heavy acceleration) then the
s p e e d fl a s h e s . A d a p t y o u r s p e e d a s
necessary.
The function will re-engage when
your speed returns below the de-
sired maximum speed.
Return to normal driving
By moving the control 1 from po-
sition "LIM" to position 0 .
By the engine stopping.
The speed previously chosen is still
memorised.
Operating fault
If there is a speed limiter malfunc-
tion, a message will display accom-
panied by an audible signal and
lighting of the service warning lamp.
Have it checked by a CITROËN
dealer.
On a steep downhill gradient or on
sharp acceleration, the speed limiter
will not be able to prevent the vehi-
cle from exceeding the programmed
speed.
U s e o f fl o o r m a t s t h a t a r e n o t a p -
proved by CITROËN may hinder
access to the accelerator pedal and
thus interfere with the functioning of
the speed limiter.
To avoid any risk of interfering with
the pedals:
- c h e c k t h a t t h e fl o o r m a t i s c o r - rectly positioned,
- n e v e r u s e m o r e t h a n o n e fl o o r mat.
