8
F A M I L I A R I S A T I O N
D A S H B O A R D
1. Controls:
- Mirrors.
- Windows.
- Child safety
2. Headlamp adjustment.
3. Controls:
- ESP.
- Parking assistance.
- Lane departure warning system.
- Anti-intrusion alarm.
4. Steering lock and ignition switch.
5. Controls:
- Windscreen wiper.
- Screen wash.
- Rear screen wiper.
- Trip computer.
6. Fixed centred controls.
7. Direction indicator warning lamps.
8. Speedometer
9. Controls:
- Trip mileage recorder reset button.
- Display lighting rheostat.
- Display of alerts and status of functions.
10. Centre air vents.
11. Driver’s airbag.
12. Horn
13. Gear lever.
14. Parking brake.
Page 7 of 282
10
F A M I L I A R I S A T I O N
D A S H B O A R D
Controls for speed limiter
and cruise control
Audio system
controls
Warning lamps:
lighting and
direction indicators
Function controls:
- Display lighting rheostat
- Voice recognition
- Air recirculation
- Telephone
- Personal button
Multifunction screen controls
Horn
FIXED CENTRED CONTROLS STEERING WHEEL
Page 9 of 282
12
F A M I L I A R I S A T I O N
D A S H B O A R D
Display
lighting
rheostat
Starting voice
recognition
(See "Audio" or your Navidrive instructions)
Access to "Main
menu" *
Scrolling in the
multifunction
screen
Telephone pick-
up/hang-up
(See "Audio" or your Navidrive instructions)
Personal button:
- Black panel (default function), or
- Interior lamp on/off, or
- Log of alerts, or
- Status of functions
Give a long press on this button to
display the personalisation menu. Selection of the type of in-
formation displayed on the
right of the screen (radio,
trip computer, navigation/
guidance…) and for screen
A, choice of activation/de-
activation of your functions
and choice of your adjust-
ments
Cancel the current opera-
tion or return to the previ-
ous screen
Air recirculation
Validation of the function selected or the
v a l u e m o d i fi e d
Pick up/hang up (See "Audio" or your
Navigation instructions)
* In compliance with national legislation, in some cou ntries the "menu" control is deactivated when driving.
Display the
"Directory" menu
(See "Audio" or your Navidrive instructions)
Page 20 of 282
23
I
I N S T R U M E N T S a n d C O N T R O L S
INSTRUMENT PANEL WITH TRANSLUCENT SCREEN
The instrument panel groups all the driving and comfort information at the centre of the dashboard.
Central display
1. Rev counter
2. Cruise control or speed limiter
setting
3. Speedometer
4. Maintenance indicator when the
ignition is switched on, then total
mileage recorder
5. Trip mileage recorder
6. Fuel gauge
7. Engine oil level check
8. Coolant temperature Control buttons
A. Trip mileage recorder reset
B. Lighting rheostat
C. Display of alerts and Status of
functions
Page 22 of 282
25
I
I N S T R U M E N T S a n d C O N T R O L S
"Foot on brake" T h e fl a s h i n g o f t h i s w a r n i n g
lamp on the display informs
you that you need to press
the brake pedal in order to
be able to start the engine on a ve-
hicle with the (6-speed) Electronic
Gearbox System, or to move out of
position P in the case of an automat-
ic gearbox.
I t m a y a l s o fl a s h t o p r o m p t y o u t o
brake when engaging reverse gear.
In the case of the Electronic Gearbox
S y s t e m , t h i s w a r n i n g l a m p fl a s h e s t o
indicate overheating of the clutch if
you use the accelerator excessively
to hold the vehicle on an uphill slope.
Use the brake pedal instead.
Electric child lock
If lit, the child lock is acti-
vated. This warning lamp is
displayed for a few seconds
after the function is activated. Deactivation warning lamps
If one of the following warning lamps
c o m e s o n , t h i s c o n fi r m s t h a t t h e
corresponding system has been
switched off intentionally.
Passenger’s air bag system
deactivation
Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically
when the vehicle is started.
A s p e c i fi c b u t t o n , l o c a t e d i n t h e c e n -
tre of the dashboard, permits deac-
tivation of the system. This is con-
fi r m e d b y c o n t i n u o u s l i g h t i n g o f t h i s
warning lamp and of the indicator
lamp on the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically. Warning lamps
Diesel engine pre-heating
Wait until this goes off before oper-
ating the starter.
The passenger’s air bag
system is put into service
automatically when the ve-
hicle is started.
A s p e c i fi c c o n t r o l , l o c a t e d i n t h e g l o v e
box, permits deactivation of the sys-
t e m . T h i s i s c o n fi r m e d b y c o n t i n u o u s
lighting of this warning lamp on the
instrument panel or a message on
the NaviDrive multifunction screen. When the engine is running or the
vehicle is moving, the lighting of
one of the following warning lamps
indicates the occurrence of a fault
requiring action on the part of the
driver.
Any fault resulting in the displaying
of a warning lamp must be investi-
gated further by reading the associ-
ated message on the multifunction
screen.
Should you encounter any prob-
lems, do not hesitate to contact a
CITROËN dealer.
Page 26 of 282
25
I
I N S T R U M E N T S a n d C O N T R O L S
"Foot on brake" T h e fl a s h i n g o f t h i s w a r n i n g
lamp on the display informs
you that you need to press
the brake pedal in order to
be able to start the engine on a ve-
hicle with the (6-speed) Electronic
Gearbox System, or to move out of
position P in the case of an automat-
ic gearbox.
I t m a y a l s o fl a s h t o p r o m p t y o u t o
brake when engaging reverse gear.
In the case of the Electronic Gearbox
S y s t e m , t h i s w a r n i n g l a m p fl a s h e s t o
indicate overheating of the clutch if
you use the accelerator excessively
to hold the vehicle on an uphill slope.
Use the brake pedal instead.
Electric child lock
If lit, the child lock is acti-
vated. This warning lamp is
displayed for a few seconds
after the function is activated. Deactivation warning lamps
If one of the following warning lamps
c o m e s o n , t h i s c o n fi r m s t h a t t h e
corresponding system has been
switched off intentionally.
Passenger’s air bag system
deactivation
Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically
when the vehicle is started.
A s p e c i fi c b u t t o n , l o c a t e d i n t h e c e n -
tre of the dashboard, permits deac-
tivation of the system. This is con-
fi r m e d b y c o n t i n u o u s l i g h t i n g o f t h i s
warning lamp and of the indicator
lamp on the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically. Warning lamps
Diesel engine pre-heating
Wait until this goes off before oper-
ating the starter.
The passenger’s air bag
system is put into service
automatically when the ve-
hicle is started.
A s p e c i fi c c o n t r o l , l o c a t e d i n t h e g l o v e
box, permits deactivation of the sys-
t e m . T h i s i s c o n fi r m e d b y c o n t i n u o u s
lighting of this warning lamp on the
instrument panel or a message on
the NaviDrive multifunction screen. When the engine is running or the
vehicle is moving, the lighting of
one of the following warning lamps
indicates the occurrence of a fault
requiring action on the part of the
driver.
Any fault resulting in the displaying
of a warning lamp must be investi-
gated further by reading the associ-
ated message on the multifunction
screen.
Should you encounter any prob-
lems, do not hesitate to contact a
CITROËN dealer.
Page 27 of 282
25
I
I N S T R U M E N T S a n d C O N T R O L S
"Foot on brake" T h e fl a s h i n g o f t h i s w a r n i n g
lamp on the display informs
you that you need to press
the brake pedal in order to
be able to start the engine on a ve-
hicle with the (6-speed) Electronic
Gearbox System, or to move out of
position P in the case of an automat-
ic gearbox.
I t m a y a l s o fl a s h t o p r o m p t y o u t o
brake when engaging reverse gear.
In the case of the Electronic Gearbox
S y s t e m , t h i s w a r n i n g l a m p fl a s h e s t o
indicate overheating of the clutch if
you use the accelerator excessively
to hold the vehicle on an uphill slope.
Use the brake pedal instead.
Electric child lock
If lit, the child lock is acti-
vated. This warning lamp is
displayed for a few seconds
after the function is activated. Deactivation warning lamps
If one of the following warning lamps
c o m e s o n , t h i s c o n fi r m s t h a t t h e
corresponding system has been
switched off intentionally.
Passenger’s air bag system
deactivation
Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically
when the vehicle is started.
A s p e c i fi c b u t t o n , l o c a t e d i n t h e c e n -
tre of the dashboard, permits deac-
tivation of the system. This is con-
fi r m e d b y c o n t i n u o u s l i g h t i n g o f t h i s
warning lamp and of the indicator
lamp on the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically. Warning lamps
Diesel engine pre-heating
Wait until this goes off before oper-
ating the starter.
The passenger’s air bag
system is put into service
automatically when the ve-
hicle is started.
A s p e c i fi c c o n t r o l , l o c a t e d i n t h e g l o v e
box, permits deactivation of the sys-
t e m . T h i s i s c o n fi r m e d b y c o n t i n u o u s
lighting of this warning lamp on the
instrument panel or a message on
the NaviDrive multifunction screen. When the engine is running or the
vehicle is moving, the lighting of
one of the following warning lamps
indicates the occurrence of a fault
requiring action on the part of the
driver.
Any fault resulting in the displaying
of a warning lamp must be investi-
gated further by reading the associ-
ated message on the multifunction
screen.
Should you encounter any prob-
lems, do not hesitate to contact a
CITROËN dealer.
Page 31 of 282
28
I
I N S T R U M E N T S a n d C O N T R O L S

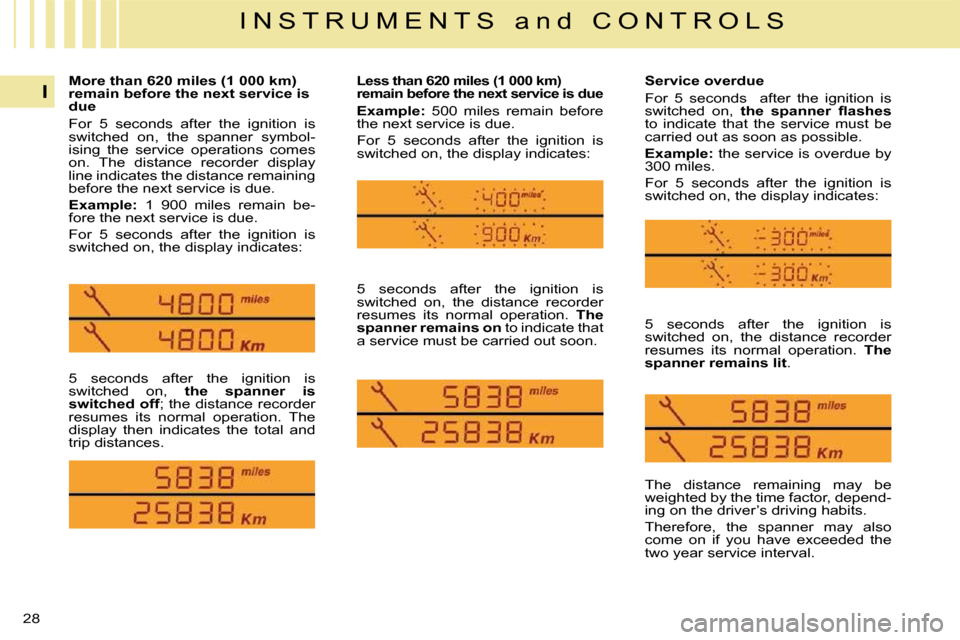

5 seconds after the ignition is
switched on, the spanner is
switched off ; the distance recorder
resumes its normal operation. The
display then indicates the total and
trip distances.
Less than 620 miles (1 000 km)
remain before the next service is due
Example: 500 miles remain before
the next service is due.
For 5 seconds after the ignition is
switched on, the display indicates: Service overdue
For 5 seconds after the ignition is
switched on,
t h e s p a n n e r fl a s h e s
to indicate that the service must be
carried out as soon as possible.
Example: the service is overdue by
300 miles.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is
switched on, the distance recorder
resumes its normal operation. The
spanner remains on to indicate that
a service must be carried out soon. 5 seconds after the ignition is
switched on, the distance recorder
resumes its normal operation.
The
spanner remains lit .
More than 620 miles (1 000 km)
remain before the next service is
due
For 5 seconds after the ignition is
switched on, the spanner symbol-
ising the service operations comes
on. The distance recorder display
line indicates the distance remaining
before the next service is due.
Example: 1 900 miles remain be-
fore the next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
The distance remaining may be
weighted by the time factor, depend-
ing on the driver’s driving habits.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.
Page 32 of 282
29
I
I N S T R U M E N T S a n d C O N T R O L S

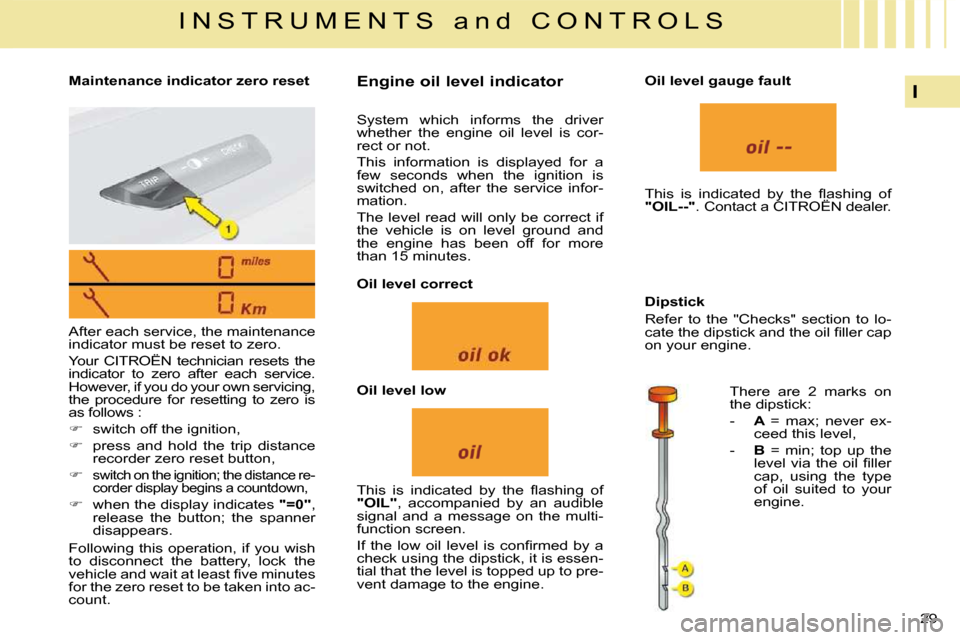

Maintenance indicator zero reset Engine oil level indicator
After each service, the maintenance
indicator must be reset to zero.
Your CITROËN technician resets the
indicator to zero after each service.
However, if you do your own servicing,
the procedure for resetting to zero is
as follows :
switch off the ignition,
press and hold the trip distance
recorder zero reset button,
switch on the ignition; the distance re-
corder display begins a countdown,
when the display indicates "=0" ,
release the button; the spanner
disappears. System which informs the driver
whether the engine oil level is cor-
rect or not.
This information is displayed for a
few seconds when the ignition is
switched on, after the service infor-
mation.
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.
Oil level correct
Oil level low
T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f
"OIL" , accompanied by an audible
signal and a message on the multi-
function screen.
I f t h e l o w o i l l e v e l i s c o n fi r m e d b y a
check using the dipstick, it is essen-
tial that the level is topped up to pre-
vent damage to the engine. Oil level gauge fault
T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f
"OIL--" . Contact a CITROËN dealer.
Dipstick
Refer to the "Checks" section to lo-
c a t e t h e d i p s t i c k a n d t h e o i l fi l l e r c a p
on your engine. There are 2 marks on
the dipstick:
- A = max; never ex-
ceed this level,
- B = min; top up the
l e v e l v i a t h e o i l fi l l e r
cap, using the type
of oil suited to your
engine.
Following this operation, if you wish
to disconnect the battery, lock the
v e h i c l e a n d w a i t a t l e a s t fi v e m i n u t e s
for the zero reset to be taken into ac-
count.
Page 33 of 282
30
I
I N S T R U M E N T S a n d C O N T R O L S
Total distance recorder
System which measures the total
distance travelled by the vehicle
during its life.
The total and trip distances are dis-
played for thirty seconds when the
ignition is switched off, when the
driver’s door is opened and when
the vehicle is locked or unlocked.
Trip distance recorder
System which measures a distance
travelled during a day or other period
until it is reset to zero by the driver.
With the ignition on, press the
button until zeros appear. Dashboard lighting rheostat
Activation
Turn control A or press control B
to adjust the brightness of the
dashboard lighting,
With control B , press until the
brightness is at maximum, release,
press until you reach minimum.
Deactivation
When the lights are off, or in day
m o d e i n t h e c a s e o f v e h i c l e s fi t t e d
with daytime running lights, the but-
ton has no effect.
System permitting manual adjust-
ment of the brightness of the dash-
board to suit the level of ambient
light.
The rheostat is active if the sidela-
mps are on and applies to:
- the instrument panel,
- the display screens.
