11
PRACTICAL INFORMATION
189
Access to the spare wheel
The spare wheel is installed in the boot
under the fl oor.
Depending on version, the spare wheel
may be a standard size steel or alloy
wheel, or for some countries it is the
"space saver" type.
For access to the spare wheel, refer to
the paragraph "Access to the tools" on
the previous page.
Putting the standard wheel back in
place
)
Put the wheel back in its housing.
)
Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.
)
Tighten fully until the central bolt
clicks to retain the wheel correctly.
Tyre under-infl ation detection
The spare wheel is not fi tted with
a sensor. The punctured wheel
must be repaired by a CITROËN
dealer or aqualifi ed workshop.
Taking out the standard wheel
)
Unscrew the yellow central bolt.
)
Raise the spare wheel towards you
from the rear.
)
Take the wheel out of the boot.
)
Put the box back in place in the centre
of the wheel and clip it.
Page 192 of 324
11
PRACTICAL INFORMATION
190

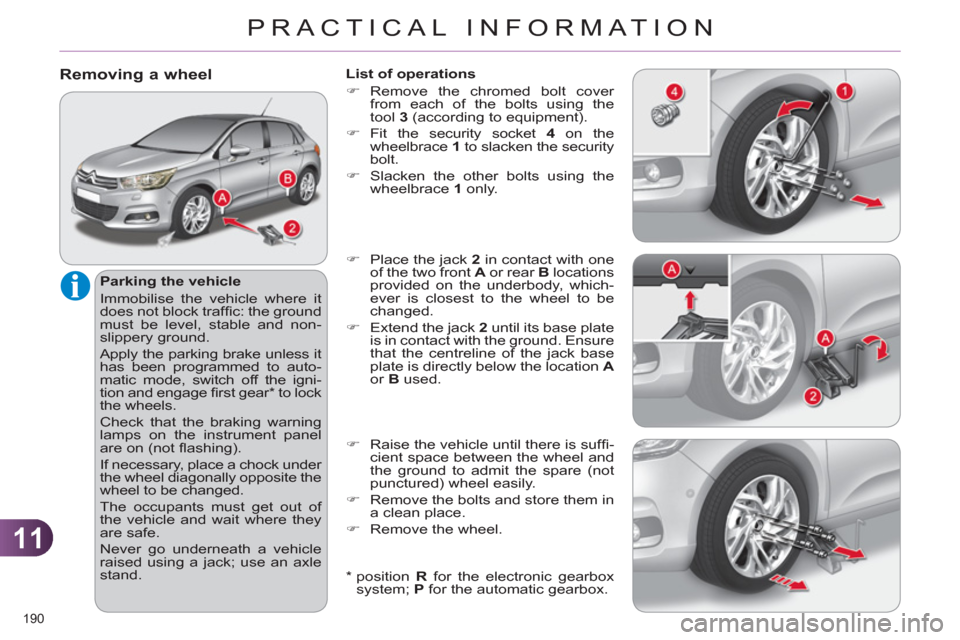

Removing a wheel
Parking the vehicle
Immobilise the vehicle where it
does not block traffi c: the ground
must be level, stable and non-
slippery ground.
Apply the parking brake unless it
has been programmed to auto-
matic mode, switch off the igni-
tion and engage fi rst gear * to lock
the wheels.
Check that the braking warning
lamps on the instrument panel
are on (not fl ashing).
If necessary, place a chock under
the wheel diagonally opposite the
wheel to be changed.
The occupants must get out of
the vehicle and wait where they
are safe.
Never go underneath a vehicle
raised using a jack; use an axle
stand.
*
position R
for the electronic gearbox
system; P
for the automatic gearbox.
List of operations
)
Remove the chromed bolt cover
from each of the bolts using the
tool 3
(according to equipment).
)
Fit the security socket 4
on the
wheelbrace 1
to slacken the security
bolt.
)
Slacken the other bolts using the
wheelbrace 1
only.
)
Place the jack 2
in contact with one
of the two front A
or rear B
locations
provided on the underbody, which-
ever is closest to the wheel to be
changed.
)
Extend the jack 2
until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A
or B
used.
)
Raise the vehicle until there is suffi -
cient space between the wheel and
the ground to admit the spare (not
punctured) wheel easily.
)
Remove the bolts and store them in
a clean place.
)
Remove the wheel.
Page 193 of 324
11
191

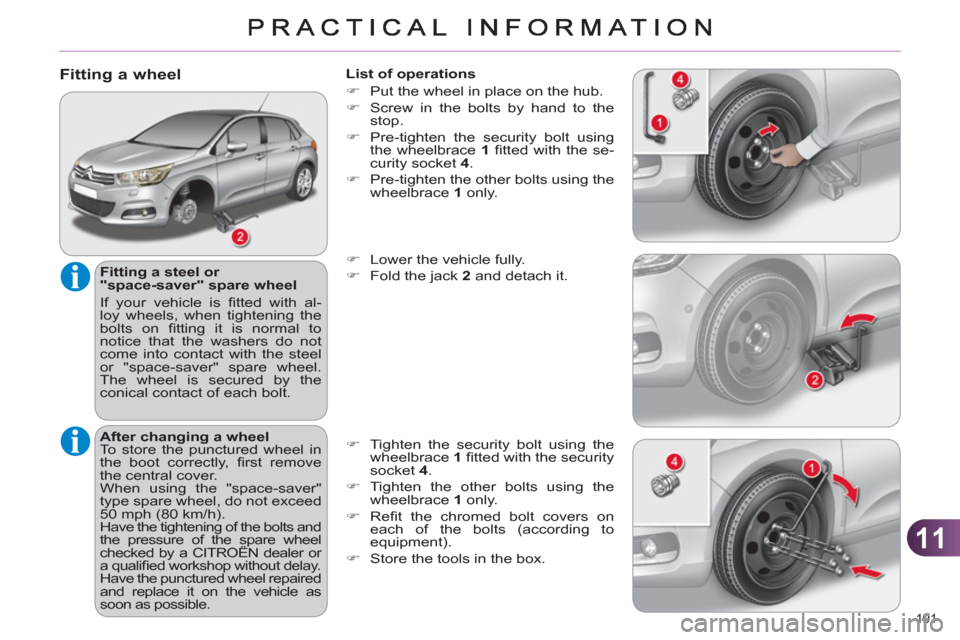

Fitting a wheel
Fitting a steel or
"space-saver" spare wheel
If your vehicle is fi tted with al-
loy wheels, when tightening the
bolts on fi tting it is normal to
notice that the washers do not
come into contact with the steel
or "space-saver" spare wheel.
The wheel is secured by the
conical contact of each bolt.
After changing a wheel
To store the punctured wheel in
the boot correctly, fi rst remove
the central cover.
When using the "space-saver"
type spare wheel, do not exceed
50 mph (80 km/h).
Have the tightening of the bolts and
the pressure of the spare wheel
checked by a CITROËN dealer or
a qualifi ed workshop without delay.
Have the punctured wheel repaired
and replace it on the vehicle as
soon as possible.
List of operations
)
Put the wheel in place on the hub.
)
Screw in the bolts by hand to the
stop.
)
Pre-tighten the security bolt using
the wheelbrace 1
fi tted with the se-
curity socket 4
.
)
Pre-tighten the other bolts using the
wheelbrace 1
only.
)
Lower the vehicle fully.
)
Fold the jack 2
and detach it.
)
Tighten the security bolt using the
wheelbrace 1
fi tted with the security
socket 4
.
)
Tighten the other bolts using the
wheelbrace 1
only.
)
Refi t the chromed bolt covers on
each of the bolts (according to
equipment).
)
Store the tools in the box.
Page 194 of 324
11
PRACTICAL INFORMATION
192

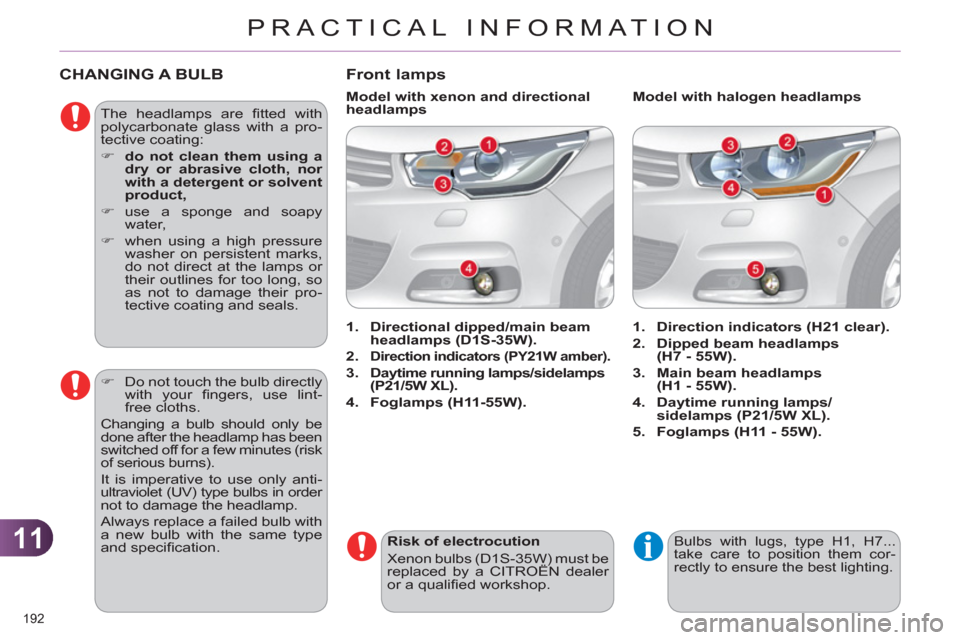

CHANGING A BULB
The headlamps are fi tted with
polycarbonate glass with a pro-
tective coating:
)
do not clean them using a
dry or abrasive cloth, nor
with a detergent or solvent
product,
)
use a sponge and soapy
water,
)
when using a high pressure
washer on persistent marks,
do not direct at the lamps or
their outlines for too long, so
as not to damage their pro-
tective coating and seals.
)
Do not touch the bulb directly
with your fi ngers, use lint-
free cloths.
Changing a bulb should only be
done after the headlamp has been
switched off for a few minutes (risk
of serious burns).
It is imperative to use only anti-
ultraviolet (UV) type bulbs in order
not to damage the headlamp.
Always replace a failed bulb with
a new bulb with the same type
and specifi cation.
Risk of electrocution
Xenon bulbs (D1S-35W) must be
replaced by a CITROËN dealer
or a qualifi ed workshop.
Front lamps
1.
Direction indicators (H21 clear).
2.
Dipped beam headlamps
(H7 - 55W).
3.
Main beam headlamps
(H1 - 55W).
4.
Daytime running lamps/
sidelamps (P21/5W XL).
5.
Foglamps (H11 - 55W).
1.
Directional dipped/main beam
headlamps (D1S-35W).
2.
Direction indicators (PY21W amber).
3.
Daytime running lamps/sidelamps
(P21/5W XL).
4.
Foglamps (H11-55W).
Model with halogen headlamps
Model with xenon and directional
headlamps
Bulbs with lugs, type H1, H7...
take care to position them cor-
rectly to ensure the best lighting.
Page 195 of 324
11
PRACTICAL INFORMATION
193
Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
specifi cations and colour.
When refi tting, close the protec-
tive cover carefully to preserve
the sealing of the headlamp.

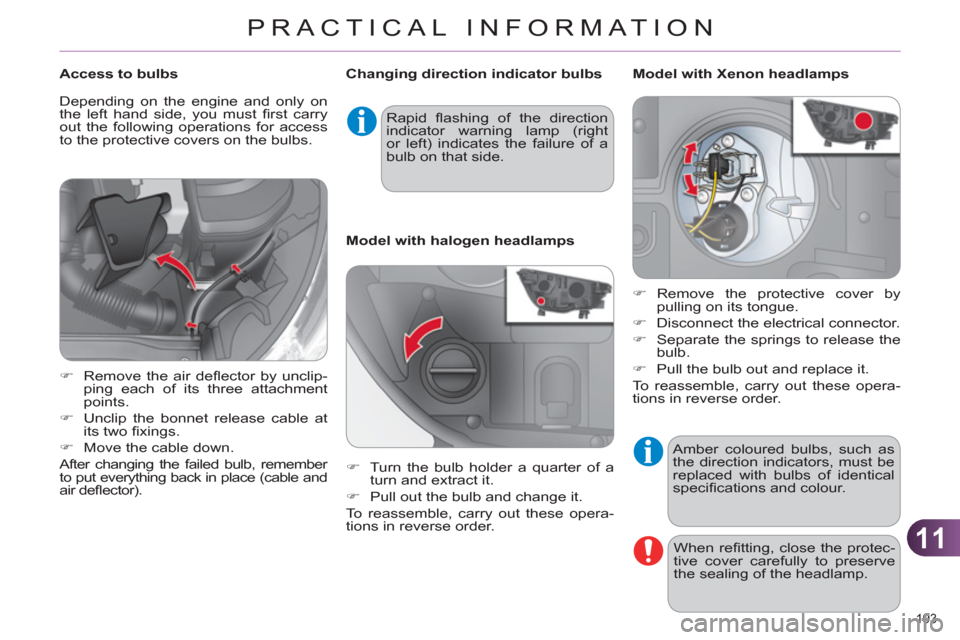

Changing direction indicator bulbs
Model with halogen headlamps
Rapid fl ashing of the direction
indicator warning lamp (right
or left) indicates the failure of a
bulb on that side.
Access to bulbs
)
Remove the air defl ector by unclip-
ping each of its three attachment
points.
)
Unclip the bonnet release cable at
its two fi xings.
)
Move the cable down.
After changing the failed bulb, remember
to put everything back in place (cable and
air defl ector). Depending on the engine and only on
the left hand side, you must fi rst carry
out the following operations for access
to the protective covers on the bulbs.
)
Turn the bulb holder a quarter of a
turn and extract it.
)
Pull out the bulb and change it.
To reassemble, carry out these opera-
tions in reverse order.
Model with Xenon headlamps
)
Remove the protective cover by
pulling on its tongue.
)
Disconnect the electrical connector.
)
Separate the springs to release the
bulb.
)
Pull the bulb out and replace it.
To reassemble, carry out these opera-
tions in reverse order.
Page 196 of 324
11
PRACTICAL INFORMATION
194

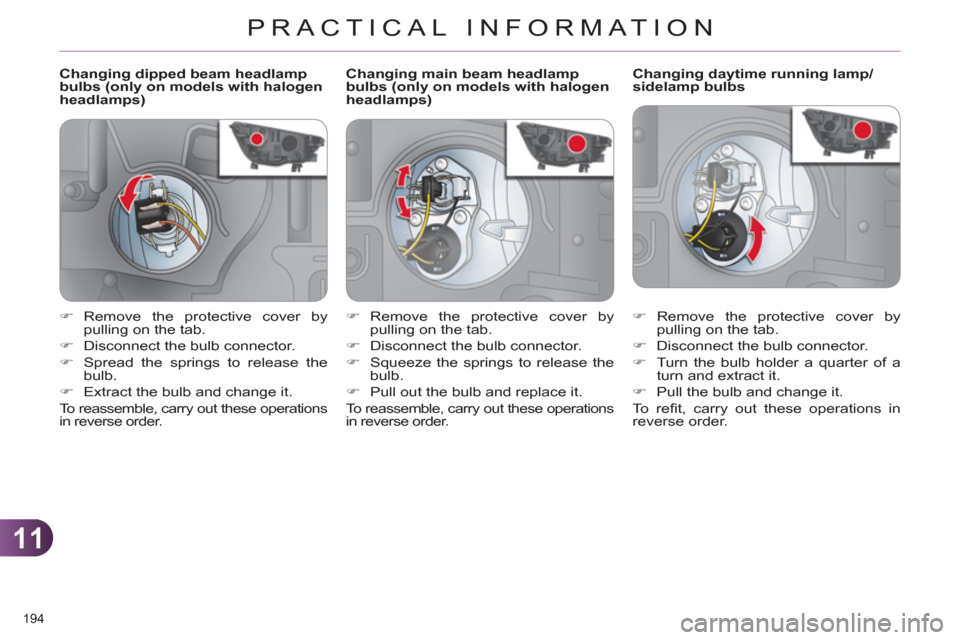

Changing dipped beam headlamp
bulbs (only on models with halogen
headlamps)
Changing daytime running lamp/
sidelamp bulbs
)
Remove the protective cover by
pulling on the tab.
)
Disconnect the bulb connector.
)
Turn the bulb holder a quarter of a
turn and extract it.
)
Pull the bulb and change it.
To r efi t, carry out these operations in
reverse order.
)
Remove the protective cover by
pulling on the tab.
)
Disconnect the bulb connector.
)
Spread the springs to release the
bulb.
)
Extract the bulb and change it.
To reassemble, carry out these operations
in reverse order.
Changing main beam headlamp
bulbs (only on models with halogen
headlamps)
)
Remove the protective cover by
pulling on the tab.
)
Disconnect the bulb connector.
)
Squeeze the springs to release the
bulb.
)
Pull out the bulb and replace it.
To reassemble, carry out these operations
in reverse order.
Page 197 of 324
11
PRACTICAL INFORMATION
195
)
Introduce a fl at screwdriver in the
hole in the fi nisher.
)
Pull and lever to unclip the bumper
fi nisher (the parking sensor stays
with the fi nisher).
)
Remove the two module fi xing screws
and remove it from its housing.
)
Disconnect the bulb holder connector.
)
Turn the bulb holder a quarter of a
turn and extract it.
)
Pull the bulb and change it.
To r efi t, carry out these operations in
reverse order.
To replace these bulbs you may also
contact a CITROËN dealer or a qualifi ed
workshop.
Changing foglamp bulbs
Changing the side spotlamps
For the replacement of this type of LED
lamp, contact a CITROËN dealer or a
qualifi ed workshop.
Changing integrated direction
indicator side repeaters
)
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
)
Tilt the screwdriver to extract the re-
peater and remove it.
)
Disconnect the repeater connector.
To reassemble, carry out these operations
in reverse order.
Contact a CITROËN dealer or a qualifi ed
workshop to obtain replacement repeaters.
Page 198 of 324
11
PRACTICAL INFORMATION
196

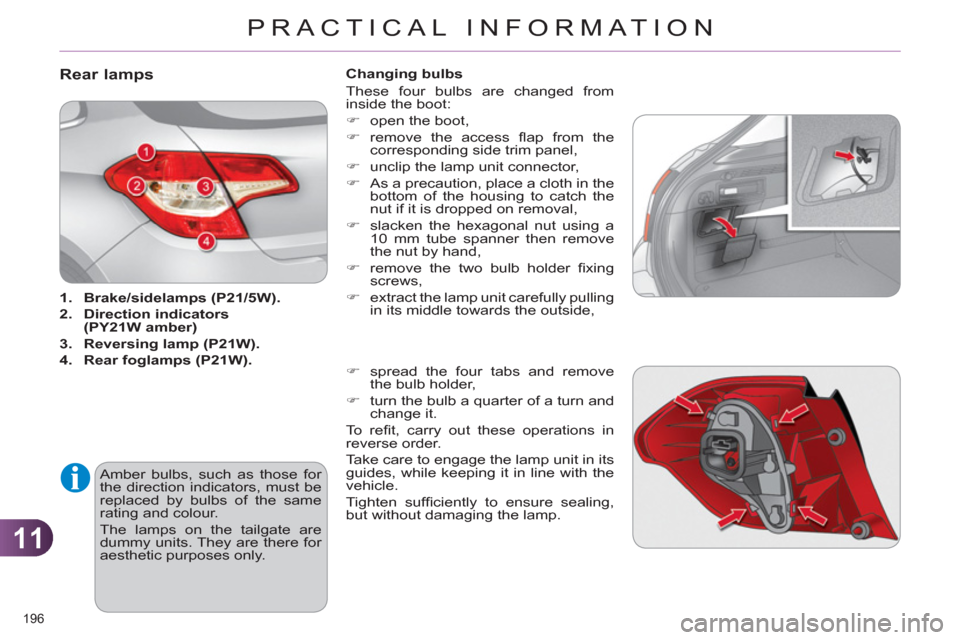

Rear lamps
1.
Brake/sidelamps (P21/5W).
2.
Direction indicators
(PY21W amber)
3.
Reversing lamp (P21W).
4.
Rear foglamps (P21W).
Amber bulbs, such as those for
the direction indicators, must be
replaced by bulbs of the same
rating and colour.
The lamps on the tailgate are
dummy units. They are there for
aesthetic purposes only.
Changing bulbs
These four bulbs are changed from
inside the boot:
)
open the boot,
)
remove the access fl ap from the
corresponding side trim panel,
)
unclip the lamp unit connector,
)
As a precaution, place a cloth in the
bottom of the housing to catch the
nut if it is dropped on removal,
)
slacken the hexagonal nut using a
10 mm tube spanner then remove
the nut by hand,
)
remove the two bulb holder fi xing
screws,
)
extract the lamp unit carefully pulling
in its middle towards the outside,
)
spread the four tabs and remove
the bulb holder,
)
turn the bulb a quarter of a turn and
change it.
To r efi t, carry out these operations in
reverse order.
Take care to engage the lamp unit in its
guides, while keeping it in line with the
vehicle.
Tighten suffi ciently to ensure sealing,
but without damaging the lamp.
Page 199 of 324
11
PRACTICAL INFORMATION
197

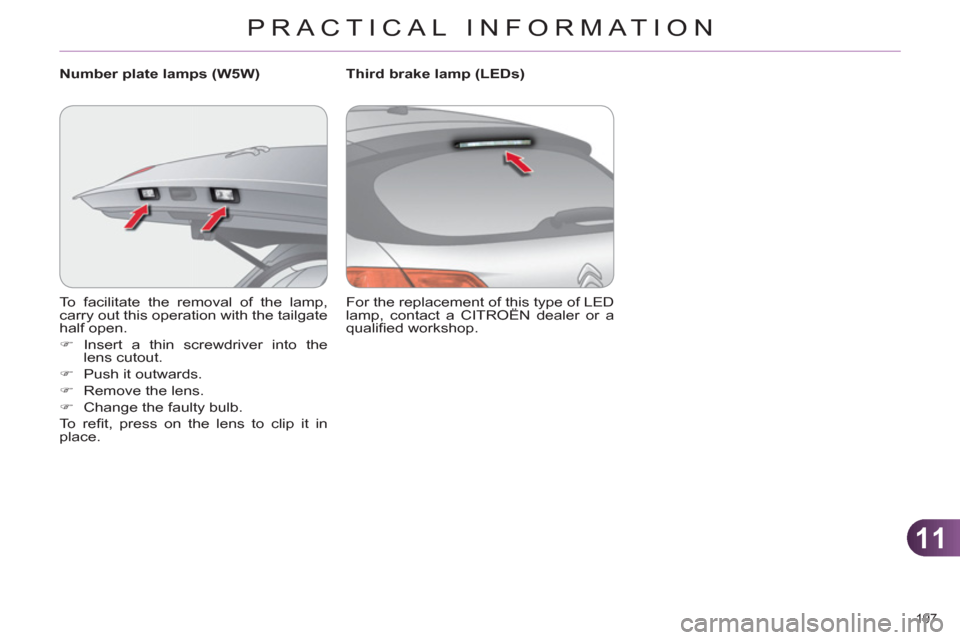

To facilitate the removal of the lamp,
carry out this operation with the tailgate
half open.
)
Insert a thin screwdriver into the
lens cutout.
)
Push it outwards.
)
Remove the lens.
)
Change the faulty bulb.
To r efi t, press on the lens to clip it in
place.
Number plate lamps (W5W)
For the replacement of this type of LED
lamp, contact a CITROËN dealer or a
qualifi ed workshop.
Third brake lamp (LEDs)
Page 200 of 324
11
PRACTICAL INFORMATION
198
CHANGING A FUSE
Access to the tools
The extraction tweezer is attached to
the back of the dashboard fusebox
cover.
For access to it:
)
unclip the cover by pulling at the
top right, then left,
Changing a fuse
Before changing a fuse:
)
the cause of the failure must be
identifi ed and rectifi ed,
)
all electrical consumers must be
switched off,
)
the vehicle must be immobilised
with the ignition off,
)
identify the failed fuse using the
tables and diagrams in the following
pages.
Good
Failed
To replace a fuse, you must:
)
use the special tweezer to extract
the fuse from its housing and check
the condition of its fi lament.
)
always replace the failed fuse with
a fuse of the same rating (same co-
lour); the use of a fuse of different
rating fuse may cause malfunctions
(risk of fi re).
If the fault recurrs soon after replac-
ing the fuse, have the electrical system
checked by a CITROËN dealer or a
qualifi ed workshop.
Installing electrical
accessories
Your vehicle's electrical system is
designed to operate with standard
or optional equipment.
Before installing other electrical
equipment or accessories on
your vehicle, contact a CITROËN
dealer or a qualifi ed workshop.
CITROËN will not accept respon-
sibility for the cost incurred in
repairing your vehicle or for recti-
fying malfunctions resulting from
the installation of accessories not
supplied and not recommended
by CITROËN and not installed in
accordance with its instructions,
in particular when the combined
consumption of all of the addi-
tional equipment connected ex-
ceeds 10 milliamperes.
The replacement of a fuse not
mentioned in the tables below
may cause a serious malfunc-
tion of your vehicle. Contact a
CITROËN dealer or a qualifi ed
workshop.
Tweezer
)
disengage the cover completely and
turn it over,
)
remove the carrier, on the back of
which the tweezer is fi tted.
