Citroen C4 2015 2.G Owner's Manual

05


379
C4-2_en_Chap13c_RD5_ed01-2015 C4-2_en_Chap13c_RD5_ed01-2015

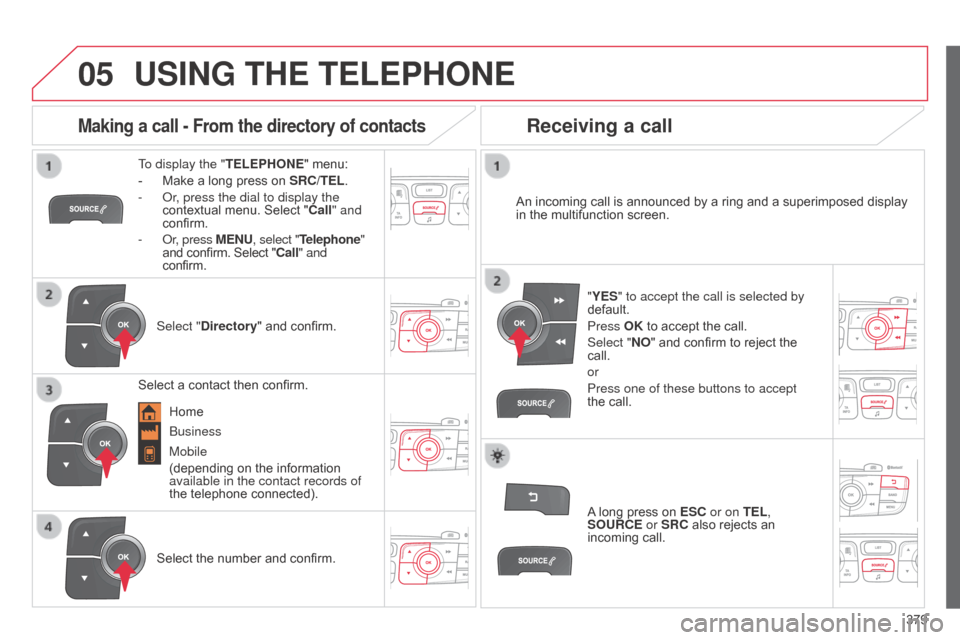

USING THE TELEPHONE
To display the " TELEPHONE"   menu:
-
Make
  a   long   press   on
SRC/TEL
.
-
o r, press the dial to display the
contextual
  menu.   Select   "Call" and
confirm.
-


o r, press MENU, select "Telephone"
and
  confirm.   Select   "Call" and
confirm.
Select "Directory "
  and   confirm. An
  incoming   call   is   announced   by   a   ring   and   a   superimposed   display
in

  the   multifunction   screen.
Mobile
(depending
  on   the   information
available in the contact records of
the

  telephone   connected). "YES" to accept the call is selected by
default.
Press OK
  to   accept   the   call.
Select "NO"
  and   confirm   to   reject   the
call.
or
Press one of these buttons to accept
the

  call.
Making a call - From the directory of contacts
Select a contact then confirm.
Receiving a call
Select the number and confirm.A

long   press   on
ESC
or on TEL,
SOURCE or SRC   also   rejects   an
incoming

  call.
b
usiness
Home

05

380
C4-2_en_Chap13c_RD5_ed01-2015
C4-2_en_Chap13c_RD5_ed01-2015

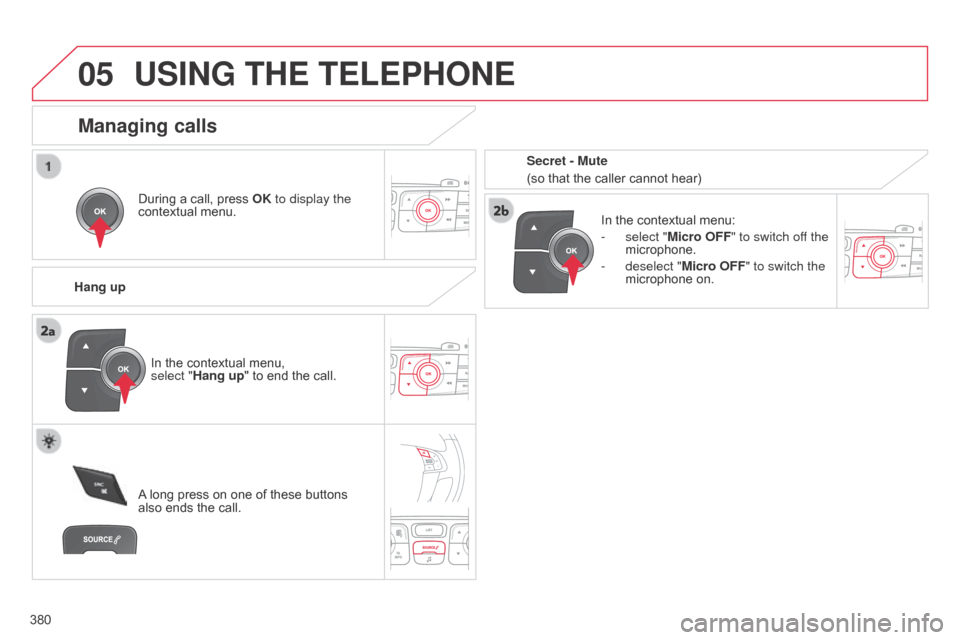

USING THE TELEPHONE
During a call, press OK to display the
contextual   menu.
Hang up In
  the   contextual   menu:
-

select "
Micro OFF" to switch off the
microphone.
-

deselect "
Micro OFF" to switch the
microphone
  on.
Managing calls
A long   press   on   one   of   these   buttons  also
  ends   the   call.
In
  the   contextual   menu,
select "Hang up"   to   end   the   call. Secret - Mute
(so   that   the   caller   cannot   hear)

05

381
C4-2_en_Chap13c_RD5_ed01-2015
C4-2_en_Chap13c_RD5_ed01-2015
In the contextual menu:
-
select "
Telephone mode " to
transfer
  the   call   to   the   telephone.
-

deselect "
Telephone mode" to
transfer
  the   call   to   the   vehicle.
In

certain

cases,   the   combined   mode   has   to   activated   from   the
telephone.
If


the

contact   has   been   cut   off,   when   you   reconnect   on   returning   to
the


vehicle,

the   Bluetooth   connection   will   be   restored   automatically
(depending


on   the   compatibility   of   the   telephone).
Combined mode
(to

leave

the
  vehicle   without   ending   the   call)
USING THE TELEPHONE
From the contextual menu, select
"DTMF tones"   and   confirm   to
use

  the   digital   keypad   to   navigate   in

the

  interactive   voice   response   menu.
From
  the   contextual   menu,
select

"Switch"   and   conform   to   return
to

  a   call   left   on   hold.
Interactive voice response
Consultation call

05


382
C4-2_en_Chap13c_RD5_ed01-2015 C4-2_en_Chap13c_RD5_ed01-2015
USING THE TELEPHONE
Directory
The system accesses the telephone's contacts directory, depending on
  compatibility,   and   while   the   Bluetooth   connection   with   it   is
maintained.
With certain telephones connected by

b luetooth you can send a
contact
  to   the   directory   of   the   audio   system.
Contacts
  imported   in   this   way   are   saved   in   a   permanent   directory
visible

  to   all,   whatever   the   telephone   connected.
The
  menu   for   the   directory   is   not   accessible   if   it   is   empty.To
  modify   the   contacts   saved   in
the

  system,   press   MENU then
select
"Telephone"   and   confirm.
Select "Directory management " and
confirm.
You
  can:
-
"Consult an entry",
-
"Delete an entry",
-
"Delete all entries".
Select "Directory
" to see the list of
contacts.
Make
  a   long   press   on
SOURCE
or SRC
for access to the directory
or press OK, and
select "Call"
  and   confirm.

06


383
C4-2_en_Chap13c_RD5_ed01-2015 C4-2_en_Chap13c_RD5_ed01-2015

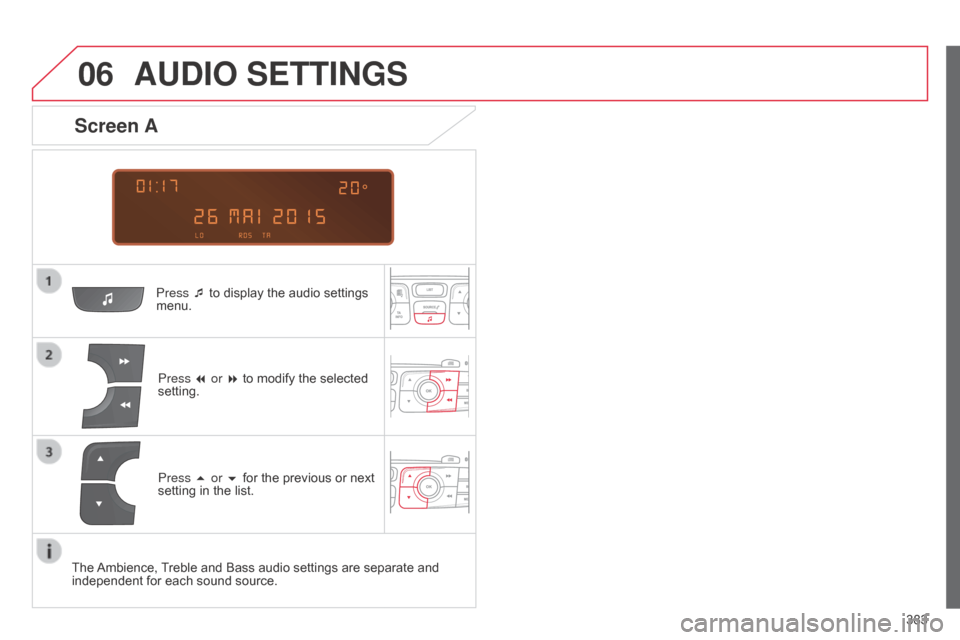

AUDIO SETTINGS
Press ¯ to display the audio settings menu.
Press
7 or 8   to   modify   the   selected
setting.
Screen A
Press 5 or 6 for the previous or next setting  in   the   list.
The

Ambience,


T
reble   and   Bass   audio   settings   are   separate   and
independent


for   each   sound   source.

06
384
C4-2_en_Chap13c_RD5_ed01-2015
C4-2_en_Chap13c_RD5_ed01-2015

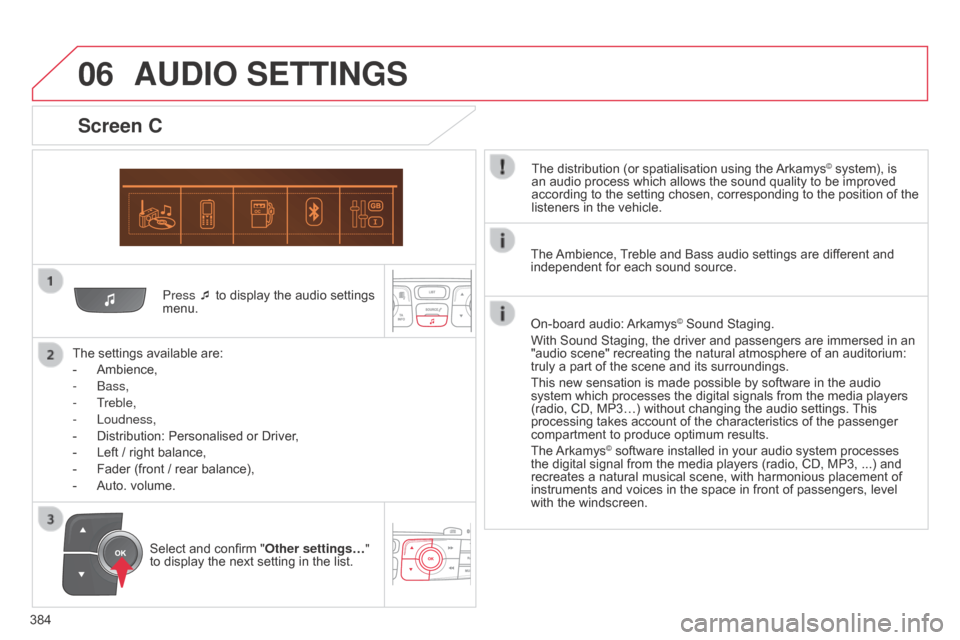

Press ¯ to display the audio settings menu.
The

settings

available   are:
-

Ambience,
-

b
ass,
-

Treble,
-

Loudness,
-

Distribution:
  Personalised   or   Driver,
-

Left


/

right

balance,
-

Fader


(front   /   rear   balance),
-

Auto.


volume.
Screen C
The distribution (or spatialisation using the Arkamys© system), is an

audio

process

which

allows

the

sound

quality

to

be   improved
according


to

the

setting

chosen,

corresponding

to

the   position   of   the
listeners


in

the

vehicle.
AUDIO SETTINGS
Select and confirm " Other settings… "
to   display   the   next   setting   in   the   list. The

Ambience,

T
reble   and   Bass audio   settings   are   different   and
independent

  for   each   sound   source.
On-board   audio:
Arkamys© Sound Staging.
With

Sound

Staging,

the

driver   and   passengers   are   immersed   in   an
"audio


scene"

recreating

the   natural   atmosphere   of   an   auditorium:
truly


a

part

of

the

scene

and   its   surroundings.
This

new

sensation

is

made   possible   by   software   in   the   audio
system


which

processes

the   digital   signals   from   the   media   players
(radio,


CD,

MP3…)

without   changing   the   audio   settings.
This

processing


takes

account

of   the   characteristics   of   the   passenger
compartment


to

produce

optimum   results.
The

Arkamys© software installed in your audio system processes the

digital

signal   from   the   media   players   (radio,   CD,   MP3,   ...)   and
recreates


a

natural   musical   scene,   with   harmonious   placement   of
instruments


and   voices   in   the   space   in   front   of   passengers,   level
with


the

windscreen.

07
385

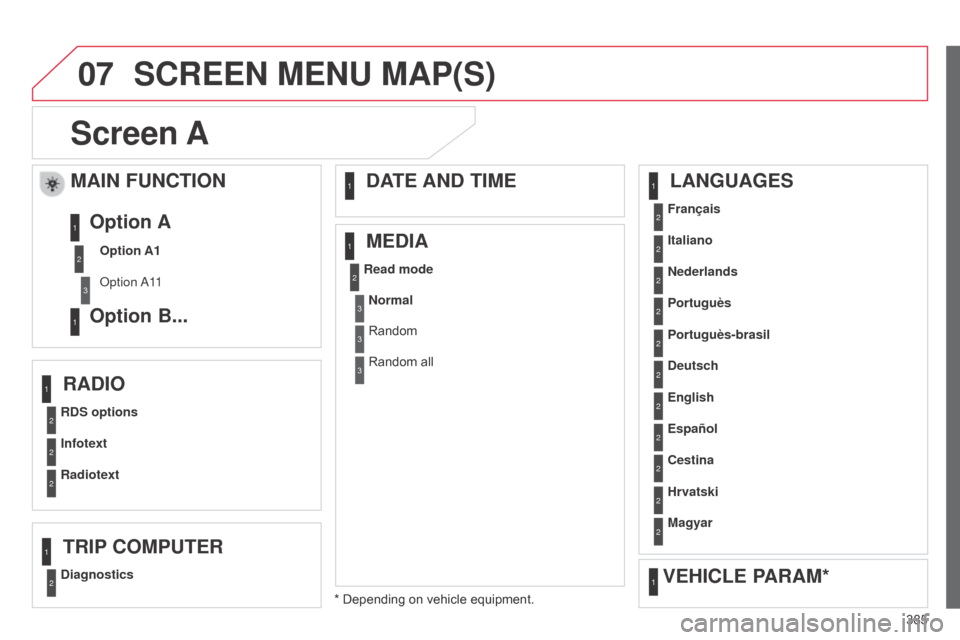

C4-2_en_Chap13c_RD5_ed01-2015
C4-2_en_Chap13c_RD5_ed01-2015
Screen A
RDS optionsFrançais
Portuguès
Cestina
Read mode
Diagnostics Infotext Italiano
English Portuguès-brasil
Hrvatski
Radiotext Nederlands
Español Deutsch
Magyar
MAIN FUNCTION
Option A1
o

ption a 11
Option A
Option B...1
2
3
1
RADIO LANGUAGES
MEDIA
TRIP COMPUTER DATE AND TIME
VEHICLE PARAM*
SCREEN MENU MAP(S)
* Depending on vehicle equipment.
2
2
2
2
2
2
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
Normal
Random
Random  all3
3
3

07
386
C4-2_en_Chap13c_RD5_ed01-2015
C4-2_en_Chap13c_RD5_ed01-2015
SCREEN MENU MAP(S)
S
creen C
Dial2
Media parameters
Choice of playback mode
Normal
1
2
3
Random3
Random all3
Repeat3
Choice of track listing
b
y folders2
3
by artists3
By genres3
by playlists3
Call1
Directory2
Calls list2
Voice mail box2
Directory management
Consult an entry
1
2
Delete an entry2
Delete all entries2
Telephone management
Telephone status
1
2
Hang up1
Vehicle diagnosis
Connections management
1
1
Search for a device1
MEDIA TELEPHONETRIP COMPUTER
BLUETOOTH CONNECTION
Radio parameters
1

07
387
C4-2_en_Chap13c_RD5_ed01-2015
C4-2_en_Chap13c_RD5_ed01-2015

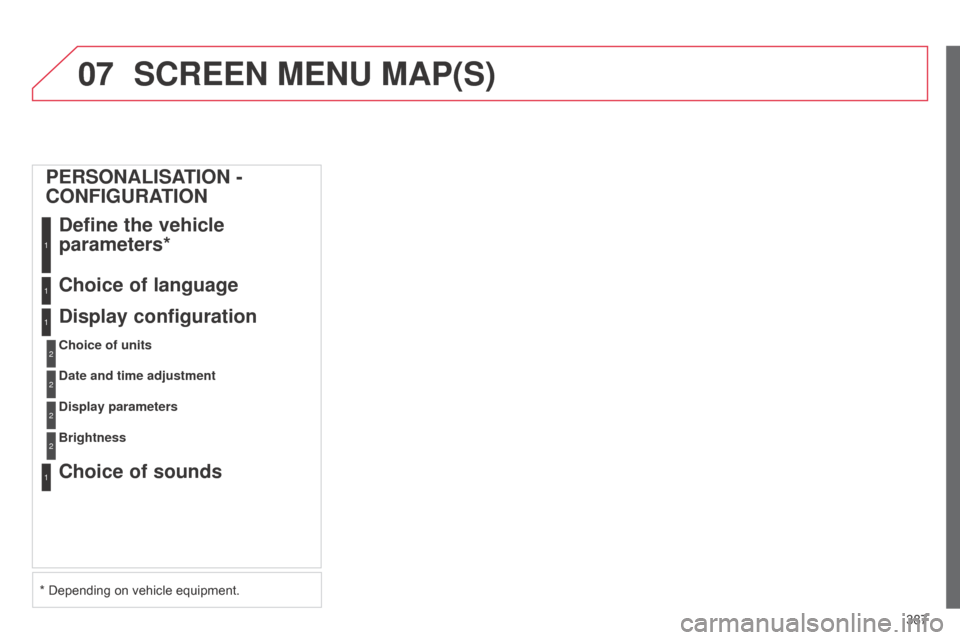

SCREEN MENU MAP(S)
PERSONALISATION -
CONFIGURATIONDefine the vehicle
parameters*
1
Choice of language1
Display configuration
Choice of units
1
2
Date and time adjustment2
Display parameters2
Choice of sounds1
Brightness2
* Depending on vehicle equipment.

388
C4-2_en_Chap13c_RD5_ed01-2015
C4-2_en_Chap13c_RD5_ed01-2015
FREqUENTLY ASKED q UESTIONS
qUESTION ANSWER SOLUTION
There is a dif ference in
sound

quality   between
the dif

ferent audio
sources
  (radio,   CD...). For
  optimum   sound   quality,   the   audio   settings   (Volume,   Bass,
T
reble,
Ambience,

  Loudness)   can   be   adapted   to   the   different   sound   sources,
which

  may   result   in   audible   differences   when   changing   source   (radio,
CD...).Check

  that   the   audio   settings   (Volume,   Bass,
T

reble,
Ambience,
  Loudness)   are   adapted   to
the

  sources   listened   to.   It   is   advisable   to   set
the


AUDIO
  functions   (Bass,
T
reble,   Front-Rear
Fader

,   Left-Right   Balance)   to   the   middle   position,
select

  the   musical   ambience   "None"   and   set   the
loudness correction to the "

a ctive" position in C d
mode
  or   to   the   "Inactive"   position   in   radio   mode.
When

changing   the
settings

  for   treble   and
bass,


the   ambience
setting

  is   deselected.
When

changing   the
ambience

  setting,   treble
and bass are reset to
zero. Choosing

  an   ambience   imposes   settings   for   treble   and   bass.   Modifying
one

  without   the   other   is   not   possible.Modify
  the   treble   and   bass   settings   or   the
ambience

  setting   to   obtain   the   desired   sound
quality

.
When

changing   the
balance

  setting,
distribution

  is   deselected. Choosing
  a   distribution   setting   imposes   a   balance   setting.   Modifying   one
without

  the   other   is   not   possible. Modify
  the   balance   setting   or   the   distribution
setting

  to   obtain   the   desired   sound   quality.
The

following   tables   contain   answers   to   the   most   frequently   asked   questions.
