Citroen C4 CACTUS 2016 1.G Owner's Manual

119
Electric child lock
Switching on
F With  the   ignition   on,   press   this   button.
The   indicator   lamp   in   the   button   comes   on,
a

ccompanied   by   a   message   to   confirm   that   the
c

hild   lock   is   on.
This
  indicator   lamp   remains   on   until   the   child
l

ock   is   switched   off.
It is still possible to open the doors from the outside.
Switching off
F With  the   ignition   on,   press   this   button   again.
The   indicator   lamp   in   the   button   goes   off,
a

ccompanied   by   a   message   to   confirm   that   the
c

hild   lock   is   off.
This
  indicator   lamp   remains   off   while   the   child
l

ock   is   switched   off.
Remote
  control   system   to   prevent   opening   of   the   rear   doors   using   their   interior   controls.
Any   other   status   of   the   indicator   lamp
i

ndicates   a   fault   with   the   electric   child
l

ock.
Have   it   checked   by   a   CITROËN   dealer
o

r   a   qualified   workshop.
This   system   is   independent   and   in   no
c

ircumstances   does   it   take   the   place   of
t

he   central   locking   control.
Check   the   status   of   the   child   lock   each  t
ime   you   switch   on   the   ignition.
Always
  remove   the   key   from   the   ignition
w

hen   leaving   the   vehicle,   even   for   a
s

hort   time.
5
Safety

120
A few driving recommendations
Observe the driving regulations at all times and remain   vigilant   whatever   the   traffic   conditions.
Pay
  close   attention   to   the   traffic   and   keep   your
h

ands   on   the   wheel   so   that   you   are   ready   to
r

eact   at   any   time   to   any   eventuality.
On
  a   long   journey,   a   break   every   two   hours   is
s

trongly
 re
commended.
In
  difficult   weather,   drive   smoothly,   anticipate
t

he   need   to   brake   and   increase   the   distance
f

rom   other   vehicles.
Driving on flooded
roads
We strongly advise against driving on flooded roads,   as   this   could   cause   serious   damage
t

o   the   engine   or   gearbox,   as   well   as   to   the
e

lectrical   systems   of   your   vehicle.If
  you   are   obliged   to   drive   through   water:
-
c
heck   that   the   depth   of   water   does   not
e

xceed   15   cm,   taking   account   of   waves
t

hat   might   be   generated   by   other   users,
-
d
eactivate   the   Stop   &   Start   system,
-
d
rive   as   slowly   as   possible   without
s

talling.   In   all   cases,   do   not   exceed   6   mph
(

10 km/h),
-  d o   not   stop   and   do   not   switch   off   the  e
ngine.
On
  leaving   the   flooded   road,   as   soon   as
c

ircumstances   allow,   make   several   light   brake
a

pplications   to   dry   the   brake   discs   and   pads.
If
  in   doubt   on   the   state   of   your   vehicle,   contact
a

  CITROËN   dealer   or   a   qualified   workshop.
Important!
Never drive with the parking brake applied   -   Risk   of   overheating   and
d

amage   to   the   braking   system!
Do
  not   park   or   run   the   engine   when
s

tationary   in   areas   where   inflammable
s

ubstances   and   materials   (dry   grass,
d

ead   leaves...)   might   come   into
c

ontact with   the   hot   exhaust   system   -
R

isk   of   fire!
Never
  leave   a   vehicle   unsupervised
w

ith   the   engine   running.   If   you   have
t

o   leave   your   vehicle   with   the   engine
r

unning,   apply   the   parking   brake
a

nd   put   the   gearbox   into   neutral   or
p

osition

N or P,
  depending   on   the   type
o

f   gearbox.
Driving

121
When towing
Distribution of loads
F Distribute  the   load   in   the   trailer   so   that   the  h
eaviest   items   are   as   close   as   possible   to
t

he   axle   and   the   nose   weight   approaches
t

he   maximum   permitted   without
e

xceeding it.
Air
  density   decreases   with   altitude,   thus
r

educing   engine   per formance.   Above
1 0

00 metres,   the   maximum   towed   load   must
b

e   reduced   by   10 %   for   every   1 000   metres   of
al

titude.
For
  more   information   on   weights   (and   the
t

owed   loads   which   apply   to   your   vehicle)   refer
t

o   the   corresponding   section.
Side wind
F Take  into   account   the   increased   sensitivity  t
o   side   wind.
Cooling
Towing a trailer on a slope increases the temperature   of   the   coolant.
As
  the   fan   is   electrically   controlled,   its   cooling
c

apacity   is   not   dependent   on   the   engine   speed.
F

T
o   lower   the   engine   speed,   reduce   your
s

peed.
The
  maximum   towed   load   on   a   long   incline
d

epends   on   the   gradient   and   the   ambient
t

emperature.
In
  all   cases,   keep   a   check   on   the   coolant
t

emperature. F

I
f   the   warning   lamp   and   the
S

TOP

warning   lamp   come   on,
s

top   the   vehicle   and   switch   off
t

he   engine   as   soon   as   possible.
Braking
Towing a trailer increases the braking distance.
T o   avoid   overheating   of   the   brakes,   the   use   of
e

ngine   braking   is   recommended.
Ty r e s
F Check  the   tyre   pressures   of   the   towing  v
ehicle   and   of   the   trailer,   observing   the
re

commended
 p
ressures.
Lighting
F Check  the   electrical   lighting   and   signalling  o
n   the   trailer   and   the   hadlamp   beam   height
o

f   your   vehicle.
For
  more   information   on   adjusting   the
h

eadlamp   beam   height,   refer   to   the
c

orresponding
 s
ection.
The
  rear   parking   sensors   will   be
d

eactivated   automatically   if   a   genuine
C

ITROËN   towbar   is   used.
6
Driving

122
Starting
The parking brake must be applied.
F

W

ith

a   manual   gearbox,   place   the   gear
l

ever

in   neutral   then   depress   the   clutch
p

edal
 f
ully.
F

W

ith

an   electronic   gearbox,   place   the
c

ontrol at N   then   press   the   brake   pedal
f

i r m l y.
F

I

nsert
  the   key   into   the   ignition   switch;   the
s

ystem   recognises   the   code.
F

U

nlock   the   steering   column   by   simultaneously
 t

urning   the   steering   and   the   key.
In

certain   cases,   you   may   have   to   apply
m

ore   force   to   the   steering   (wheels   on
f

ull
  lock,   for   example).
F

W

ith

a   petrol   engine,   operate   the   starter
m

otor
  by   turning   the   key   to   position 3
without
  pressing   the   accelerator   pedal,
u

ntil

the   engine   starts.   Once   the   engine   is
r

unning,   release   the   key.
Starting-switching off the engine
It has 3 positions:
-  p osition   1 (Stop):
  insert   and   removing
the
  key,
-

p
osition   2 (Ignition on) :
  steering   column
u

nlocked,   ignition   on,   Diesel   preheating,
e

ngine
 r
unning,
-

p
osition   3 (Starting).
Ignition switch
Switching off the engine leads to a loss o
f   braking   assistance.
Ignition on position (2)
It allows the use of the vehicle's electric equipment   or   portable   devices   to   be   charged.
Once
  the   state   of   charge   of   the   battery   drops
t

o   the   reserve   level,   the   system   switches   to
e

nergy   economy   mode:   the   power   supply   is
c

ut   off   automatically   to   preserve   the   remaining
b

attery   charge.
Avoid
  attaching   heavy   objects   to   the
k

ey,   which   would   weigh   down   on   its
b

lade   in   the   ignition   switch   and   could
c

ause   a   malfunction.
It
  could   adversely   affect   the   deployment
o

f   the   front   airbag.
Driving

123
F With  a   Diesel   engine,   turn   the   key   to  p
osition 2 ,
  ignition   on,   to   operate   the
eng

ine
 p
re-heating
 s
ystem.
Wait until this warning lamp goes off in the instrument   panel   then   operate   the   starter m

otor   by   turning   the   key   to   position 3
without
  pressing   the   accelerator   pedal,
 u

ntil   the   engine   starts.   Once   the   engine   is
 r

unning,   release   the   key.
In wintry conditions, the warning lamp can   stay   on   for   a   longer   period.   When
t

he   engine   is   hot,   the   warning   lamp
d

oes   not   come   on. In
  temperate   conditions,   do   not   leave
t

he   engine   at   idle   to   warm   up   but   move
o

ff   straight   away   and   drive   at   moderate
s

peed.
Never   leave   the   engine   running   in
a

n   enclosed   area   without   adequate
v

entilation:
 in
ternal
 c
ombustion
 e

ngines   emit   toxic   exhaust   gases,
s

uch   as   carbon   monoxide.   Danger   of  i
ntoxication   and   death.
In   very   severe   wintry   conditions
(

temperatures   below   -23°C),   to   ensure
t

he   correct   operation   and   durability   of
t

he   mechanical   components   of   your
v

ehicle,   engine   and   gearbox,   it   is
n

ecessary   to   leave   the   engine   running
f

or   4   minutes   before   moving   off.
If
  the   engine   does   not   start   straight
a

way,   switch   off   the   ignition.   Wait   a   few
m

oments   before   operating   the   starter
m

otor   again.   If   the   engine   does   not
s

tart   after   several   attempts,   do   not   keep
t

rying:   you   risk   damaging   the   starter
m

otor   or   the   engine.
Contact
  a   CITROËN   dealer   or   a
q

ualified
 w
orkshop.
6
Driving

124
Key left in the "Ignition on"
position
If the key has been left in the ignition switch at position 2 (Ignition on) ,
the
  ignition   will   be   switched   off
a

utomatically   after   one   hour.
To
  switch   the   ignition   back   on,   turn   the
k

ey   to   position   1 (Stop),
  then   back   to
p

osition 2 (Ignition on) .
Never

switch

off

the

ignition

before

the

v

ehicle

is

at

a

complete

stop.
With

the

engine

off,

the

braking

and

s

teering

assistance

systems

are

also

c

ut

off:

risk

of

loss

of

control

of

the

v

ehicle.
When

you

leave

the

vehicle,

keep

the

k

ey

with

you

and

lock

the

vehicle.
To facilitate unlocking of the steering c olumn,   it   is   recommended   that   the
w

heels   be   returned   to   the   straight   ahead
p

osition   before   switching   off   the   engine.
Switching off
F Stop  the   vehicle.
F  W ith   the   engine   running   at   idle,   turn   the   key
t

o position 1 .
F

R
emove   the   key   from   the   ignition   switch.
F

T
o   lock   the   steering   column,   turn   the
s

teering   until   it   locks.
F

C
heck   that   the   parking   brake   is   correctly
a

pplied,   particularly   on   sloping   ground.For
  more   information,   refer   to   the
"

Energy   economy   mode"   section.Energy economy mode
After switching off the engine (position 1- Stop),
for   a   maximum   of   30   minutes   you   can   still   use
f

unctions   such   as   the   audio   and   telematic
s

ystem,   the   wipers,   dipped   beam   headlamps,
c

ourtesy   lamps, ...
Driving

125
Parking brake
ApplicationRelease
When parking on a slope, direct your w
heels   against   the   kerb,   apply   the
p

arking   brake,   engage   a   gear   and
s

witch   off   the   ignition.
When the vehicle is being driven, if this warning   lamp   and   the   STOP  warning   lamp
c

ome   on,   accompanied   by   an   audible
s

ignal   and   a   message   in   the   screen,   this
i

ndicates   that   the   parking   brake   is   still   on
o

r   has   not   been   fully   released.
F Pull  the   parking   brake   lever   up   to  i
mmobilise   your   vehicle. F
 P ull   the   parking   brake   lever   up   slightly,  p
ress the release button, then lower the
lever
 f

ully.
6
Driving

126

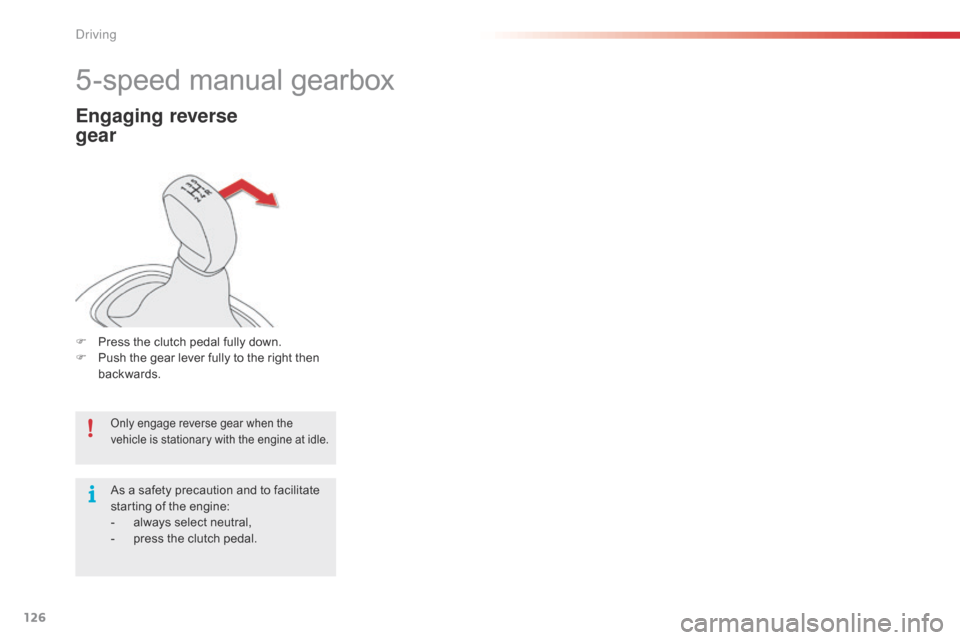

5-speed manual gearbox
Engaging reverse
gear
F Press  the   clutch   pedal   fully   down.
F  P ush   the   gear   lever   fully   to   the   right   then
ba

ckwards.
Only engage reverse gear when the vehicle   is   stationary   with   the   engine   at   idle.
As a safety precaution and to facilitate starting   of   the   engine:
-

a
lways   select   neutral,
-

p
ress   the   clutch   pedal.
Driving

127
Operation
Gear efficiency indicator
System which reduces fuel consumption by advising the driver to change up, on vehicles fitted with a manual gearbox.
T he   system   adapts   its   gear   change
r

ecommendation   according   to   the
d

riving   conditions   (slope,   load, ...)   and
t

he   demands   of   the   driver   (power,
a

cceleration,   braking, ...).
The
  system   never   suggests:
-

e
ngaging   first   gear,
-
 enga

ging
 r
everse
 g
ear,
-

e
ngaging   a   lower   gear.
Example:
-

Y
ou   are   in   third   gear.
Depending
  on   the   driving   situation   and   your
v

ehicle's   equipment,   the   system   may   advise
y

ou   to   skip   one   (or   more)   gear(s).   You   can
f

ollow   this   instruction   without   engaging   the
i

ntermediate
 g
ears.
-

Y
ou   press   the   accelerator   pedal.
-

T
he   system   may   suggest   that   you   engage
a

  higher   gear.
The
  information   appears   in   the   instrument
p

anel   in   the   form   of   an   arrow,   accompanied   by
t

he   recommended   gear.
On
  certain   Diesel   versions   with   manual
g

earbox,   the   system   may   suggest
c

hanging   into   neutral   (N
  is   displayed   in
t

he   instrument   panel)   so   that   the   engine
c

an   go   into   standby   (STOP   mode
w

ith   Stop   &   Start),   in   certain   driving
c

onditions.
The
  gear   engagement   recommendations   must
n

ot   be   considered   compulsory.   In   fact,   the
c

onfiguration   of   the   road,   the   amount   of   traffic
a

nd   safety   remain   determining   factors   when
c

hoosing   the   best   gear.   Therefore,   the   driver
r

emains   responsible   for   deciding   whether   or   not
t

o   follow   the   advice   given   by   the   system.
This
  system   cannot   be   deactivated.
6
Driving

128

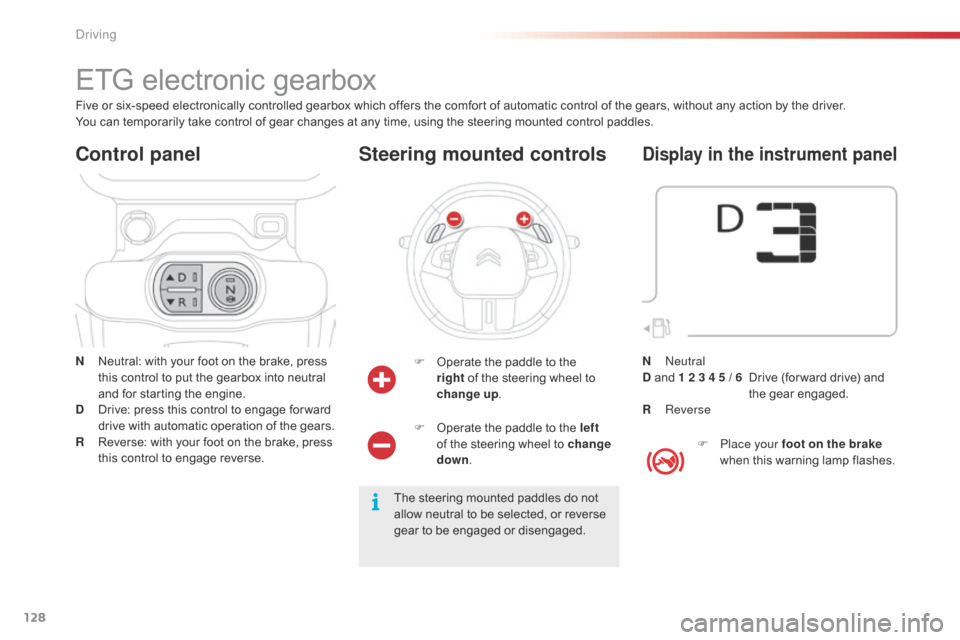

ETG electronic gearbox
N Neutral:  with   your   foot   on   the   brake,   press  t
his   control   to   put   the   gearbox   into   neutral
a

nd   for   starting   the   engine.
D

D
rive:   press   this   control   to   engage   for ward
d

rive   with   automatic   operation   of   the   gears.
R

R
everse:   with   your   foot   on   the   brake,   press
t

his   control   to   engage   reverse.
Control panel
F Operate  the   paddle   to   the  r
ight  of   the   steering   wheel   to
ch

ange

up.
Steering mounted controls
The steering mounted paddles do not a
llow   neutral   to   be   selected,   or   reverse
g

ear   to   be   engaged   or   disengaged.
Five

or

six-speed

electronically

controlled

gearbox

which

offers   the   comfort   of   automatic   control   of   the   gears,   without   any   action   by   the   driver.
You

can

temporarily

take

control

of

gear

changes

at

any

time,   using   the   steering   mounted   control   paddles.
F
O
perate   the   paddle   to   the   left

of   the   steering   wheel   to   change
down .
Display in the instrument panel
F Place your foot on the brake
when   this   warning   lamp   flashes.
N

Neutral
D

and

1 2 3 4 5 / 6
D
rive   (for ward   drive)   and
t

he
 g
ear
 enga
ged.
R

Reverse
Driving
