Citroen C4 CACTUS 2016 1.G Owner's Manual

189

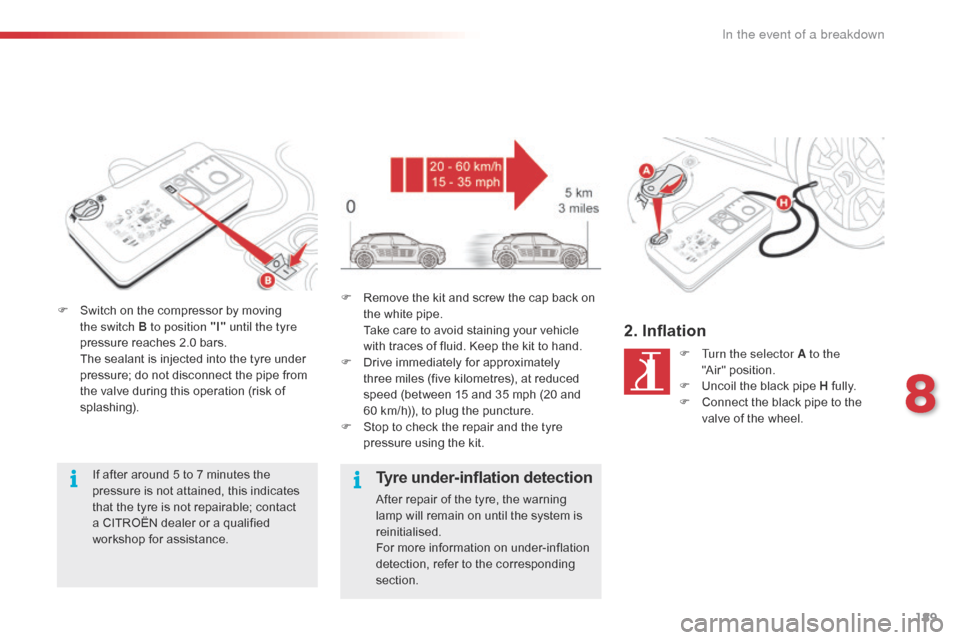

F Switch  on   the   compressor   by   moving  t
he switch B to position "I" until the tyre
pressure
  reaches   2.0   bars.
 T

he   sealant   is   injected   into   the   tyre   under
p

ressure;   do   not   disconnect   the   pipe   from
t

he   valve   during   this   operation   (risk   of
sp

lashing).
If
  after   around   5   to   7   minutes   the
p

ressure   is   not   attained,   this   indicates
t

hat   the   tyre   is   not   repairable;   contact
a

  CITROËN   dealer   or   a   qualified
w

orkshop   for   assistance. F
 R emove   the   kit   and   screw   the   cap   back   on  t
he   white   pipe.
 T

ake   care   to   avoid   staining   your   vehicle
w

ith   traces   of   fluid.   Keep   the   kit   to   hand.
F

D
rive   immediately   for   approximately
t

hree   miles   (five   kilometres),   at   reduced
s

peed   (between   15   and   35   mph   (20   and
6

0 km/h)),   to   plug   the   puncture.
F

S
top   to   check   the   repair   and   the   tyre
p

ressure   using   the   kit.
Tyre under-inflation detection
After repair of the tyre, the warning lamp   will   remain   on   until   the   system   is
r

einitialised.
For
  more   information   on   under-inflation
d

etection,   refer   to   the   corresponding
s

ection.
2. Inflation
F Turn the selector A to the "Air" position.
F

U
ncoil   the   black   pipe   H
f
ully.
F

C
onnect   the   black   pipe   to   the
v

alve   of   the   wheel.
8
In the event of a breakdown

190

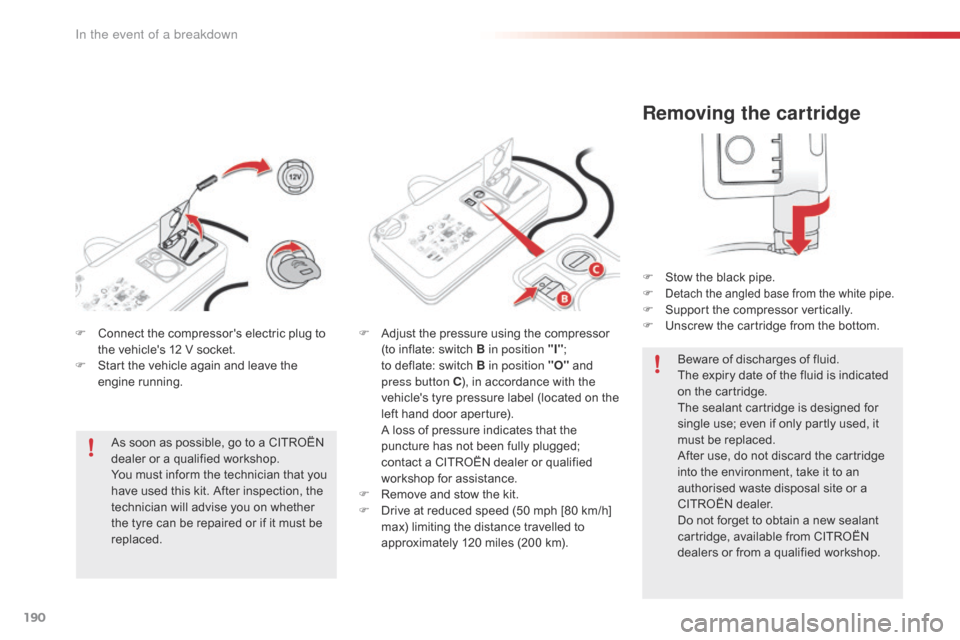

Removing the cartridge
F Stow  the   black   pipe.
F Detach the angled base from the white pipe.F Support   the   compressor   vertically.
F  U nscrew   the   cartridge   from   the   bottom.
Beware
  of   discharges   of   fluid.
The
  expiry   date   of   the   fluid   is   indicated
o

n   the   cartridge.
The
  sealant   cartridge   is   designed   for
s

ingle   use;   even   if   only   partly   used,   it
m

ust   be   replaced.
After
  use,   do   not   discard   the   cartridge
i

nto   the   environment,   take   it   to   an
a

uthorised   waste   disposal   site   or   a
C

ITROËN   dealer.
Do
  not   forget   to   obtain   a   new   sealant
c

artridge,   available   from   CITROËN
d

ealers   or   from   a   qualified   workshop.
F

C

onnect

the

compressor's

electric

plug

to

t

he

vehicle's

12

V

socket.
F

S

tart

the

vehicle

again

and

leave

the

e

ngine
 r

unning.
As

soon

as

possible,

go

to

a

CITROËN

d

ealer

or

a

qualified

workshop.
You

must

inform

the

technician

that

you

h

ave

used

this

kit.

After

inspection,

the

t

echnician

will

advise

you

on

whether

t

he

tyre

can

be

repaired

or

if

it

must

be

r

eplaced. F

A

djust

the

pressure

using

the

compressor

(

to

inflate:

switch

B in position "I" ;

t

o deflate:

switch

B

in position "O"


and

p

ress button C ),

in

accordance

with

the

v

ehicle's

t

yre

pressure

label

(located

on

the

l

eft

hand

door

aperture).


A


loss

of

pressure

indicates

that

the

p

uncture

has

not

been

fully

plugged;

c

ontact

a

CITROËN

dealer

or

qualified

w

orkshop

for

assistance.
F

R

emove

and

stow

the

kit.
F

D

rive

at

reduced

speed

(50

mph

[80

km/h]

m

ax)

limiting

the

distance

travelled

to

a

pproximately

120

miles

(200

km).
In the event of a breakdown

191
Checking tyre pressures / inflating accessories
You can also use the compressor, without injecting   any   product,   to:
-

c
heck   or   adjust   the   pressure   of   your   tyres,
-

i
nflate   other   accessories   (balls,   bicycle
t

yres...). F

T
urn the selector A to the
"Air" position.
F

U
ncoil   the   black   pipe   H
f
ully.F
 C onnect   the   compressor's   electrical
c

onnector   to   the   vehicle's   12   V   socket.
F

S
tart   the   vehicle   and   let   the   engine   run.
F

A
djust   the   pressure   using   the   compressor
(

to   inflate:   switch   B in position "I";

t

o deflate:   switch   B in position "O"

and
p

ress button C),
  according   to   the   vehicle's
t

yre   pressure   label   or   the   accessory's
p

ressure   label.
F

R
emove   the   kit   then   stow   it.Should
  the   pressure   of   one   or   more
t

yres   be   adjusted,   it   is   necessary   to
r

einitialise   the   under-inflation   detection
s

ystem.
For
  more   information   on   under-inflation
d

etection,   refer   to   the   corresponding
s

ection.
F

C
onnect   the   black   pipe   to   the   valve   of   the
w

heel   or   accessory.
 I

f   necessary,   fit   one   of   the   adaptors
s

upplied   with   the   kit   first.
8
In the event of a breakdown

192

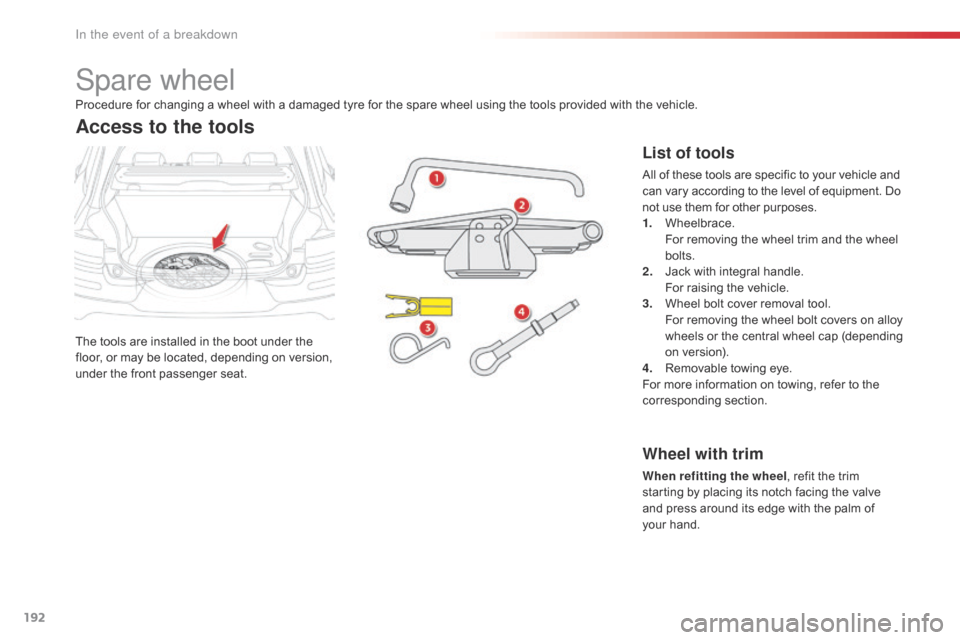

Spare wheel
The tools are installed in the boot under the floor,   or   may   be   located,   depending   on   version,
u

nder
 t
he
 f
ront
 p
assenger
 sea
t.
Access to the tools
List of tools
All of these tools are specific to your vehicle and can   vary   according   to   the   level   of   equipment.   Do n

ot   use   them   for   other   purposes.
1.
 W

heelbrace.
 F

or   removing   the   wheel   trim   and   the   wheel
bol

ts.
2.
 J

ack   with   integral   handle.
 F

or   raising   the   vehicle.
3.
 W

heel   bolt   cover   removal   tool.
 F

or   removing   the   wheel   bolt   covers   on   alloy
w

heels
 o
r
 t
he
 c
entral
 w
heel
 c
ap
 (
depending
 o

n   version).
4.
 R

emovable   towing   eye.
For
  more   information   on   towing,   refer   to   the
c

orresponding
 s
ection.
Procedure

for

changing

a

wheel

with

a

damaged

tyre

for

the

spare

wheel

using

the

tools

provided

with

the   vehicle.
Wheel with trim
When refitting the wheel
,   refit   the   trim  s
tarting   by   placing   its   notch   facing   the   valve
a

nd   press   around   its   edge   with   the   palm   of
y

our hand.
In the event of a breakdown

193

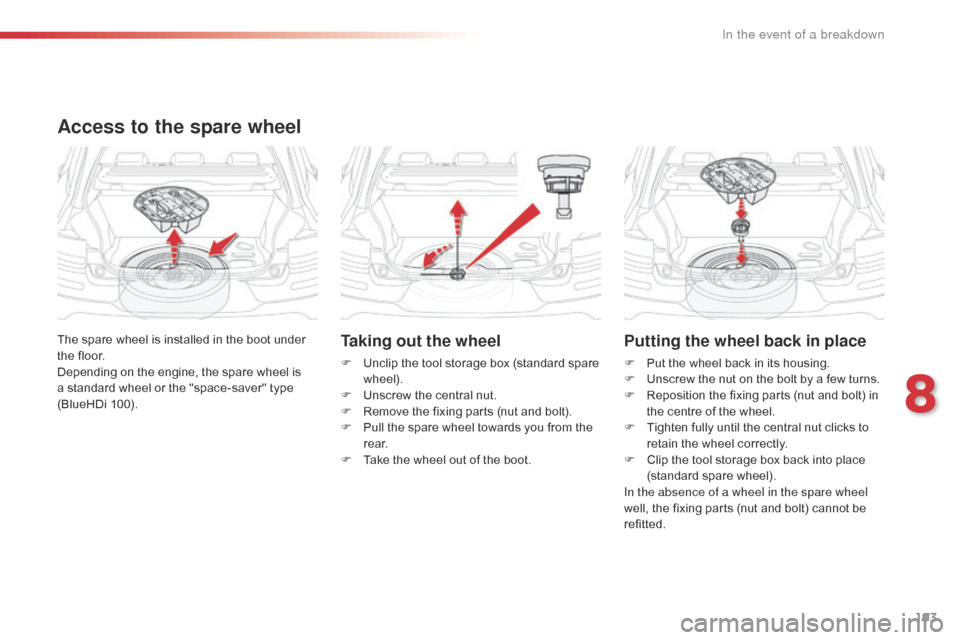

Taking out the wheel
F Unclip  the   tool   storage   box   (standard   spare  w
heel).
F

U
nscrew   the   central   nut.
F

R
emove   the   fixing   parts   (nut   and   bolt).
F

P
ull   the   spare   wheel   towards   you   from   the
r

e a r.
F

T
ake   the   wheel   out   of   the   boot.
The

spare

wheel

is

installed

in

the

boot

under
 t
he

floor.
Depending

on

the

engine,

the

spare

wheel

is

a


standard

wheel

or

the

"space-saver"

type

(

BlueHDi

100).
Access to the spare wheel
Putting the wheel back in place
F Put   the   wheel   back   in   its   housing.
F  U nscrew   the   nut   on   the   bolt   by   a   few   turns.
F

R
eposition   the   fixing   parts   (nut   and   bolt)   in
t

he   centre   of   the   wheel.
F

T
ighten   fully   until   the   central   nut   clicks   to
r

etain   the   wheel   correctly.
F

C
lip   the   tool   storage   box   back   into   place
(

standard
 spar
e
 w
heel).
In the absence of a wheel in the spare wheel
well,
  the   fixing   parts   (nut   and   bolt)   cannot   be
r

efitted.
8
In the event of a breakdown

194
Removing a wheel
Parking the vehicle
Immobilise the vehicle where it does not block   traffic:   the   ground   must   be   level,
s

table   and   not   slippery.
Apply
  the   parking   brake,   switch   off   the
i

gnition   and   engage   first   gear   to   block
t

he   wheels.
Check
  that   the   parking   brake   warning
l

amps   in   the   instrument   panel   come   on.
The
  occupants   must   get   out   of   the
v

ehicle   and   wait   where   they   are   safe.
Ensure
  that   the   jack   is   correctly
p

ositioned   at   one   of   the   vehicle's
j

acking   points.
Incorrect
  use   of   the   jack   could   cause
t

he   vehicle   to   drop.
Never
  go   underneath   a   vehicle   raised
u

sing   a   jack;   use   an   axle   stand.
List of operations
F Remove  the   wheel   bolt   cover(s)   using   the  t
ool 3   (depending   on   version).
F

S
lacken   the   bolts   using   the
w

heelbrace

1 o n l y.
Do
  not   use:
-

t
he   jack   for   any   other   purpose   than
l

ifting   the   vehicle,
-

a
  jack   other   than   the   one   supplied
b

y   the   manufacturer. The
  jack   must   only   be   used   to   change   a
w

heel   with   a   damaged   tyre.
The   jack   does   not   require   any  m
aintenance.
The
  jack   conforms   to   European
l

egislation,   such   as   defined   in   the
M

achinery   Directive   2006/42/CE.
In the event of a breakdown

195
F Position  the   foot   of   the   jack   2   on   the   ground  a
nd   ensure   that   it   is   directly   below   the
f

ront A or rear B   jacking   point   provided   on
t

he   underbody,   whichever   is   closest   to   the
w

heel   to   be   changed. F
 E xtend   the   jack   2   until   its   head   comes   into   contact   with   the   jacking   point   A or B   used;  t
he vehicle's   contact   area   A or B   must   engage   with   the   central   part   of   the   head   of   the   jack.
F

R
aise   the   vehicle   until   there   is   sufficient   space   between   the   wheel   and   the   ground   to   admit
t

he spare   (not   punctured)   wheel   easily.
Ensure
  that   the   jack   is   stable.   If   the   ground   is   slippery   or   loose,   the   jack   may   slip   or   drop   -
R

isk   of   injury!
Ensure
  that   the   jack   is   positioned   only   at   one   of   the   jacking   points   A or B   under   the   vehicle,
m

aking   sure   that   the   vehicle's   contact   sur face   is   centred   on   the   head   of   the   jack.   Other wise
t

here   is   a   risk   of   damage   to   the   vehicle   and/or   of   the   jack   dropping   -   Risk   of   injury!
8
In the event of a breakdown

196
Fitting a wheel
Fitting the spare wheel
If your vehicle is fitted with alloy wheels, when   tightening   the   bolts   on   fitting,   it   is
n

ormal
t
o
n
otice
t
hat
t
he
w
ashers
d
o
n
ot
c

ome   into   contact   with   the   spare   wheel.
T

he   wheel   is   secured   by   the   conical
s

ur face   of   each   bolt.
After changing a wheel
Have the tightening of the bolts and the pressure   of   the   spare   wheel   checked
b

y   a   CITROËN   dealer   or   a   qualified
w

orkshop   without   delay.
Have
  the   punctured   wheel   repaired
a

nd   refitted   to   the   vehicle   as   soon   as
p

ossible.
F

R

emove

the

bolts

and

store

them

in

a

clean

p

lace.
F
 R
emove

the

wheel.
In the event of a breakdown

197

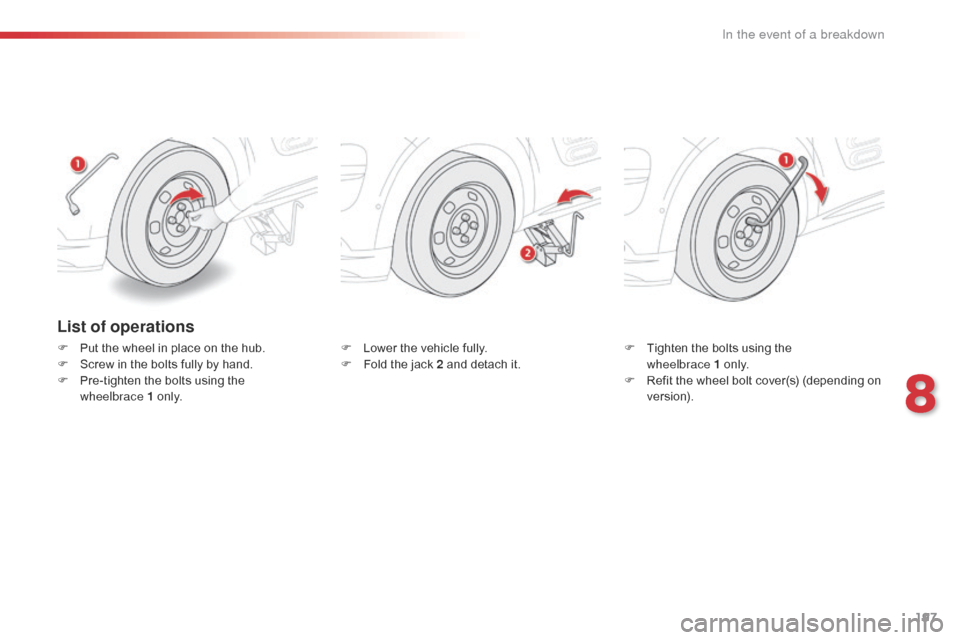

List of operations
F Put  the   wheel   in   place   on   the   hub.
F  S crew   in   the   bolts   fully   by   hand.
F

P
re-tighten   the   bolts   using   the
w

heelbrace

1
o
n l y. F
 L ower   the   vehicle   fully.
F  F old   the   jack   2   and   detach   it.F
 T ighten   the   bolts   using   the  w
heelbrace 1 o n l y.
F

R
efit   the   wheel   bolt   cover(s)   (depending   on
v

e r s i o n).
8
In the event of a breakdown

198
Changing a bulb
Front lamps
1. Daytime  running   lamps   /   Sidelamps  (LE
Ds).
2.
 D

ipped   beam   headlamps   (H7).
3.
 M

ain   beam   headlamps   (H1).
4.
 D

irection   indicators   (PY21W).
5.
 F

ront   foglamps   (PS24W). In
  some   weather   conditions   (e.g.   low
t

emperature   or   humidity),   the   presence
o

f   misting   on   the   internal   sur face   of   the
g

lass   of   the   headlamps   and   rear   lamps
i

s   normal;   it   disappears   after   the   lamps
h

ave   been   on   for   a   few   minutes.
The   headlamps   have   polycarbonate
l

enses   with   a   protective   coating:
F
d
o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F
u
se   a   sponge   and   soapy   water   or   a
p

H   neutral   product,
F
w
hen   using   a   high   pressure   washer
o

n   persistent   marks,   do   not   keep
t

he   lance   directed   towards   the
l

amps   or   their   edges   for   too   long,
s

o   as   not   to   damage   their   protective  c
oating a nd sea ls.
Changing   a   bulb   should   only   be   done
a

fter   the   headlamp   has   been   switched
o

ff   for   several   minutes   (risk   of   serious
b

urns).
F

D
o   not   touch   the   bulb   directly   with
y

our   fingers,   use   a   lint-free   cloth.
It
  is   imperative   to   use   only   anti-
ultraviolet
  (UV)   type   bulbs   to   avoid
d

amaging
 t
he
 h
eadlamp.
Always
  replace   a   failed   bulb   with   a
n

ew   bulb   with   the   same   type   and
s

pecification.
In the event of a breakdown
