Citroen C4 DAG 2008.5 1.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2008.5, Model line: C4 DAG, Model: Citroen C4 DAG 2008.5 1.GPages: 282, PDF Size: 12.66 MB
Page 121 of 282
102
VIII
S A F E T Y

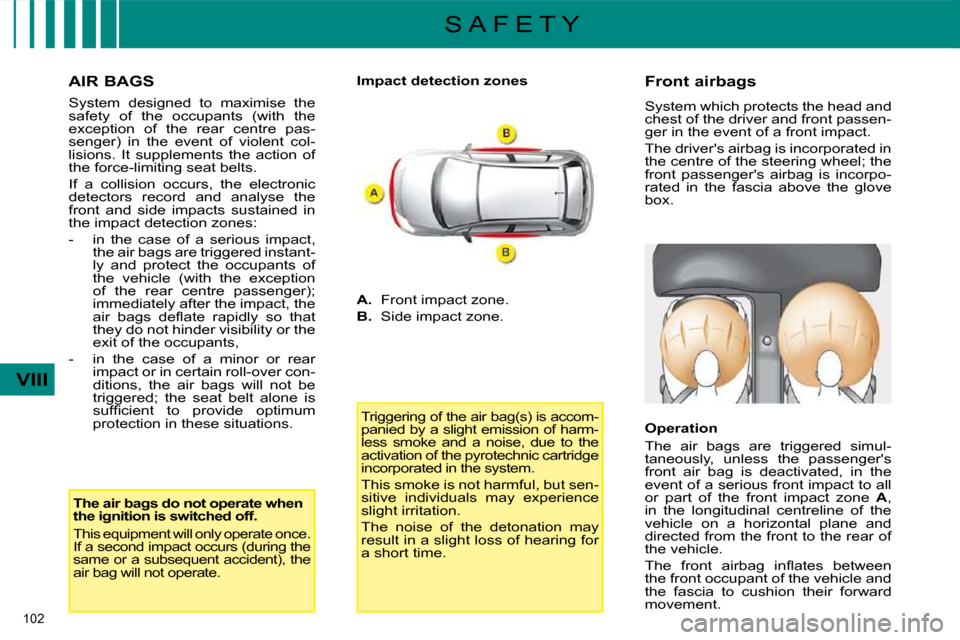

AIR BAGS
S y s t e m d e s i g n e d t o m a x i m i s e t h e
safety of the occupants (with the
e x c e p t i o n o f t h e r e a r c e n t r e p a s -
senger) in the event of violent col-
lisions. It supplements the action of
the force-limiting seat belts.
If a collision occurs, the electronic
detectors record and analyse the
front and side impacts sustained in
the impact detection zones:
- in the case of a serious impact, the air bags are triggered instant-
ly and protect the occupants of
t h e v e h i c l e ( w i t h t h e e x c e p t i o n
of the rear centre passenger);
immediately after the impact, the
a i r b a g s d e fl a t e r a p i d l y s o t h a t
they do not hinder visibility or the
e x i t o f t h e o c c u p a n t s ,
- in the case of a minor or rear impact or in certain roll-over con-
ditions, the air bags will not be
triggered; the seat belt alone is
s u f fi c i e n t t o p r o v i d e o p t i m u m
protection in these situations.
The air bags do not operate when
the ignition is switched off.
This equipment will only operate once.
If a second impact occurs (during the
same or a subsequent accident), the
air bag will not operate.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
Triggering of the air bag(s) is accom-
panied by a slight emission of harm-
less smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.
This smoke is not harmful, but sen-
s i t i v e i n d i v i d u a l s m a y e x p e r i e n c e
slight irritation.
The noise of the detonation may
result in a slight loss of hearing for
a short time. Front airbags
System which protects the head and
chest of the driver and front passen-
ger in the event of a front impact.
The driver's airbag is incorporated in
the centre of the steering wheel; the
front passenger's airbag is incorpo-
rated in the fascia above the glove
b o x .
Operation
The air bags are triggered simul-
taneously, unless the passenger's
front air bag is deactivated, in the
event of a serious front impact to all
or part of the front impact zone
A ,
in the longitudinal centreline of the
vehicle on a horizontal plane and
directed from the front to the rear of
the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n
the front occupant of the vehicle and
the fascia to cushion their forward
movement.
Page 122 of 282
103
VIII
S A F E T Y

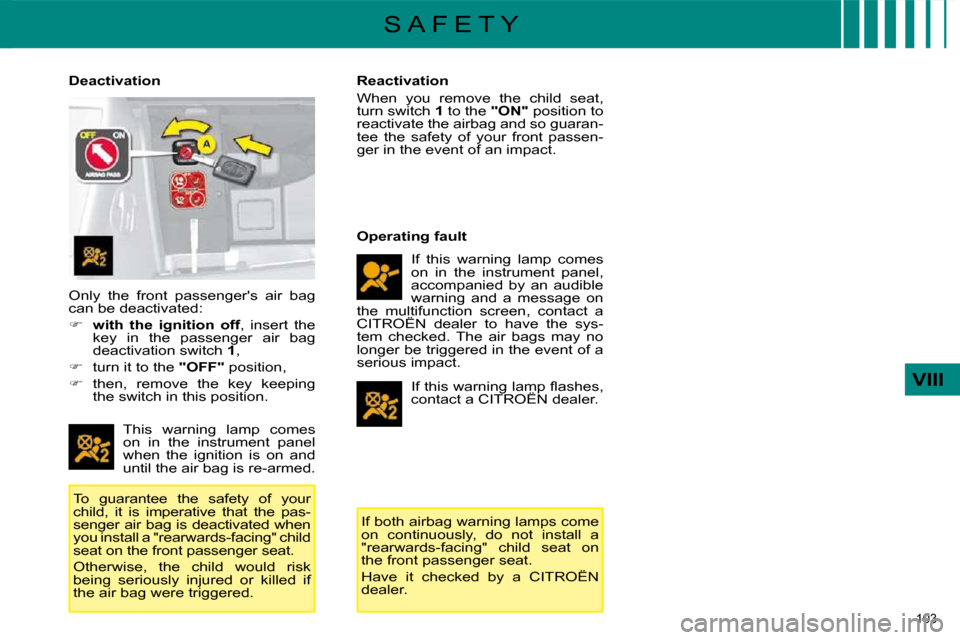

Deactivation
This warning lamp comes
on in the instrument panel
when the ignition is on and
until the air bag is re-armed.
To guarantee the safety of your
child, it is imperative that the pas-
senger air bag is deactivated when
you install a "rearwards-facing" child
seat on the front passenger seat.
Otherwise, the child would risk
b e i n g s e r i o u s l y i n j u r e d o r k i l l e d i f
the air bag were triggered. Reactivation
When you remove the child seat,
turn switch
1 to the "ON" position to
reactivate the airbag and so guaran-
tee the safety of your front passen-
ger in the event of an impact.
Operating fault
If this warning lamp comes
on in the instrument panel,
accompanied by an audible
warning and a message on
the multifunction screen, contact a
CITROËN dealer to have the sys-
tem checked. The air bags may no
longer be triggered in the event of a
serious impact.
I f t h i s w a r n i n g l a m p fl a s h e s ,
contact a CITROËN dealer.
If both airbag warning lamps come
on continuously, do not install a
"rearwards-facing" child seat on
the front passenger seat.
Have it checked by a CITROËN
dealer.
Only the front passenger's air bag
can be deactivated:
with the ignition off , insert the
key in the passenger air bag
deactivation switch 1 ,
turn it to the "OFF" position,
then, remove the key keeping
the switch in this position.
Page 123 of 282
105
VIII
S A F E T Y

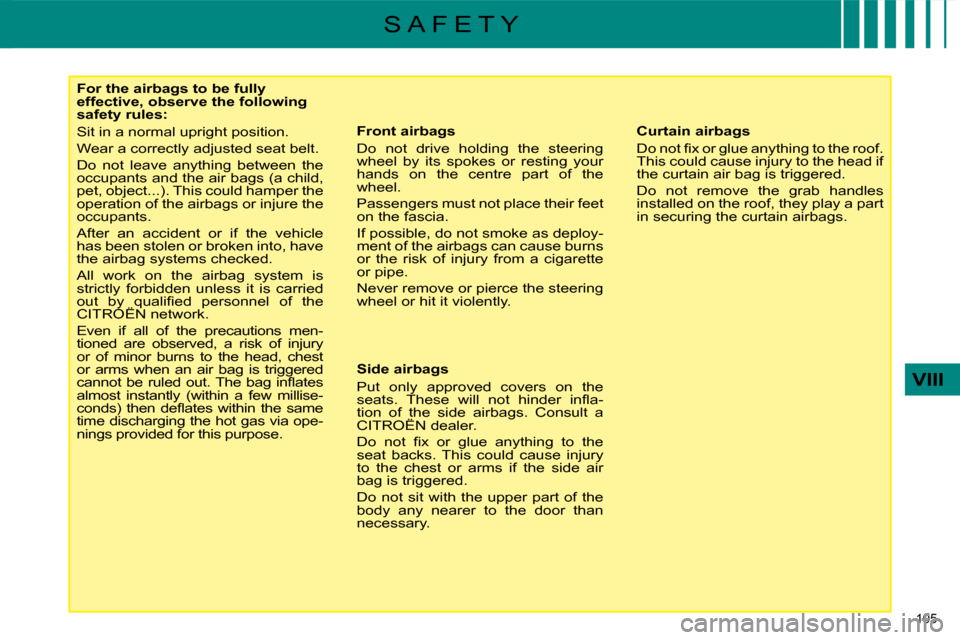

For the airbags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
W e a r a c o r r e c t l y a d j u s t e d s e a t b e l t .
Do not leave anything between the
occupants and the air bags (a child,
p e t , o b j e c t . . . ) . T h i s c o u l d h a m p e r t h e
o p e r a t i o n o f t h e a i r b a g s o r i n j u r e t h e
occupants.
After an accident or if the vehicle
has been stolen or broken into, have
the airbag systems checked.
All work on the airbag system is
strictly forbidden unless it is carried
o u t b y q u a l i fi e d p e r s o n n e l o f t h e
CITROËN network.
Even if all of the precautions men-
t i o n e d a r e o b s e r v e d , a r i s k o f i n j u r y
or of minor burns to the head, chest
or arms when an air bag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few millise-
c o n d s ) t h e n d e fl a t e s w i t h i n t h e s a m e
time discharging the hot gas via ope-
nings provided for this purpose. Front airbags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the fascia.
If possible, do not smoke as deploy-
ment of the airbags can cause burns
o r t h e r i s k o f i n j u r y f r o m a c i g a r e t t e
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Side airbags
Put only approved covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a -
tion of the side airbags. Consult a
CITROËN dealer.
D o n o t fi x o r g l u e a n y t h i n g t o t h e
s e a t b a c k s . T h i s c o u l d c a u s e i n j u r y
to the chest or arms if the side air
bag is triggered.
Do not sit with the upper part of the
body any nearer to the door than
necessary. Curtain airbags
D o n o t fi x o r g l u e a n y t h i n g t o t h e r o o f .
T h i s c o u l d c a u s e i n j u r y t o t h e h e a d i f
the curtain air bag is triggered.
Do not remove the grab handles
installed on the roof, they play a part
in securing the curtain airbags.
Page 124 of 282
104
VIII
S A F E T Y
* According to country.

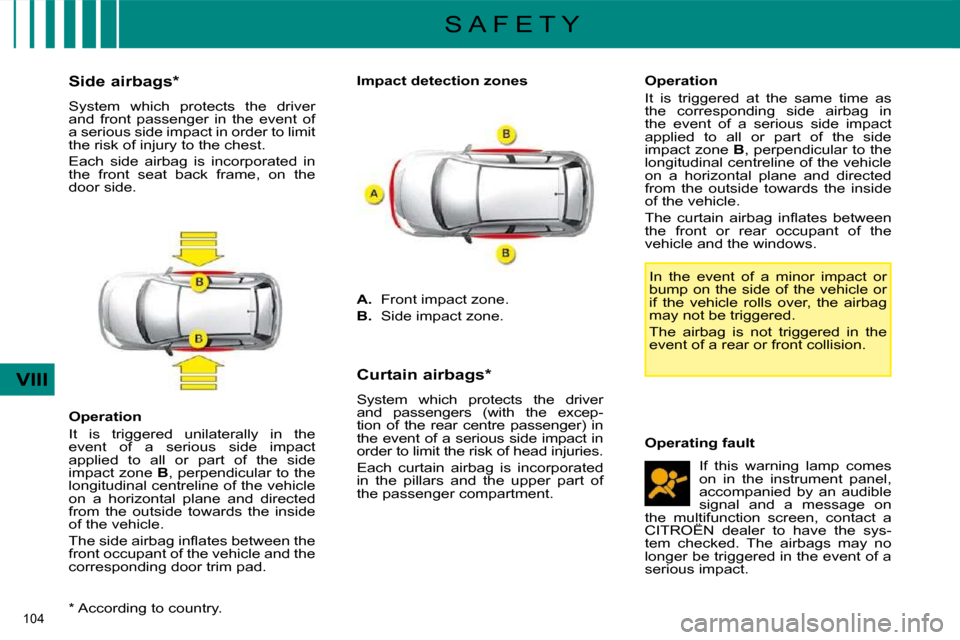

Side airbags *
System which protects the driver
and front passenger in the event of
a serious side impact in order to limit
t h e r i s k o f i n j u r y t o t h e c h e s t .
Each side airbag is incorporated in
the front seat back frame, on the
door side.
Operation
It is triggered unilaterally in the
event of a serious side impact
applied to all or part of the side
impact zone
B , perpendicular to the
longitudinal centreline of the vehicle
on a horizontal plane and directed
from the outside towards the inside
of the vehicle.
T h e s i d e a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
corresponding door trim pad. Impact detection zones
A. Front impact zone.
B. Side impact zone.
Curtain airbags *
System which protects the driver
a n d p a s s e n g e r s ( w i t h t h e e x c e p -
tion of the rear centre passenger) in
the event of a serious side impact in
o r d e r t o l i m i t t h e r i s k o f h e a d i n j u r i e s .
Each curtain airbag is incorporated
in the pillars and the upper part of
the passenger compartment. Operation
It is triggered at the same time as
the corresponding side airbag in
the event of a serious side impact
applied to all or part of the side
impact zone
B , perpendicular to the
longitudinal centreline of the vehicle
on a horizontal plane and directed
from the outside towards the inside
of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n
the front or rear occupant of the
vehicle and the windows.
In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the airbag
may not be triggered.
The airbag is not triggered in the
event of a rear or front collision.
Operating fault If this warning lamp comes
on in the instrument panel,
accompanied by an audible
signal and a message on
the multifunction screen, contact a
CITROËN dealer to have the sys-
tem checked. The airbags may no
longer be triggered in the event of a
serious impact.
Page 125 of 282
105
VIII
S A F E T Y
For the airbags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
W e a r a c o r r e c t l y a d j u s t e d s e a t b e l t .
Do not leave anything between the
occupants and the air bags (a child,
p e t , o b j e c t . . . ) . T h i s c o u l d h a m p e r t h e
o p e r a t i o n o f t h e a i r b a g s o r i n j u r e t h e
occupants.
After an accident or if the vehicle
has been stolen or broken into, have
the airbag systems checked.
All work on the airbag system is
strictly forbidden unless it is carried
o u t b y q u a l i fi e d p e r s o n n e l o f t h e
CITROËN network.
Even if all of the precautions men-
t i o n e d a r e o b s e r v e d , a r i s k o f i n j u r y
or of minor burns to the head, chest
or arms when an air bag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few millise-
c o n d s ) t h e n d e fl a t e s w i t h i n t h e s a m e
time discharging the hot gas via ope-
nings provided for this purpose. Front airbags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the fascia.
If possible, do not smoke as deploy-
ment of the airbags can cause burns
o r t h e r i s k o f i n j u r y f r o m a c i g a r e t t e
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Side airbags
Put only approved covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a -
tion of the side airbags. Consult a
CITROËN dealer.
D o n o t fi x o r g l u e a n y t h i n g t o t h e
s e a t b a c k s . T h i s c o u l d c a u s e i n j u r y
to the chest or arms if the side air
bag is triggered.
Do not sit with the upper part of the
body any nearer to the door than
necessary. Curtain airbags
D o n o t fi x o r g l u e a n y t h i n g t o t h e r o o f .
T h i s c o u l d c a u s e i n j u r y t o t h e h e a d i f
the curtain air bag is triggered.
Do not remove the grab handles
installed on the roof, they play a part
in securing the curtain airbags.
Page 126 of 282
106
IX
D R I V I N G

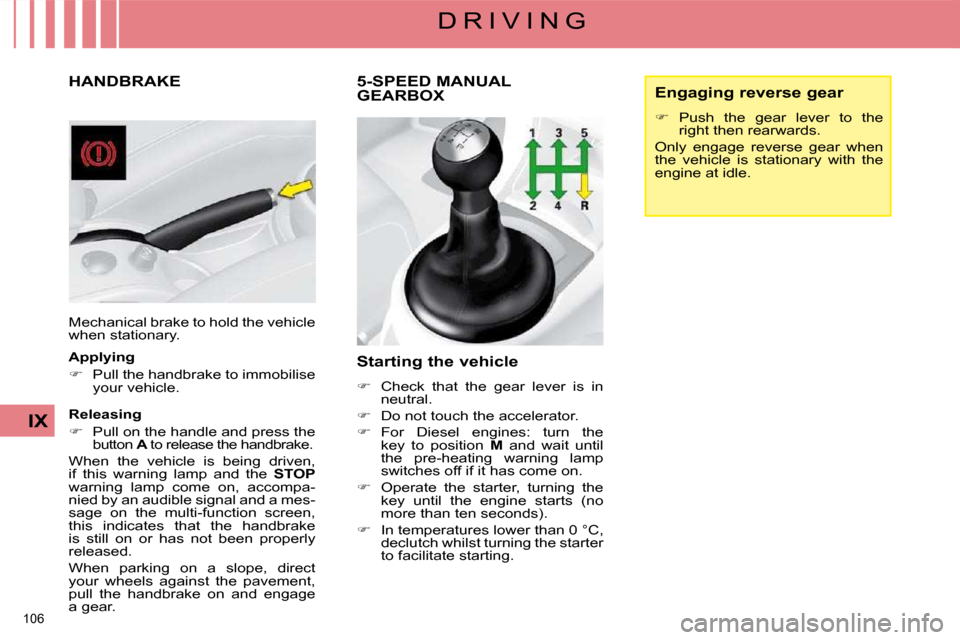

HANDBRAKE
Mechanical brake to hold the vehicle
when stationary.
Applying
Pull the handbrake to immobilise
your vehicle.
Releasing
Pull on the handle and press the
button A to release the handbrake.
When the vehicle is being driven,
if this warning lamp and the STOP
warning lamp come on, accompa-
nied by an audible signal and a mes-
sage on the multi-function screen,
this indicates that the handbrake
is still on or has not been properly
released.
When parking on a slope, direct
your wheels against the pavement,
pull the handbrake on and engage
a gear.
5-SPEED MANUAL GEARBOX
Starting the vehicle
Check that the gear lever is in
neutral.
Do not touch the accelerator.
For Diesel engines: turn the
key to position M and wait until
the pre-heating warning lamp
switches off if it has come on.
Operate the starter, turning the
key until the engine starts (no
more than ten seconds).
In temperatures lower than 0 °C,
declutch whilst turning the starter
to facilitate starting. Engaging reverse gear
Push the gear lever to the
right then rearwards.
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
Page 127 of 282
107
IX
D R I V I N G

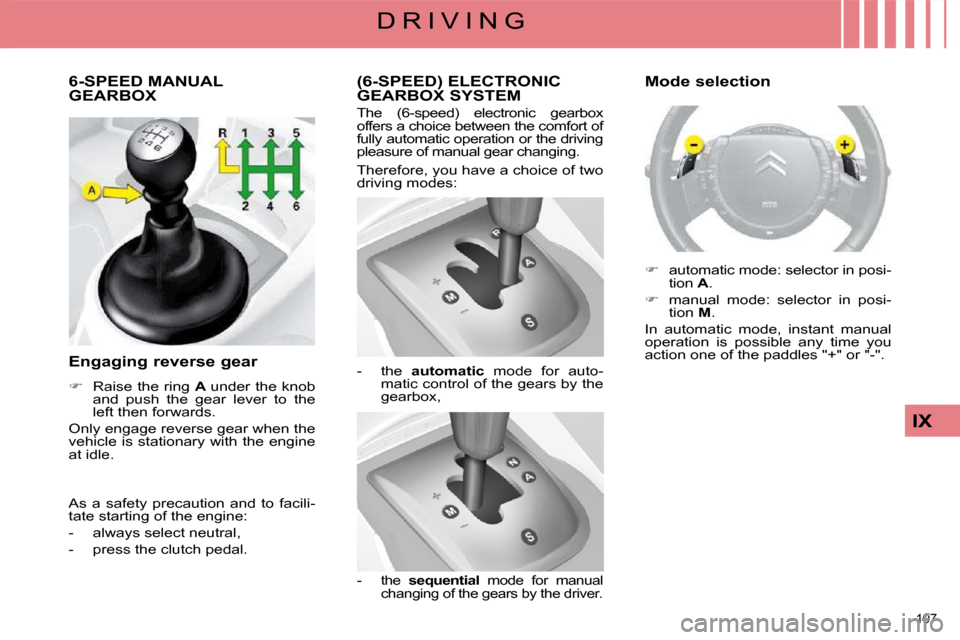

(6-SPEED) ELECTRONIC GEARBOX SYSTEM
The (6-speed) electronic gearbox
offers a choice between the comfort of
fully automatic operation or the driving
pleasure of manual gear changing.
Therefore, you have a choice of two
driving modes:
- the automatic mode for auto-
matic control of the gears by the
gearbox,
- the sequential mode for manual
changing of the gears by the driver.
6-SPEED MANUAL GEARBOX
Engaging reverse gear
Raise the ring A under the knob
and push the gear lever to the
left then forwards.
Only engage reverse gear when the
vehicle is stationary with the engine
at idle. Mode selection
automatic mode: selector in posi-
tion A .
manual mode: selector in posi-
tion M .
In automatic mode, instant manual
operation is possible any time you
action one of the paddles "+" or "-".
As a safety precaution and to facili-
tate starting of the engine:
- always select neutral,
- press the clutch pedal.
Page 128 of 282
107
IX
D R I V I N G
(6-SPEED) ELECTRONIC GEARBOX SYSTEM
The (6-speed) electronic gearbox
offers a choice between the comfort of
fully automatic operation or the driving
pleasure of manual gear changing.
Therefore, you have a choice of two
driving modes:
- the automatic mode for auto-
matic control of the gears by the
gearbox,
- the sequential mode for manual
changing of the gears by the driver.
6-SPEED MANUAL GEARBOX
Engaging reverse gear
Raise the ring A under the knob
and push the gear lever to the
left then forwards.
Only engage reverse gear when the
vehicle is stationary with the engine
at idle. Mode selection
automatic mode: selector in posi-
tion A .
manual mode: selector in posi-
tion M .
In automatic mode, instant manual
operation is possible any time you
action one of the paddles "+" or "-".
As a safety precaution and to facili-
tate starting of the engine:
- always select neutral,
- press the clutch pedal.
Page 129 of 282
108
IX
D R I V I N G

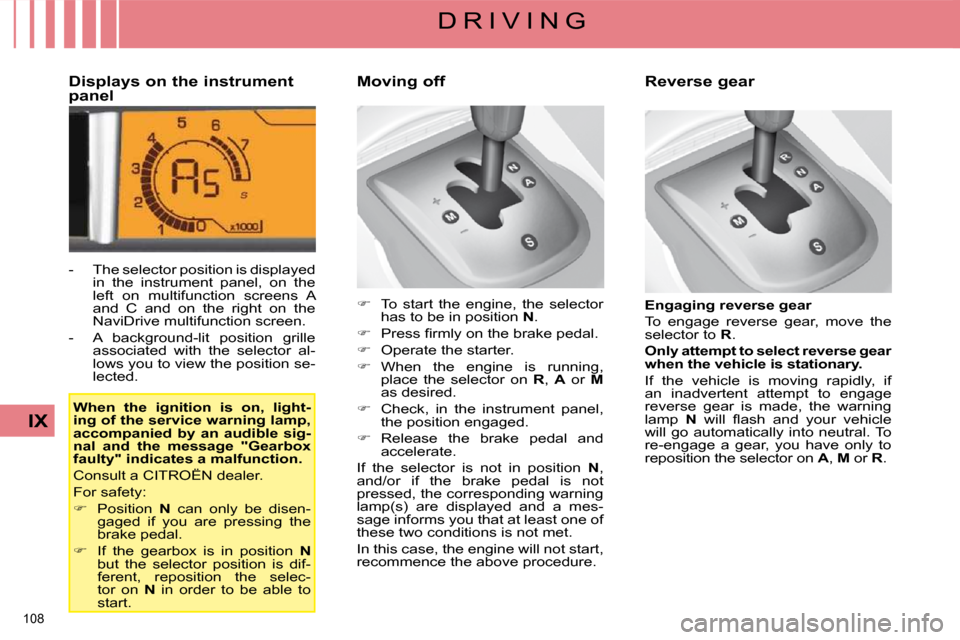

Displays on the instrument
panel
- The selector position is displayed in the instrument panel, on the
left on multifunction screens A
and C and on the right on the
NaviDrive multifunction screen.
- A background-lit position grille associated with the selector al-
lows you to view the position se-
lected. Moving off
When the ignition is on, light-
ing of the service warning lamp,
accompanied by
an audible
sig-
nal and the message "Gearbox
faulty" indicates a malfunction.
Consult a CITROËN dealer.
For safety:
Position N can only be disen-
gaged if you are pressing the
brake pedal.
If the gearbox is in position N
but the selector position is dif-
ferent, reposition the selec-
tor on N in order to be able to
start.
To start the engine, the selector
has to be in position N .
P r e s s fi r m l y o n t h e b r a k e p e d a l .
Operate the starter.
When the engine is running,
place the selector on R , A or M
as desired.
Check, in the instrument panel,
the position engaged.
Release the brake pedal and
accelerate.
If the selector is not in position N ,
and/or if the brake pedal is not
pressed, the corresponding warning
lamp(s) are displayed and a mes-
sage informs you that at least one of
these two conditions is not met.
In this case, the engine will not start,
recommence the above procedure.
Engaging reverse gear
To engage reverse gear, move the
selector to R .
Only attempt to
select
reverse gear
when the vehicle is stationary.
If the vehicle is moving rapidly, if
an inadvertent attempt to engage
reverse gear is made, the warning
lamp N w i l l fl a s h a n d y o u r v e h i c l e
will go automatically into neutral. To
re-engage a gear, you have only to
reposition the selector on A , M or R .
Reverse gear
Page 130 of 282
109
IX
D R I V I N G

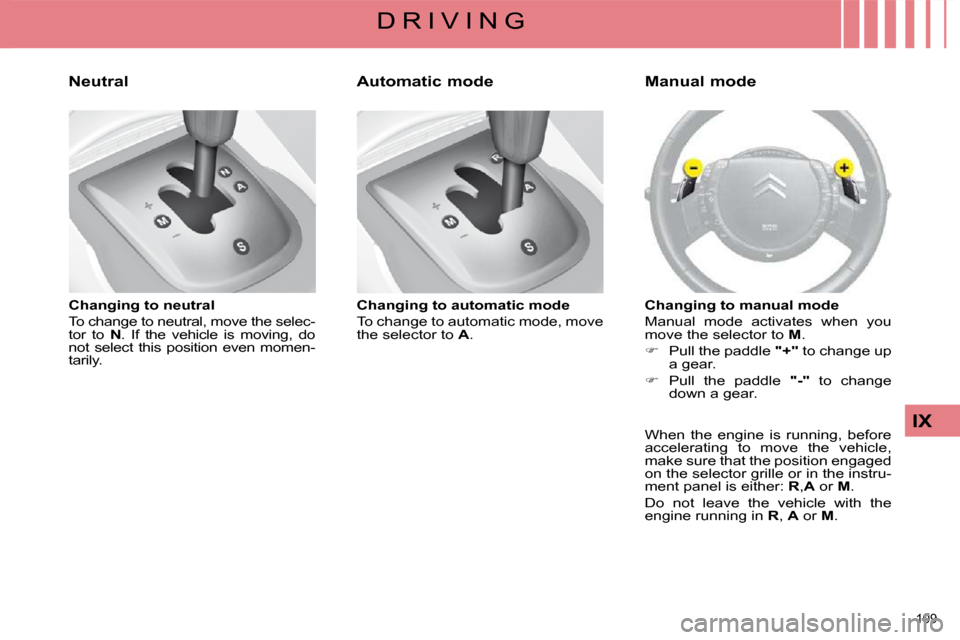

Neutral
Changing to neutral
To change to neutral, move the selec-
tor to N . If the vehicle is moving, do
not select this position even momen-
tarily. Automatic mode
Changing to automatic mode
To change to automatic mode, move
the selector to A . Manual mode
Changing to manual mode
Manual mode activates when you
move the selector to M .
Pull the paddle "
+
" to change up
a gear.
Pull the paddle "
-
" to change
down a gear.
When the engine is running, before
accelerating to move the vehicle,
make sure that the position engaged
on the selector grille or in the instru-
ment panel is either: R , A or M .
Do not leave the vehicle with the
engine running in R , A or M .
