Page 180 of 355
IX
154
D R I V I N G

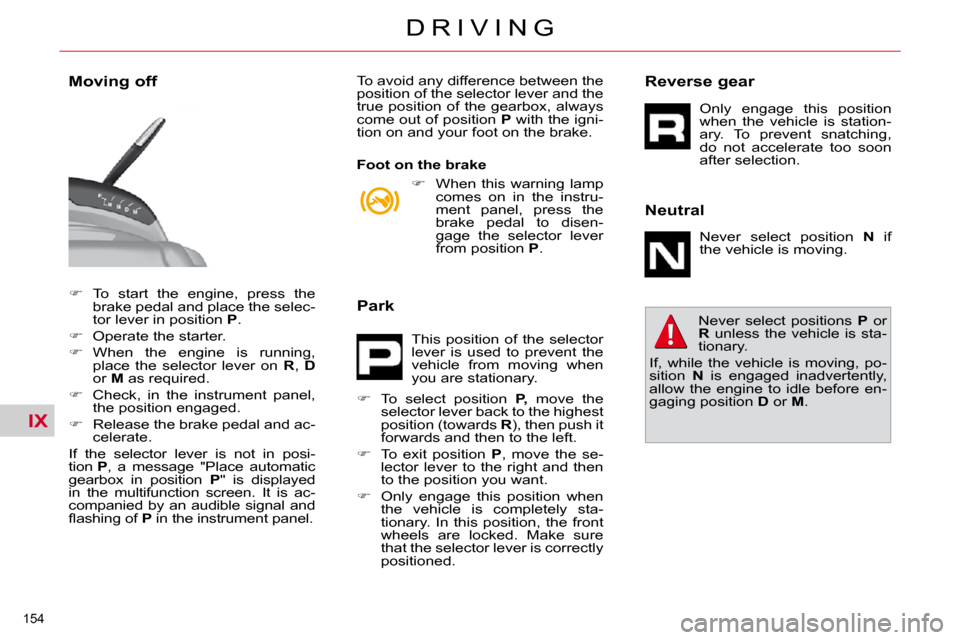

To start the engine, press the
brake pedal and place the selec-
tor lever in position P .
Operate the starter.
When the engine is running,
place the selector lever on R , D
or M as required.
Check, in the instrument panel,
the position engaged.
Release the brake pedal and ac-
celerate.
If the selector lever is not in posi-
tion P , a message "Place automatic
gearbox in position P " is displayed
in the multifunction screen. It is ac-
companied by an audible signal and
fl a s h i n g o f P in the instrument panel.
Moving off
To avoid any difference between the
position of the selector lever and the
true position of the gearbox, always
come out of position
P with the igni-
tion on and your foot on the brake.
When this warning lamp
comes on in the instru-
ment panel, press the
brake pedal to disen-
gage the selector lever
from position P .
Park
To select position P, move the
selector lever back to the highest
position (towards R ) , t h e n p u s h i t
forwards and then to the left.
To exit position P , move the se-
lector lever to the right and then
to the position you want.
Only engage this position when
the vehicle is completely sta-
tionary. In this position, the front
wheels are locked. Make sure
that the selector lever is correctly
positioned. Reverse gear
Neutral
Only engage this position
when the vehicle is station-
ary. To prevent snatching,
do not accelerate too soon
after selection.
Never select position
N if
the vehicle is moving.
Never select positions P or
R unless the vehicle is sta-
tionary.
If, while the vehicle is moving, po-
sition N is engaged inadvertently,
allow the engine to idle before en-
gaging position D or M .
This position of the selector
lever is used to prevent the
vehicle from moving when
you are stationary.
Foot on the brake
Page 181 of 355
IX
155
D R I V I N G

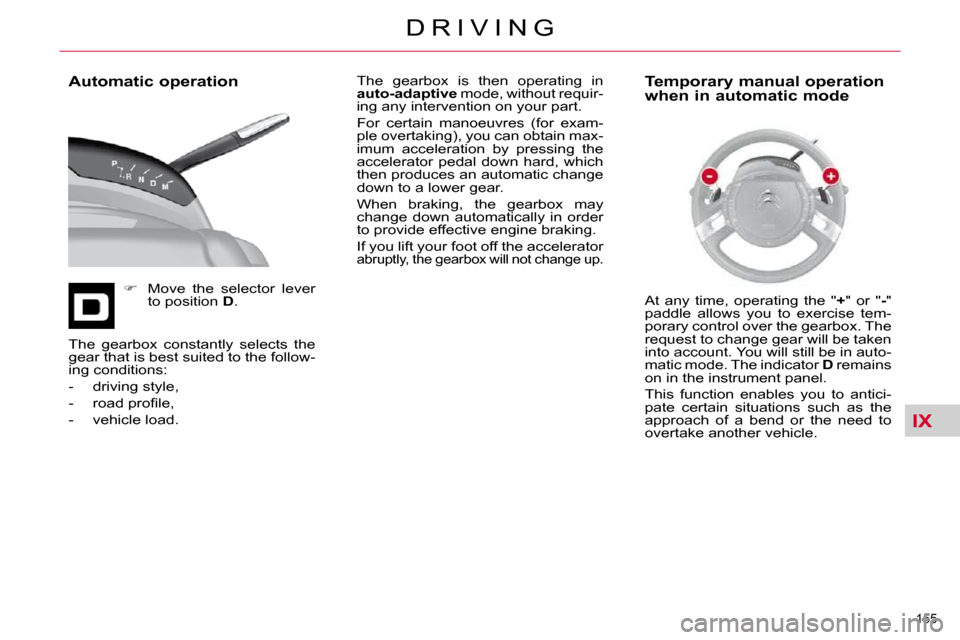

Automatic operation
Move the selector lever
to position D . The gearbox is then operating in
auto-adaptive mode, without requir-
ing any intervention on your part.
For certain manoeuvres (for exam-
p l e o v e r t a k i n g ) , y o u c a n o b t a i n m a x -
imum acceleration by pressing the
accelerator pedal down hard, which
then produces an automatic change
down to a lower gear.
When braking, the gearbox may
change down automatically in order
to provide effective engine braking.
If you lift your foot off the accelerator
abruptly, the gearbox will not change up.
Temporary manual operation
when in automatic mode
The gearbox constantly selects the
gear that is best suited to the follow-
ing conditions:
- driving style,
- r o a d p r o fi l e ,
- vehicle load. At any time, operating the "
+ " or " - "
paddle allows you to exercise tem-
porary control over the gearbox. The
request to change gear will be taken
into account. You will still be in auto-
matic mode. The indicator D remains
on in the instrument panel.
This function enables you to antici-
pate certain situations such as the
approach of a bend or the need to
overtake another vehicle.
Page 182 of 355
IX
156
D R I V I N G
Manual operation
Position of the selector lever for
manual gear changing.
Move the selector lever
to position M .
Pull the " + " paddle to change up
a gear.
Pull the " - " paddle to change
down a gear.
- If the vehicle stops or reduces speed (for example when ap-
p r o a c h i n g a s t o p s i g n ) , t h e g e a r -
box changes down automatically
t o fi r s t g e a r .
- In sequential mode, it is not nec- essary to release the accelerator
during gear changes.
- A request to change gear is ac- cepted only if the engine speed
permits it. - For safety reasons, depending
on the engine speed, a change
up or down may be performed
automatically.
- It is possible at any time to move from position D (driving in auto-
m a t i c m o d e ) t o p o s i t i o n M (driv-
i n g i n s e q u e n t i a l m o d e ) o r v i c e
versa.
Flashing of the indicator for
the position requested sig-
nals that this position is not
yet obtained.
I f t h e i n d i c a t o r i s o n fi x e d , t h e p o s i -
t i o n i s c o n fi r m e d .
Display of a dash in the rev counter
indicates a malfunction. Consult a
CITROËN dealer.
Lighting of the service warning
lamp accompanied by a message
and an audible signal indicates an
operating fault. In this case:
- a marked snatching may be felt when selecting R for reverse
gear,
- the gearbox is locked in one gear,
-
do not exceed a speed of 60 mph
( a p p r o x i m a t e l y 1 0 0 k m / h ) .
Consult a CITROËN dealer.
Page 185 of 355
IX
159
D R I V I N G
SPEED LIMITER
System which prevents the vehi-
cle from exceeding the speed pro-
grammed by the driver.
Once the limit speed has been
reached, the accelerator pedal no
longer has any effect.
The speed limiter is switched on
manually: a speed of at least 20 mph
( a p p r o x i m a t e l y 3 0 k m / h ) m u s t b e p r o -
grammed.
The speed limiter controls are located
on the left-hand side of the steering
wheel. The programmed information is
g r o u p e d t o g e t h e r i n z o n e
A of the
instrument panel screen.
Steering mounted controls Displays on the instrument
panel
Programming
Rotate the control
1 to the "LIM" po-
sition. With the engine running, you can
a d j u s t t h e m e m o r i s e d m a x i m u m
speed, by means of short or long
presses on:
button 4 to increase the memo-
rised maximum speed,
button 2 to decrease the memo-
rised maximum speed.
Successive presses will modify the
maximum speed in steps of 1 mph
( 1 k m / h ) a n d a s u s t a i n e d p r e s s i n
s t e p s o f 3 m p h ( 5 k m / h ) .
Activation
When the desired maximum speed
is displayed, press button 3 so that
the limitation is activated.
On selection of the
function, the previous
memorised speed and
the information "OFF"
are displayed on the
instrument panel. The information
"OFF"
then disappears from
the instrument panel
screen.
While the function is active, press-
ing the accelerator pedal will not en-
able the programmed speed to be
exceeded, except if you press the
pedal hard down to beyond the end-
of-travel switch.
The speed of your vehicle may vary
slightly in relation to that memo-
rised.
The speed limiter cannot, in any circum-
stances, take the place of the obser-
vance of speed limits or of the vigilance
and responsibility of the driver.
Page 186 of 355
IX
160
D R I V I N G
Deactivation
Press on button 3 .
This action causes the
information "OFF" to
appear on the instru-
ment panel screen.
This action does not cancel the
memorised maximum speed which
r e m a i n s d i s p l a y e d i n z o n e A of the
instrument panel.
Override of the programmed
speed
The accelerator pedal is equipped
with an end-of-travel switch. If you
action this switch by pressing the
pedal hard down, you can exceed
the memorised maximum speed at
any time.
During the time the speed is be-
ing exceeded, the displayed speed
fl a s h e s .
You have only to release the ac-
celerator pedal to return below the
maximum speed and render the
function active again. Return to normal driving
By moving the control 1 from po-
sition "LIM" to position 0 .
By the engine stopping.
The speed previously chosen is still
memorised. Operating fault
If there is a speed limiter malfunc-
tion, a message will display accom-
panied by an audible signal and
lighting of the service warning lamp.
Have it checked by a CITROËN
dealer.
If during the operation of the speed
limiter, the system is unable to keep
within the maximum speed (for exam-
ple on a steep descent or under heavy
a c c e l e r a t i o n ) t h e n t h e s p e e d fl a s h e s .
Adapt your speed as necessary.
The function will re-engage when
your speed returns below the de-
sired maximum speed.
On a steep downhill gradi-
ent or on sharp accelera-
tion, the speed limiter will
not be able to prevent the vehicle
from exceeding the programmed
speed.
U s e o f fl o o r m a t s t h a t a r e n o t a p -
proved by CITROËN may hinder
access to the accelerator pedal
and thus interfere with the function-
ing of the speed limiter.
To avoid any risk of interfering with
the pedals:
- c h e c k t h a t t h e fl o o r m a t i s c o r - rectly positioned,
- n e v e r u s e m o r e t h a n o n e fl o o r mat.
Page 188 of 355
IX
162
D R I V I N G
Reactivation
By recall of the memorised
speed
After a disengagement, press on button 3 . Your vehicle automati-
cally returns to the memorised
cruise speed which is displayed
i n z o n e A .
If the memorised cruise speed is higher than the current speed,
the vehicle will accelerate to
reach the former.
By selection of the current
speed
Press on button 2 or 4 once the
desired speed has been reached.
The information "OFF" will then
disappear from the instrument
panel display.
Overriding the programmed
speed
During the operation of cruise con-
trol, it is always possible to use the
accelerator to go faster than the
cruise speed (for example to over-
t a k e a n o t h e r v e h i c l e ) . T h e s p e e d
d i s p l a y e d i n z o n e A fl a s h e s .
You have only to release the accel-
erator pedal to return to the cruise
speed. If during the operation of cruise
control, the system is unable to
keep within the memorised speed
( f o r e x a m p l e o n a s t e e p d e s c e n t ) ,
t h e n t h e s p e e d fl a s h e s . A d a p t y o u r
speed as necessary.
Return to normal driving Operating fault
If there is a malfunction, a mes-
sage will display accompanied by
an audible signal and lighting of the
service warning lamp.
Have it checked by a CITROËN
dealer.
Cruise control should only
be used when the driving
conditions allow you to drive
at a constant speed.
D o n o t u s e i t i n h e a v y t r a f fi c , o r o n
dangerous or slippery roads.
The driver must remain attentive
and in full control of his vehicle.
You are recommended to keep your
feet within range of the pedals.
To avoid any risk of interfering with
the pedals:
- c h e c k t h a t t h e fl o o r m a t i s c o r - rectly positioned,
- n e v e r u s e m o r e t h a n o n e fl o o r mat.
By an action on the control 1 from
position "REG" to position 0 .
By the engine stopping.
The cruise speed previously chosen is no longer memorised.
Page 196 of 355
XX
171
C H E C K S
BONNET
Opening
At the front of the bonnet, push
the exterior safety catch B to the
left and raise the bonnet.
Unclip the stay C from its housing.
Fix the stay in the notch to hold
the bonnet open. Closing
Take the stay out of the support
notch.
Clip the stay in its housing.
Lower the bonnet then slam it
closed at the end of its travel.
Pull on the bonnet to check that
it is fully closed.
The location of the interior release
lever prevents opening of the bon-
net while the left hand door is
closed.
This operation must only be carried
out when the vehicle is stationary.
Avoid opening the bonnet in strong
winds.
When the engine is hot, take care
when handling the exterior safety
catch and the bonnet stay (risk of
burns).
Open the left hand front door.
Pull the interior release lever A ,
located at the bottom of the door
frame. Before doing anything un-
der the bonnet, switch off
the Stop & Start system
to avoid any risk of injury result-
ing from an automatic change to
START mode.
Page 198 of 355
X
173
C H E C K S
RUNNING OUT OF FUEL (DIESEL)
1.6 litre HDi engine
Detach the protective cover for
access to the priming pump. 2.0 litre HDi engine
Detach the protective cover for ac-
cess to the priming pump. Priming the fuel system
In the event of running out of fuel:
a f t e r fi l l i n g ( m i n i m u m 5 l i t r e s ) ,
squeeze the manual priming
pump repeatedly, until some re-
sistance is felt,
then operate the starter, gently
pressing the accelerator until the
engine starts.
I f t h e e n g i n e f a i l s t o s t a r t a t t h e fi r s t
a t t e m p t , w a i t 1 5 s e c o n d s b e f o r e t r y -
ing again.
If the engine fails to start after a few
attempts, repeat the procedure from
the beginning. When the engine is
idling, accelerate gently to complete
the purge of the circuit.
HDi engines are of a highly
technical nature.
All maintenance and repairs re-
q u i r e s p e c i fi c q u a l i fi c a t i o n s w h i c h
only your CITROËN dealer can
guarantee.
Page 199 of 355
X
174
C H E C K S
PETROL ENGINES
T h e c o v e r s a n d c a p s p r o v i d e a c c e s s f o r c h e c k i n g t h e l e v e l s o f t h e v a r i o u s fl u i d s a n d f o r r e p l a c i n g c e r t a i n c o m p o n e n t s .
1. P o w e r s t e e r i n g fl u i d r e s e r v o i r .
2. Screenwash and headlamp wash
reservoir.
3. Coolant header tank.
4. A i r fi l t e r .
5. B r a k e fl u i d r e s e r v o i r .
6. Battery/Fuses.
7. Fusebox.
8. E n g i n e o i l fi l l e r c a p .
9. Engine oil dipstick.
Page 200 of 355
X
1 7 5
C H E C K S * According to engine.
DIESEL ENGINES
T h e c o v e r s a n d c a p s p r o v i d e a c c e s s f o r c h e c k i n g t h e l e v e l s o f t h e v a r i o u s fl u i d s , f o r r e p l a c i n g c e r t a i n c o m p o n e n t s a n d
for priming the fuel system.
1. P o w e r s t e e r i n g fl u i d r e s e r v o i r .
2. Screenwash and headlamp wash
reservoir.
3. Coolant header tank
4. B r a k e fl u i d r e s e r v o i r .
5. Battery/Fuses.
6. Fusebox.
7. A i r fi l t e r .
8. E n g i n e o i l fi l l e r c a p .
9. Engine oil dipstick.
10. Priming pump * .
11. Bleed screw * . As the Diesel fuel system
is pressurised, any work on
this system is prohibited.
