Citroen C4 RHD 2012 2.G Owner's Manual

289
3
2
4
04
1
AUDIO















AUXILIARY SOCKET (AUX)


AUXILIARY JACK SOCKET

Do not connect a device to the USB port and to the auxiliary
Jack socket at the same time.
The auxiliary Jack socket permits the connection of a portable
non-mass storage device or an iPod
® if not recognised by the
USB port.

Connect the portable device to the auxiliary Jack socket using
a suitable cable (not supplied).
Press the SOURCE
button several times
in succession and select " AUX
".

First adjust the volume on your portable device.

Then adjust the volume of the audio
system.

The display and management of controls is on the
portable device.

290
04
1
2
1
2
3
4
5
AUDIO






STREAMING - PLAYING AUDIO FILES
VIA BLUETOOTH

Depending on the compatibility of the phone

Pair/connect the telephone: see the "USING THE
TELEPHONE" section.
Streaming allows music fi les on a telephone to be heard via the
vehicle's speakers.
The telephone must support the appropriate bluetooth profi les
(Profi les A2DP/AVRCP).

Activate the streaming source by pressing SOURCE
.
Control of playback is via the audio system. The
contextual information can be displayed in the screen.

In certain cases, playing of the audio fi les must be initiated from
the telephone.

The audio quality depends on the quality of the transmission from
the telephone.



PLAY MODE


The play modes available are:


- Normal: the tracks are played in order, depending on the
classifi cation of the selected fi les.

- Random: the tracks in an album or folder are played in a
random order.

- Random all: all of the tracks saved in the media are played in
random order.

- Repeat: the tracks played are only those from the current
album or folder.







Press OK
for access to the contextual
menu.
or
Press MENU
.

Select " Multimedia
" and confi rm.

Select " Media parameters
" and
confi rm.

Select " Read mode
" and confi rm.

Select the desired play mode and
confi rm OK
to save the modifi cations.

291
05
1
2
5
3
4
6
USING THE TELEPHONE










PAIRING A TELEPHONE


The services offered depend on the network, the SIM card and the compatibility of the Bluetooth telephone used.
Consult your telephone's manual and your operator to fi nd out which services are available to you.

Activate the telephone's Bluetooth function.

Press MENU
.
A window is displayed " Search in progress…
".

Select the telephone to be connected
from the list. Only one telephone can
be connected at a time.
Select " Search for a device
".
For safety reasons and because they require prolonged attention on the part of the driver, the operations for pairing of the Bluetooth mobile
telephone with the Bluetooth hands-free system of your audio system must be carried out with the vehicle stationary and the ignition on.

Select " Bluetooth connection
" and
confi rm.

292
05
7
8
Saisir code authentification
01
OK Del23456789 _
9
10
USING THE TELEPHONE

A virtual keypad is displayed on the
screen: enter a code with at least
4 digits and conform with OK
.

A message is displayed on the screen of the
telephone: enter the same code and confi rm.
A message appears in the screen to confi rm the result of the
connection.

Pairing can also be initiated from the telephone by searching for
detected Bluetooth devices.
Accept the connection to the telephone.

If pairing fails, try agin; the number of attempts is not limited.
The directory and the calls list can be accessed after the
synchronisation period (if the telephone is compatible).
Automatic connection must be confi gured in the telephone to allow
the connection each time the vehicle is started.

In some cases, the reference number of the telephone may appear
instead of the name of the telephone.

293
05
1
2
4
3
USING THE TELEPHONE

To see the telephone status, press
MENU
.

Select " Telephone
" and confi rm.

Select " Telephone management
"
confi rm.
Select " Telephone status
" and confi rm.







TELEPHONE STATUS


The screen displays: the name of the telephone, the name of the
network, network signal strength, confi rmation of the Bluetooth
connection and the streaming connection.

294
1
2
3
4
05
5
USING THE TELEPHONE

The telephone connection automatically includes hands-free
operation and audio streaming.

Press MENU
.

Select " Bluetooth connection
" and
confi rm. Indicates connection of the audio steaming profi le.


MANAGING CONNECTIONS


Select " Connections management
"
and confi rm. The list of paired
telephones is displayed.
Select a telephone and confi rm. Indicates connection of the hands-free profi le.

Then select and confi rm:


- " Connect telephone
"/" Disconnect
telephone
": to connect/disconnect
the telephone or the hands-free
connection only.

- " Connect media player
"/
" Disconnect media player
": to
connect/disconnect only streaming.

- " Connect telephone + media
player
"/" Disconnect telephone +
media player
": to connect/disconnect
the telephone (hands-free and
streaming).

- " Delete connection
": to delete the
pairing.


Indicates that a device is connected.

295
1
2
1
4
2
33
05USING THE TELEPHONE

To display the " TELEPHONE
" menu:


- Make along press on SOURCE
.

- Or, press OK
to display the
contextual menu. Select " Call
" and
confi rm.

- Or, press MENU
, select
" Telephone
" and confi rm. Select
" Call
" and confi rm.


Select " Dial
" to enter a number and
confi rm.
Repeat the previous step 1
to display
the " TELEPHONE
" menu.

Select OK
and confi rm to start the
call.

Select " Calls list
" and confi rm.


MAKING A CALL - DIALLING


Select numbers one at a time using
the
and
buttons and confi rm.


MAKING A CALL - RECENTLY CALLED
NUMBERS *


Select the number and confi rm to
start the call.

The calls list includes calls sent and received in the vehicle using the
connected telephone.

*
Depending on the compatibility of the telephone.



Correction allows numbers to be deleted one at a time.

It is possible to make a call directly from the telephone; park the
vehicle fi rst as a safety measure.

296
1
2
1
4
2
3
05USING THE TELEPHONE

Repeat the previous step 1
to display
the " TELEPHONE
" menu.

Select " Directory
" and confi rm.
An incoming call is announced by a ring and a superimposed display
in the multifunction screen.
Mobile
(depending on the information
available in the contact records of
the telephone connected).
" YES
" to accept the call is selected by
default.
Press OK
to accept the call.
Select " NO
" and confi rm to reject the
call.
or
Press SOURCE
to accept the call.


MAKING A CALL -
FROM THE DIRECTORY

Select a contact then confi rm.


RECEIVING A CALL


Select the number and confi rm.

A long press on ESC
or on
SOURCE
also rejects an incoming call.
Business
Home

297
1
2a2c
2b
05USING THE TELEPHONE

During a call, press OK
to display the
contextual menu.

Hang up

In the contextual menu:


- select " Telephone mode
" to
transfer the call to the telephone.

- deselect " Telephone mode
" to
transfer the call to the vehicle.

In the contextual menu:


- select " Micro OFF
" to switch off the
microphone.

- deselect " Micro OFF
" to switch the
microphone on.


In certain cases, the combined mode has to activated from the
telephone.
If the contact has been cut off, when you reconnect on returning to
the vehicle, the Bluetooth connection will be restored automatically
(depending on the compatibility of the telephone).


MANAGING CALLS


A long press on SOURCE
or TEL
also
ends the call. In the contextual menu, select " Hang
up
" to end the call.
Secret - Mute
(so that the caller cannot hear)

Combined mode
(to leave the vehicle without ending the call)

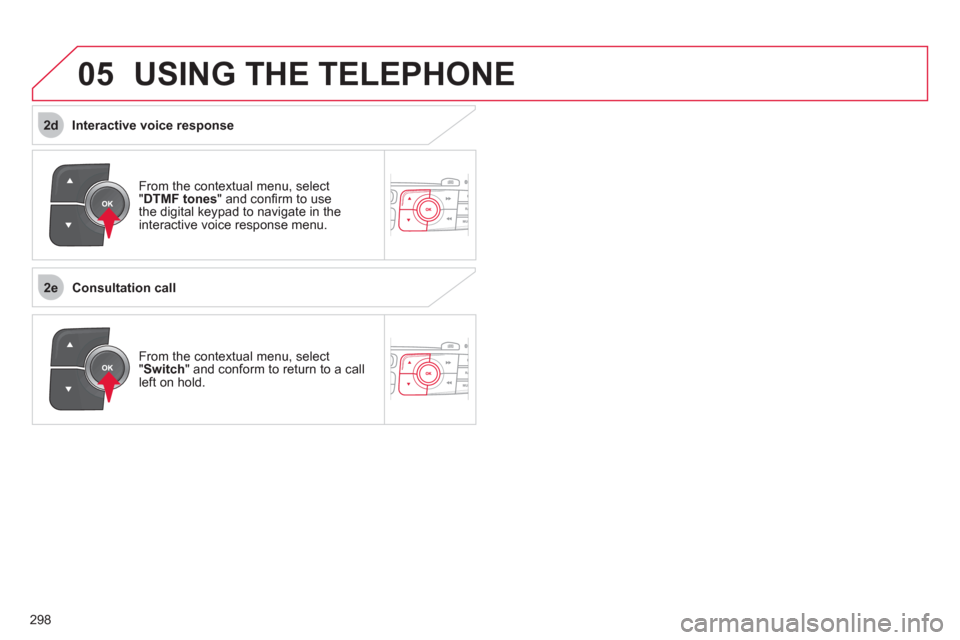

298
2e
2d
05USING THE TELEPHONE
From the contextual menu, select
" DTMF tones
" and confi rm to use
the digital keypad to navigate in the
interactive voice response menu.
From the contextual menu, select
" Switch
" and conform to return to a call
left on hold.

Interactive voice response

Consultation call
