FAMILIARISATION
1.
Controls for audio and telematic
system.
2.
Controls for Bluetooth system or
telephone.
3.
Steering lock and ignition.
4.
Wiper / screenwash / trip computer
control stalk.
5.
Instrument panel.
6.
Driver's airbag.
Horn.
7.
Cruise control / speed limiter
switches.
8.
Controls for optional functions.
9.
Door mirror controls.
Electric window controls.
10.
Oddments storage.
11 .
Manual headlamp height
adjustment
Lower side switch panel.
12.
Fuel fi ller fl ap opening button.
Upper side switch panel.
13.
Side adjustable air vent.
14.
Front side window demisting vent.
INSTRUMENTS AND CONTROLS
Page 12 of 328
10
1.
Steering wheel adjustment control.
2.
Steering mounted control paddles
for the electronic gearbox.
3.
Lighting and direction indicators
control stalk.
4.
Speaker (tweeter).
5.
Windscreen demisting vent.
6.
Sunshine sensor.
7.
Passenger's airbag.
8.
Glove box / Audio/video sockets /
Passenger's airbag deactivation
switch / Fusebox.
9.
Bonnet release.
10.
Heated seat control.
11 .
Lumbar massage control.
12.
Electric parking brake.
13.
Gear lever, electronic gearbox.
14.
Large multifunctional storage unit.
INSTRUMENTS AND CONTROLS
Page 13 of 328
11
FAMILIARISATION
A.
Rear view mirror.
B.
Emergency call / Warning lamps
display for front passenger's airbag
and seat belt / Assistance call.
C.
Courtesy lamp / Map reading
lamps / Interior mood lighting.
D.
Microphone for audio and telematic
system.
E.
Panoramic sunroof blind control.
1.
Central adjustable air vents.
2.
Monochrome screen and small
storage box with fl ap or colour
screen.
3.
Audio system or eMyWay satellite
navigation system.
4.
Central switch panel.
5.
Heating / air conditioning controls.
6.
USB port / auxiliary Jack socket /
12 V accessory socket.
7.
Gear lever, manual or automatic
gearbox.
8.
Manual parking brake.
9.
Large open storage or front
armrest.
ROOF CONSOLES - CENTRE CONSOLES
Page 14 of 328
12

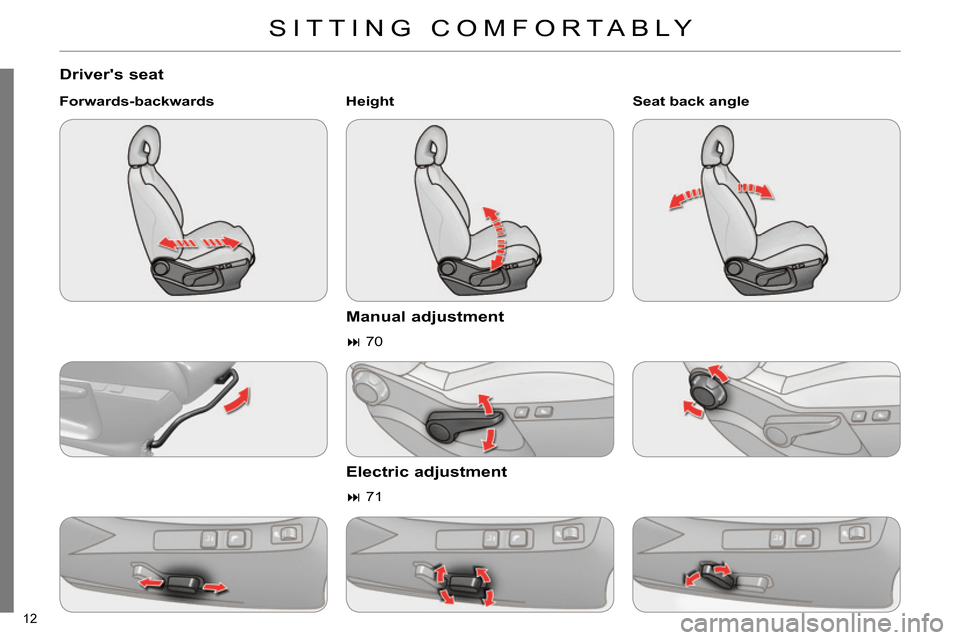

Driver's seat
Forwards-backwards
Height
Manual adjustment
70
Electric adjustment
71
Seat back angle
SITTING COMFORTABLY
Page 15 of 328
13
FAMILIARISATION
Front seats
Head restraint height and angle
Lumbar
Other functions available...
Lumbar massage.
Heated seats.
Steering wheel adjustment
Front armrest
73
1.
Release the adjustment mecha-
nism.
2.
Adjust for height and reach.
3.
Lock the adjustment mechanism.
77
For your comfort, the front armrest can
be adjusted for longitudinal position
and for height, depending on version.
It also has a storage compartment.
113, 114
72
As a safety precaution, these
operations must only be carried
out when stationary.
SITTING COMFORTABLY
Page 16 of 328
14
Door mirrors
Adjustment
A.
Selection of the mirror to be adjusted.
B.
Adjustment of the position of the
mirror in the four directions.
C.
De-selection of the mirror.
Rear view mirror
Manual day/night model
1.
Selection of the "day" position of the
mirror.
2.
Adjustment of the mirror.
77
Automatic day/night model
A.
Brightness detection in automatic
day/night mode.
B.
Adjustment of the mirror.
77
Front seat belts
1.
Fastening the buckle.
2.
Height adjustment.
138
Other functions available...
Folding / Unfolding.
Automatic tilting of the mirror in
reverse gear for parking.
Blind spot sensors.
75
SITTING COMFORTABLY
Page 17 of 328
15
FAMILIARISATION
Lighting
Ring A
Ring B
Direction indicators
Three fl ashes
Press the lighting stalk up or down
once, without passing the point of re-
sistance; the corresponding direction
indicators will fl ash three times.
This function can be used at any speed,
but it is particularly useful when chang-
ing lane on fast roads.
Wipers
Stalk A: windscreen wipers
Switching "AUTO" on / off
Press the stalk downwards and re-
lease.
Ring B: rear wiper
96
Raise or lower the lighting stalk passing
the point of resistance; the correspond-
ing direction indicators will fl ash for as
long as the stalk remains in this posi-
tion.
134
106
Lighting off.
Rear foglamp.
Park. Automatic illumination of head-
lamps.
Sidelamps.
Dipped / main beam headlamps.
or
Front and rear foglamps. Intermittent wipe.
Wash-wipe.
104
105
SEEING CLEARLY
Page 18 of 328
16
Digital air conditioning:
we recommend use of one of the three fully automatic modes by pressing the "AUTO"
button.
I require...
Manual Air Conditioning
Air distribution
Air fl ow
Air recirculation /
Intake of outside air
Temperature
Manual A/C
HOT
COLD
DEMISTING
DEFROSTING
VENTILATION
Recommended interior settings
Page 19 of 328
17
FAMILIARISATION
Instrument panels
Warning lamps
Central switch panels
A.
With the ignition on, the bars indi-
cate the level of fuel remaining.
B.
With the engine running, its associ-
ated low level warning lamp should
go off.
C.
With the ignition on, the oil level in-
dicator should show for a few sec-
onds that the level is OK or correct,
depending on version.
28
1.
With the ignition on, the orange and
red warning lamps come on.
2.
With the engine running, these
warning lamps should go off.
32
A.
Make an emergency call.
137, 225
B.
Access to CITROËN services.
137, 225
C.
Hazard warning.
134
D.
Central locking.
83
E.
Black panel (black screen).
47
If the levels are not correct, top up the
levels which are low. If warning lamps remain on, refer to the
relevant page.
MONITORING
Page 20 of 328
18
Side switch panel
Multifunction steering wheel
Cruise control / speed limiter
controls
172, 170
Optional functions controls
1.
Black panel (black screen).
47
2.
Dashboard lighting dimmer.
47
3.
Courtesy lamp on / off.
107
or
Parking space sensors.
174
Audio system controls
230, 283
Bluetooth system or telephone
controls
230, 283
Illumination of the warning lamp indi-
cates the state of the system.
A.
Deactivating the ESP/ASR system.
136
B.
Deactivating the parking sensors.
176
C.
Deactivating the Stop & Start system.
164
D.
Activating the blind spot sensors.
166
E.
Switching on the electric child lock.
133
F.
Deactivating the volumetric alarm
monitoring.
85
MONITORING
