Citroen C4 RHD 2014 2.G Owner's Guide
Manufacturer: CITROEN, Model Year: 2014, Model line: C4 RHD, Model: Citroen C4 RHD 2014 2.GPages: 328
Page 31 of 328
1
MONITORING
29
TWO-TONE INSTRUMENT PANEL WITH AUDIO SYSTEM
Dials and screens
A.
Lighting dimmer (available in night
mode).
B.
Reminder of the servicing information
Reset the service indicator or the
trip mileage recorder.
7.
Service indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the
ignition.
Lighting dimmer setting (when mak-
ing an adjustment).
8.
Trip mileage recorder (miles or km).
9.
Fuel gauge and associated low fuel
level warning lamp ( a
or b
accord-
ing to version).
10.
Range (miles or km).
Control buttons
1.
Rev counter (x 1 000 rpm or tr/min).
2.
Gear effi ciency indicator or gear se-
lector lever position and gear for an
electronic or automatic gearbox.
3.
Analogue speedometer (mph or
km/h).
4.
Cruise control or speed limiter
setting.
5.
Digital speedometer (mph or km/h).
6.
Engine oil level indicator.
Page 32 of 328
1
MONITORING
30
CUSTOMISABLE COLOUR INSTRUMENT PANEL WITH AUDIO SYSTEM OR NAVIGATION SYSTEM
1.
Rev counter (x 1 000 rpm or tr/min).
2.
Gear effi ciency indicator or gear se-
lector lever position and gear for an
electronic or automatic gearbox.
3.
Analogue speedometer (mph or km/h).
4.
Cruise control or speed limiter
setting.
5.
Digital speedometer (mph or km/h).
6.
Engine oil level indicator.
A.
Dial COLOUR: customisation of the
background colour of the dials.
B.
Screen COLOUR: customisation
of the background colour of the
screens.
C.
Lighting dimmer (available in night
mode).
D.
Reminder of the servicing information
Reset the service indicator or the
trip mileage recorder.
Dials and screens
7.
Service indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the
ignition.
Lighting dimmer setting (when mak-
ing an adjustment).
8.
Trip mileage recorder (miles or km).
9.
Fuel gauge and associated low fuel
level warning lamp.
10.
Range (miles or km).
Control buttons
Page 33 of 328
1
MONITORING
31

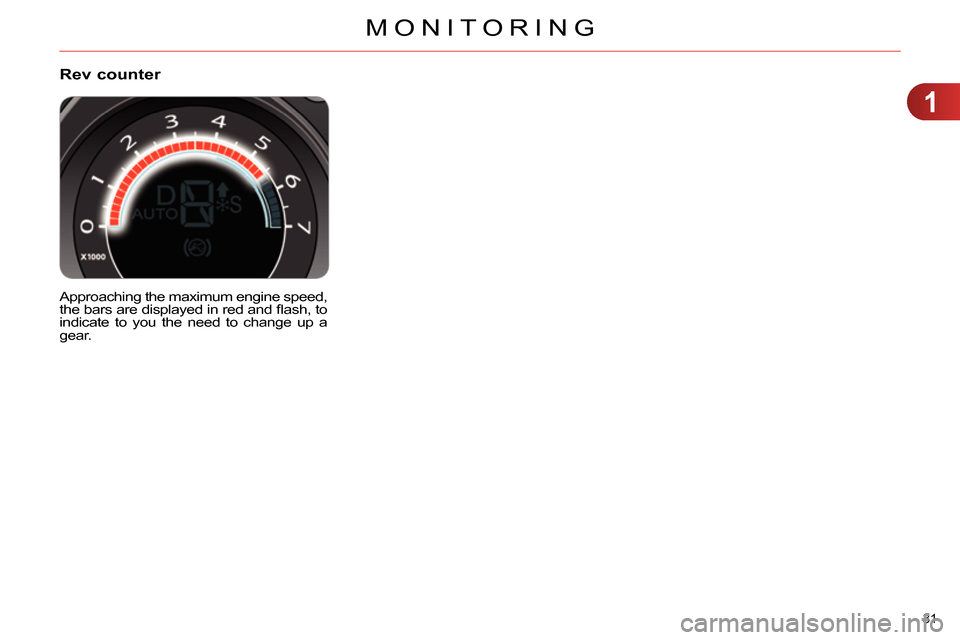

Rev counter
Approaching the maximum engine speed,
the bars are displayed in red and fl ash, to
indicate to you the need to change up a
gear.
Page 34 of 328
1
MONITORING
32

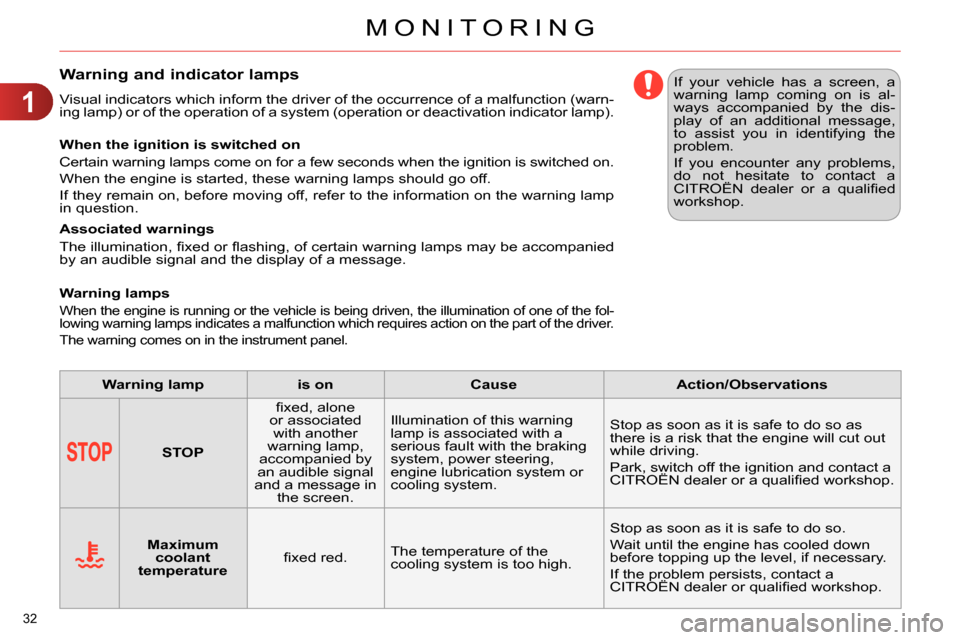

Warning and indicator lamps
Visual indicators which inform the driver of the occurrence of a malfunction (warn-
ing lamp) or of the operation of a system (operation or deactivation indicator lamp).
When the ignition is switched on
Certain warning lamps come on for a few seconds when the ignition is switched on.
When the engine is started, these warning lamps should go off.
If they remain on, before moving off, refer to the information on the warning lamp
in question.
Associated warnings
The illumination, fi xed or fl ashing, of certain warning lamps may be accompanied
by an audible signal and the display of a message.
Warning lamps
When the engine is running or the vehicle is being driven, the illumination of one of the fol-
lowing warning lamps indicates a malfunction which requires action on the part of the driver.
The warning comes on in the instrument panel.
If your vehicle has a screen, a
warning lamp coming on is al-
ways accompanied by the dis-
play of an additional message,
to assist you in identifying the
problem.
If you encounter any problems,
do not hesitate to contact a
CITROËN dealer or a qualifi ed
workshop.
Warning lamp
is on
Cause
Action/Observations
STOP
fi xed, alone
or associated
with another
warning lamp,
accompanied by
an audible signal
and a message in
the screen. Illumination of this warning
lamp is associated with a
serious fault with the braking
system, power steering,
engine lubrication system or
cooling system. Stop as soon as it is safe to do so as
there is a risk that the engine will cut out
while driving.
Park, switch off the ignition and contact a
CITROËN dealer or a qualifi ed workshop.
Maximum
coolant
temperature
fi xed red. The temperature of the
cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down
before topping up the level, if necessary.
If the problem persists, contact a
CITROËN dealer or qualifi ed workshop.
Page 35 of 328
1
MONITORING
33
Engine oil
pressure
fi xed. There is a fault with the
engine lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a
CITROËN dealer or a qualifi ed workshop.
Warning lamp
is on
Cause
Action/Observations
Battery charge
fi xed. The battery charging circuit
has a fault (dirty or loose
terminals, slack or cut
alternator belt, ...). The warning lamp should go off when the
engine is started.
If it does not go off, contact a CITROËN
dealer or a qualifi ed workshop.
Braking
fi xed, associated
with the STOP
warning lamp. The braking system fl uid level
has dropped signifi cantly. You must stop as soon as it is safe to do so.
Top up with brake fl uid recommended by
CITROËN.
If the problem persists, have the system
checked by a CITROËN dealer or a
qualifi ed workshop.
+
fi xed, associated
with the electric
parking brake
malfunction
warning lamp,
if the parking
brake is released. The braking system has a
fault. You must stop as soon as it is safe to do so.
Park, switch off the ignition and contact a
CITROËN dealer or a qualifi ed workshop.
+
fi xed, associated
with the STOP
and ABS warning
lamps. The electronic brake force
distribution (EBFD) system
has a fault. You must stop as soon as it is safe to do so.
Have it checked by a CITROËN dealer or
a qualifi ed workshop.

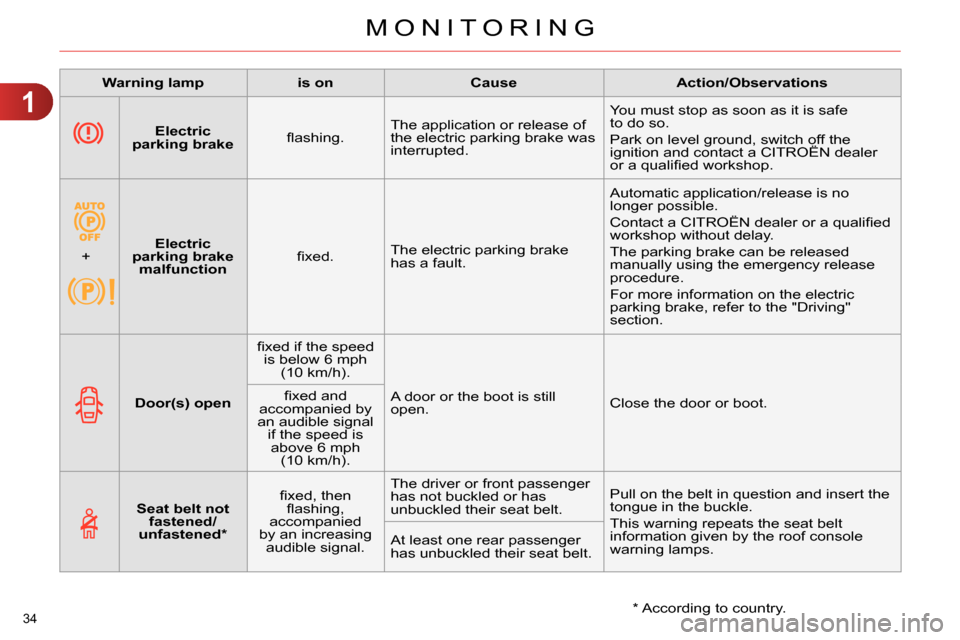

Page 36 of 328
1
MONITORING
34
Electric
parking brake
fl ashing. The application or release of
the electric parking brake was
interrupted. You must stop as soon as it is safe
to do so.
Park on level ground, switch off the
ignition and contact a CITROËN dealer
or a qualifi ed workshop.
+
Electric
parking brake
malfunction
fi xed. The electric parking brake
has a fault. Automatic application/release is no
longer possible.
Contact a CITROËN dealer or a qualifi ed
workshop without delay.
The parking brake can be released
manually using the emergency release
procedure.
For more information on the electric
parking brake, refer to the "Driving"
section.
Warning lamp
is on
Cause
Action/Observations
Door(s) open
fi xed if the speed
is below 6 mph
(10 km/h).
A door or the boot is still
open. Close the door or boot.
fi xed and
accompanied by
an audible signal
if the speed is
above 6 mph
(10 km/h).
Seat belt not
fastened/
unfastened *
fi xed, then
fl ashing,
accompanied
by an increasing
audible signal. The driver or front passenger
has not buckled or has
unbuckled their seat belt. Pull on the belt in question and insert the
tongue in the buckle.
This warning repeats the seat belt
information given by the roof console
warning lamps. At least one rear passenger
has unbuckled their seat belt.
* According to country.

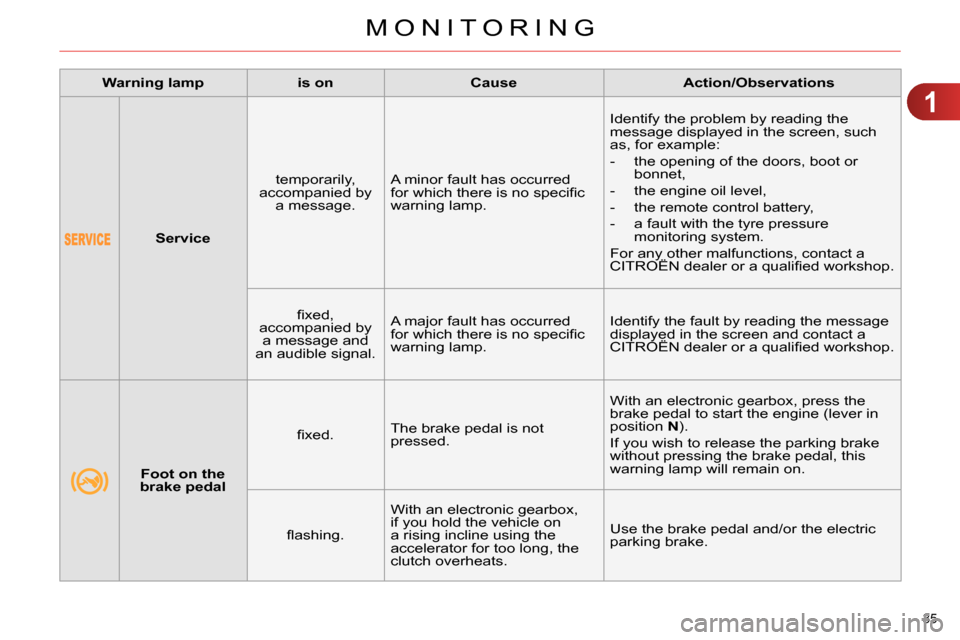

Page 37 of 328
1
MONITORING
35
Service
temporarily,
accompanied by
a message. A minor fault has occurred
for which there is no specifi c
warning lamp. Identify the problem by reading the
message displayed in the screen, such
as, for example:
- the opening of the doors, boot or
bonnet,
- the engine oil level,
- the remote control battery,
- a fault with the tyre pressure
monitoring system.
For any other malfunctions, contact a
CITROËN dealer or a qualifi ed workshop.
fi xed,
accompanied by
a message and
an audible signal. A major fault has occurred
for which there is no specifi c
warning lamp. Identify the fault by reading the message
displayed in the screen and contact a
CITROËN dealer or a qualifi ed workshop.
Warning lamp
is on
Cause
Action/Observations
Foot on the
brake pedal
fi xed. The brake pedal is not
pressed. With an electronic gearbox, press the
brake pedal to start the engine (lever in
position N
).
If you wish to release the parking brake
without pressing the brake pedal, this
warning lamp will remain on.
fl ashing. With an electronic gearbox,
if you hold the vehicle on
a rising incline using the
accelerator for too long, the
clutch overheats. Use the brake pedal and/or the electric
parking brake.
Page 38 of 328
1
MONITORING
36
Warning lamp
is on
Cause
Action/Observations
Anti-lock
Braking
System (ABS)
fi xed. The anti-lock braking system
has a fault. The vehicle retains conventional braking.
Drive carefully at reduced speed and
contact a CITROËN dealer or a qualifi ed
workshop without delay.
Engine
autodiagnosis
system
fl ashing. The engine management
system has a fault. Risk of destruction of the catalytic converter.
Have it checked by a CITROËN dealer or a
qualifi ed workshop.
fi xed. The emission control system
has a fault. The warning lamp should go off when the
engine is started.
If it does not go off, contact a CITROËN
dealer or qualifi ed workshop without delay.
Low fuel level
fi xed,
accompanied
by and audible
signal and a
message. When it fi rst comes on there
remains approximately
6
litres
of fuel in the tank.
At this point, you begin to use
the fuel reserve. Refuel as soon as possible to avoid
running out of fuel.
Until suffi cient fuel is added, this warning
lamp will come on every time the ignition
is switched on, accompanied by an
audible signal and a message.
This audible signal and message are
repeated with increasing frequency as
the fuel level drops towards "0"
.
Fuel tank capacity: approximately
60 litres
.
Never continue to drive until you run
out of fuel, as this could damage the
emission control and injection systems.
Page 39 of 328
1
MONITORING
37
Warning lamp
is on
Cause
Action/Observations
Foot on the
clutch **
fi xed. In the STOP mode of Stop &
Start, changing to START
mode is refused because the
clutch pedal is not fully down. You must declutch fully to allow the
change to engine START mode.
**
Only on the two-tone instrument panel without audio system.
Dynamic
stability control
(ESP/ASR)
fl ashing. The ESP/ASR regulation is
active. The system optimises traction and
improves the directional stability of the
vehicle.
fi xed, associated
with illumination of
the indicator lamp
in the " ESP OFF
"
button, accompanied
by an audible signal
and a message.
The ESP/ASR or hill start
assist system has a fault. Have it checked by a CITROËN dealer or
a qualifi ed workshop.
Power steering
fi xed. The power steering has a
fault. Drive carefully at reduced speed.
Have it checked by a CITROËN dealer or
a qualifi ed workshop.
Under-infl ation
fi xed. The pressure in one or more
wheels is too low. Check the pressure of the tyres as soon
as possible.
This check should preferably be carried
out when the tyres are cold.
+
fl ashing
then fi xed,
accompanied
by the Service
warning lamp. The tyre pressure monitoring
system has a fault or no
sensor is detected on one of
the wheels. Under-infl ation detection is not assured.
Have the system checked by a CITROËN
dealer or a qualifi ed workshop.
Directional
headlamps
fl ashing. The directional headlamps
system has a fault. Have it checked by a CITROËN dealer or
a qualifi ed workshop.
Page 40 of 328
1
MONITORING
38
Water in Diesel
fi xed. The Diesel fuel fi lter contains
water. Risk of damage to the injection system
on Diesel engines.
Contact a CITROËN dealer or a qualifi ed
workshop without delay.
Particle
emissions fi lter
(Diesel)
fi xed,
accompanied by
an audible signal
message on the
risk of blockage
of the particle
emissions fi lter. This indicates that the particle
emissions fi lter is starting to
become saturated. As soon as driving conditions allow,
regenerate the fi lter by driving at a speed
of at least 35 mph (60 km/h) until the
warning lamp goes off.
fi xed, accompanied
by an audible
signal and and a
message that the
particle emissions
fi lter additive level
is too low. This indicates the low level of
the additive reservoir. Have the reservoir topped up as soon
as possible by a CITROËN dealer or a
qualifi ed workshop.
Warning lamp
is on
Cause
Action/Observations
Airbags
temporarily. This lamp comes on for a few
seconds when you turn on the
ignition, then goes off. This lamp should go off when the engine
is started.
If it does not go off, contact a CITROËN
dealer or a qualifi ed workshop.
fi xed. One of the airbag or seat belt
pretensioner systems has a
fault. Have it checked by a CITROËN dealer or
a qualifi ed workshop.
