Page 47 of 231
50
II
With dipped beams or main beams, the Directional headlamps function turns the headlamps in the direction the road ahead is taking. Your vision on bends is considerably enhanced.
This function is activated once your vehicle speed reaches 10 km/h (6 mph) and stops when your speed decreases to 5 km/h (3 mph).Note: An automatic correction of the beam height enables you not to dazzle other drivers.
X E N O N D U A L F U N C T I O N D I R E C T I O N A L
H E A D L A M P S - A N G L E D L I G H T I N G
Function activatedFunction deactivated
Activation/Deactivation
Activated by default, this function can be activated/deactivated in the “Main Menu” of the instrument panel screen. To do so, select “Vehicle parameters / Lighting / Directional headlamps”.
The activated/deactivated status is retained when you switch off the engine.Note: This function is not active when the vehicle is stationary, moving at very low speed, or in reverse gear.
I f t h e r e i s a m a l f u n c t i o n , t h e “ D i p p e d b e a m s ” w a r n i n g l a m p fl a s h e s , a c c o m p a n i e d b y a m e s s a g e on the instrument panel. Contact a CITROËN dealer. I f t h e r e i s a m a l f u n c t i o n , t h e “ D i p p e d b e a m s ” w a r n i n g l a m p fl a s h e s , a c c o m p a n i e d b y a m e s s a g e I f t h e r e i s a m a l f u n c t i o n , t h e “ D i p p e d b e a m s ” w a r n i n g l a m p fl a s h e s , a c c o m p a n i e d b y a m e s s a g e
This device is linked with the Angular lighting which lights up the inside of a bend when the vehicle speed is lower than 40 km/h (25 mph). This maximises the lighting at intersectio ns and when parking, for example.
The angular lighting is deployed:When the direction indicators are activated,
and/orfrom a certain angle of rotation of the steering wheel.
Note: The angular lighting is deactivated when the directional headlamps are deactivated.
Page 55 of 231
59
II
1
2

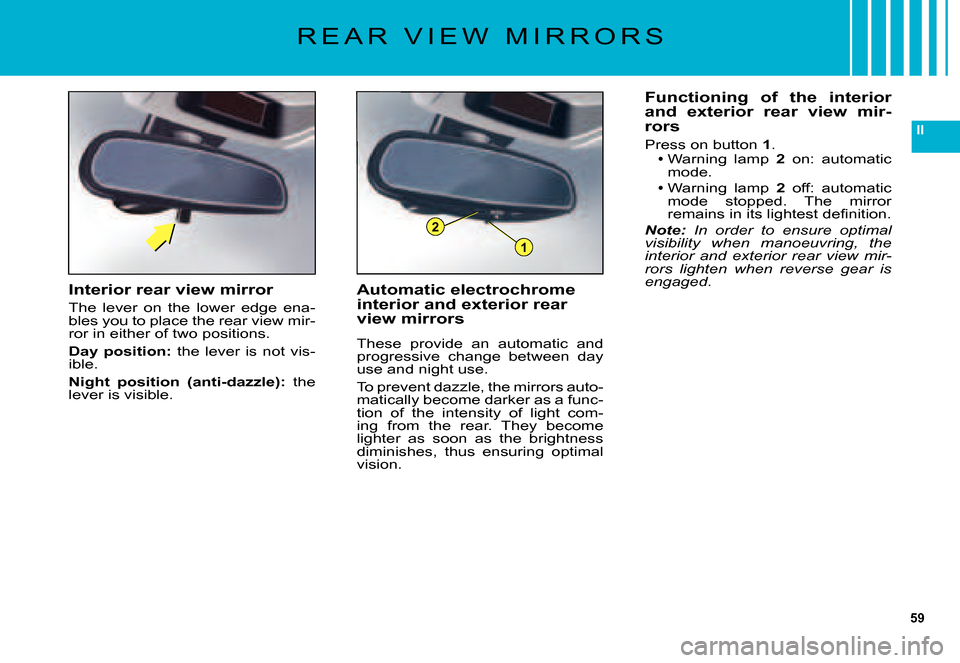

R E A R V I E W M I R R O R S
Functioning of the interior and exterior rear view mir-rors
Press on button 1.Warning lamp 2 on: automatic mode.
Warning lamp 2 off: automatic mode stopped. The mirror r e m a i n s i n i t s l i g h t e s t d e fi n i t i o n .Note: In order to ensure optimal visibility when manoeuvring, the interior and exterior rear view mir-rors lighten when reverse gear is engaged.
Page 59 of 231
63
II
BDC
A
BC
A
E
1234
M U L T I F U N C T I O N D I S P L A Y
T E L E M A T I C S
ControlsA. Access to the telematics multi-function display menu.B. Cancellation of the operation or return to the previous display.C. Scrolling through the menus of the telematics multifunction display. Validation using steer-ing wheel controls.D. Validation using radio panel.E Selection of the type of infor-mation presented on the telematics multifunction display (date, radio/CD/CD MP3/CD changer/jukebox, navigation information, telephone).
T r a f fi c i n f o r m a t i o n
See NaviDrive instructions.
Navigation/guidance
See NaviDrive instructions.
Audio
See NaviDrive instructions.
Main Menu
Press on button A to display the telematics multifunction display “Main Menu”. This menu gives you access to the following functions:
Telephone and telematic services
See NaviDrive instructions.
Map
See NaviDrive instructions.
1 Outside temperature.2 Date.3 Telephone.4 Time.
When the outside temperature is between +3 °C and –3 °C, the t e m p e r a t u r e d i s p l a y fl a s h e s ( r i s k of ice).Note: The outside temperature displayed may be higher than the actual temperature if the vehicle is stationary in bright sunlight.
The driver is advised not to use the controls described opposite whilst driving.
C o n fi g u r a t i o n ,
allows you to adjust vari-ous settings (date, time...).
Video Menu, allows you to adjust various video set-tings.
Page 62 of 231
66
II
3
5
4
2
1
C R U I S E C O N T R O L
To cancel the functionPress on button 5.
Select the cruise control func-tion.Or stop the engine.
The speed that was chosen is no longer memorised.
If there is a malfunction, a mes-sage is displayed accompanied by a sound signal and lighting of the SERVICE warning lamp.
Contact a CITROËN dealer.
Page 64 of 231
68
II
3
5
4
2
1
A
S P E E D L I M I T E R
Suspension or resumption of maximum speed
Press on button 3.
Temporary override of the maximum speed
The accelerator pedal has an end-of-travel switch. In order to exceed the memorised maximum speed at any time, you can press the pedal all the way down. While the speed is being exceeded, the speed dis-played in zone A w i l l fl a s h . Y o u have only to release the accelera-tor pedal to return below the maxi-mum speed, to restore the func-tion.
Remark: t h e s p e e d w i l l a l s o fl a s h if the speed limiter is not able to prevent the vehicle from exceeding the programmed speed (e.g. on a steep descent or under excessive acceleration).
To reactivate the speed limiter, release the accelerator to slow to a speed lower than the programmed speed.
To cancel the functionPress on button 5.Select the speed limiter func-tion.
Or stop the engine.
The speed that was chosen is no longer memorised.
If there is a malfunction, a mes-sage is displayed accompanied by a sound signal and lighting of the SERVICE warning lamp.
Contact a CITROËN dealer.
Page 65 of 231
69
II
A
D e fl a t i o n d e t e c t i o n
T h i s f u n c t i o n w a r n s y o u o f t y r e s t h a t a r e d e fl a t e d o r p u n c t u r e d .
Automatic detection
Sensors monitor the tyre pressures while driving. In the event of a n anom-aly, a message will appear on the instrument panel screen.
Driver request detection
You can check the tyre pressures at any given moment. To do so, press on button A (CHECK) ; the information will be displayed on the instrument panel screen.
Display of tyres in good condition
Automatic detection:
A m e s s a g e i n d i c a t e s t o y o u w h i c h t y r e i s d e fl a t e d .
Driver request detection:
T h e v e h i c l e o u t l i n e i n d i c a t e s t h e d e fl a t e d t y r e ( s ) .
T Y R E D E F L A T I O N D E T E C T I O N
T y r e d e fl a t i o n a l e r t
T h e s y s t e m i n d i c a t e s t o y o u t h a t t h e t y r e s a r e c o r r e c t l y i n fl a t e d .
This information is only available on the request of the driver.
Press on Check
Press on CheckAutomatic detection
The message is accompanied by the SERVICE warning lamp lighting up and a beep.
Check the tyre pressures as soon as possible.
Page 66 of 231
70
II
T Y R E D E F L A T I O N D E T E C T I O N
Wheel not detected
T h e d e fl a t i o n d e t e c t i o n s y s t e m i s a d r i v i n g a i d , b u t w h i c h d o e s n o t a b s o l v e t h e d r i v e r f r o m t h e n e e d t o b e v i g i l a n t a n d responsible.
T h i s s y s t e m d o e s n o t d i s p e n s e w i t h t h e r e q u i r e m e n t t o c h e c k t h e t y r e s o n a r e g u l a r b a s i s ( s e e “ V e h i c l e i d e n t i fi c a -tion”), to make sure that the vehicle is behaving correctly and to avoid premature tyre wear arising from driving too fast etc.
Do not forget to check the pressure in the spare wheel.
Any repair or replacement of a tyre on a wheel that is equipped with a sensor must be carried out by a CITROËN dealer.Any repair or replacement repair or
The system may suffer from temporary interference caused by radio transmissions on neighbouring frequencies.
Automatic detection:
A message indicates to you which tyre is punctured.
Driver request detection:
The vehicle outline indicates the punctured tyre(s).
Puncture
Automatic detection:
A message indicates to you which wheel is not detected.
Driver request detection:
The vehicle outline indicates the wheel(s) which is/are not detected.
Press on CheckAutomatic detection
Press on CheckAutomatic detection
The message is accompanied by the STOP warning lamp lighting up and a beep.
Note: I f y o u h a v e fi t t e d a w h e e l / w h e e l s n o t e q u i p p e d w i t h t y r e d e fl a t i o n d e t e c t i o n ( e . g . s n o w t y r e s ) , c o n t a c t a C I T R O Ë N dealer.
The message is accompanied by the SERVICE warning lamp lighting up and a beep.
Contact a CITROËN dealer to have the faulty sensor(s) replaced.
Page 71 of 231
75
II
A
B
A U T O M A T I C G E A R B O X
Operation in SPORT or SNOW automatic mode
Lever at D:
Press on button A to select the SPORT driving mode.
Press on button B to select the SNOW driving mode.
Pressing again on button A or B returns you to NORMAL driving mode.
NORMAL mode is selected by default when the engine is started. This driving mode is suitable for normal driving conditions.
No warning lamp will light up in the instrument panel.
SNOW mode facilitates starting and smooth driving when road adherence conditions are poor.
The instrument panel display lights up.
SPORT mode is for more responsive driving, to provide maximum performance and acceleration.
The instrument panel display lights up.
Remark: The driving mode selected before you switched off the engin e will be retained the next time you start up.
If there is an operating fault, the gearbox is stuck in a gear, do not exceed 100 km/h (approx. 60 mph).
Juddering may be felt when selecting R for reverse gear or when returning to position D.
Consult a CITROËN dealer as soon as possible.
Do not stop your engine if the gear selector lever is in position D or R.
Page 72 of 231
76
II
B R A K E S
G E N E R A L
ABS system
The ABS system enhances your safety by preventing the wheels from locking in the event of sudden braking or in conditions of poor road adherence. It enables you to retain control of the steering.
The functioning capability of all the electrical components essential to the ABS is monitored electronically before and during your journey. The ABS warning lamp lights up when you sw itch on the ignition: it should go out after a few seconds.
If the monitoring warning lamp does not go out, that means that the ABS has disconnected because there is a fault. Also, the fact that the monitoring warning lamp comes on durin g the journey shows that the ABS system is inactive. I n b o t h c a s e s , t h e n o r m a l b r a k i n g s y s t e m r e m a i n s e f fi c i e n t , e x a c t l y a s o n a v e h i c l e w i t h o u t A B S . H o w e v e r , i n o r d e r for the security associated with the correct functioning of the ABS to be restored, the vehicle should be examined as soon as possible by a CITROËN dealer.for the security associated with the correct associated with the
On roads with poor adherence (chippings, snow, ice etc.), it is always imperative to drive with prudence.
System of emergency braking assistance
The emergency braking assistance system allows you, in an emergency, t o achieve the optimum braking pressure more quickly, thereby reducing the stopping distance. It is triggered by the speed of your action on the brake pedal, which reduces its resistance. To prolong this action of the emerg ency braking assistance system, simply keep your foot on the brake pedal.
If the parking brake is released, the lighting of this warning lamp along with the STOP warning l a m p i n d i c a t e s a n i n s u f fi c i e n t l e v e l o f b r a k e fl u i d o r a m a l f u n c t i o n o f t h e b r a k i n g d i s t r i b u t i o n .
It is essential to stop the vehicle.
Consult a CITROËN dealer as soon as possible.
Page 74 of 231
78
II
A
E L E C T R I C P A R K I N G B R A K E
ACTIVATION/DEACTIVATION OF THE AUTOMATIC FUNC-TIONS
The automatic application when the engine is switched off and the automatic release when you press the accelerator can be deacti-vated. Activation / deactivation is performed using the “Main Menu” of the instrument panel screen. To do so, select « Vehicle param-eters / Comfort / Automatic parking brake ».
The deactivation of these f u n c t i o n s i s c o n fi r m e d b y t h e lighting of this warning lamp on the instrument panel.
With the automatic functions deacti-vated, the application and release of the parking brake are done manu-ally.
MANUAL OPERATION
Manual application / release of the parking brake is always possible.
To start the vehicle
With the ignition on or the engine running, to release the parking brake, press on the brake or accel-erator pedal, push then releasecontrol A.
The application of the parking brake is c o n fi r m e d b y :The lighting of the warning lamp on control A and of the warning lamp on the instru-ment panel.
The display of the message « Parking brake applied » on the instrument panel screen.
When the driver’s door is opened, a beep is heard and a message displayed if the parking brake has not been applied.
