Page 130 of 231
134
IV
B L U E T O O T H®
Voice recognition
Pressing on the end of the lighting control stalk 10 starts telephone voice recognition.
Voice recognition allows you to make a call to a number for which you have recorded a label on the mobile telephone that is twinned and connected.
Remark:
It is possible to stop the call, pro-vided the dialling has not yet com-menced, with a short press on the end of the lighting control stalk 10.
Remarks:While you are on a call, the audio source currently being listened to is paused.
Some ring tones on your mobile telephone may not be recog-nised by the Bluetooth®not be recog-not be recog- system ®
on your vehicle. A different ring tone will be chosen by the sys-tem.
Page 145 of 231
149
V
D I E S E L I N J E C T I O N E Q U I P M E N T
In the event of running out of fuel:
HDi 110, HDi 138 and HDi 173 engines with priming pump A f t e r fi l l i n g ( m i n i m u m 5 l i t r e s ) a n d r e m o v i n g t h e p r o t e c t i v e c o v e r , a c t i o n t h e m a n u a l p r i m i n g p u m p , u n t i l s o m e resistance is felt.
Operate the starter motor while depressing the accelerator pedal slightly until the engine starts. I f t h e e n g i n e f a i l s t o s t a r t a t t h e fi r s t a t t e m p t , w a i t 1 5 s e c o n d s b e f o r e t r y i n g a g a i n .
If the engine fails to start after a few attempts, action the priming pump again and then try to start the engine.
When the engine is idling, accelerate slightly to complete the bleeding of the circuit.
V6 HDi engine with priming pump
After adding fuel, turn the ignition key to position M, wait for a few seconds, then operate the starter motor unti l the engine starts.
If the engine fails to start after several attempts, contact a CITROËN dealer.
Page 147 of 231
151
V
A
B
+ 1
- 4 - 3
+ 2
Starting the engine after disconnecting and reconnecting the battery1. Turn the ignition key.2. Wait approximately 1 minute before operating the starter in order to allow the electronic systems to re-initialise.
After the battery has been disconnected for a lengthy period o f time, it may be necessary to re-initialise the following functions:The anti-pinch on the windows.
The parameters of the multifunction display (date, time, language etc).
The Radio stations.The NaviDrive. See NaviDrive instructions.
Starting the engine with an assisting battery (except V6 HDi engine)
If the battery is discharged, it is possible to use either a separate emergency battery or a battery on another vehicle.A. Dischargedbattery (Under the bonnet).B. Assisting battery.
C h e c k t h a t t h e a s s i s t i n g b a t t e r y h a s s u f fi c i e n t v o l t a g e ( 1 2 V ) .
If you use the battery on another vehicle, stop the engine on the latter. The two vehicles must not come into direct contact with each other.
Connect the cables according to the order indicated in the diagram. Check orderthat the leads are well secured (risk of sparks).
Start the engine of the assisting vehicle. Let the engine run for around 1 minute at a slightly accelerated idle.
Operate the starter on the vehicle being assisted.
It is essential to follow the indicated sequence correctly.
Page 148 of 231
152
V
+ 1
- 4 - 3
+ 2
A
B
C
1 2 V B A T T E R Y
V 6 H Di E N G I N E
Starting the engine with an assisting battery
If the battery is discharged, it is possible to use either a separate emergency battery or a battery on another vehicle.
If you use the battery on another vehicle, stop the engine on the latter. The two vehicles must not come into direct contact with each other.
Check that the assisting battery h a s s u f fi c i e n t v o l t a g e ( 1 2 V ) .
Connect the cables according to the order indicated in the dia-ordergram.
A Pole “+” of the broken down vehicle (Under the red cover).B Assisting battery.C Pole “–” of the broken down vehicle (Under the bonnet).
Check that the leads are well secured (risk of sparks).
Start the engine of the assist-ing vehicle. Let the engine run for around 1 minute at a slightly accel-erated idle.
Operate the starter on the vehicle being assisted.
It is essential to follow the indi-cated sequence correctly.
N e v e r a p p r o a c h w i t h a fl a m e o r c r e a t e s p a r k s i n t h e v i
c i n i t y o f t h e b a t t e r y ( e x p l o s i v e g a s ) .
The battery contains dilute sulphuric acid which is hig hly corrosive.
When handling batteries, always protect your face and es pecially your eyes.
In the event of any contact with the skin, rinse immediatel y with copious amounts of fresh water.
For any battery replacement, contact a CITROËN dealer.
Do not touch the leads during the operation.
Do not lean over the batteries.
Disconnect the cables in reverse order, making sure they do not touch together.
Advice
Battery location and access
The battery is located in the boot under the left hand wing trim. To a c c e s s t h e b a t t e r y , o p e n t h e fl a p .
IMPORTANT
In the event of a battery failure, and if the boot is closed, it is then necessary to feed an electrical supply to your vehicle.
Page 150 of 231
154
V
T A B L E O F F U S E S
Dashboard fuses (Box A)
Ref.RatingFunction
G29--
G305AHeated rear view mirrors
G315ARain and brightness sensor
G325ASeat belt not fastened warning lamps
G335AElectrochrome rear view mirrors
G3420ASun roof
G355APassenger door lighting - Passenger rear view mirror adjustment
G36--
G3725AHeated front seats
G3825ADriver’s electric seat
G3940A P a s s e n g e r ’ s e l e c t r i c s e a t - H I F I a m p l i fi e r
G403ATrailer relay unit supply
Ref.RatingFunction
G3615A6 speed automatic gearbox
5A4 speed automatic gearbox
G3710ADaytime-running lamps - Diagnostic socket
G383AESP
G3910AHydraulic suspension
G403ASTOP switch
Dashboard fuses (Box B)
Page 151 of 231
155
V
T A B L E O F F U S E S
Dashboard fuses (Box C)
Ref.RatingFunction
F35AAirbags
F410AAutomatic gearbox - Additional heater unit (Diesel) - Electrochrome rear view mirrors
F530AFront window - Sun roof - Passenger door lighting - Passenger rear view mirror adjustment
F630ARear window
F75AVanity mirror lighting – Glove box lighting – Interior lamps
F820A R a d i o - C D c h a n g e r - C o n t r o l s a t t h e s t e e r i n g w h e e l – D i s p l a y – T y r e d e fl a t i o n d e t e c t i o n
F930ACigar-lighter - Front 12V socket
F1015AAlarm - Controls on the steering wheel, signalling and screen w ipe controls
F1115ALow current anti-theft switch
F1215ADriver’s electric seat - Instrument panel - Seat belt not fastened warning lamps - Air conditioning controls
F135AEngine relay unit - Hydraulic suspension pump cut-off relay - Airbag ECU supply
F1415A R a i n a n d b r i g h t n e s s s e n s o r - P a r k i n g a s s i s t a n c e - P a s s e n g e r ’ s e l e c t r i c s e a t - T r a i l e r r e l a y u n i t - H I F I a m p l i fi e r E C U - H a n d s -free kit - Lane Departure Warning System
F1740AHeated rear screen - Exterior heated rear view mirrors
FSHSHUNTCUSTOMER PARK SHUNT
Page 156 of 231
160
VI
BC
D
EFA

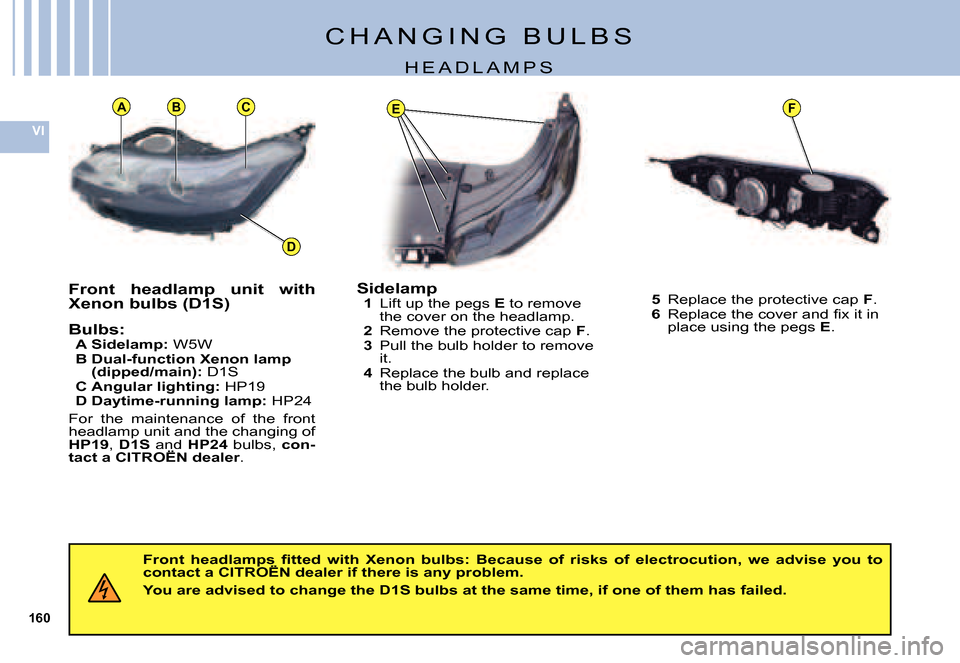

C H A N G I N G B U L B S
H E A D L A M P S
Front headlamp unit with Xenon bulbs (D1S)
Bulbs:A Sidelamp: W5WB Dual-function Xenon lamp (dipped/main): D1SC Angular lighting: HP19D Daytime-running lamp: HP24
For the maintenance of the front headlamp unit and the changing of HP19, D1S and HP24 bulbs, con-tact a CITROËN dealer, bulbs, .
F r o n t h e a d l a m p s fi t t e d w i t h X e n o n b u l b s : B e c a u s e o f r i s k s o f e l e c t r o c u t i o n , w e a d v i s e y o u t o contact a CITROËN dealer if there is any problem. F r o n t h e a d l a m p s fi t t e d w i t h X e n o n b u l b s : B e c a u s e o f r i s k s o f e l e c t r o c u t i o n , w e a d v i s e y o u t o F r o n t h e a d l a m p s fi t t e d w i t h X e n o n b u l b s : B e c a u s e o f r i s k s o f e l e c t r o c u t i o n , w e a d v i s e y o u t o
You are advised to change the D1S bulbs at the same time, if one of them has failed.
Sidelamp1 Lift up the pegs E to remove the cover on the headlamp.2 Remove the protective cap F.3 Pull the bulb holder to remove it.4 Replace the bulb and replace the bulb holder.
5 Replace the protective cap F.6 R e p l a c e t h e c o v e r a n d fi x i t i n place using the pegs E.
Page 157 of 231
161
VI
E
ADCBGF

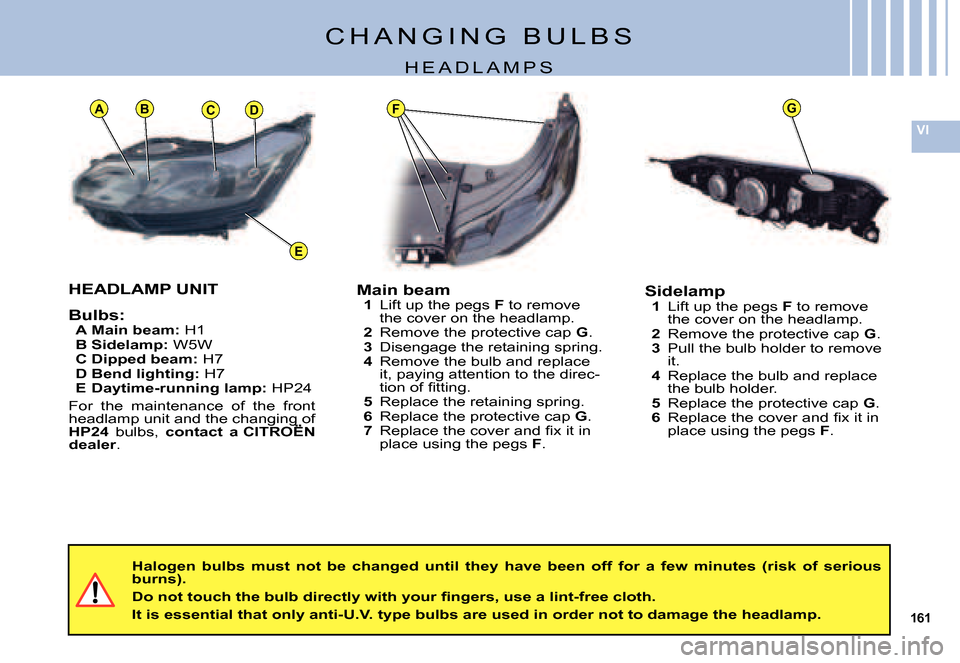

C H A N G I N G B U L B S
H E A D L A M P S
Main beam1 Lift up the pegs F to remove the cover on the headlamp.2 Remove the protective cap G.3 Disengage the retaining spring.4 Remove the bulb and replace it, paying attention to the direc- t i o n o f fi t t i n g .5 Replace the retaining spring.6 Replace the protective cap G.7 R e p l a c e t h e c o v e r a n d fi x i t i n place using the pegs F.
Sidelamp1 Lift up the pegs F to remove the cover on the headlamp.2 Remove the protective cap G.3 Pull the bulb holder to remove it.4 Replace the bulb and replace the bulb holder.5 Replace the protective cap G.6 R e p l a c e t h e c o v e r a n d fi x i t i n place using the pegs F.
HEADLAMP UNIT
Bulbs:A Main beam: H1B Sidelamp: W5WC Dipped beam: H7D Bend lighting: H7E Daytime-running lamp: HP24
For the maintenance of the front headlamp unit and the changing of HP24 bulbs, contact a CITROËN headlamp unit and the changing of changing of
dealer.
Halogen bulbs must not be changed until they have been off for a few minutes (risk of serious burns).
D o n o t t o u c h t h e b u l b d i r e c t l y w i t h y o u r fi n g e r s , u s e a l i n t - f r e e c l o t h .
It is essential that only anti-U.V. type bulbs are used in order not to damage the headlamp.
Page 158 of 231
162
VI
HI

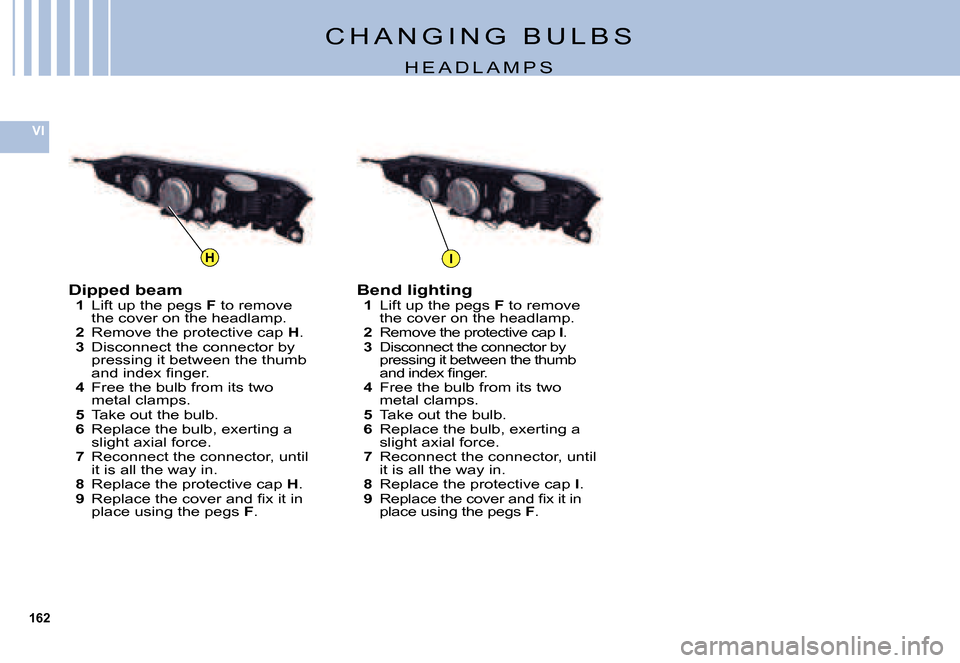

Dipped beam1 Lift up the pegs F to remove the cover on the headlamp.2 Remove the protective cap H.3 Disconnect the connector by pressing it between the thumb a n d i n d e x fi n g e r .4 Free the bulb from its two metal clamps.5 Take out the bulb.6 Replace the bulb, exerting a slight axial force.7 Reconnect the connector, until it is all the way in.8 Replace the protective cap H.9 R e p l a c e t h e c o v e r a n d fi x i t i n place using the pegs F.
Bend lighting1 Lift up the pegs F to remove the cover on the headlamp.2 Remove the protective cap I.3 Disconnect the connector by pressing it between the thumb a n d i n d e x fi n g e r .4 Free the bulb from its two metal clamps.5 Take out the bulb.6 Replace the bulb, exerting a slight axial force.7 Reconnect the connector, until it is all the way in.8 Replace the protective cap I.9 R e p l a c e t h e c o v e r a n d fi x i t i n place using the pegs F.
C H A N G I N G B U L B S
H E A D L A M P S
Page 164 of 231
168
VI

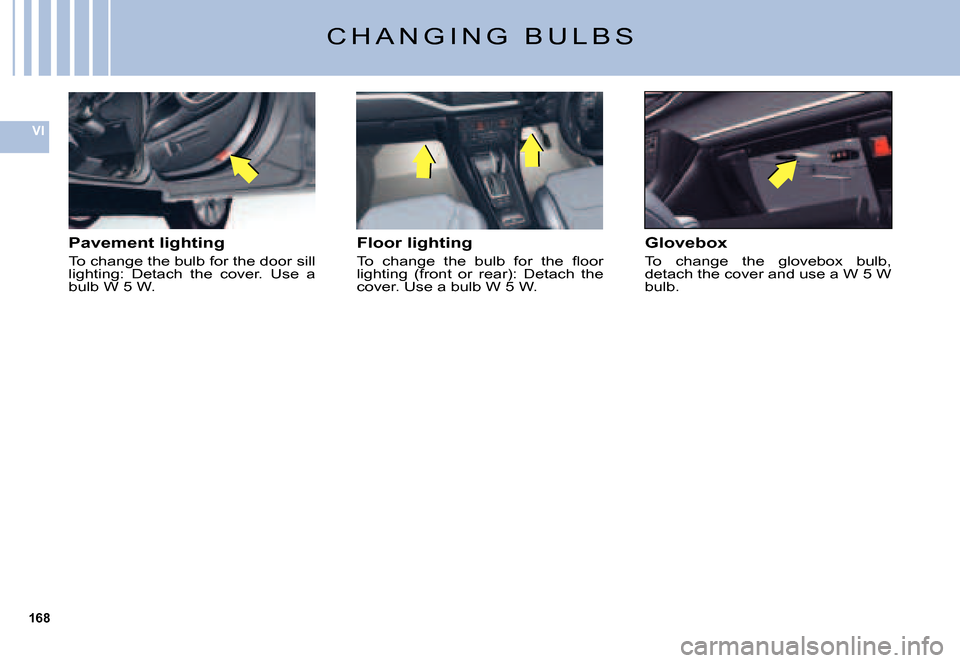

Pavement lighting
To change the bulb for the door sill lighting: Detach the cover. Use a bulb W 5 W.
Floor lighting
T o c h a n g e t h e b u l b f o r t h e fl o o r lighting (front or rear): Detach the cover. Use a bulb W 5 W.
C H A N G I N G B U L B S
Glovebox
To change the glovebox bulb, detach the cover and use a W 5 W bulb.
