CITROEN C6 2005 User Guide

Downloaded from www.Manualslib.com manuals search engine 5
GENERAL

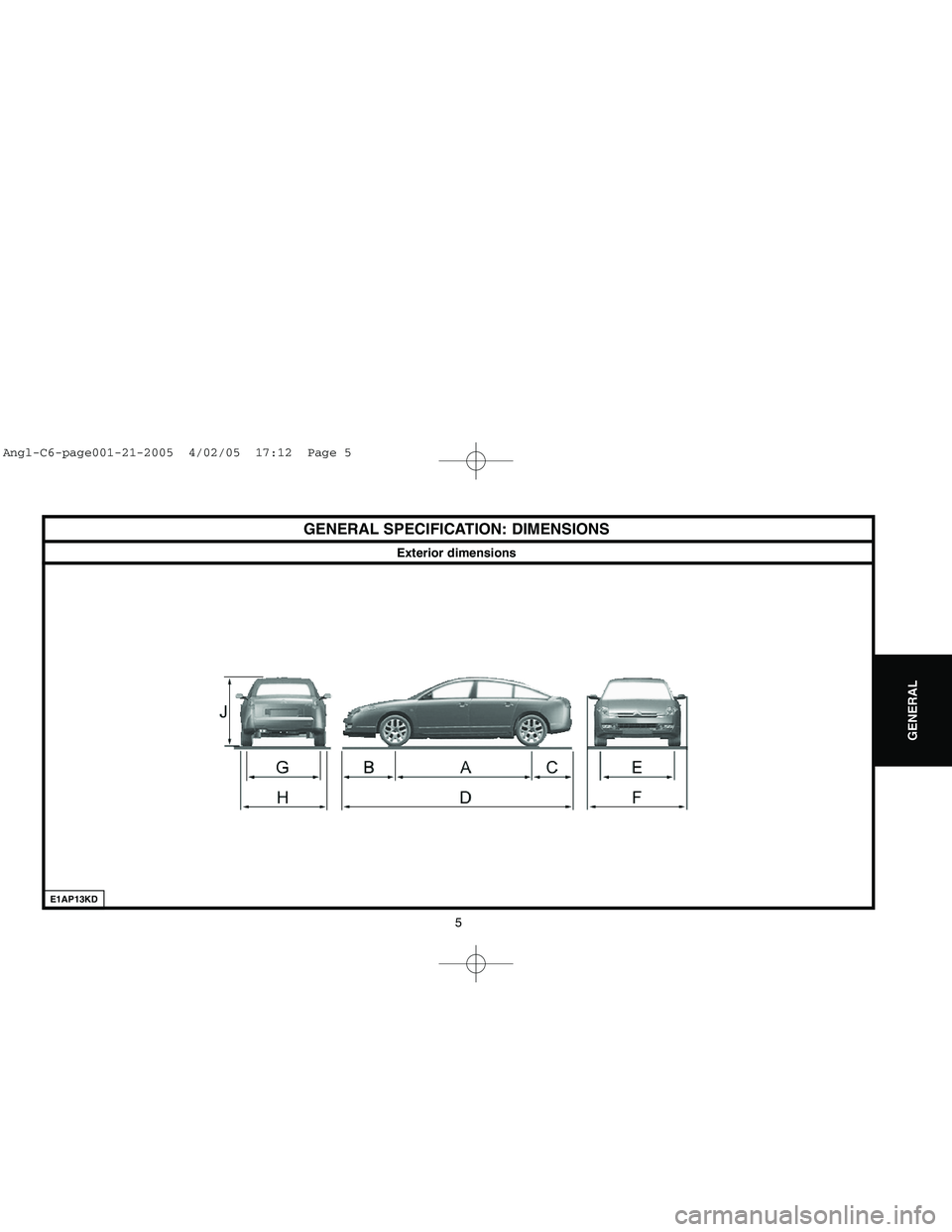

GENERAL SPECIFICATION: DIMENSIONS
E1AP13KD
Exterior dimensions
Angl-C6-page001-21-2005 4/02/05 17:12 Page 5

Downloaded from www.Manualslib.com manuals search engine 6
GENERAL
GENERAL SPECIFICATION: DIMENSIONS
ODM =Vehicle in running order (vehicle empty, levels topped up).
Exterior dimensions (mm)
VehiclesAll types
WheelbaseA 2900Front overhangB 1124Rear overhangC 884Length overallD 4908Front track at ground levelE 1586Width overallF 2081Rear track at ground levelG 1558Track widthH 1860
Height overall ODMJ 1464
Interior dimensions and volumes (mm)
Elbow width, front1503Elbow width, rear1510Height under boot490Minimum floor width111 5
Volume of boot below parcel shelf407 dm
3
(*) = Boot floor can be moved and configured.
Angl-C6-page001-21-2005 4/02/05 17:12 Page 6

Downloaded from www.Manualslib.com manuals search engine 7
GENERAL
GENERAL SPECIFICATION: WEIGHTS
ES9A DT17BTED4
Versions 3.0i 24S 2.7HDi 24VEngine type XFV UHZGearbox typeAM6Payload 455 464Weight empty in running order 1816 1871Gross Vehicle weight 2271 2335Gross Train weight3671Max. trailer weight with brakes
Incline 12 % 1400
Incline 10 % 1500 1400Incline 8 % 1700Max. trailer weight without brakes 750Maximum nose weight70Maximum weight on roof bars 80
NOTE: Maximum nose weight = Vertical load at the tow hook (CVA).
Angl-C6-page001-21-2005 4/02/05 17:12 Page 7

Downloaded from www.Manualslib.com manuals search engine 8
GENERAL
OPERATIONS TO BE CARRIED OUT BEFORE AND AFTER A DISCONNECTION OF THE BATTERY
Before reconnecting the battery
.
Doors and tailgate.
WARNING: Before disconnecting the battery, partially open the door
windows.
Automatic gearbox.
If the vehicle has to remain stationary: Pplace the gear lever in the parking
position "P".
If the vehicle has to be moved: Place the gear lever in the neutral position
"N".
Electric parking brake.
If the vehicle has to remain stationary: Activate the electric parking brake.
If the vehicle has to be moved: Deactivate the electric parking brake.
Features of the vehicle's electrical supply.
When the boot is closed and the battery is disconnected, it is possible to
supply the vehicle by connecting another battery or a 12Vexterior supply.
Operations to be performed:
- Link the earth of the exterior supply to the vehicle earth.
- Link the 12Vof the exterior supply to the positive terminal of the battery +
unit, in the front left hand side of the engine compartment.
After reconnecting the battery
.
Antiscanning function.
It is necessary to wait 1 minuteafter reconnecting the battery in order to be
able to restart the vehicle.
Electric windows.
It may be necessary to re-initialise the sequential and anti-pinch functions.NOTE:If the window is open at the time the battery is reconnected, action
the window switch several times to close it, then re-initialise.
Open the window fully.
Action and release the window switch until the window is completely closed.
NOTE:This operation has to be carried out on each electric window.
Sun roof.
The anti-pinch function has to be re-initialised.
Place the sun roof switch in the maximum tilt position.
Keep the sun roof switch pressed until the sun roof ceases its movement.
Release the sun roof switch.
Press the sun roof switch within 5 seconds.
Keep the sun roof switch pressed until the end of the sun roof opening
sequence.
Multifunction screen.
It is necessary to adjust the date, time and outside temperature.
Adjust the display language of the multifunction screen if necessary.
NOTE:The default display language of the multifunction screen is French.
Reconfigure the personalisation menu of the multifunction screen.
Radio.
Reprogramme the radio stations.
Telematic control unit (RT3 radiotelephone).
Reprogramme the radio stations.
Navigation.
Warning: the vehicle has to be out in the open (when you switch on
the ignition, the navigation ECU searches for satellites).
Reprogramme the customer parameters.
Angl-C6-page001-21-2005 4/02/05 17:12 Page 8

Downloaded from www.Manualslib.com manuals search engine 9
GENERAL

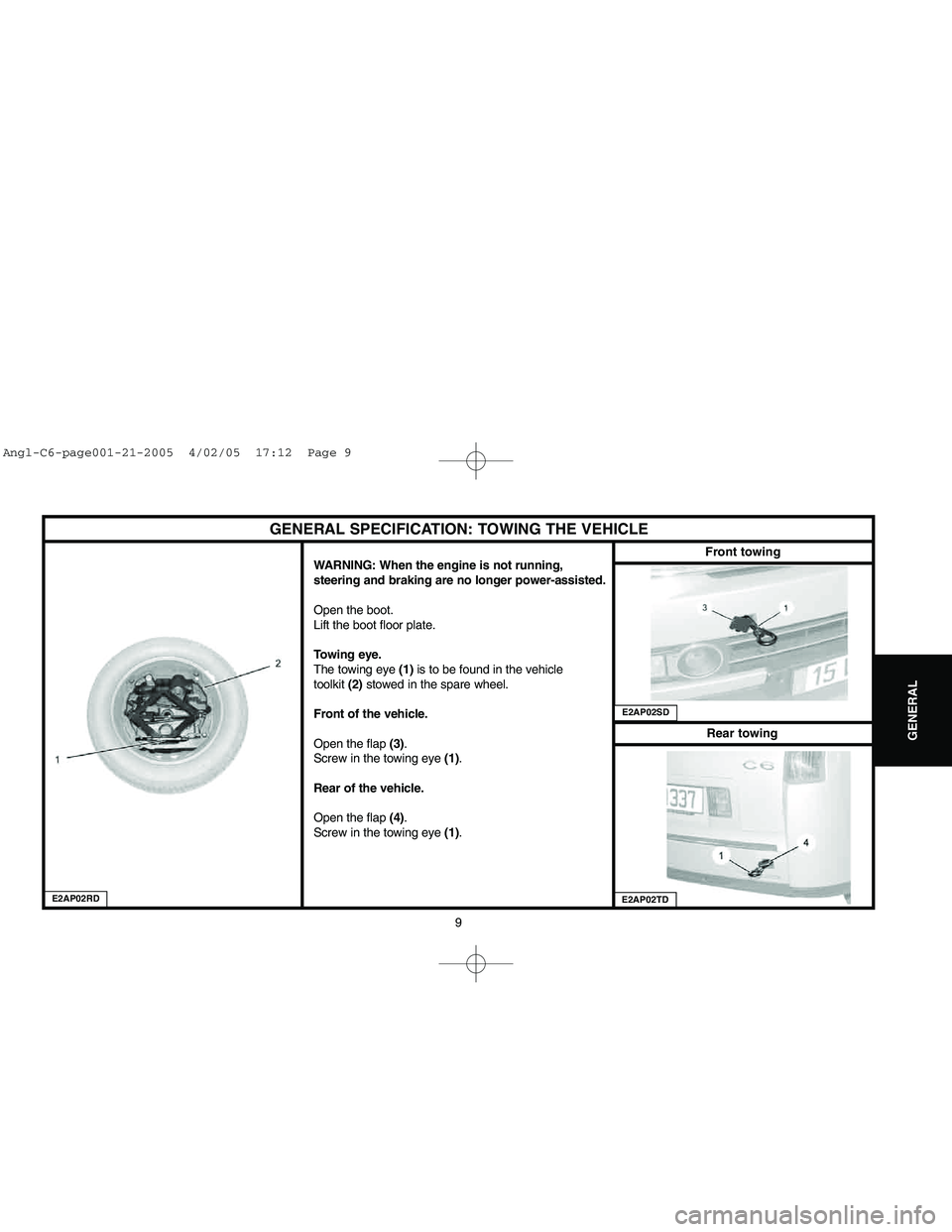

GENERAL SPECIFICATION: TOWING THE VEHICLE
WARNING: When the engine is not running,
steering and braking are no longer power-assisted.
Open the boot.
Lift the boot floor plate.
Towing eye.
The towing eye (1)is to be found in the vehicle
toolkit (2)stowed in the spare wheel.
Front of the vehicle.
Open the flap (3).
Screw in the towing eye (1).
Rear of the vehicle.
Open the flap (4).
Screw in the towing eye (1).
E2AP02RD
Front towingRear towing
E2AP02SDE2AP02TD
Angl-C6-page001-21-2005 4/02/05 17:12 Page 9

Downloaded from www.Manualslib.com manuals search engine 10
GENERAL
GENERAL SPECIFICATION: TOWING THE VEHICLE
Vehicle with automatic gearbox.
IMPERATIVE: Never tow the vehicle with the wheels hanging (towing by the wheels).
Towing:
- It is necessary to raise the front of the vehicle, in order to tow it.
- If it is not possible to raise the front of the vehicle.
- It is essential to place the selection lever in position "N".
- Do not add any oil.
- Do not exceed a speed of 70 km/h(45 mph)on a journey of 100 Km (60 miles).
- Never tow the vehicle backwards.
- Check that the parking brake is released.
Driving:
- Never drive with the ignition switched off.
NOTE: The automatic gearbox is only lubricated when the engine is running.
Never push the vehicle to attempt to start it (impossible with an automatic gearbox).
Angl-C6-page001-21-2005 4/02/05 17:12 Page 10

Downloaded from www.Manualslib.com manuals search engine 11
GENERAL
LIFTING AND SUPPORTING THE VEHICLE
IMPERATIVE: Respect the safety and cleanliness requirements.
Lifting.
Front of the vehicle.
ATTENTION: Lifting the vehicle by the front can only be done one side at a time.
IMPERATIVE: Do not lift the vehicle by taking weight under the front subframe. Do not place blocks under
the front subframe.
IMPERATIVE: Never take weight on the front panel support and the front part of the engine subframe.
IMPERATIVE: Place the jack under the centre pillar, inserting an elastomer shim at «a».
E2AP02LDE2AP016C
Angl-C6-page001-21-2005 4/02/05 17:12 Page 11

Downloaded from www.Manualslib.com manuals search engine 12
GENERAL
LIFTING AND SUPPORTING THE VEHICLE
Rear of the vehicle.
IMPERATIVE: Do not lift under the spare wheel (risk of deformation of the floor). Do not lift under the rear
axle crossmember.
Use lateral lifting as for the front of the vehicle, or rear lifting (see diagrams).
IMPERATIVE: Do not place a block between the jack and the strengthener «b».
Place the jack under the strengthener «b».
Lateral lifting.
IMPERATIVE: Do not place the jack outside the lifting points.
E2AP017CE2AP02MD
Angl-C6-page001-21-2005 4/02/05 17:12 Page 12

Downloaded from www.Manualslib.com manuals search engine 13
GENERAL
LIFTING AND SUPPORTING THE VEHICLE

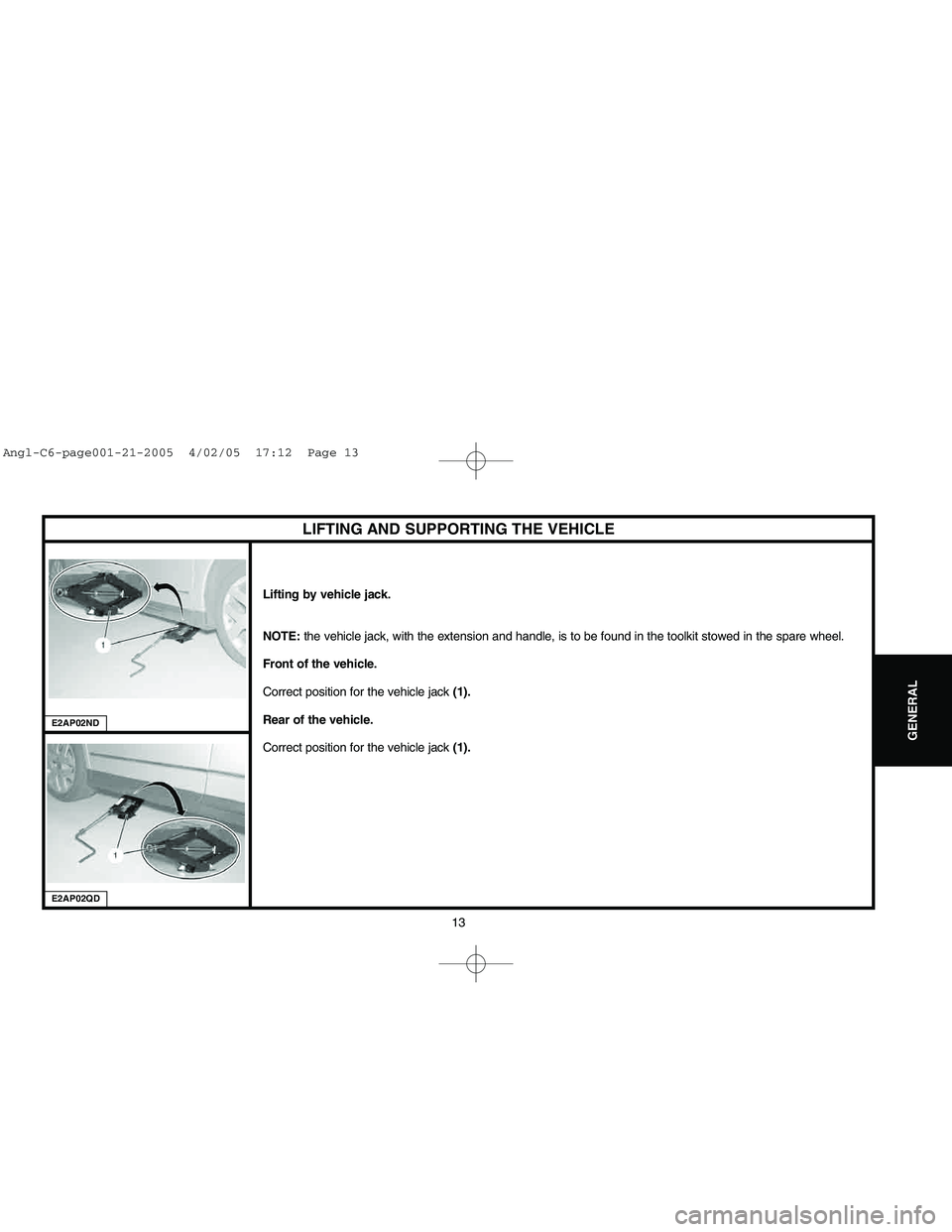

Lifting by vehicle jack.
NOTE: the vehicle jack, with the extension and handle, is to be found in the toolkit stowed in the spare wheel.
Front of the vehicle.
Correct position for the vehicle jack(1).
Rear of the vehicle.
Correct position for the vehicle jack (1).
E2AP02QDE2AP02ND
Angl-C6-page001-21-2005 4/02/05 17:12 Page 13

Downloaded from www.Manualslib.com manuals search engine 14
GENERAL
LIFTING AND SUPPORTING THE VEHICLE
Supporting the vehicle.
Incorrect positioning of the axle stand.
IMPERATIVE: Do not place the axle stands under the lugs of the jacking points.
Correct positioning of the axle stand.
E2AP02PDE2AP018C
Angl-C6-page001-21-2005 4/02/05 17:12 Page 14
