Citroen DS3 2011 1.G Workshop Manual
Manufacturer: CITROEN, Model Year: 2011, Model line: DS3, Model: Citroen DS3 2011 1.GPages: 324, PDF Size: 25.11 MB
Page 51 of 324
49Monitoring
Page 52 of 324

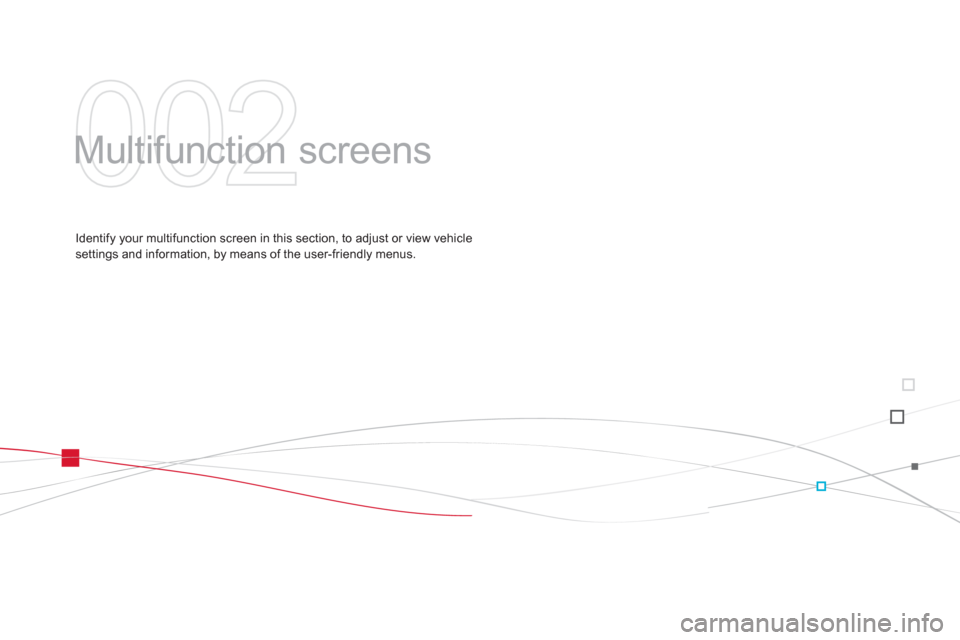

002

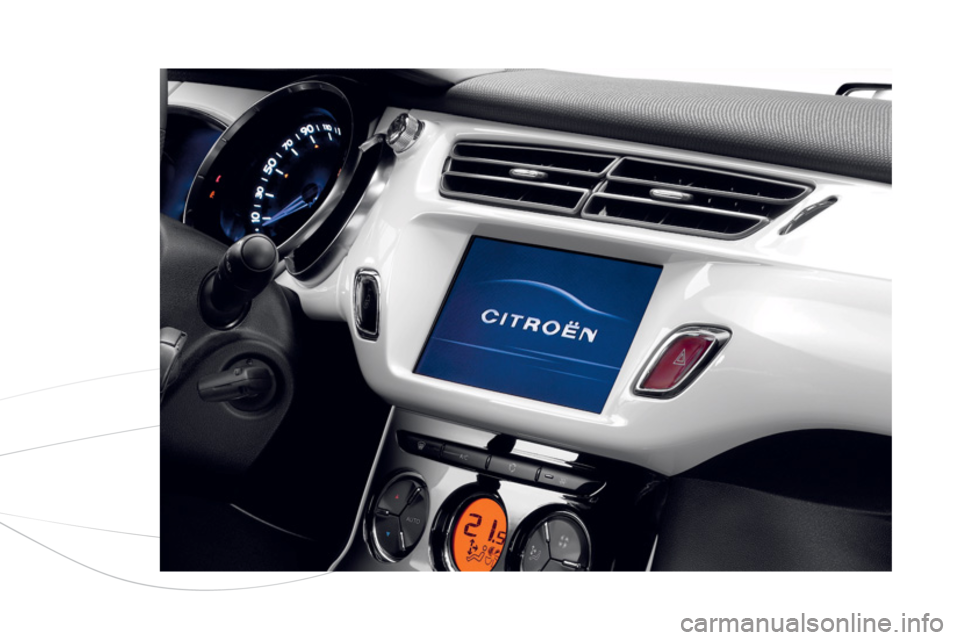

Multifunction screens
Identify your multifunction screen in this section, to adjust or view vehicle
settings and information, by means of the user-friendly menus.
Page 53 of 324
Page 54 of 324
Monochrome screen A
This displays the following information:
- time,
- date,
- ambient temperature (this flashes if there is
a risk of ice),
- status of the doors and boot,
- audio sources (radio, CD...),
- trip computer (refer to the "Instruments and
Controls" section).
Warning messages (e.g.: "Emission control
system faulty") or information messages
(e.g.: "Boot open") may appear temporarily.
These can be cleared by pressing the "ESC"
button.
Displays on the screen
From the control panel of your Audio system,
you can:
)
press the "MENU"
button to gain access to
the main
menu
,
)
press the "
" or "
" buttons to scroll
through the items on the screen,
)
press the "MODE"
button to change
the permanent application (date, audio
source...),
)
press the "
" or "
" buttons to change a
setting value,
)
press the "OK"
button to confirm,
or
)
press the "ESC"
button to abandon the
operation in progress.
Controls
)
Press the "MENU"
button to gain access
to the main
menu
, then press the "
" or
"
" buttons to scroll through the various
menus:
- radio-CD,
- vehicle configuration,
- options,
- display settings,
- languages,
- units.
)
Press the "OK"
button to select the menu
required.
Main menu
Page 55 of 324
53Multifunction screens
Radio-CD
With the Audio system switched on, once the
"Radio-CD" menu has been selected you can
activate or deactivate the functions linked
with use of the radio (RDS, REG), or the CD
(introscan, shuffle, CD repeat).
For more information on the "Radio- CD"
application, refer to the Audio system part of
the "Audio and Telematics" section.
Vehicle confi guration
Once the "Vehicle Configuration" menu has
been selected, you can activate or deactivate
the following equipment:
- wiper linked with reverse gear (refer to the
"Visibility" section),
- guide-me-home lighting (refer to the
"Visibility" section),
- parking sensors (refer to the "Driving"
section).
Options
Once the "Options" menu has been selected,
you can start diagnostics of the status of the
equipment (active, not active, faulty).
Page 56 of 324
Languages
Once the "Languages" menu has been selected,
you can change the language used by the display
(Français, Italiano, Nederlands, Portugues,
Portugues-Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been selected,
you can change the units of the following
parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or km/l).
Once the fuel consumption units have
been set to mpg, the information in the
instrument panel screen on speed and
distance will also be in mph and miles. For safety reasons, configuration by the
driver of the multifunction screen must
only be done when stationary.
Display settings
Once the "Display settings" menu has been
selected, you can gain access to the following
settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
)
Once you have selected a setting, press
the "
" or "
" buttons to change its value.
)
Press the "
" or "
" buttons to switch
respectively to the previous or next setting.
)
Press the "OK"
button to save the change
and return to the normal display or press
the "ESC"
button to cancel.
Page 57 of 324
55Multifunction screens
Monochrome screen C
This displays the following information:
- time,
- date,
- ambient temperature (this flashes if there is
a risk of ice),
- status of doors and boot,
- audio sources (radio, CD, USB por t, jack
socket etc.),
- trip computer (refer to the "Instruments and
controls" section).
Warning messages (E.g. "Emisions control
system faulty") or information messages
(E.g.: Automatic headlamps active") may
appear temporarily. These can be cleared by
pressing the "ESC"
button.
Displays on the screen
From your Audio system control panel, you can:
)
press the "MENU"
button to gain access to
the main
menu
,
)
press the "
" or "
" buttons to scroll
through the items on the screen,
)
press the "MODE"
button to change the
permanent application (trip computer, audio
source...),
)
press the "
" or "
" buttons to change a
setting value,
)
press the "OK"
button to confirm,
or
)
press the "ESC"
button to abandon the
operation in progress.
Controls
)
Press the "MENU"
button to gain access to
the main
menu
:
- audio functions,
- the trip computer,
- personalisation-configuration,
- telephone (hands-free kit).
)
Press the "
" or "
" buttons to select the
menu required, then confirm by pressing
the "OK"
button.
Main menu
Page 58 of 324
With the Audio system switched on, once this
menu has been selected you can activate
or deactivate the functions linked with use
of the radio (RDS, REG, RadioText), the CD
(introscan, shuffle, CD repeat) or the MP3
player (USB por t /jack socket).
For more information on the "Audio functions"
application , refer to the Audio system par t of
the "Audio and Telematics" section.
"Au d i o f u n c t i o n s"
menu
"Trip computer" menu
Once this menu has been selected, you can
consult information concerning the status of the
vehicle (warnings log, status of functions, etc.).
Alert log
This summarises the active warning messages,
displaying them in succession on the
multifunction screen.
Status of functions
This summarises the status (active or inactive)
of the vehicle's functions.
Enter distance to destination
This allows you to enter an approximate
distance until your final destination.
)
Press the "MENU"
button to gain access to
the general menu.
)
Press the arrows, then the "OK"
button to
select the "
Tr i p c o m p u t e r
"
menu.
)
In the "
Tr i p c o m p u t e r
"
menu, select one
of the following applications:
Page 59 of 324
57Multifunction screens
"Personalisation-
Configuration" menu
Once this menu has been selected, you can
gain access to the following functions:
- define the vehicle parameters,
- display configuration,
- choice of language.
Defi ne the vehicle parameters
Once this menu has been selected, you can
activate or deactivate the following equipment:
- wiper linked to reverse gear (refer to the
"Visibility" section),
- guide-me-home lighting and duration (see
"Visibility" section),
- parking sensors (refer to the "Driving"
section). Example: setting of the duration of the guide-
me-home lighting
)
Press the "
" or "
" buttons, then the
"OK"
button to select the menu required.
)
Press the "
" or "
" buttons, then the
"OK"
button to select the "Guide-me-home
headlamps" line.
)
Press the "
" or "
" buttons to set the
value required (15, 30 or 60 seconds), then
press the "OK"
button to confirm.
)
Press the "
" or "
" buttons, then the
"OK"
button to select the "OK"
box
and confirm or press the "ESC"
button
to cancel.
Page 60 of 324
Display confi guration
Once this menu has been selected, you can
gain access to the following settings:
- brightness-video setting,
- date and time setting,
- selection of units.
Once the fuel consumption units have
been changed to mpg, the information
in the screen relating to speed and
distance also changes to mph and
miles respectively. For safety reasons, configuration by the
driver of the multifunction screen must
only be done when stationary.
Choice of language
Once this menu has been selected, you can
change the language used by the display
(Deutsch, English, Espanol, Français, Italiano,
Nederlands, Portugues, Portugues-Brasil,
Türkçe * ).
*
According to country of destination. With Audio system on, once this menu is
selected you can configure your Bluetooth
hands-free system (pairing), view the various
telephone directories (list of calls, ser vices...)
and manage your calls (call, hang up, second
call, secret mode...).
For more information on the "Telephone"
function, refer to the Audio system par t of the
"Audio and telematics" section.
"Telephone" Menu
