CITROEN DS3 CROSSBACK 2020 Owners Manual

149In the event of a breakdown08

Under the boot carpet
► Raise the boot carpet by pulling the strap to
access the tools.
With temporary puncture repair kit

With spare wheel

These tools are specific to the vehicle and
may vary according to the level of
equipment.
Do not use them for any other purpose.
The jack must only be used to change a
wheel with a damaged or punctured tyre.
Do not use any jack other than the one
supplied with the vehicle.
If the vehicle does not have its original jack,
contact a dealer or a qualified workshop
to obtain the one that was intended by the
manufacturer.
The jack meets European standards, as
defined in the Machinery Directive 2006/42/
CE.
The jack does not require any maintenance.
List of tools

1. Chock to immobilise the vehicle (depending on
equipment)
2. Socket for the wheel security bolts (depending
on equipment)
For adapting the wheelbrace to the special
‘security’ bolts.
3. Removable towing eye
For more information on Towing the vehicle and
using the removable towing eye, refer to the
corresponding section.
With temporary puncture repair kit

4.12 V compressor with a cartridge of sealant and
a speed limit sticker.
For temporary repair of a tyre and to adjust the
tyre pressure.

150In the event of a breakdown08
For more information about the Temporary
puncture repair kit, refer to the corresponding
section.
With spare wheel

5.Wheelbrace.
For removing the wheel trim and the wheel bolts.
6.Jack with integrated handle.
To raise the vehicle.
7.Wheel bolt cap remover (depending on
equipment).
For removing the wheel bolt head finishers on
alloy wheels.
For more information on the Spare wheel, refer to
the corresponding section.
Temporary puncture repair
kit
Scan the QR Code on page 3 to view
explanatory videos.
Made up of a compressor and a sealant cartridge,
it allows the temporary repair of a tyre so that you
can drive to the nearest garage.
It is designed to repair most punctures which
could affect the tyre, located on the tyre tread.
The vehicle's electric system allows the
connection of the compressor for long
enough to inflate a tyre after a puncture repair.
For more information on the Tool kit, refer
to the corresponding section.
Repair procedure
Do not remove any foreign bodies (e.g.
nail, screw) which have penetrated into
the tyre.
►  Park the vehicle without obstructing traffic
and apply the parking brake.
►  Follow the safety instructions (hazard warning
lamps, warning triangle, high visibility vest, etc.)
according to the legislation in force in the country
of driving.
►  Switch off the ignition.
►  Uncoil the pipe stowed under the compressor.


► Connect the pipe from the compressor to the
bottle of sealant.


►  Turn the bottle of sealant over and secure it in
the notch provided on the compressor.
►  Remove the valve cap from the tyre to be
repaired, and place it in a clean area.

151In the event of a breakdown08

► Connect the hose from the bottle of sealant
to the valve of the tyre to be repaired and tighten
firmly.
►  Check that the compressor switch is in
position "O".
►  Fully uncoil the electric cable stowed under
the compressor.
►  Connect the compressor's electric plug to the
vehicle's 12 V socket.
►  Affix the speed limit sticker.
The speed limit sticker must be secured to
the interior of the vehicle in the area close
to the driver, to remind the driver that a wheel
is in temporary use.
The tyre inflation pressures are given on
this label.


►  Switch on the ignition.

► Switch on the compressor by moving the
switch to position "I" until the tyre pressure
reaches 2 bar. The sealant product is injected
under pressure into the tyre; do not disconnect
the pipe from the valve during this operation (risk
of blowback).
If after approximately 7 minutes, the
pressure of 2 bar is not reached, this
indicates that the tyre is not repairable;
contact a dealer or a qualified workshop for
assistance.
►  Move the switch to position "O".
►  Disconnect the compressor's electric plug
from the vehicle's 12 V socket.
►  Refit the cap on the valve.
►  Remove the kit.
►  Remove and store the bottle of sealant.
The sealant product is harmful if
swallowed and causes irritation to the
eyes.
Keep this product out of the reach of children.
The use-by date of the fluid is marked on the
bottle.
After use, do not discard the bottle in standard
waste, take it to a dealer or an authorised
waste disposal site.
Do not forget to obtain a new bottle of
sealant, available from a dealer or a qualified
workshop.


►  Drive immediately for approximately 3 miles
(5 kilometres) at reduced speed (between 12 and
37 mph (20 and 60 km/h)) to plug the puncture.
►  Stop to check the repair and the tyre pressure
using the kit.
With a tyre repaired using this type of kit,
do not exceed a speed of 50 mph
(80 km/h) and do not drive more than
125 miles (200 km).
Contact a dealer or a qualified workshop to
have the tyre changed.

152In the event of a breakdown08
Checking / adjusting tyre
pressures
The compressor can be used, without injecting
sealant, to check and, if necessary, adjust the
tyre pressures.
► Remove the valve cap from the tyre and keep it
in a clean place.
►  Uncoil the pipe stowed under the compressor.
►  Screw the pipe onto the valve and tighten
firmly.
►  Check that the compressor switch is in
position "O".
►  Fully uncoil the electric cable stowed under
the compressor.
►  Connect the compressor's electric plug to the
vehicle's 12 V socket.
►  Switch on the ignition.
The tyre inflation pressures are given on
this label.


► Start the compressor by placing the switch
at position "I" and adjust the pressure to the
value shown on the vehicle's tyre pressure label.
To deflate: press the black button located on the
compressor pipe, near the valve connection.
If after 7 minutes the pressure of 2 bar is
not reached, the tyre is damaged; contact
a dealer or a qualified workshop for
assistance.
►  Once the correct pressure is reached, put the
switch in position "O".
►  Remove the kit and stow it.
Should the pressure of one or more tyres
be adjusted, it is necessary to reinitialise
the under-inflation detection system.
For more information on Tyre under-inflation
detection, refer to the corresponding section.
Spare wheel
Scan the QR Code on page 3 to view
explanatory videos.
For more information on the Tool kit, refer
to the corresponding section.
Access to the spare wheel

The spare wheel is stored under the boot carpet.
The spare wheel is a ‘space-saver’ wheel.
Removing the spare wheel

►  Slacken the central nut.
►  Remove the fastening device (nut and bolt).
►  Lift the spare wheel towards you from the rear.
►  Take the wheel out of the boot.
Putting the spare wheel back in place
The punctured wheel cannot be placed in
the boot under the floor.


► Put the spare wheel back in place in its
housing.
►  Slacken the nut on the bolt by a few turns.
►  Position the fastening device (nut and bolt) in
the middle of the wheel.
►  Tighten the central nut sufficiently to retain
the wheel correctly.
►  Depending on version, put the tool box back
in place in the middle of the wheel and clip it in
place.
Removing a wheel
Parking the vehicle
Immobilise the vehicle where it does not
obstruct traffic: the ground must be level,
stable and non-slippery.
With a manual gearbox, engage first gear
to lock the wheels, apply the parking brake,
unless it is programmed to be in automatic
mode, and switch off the ignition.
With an automatic gearbox, select mode P
to lock the wheels, apply the parking brake,
unless it is programmed to be in automatic
mode, and switch off the ignition.

153In the event of a breakdown08

► Put the spare wheel back in place in its
housing.
►  Slacken the nut on the bolt by a few turns.
►  Position the fastening device (nut and bolt) in
the middle of the wheel.
►  Tighten the central nut sufficiently to retain
the wheel correctly.
►  Depending on version, put the tool box back
in place in the middle of the wheel and clip it in
place.
Removing a wheel
Parking the vehicle
Immobilise the vehicle where it does not
obstruct traffic: the ground must be level,
stable and non-slippery.
With a manual gearbox, engage first gear
to lock the wheels, apply the parking brake,
unless it is programmed to be in automatic
mode, and switch off the ignition.
With an automatic gearbox, select mode P
to lock the wheels, apply the parking brake,
unless it is programmed to be in automatic
mode, and switch off the ignition.
Check for the fixed illumination of the parking
brake indicator lamps in the instrument panel.
The occupants must get out of the vehicle and
wait where they are safe.
If necessary, place a chock under the wheel
diagonally opposite the wheel to be changed.
Never go underneath a vehicle raised using a
jack; use an axle stand.
Wheel with wheel trim
When removing the wheel, first remove
the wheel trim by pulling at the valve aperture
using the wheelbrace.
When refitting the wheel, refit the wheel trim,
starting by placing its aperture in line with the
valve and then pushing it into place all round
its edge with the palm of your hand.




►  To remove the wheel bolt cover on each of the
bolts, use tool 7 (alloy wheels).
►  Fit security socket 2 on wheelbrace 5 to
slacken the security bolt.
►  Slacken the other bolts using the
wheelbrace 5 only.


►  Place the foot of jack 6 on the ground and
ensure that it is directly below the front A or
rear B jacking point on the underbody, whichever
is closest to the wheel to be changed.

154In the event of a breakdown08
► Extend jack 6 until its head comes into contact
with jacking point A or B; contact area A or B on
the vehicle must be properly inserted into the
central part of the head of the jack.
►  Raise the vehicle until there is sufficient space
between the wheel and the ground to admit the
spare (not punctured) wheel easily.
Ensure that the jack is stable. If the
ground is slippery or loose, the jack may
slip or collapse - risk of injury!
Take care to position the jack strictly at
one of the jacking points A or B under the
vehicle, ensuring that the head of the jack is
centred under the contact area of the vehicle.
Otherwise, there is a risk of damage to the
vehicle and/or of the jack collapsing - risk of
injury!


►  Remove the bolts and store them in a clean
place.
►  Remove the wheel.
Fitting a wheel

Fitting a steel or "space-saver" type spare
wheel
If the vehicle is equipped with alloy wheels, the
washers do not make contact with the steel or
"space-saver" type spare wheel. The wheel is
secured by the conical contact of each bolt.


►  Fit the wheel on the hub.
►  Screw in the bolts by hand as far as possible.
►  Pre-tighten the security bolt using the
wheelbrace 5 equipped with a security socket 2.
►  Pre-tighten the other bolts using the
wheelbrace 5 only.


►  Lower the vehicle again fully.
►  Fold jack 6 and remove it.


► Tighten the security bolt using the
wheelbrace 5 equipped with a security socket 2.
►  Tighten the other bolts using the wheelbrace 5
only.
►  Refit the bolt covers to each of the bolts
(depending on equipment).
►  Store the tools.
After changing a wheel

With a "space-saver" type spare wheel
Deactivate certain driving aid functions
(Active Safety Brake, Adaptive cruise control,
etc.).
Do not exceed the maximum authorised speed
of 50 mph (80 km/h).
Driving with more than one “space-saver” type
spare wheel is prohibited.
Visit a dealer or a qualified workshop as
soon as possible to have the tightness of
the bolts and the pressure of the spare wheel
checked.
Have the punctured tyre examined. After
inspection, the technician will advise you on
whether the tyre can be repaired or if it must
be replaced.
Changing a bulb
In some weather conditions (e.g. low
temperature or humidity), the presence of
misting on the internal surface of the glass of
the headlamps and rear lamps is normal; it

155In the event of a breakdown08

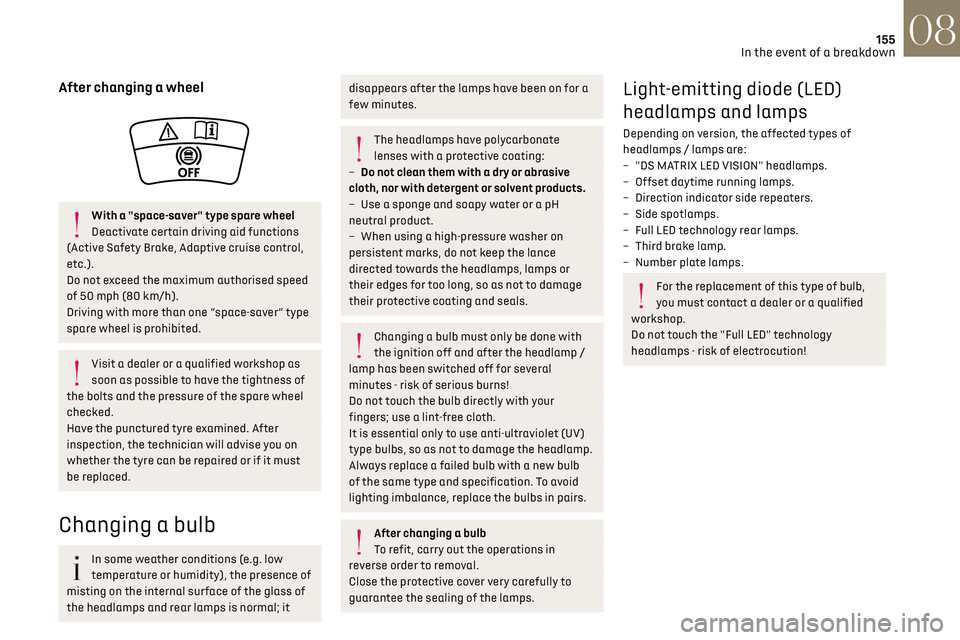

After changing a wheel

With a "space-saver" type spare wheel
Deactivate certain driving aid functions
(Active Safety Brake, Adaptive cruise control,
etc.).
Do not exceed the maximum authorised speed
of 50 mph (80 km/h).
Driving with more than one “space-saver” type
spare wheel is prohibited.
Visit a dealer or a qualified workshop as
soon as possible to have the tightness of
the bolts and the pressure of the spare wheel
checked.
Have the punctured tyre examined. After
inspection, the technician will advise you on
whether the tyre can be repaired or if it must
be replaced.
Changing a bulb
In some weather conditions (e.g. low
temperature or humidity), the presence of
misting on the internal surface of the glass of
the headlamps and rear lamps is normal; it
disappears after the lamps have been on for a
few minutes.
The headlamps have polycarbonate
lenses with a protective coating:
–

Do not clean them with a dry or abrasiv
e
cloth, nor with detergent or solvent products.
–

U

se a sponge and soapy water or a pH
neutral product.
–

When using a high-pre
ssure washer on
persistent marks, do not keep the lance
directed towards the headlamps, lamps or
their edges for too long, so as not to damage
their protective coating and seals.
Changing a bulb must only be done with
the ignition off and after the headlamp /
lamp has been switched off for several
minutes - risk of serious burns!
Do not touch the bulb directly with your
fingers; use a lint-free cloth.
It is essential only to use anti-ultraviolet (UV)
type bulbs, so as not to damage the headlamp.
Always replace a failed bulb with a new bulb
of the same type and specification. To avoid
lighting imbalance, replace the bulbs in pairs.
After changing a bulb
To refit, carry out the operations in
reverse order to removal.
Close the protective cover very carefully to
guarantee the sealing of the lamps.
Light-emitting diode (LED)
headlamps and lamps
Depending on version, the affected types of
headlamps / lamps are:
–

"DS MA
TRIX LED VISION" headlamps.
–

Offset da
ytime running lamps.
–

Direction indic
ator side repeaters.
–

Side spo
tlamps.
–

Full LED t
echnology rear lamps.
–

Third brak
e lamp.
–

Number pla
te lamps.
For the replacement of this type of bulb,
you must contact a dealer or a qualified
workshop.
Do not touch the "Full LED" technology
headlamps - risk of electrocution!

156In the event of a breakdown08
Front lamps
Model with DS MATRIX LED VISION
headlamps
1.Direction indicators (LED)
2. Main beam headlamps (LED Matrix Beam
module).
3. Dipped beam headlamps (LED).
4. Daytime running lamps (LED).
Model with halogen headlamps
1.Main beam headlamps (H7)
2. Dipped beam headlamps (H7)
3. Direction indicators (PWY24)
4. Daytime running lamps (LED)
Opening the bonnet / Accessing the bulbs
With the engine warm, proceed with
caution - risk of burns!
Take care with objects or clothing that could
be caught in the blades of the cooling fan - risk
of strangulation!
Halogen bulbs (Hx)
To ensure good quality lighting, check
that the bulb is correctly positioned in its
housing.
Main beam headlamps/Dipped beam
headlamps


►  Remove the protective cover by pulling on the
tab.
►  Disconnect the bulb connector.
►  Remove the bulb and change it.
To refit, carry out these operations in reverse
order, directing the bulb’s positioning lug
downwards.
Direction indicators
Rapid flashing of a direction indicator
lamp (left or right) indicates that one of
the bulbs on the corresponding side has failed.


►  Turn the connector a quarter turn
anti-clockwise.
►  Pull the bulb connector.
►  Remove the bulb and change it.
Amber-coloured bulbs must be replaced
by bulbs with identical specifications and
colour.
Rear lamps
Model with "Full LED" technology lamps
1. Sidelamps / Daytime running lamps (LED)

157In the event of a breakdown08

► Turn the connector a quarter turn
anti-clockwise.
►  Pull the bulb connector.
►  Remove the bulb and change it.
Amber-coloured bulbs must be replaced
by bulbs with identical specifications and
colour.
Rear lamps
Model with "Full LED" technology lamps
1. Sidelamps / Daytime running lamps (LED)
2.Reversing lamps (W16W)
3. Direction indicators with sequential effect
(LED)
4. Brake lamps (LED)
Model with halogen lamps
1.Brake lamps/sidelamps (W21/5W)
2. Direction indicators (WY16W amber)
3. Reversing lamps (W16W)
Direction indicators and brake lamps/
sidelamps
Rapid flashing of a direction indicator
warning lamp (left or right) indicates that
one of the bulbs on the corresponding side has
failed.
Amber coloured bulbs, such as the
direction indicators, must be replaced by
bulbs with identical specifications and colour.
These bulbs are changed from inside the boot. ► 
Open the boot.


► Remove the access flap on the corresponding
side trim, so that the lamp unit fixing screw can
be accessed.
►  Slacken the lamp unit fixing using a socket
wrench.
►  Finish slackening it by hand to recover the nut,
making sure not to let it drop.
►  Remove the lamp unit.
►  Unclip the lamp unit connector.


► Squeeze and pull the connector.

158In the event of a breakdown08

1. Brake lamps/Sidelamps
2. Direction indicators
Once the lamp unit is disconnected and released,
remove the lamp unit so that the bulbs can be
changed:


► Turn the bulb holder a quarter turn to the left
and pull it out.
►  Pull the bulb out and replace it.
Engage the lamp unit in its guides while
keeping it in line with the vehicle.
Tighten sufficiently to ensure sealing, but
without damaging the lamp unit.
Reversing lamps (tailgate)
►  Open the tailgate.

► Remove the access cover and undo the two
lamp unit fixing nuts using a socket wrench.
►  Squeeze and pull the connector to remove it.
Once the lamp unit is disconnected and released,
remove the lamp unit so that the bulbs can be
changed:


►  Turn the bulb holder a quarter turn to the left
and pull it out.
►  Replace the bulb.
Foglamp (P21W)

For access, pass your hand under the bumper on
the left-hand side.
► Turn the bulb holder a quarter turn to the left
and pull it out.
►  Turn the bulb a quarter turn to the left and pull
it out.
►  Change the bulb.
Changing a fuse
Accessing the tools
The extraction tweezers are located behind the
fusebox cover.
Depending on version:


► Unclip the cover by pulling at the top left, then
right.
►  Remove the cover completely.
►  Take the tweezers from their housing.
