139Visibility

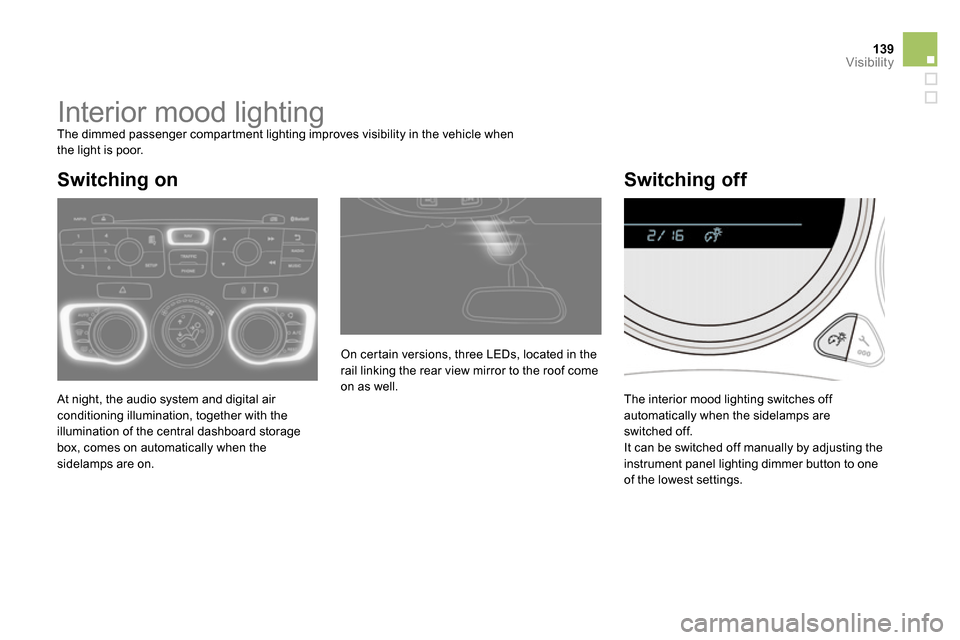

Interior mood lighting
The dimmed passenger compartment lighting improves visibility in the vehicle when
the light is poor.
At night, the audio system and digital air
conditioning illumination, together with the
illumination of the central dashboard storage
box, comes on automatically when the
sidelamps are on. The interior mood lighting switches off
automatically when the sidelamps are
switched off.
It can be switched off manually by adjusting the
instrument panel lighting dimmer button to one
of the lowest settings. On certain versions, three LEDs, located in the
rail linking the rear view mirror to the roof come
on as well.


Switching on
Switching off

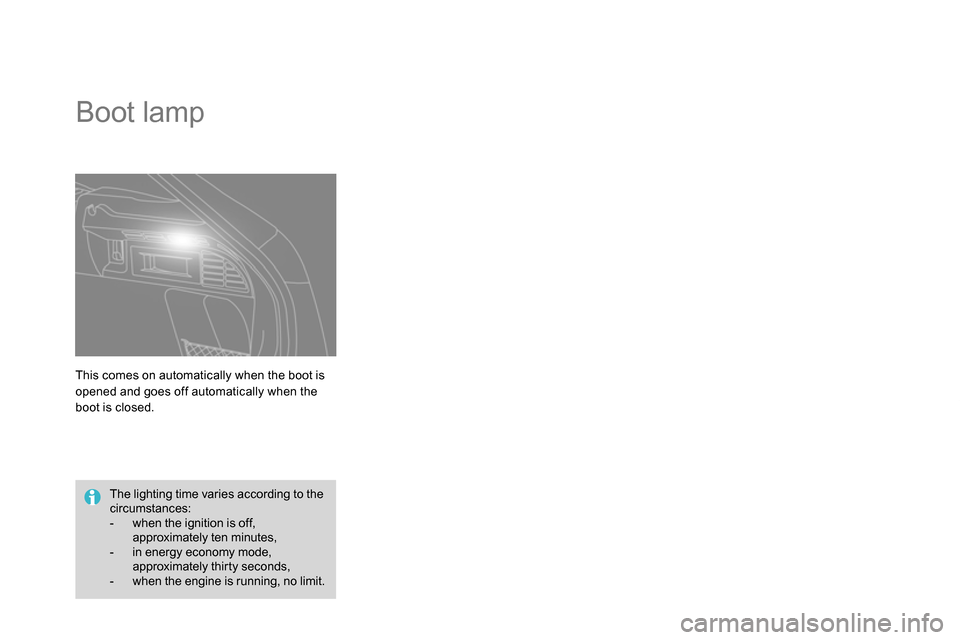

This comes on automatically when the boot is
opened and goes off automatically when the
boot is closed.




Boot lamp






The lighting time varies according to the
circumstances:


- when the ignition is off,
approximately ten minutes,

- in energy economy mode,
approximately thir ty seconds,

- when the engine is running, no limit.

141Visibility

006
Fittings

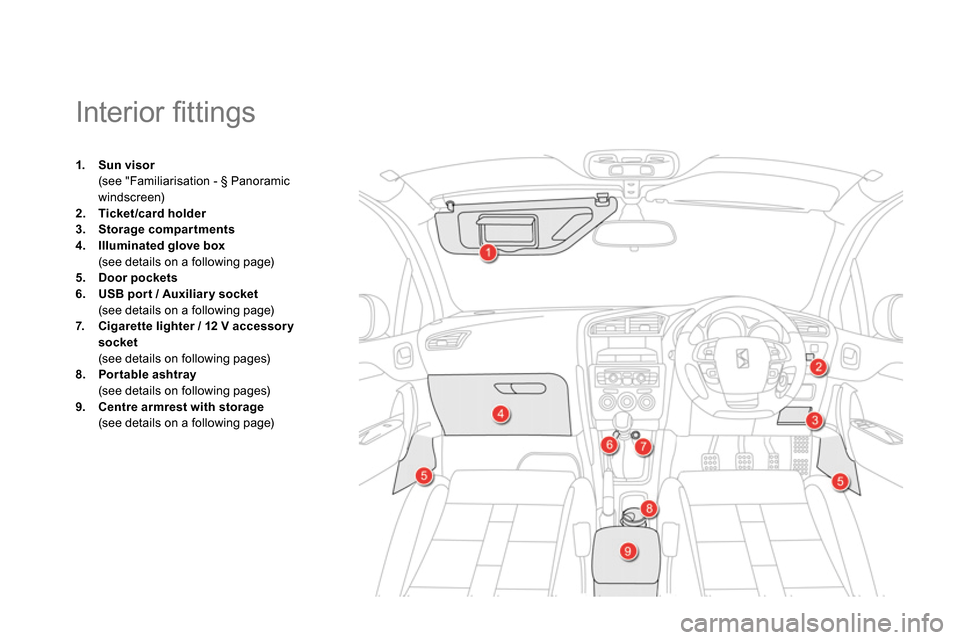

Interior fi ttings



1.
Sun visor

(see "Familiarisation - § Panoramic
windscreen)

2.
Ticket/card holder


3.
Storage compartments


4.
Illuminated
glove box

(see details on a following page)

5.
Door pocket

s


6.
USB por t / Auxiliar y socket

(see details on a following page)

7.
Cigarette lighter / 12 V accessor y
socket

(see details on following pages)

8.
Por table ashtray

(see details on following pages)

9.
Centre armrest with storage

(see details on a following page)

145Fittings











Illuminated glove
box

Its lid has locations for storing a pen, a pair of
glasses, tokens, maps, a cup...



To open the glove box, raise the handle.
It is lit when the lid is opened.
It houses the front passenger airbag
deactivation switch A
.
If the vehicle is fitted with air conditioning, it
provides access to the ventilation nozzle B
,
distributing the same cooled air as the vents in
the passenger compartment.
It gives access to the dashboard fusebox (see
"Practical information - § Changing a fuse").






Portable ashtray





Pull the cover to open the ashtray.


To empty it, remove the ashtray by pulling it
upwards.
To avoid any problem of inter ference
or risk of overturning, do not place the
ashtray near the gear lever.

Cigarette lighter/12 V
accessory socket



To use the cigarette lighter, press it in
and wait a few seconds until it pops out
automatically.


To connect a 12 V accessory (max power:
120 W), remove the cigarette lighter and
connect a suitable adaptor.
You can use this socket to connect a telephone
charger, a bottle warmer...
After use, put the cigarette lighter back into
place straight away.




















USB port / auxiliary
socket

Connected to the USB port, the
portable device charges automatically
while in use.
The "AUX "
connection box, located in the
centre console, comprises an auxiliary JACK
socket and/or a USB port.
It permits the connection of a portable device,
such as a digital audio player of the iPod
® or
USB memory stick type.
It reads certain audio file formats allowing them
to be heard via the vehicle's speakers.
You can manage these files using the steering
mounted controls or the audio system control
panel and display them on the multifunction
screen.
For more information on the use of this
equipment, refer to the "Audio and telematics"
section.

147Fittings

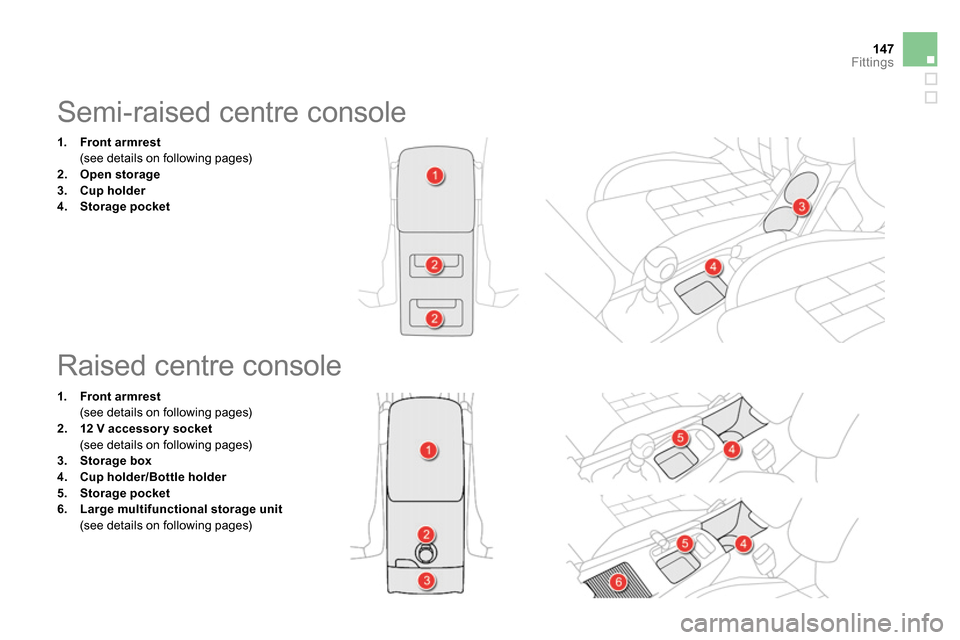

Semi-raised centre console




1.
Front armrest


(see details on following pages)

2.
Open storage


3.
Cup holder


4.
Storage pocket









Raised centre console




1.
Front armrest

(see details on following pages)

2.
12 V accessor y socket

(see details on following pages)

3.
Storage box


4.
Cup holder/Bottle holder


5.
Storage pocket


6.
Large multifunctional storage unit

(see details on following pages)

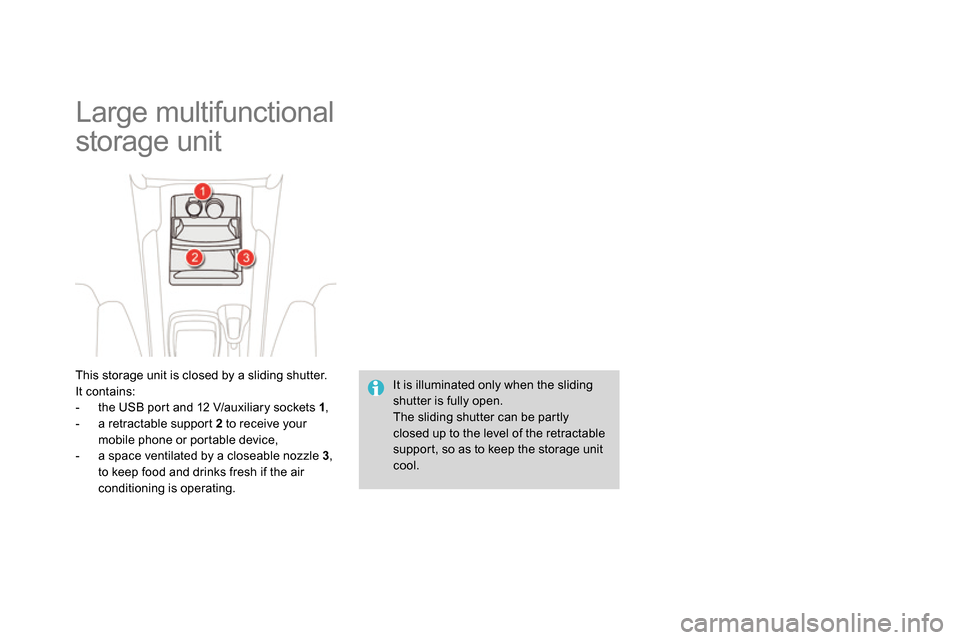

Large multifunctional
storage unit

This storage unit is closed by a sliding shutter.
It contains:


- the USB port and 12 V/auxiliary sockets 1
,

- a retractable support 2
to receive your
mobile phone or portable device,

- a space ventilated by a closeable nozzle 3
,
to keep food and drinks fresh if the air
conditioning is operating. It is illuminated only when the sliding
shutter is fully open.
The sliding shutter can be partly
closed up to the level of the retractable
support, so as to keep the storage unit
cool.
