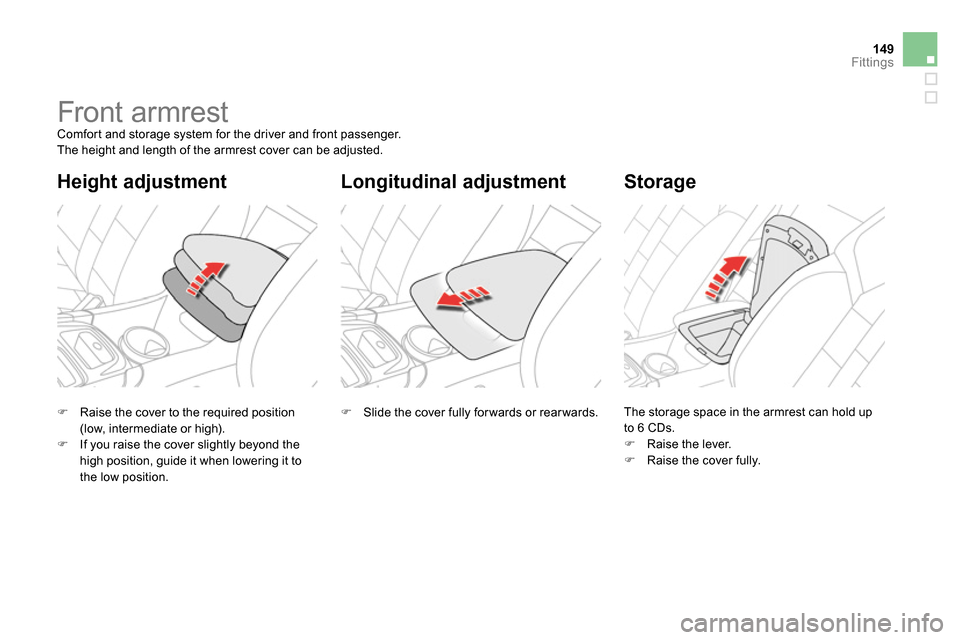

Front armrest
Comfort and storage system for the driver and front passenger.
The height and length of the armrest cover can be adjusted.


Longitudinal adjustment

Height adjustment
Storage




Raise the cover to the required position
(low, intermediate or high).


If you raise the cover slightly beyond the
high position, guide it when lowering it to
the low position.



Slide the cover fully for wards or rear wards.
The storage space in the armrest can hold up
to 6 CDs.



Raise the lever.


Raise the cover fully.

Longitudinal adjustment

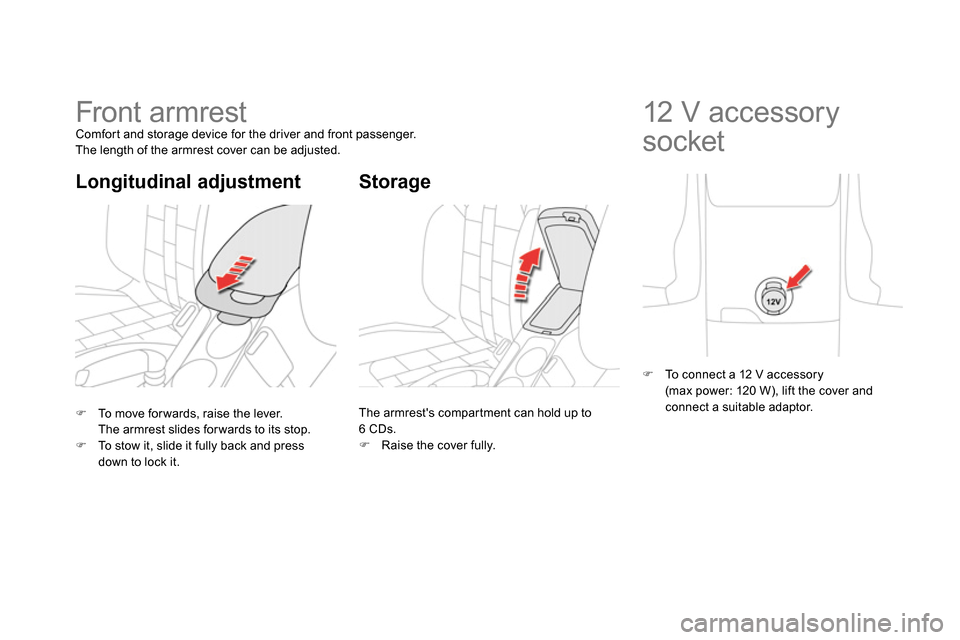

Front armrest
Comfort and storage device for the driver and front passenger.
The length of the armrest cover can be adjusted.
The armrest's compartment can hold up to
6 CDs.



Raise the cover fully.



Storage




To move for wards, raise the lever.
The armrest slides for wards to its stop.


To stow it, slide it fully back and press
down to lock it.







12 V accessory
socket



To connect a 12 V accessory
(max power: 120 W), lift the cover and
connect a suitable adaptor.

151Fittings

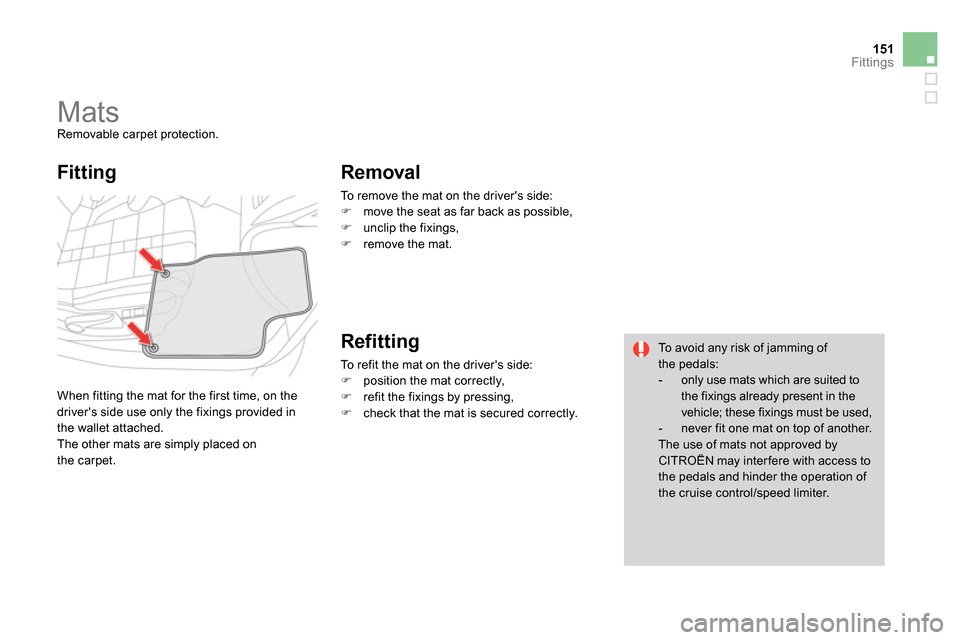

Mats
Removable carpet protection.
When fitting the mat for the first time, on the
driver's side use only the fixings provided in
the wallet attached.
The other mats are simply placed on
the carpet.


Fitting
Removal

To remove the mat on the driver's side:



move the seat as far back as possible,


unclip the fixings,


remove the mat.



Refitting

To refit the mat on the driver's side:



position the mat correctly,


refit the fixings by pressing,


check that the mat is secured correctly.
To avoid any risk of jamming of
the pedals:


- only use mats which are suited to
the fixings already present in the
vehicle; these fixings must be used,

- never fit one mat on top of another.
The use of mats not approved by
CITROËN may inter fere with access to
the pedals and hinder the operation of
the cruise control/speed limiter.


Raise the front of the drawer and pull it open.

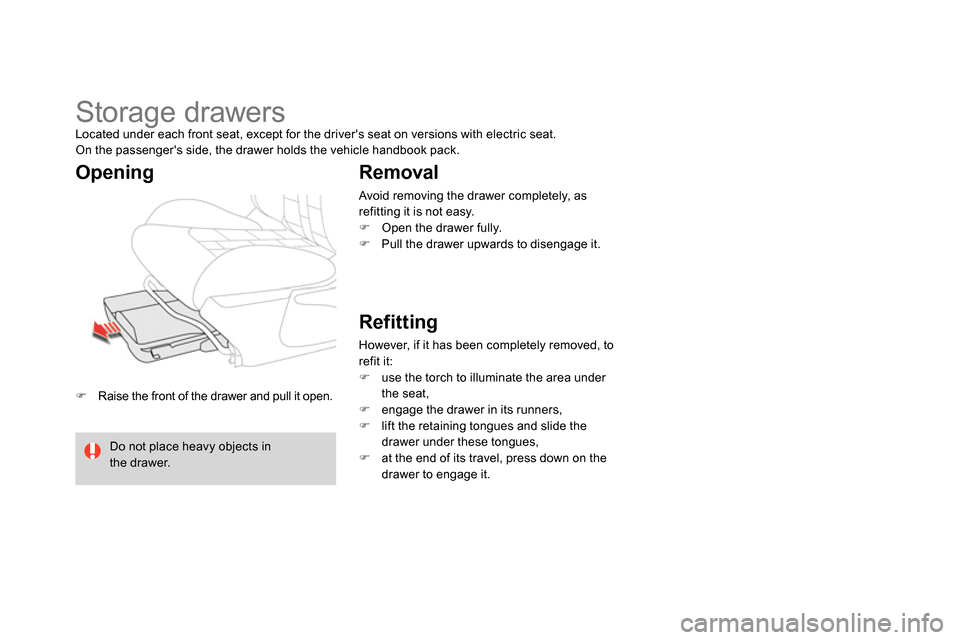

Storage drawers
Located under each front seat, except for the driver's seat on versions with electric seat.
On the passenger's side, the drawer holds the vehicle handbook pack.


Removal

Avoid removing the drawer completely, as
refitting it is not easy.



Open the drawer fully.


Pull the drawer upwards to disengage it.



Opening

Refitting

However, if it has been completely removed, to
refit it:



use the torch to illuminate the area under
the seat,


engage the drawer in its runners,


lift the retaining tongues and slide the
drawer under these tongues,


at the end of its travel, press down on the
drawer to engage it.
Do not place heavy objects in
the drawer.

153Fittings



Lower the rear armrest.


Pull the flap handle downwards.


Lower the flap.


Load the objects from inside the boot.










Ski fl ap
Arrangement for storing and transporting long
objects.

Opening




Lower the rear armrest for a more
comfortable position.
This also gives access to the ski flap.

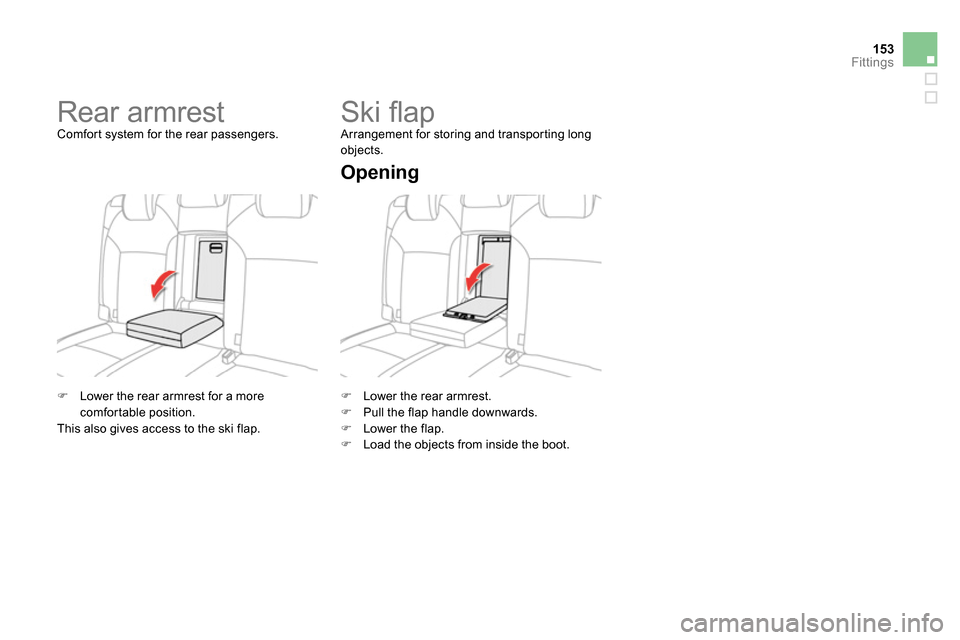

Rear armrest
Comfort system for the rear passengers.

1.
Rear parcel shelf


(see details on a following page)

2.
Hooks


(see details on a following page)

3.
12 V accessor y socket


(see details on a following page)

4.
To r c h


(see details on following pages)

5.
Lashing rings


6.
Storage box


(see details on following pages)

7.
Retaining strap


8.
Storage net

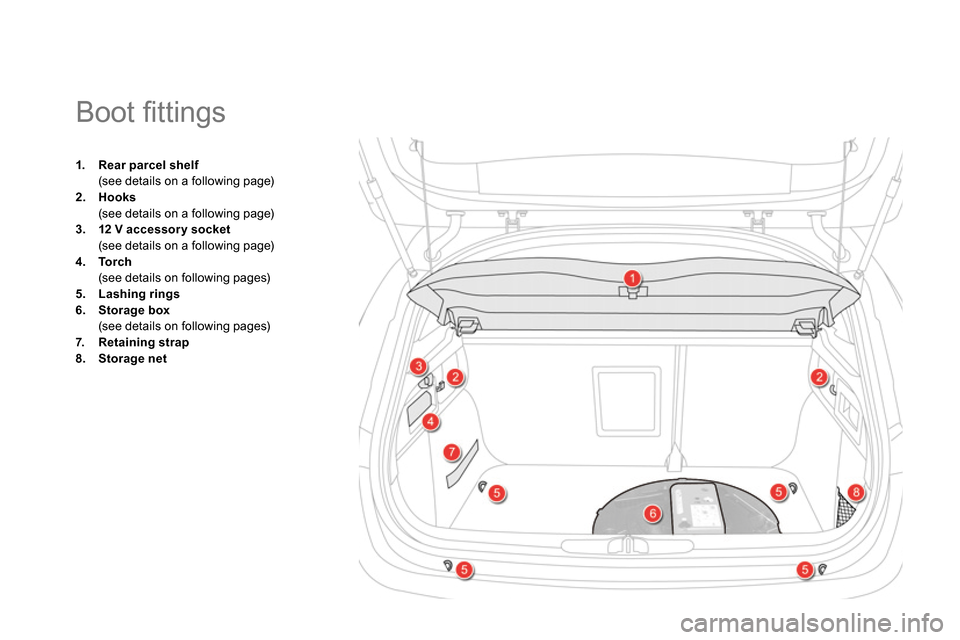

Boot fi ttings

155Fittings
To remove the shelf:



unhook the two cords,


raise the shelf slightly, then remove it.
There are several options for storing the shelf:


- either upright behind the front seats,

- or flat at the base of the boot.

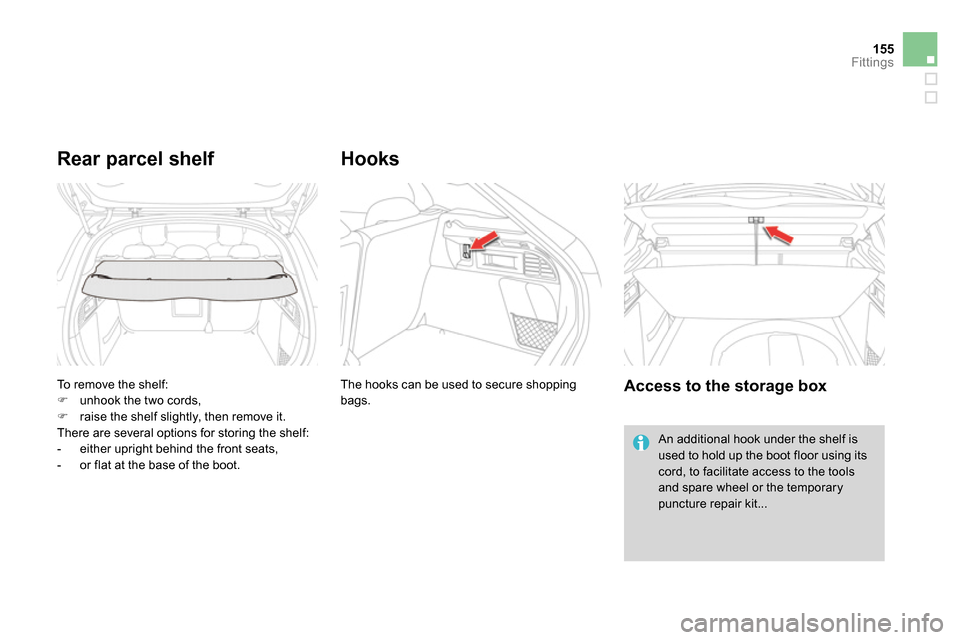

Rear parcel shelf

The hooks can be used to secure shopping
bags.






Hooks


Access to the storage box

An additional hook under the shelf is
used to hold up the boot floor using its
cord, to facilitate access to the tools
and spare wheel or the temporary
puncture repair kit...


To connect a 12 V accessory
(max power: 120 W), remove the cap and
connect an appropriate adaptor.


Turn the key to the ignition on position.

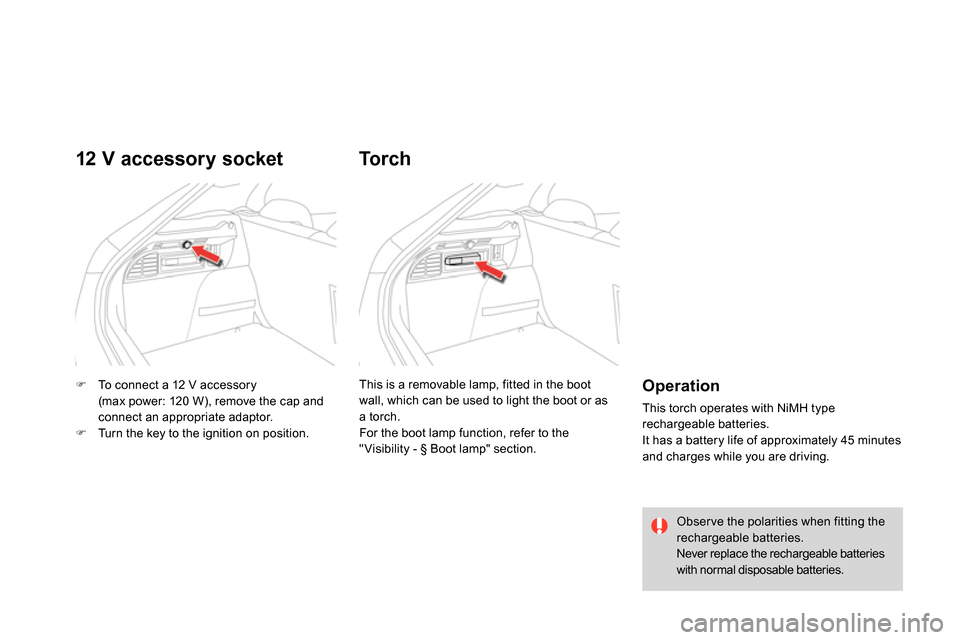

12 V accessory socket

This is a removable lamp, fitted in the boot
wall, which can be used to light the boot or as
a torch.
For the boot lamp function, refer to the
" Visibility - § Boot lamp" section.









Torch


Operation

This torch operates with NiMH type
rechargeable batteries.
It has a battery life of approximately 45 minutes
and charges while you are driving.
Obser ve the polarities when fitting the
rechargeable batteries.
Never replace the rechargeable batteries
with normal disposable batteries.

157Fittings

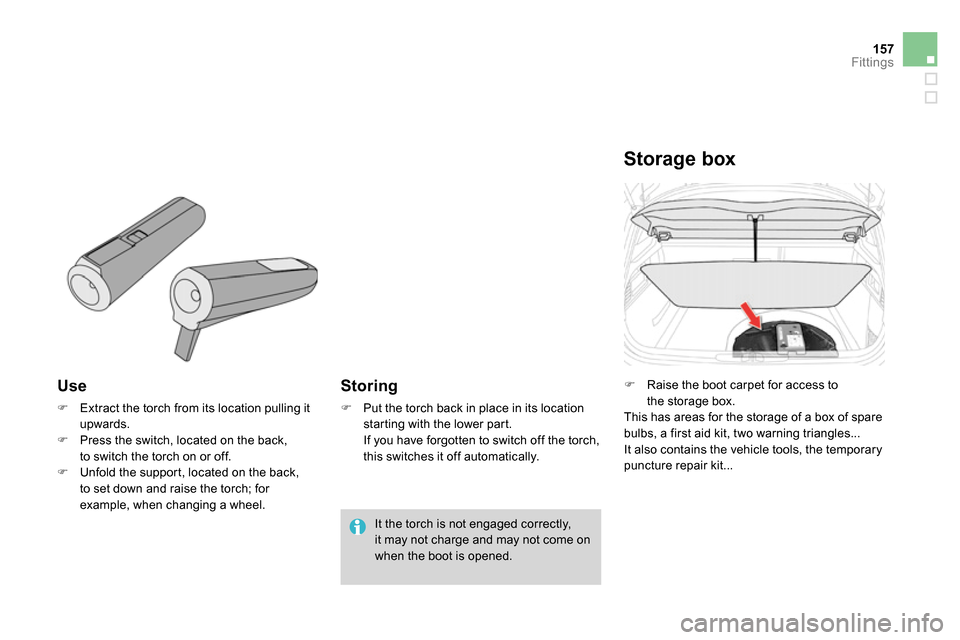

Use




Extract the torch from its location pulling it
upwards.


Press the switch, located on the back,
to switch the torch on or off.


Unfold the support, located on the back,
to set down and raise the torch; for
example, when changing a wheel.



Storing




Put the torch back in place in its location
starting with the lower part.
If you have forgotten to switch off the torch,
this switches it off automatically.







Storage box




Raise the boot carpet for access to
the storage box.
This has areas for the storage of a box of spare
bulbs, a first aid kit, two warning triangles...
It also contains the vehicle tools, the temporary
puncture repair kit...
It the torch is not engaged correctly,
it may not charge and may not come on
when the boot is opened.
