59 Audio and Telematics


The ser vices available depend on
the network, the SIM card and the
compatibility of the Bluetooth telephone
used. Check the telephone manual and
with your network provider for details of
the services available to you.

The ability of the system to connect
with only one profile depends on the
telephone. The three profiles may all
connect by default.

Visit www.citroen.co.uk for more information
(compatibility, additional help, ...).

The recognised telephone
appears in the list.

Depending on your telephone, you may be
asked to accept automatic connection every
time the ignition is switched on.
On return to the vehicle, if the last telephone
connected is present again, it is reconnected
automatically and within around 30 seconds
after switching on the ignition the pairing is
done without any action on your part, with
(Bluetooth activated).
To modify the automatic connection mode,
select the telephone in the list then select the
desired profile.

Depending on the type of telephone,
the system will ask you to accept or not
the transfer of your contacts.
If not, select " Update
".

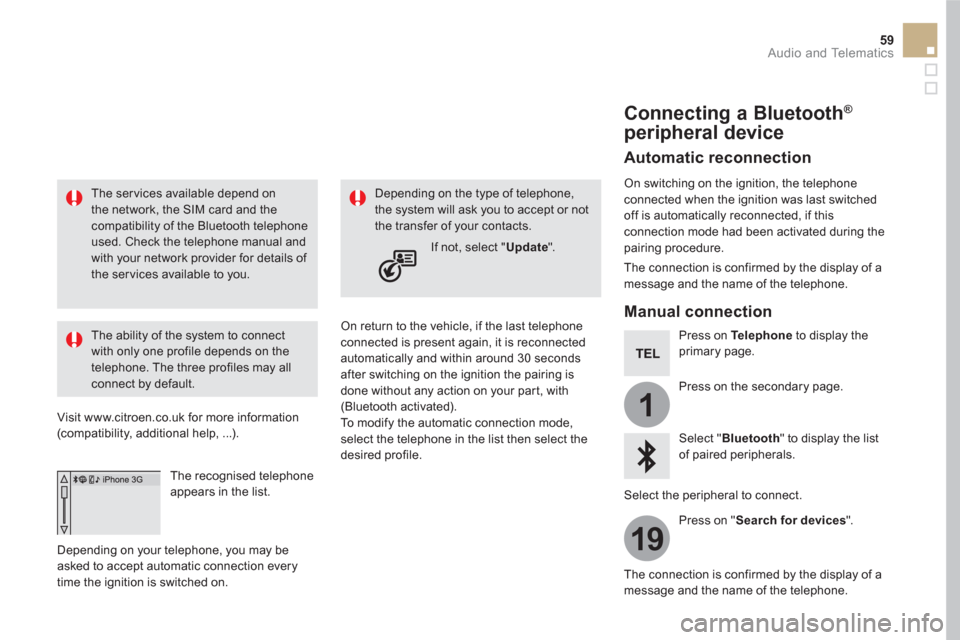

Connecting a Bluetooth ®

peripheral device

Automatic reconnection


On switching on the ignition, the telephone
connected when the ignition was last switched
off is automatically reconnected, if this
connection mode had been activated during the
pairing procedure.

The connection is confirmed by the display of a
message and the name of the telephone.


Manual connection


Press on Te l e p h o n e
to display the
primary page.

Press on the secondary page.

Select " Bluetooth
" to display the list
of paired peripherals.

Select the peripheral to connect.

Press on " Search for devices
".

The connection is confirmed by the display of a
message and the name of the telephone.

1
19
20
22





Managing paired
telephones

This function allows the connection or
disconnection of a peripheral device as
well as the deletion of a pairing.
Using the telephone is not
recommended while driving.
Park the vehicle.
Make the call using the steering
mounted controls.
Press on Te l e p h o n e
to display the
primary page.

Press on the secondary page.

Select " Bluetooth
" to display the list
of paired peripheral devices.

Select the peripheral in the list.

Select " Search for devices
"

Or

" Connect / Disconnect
" to start or
end the Bluetooth connection with
the selected device.

Or

" Delete
" to delete the pairing.



Receiving a call


An incoming call is announced by a ring and a
superimposed display in the screen.

Make a short press on the steering
mounted TEL
button to accept an
incoming call.

Make a long press

on the steering mounted TEL
button
to reject the call.

Or

Select " End call
".







Making a call


Calling a new number


Press on Te l e p h o n e
to display the
primary page.

Enter the phone number using the
digital keypad.
Press " Call
" to start the call.








Calling a contact


Press on Te l e p h o n e
to display the
primary page.

Or make a long press

on the steering mounted TEL
button.

QUESTION



ANSWER



SOLUTION


The CD player sound is
poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in
suitable conditions.
The audio equipment settings (bass, treble, ambiences) are
unsuitable. Set the treble or bass level to 0, without selecting
an ambience.
Some characters in the
media information are not
displayed correctly while
playing. The audio system does not display some types of characters. Use standard characters to name tracks and
folders.
Playing of streaming files
does not start. The peripheral device connected does not support automatic play. Star t the playback from the device.
The names of tracks and
the track length are not
displayed on the screen
when streaming audio. The Bluetooth profile does not allow the transfer of this information.

69 Audio and Telematics



QUESTION



ANSWER



SOLUTION


I cannot connect my
Bluetooth telephone. The telephone's Bluetooth function may be switched off or the
telephone may not be visible.

- Check that your telephone's Bluetooth
function is switched on.

- Check in the telephone settings that it is
"visible to all".
The Bluetooth telephone is not compatible with the system. You can check the compatibility of your
telephone at www.citroen.co.uk (ser vices).
The volume of the
telephone connected
in Bluetooth mode is
inaudible. The volume depends both on the system and on the telephone. Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary.
The ambient noise level has an influence on the quality of
telephone communication. Reduce the ambient noise level (close the
windows, reduce the booster fan speed, slow
down, ...).
Some contacts are
duplicated in the list. The options for synchronizing contacts are synchronizing the
contacts on the SIM card, the contacts on the telephone, or both.
When both synchronizations are selected, some contacts may be
duplicated. Select "Display SIM card contacts" or "Display
telephone contacts".
Contacts are not shown in
alphabetical order. Some telephones offer display options. Depending on the settings
chosen, contacts can be transferred in a specific order. Modify the display setting in the telephone
directory.
The system does not
receive SMS text messages. The Bluetooth mode does not permit sending SMS text messages
to the system.

Te l e p h o n e

1 Audio and Telematics







DS Connect Nav


GPS satellite navigation - Connectivity - Multimedia audio - Bluetooth ®
telephone


Contents
First steps 2
Steering mounted controls 4
Menus 5
Voice commands 6
Navigation 12
Connected navigation 28
Connectivity 38
Radio Media 50
Te l e p h o n e 6 2
Settings 74
Frequently asked questions 84

The system is protected in such a way that it will only operate in
your vehicle.

The link below gives access to OSS (Open Source Software)
codes for the system.
http://www.psa-peugeot-citroen.com/oss
As a safety measure and because it requires sustained attention
by the driver, the pairing of a Bluetooth mobile telephone with
the Bluetooth hands-free system of your audio system must be
done with the vehicle stationary
and the ignition on.
The display of the energy economy mode message signals that
a change to standby is imminent. Refer to the Energy economy
(mode) section of your vehicle's handbook.

3 Audio and Telematics


Select the audio source (depending on
version):


- FM / DAB * / AM * stations.

- Smartphone via MirrorLink
TM
or CarPlay ®
.

- USB memory stick.

- CD player (located in front panel).

- Media player connected to the auxiliary
socket ( jack, cable not supplied).

- BluetoothTelephone connected by
Bluetooth * and using*
audio streaming.


* Depending on equipment.

Short-cuts: using the virtual buttons in the
upper band of touch screen, it is possible to
go directly to the selection of audio source,
the list of stations (or titles, depending on
the source), message notifications, emails,
mapping updates and, depending on services,
navigation notifications.

In very hot conditions, the volume may
be limited to protect the system. It may
go into standby (screen and sound off)
for at least 5 minutes.
The return to normal takes place when
the temperature in the passenger
compartment drops.



In the "Settings" menu you can create
a profile for just one person or a group
of people with common points, with
the possibility of entering a multitude of
settings (radio presets, audio sttings,
navigation history, contact favourites, ...);
these settings are taken into account
automatically.

5 Audio and Telematics

Menus






Settings
Radio Media




Connected navigation

Driving
Connectivity

Te l e p h o n e


Enter settings for a personal profile and/
or adjust the settings for sound (balance,
ambience, ...), colour schemes and the display
(language, units, date, time, ...).

Select an audio source, a radio station, display
photographs.

Enter navigation settings and choose a
destination.
Use ser vices available in real time, depending
on equipment.


Access the trip computer.
Activate, deactivate, set certain vehicle
functions.



Operate certain applications on a smartphone
connected via MirrorLink
TM or CarPlay ®
.
Check the state of Bluetooth and Wi-Fi
connections.


Connect a telephone by Bluetooth
®
, read
messages and emails and send quick
messages.

"Voice command"



Help message



Call contact <...>

*
To make a phone call, say "call" followed by the contact name, for example: "Call David
Miller".
You can also include the phone type, for example: "Call David Miller at home".
To make a call by number, say "dial" followed by the phone number, for example,
"Dial 107776 835 417".
You can check your voicemail by saying "call voicemail".
To send a text, say "send quick message to", followed by the contact, and then the name
of the quick message you'd like to send.
For example, "send quick message to David Miller, I'll be late".
To display the list of calls, say "display calls".
For more information on SMS, you can say "help with texting".
Dial <...> *


Display contacts

*

Display calls

*

Call (message box | voicemail)

*

*
This function is available only if the telephone connected to the system supports downloading of contacts and recent calls and if the download has
been done.






"Telephone" voice commands


If a telephone is connected to the system, these voice commands can be issued from any main screen page after pressing the telephone
button on the steering wheel, as long as there is no telephone call in progress.
If there is no telephone connected by Bluetooth, a voice message announces: "Please first connect a telephone" and the voice session will be
closed.

11 Audio and Telematics



"Voice command"



Help message



Send text to <...>
To hear your messages, you can say "listen to most recent message".
When you want to send a text, there's a set of quick messages ready for you to use.
Just use the quick message name and say something like "send quick message to Bill
Carter, I'll be late".
Check the phone menu for the names of the supported messages.


Please say "call" or "send quick message to", and then select a line from the list.
To move around a list shown on the display, you can say "go to start", "go to end",
"next page" or "previous page".
To undo your selection, say "undo".
To cancel the current action and start again, say "cancel".
Listen to most recent message

*






"Test message" voice commands


If a telephone is connected to the system these voice commands can be issued from any main screen page after pressing the telephone button
on the steering wheel, as long as there is no telephone call in progress.
If no telephone has been connected by Bluetooth, a voice message announces: "Please first connect a telephone" and the voice session will be
closed.

*

This function is only available if the telephone connected to the system supports downloading of contacts and recent calls and if the download has
been done.
The system only sends predefined "Quick messages".

29 Audio and Telematics


As a safety measure and because it
requires sustained attention by the
driver, using a smartphone when
driving is prohibited.
All operations must be done with the
vehicle stationary
.


Connected navigation connection


The principles and standards
are constantly changing. For
communication between your
smartphone and the system to operate
correctly, we recommend that you
keep your smar tphone's operating
system up to date, and the time and
date on your smar tphone and the
system correct.



The ser vices offered with connected
navigation are as follows.
A connected ser vices pack:


- Weather,

- Filling stations,

- Car park,

- Tr a f f i c ,

- POI, local search.
A Danger area pack. Activate the Bluetooth function on the
telephone and ensure that it is visible
to all (see the "Connectivity" section). Connect the USB cable.
The smartphone is in charge mode
when connected by USB cable.

The system is automatically
connected to the modem included
for the "Emergency or assistance
calls" ser vices and does not require
a connection provided by the user
via their smartphone.
On the arrival of "TOMTOM
TR AFFIC", the ser vices are
available.

For access to connected navigation,
you can use the connection provided
by the vehicle via the "Emergency or
assistance call" services or use your
smartphone as a modem.

Activate and enter settings for
sharing the smar tphone connection.



Restrictions of use:


- With CarPlay
®
, connection sharing
is only with a Wi-Fi connection.

- With MirrorLink
TM
, connection
sharing is only with a USB
connection.


The quality of ser vices depends on the
quality of the network connection. Select a Wi-Fi connection found by
the system and connect to it (see the
"Connectivity" section).

USB connection



Network connection provided by
the vehicle
Network connection provided by
the user



Bluetooth connection



Wi-Fi connection
