Citroen JUMPER 2008 2.G Owners Manual

92
Mobile telephone with hands-free function
Making a call by dialling a number Ending a ca ll
Press and hold. Incoming call
If the person is recorded in
the phonebook, his name is
displayed.
"Dial/Dial a number"\
Say the number character by
character (+, #, *), digit by digit
(0 to 9)\
The system displays and
verbally repeats the number
recognised.
"Call" if the number is correct.
or
"Cancel" to cancel dialling of the number.
"Start over" to delete and start dialling
another number.
"Repeat" to hear the number again. Press to accept the call.
Press and hold to decline the call.
Press to ignore the call, however,
the call is stored in the register of
incoming calls.
During a call, if a second incoming call
is received. Press to switch the conversation
and place the other person on
hold.
By means of the voice commands only

Transferring an active call

There are 2 options:

1 - From the mobile telephone to the
hands-free system
Turning the key to the ignition switch MAR
position activates the recognition connection
between the mobile telephone and the
vehicle’s audio equipment.
Confirm this recognition using the keypad on
the mobile telephone.
The call can then be transferred. Placing a call on hold Call register
This enables you to call the number of one
of the last 10 calls received, of one of the
last 10 people called or of one of the last
5 missed calls.

2 - From the hands-free system to the
mobile telephone
Press, the system’s controls are
still active. Press to deactivate the
microphone and place your
contact on hold.
Press again to resume the
conversation.
Activate the main menu.
Select CALL REGISTER.
Confirm.
Select the number to be called.
Confirm.
"Call register"\
"Callback" for the last person who
called you, or
"Redial" for the last person you
called. 93
4
IN-CAR TECHNOLOGY
Mobile telephone with hands-free function

94
Portable equipment audio player
Audio files in .mp3, .wma, .wav format
and for the lists of files (library) with the
extensions .wpl, .m3u are recognised by the
system. Selecting files
PORTABLE EQUIPMENT AUDIO PLAYER
Autoplay
USB socket Connect the equipment to the
socket directly or using an
appropriate cable (not provided).
Turning the key to the ignition switch MAR
position:
- activates the recognition connection and automatically opens a library of files,
- or activates play automatically if the system is programmed to autoplay.
Otherwise, select the file to be
played via the MENU.
For further information regarding the
ignition switch MAR position, refer
to the "Starting and stopping" part of
section 2.
Activate the main menu.
Select SETTINGS then MEDIA
PLAYER then AUTOPLAY.
Confirm.
Select ON or OFF.
Confirm. Activate the main menu.
Select MEDIA PLAYER.
Confirm.
Choose one of the selection
modes:
FOLDERS, ARTISTS, GENRES,
ALBUMS, PLAYLISTS, PLAY
ANYTHING (random playing of the files in
the library).
"Folders", "Artists", ...
The PLAY ALL function enables you
to listen to the entire content of a
selection mode (folders, artists, ...).

Displaying the file information Previous file Confirm.
Pausing/resuming play
Pressing suspends or resumes
play.
Confirm.
Next file Stopping play

By means of the voice commands only
Changing the sound source
Select the file.
Start play.
Activate the main menu.
Select MEDIA PLAYER.
Confirm.
Select NOW PLAYING. "Now playing".
Pressing:
- within 3 seconds following the start of play enables you to play the previous file.
- after 3 seconds enables you to listen to the current file again.
"Previous".
Press to play the next file.
"Next". "Stop".
Press to select the radio, the CD
or to return to the audio player.
95
4
IN-CAR TECHNOLOGY
Portable equipment audio player

96

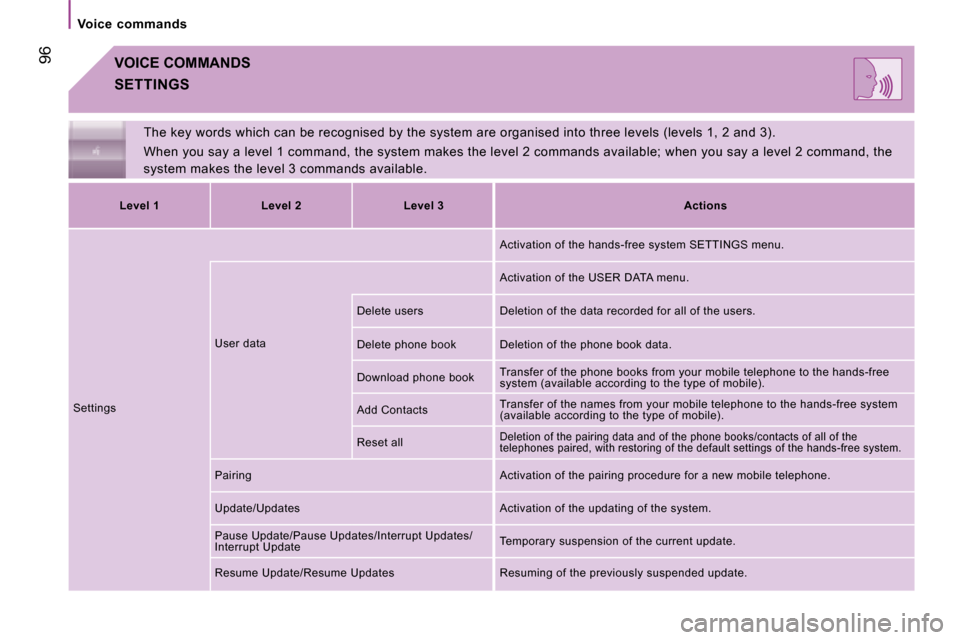

Voice commands
VOICE COMMANDS
The key words which can be recognised by the system are organised into three levels (levels 1, 2 and 3).
When you say a level 1 command, the system makes t he level 2 commands available; when you say a level 2 command, the
system makes the level 3 commands available.
SETTINGS

Level 1 Level 2 Level 3
Actions
Settings User data Activation of the hands-free system SETTINGS menu.

Activation of the USER DATA menu.
Delete users Deletion of the data recorded for all of the users.
Delete phone book Deletion of the phone book data.
Download phone book Transfer of the phone books from your mobile telep
hone to the hands-free
system (available according to the type of mobile).
Add Contacts Transfer of the names from your mobile telephone t
o the hands-free system
(available according to the type of mobile).
Reset all
Deletion of the pairing data and of the phone book s/contacts of all of the
telephones paired, with restoring of the default se ttings of the hands-free system.
Pairing Activation of the pairing procedure for a new mobile telephone.
Update/Updates Activation of the updating of the system.
Pause Update/Pause Updates/Interrupt Updates/
Interrupt Update Temporary suspension of the current update.
Resume Update/Resume Updates Resuming of the previ ously suspended update.

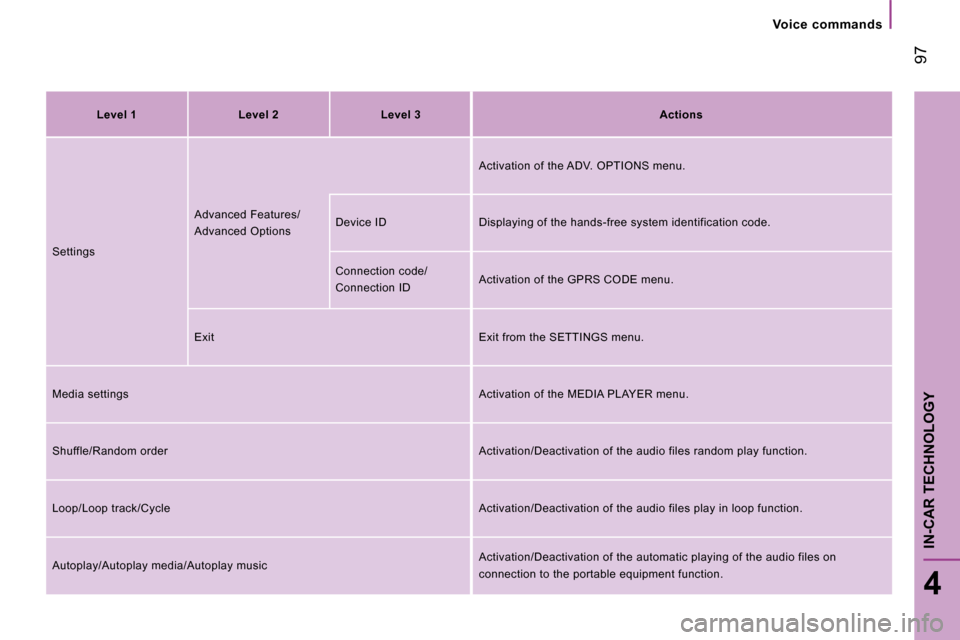

Level 1 Level 2 Level 3
Actions
Settings Advanced Features/
Advanced Options Activation of the ADV. OPTIONS menu.
Device ID Displaying of the hands-free system ide
ntification code.
Connection code/
Connection ID Activation of the GPRS CODE menu.
Exit Exit from the SETTINGS menu.
Media settings Activation of the MEDIA PLAYER menu.
Shuffle/Random order Activation/Deactivation of the audio files random play function.
Loop/Loop track/Cycle Activation/Deactivation of the audio files play in loop function.
Autoplay/Autoplay media/Autoplay music Activation/Deactivation of the automatic playing o
f the audio files on
connection to the portable equipment function.
97
4
IN-CAR TECHNOLOGY
Voice commands

98

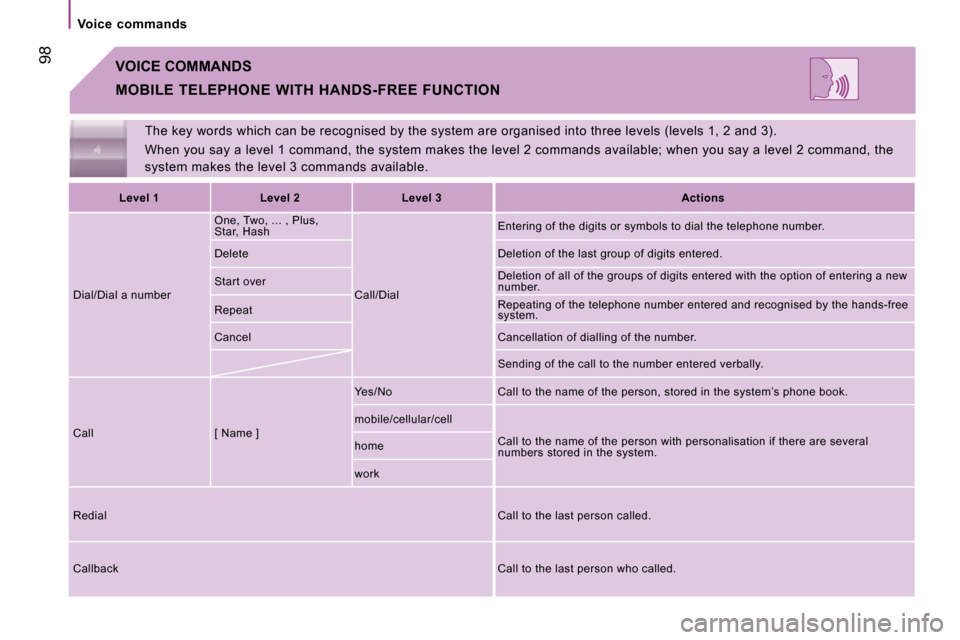

Voice commands The key words which can be recognised by the syste m are organised into three levels (levels 1, 2 and 3).
When you say a level 1 command, the system makes t he level 2 commands available; when you say a level 2 command, the
system makes the level 3 commands available.
VOICE COMMANDS
MOBILE TELEPHONE WITH HANDS-FREE FUNCTION

Level 1 Level 2 Level 3
Actions
Dial/Dial a number One, Two, ... , Plus,
Star, Hash
Call/Dial Entering of the digits or symbols to dial the tele
phone number.
Delete Deletion of the last group of digits entered.
Start over Deletion of all of the groups of digits entered wi
th the option of entering a new
number.
Repeat Repeating of the telephone number entered and reco
gnised by the hands-free
system.
Cancel Cancellation of dialling of the number.
Sending of the call to the number entered verbally.
Call [ Name ] Yes/No Call to the name of the person, stored in
the system’s phone book.
mobile/cellular/cell Call to the name of the person with personalisatio n if there are several
numbers stored in the system.
home
work
Redial Call to the last person called.
Callback Call to the last person who called.

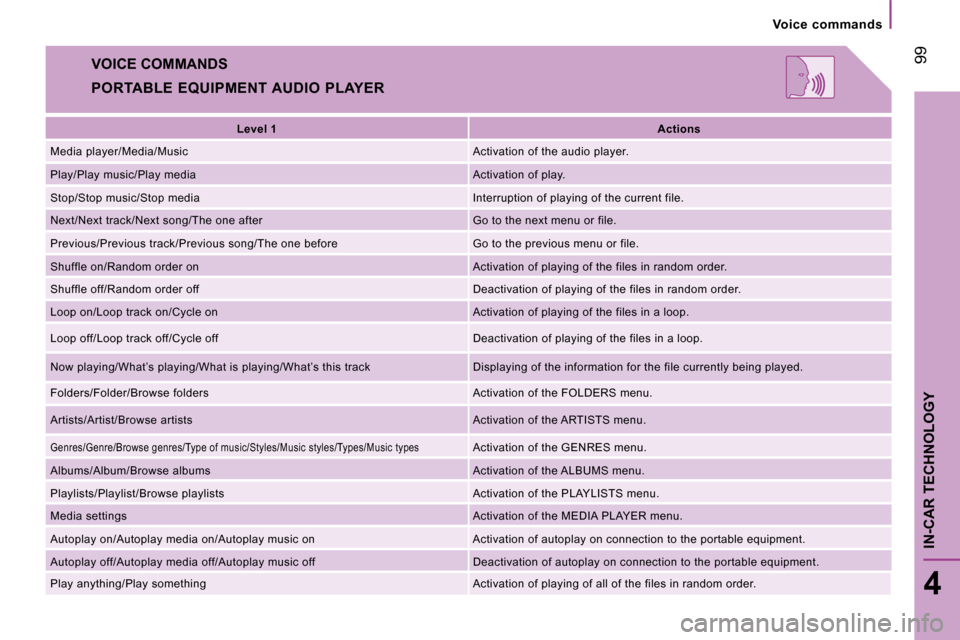

VOICE COMMANDS
PORTABLE EQUIPMENT AUDIO PLAYER
Level 1
Actions
Media player/Media/Music Activation of the audio player.
Play/Play music/Play media Activation of play.
Stop/Stop music/Stop media Interruption of playing of the current file.
Next/Next track/Next song/The one after Go to the next menu or file.
Previous/Previous track/Previous song/The one befo re Go to the previous menu or file.
Shuffle on/Random order on Activation of playing of the files in random order.
Shuffle off/Random order off Deactivation of playing of the files in random order.
Loop on/Loop track on/Cycle on Activation of playing of the files in a loop.
Loop off/Loop track off/Cycle off Deactivation of playing of the files in a loop.
Now playing/What’s playing/What is playing/What’s this track Displaying of the information for the fi le currently being played.
Folders/Folder/Browse folders Activation of the FOLDERS menu.
Artists/Artist/Browse artists Activation of the ARTISTS menu.
Genres/Genre/Browse genres/Type of music/Styles/Music styles/Types/Music types Activation of the GENRES menu.
Albums/Album/Browse albums Activation of the ALBUMS menu.
Playlists/Playlist/Browse playlists Activation of the PLAYLISTS menu.
Media settings Activation of the MEDIA PLAYER menu.
Autoplay on/Autoplay media on/Autoplay music on A ctivation of autoplay on connection to the portable equipment.
Autoplay off/Autoplay media off/Autoplay music off Deactivation of autoplay on connection to the por table equipment.
Play anything/Play something Activation of playing of all of the files in random order.
99
4
IN-CAR TECHNOLOGY
Voice commands

Driving safety
DRIVING SAFETY
HANDBRAKE HAZARD WARNING LIGHTS
Press this button, the direction indicators
flash.
They can operate with the ignition off.
The hazard warning lights should only be
used in dangerous situations, when stopping
in an emergency or when driving in unusual
conditions.
Applying
Pull the handbrake to immobilise your vehicle.
Check that the handbrake is applied firmly
before leaving the vehicle.
If the handbrake is still on or has
not been released properly, this is
indicated by this warning light which
comes on on the instrument panel.
When parking on a slope, direct
your wheels towards the pavement and pull
the handbrake.
There is no advantage in engaging a gear
after parking the vehicle, particularly if the
vehicle is loaded. Releasing
Pull the handle and press the button to lower
the handbrake.

101
5
SAFETY
Driving safety
HORN
Press the centre of the steering wheel.
ANTI-LOCK BRAKING SYSTEM (ABS - EBFD)
The ABS and EBFD (electronic brake force
distribution) systems improve the stability
and manoeuvrability of your vehicle on
braking, in particular on poor or slippery
surfaces.
The ABS prevents locking of the wheels, the
EBFD provides full control of the braking
pressure wheel by wheel.
EMERGENCY BRAKING ASSISTANCE SYSTEM (EBA)
In an emergency, this system enables the
optimum braking pressure to be reached more
quickly, press the pedal fi rmly without releasing it.
It is triggered by the speed at which the brake
pedal is activated. This alters the resistance
of the brake pedal under your foot.
To prolong the operation of the emergency
braking assistance system: keep your foot
on the brake pedal.
Good practice
The anti-lock braking system comes into
operation automatically when there is a risk
of wheel lock. It does not reduce the braking
distance.
On very slippery surfaces (ice, oil, etc...)
the ABS may increase the braking distance.
When braking in an emergency, do not
hesitate to press the brake pedal firmly,
without releasing the pressure, even on a
slippery surface, you will then be able to
continue to manoeuvre the vehicle to avoid
an obstacle.
Normal operation of the ABS may be felt by
slight vibration of the brake pedal.
When changing wheels (tyres and rims),
ensure that these are approved.
If this warning light comes on,
it indicates a malfunction of the
ABS which could result in a
loss of control of the vehicle on
braking.
If this warning light comes on,
together with the brake warning
light, it indicates a malfunction of the
electronic brake force distribution
which could result in a loss of
control of the vehicle on braking.

Stop immediately.
In both cases, contact a CITROËN dealer.
