DACIA DUSTER 2012 1.G Owners Manual

JauneNoirNoir texte
5.29
ENG_UD24505_3
Batterie : dépannage (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5
BATTERY: troubleshooting (2/2)
Starting the vehicle using the
battery from another vehicle
If you have to use the battery from an-
other vehicle to start, obtain suitable
jump leads (with a large cross section)
from an approved dealer or, if you al-
ready have jump leads, ensure that
they are in perfect condition.
The two batteries must have an iden-
tical nominal voltage of 12 volts. The
battery supplying the current should
have a capacity (amp-hours, Ah) which
is at least the same as that of the dis-
charged battery.
Ensure that there is no risk of contact
between the two vehicles (risk of short
circuiting when the positive terminals
are connected) and that the discharged
battery is properly connected. Switch
off your vehicle ignition.
Start the engine of the vehicle supply-
ing the current and run it at an interme-
diate engine speed. Connect the positive (+) lead
A


to (+)
terminal
1

of the discharged battery,
then to (+) terminal
2 of the battery sup-
plying the current.
Connect the negative (–) lead
B

to (–)
terminal
3

of the battery supplying the
current and then to (–) terminal
4 of the
discharged battery.
Start the engine as normal. As soon as
it is running, disconnect leads
A and B
in the reverse order (4-3-2-1)
Check that there is no con-
tact between leads
A and B
and that the positive lead
A
is not touching any metal
parts on the vehicle supplying the
current.
Risk of injury and/or damage to the
vehicle.
AB
14
23

keysreplacing the battery ....................... (up to the end of the DU)
practical advice ..................................... (up to the end of the DU)
battery (remote control) ........................ (up to the end of the DU)
5.30
ENG_UD14146_1
Télécommande à radiofréquence : piles (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5
Radio frequency remote control: battery
RADIO FREQUENCY REMOTE CONTROL: battery
Replacing the battery
Unscrew screw 1 then unclip cover 2 .
Batteries can be obtained from your
approved dealer. These batteries
should have a service life of approx-
imately two years.
Check that there is no dye on the
battery: risk of an incorrect electri-
cal contact.
Do not dispose of your used
batteries in the countryside.
Give them to an organisa-
tion that collects and recy-
cles used batteries.
31
2
When refitting, ensure that the cover
is correctly clipped on and the screw
tightened.
Replace battery 3 according to the di-
rection marked on the cover.
Note: It is not advisable to touch the
electronic circuit in the key cover when
replacing the battery.
Battery type : CR 2016.

wiper blades ......................................... (up to the end of the DU)
practical advice ..................................... (up to the end of the DU)
wipers blades ............................................. (up to the end of the DU)
5.31
ENG_UD20625_2
Balais d’essuie-vitre (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5
Wiper blades

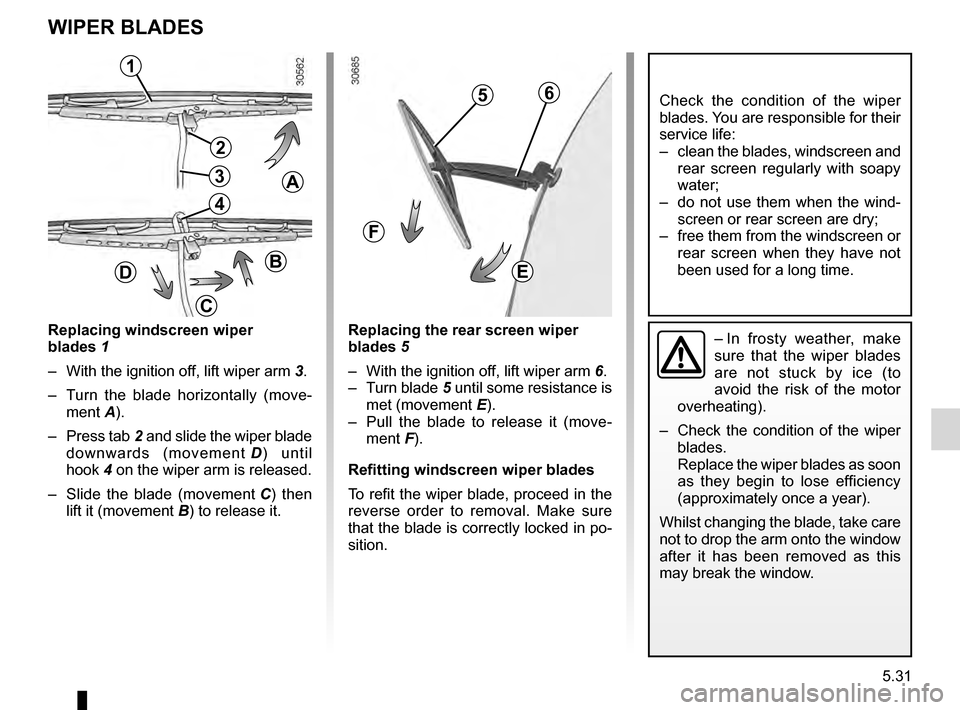

WIPER BLADES
Replacing windscreen wiper
blades
1
–

With the ignition of
f, lift wiper arm 3.
–

T
urn the blade horizontally (move-
ment
A).
–

Press
tab 2 and slide the wiper blade
downwards (movement
D )

until
hook
4 on the wiper arm is released.
–

S
lide the blade (movement
C)

then
lift it (movement
B) to release it.Replacing the rear screen wiper
blades 5
–

With the ignition of
f, lift wiper arm 6.
–

T
urn blade 5 until some resistance is
met (movement
E).
–

P
ull the blade to release it (move-
ment
F).
Refitting windscreen wiper blades
To refit the wiper blade, proceed in the
reverse order to removal. Make sure
that the blade is correctly locked in po-
sition.
Check the condition of the wiper
blades. You are responsible for their
service life:
–

clean
the blades, windscreen and
rear screen regularly with soapy
water;
–

do
not use them when the wind-
screen or rear screen are dry;
–

free
them from the windscreen or
rear screen when they have not
been used for a long time.
– In frosty weather, make
sure that the wiper blades
are not stuck by ice (to
avoid the risk of the motor
overheating).
–

Check
the condition of the wiper
blades.
Replace the wiper blades as soon
as they begin to lose efficiency
(approximately once a year).
Whilst changing the blade, take care
not to drop the arm onto the window
after it has been removed as this
may break the window.
2
3
4
A
C
1
BD
56
F
E

towing hitch........................................... (up to the end of the DU)
practical advice ..................................... (up to the end of the DU)
towing breakdown ...................................... (up to the end of the DU)
5.32
ENG_UD22437_4
Remorquage : dépannage (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5
Jaune NoirNoir texte
Towing: troubleshooting
TOWING: breakdown (1/3)
Towing procedure
The steering wheel must be un-
locked and the ignition key must be
in position M (ignition on) to pro-
vide stop lights and hazard warning
lights on the towed vehicle. At night
the vehicle must have its lights on.
Unhitch the trailer, etc., if one is being
towed.
You must observe the towing regu-
lations which apply in the country in
which you are driving: do not exceed
the towing weight for your vehicle.
Contact an approved Dealer.
Front and rear towing points
Only use the front 1 and rear 2
towing points.
W h e n t h e e n g i n e i s
stopped, steering and brak-
ing assistance are not op-
erational.
Do not leave the tools unse-
cured inside the vehicle as
they may come loose under
braking.
– Use a rigid towing bar (except for off-road recovery). If a rope or cable
is used (where the law allows this), the vehicle being towed must be able
to brake.
–

A
vehicle must not be towed if it is not fit to be driven.
–

A

void accelerating or braking suddenly when towing, as this may result in
damage being caused to the vehicle.
–

When towing a vehicle, it is advisable not to exceed 15 mph (25

km/h).
These towing points may only be used
for towing: never use them for lifting the
vehicle directly or indirectly.
1
2

JauneNoirNoir texte
5.33
ENG_UD22437_4
Remorquage : dépannage (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5

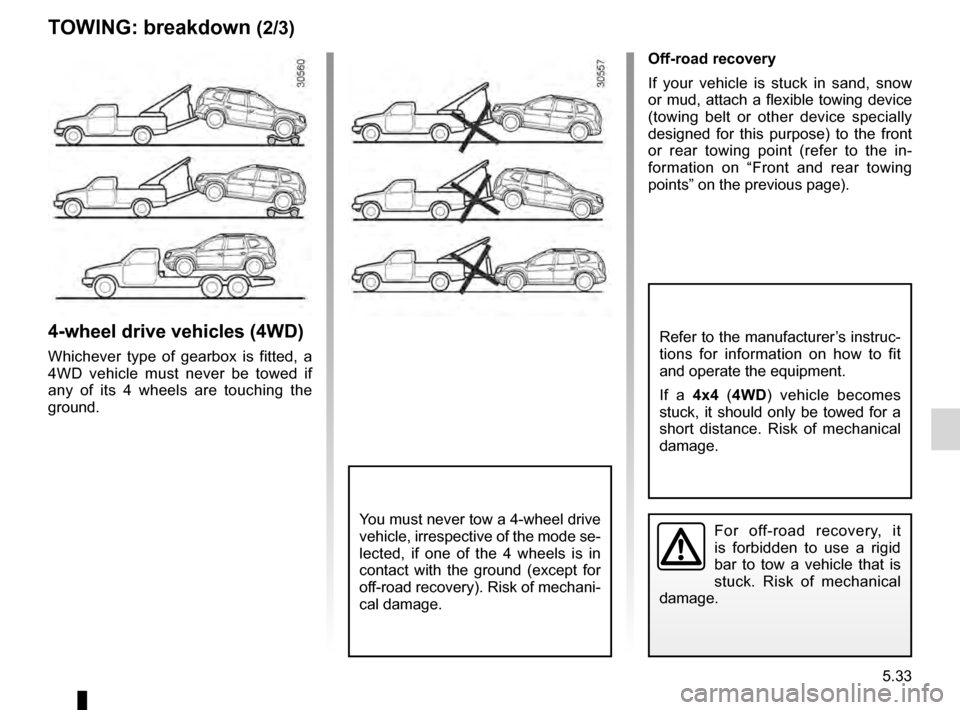

TOWING: breakdown (2/3)
4-wheel drive vehicles (4WD)
Whichever type of gearbox is fitted, a
4WD vehicle must never be towed if
any of its 4 wheels are touching the
ground.
Off-road recovery
If your vehicle is stuck in sand, snow
or mud, attach a flexible towing device
(towing belt or other device specially
designed for this purpose) to the front
or rear towing point (refer to the in-
formation on “Front and rear towing
points” on the previous page).
For off-road recovery, it
is forbidden to use a rigid
bar to tow a vehicle that is
stuck. Risk of mechanical
damage.You must never tow a 4-wheel drive
vehicle, irrespective of the mode se-
lected, if one of the 4 wheels is in
contact with the ground (except for
off-road recovery). Risk of mechani-
cal damage.
Refer to the manufacturer’s instruc-
tions for information on how to fit
and operate the equipment.
If a 4x4 (4WD ) vehicle becomes
stuck, it should only be towed for a
short distance. Risk of mechanical
damage.

5.34
ENG_UD22437_4
Remorquage : dépannage (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5

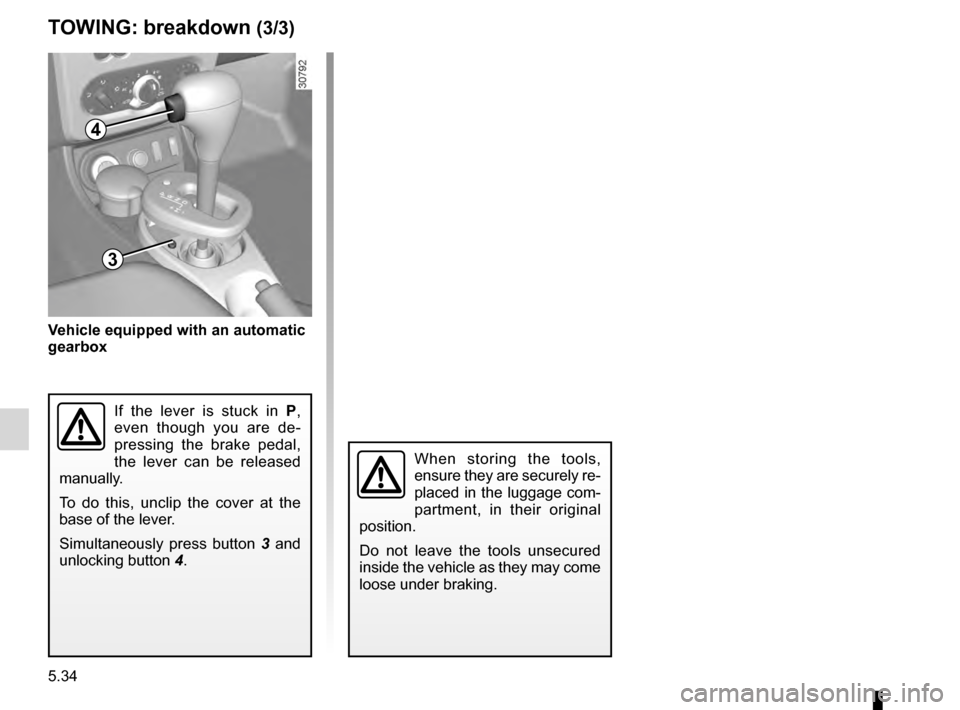

TOWING: breakdown (3/3)
If the lever is stuck in P,
even though you are de-
pressing the brake pedal,
the lever can be released
manually.
To do this, unclip the cover at the
base of the lever.
Simultaneously press button
3

and
unlocking button

4
.
When storing the tools,
ensure they are securely re-
placed in the luggage com-
partment, in their original
position.
Do not leave the tools unsecured
inside the vehicle as they may come
loose under braking.
3
4
Vehicle equipped with an automatic
gearbox

practical advice ..................................... (up to the end of the DU)
towing towing equipment ............................ (up to the end of the DU)
5.35
ENG_UD20704_2
Remorquage : attelage (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5
Towing: equipment

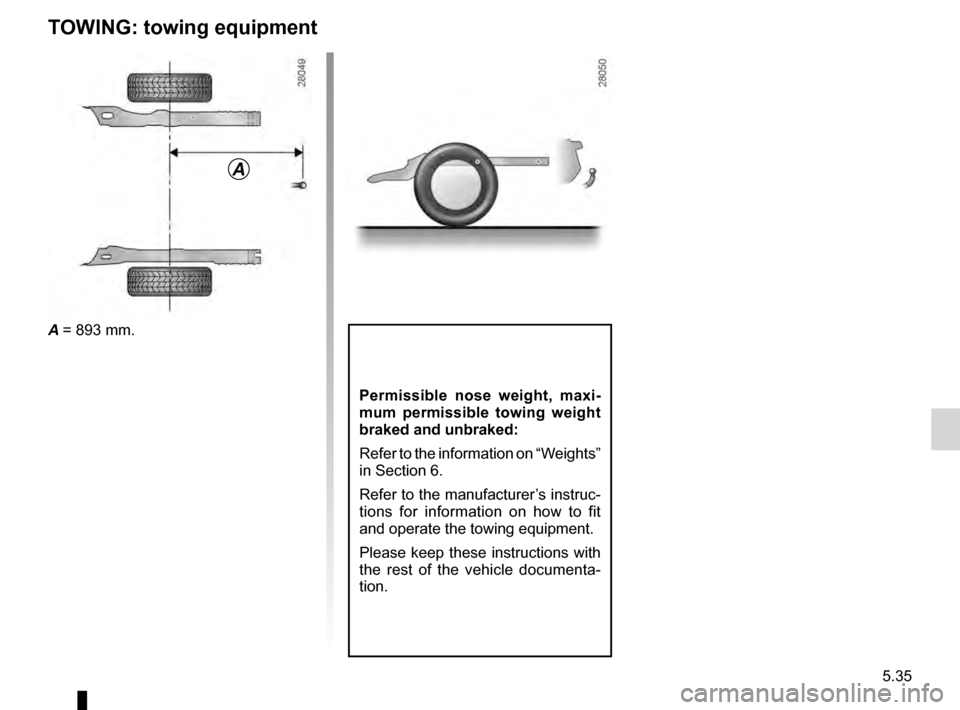

TOWING: towing equipment
A
Permissible nose weight, maxi-
mum permissible towing weight
braked and unbraked:
Refer to the information on “Weights”
in Section 6.
Refer to the manufacturer’s instruc-
tions for information on how to fit
and operate the towing equipment.
Please keep these instructions with
the rest of the vehicle documenta-
tion.
A = 893 mm.

practical advice ..................................... (up to the end of the DU)
speakers location ........................................... (up to the end of the DU)
fitting a radio ......................................... (up to the end of the DU)
fitting a radio ......................................... (up to the end of the DU)
radio fitting a radio ................................... (up to the end of the DU)
5.36
ENG_UD25210_3
Prééquipement radio (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5
Jaune NoirNoir texte
Fitted audio equipment

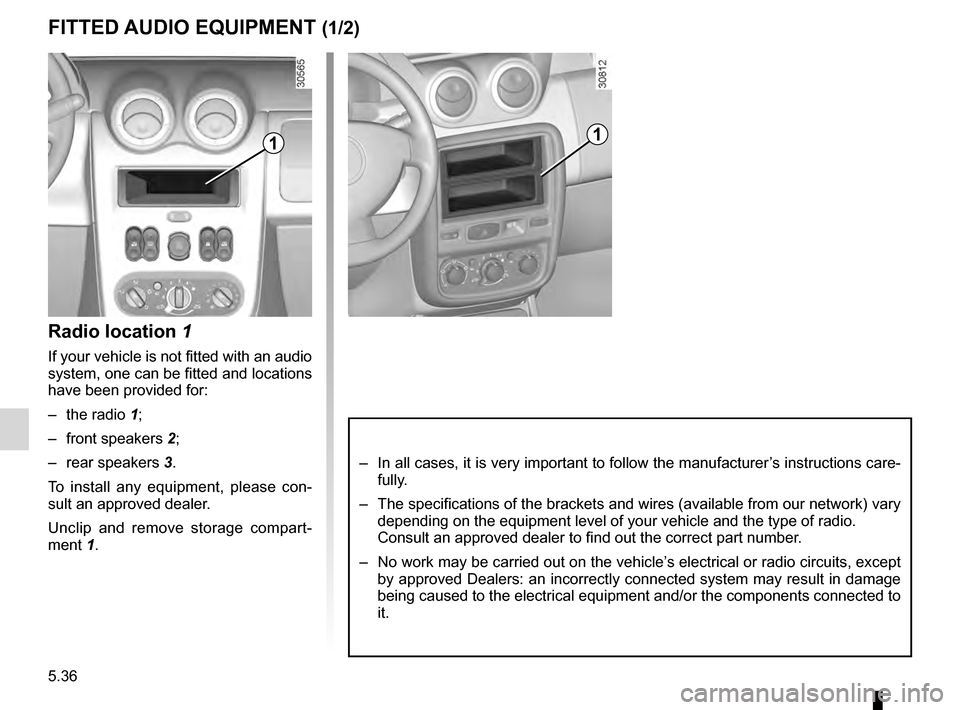

FITTED AUDIO EQUIPMENT (1/2)
Radio location

1
If your vehicle is not fitted with an audio
system, one can be fitted and locations
have been provided for:
–
the radio
1;
–

front speakers
2;
–

rear speakers
3.
To install any equipment, please con-
sult an approved dealer.
Unclip and remove storage compart-
ment
1.
– In all cases, it is very important to follow the manufacturer’s instructions care-fully.
–

The
specifications of the brackets and wires (available from our network) vary
depending on the equipment level of your vehicle and the type of radio.
Consult an approved dealer to find out the correct part number.
–

No
work may be carried out on the vehicle’s electrical or radio circuits, except
by approved Dealers: an incorrectly connected system may result in damage
being caused to the electrical equipment and/or the components connected to
it.
11

JauneNoirNoir texte
5.37
ENG_UD25210_3
Prééquipement radio (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5

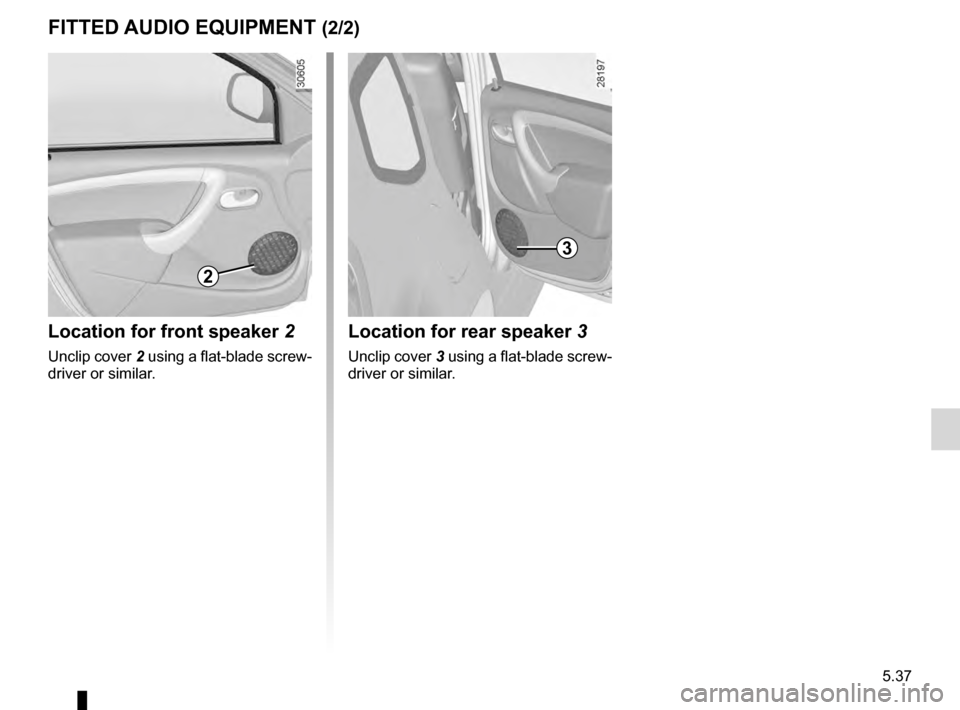

FITTED AUDIO EQUIPMENT (2/2)
Location for front speaker 2
Unclip cover 2 using a flat-blade screw-
driver or similar .
Location for rear speaker 3
Unclip cover 3 using a flat-blade screw-
driver or similar .
2
3

5.38
ENG_UD14153_1
Accessoires (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5
Accessories
ACCESSORIES
Use of transmission/
receiving devices
(telephones, CB
equipment etc.).
Telephones and CB equipment with
integrated aerials may cause inter-
ference to the original electronic
systems fitted to the vehicle: it is ad-
visable only to use equipment with
an external aerial.
Furthermore, we remind you of
the need to comply with the legis-
lation in force concerning the use
of such equipment.
Electrical and electronic
accessories
–

C
o n n e c t a c c e s s o r i e s
with a maximum power of
120

Watts only.
Fire hazard.
–


N

o work may be carried out on
the vehicle’s electrical or radio
circuits, except by approved
dealers: an incorrectly connected
system may result in damage
being caused to the electrical
equipment and/or the compo-
nents connected to it;
–

i

f the vehicle is fitted with any
aftermarket electrical equip -
ment, make sure that the unit
is correctly protected by a fuse.
Establish the rating and position
of this fuse.
Before fitting an electrical or
electronic device (particu-
larly for transmitters/receiv-
ers: frequency bandwidth,
power level, position of the aerial
etc.), ensure that it is compatible
with your vehicle.
Contact an approved dealer for this
information.
Fitting after-market
accessories
If you wish to install acces-
sories on the vehicle: con-
sult an approved dealer.
Also, to ensure the correct opera-
tion of your vehicle, and to avoid
any risk to your safety, we recom-
mend that you use only specific ac-
cessories, designed for your vehi-
cle, which are the only accessories
for which the manufacturer will pro-
vide a warranty.
If you are using an anti-theft
device, only attach it to the
brake pedal.
