DACIA DUSTER 2012 1.G Owners Manual
Manufacturer: DACIA, Model Year: 2012, Model line: DUSTER, Model: DACIA DUSTER 2012 1.GPages: 200, PDF Size: 2.4 MB
Page 181 of 200
engine specifications ............................ (up to the end of the DU)
technical specifications ......................... (up to the end of the DU)
fuel grade ............................................... (up to the end of the DU)
engine technical specifications ................... (up to the end of the DU)
6.5
ENG_UD22505_2
Caractéristiques moteur (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_6
Engine specifications
ENGINE SPECIFICATIONS
Versions 1.6 16V2.0 16V 1.5 dCi
Engine type
(see engine plate) K4M
F4R K9K
Cubic capacity (cc) 1,5981998 1,461
Type of fuel
Octane rating Petrol
It is essential to use unleaded petrol and this must
be of the octane rating stated on the label inside the
fuel filler flap.
If not available, for a limited time only, use unleaded
fuel:
–
with
an octane rating of 91 for a label with the rat-
ings 95 or 98;
–
with
an octane rating of 87 for a label showing 91,
95 or 98. Diesel
The label located in the fuel filler
flap indicates the authorised fuels.
Spark plugs Only use the spark plugs specified for your vehicle’s engine.
The type should be marked on a label affixed inside the engine compartment. If it is not
then contact an authorised dealer.
Fitting spark plugs which are not to specification may damage the engine\
.
Page 182 of 200
technical specifications ......................... (up to the end of the DU)
weight ................................................... (up to the end of the DU)
towing ................................................... (up to the end of the DU)
towing a caravan ................................................... (current page)
towing weights ....................................................... (current page)
weights .................................................................. (current page)
6.6
ENG_UD22464_3
Masses/Charges remorquables (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_6
Weights/Towing weights
WEIGHTS (in kg)
Versions 4x2
4x4
1.6 16V 2.0 16V 1.5 dCi 1.6 16V 2.0 16V 1.5 dCi
Maximum permissible all-up weight (MMAC)
Total train weight (MTR) Weights shown on the vehicle identification plate (refer to the
information on “Vehicle identification plates” in Section 6)
Braked Trailer Weight* found by calculating: MTR - MMAC
Unbraked trailer weight* 615 640 625 660 685 680
Permissible nose weight* 5075
Maximum permissible load on roof with a carrying
device 100 (including the carrying device)
*Towing weight (towing a caravan, boat, etc.)
Towing is prohibited when the GTW - MAM calculation is equal to zero.
–
It
is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in
the Road Traffic Regulations. Contact an authorised dealer for any towing equipment m\
odifications.
–
For
vehicles fitted with a trailer, the gross train weight (vehicle + trailer) must never be exceeded . However, the following
is tolerated:
–
the Maximum permissible wei
ght at the rear may be exceeded by no more than 15%,
–
the maximum permissible all-
up weight may be exceeded by no more than 10% or 100 kg (whichever occu\
rs first).
In
either case, the maximum speed of the vehicle and trailer must not exceed 60 mph (100 kph) and the tyre pressures must
be increased by 0.2 bar (3 PSI).
–
The
engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10%
at an altitude of 1,000 metres and by an additional 10% for each 1,000 m\
etres thereafter.
The weights shown are for a basic vehicle without options: they will vary depending on the equipment level of your ve-
hicle. Please consult an authorised dealer.
Page 183 of 200
technical specifications ......................... (up to the end of the DU)
replacement parts ................................. (up to the end of the DU)
6.7
ENG_UD18209_6
Pièces de rechange et réparations (B90 - U90 - L90 Ph2 - F90 Ph2 \
- R90 Ph2 - H79 - Dacia)
ENG_NU_898-5_H79_Dacia_6
Replacement parts and repairs
SPARE PARTS AND REPAIRS
Original parts are based on strict specifications and are subject to highly-specialised tests. Therefore, they are of at least the same
level of quality as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out
within the manufacturer’s Network using original parts are guaranteed according to the conditions set out on the reverse of the
repair order.
Page 184 of 200
6.8
ENG_UD21023_2
Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - \
X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L47 - X3\
3 - X47 - X43 - X38 - X65 PH5
ENG_NU_898-5_H79_Dacia_6
Jaune NoirNoir texte
Service sheets
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □
Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □
Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □
Not OK* □
*See specific page
VIN: .......................................................................\
...........
SERVICE SHEETS (1/6)
Page 185 of 200
JauneNoirNoir texte
6.9
ENG_UD21023_2
Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - \
X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L47 - X3\
3 - X47 - X43 - X38 - X65 PH5
ENG_NU_898-5_H79_Dacia_6

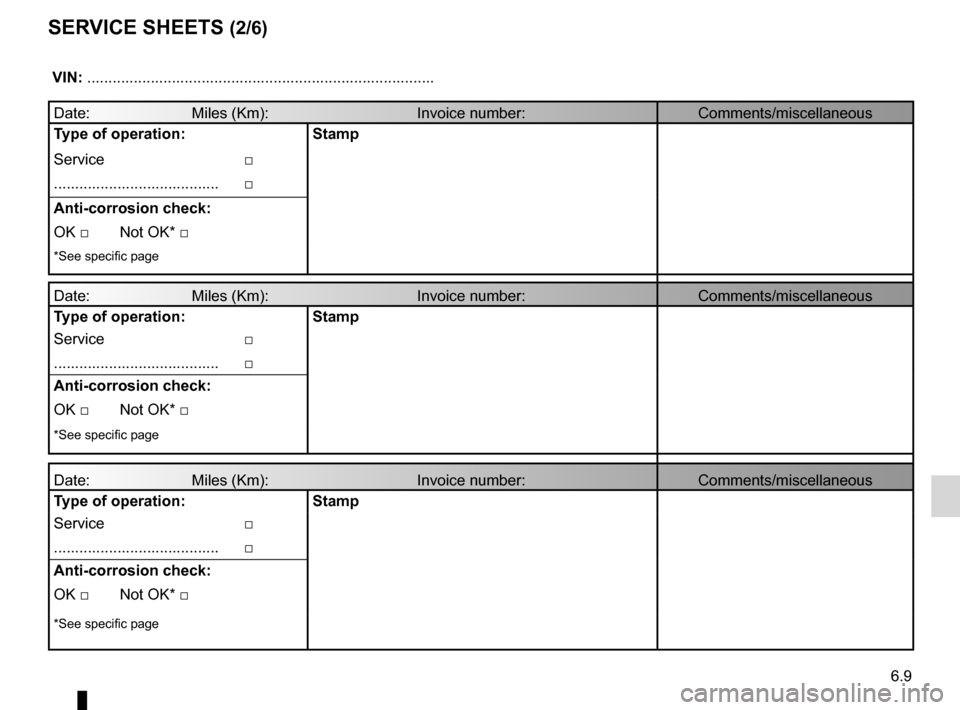

SERVICE SHEETS (2/6)
VIN: .......................................................................\
...........
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □
Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □
Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □
Not OK* □
*See specific page
Page 186 of 200
6.10
ENG_UD21023_2
Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - \
X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L47 - X3\
3 - X47 - X43 - X38 - X65 PH5
ENG_NU_898-5_H79_Dacia_6
Jaune NoirNoir texte
SERVICE SHEETS (3/6)
VIN: .......................................................................\
...........
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □
Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □
Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □
Not OK* □
*See specific page
Page 187 of 200
JauneNoirNoir texte
6.11
ENG_UD21023_2
Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - \
X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L47 - X3\
3 - X47 - X43 - X38 - X65 PH5
ENG_NU_898-5_H79_Dacia_6
SERVICE SHEETS (4/6)
VIN: .......................................................................\
...........
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □
Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □
Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □
Not OK* □
*See specific page
Page 188 of 200
6.12
ENG_UD21023_2
Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - \
X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L47 - X3\
3 - X47 - X43 - X38 - X65 PH5
ENG_NU_898-5_H79_Dacia_6
Jaune NoirNoir texte
SERVICE SHEETS (5/6)
VIN: .......................................................................\
...........
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □
Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □
Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □
Not OK* □
*See specific page
Page 189 of 200
JauneNoirNoir texte
6.13
ENG_UD21023_2
Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - \
X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L47 - X3\
3 - X47 - X43 - X38 - X65 PH5
ENG_NU_898-5_H79_Dacia_6
VIN: .......................................................................\
...........
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □
Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □
Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □
Not OK* □
*See specific page
SERVICE SHEETS (6/6)
Page 190 of 200
anti-corrosion check ............................. (up to the end of the DU)
6.14
ENG_UD21024_2
Contr le anticorrosion (X35 - L35 - X44 - C44 - G44 - X45 - X65 - X73 \
- X81 - X84 - X85 - X90 - X91 - X70 - X76 - X83 - X61 - X24 - TEST - X77 ph2 - X95 - L38 - L43 -
ENG_NU_898-5_H79_Dacia_6
Jaune NoirNoir texte

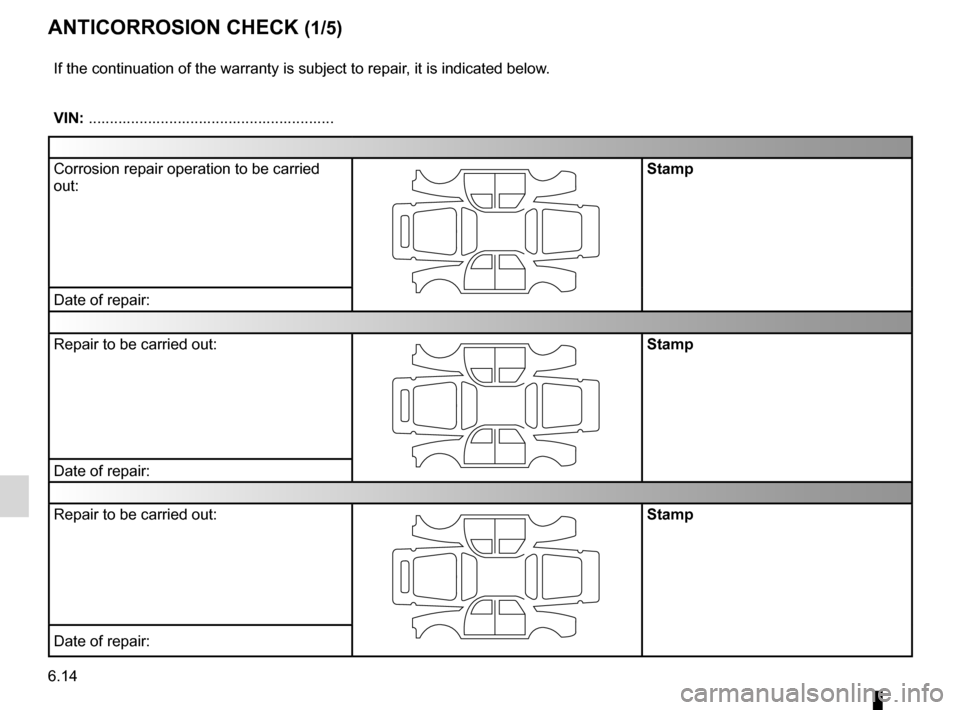

Anti-corrosion check
ANTICORROSION CHECk (1/5)
If the continuation of the warranty is subject to repair, it is indicated below.
VIN: ..........................................................
Corrosion repair operation to be carried
out:
Stamp
Date of repair:
Repair to be carried out:
Stamp
Date of repair:
Repair to be carried out:
Stamp
Date of repair:
