DACIA LODGY 2012 1.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine 3.26
ENG_UD26647_2
Mise en cinéma des sièges arrière (X92 - Renault)
ENG_NU_975-3_X92_Dacia_3
Jaune NoirNoir texte
REAR SEAT FUNCTIONS: grouping of seats (2/3)
To group together the two
rows of rear seats
Fold down the second row rear seats.
Refer to the information on the “Second
row rear seats” in Section 3.
Remove the third row rear seats Refer
to the information on the “Third row rear
seats” in Section 3.
Return the third row rear seats (seat
forwards and headrest upwards).
Position them against the second row
rear seats, with the hook 1 on the bar 2.
Fold down the third row rear seats
against the second row rear seats. Take the adjustable attachment straps
3
out of the storage pockets 5 and pass
them around the front headrest rods 4.
Pull on the attachment straps 3 to
ensure everything is attached.
For safety reasons, carry
out any adjustments when
the vehicle is stationary.
The third row bench seat
is quite heavy. For your own safety,
please handle carefully.
1
2
3
5
4

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
3.27
ENG_UD26647_2
Mise en cinéma des sièges arrière (X92 - Renault)
ENG_NU_975-3_X92_Dacia_3
REAR SEAT FUNCTIONS: grouping of seats (3/3)
To reposition the seats
Loosen and remove the attachment
straps 3 from the front headrest and
store them in the storage pockets 5.
Lift and release the third row rear seats.
Return the third row rear seats (seat
downwards, headrest upwards) and
bring them back towards the rear. Replace the third row rear seats in po-
sition. Refer to the information on the
“Third row rear seats” in Section 3.
Reposition the second row rear seats.
Refer to the information on the “Second
row rear seats” in Section 3.
For safety reasons, carry
out any adjustments when
the vehicle is stationary.
The third row bench seat
is quite heavy. For your own safety,
please handle carefully.
3
5

Downloaded from www.Manualslib.com manuals search engine tailgate .................................................. (up to the end of the DU)
tailgate .................................................. (up to the end of the DU)
3.28
ENG_UD24450_1
Coffre à bagages (X92 - Renault)
ENG_NU_975-3_X92_Dacia_3

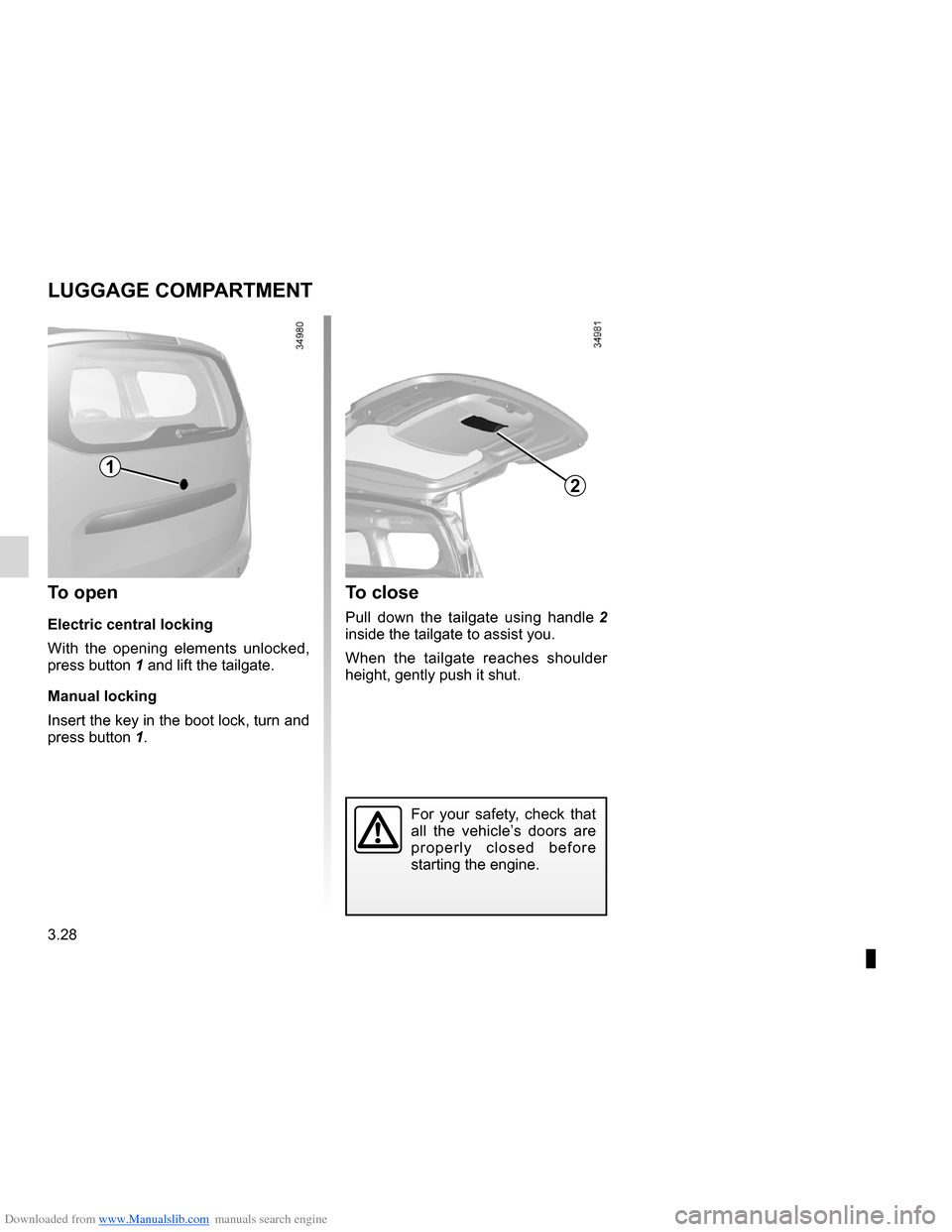

Luggage compartment
LUGGAGE COMPARTMENT
To open
Electric central locking
With the opening elements unlocked,
press button 1 and lift the tailgate.
Manual locking
Insert the key in the boot lock, turn and
press button 1.
1
2
To close
Pull down the tailgate using handle 2
inside the tailgate to assist you.
When the tailgate reaches shoulder
height, gently push it shut.
For your safety, check that
all the vehicle’s doors are
p r o p e r l y c l o s e d b e f o r e
starting the engine.

Downloaded from www.Manualslib.com manuals search engine tailgate .................................................. (up to the end of the DU)
storage compartments .......................... (up to the end of the DU)
3.29
ENG_UD25339_1
Rangements, aménagements coffre à bagages (X92 - Renault)
ENG_NU_975-3_X92_Dacia_3

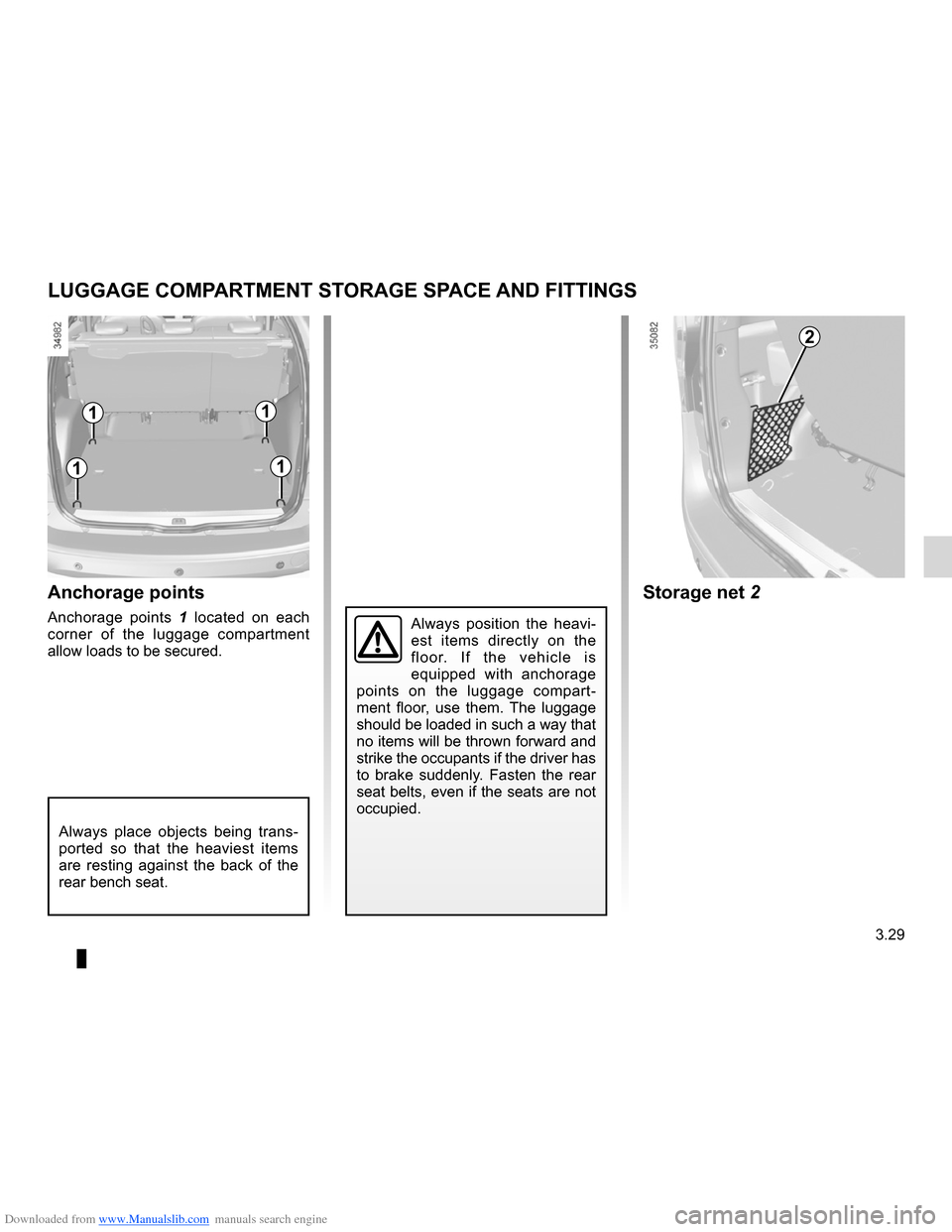

Luggage compartment storage space and fittings
Always position the heavi -
est items directly on the
floor. If the vehicle is
equipped with anchorage
points on the luggage compart -
ment floor, use them. The luggage
should be loaded in such a way that
no items will be thrown forward and
strike the occupants if the driver has
to brake suddenly. Fasten the rear
seat belts, even if the seats are not
occupied.
Anchorage points
Anchorage points 1 located on each
corner of the luggage compartment
allow loads to be secured.
Always place objects being trans -
ported so that the heaviest items
are resting against the back of the
rear bench seat.
LUGGAGE COMPARTMENT STORAGE SPACE AND FITTINGS
11
11
Storage net 2
2

Downloaded from www.Manualslib.com manuals search engine towing rings .......................................... (up to the end of the DU)
transporting objects in the luggage compartment ........... (up to the end of the DU)
3.30
ENG_UD25338_1
Transport d\’objet dans le coffre/Remorquage (attelage) (X92 - Renault)
ENG_NU_975-3_X92_Dacia_3
Transporting objects in the boot
TRANSPORTING OBJECTS IN THE LUGGAGE COMPARTMENT
Always position the objects trans -
ported so that the largest surface is
against:
– the rear bench seatbacks, for
normal loads (eg: A);
– the front seats when the second
and/or third row rear seats are
folded down. Refer to the informa -
tion on the “Second row rear seats”
in this section (eg: B and C).
Always position the heaviest items di-
rectly on the floor.
Always position the heavi -
est items directly on the
floor. Use the lashing points
on the luggage compart -
ment floor, if these are fitted to the
vehicle. The luggage should be
loaded in such a way that no items
will be thrown forward and strike the
occupants if the driver has to brake
suddenly. Fasten the rear seat belts,
even if the seats are not occupied.
A
B
C

Downloaded from www.Manualslib.com manuals search engine towingtowing equipment ............................ (up to the end of the DU)
3.31
ENG_UD28916_2
Remorquage: attelage (X92 - Renault)
ENG_NU_975-3_X92_Dacia_3

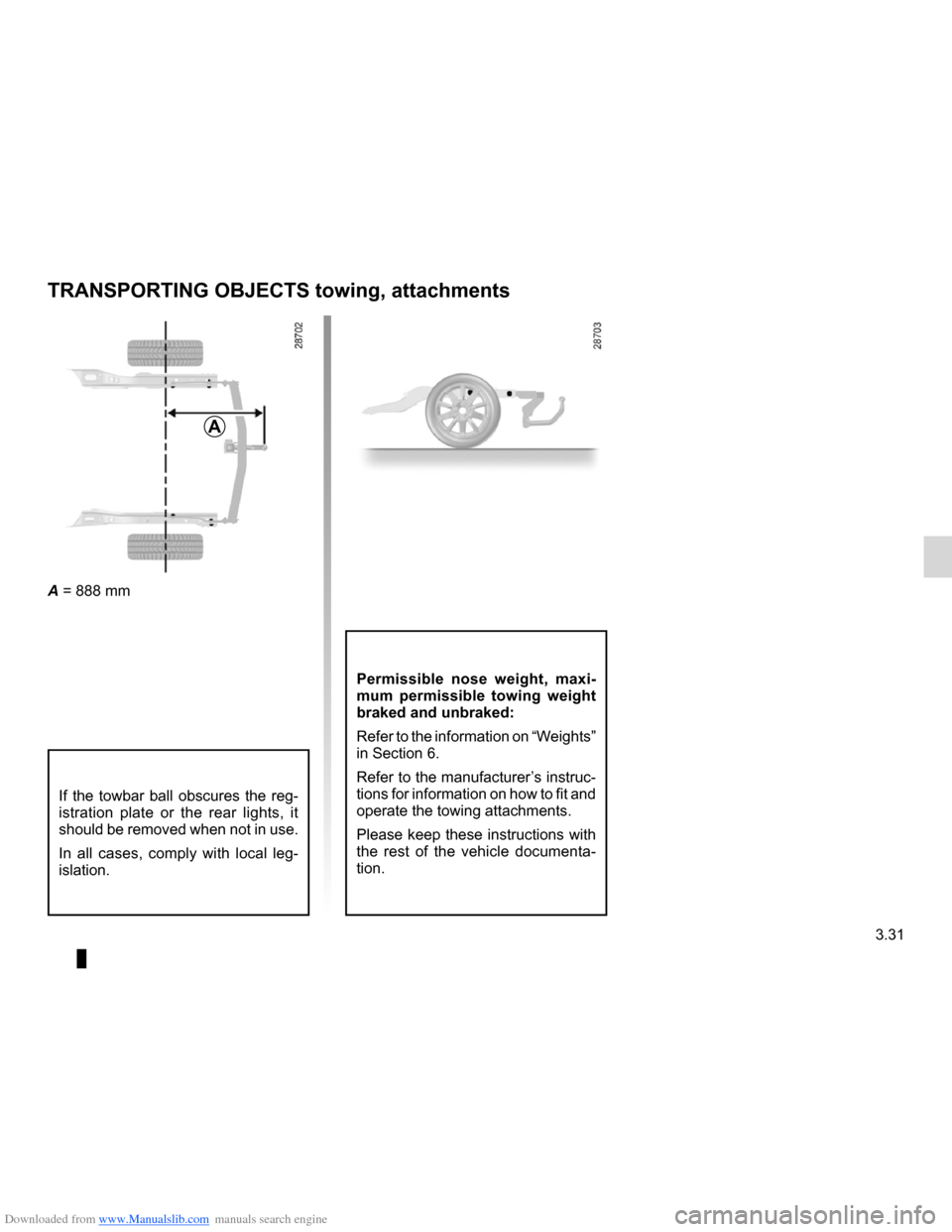

Transporting objects: towing, attachments
TRANSPORTING OBJECTS towing, attachments
Permissible nose weight, maxi -
mum permissible towing weight
braked and unbraked:
Refer to the information on “Weights”
in Section 6.
Refer to the manufacturer’s instruc-
tions for information on how to fit and
operate the towing attachments.
Please keep these instructions with
the rest of the vehicle documenta -
tion.
A
A = 888 mm
If the towbar ball obscures the reg-
istration plate or the rear lights, it
should be removed when not in use.
In all cases, comply with local leg -
islation.

Downloaded from www.Manualslib.com manuals search engine luggage retaining net ............................................. (current page)
3.32
ENG_UD24451_1
Transport d’objets : filet de séparation (X92 - Renault)
ENG_NU_975-3_X92_Dacia_3

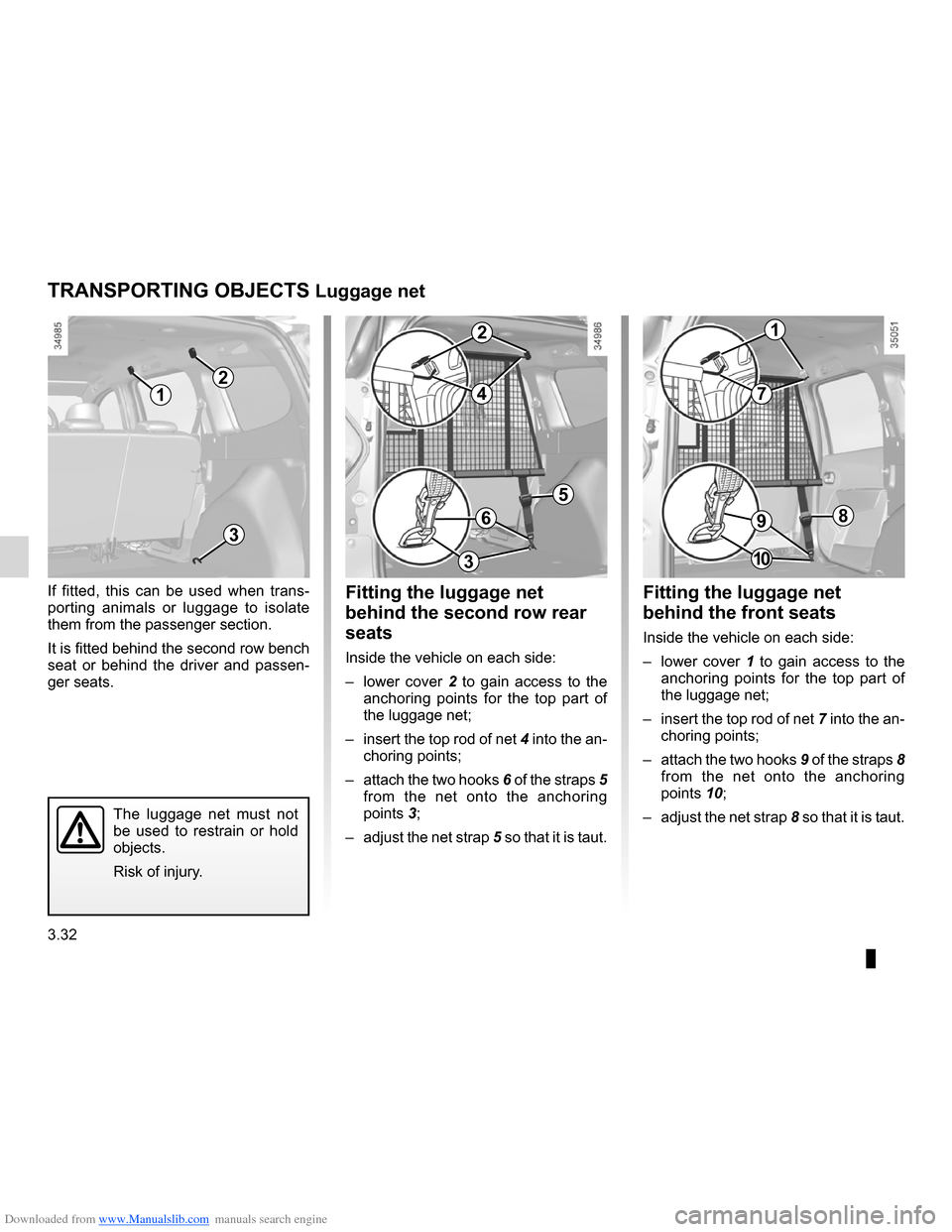

Luggage net
Fitting the luggage net
behind the second row rear
seats
Inside the vehicle on each side:
– lower cover 2 to gain access to the
anchoring points for the top part of
the luggage net;
– insert the top rod of net 4 into the an-
choring points;
– attach the two hooks 6 of the straps 5
from the net onto the anchoring
points 3;
– adjust the net strap 5 so that it is taut.
TRANSPORTING OBJECTS Luggage net
If fitted, this can be used when trans -
porting animals or luggage to isolate
them from the passenger section.
It is fitted behind the second row bench
seat or behind the driver and passen -
ger seats.
2
1
3
The luggage net must not
be used to restrain or hold
objects.
Risk of injury.
Fitting the luggage net
behind the front seats
Inside the vehicle on each side:
– lower cover 1 to gain access to the
anchoring points for the top part of
the luggage net;
– insert the top rod of net 7 into the an-
choring points;
– attach the two hooks 9 of the straps 8
from the net onto the anchoring
points 10;
– adjust the net strap 8 so that it is taut.
2
4
6
3
5
1
7
9
10
8

Downloaded from www.Manualslib.com manuals search engine luggage compartment cover ................. (up to the end of the DU)
3.33
ENG_UD24452_1
Cache-bagages (X92 - Renault)
ENG_NU_975-3_X92_Dacia_3

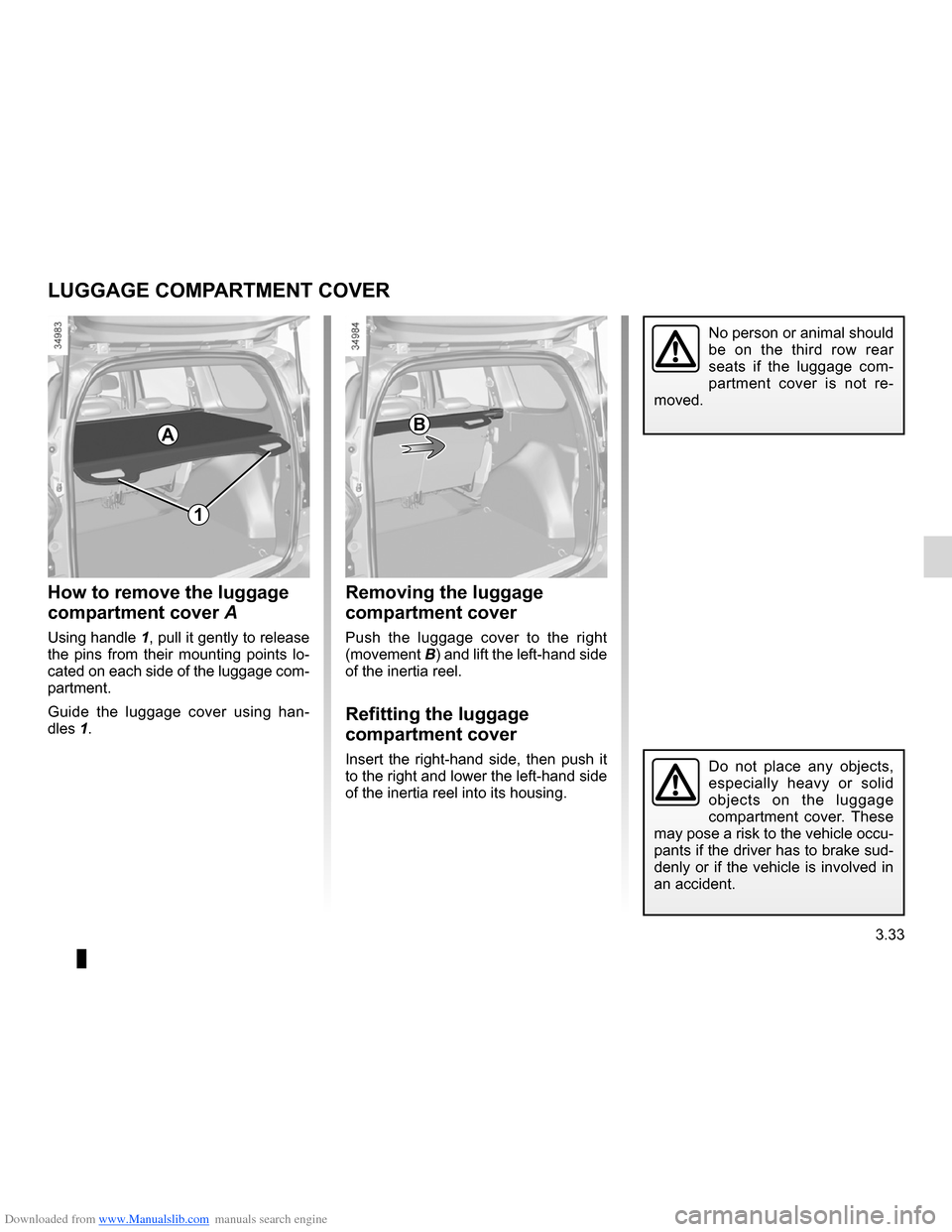

Luggage cover
LUGGAGE COMPARTMENT COVER
How to remove the luggage
compartment cover A
Using handle 1, pull it gently to release
the pins from their mounting points lo -
cated on each side of the luggage com-
partment.
Guide the luggage cover using han -
dles 1.
Removing the luggage
compartment cover
Push the luggage cover to the right
(movement B) and lift the left-hand side
of the inertia reel.
Refitting the luggage
compartment cover
Insert the right-hand side, then push it
to the right and lower the left-hand side
of the inertia reel into its housing.Do not place any objects,
especially heavy or solid
objects on the luggage
compartment cover. These
may pose a risk to the vehicle occu-
pants if the driver has to brake sud-
denly or if the vehicle is involved in
an accident.
AB
1
No person or animal should
be on the third row rear
seats if the luggage com -
partment cover is not re -
moved.

Downloaded from www.Manualslib.com manuals search engine multimedia equipment .......................... (up to the end of the DU)
telephone .............................................. (up to the end of the DU)
navigation system ................................. (up to the end of the DU)
hands-free telephone integrated control
(up to the end of the DU)
navigation ............................................. (up to the end of the DU)
radio...................................................... (up to the end of the DU)
3.34
ENG_UD25346_1
Equipement multimédia (X92 - Renault)
ENG_NU_975-3_X92_Dacia_3
Multimedia equipment
MULTIMEDIA EqUIPMENT
The presence and location of this
equipment depends on the vehicle’s
multimedia equipment.
1 Radio;
2 Steering column control;
3 Microphone.
To use this equipment, consult the
instructions for the equipment which
should be kept with the other vehi -
cle documentation.
2
3
Using the telephone
We remind you of the need
to conform to the legislation
in force concerning the use
of such equipment.
1
Hands-free telephone
integrated control
On equipped vehicles, use micro -
phone 3 and steering column control 2.

Downloaded from www.Manualslib.com manuals search engine 4.1
ENG_UD28066_3
Sommaire 4 (X92 - Renault)
ENG_NU_975-3_X92_Dacia_4
Section 4: Maintenance
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.2
Engine oil level: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.3
Engine oil level: topping up, filling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.4
Levels: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.6
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.6
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.7
Windscreen washer reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.7
Power-assisted steering fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.8
Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.8
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.9
Tyre pressure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.10
Bodywork maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.12
Interior trim maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.14
