Chauffage - Ventilation - Air conditionné (X92 - Renault)
ENG_NU_975-3_X92_Dacia_3

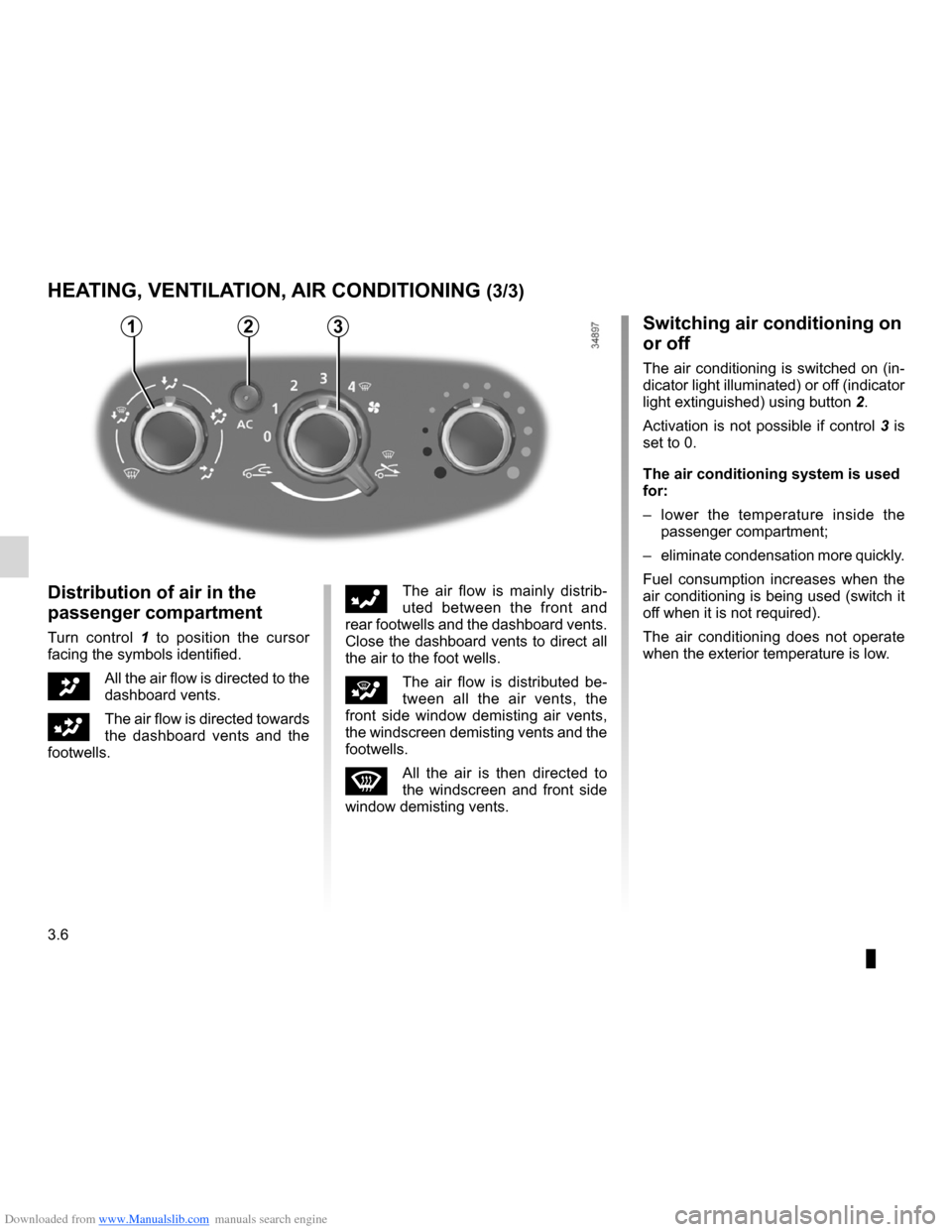

HEATING, VENTILATION, AIR CONDITIONING (3/3)
Distribution of air in the
passenger compartment
Turn control 1 to position the cursor
facing the symbols identified.
JAll the air flow is directed to the
dashboard vents.
GThe air flow is directed towards
the dashboard vents and the
footwells.
FThe air flow is mainly distrib -
uted between the front and
rear footwells and the dashboard vents.
Close the dashboard vents to direct all
the air to the foot wells.
iThe air flow is distributed be -
tween all the air vents, the
front side window demisting air vents,
the windscreen demisting vents and the
footwells.
WAll the air is then directed to
the windscreen and front side
window demisting vents.
Switching air conditioning on
or off
The air conditioning is switched on (in-
dicator light illuminated) or off (indicator
light extinguished) using button 2.
Activation is not possible if control 3 is
set to 0.
The air conditioning system is used
for:
– lower the temperature inside the
passenger compartment;
– eliminate condensation more quickly.
Fuel consumption increases when the
air conditioning is being used (switch it
off when it is not required).
The air conditioning does not operate
when the exterior temperature is low.
321

Downloaded from www.Manualslib.com manuals search engine air conditioning ..................................... (up to the end of the DU)
heating system ..................................... (up to the end of the DU)
heating and air conditioning system ..... (up to the end of the DU)
ventilation heating and air conditioning system (up to the end of the DU)
air conditioning ...................................................... (current page)
3.7
ENG_UD24441_1
Air conditionné : informations et conseils utilisation (X92 - Renaul\
t)
ENG_NU_975-3_X92_Dacia_3
Fuel consumption
You will normally notice an increase in
fuel consumption (especially when driv-
ing in town) when the air conditioning is
operating.
For vehicles fitted with air conditioning
with no automatic mode, switch off the
system when it is not required.
Advice for reducing consumption
and helping to preserve the environ-
ment
Drive with the air vents open and the
windows closed.
If the vehicle has been parked in the
sun, open the doors for a few moments
to let the hot air escape before starting
the engine.
Maintenance
Refer to the Maintenance Document
for your vehicle for the inspection fre -
quency.
Air conditioning: information and advice on use

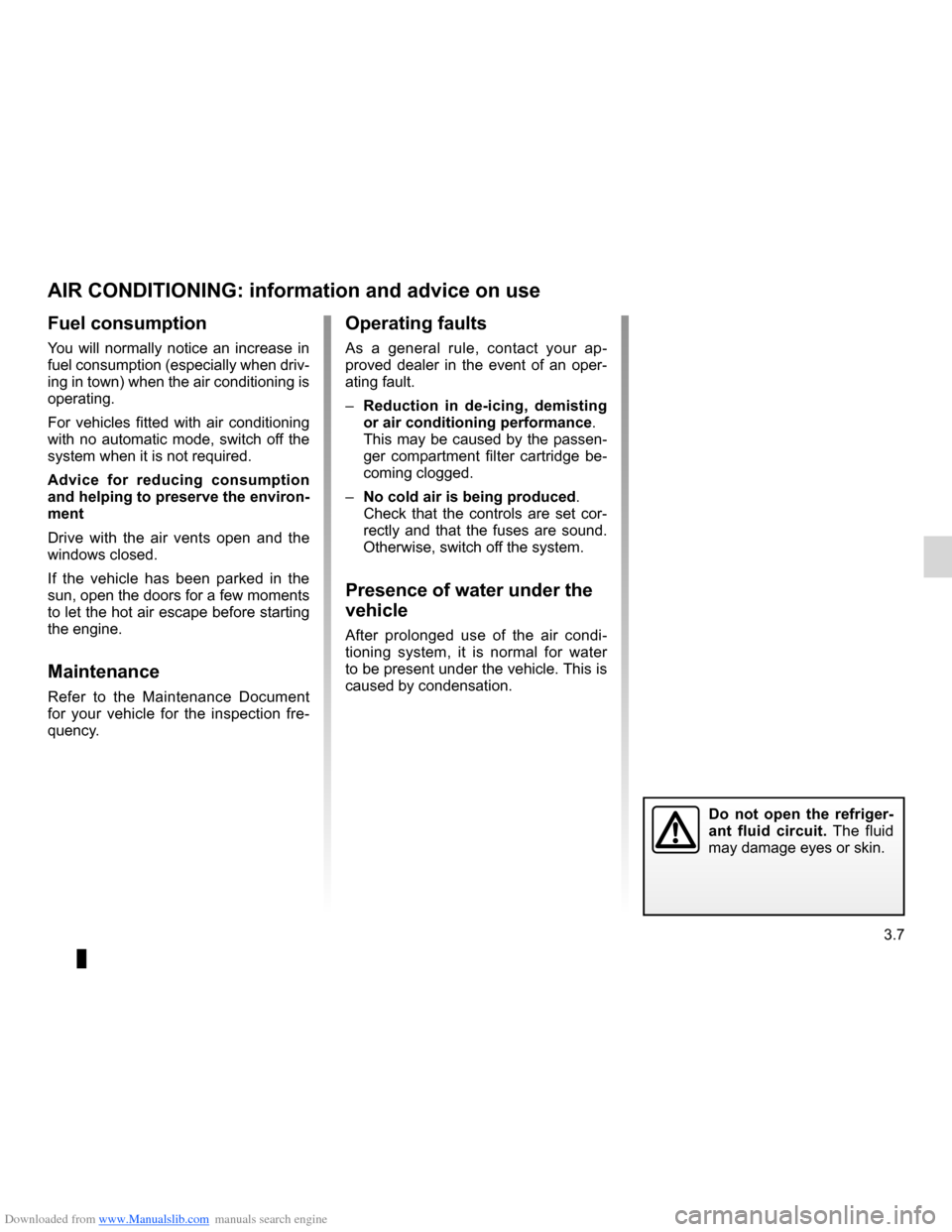

AIR CONDITIONING: information and advice on use
Operating faults
As a general rule, contact your ap -
proved dealer in the event of an oper-
ating fault.
– Reduction in de-icing, demisting
or air conditioning performance .
This may be caused by the passen-
ger compartment filter cartridge be -
coming clogged.
– No cold air is being produced .
Check that the controls are set cor-
rectly and that the fuses are sound.
Otherwise, switch off the system.
Presence of water under the
vehicle
After prolonged use of the air condi -
tioning system, it is normal for water
to be present under the vehicle. This is
caused by condensation.
Do not open the refriger -
ant fluid circuit. The fluid
may damage eyes or skin.

Downloaded from www.Manualslib.com manuals search engine electric windows ................................... (up to the end of the DU)
windows ................................................ (up to the end of the DU)
3.8
ENG_UD24442_1
Vitres (X92 - Renault)
ENG_NU_975-3_X92_Dacia_3
Jaune NoirNoir texte
Electric windows

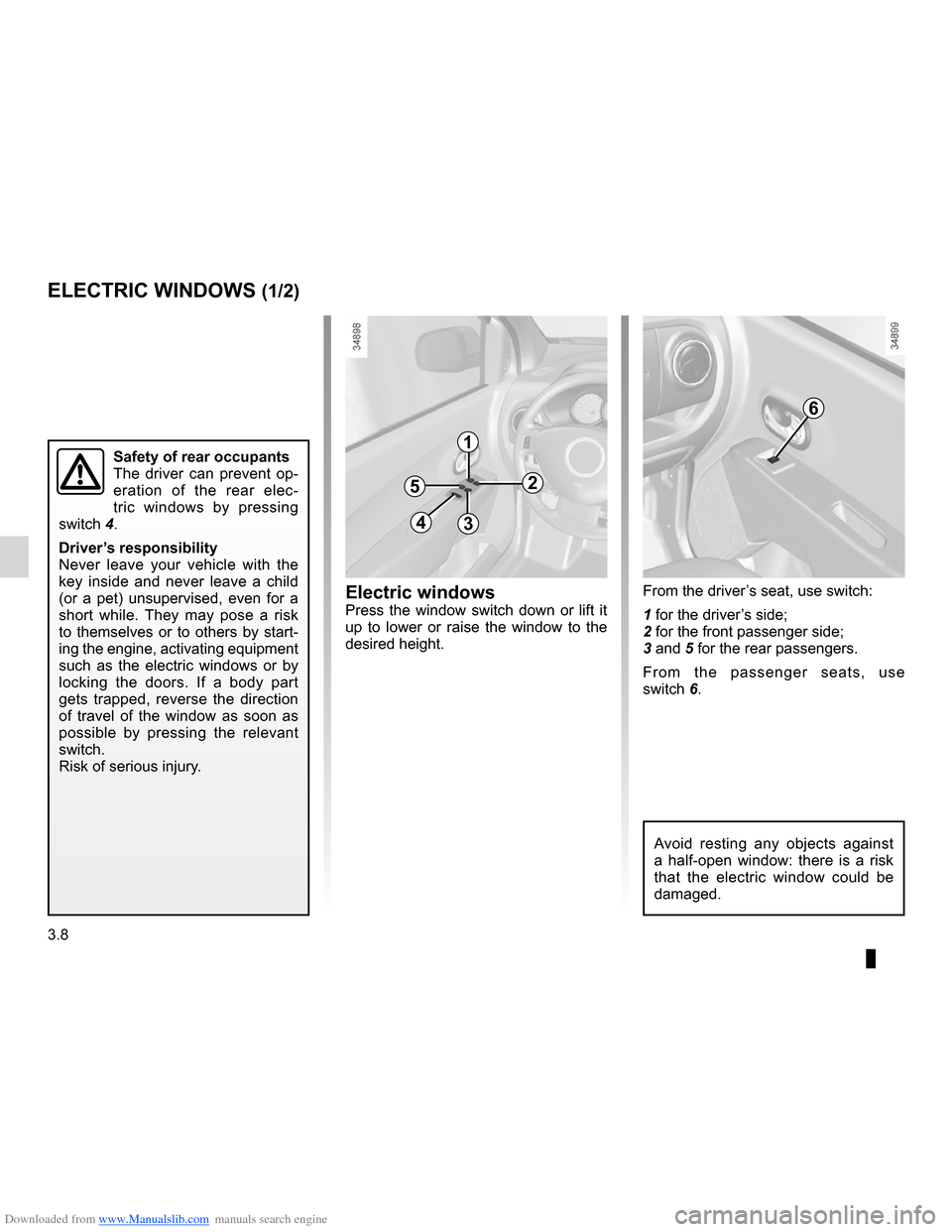

ELECTRIC WINDOWS (1/2)
Safety of rear occupants
The driver can prevent op -
eration of the rear elec -
tric windows by pressing
switch 4.
Driver’s responsibility
Never leave your vehicle with the
key inside and never leave a child
(or a pet) unsupervised, even for a
short while. They may pose a risk
to themselves or to others by start-
ing the engine, activating equipment
such as the electric windows or by
locking the doors. If a body part
gets trapped, reverse the direction
of travel of the window as soon as
possible by pressing the relevant
switch.
Risk of serious injury.1
2
4
5
3
Electric windowsPress the window switch down or lift it
up to lower or raise the window to the
desired height. From the driver’s seat, use switch:
1 for the driver’s side;
2 for the front passenger side;
3 and 5 for the rear passengers.
From the passenger seats, use
switch 6.
6
Avoid resting any objects against
a half-open window: there is a risk
that the electric window could be
damaged.

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
3.9
ENG_UD24442_1
Vitres (X92 - Renault)
ENG_NU_975-3_X92_Dacia_3
ELECTRIC WINDOWS (2/2)
7
Manual window winders
Turn handle 7 to lower or raise the
window to the desired height.
Rear side screen
To half-open the window, turn handle 8
(movement A ) then lock it by pushing
the handle to the right.
Make sure it is properly latched into po-
sition when it is closed.
8
A

Downloaded from www.Manualslib.com manuals search engine lighting:interior ............................................. (up to the end of the DU)
courtesy light ........................................ (up to the end of the DU)
map reading lights ................................ (up to the end of the DU)
3.10
ENG_UD26878_2
Eclairage intérieur (X92 - Renault)
ENG_NU_975-3_X92_Dacia_3
Luggage compartment light 4
Interior lighting
INTERIOR LIGHTING
Courtesy lights
Press switch 1 of 3 for:
– continuous lighting;
– lighting operated by opening just the
driver’s door, or by opening one of
the four doors, depending on the ve-
hicle. The light only goes out when
the doors are correctly closed;
– no lighting.
Map reading light
Press switch 2.
3
Unlocking and opening the doors or
luggage compartment switches on
the timed courtesy lights.
4
2
1

Downloaded from www.Manualslib.com manuals search engine mirrors .................................................. (up to the end of the DU)
sun visor ............................................... (up to the end of the DU)
grab handle ............................................................ (current page)
3.11
ENG_UD24444_1
Pare-soleil - Poignée de maintien (X92 - Renault)
ENG_NU_975-3_X92_Dacia_3
Sun visor, Grab handle

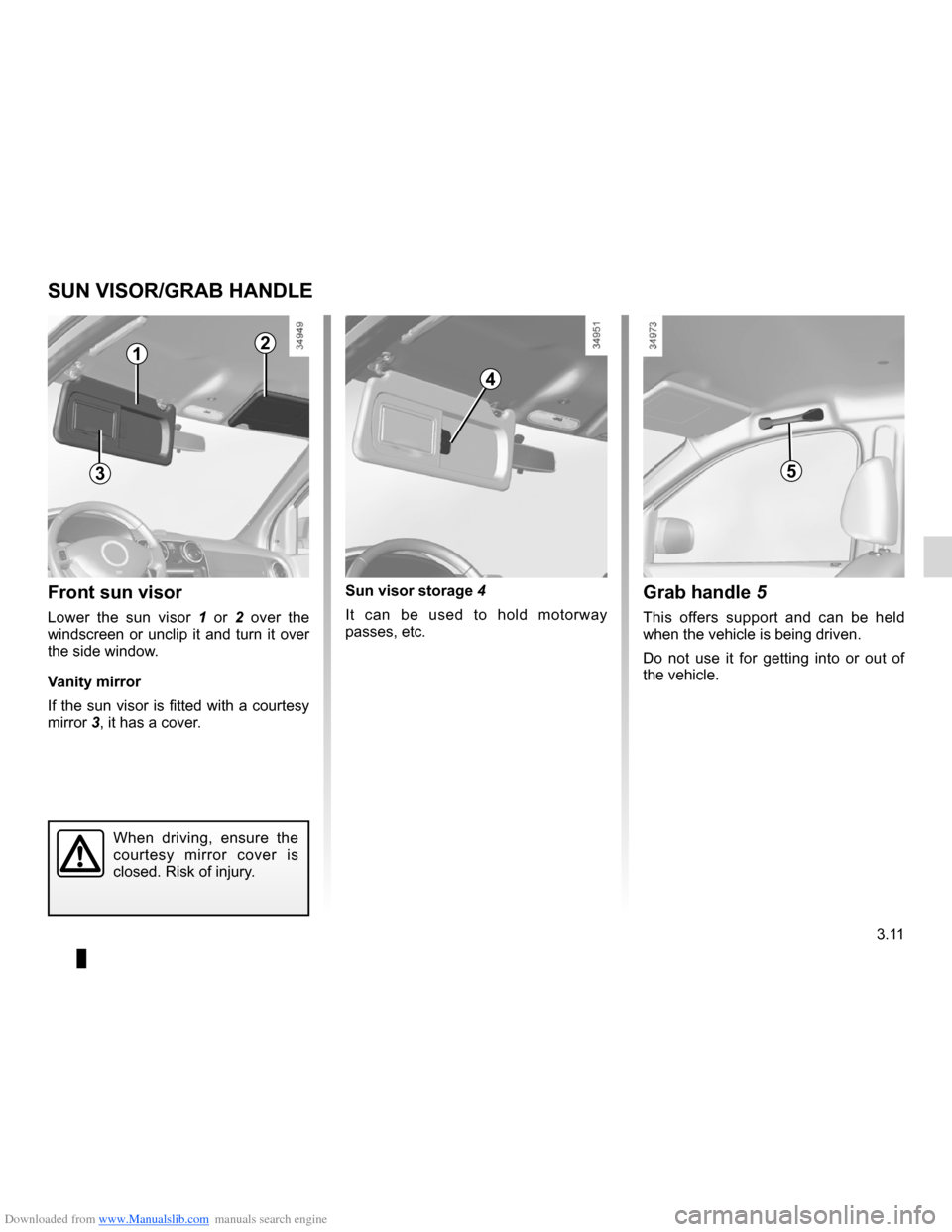

SUN VISOR/GRAB HANDLE
Sun visor storage 4
It can be used to hold motorway
passes, etc.Grab handle 5
This offers support and can be held
when the vehicle is being driven.
Do not use it for getting into or out of
the vehicle.
5
4
3
21
Front sun visor
Lower the sun visor 1 or 2 over the
windscreen or unclip it and turn it over
the side window.
Vanity mirror
If the sun visor is fitted with a courtesy
mirror 3, it has a cover.
When driving, ensure the
courtesy mirror cover is
closed. Risk of injury.

Downloaded from www.Manualslib.com manuals search engine storage compartments .......................... (up to the end of the DU)
storage compartment ............................(up to the end of the DU)
fittings ................................................... (up to the end of the DU)
glove box ............................................................... (current page)
3.12
ENG_UD24446_1
Rangements / Aménagements (X92 - Renault)
ENG_NU_975-3_X92_Dacia_3
Jaune NoirNoir texte
Passenger compartment storage space and fittings

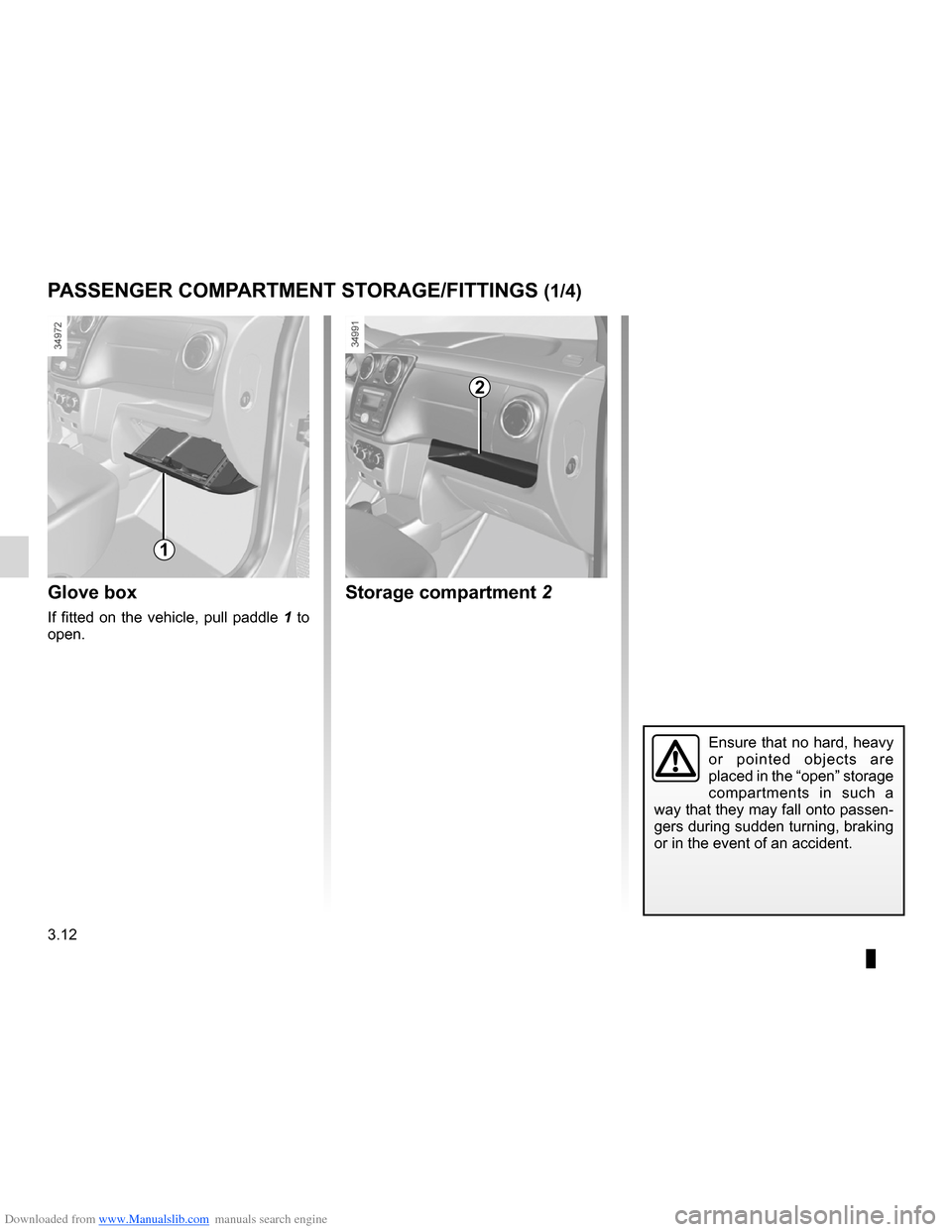

PASSENGER COMPARTMENT STORAGE/FITTINGS (1/4)
Glove box
If fitted on the vehicle, pull paddle 1 to
open.
Storage compartment 2
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.
1
2

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
3.13
ENG_UD24446_1
Rangements / Aménagements (X92 - Renault)
ENG_NU_975-3_X92_Dacia_3

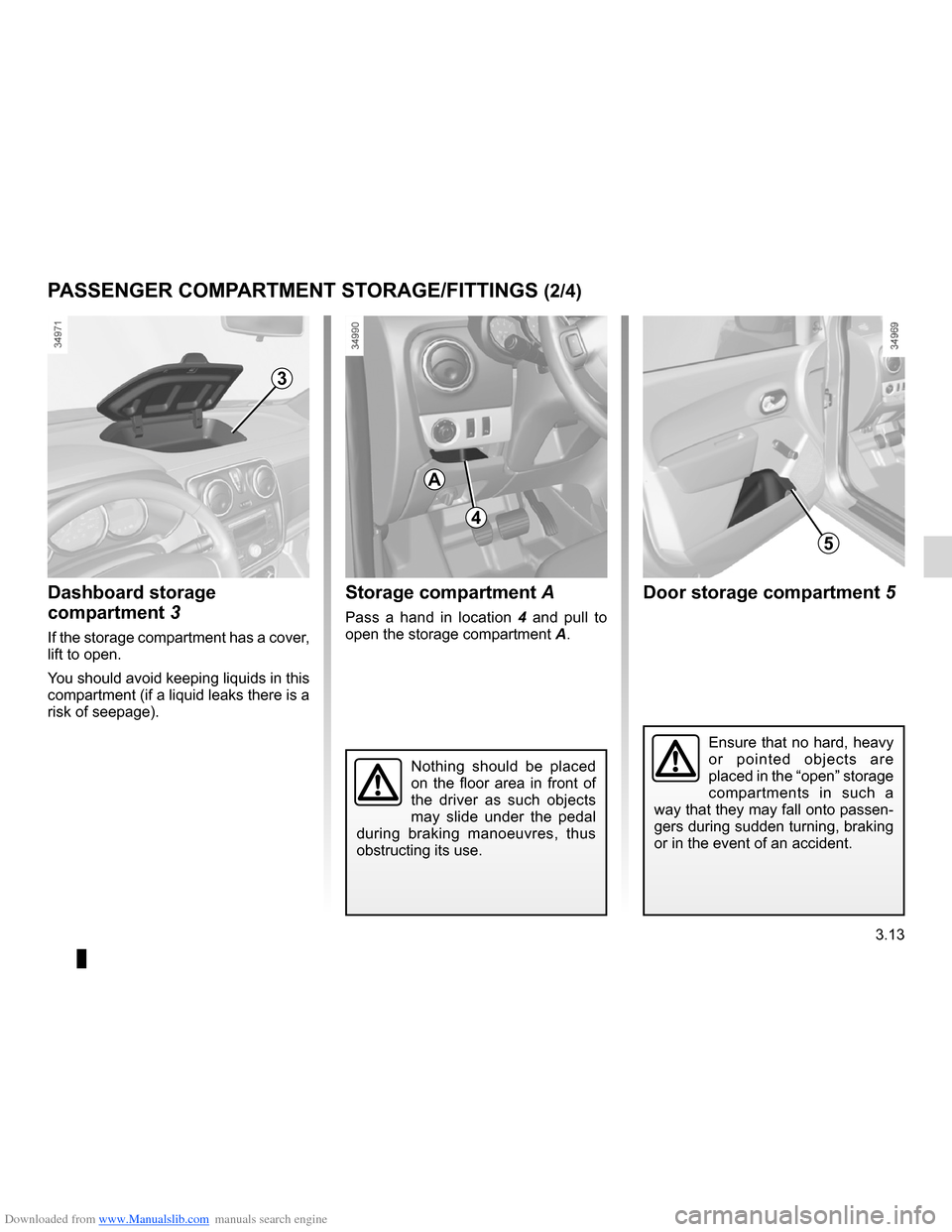

PASSENGER COMPARTMENT STORAGE/FITTINGS (2/4)
Dashboard storage
compartment 3
If the storage compartment has a cover,
lift to open.
You should avoid keeping liquids in this
compartment (if a liquid leaks there is a
risk of seepage).
Storage compartment A
Pass a hand in location 4 and pull to
open the storage compartment A.
3
5
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.
Door storage compartment 5
4
A

Downloaded from www.Manualslib.com manuals search engine 3.14
ENG_UD24446_1
Rangements / Aménagements (X92 - Renault)
ENG_NU_975-3_X92_Dacia_3
Jaune NoirNoir texte

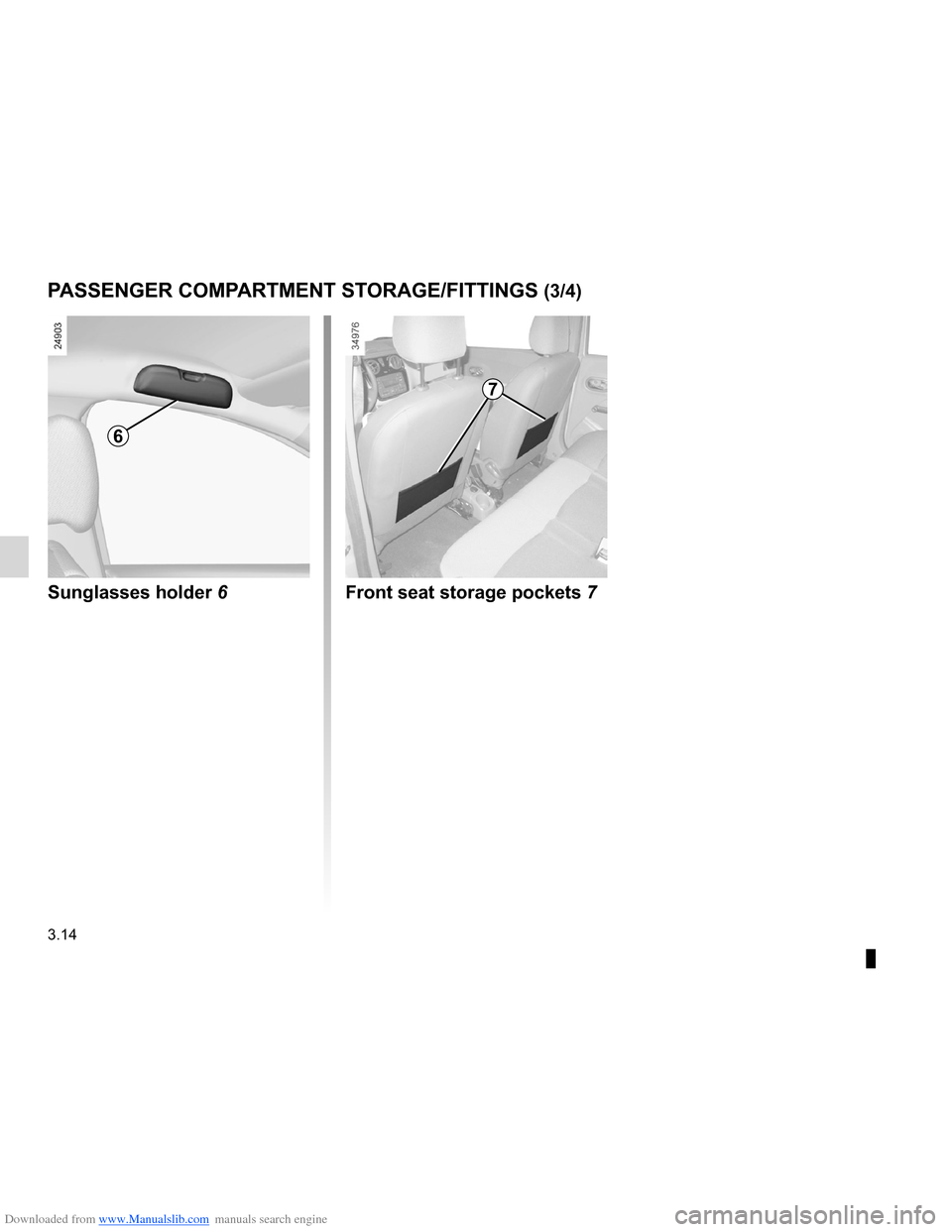

PASSENGER COMPARTMENT STORAGE/FITTINGS (3/4)
6
Sunglasses holder 6Front seat storage pockets 7
7

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
3.15
ENG_UD24446_1
Rangements / Aménagements (X92 - Renault)
ENG_NU_975-3_X92_Dacia_3

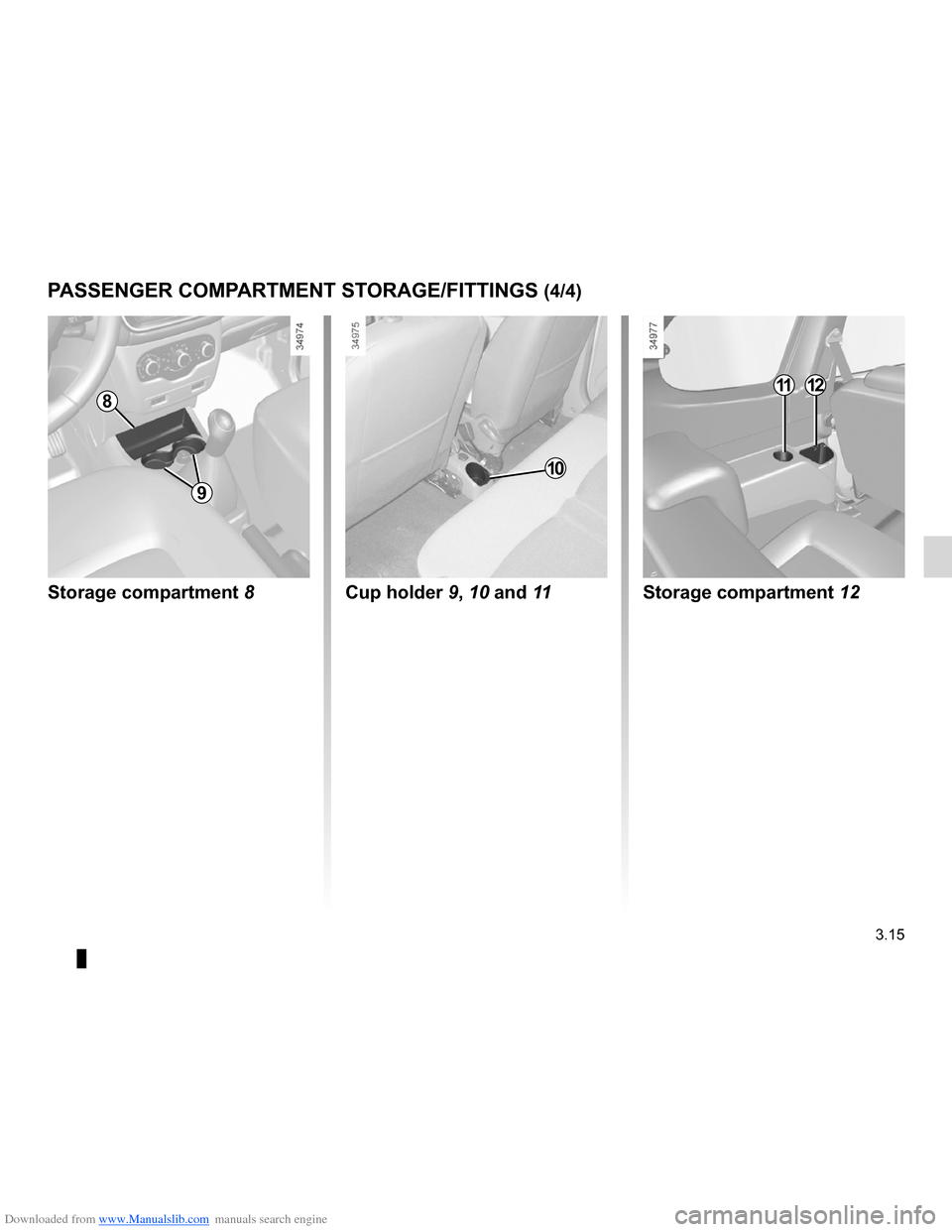

PASSENGER COMPARTMENT STORAGE/FITTINGS (4/4)
Storage compartment 8
6
11
Storage compartment 12
12
10
9
8
Cup holder 9, 10 and 11
