DACIA LODGY 2013 1.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.25
ENG_UD38160_5
Fusibles (X92 - Renault) ENG_NU_975-8_X92_Dacia_5
FUSES (2/4)
Fuses in engine compartment B
Some functions are protected by fuses
located in the engine compartment
(unit B).
However, because of their reduced
accessibility, we advise you to have
your fuses replaced by an approved
Dealer.
B
Special features of LPG versions
The specific LPG circuit shut-off fuse 2
is located in the box B.
2
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
come on at any moment.
Risk of injury.
Deactivate the Stop and
Start function for any opera-
tion performed in the engine
compartment.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.26
ENG_UD38160_5
Fusibles (X92 - Renault) ENG_NU_975-8_X92_Dacia_5
FUSES (3/4)
Allocation of fuses in the passenger compartment
(the presence of certain fuses DEPENDS ON THE VEHICLE EQUIPMENT LEVEL)
ABCDJ
1
8
15
24
2
9
16
25
3
10
17
26
4
11
18
27
5
12
19
28
6
13
20
29
7
14
21
30
22
31
23
32
33
34
35
36
37
38
39

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.27
ENG_UD38160_5
Fusibles (X92 - Renault) ENG_NU_975-8_X92_Dacia_5
FUSES (4/4)
Number Allocation
A Electric rear window
BElectric door mirrors
CFront electric window
DAutomatic or sequential
gearbox
JThird row accessories
socket
1LPG
2Left-hand main beam
headlight
3Right-hand main beam
headlight
4Left-hand dipped beam
headlight
5Right-hand dipped beam
headlight
6Front side lights
7Rear side lights
8Rear accessories socket
9Rear fog lights
10HornNumber Allocation
11Automatic door locking
12Electronic stability
program ESC
13Courtesy light
14Reverse
15Windscreen wiper
16Heated seats
17Daytime running lights
18Brake lights
19Fuel pump, Injection
20Airbag
21Cruise control-Speed
limiter, rear windscreen,
unfastened seatbelt
warning, parking distance
control
22Power-assisted steering
23Location reserved for
additional equipment.Number Allocation
24 Direction indicator light
25 Not used
26Passenger compartment
ECU
27
and 29Steering column control
28Not used
30Location reserved for
additional equipment.
31Instrument panel
32Radio
33Starter, manual gearbox
34Windscreen wiper
35Passenger compartment
ventilation
36Cigar lighter
37Diagnostic socket
38Defrosting rearview mirror
39Front fog lights

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.28
ENG_UD13290_3
Télécommande à radiofréquence : piles (X61 - F61 - K61 - Renault) ENG_NU_975-8_X92_Dacia_5
Replacing the remote control
battery
Undo screw 1 to remove the remote
control cover.Replace battery 2 according to the di-
rection marked on the cover.
Note: It is not advisable to touch the
electronic circuit in the key cover when
replacing the battery.
Do not throw away your
used batteries; give them to
an organisation responsible
for collecting and recycling
batteries.

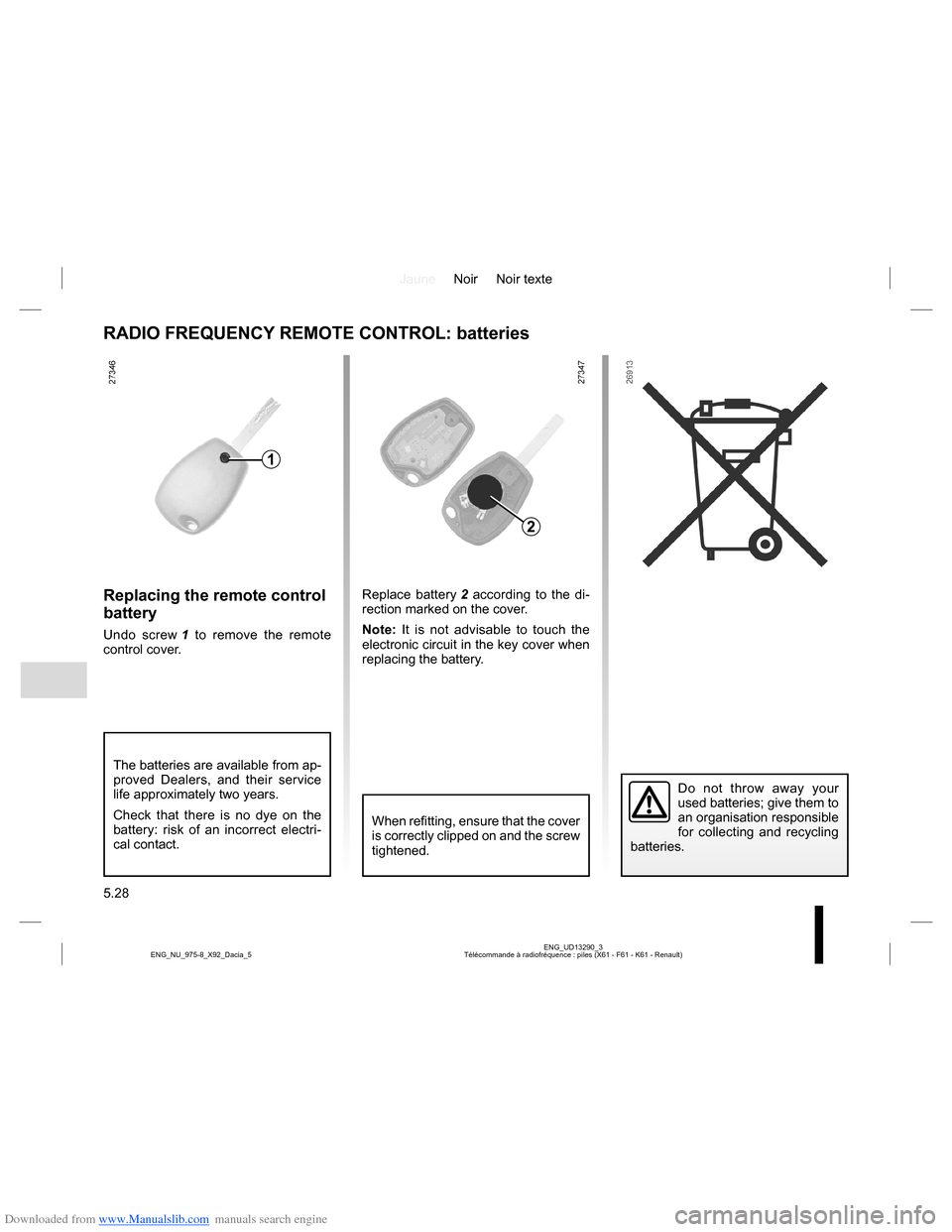

RADIO FREQUENCY REMOTE CONTROL: batteries
1
2
When refitting, ensure that the cover
is correctly clipped on and the screw
tightened.
The batteries are available from ap-
proved Dealers, and their service
life approximately two years.
Check that there is no dye on the
battery: risk of an incorrect electri-
cal contact.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.29
ENG_UD38058_2
Batterie : dépannage (X92 - Renault) ENG_NU_975-8_X92_Dacia_5

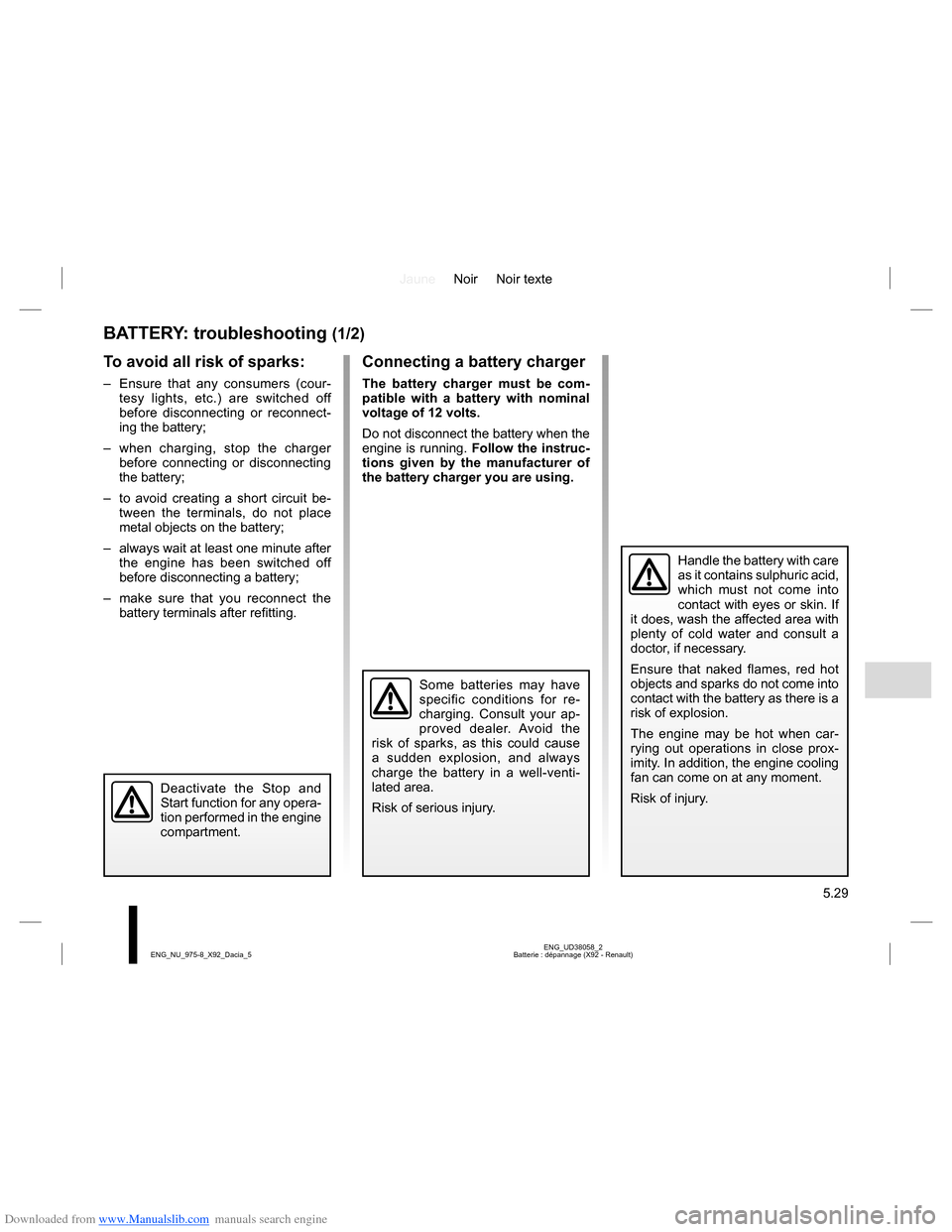

BATTERY: troubleshooting (1/2)
To avoid all risk of sparks:
– Ensure that any consumers (cour-
tesy lights, etc.) are switched off
before disconnecting or reconnect-
ing the battery;
– when charging, stop the charger
before connecting or disconnecting
the battery;
– to avoid creating a short circuit be-
tween the terminals, do not place
metal objects on the battery;
– always wait at least one minute after
the engine has been switched off
before disconnecting a battery;
– make sure that you reconnect the
battery terminals after refitting.
Handle the battery with care
as it contains sulphuric acid,
which must not come into
contact with eyes or skin. If
it does, wash the affected area with
plenty of cold water and consult a
doctor, if necessary.
Ensure that naked flames, red hot
objects and sparks do not come into
contact with the battery as there is a
risk of explosion.
The engine may be hot when car-
rying out operations in close prox-
imity. In addition, the engine cooling
fan can come on at any moment.
Risk of injury.
Connecting a battery charger
The battery charger must be com-
patible with a battery with nominal
voltage of 12 volts.
Do not disconnect the battery when the
engine is running. Follow the instruc-
tions given by the manufacturer of
the battery charger you are using.
Some batteries may have
specific conditions for re-
charging. Consult your ap-
proved dealer. Avoid the
risk of sparks, as this could cause
a sudden explosion, and always
charge the battery in a well-venti-
lated area.
Risk of serious injury.
Deactivate the Stop and
Start function for any opera-
tion performed in the engine
compartment.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.30
ENG_UD38058_2
Batterie : dépannage (X92 - Renault) ENG_NU_975-8_X92_Dacia_5

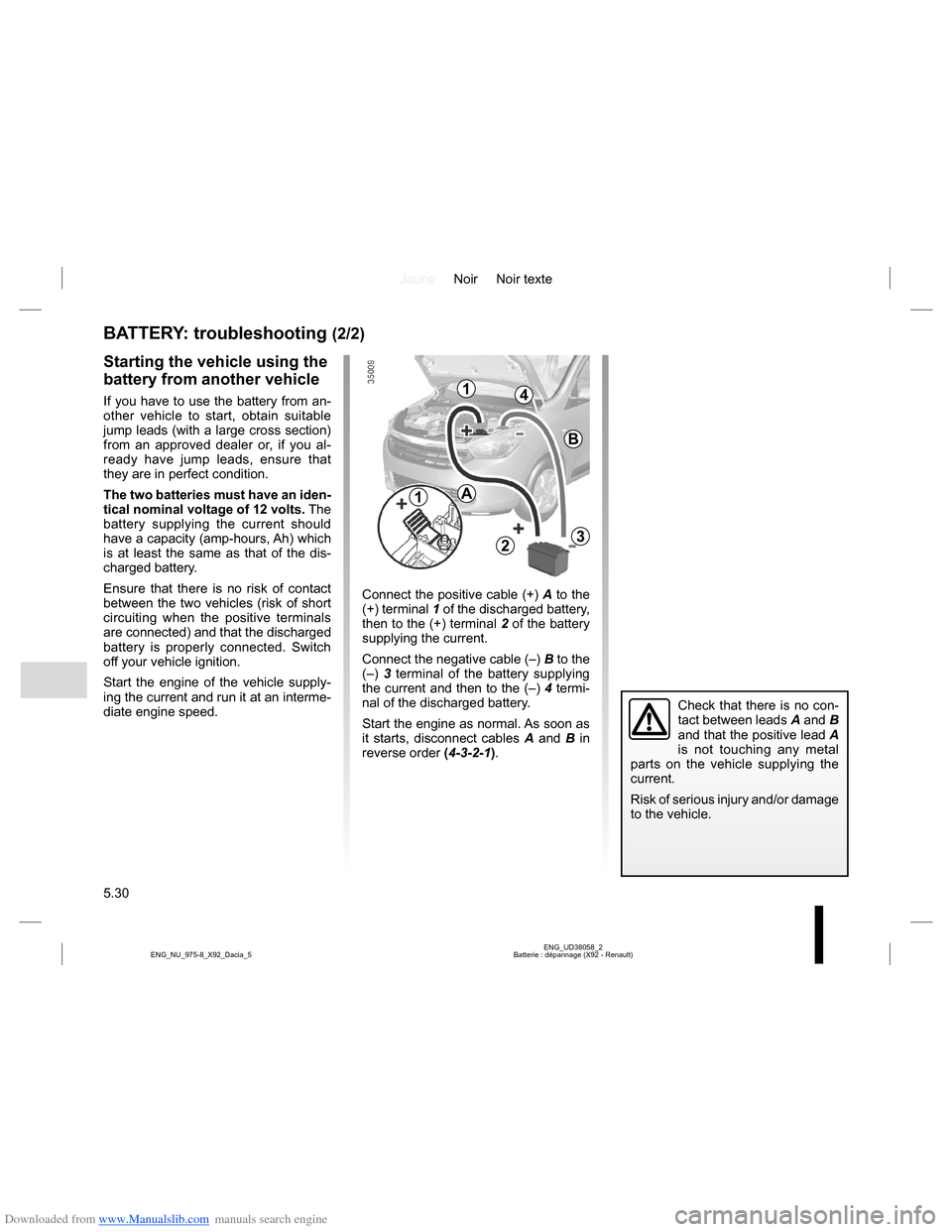

BATTERY: troubleshooting (2/2)
Connect the positive cable (+) A to the
(+) terminal 1 of the discharged battery,
then to the (+) terminal 2 of the battery
supplying the current.
Connect the negative cable (–) B to the
(–) 3 terminal of the battery supplying
the current and then to the (–) 4 termi-
nal of the discharged battery.
Start the engine as normal. As soon as
it starts, disconnect cables A and B in
reverse order (4-3-2-1).
Starting the vehicle using the
battery from another vehicle
If you have to use the battery from an-
other vehicle to start, obtain suitable
jump leads (with a large cross section)
from an approved dealer or, if you al-
ready have jump leads, ensure that
they are in perfect condition.
The two batteries must have an iden-
tical nominal voltage of 12 volts. The
battery supplying the current should
have a capacity (amp-hours, Ah) which
is at least the same as that of the dis-
charged battery.
Ensure that there is no risk of contact
between the two vehicles (risk of short
circuiting when the positive terminals
are connected) and that the discharged
battery is properly connected. Switch
off your vehicle ignition.
Start the engine of the vehicle supply-
ing the current and run it at an interme-
diate engine speed.
Check that there is no con-
tact between leads A and B
and that the positive lead A
is not touching any metal
parts on the vehicle supplying the
current.
Risk of serious injury and/or damage
to the vehicle.
14
B
32
A1

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.31
ENG_UD24481_1
Balais d’essuie-vitres (X92 - Renault) ENG_NU_975-8_X92_Dacia_5

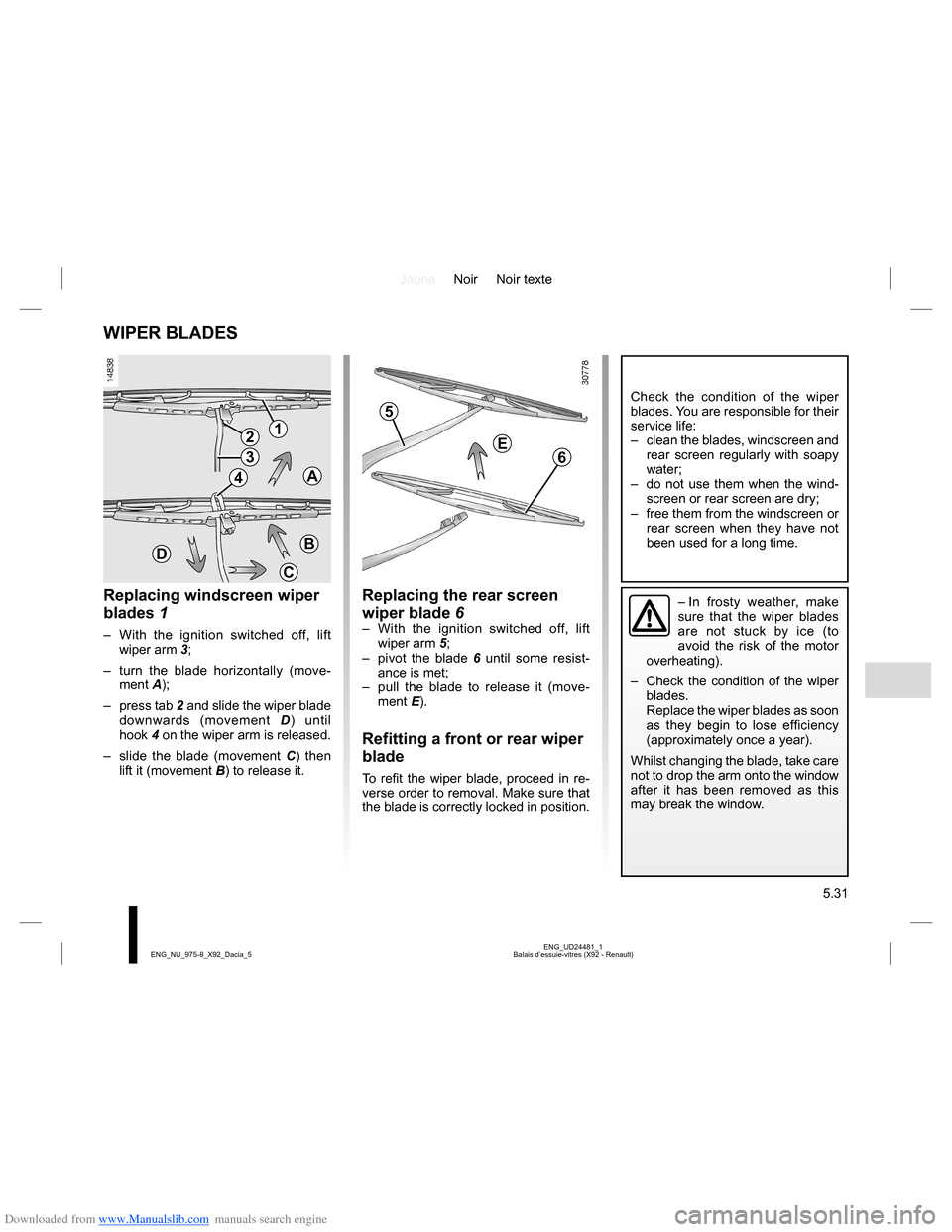

WIPER BLADES
Replacing windscreen wiper
blades 1
– With the ignition switched off, lift
wiper arm 3;
– turn the blade horizontally (move-
ment A);
– press tab 2 and slide the wiper blade
downwards (movement D) until
hook 4 on the wiper arm is released.
– slide the blade (movement C) then
lift it (movement B) to release it.
12
3
4
Replacing the rear screen
wiper blade 6
– With the ignition switched off, lift
wiper arm 5;
– pivot the blade 6 until some resist-
ance is met;
– pull the blade to release it (move-
ment E).
Refitting a front or rear wiper
blade
To refit the wiper blade, proceed in re-
verse order to removal. Make sure that
the blade is correctly locked in position.
Check the condition of the wiper
blades. You are responsible for their
service life:
– clean the blades, windscreen and
rear screen regularly with soapy
water;
– do not use them when the wind-
screen or rear screen are dry;
– free them from the windscreen or
rear screen when they have not
been used for a long time.
– In frosty weather, make
sure that the wiper blades
are not stuck by ice (to
avoid the risk of the motor
overheating).
– Check the condition of the wiper
blades.
Replace the wiper blades as soon
as they begin to lose efficiency
(approximately once a year).
Whilst changing the blade, take care
not to drop the arm onto the window
after it has been removed as this
may break the window.
A
D
C
B
5
6E

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.32
ENG_UD38219_2
Remorquage: dépannage (X92 - Renault) ENG_NU_975-8_X92_Dacia_5
Before any towing, put the gears into
neutral (neutral position for vehicles
equipped with a manual gearbox or N
position for vehicles equipped with an
automatic gearbox).
Unlock the steering column; the igni-
tion key must be in “M” position (ig-
nition) to enable signalling (“Stop”
lights, hazard warning lights, etc.).
Always switch on the lights when
driving at night.
Release the parking brake.
It is also essential to observe the towing
regulations imposed by current legisla-
tion in your country. Please contact an
authorised dealer.

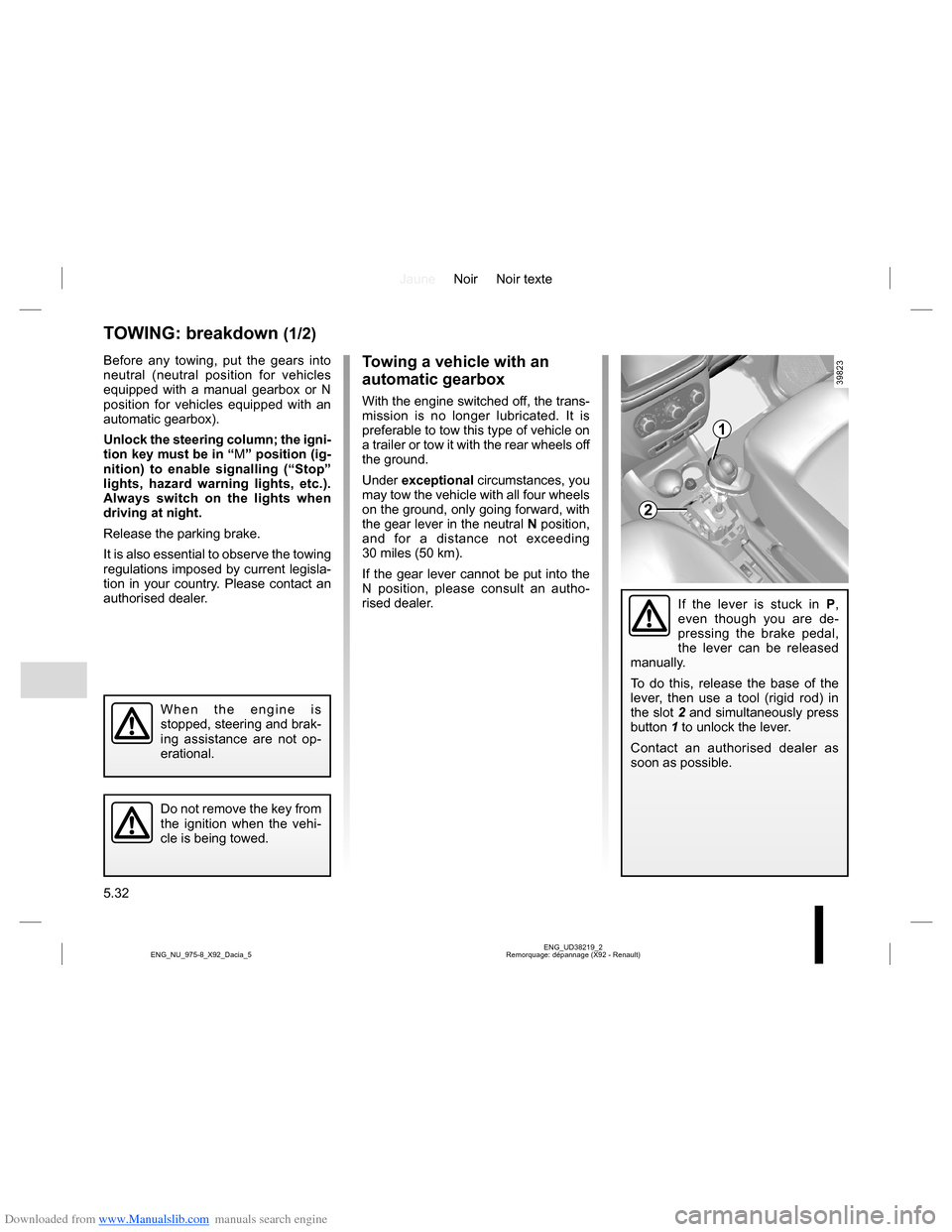

TOWING: breakdown (1/2)
When the engine is
stopped, steering and brak-
ing assistance are not op-
erational.
Do not remove the key from
the ignition when the vehi-
cle is being towed.
1
2
Towing a vehicle with an
automatic gearbox
With the engine switched off, the trans-
mission is no longer lubricated. It is
preferable to tow this type of vehicle on
a trailer or tow it with the rear wheels off
the ground.
Under exceptional circumstances, you
may tow the vehicle with all four wheels
on the ground, only going forward, with
the gear lever in the neutral N position,
and for a distance not exceeding
30 miles (50 km).
If the gear lever cannot be put into the
N position, please consult an autho-
rised dealer.
If the lever is stuck in P,
even though you are de-
pressing the brake pedal,
the lever can be released
manually.
To do this, release the base of the
lever, then use a tool (rigid rod) in
the slot 2 and simultaneously press
button 1 to unlock the lever.
Contact an authorised dealer as
soon as possible.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.33
ENG_UD38219_2
Remorquage: dépannage (X92 - Renault) ENG_NU_975-8_X92_Dacia_5
Do not leave the tools unse-
cured inside the vehicle as
they may come loose under
braking.

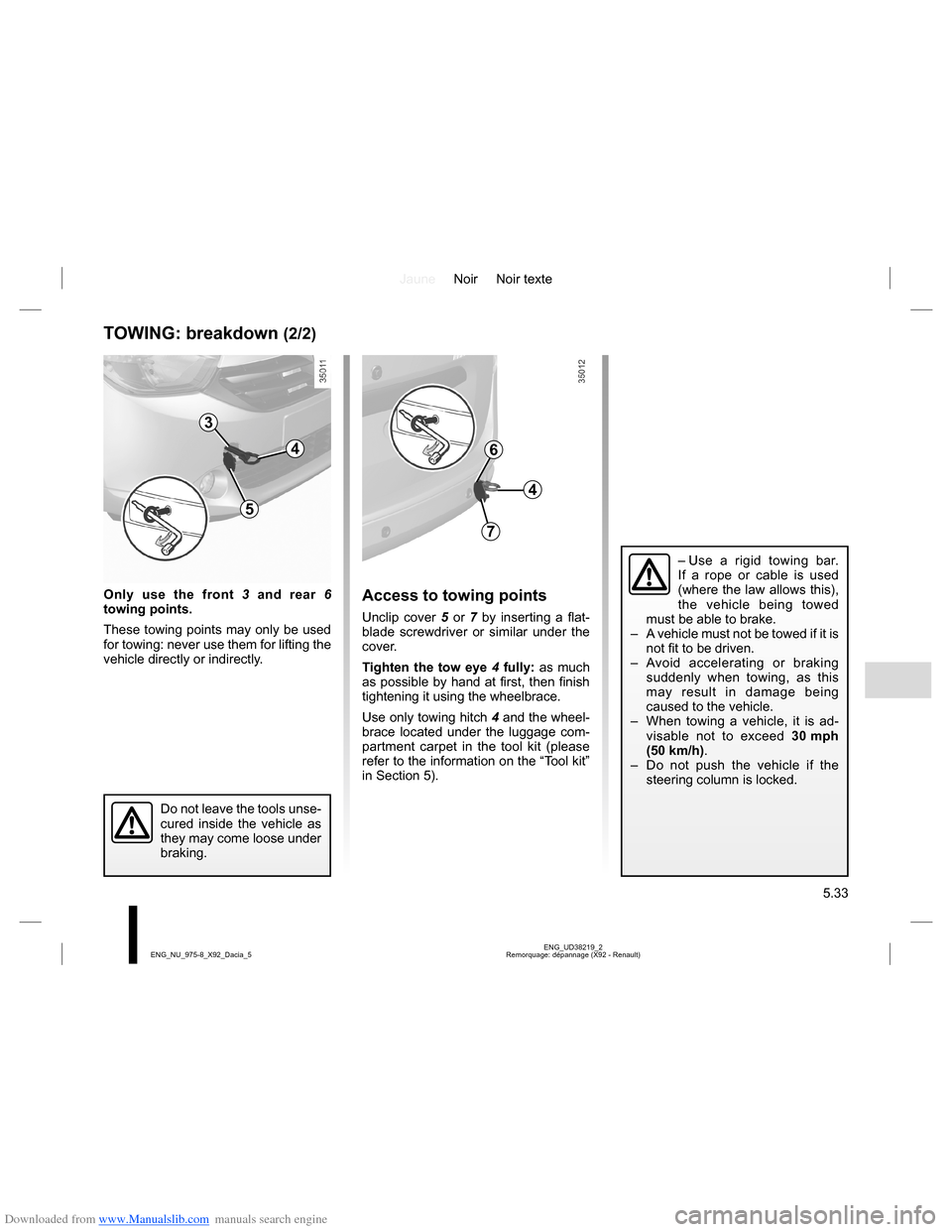

TOWING: breakdown (2/2)
– Use a rigid towing bar.
If a rope or cable is used
(where the law allows this),
the vehicle being towed
must be able to brake.
– A vehicle must not be towed if it is
not fit to be driven.
– Avoid accelerating or braking
suddenly when towing, as this
may result in damage being
caused to the vehicle.
– When towing a vehicle, it is ad-
visable not to exceed 30 mph
(50 km/h).
– Do not push the vehicle if the
steering column is locked.
3
4
5
Only use the front 3 and rear 6
towing points.
These towing points may only be used
for towing: never use them for lifting the
vehicle directly or indirectly.
6
4
7
Access to towing points
Unclip cover 5 or 7 by inserting a flat-
blade screwdriver or similar under the
cover.
Tighten the tow eye 4 fully: as much
as possible by hand at first, then finish
tightening it using the wheelbrace.
Use only towing hitch 4 and the wheel-
brace located under the luggage com-
partment carpet in the tool kit (please
refer to the information on the “Tool kit”
in Section 5).

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.34
ENG_UD36792_3
Prééquipement radio (X92 - Renault) ENG_NU_975-8_X92_Dacia_5
Location of front 2 or rear3
door speakers
Unclip the cover using a flat-blade
screwdriver or similar.

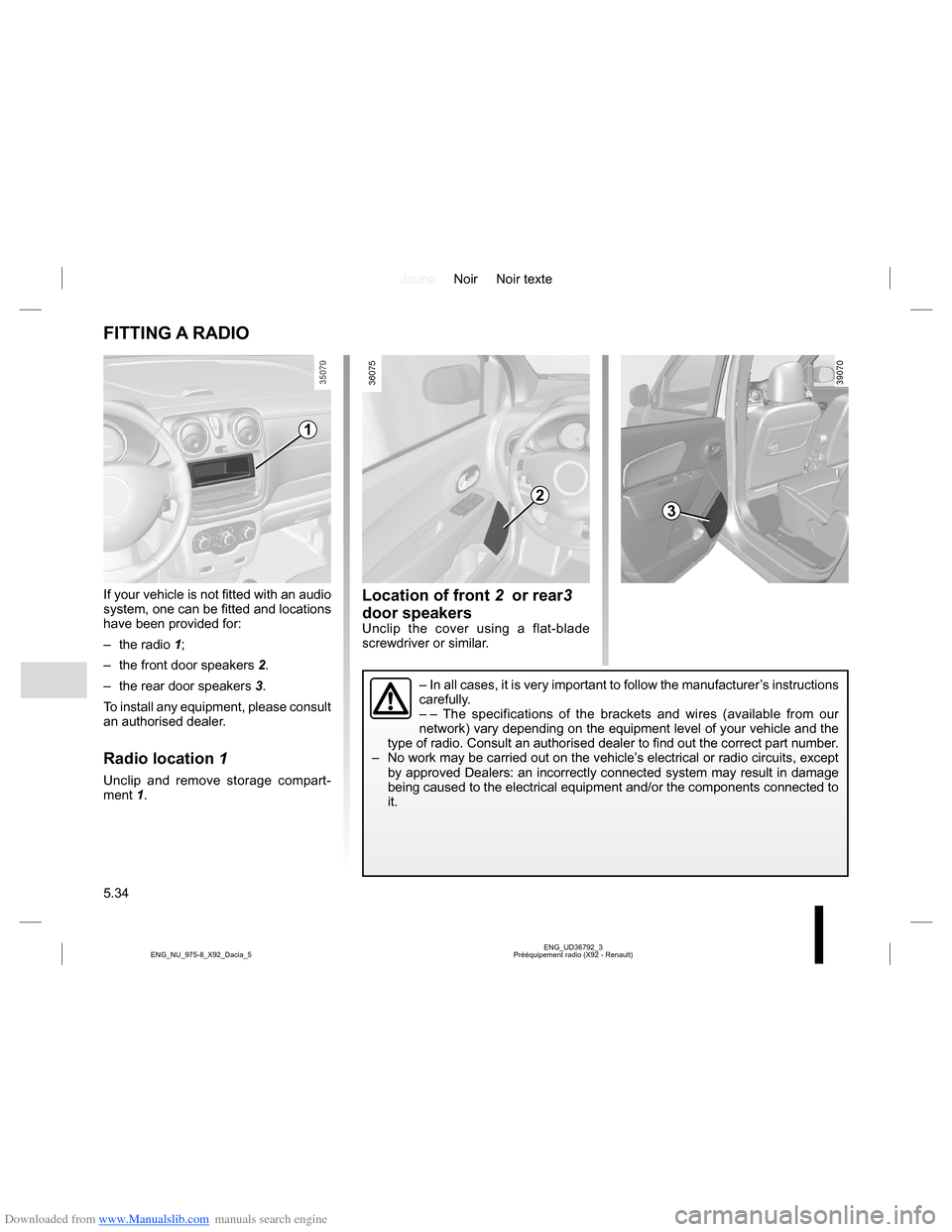

FITTING A RADIO
If your vehicle is not fitted with an audio
system, one can be fitted and locations
have been provided for:
– the radio 1;
– the front door speakers 2.
– the rear door speakers 3.
To install any equipment, please consult
an authorised dealer.
Radio location 1
Unclip and remove storage compart-
ment 1.
1
2
3
– In all cases, it is very important to follow the manufacturer’s instructions
carefully.
– – The specifications of the brackets and wires (available from our
network) vary depending on the equipment level of your vehicle and the
type of radio. Consult an authorised dealer to find out the correct part number.
– No work may be carried out on the vehicle’s electrical or radio circuits, except
by approved Dealers: an incorrectly connected system may result in damage
being caused to the electrical equipment and/or the components connected to
it.
