DACIA LODGY 2013 1.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.5
ENG_UD38039_2
Kit de gonflage des pneumatiques (X67 - X92 - Dacia) ENG_NU_975-8_X92_Dacia_5

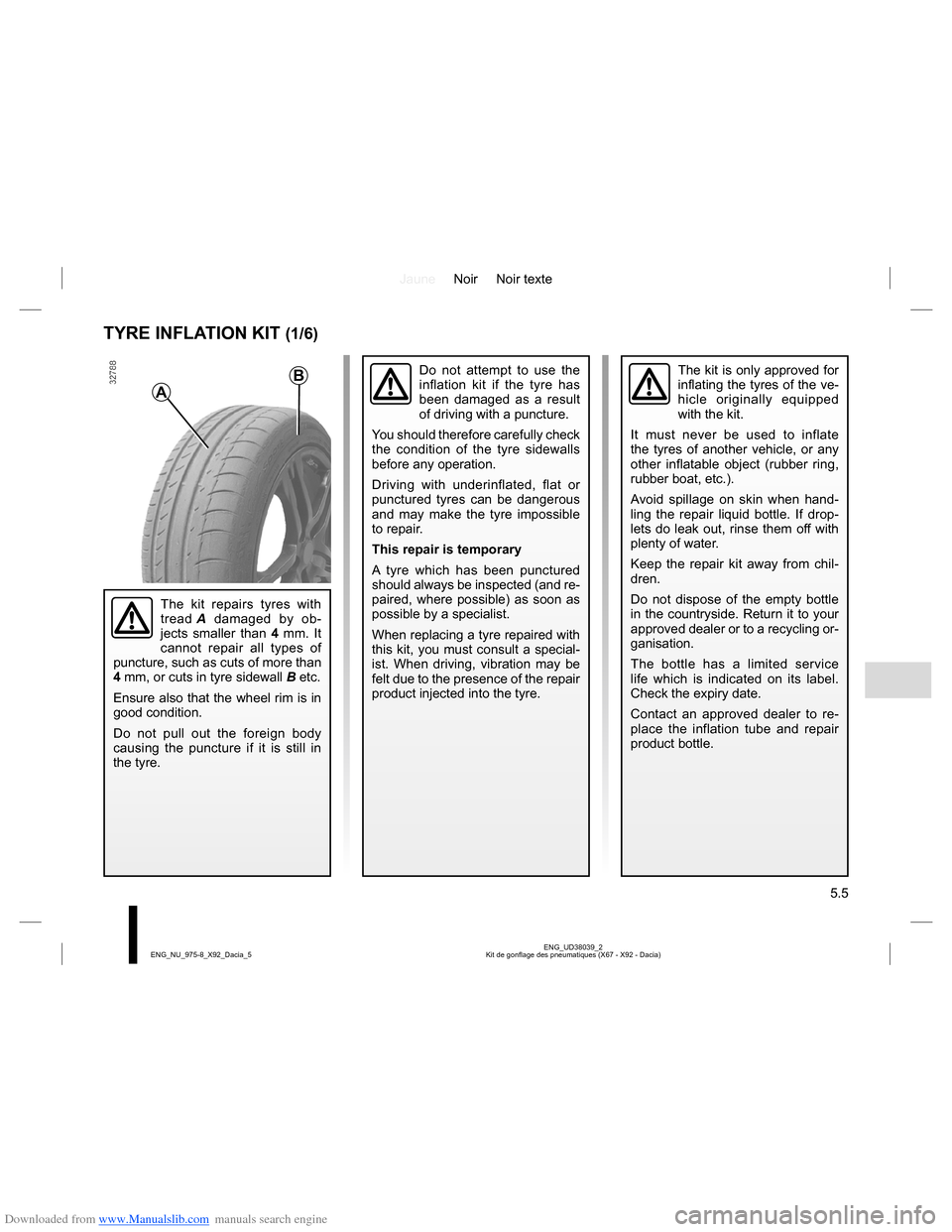

TYRE INFLATION KIT (1/6)
The kit repairs tyres with
tread A damaged by ob-
jects smaller than 4 mm. It
cannot repair all types of
puncture, such as cuts of more than
4 mm, or cuts in tyre sidewall B etc.
Ensure also that the wheel rim is in
good condition.
Do not pull out the foreign body
causing the puncture if it is still in
the tyre.
Do not attempt to use the
inflation kit if the tyre has
been damaged as a result
of driving with a puncture.
You should therefore carefully check
the condition of the tyre sidewalls
before any operation.
Driving with underinflated, flat or
punctured tyres can be dangerous
and may make the tyre impossible
to repair.
This repair is temporary
A tyre which has been punctured
should always be inspected (and re-
paired, where possible) as soon as
possible by a specialist.
When replacing a tyre repaired with
this kit, you must consult a special-
ist. When driving, vibration may be
felt due to the presence of the repair
product injected into the tyre.The kit is only approved for
inflating the tyres of the ve-
hicle originally equipped
with the kit.
It must never be used to inflate
the tyres of another vehicle, or any
other inflatable object (rubber ring,
rubber boat, etc.).
Avoid spillage on skin when hand-
ling the repair liquid bottle. If drop-
lets do leak out, rinse them off with
plenty of water.
Keep the repair kit away from chil-
dren.
Do not dispose of the empty bottle
in the countryside. Return it to your
approved dealer or to a recycling or-
ganisation.
The bottle has a limited service
life which is indicated on its label.
Check the expiry date.
Contact an approved dealer to re-
place the inflation tube and repair
product bottle.
A
B

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.6
ENG_UD38039_2
Kit de gonflage des pneumatiques (X67 - X92 - Dacia) ENG_NU_975-8_X92_Dacia_5
TYRE INFLATION KIT (2/6)
Inflation kit C
Depending on the vehicle, in the event
of a puncture, use the kit C located in
the boot.
Before using this kit, park
the vehicle at a sufficient
distance from traffic, switch
on the hazard warning
lights, apply the handbrake, ask all
passengers to leave the vehicle and
keep them away from traffic.
Open the kit, remove caps 1 and 3 (it is
essential not to remove the cap from
the bottle) then screw bottle 2 to its
base 3.
With the engine running and the
handbrake engaged:
– unscrew the valve cap on the wheel
concerned and screw the inflation
adapter 6 onto valve;
– connect adapter 8 to accessories
socket 9 on the dashboard of the ve-
hicle;
9
1234
5
6
78
C
If the vehicle is parked on
the hard shoulder, you must
warn other road users of
your vehicle’s presence
with a warning triangle or with other
devices as per the legislation apply-
ing to the country you are in.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.7
ENG_UD38039_2
Kit de gonflage des pneumatiques (X67 - X92 - Dacia) ENG_NU_975-8_X92_Dacia_5
TYRE INFLATION KIT (3/6)
– press switch 5 to inflate the tyre to
the recommended pressure (check
the label affixed to the edge of the
driver’s door);
– after a maximum of 5 minutes, stop
inflating and read the pressure (on
the pressure gauge 4);
Note: while the bottle is emptying
(approximately 30 seconds), pres-
sure gauge 4 will briefly indicate a
pressure of 6 bar, then the pressure
will drop.– adjust the pressure: to increase
it, continue inflating with the kit, to
reduce it, turn button 7 located on
the inflation adapter.
If a minimum pressure of 1.8 bar is
not reached after 15 minutes, repair
is not possible; do not drive the vehi-
cle but contact an approved dealer.
Once the tyre is inflated correctly:
– stop using the kit;
– close the integrated cap on the bottle
again;
– disconnect the adapter 8;
– affix driving recommendation
label 10 to the dashboard where it
can easily be seen by the driver;– store the kit;
– after the first inflation procedure the
tyre will still be leaking; it is vital to
drive in order to plug the hole;
– start immediately and drive at be-
tween 12 and 36 mph (20 and
60 km/h) to distribute the product
evenly throughout the tyre, stopping
after a distance of 2 miles (3 kilome-
tres) to check the pressure;
Following repair with the kit,
do not travel further than
120 miles (200 km). In addi-
tion, reduce your speed and
under no circumstances exceed 48
mph (80 km/h). The sticker, which
you must affix in a prominent posi-
tion on the dashboard, reminds you
of this.
Depending on the country or local
legislation, a tyre repaired with the
tyre pressure kit will need to be re-
placed.
Nothing should be placed
around the driver’s feet
as such objects may slide
under the pedals during
sudden braking manoeuvres and
obstruct their use.
4
10
5
78
C

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.8
ENG_UD38039_2
Kit de gonflage des pneumatiques (X67 - X92 - Dacia) ENG_NU_975-8_X92_Dacia_5

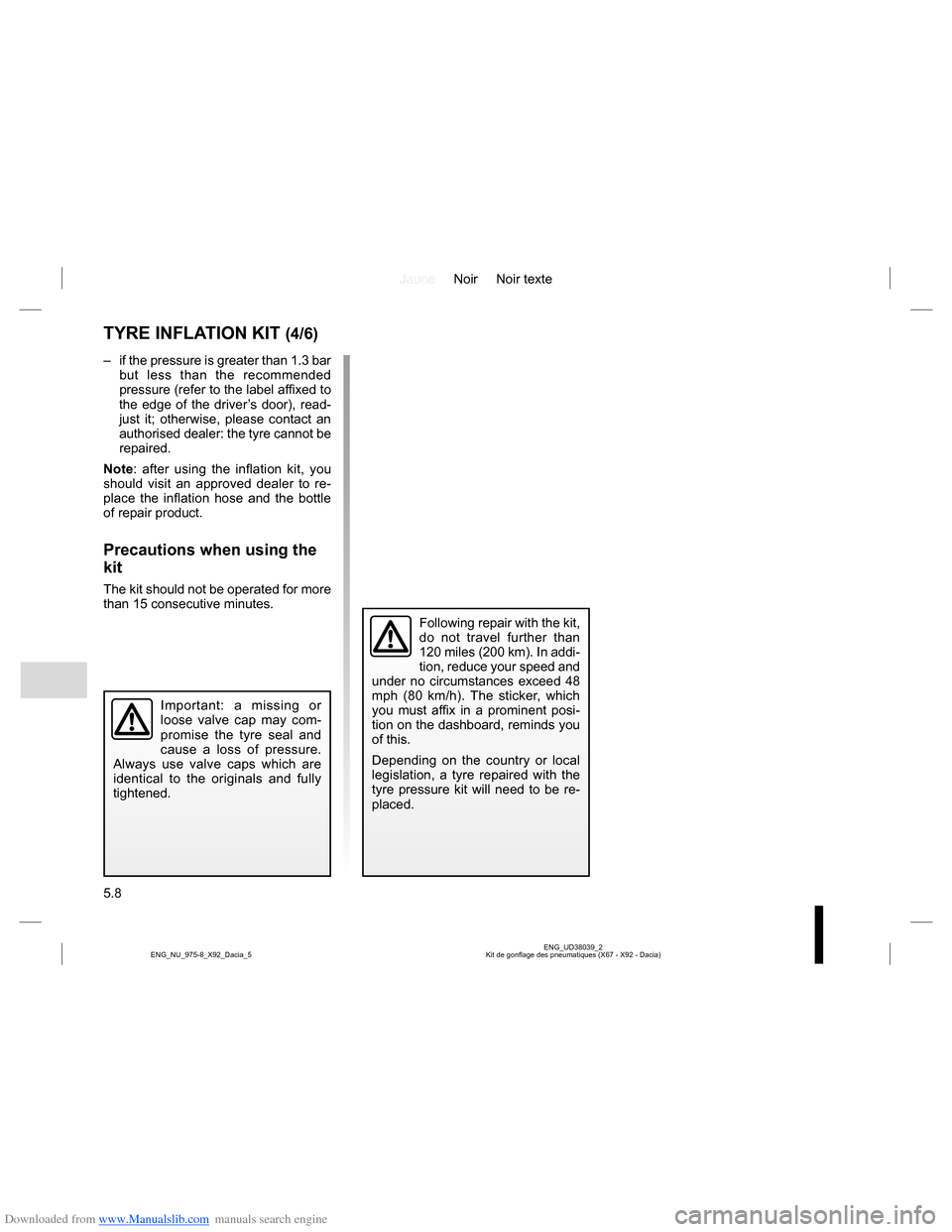

TYRE INFLATION KIT (4/6)
– if the pressure is greater than 1.3 bar
but less than the recommended
pressure (refer to the label affixed to
the edge of the driver’s door), read-
just it; otherwise, please contact an
authorised dealer: the tyre cannot be
repaired.
Note: after using the inflation kit, you
should visit an approved dealer to re-
place the inflation hose and the bottle
of repair product.
Precautions when using the
kit
The kit should not be operated for more
than 15 consecutive minutes.
Important: a missing or
loose valve cap may com-
promise the tyre seal and
cause a loss of pressure.
Always use valve caps which are
identical to the originals and fully
tightened.
Following repair with the kit,
do not travel further than
120 miles (200 km). In addi-
tion, reduce your speed and
under no circumstances exceed 48
mph (80 km/h). The sticker, which
you must affix in a prominent posi-
tion on the dashboard, reminds you
of this.
Depending on the country or local
legislation, a tyre repaired with the
tyre pressure kit will need to be re-
placed.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.9
ENG_UD38039_2
Kit de gonflage des pneumatiques (X67 - X92 - Dacia) ENG_NU_975-8_X92_Dacia_5
With the engine running and the
handbrake engaged:
– unroll the hose from the container;
– connect the compressor hose 13 to
the container inlet 18;
– depending on the vehicle, connect
the container 18 to the compressor
from the container recess 17;
– unscrew the valve cap on the rel-
evant wheel and screw on the con-
tainer’s inflation adapter 11;
– adapter 12 must be connected to
the vehicle accessories socket;
– press switch 14 to inflate the tyre to
the recommended pressure (please
refer to the information on “Tyre
pressure”);– after a maximum of 15 minutes, stop
inflating and read the pressure (on
pressure gauge 15).
Note: while the container is empty-
ing (approximately 30 seconds), the
pressure gauge 15 will briefly indi-
cate a pressure of up to 6 bar. The
pressure will then drop.
– adjust the pressure: to increase
it, continue inflation with the kit; to
reduce it, press button 16.
If a minimum pressure of 1.8 bar is
not reached after 15 minutes, repair
is not possible; do not drive the ve-
hicle but contact an approved dealer.

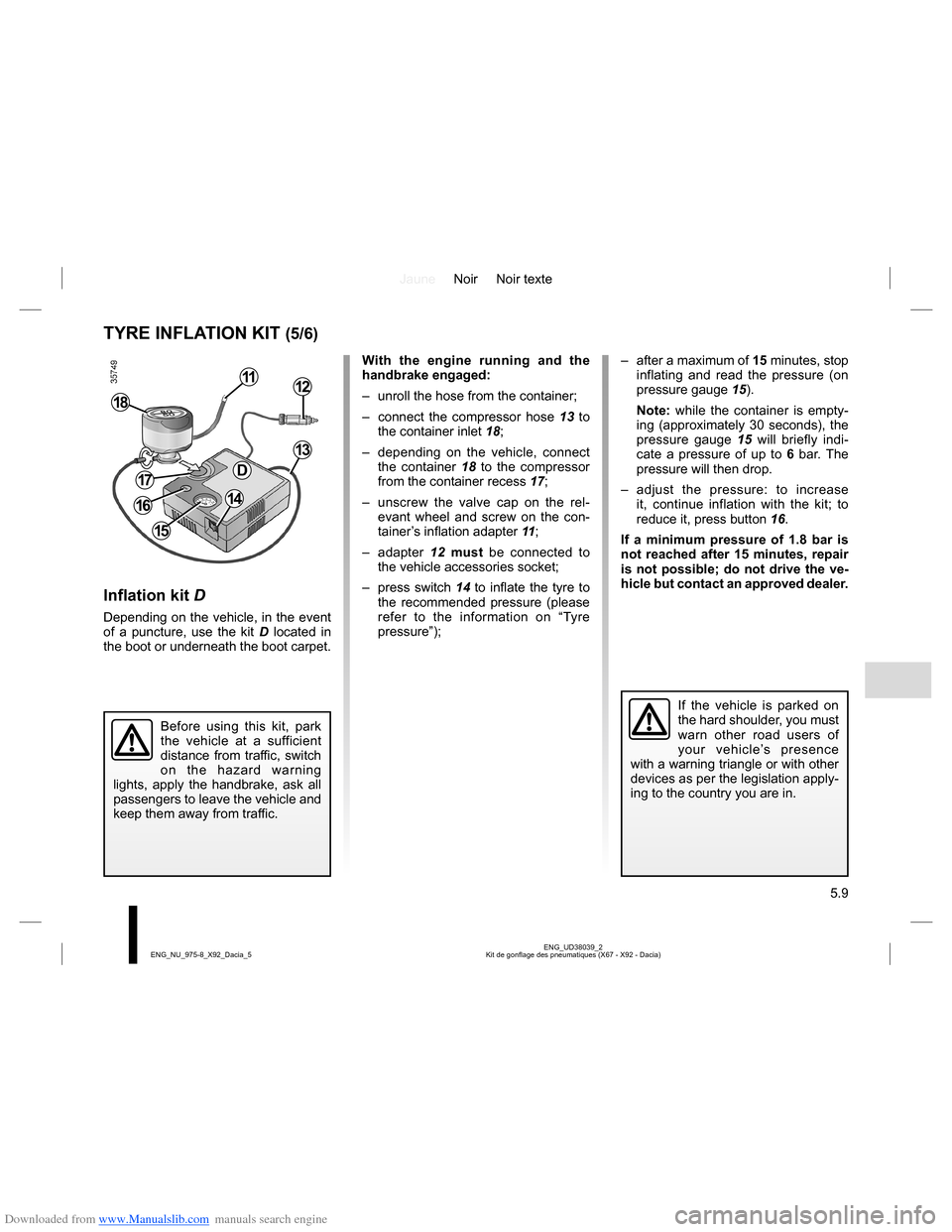

TYRE INFLATION KIT (5/6)
If the vehicle is parked on
the hard shoulder, you must
warn other road users of
your vehicle’s presence
with a warning triangle or with other
devices as per the legislation apply-
ing to the country you are in.
Before using this kit, park
the vehicle at a sufficient
distance from traffic, switch
on the hazard warning
lights, apply the handbrake, ask all
passengers to leave the vehicle and
keep them away from traffic.
Inflation kit D
Depending on the vehicle, in the event
of a puncture, use the kit D located in
the boot or underneath the boot carpet.
1112
13
14
15
17
18
D
16

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.10
ENG_UD38039_2
Kit de gonflage des pneumatiques (X67 - X92 - Dacia) ENG_NU_975-8_X92_Dacia_5
Once the tyre is correctly inflated,
remove the kit: slowly unscrew the in-
flation adapter 11 to prevent any repair
product from escaping and store the
container in plastic packaging to pre-
vent the product from escaping.
– Affix the driving recommendation
label to the dashboard where it can
easily be seen by the driver;
– Put the kit away.
– At the end of this initial inflation op-
eration, air will still escape from the
tyre. You must drive a short distance
in order to seal the hole.
– Start immediately and drive at be-
tween 12 and 40 mph (20 and
60 km/h) in order to distribute the
product evenly in the tyre and, after
driving for 2 miles (3 km), stop and
check the pressure.
– If the pressure is greater than 1.3 bar
but less than the recommended
pressure (refer to the label affixed to
the edge of the driver’s door), read-
just it. Otherwise, please contact an
authorised dealer: the tyre cannot be
repaired.Precautions when using the
kit
The kit should not be operated for more
than 15 consecutive minutes.

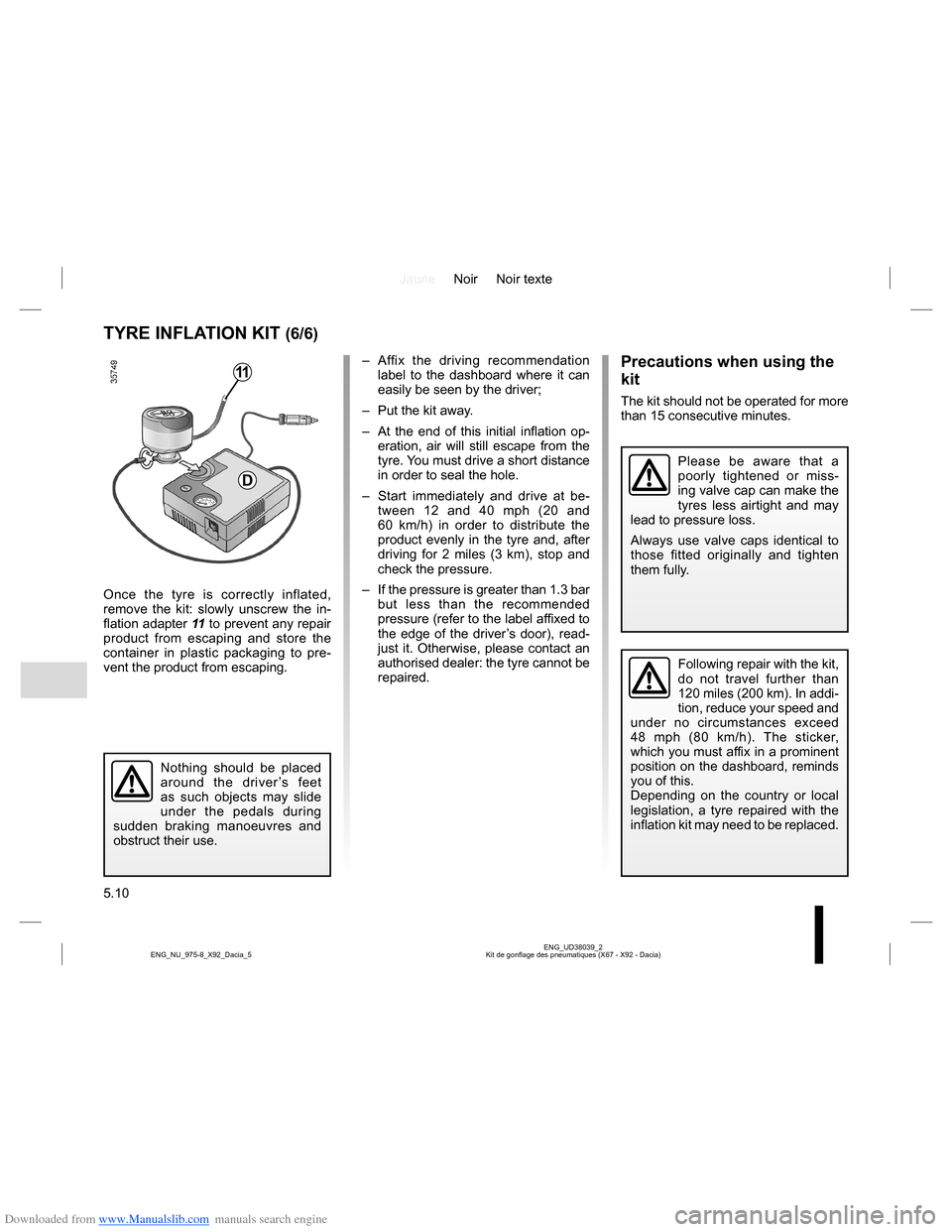

TYRE INFLATION KIT (6/6)
Nothing should be placed
around the driver’s feet
as such objects may slide
under the pedals during
sudden braking manoeuvres and
obstruct their use.
Following repair with the kit,
do not travel further than
120 miles (200 km). In addi-
tion, reduce your speed and
under no circumstances exceed
48 mph (80 km/h). The sticker,
which you must affix in a prominent
position on the dashboard, reminds
you of this.
Depending on the country or local
legislation, a tyre repaired with the
inflation kit may need to be replaced.
Please be aware that a
poorly tightened or miss-
ing valve cap can make the
tyres less airtight and may
lead to pressure loss.
Always use valve caps identical to
those fitted originally and tighten
them fully.
11
D

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.11
ENG_UD24470_1
Enjoliveurs - Jantes (X92 - Renault) ENG_NU_975-8_X92_Dacia_5

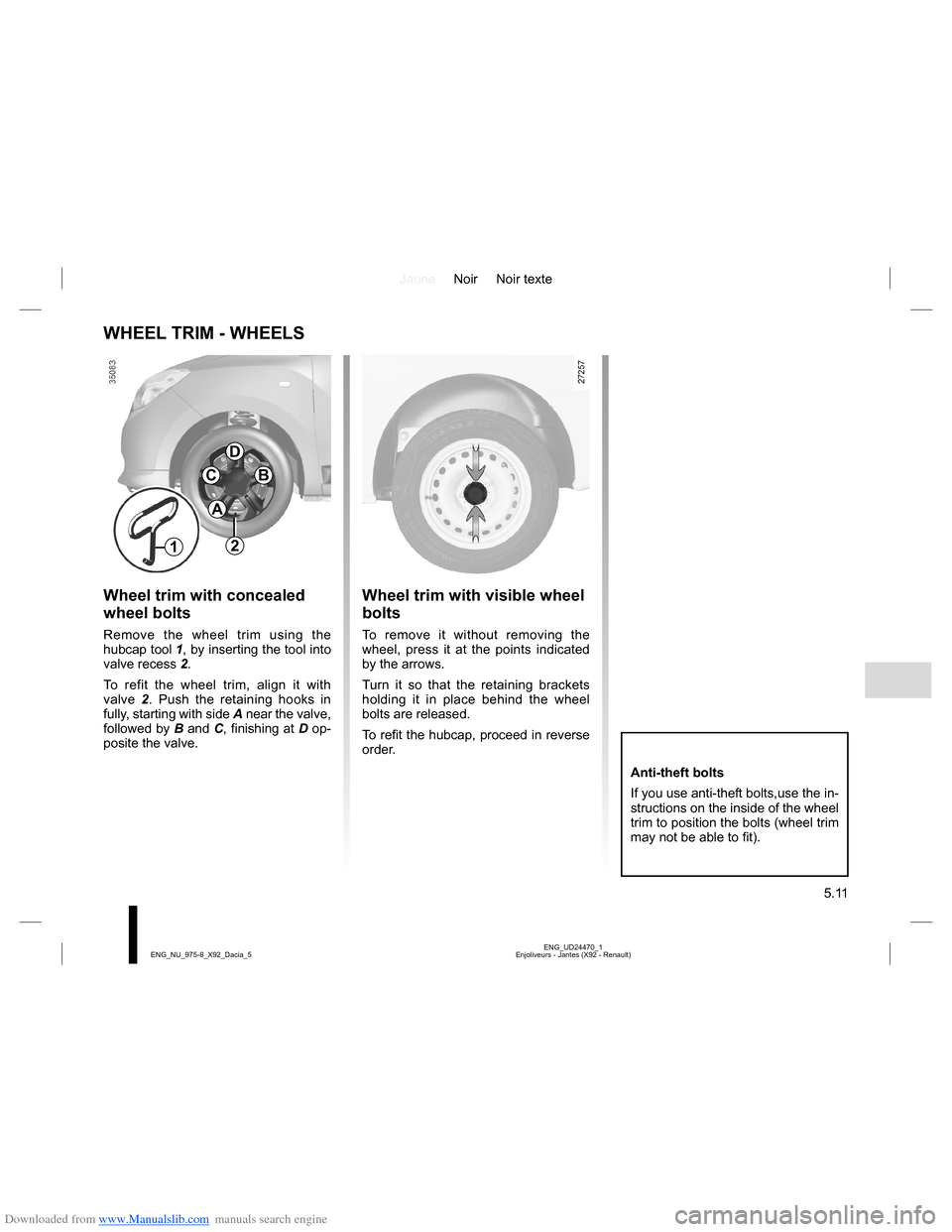

WHEEL TRIM - WHEELS
Wheel trim with concealed
wheel bolts
Remove the wheel trim using the
hubcap tool 1, by inserting the tool into
valve recess 2.
To refit the wheel trim, align it with
valve 2. Push the retaining hooks in
fully, starting with side A near the valve,
followed by B and C, finishing at D op-
posite the valve.
1
A
BC
D
2
Wheel trim with visible wheel
bolts
To remove it without removing the
wheel, press it at the points indicated
by the arrows.
Turn it so that the retaining brackets
holding it in place behind the wheel
bolts are released.
To refit the hubcap, proceed in reverse
order.
Anti-theft bolts
If you use anti-theft bolts,use the in-
structions on the inside of the wheel
trim to position the bolts (wheel trim
may not be able to fit).

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.12
ENG_UD38038_4
Changement de roue (X92 - Renault) ENG_NU_975-8_X92_Dacia_5
Place the jack 4 horizontally; the jack
head must be lined up with the sill 1
closest to the wheel concerned, as
shown by arrow 2.
Crank up the jack 4 by hand at first to
align the base plate (which should be
inclined further inwards than the jack
head).
Turn the wheelbrace until the wheel lifts
off the ground.

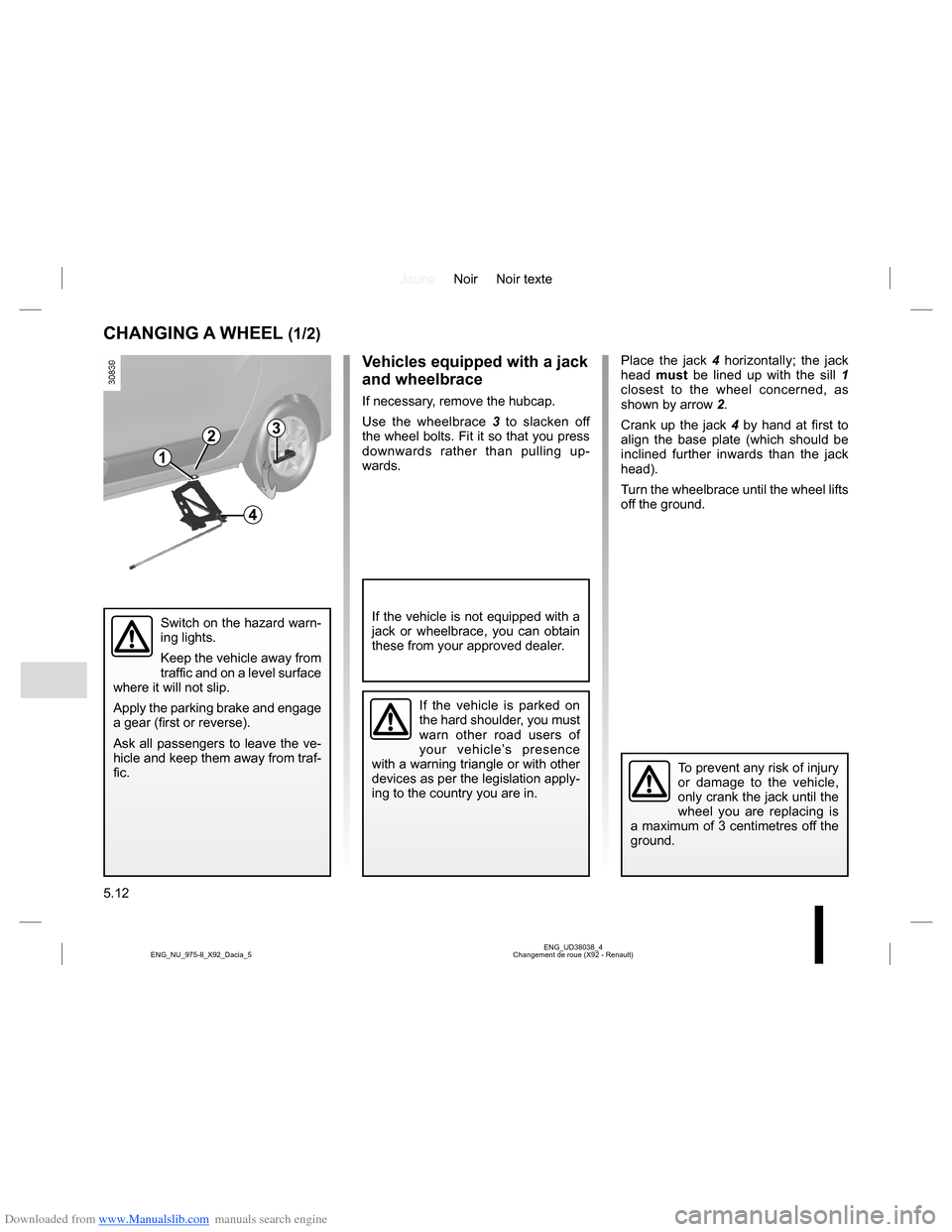

CHANGING A WHEEL (1/2)
Vehicles equipped with a jack
and wheelbrace
If necessary, remove the hubcap.
Use the wheelbrace 3 to slacken off
the wheel bolts. Fit it so that you press
downwards rather than pulling up-
wards.
If the vehicle is parked on
the hard shoulder, you must
warn other road users of
your vehicle’s presence
with a warning triangle or with other
devices as per the legislation apply-
ing to the country you are in.
To prevent any risk of injury
or damage to the vehicle,
only crank the jack until the
wheel you are replacing is
a maximum of 3 centimetres off the
ground.
If the vehicle is not equipped with a
jack or wheelbrace, you can obtain
these from your approved dealer.Switch on the hazard warn-
ing lights.
Keep the vehicle away from
traffic and on a level surface
where it will not slip.
Apply the parking brake and engage
a gear (first or reverse).
Ask all passengers to leave the ve-
hicle and keep them away from traf-
fic.
1
23
4

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.13
ENG_UD38038_4
Changement de roue (X92 - Renault) ENG_NU_975-8_X92_Dacia_5
Undo the bolts and take off the wheel.
Fit the emergency spare wheel on the
central hub and turn it to locate the
mounting holes in the wheel and the
hub.
If bolts are supplied with the emergency
spare wheel, only use these bolts for
the emergency spare wheel.
Tighten the bolts, checking that the
wheel is correctly positioned on its hub
and lower the jack.
With the wheel on the ground, tighten
the bolts fully and have the tightness
of the bolts checked (tightening torque:
110 N.m) and the emergency spare
wheel pressure checked as soon as
possible.
CHANGING A WHEEL (2/2)
If you have a puncture, re-
place the wheel as soon
as possible. A tyre which
has been punctured should
always be inspected (and repaired,
where possible) by a specialist.
Anti-theft bolts
If you use anti-theft bolts, please
refer to the instructions given on
the interior of the wheel trim to posi-
tion the bolts (wheel trim may not be
able to fit).

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.14
ENG_UD38040_3
Pneumatiques (X92 - Renault)ENG_NU_975-8_X92_Dacia_5
TYRES (1/3)
Tyre and wheel safety
The tyres are the only contact between
the vehicle and the road, so it is essen-
tial to keep them in good condition.
You must make sure that your tyres
conform to local road traffic regulations.
For your safety, please re-
spect the speed limit.
When they need to be re-
placed, only tyres of the
same make, size, type and profile
should be used on a single axle.
They must: either have a load ca-
pacity and speed rating at least
equal to those of the original
tyres, or conform to those recom-
mended by an authorised dealer.
Failure to heed these instructions
could endanger your safety and
affect your vehicle’s roadworthi-
ness.
Risk of loss of control of the ve-
hicle.
Maintaining the tyres
The tyres must be in good condition
and the tread form must have sufficient
depth; tyres approved by our Technical
Department have wear warning strips 1
which are indicators moulded into
the tread at several points.When the tyre tread has been worn
to the level of the warning strips, they
become visible 2: it is then neces-
sary to replace your tyres because the
tread rubber is now only 1.6 mm deep
at most, resulting in poor road hold-
ing on wet roads.
An overloaded vehicle, long journeys
by motorway, particularly in very hot
weather, or continual driving on poorly
surfaced minor roads will lead to more
rapid tyre wear and affect safety.
Incidents which occur when
driving, such as striking the
kerb, may damage the tyres
and wheel rims, and could
also lead to misalignment of the
front or rear axle geometry.
In this case, have the condition of
these checked by an approved
dealer.
1
2
