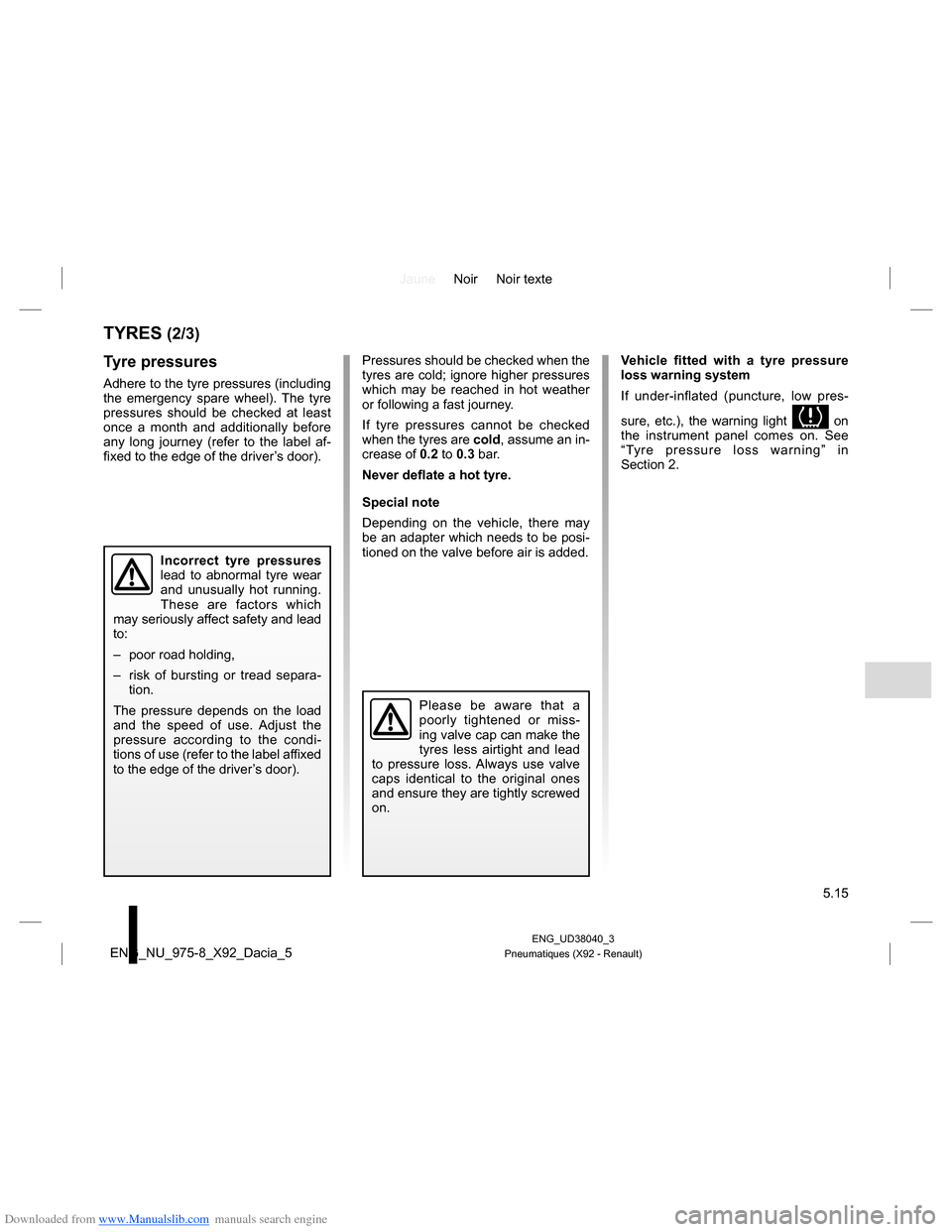

TYRES (2/3)
Tyre pressures
Adhere to the tyre pressures (including
the emergency spare wheel). The tyre
pressures should be checked at least
once a month and additionally before
any long journey (refer to the label af-
fixed to the edge of the driver’s door).
Pressures should be checked when the
tyres are cold; ignore higher pressures
which may be reached in hot weather
or following a fast journey.
If tyre pressures cannot be checked
when the tyres are cold, assume an in-
crease of 0.2 to 0.3 bar.
Never deflate a hot tyre.
Special note
Depending on the vehicle, there may
be an adapter which needs to be posi-
tioned on the valve before air is added.
Please be aware that a
poorly tightened or miss-
ing valve cap can make the
tyres less airtight and lead
to pressure loss. Always use valve
caps identical to the original ones
and ensure they are tightly screwed
on.
Incorrect tyre pressures
lead to abnormal tyre wear
and unusually hot running.
These are factors which
may seriously affect safety and lead
to:
– poor road holding,
– risk of bursting or tread separa-
tion.
The pressure depends on the load
and the speed of use. Adjust the
pressure according to the condi-
tions of use (refer to the label affixed
to the edge of the driver’s door).
Vehicle fitted with a tyre pressure
loss warning system
If under-inflated (puncture, low pres-
sure, etc.), the warning light
 on
the instrument panel comes on. See
“Tyre pressure loss warning” in
Section 2.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.16
ENG_UD38040_3
Pneumatiques (X92 - Renault)ENG_NU_975-8_X92_Dacia_5
Use in winter
Chains
For safety reasons, fitting snow
chains to the rear axle is strictly for-
bidden.
Chains must not be fitted to tyres
which are larger than those originally
fitted to the vehicle.
TYRES (3/3)
Snow or Winter tyres
We would recommend that these be
fitted to all four wheels to ensure that
your vehicle retains maximum adhe-
sion.
Warning: These tyres sometimes
have a specific direction of rotation
and a maximum speed index which
may be lower than the maximum
speed of your vehicle.
Studded tyres
This type of equipment may only be
used for a limited period and as laid
down by local legislation.
It is necessary to observe the speed
specified by current legislation.
These tyres must, at a minimum, be
fitted to the two front wheels.
In all cases, we would recommend
that you contact your approved
Dealer who will be able to advise
you on the choice of equipment
which is most suitable for your ve-
hicle.
Chains may only be fitted
to tyres of the same size
as those originally fitted to
your vehicle.
Only certain chains can be fitted to
tyres. Consult an approved dealer.
Special note for versions fitted
with 16” wheels: snow chains
may not be fitted.
If you wish to fit snow chains, you
must use special equipment.
Consult your approved dealer.
Changing wheels around
This practice is not recommended.
Emergency spare wheel
Refer to the information on “Puncture”
and “Changing a wheel” in Section 5.
Fitting new tyres
For safety reasons, this op-
eration must be carried out
by a specialist.
Fitting different tyres may
change your vehicle as follows:
– it may mean that your vehicle no
longer conforms to current regu-
lations;
– It may change the way it handles
when cornering;
– It may cause the steering to be
heavy;
– it may affect the use of snow
chains.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.17
ENG_UD36383_3
Feux avant : remplacement des lampes (X92 - Renault) ENG_NU_975-8_X92_Dacia_5
The following bulbs can be replaced.
However, we would advise you to have
them replaced by an approved dealer if
it proves difficult.
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
come on at any moment.
Risk of injury.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
Main beam headlights, dipped
beam headlights
Remove the connector from the bulb 5.
Remove cover A.
Unclip the spring 4 and take out the
bulb.
Bulb type: H4 anti UV (see box).
It is essential to use anti-U.V. 55W
bulbs so as not to damage the plastic
on the headlights.
Do not touch the bulb glass. Hold it
by its base.
When the bulb has been changed,
make sure you refit the cover correctly.
FRONT LIGHTS: changing bulbs
5
4
23
A
To comply with current legislation, or
as a precaution, you can obtain an
emergency kit from your approved
dealer containing a set of spare
bulbs and fuses.
1Daytime running light
Turn the bulb holder 1 a quarter of a
turn and take out the bulb.
Bulb type: P21W.
Front side light
Turn the bulb holder 2 a quarter of a
turn and take out the bulb.
Bulb type: W5W.
Direction indicator lights
Turn the bulb holder 3 a quarter of a
turn and take out the bulb.
Bulb type: PY21W.
1
32

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.18
ENG_UD29945_2
Feux de brouillard : remplacement des lampes (X92 - Renault) ENG_NU_975-8_X92_Dacia_5
Additional lights
If you wish to fit fog lights to your ve-
hicle, please see an authorised dealer.
FOG LIGHTS: changing bulbs
Front fog lights 1
Consult an approved dealer.
Bulb type: H16LL.
Any operation on (or modi-
fication to) the electrical
system must be performed
by an approved Dealer
since an incorrect connection might
damage the electrical equipment
(harness, components and in partic-
ular the alternator). In addition, your
Dealer has all the parts required for
fitting these units.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
come on at any moment.
Risk of injury.
To comply with local legislation, or
as a precaution, you can obtain an
emergency kit containing a set of
spare bulbs and fuses from an ap-
proved Dealer.
1

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.19
ENG_UD38060_4
Feux arrière: remplacement des lampes (X92 - Renault) ENG_NU_975-8_X92_Dacia_5
REAR AND SIDE LIGHTS: changing bulbs (1/3)

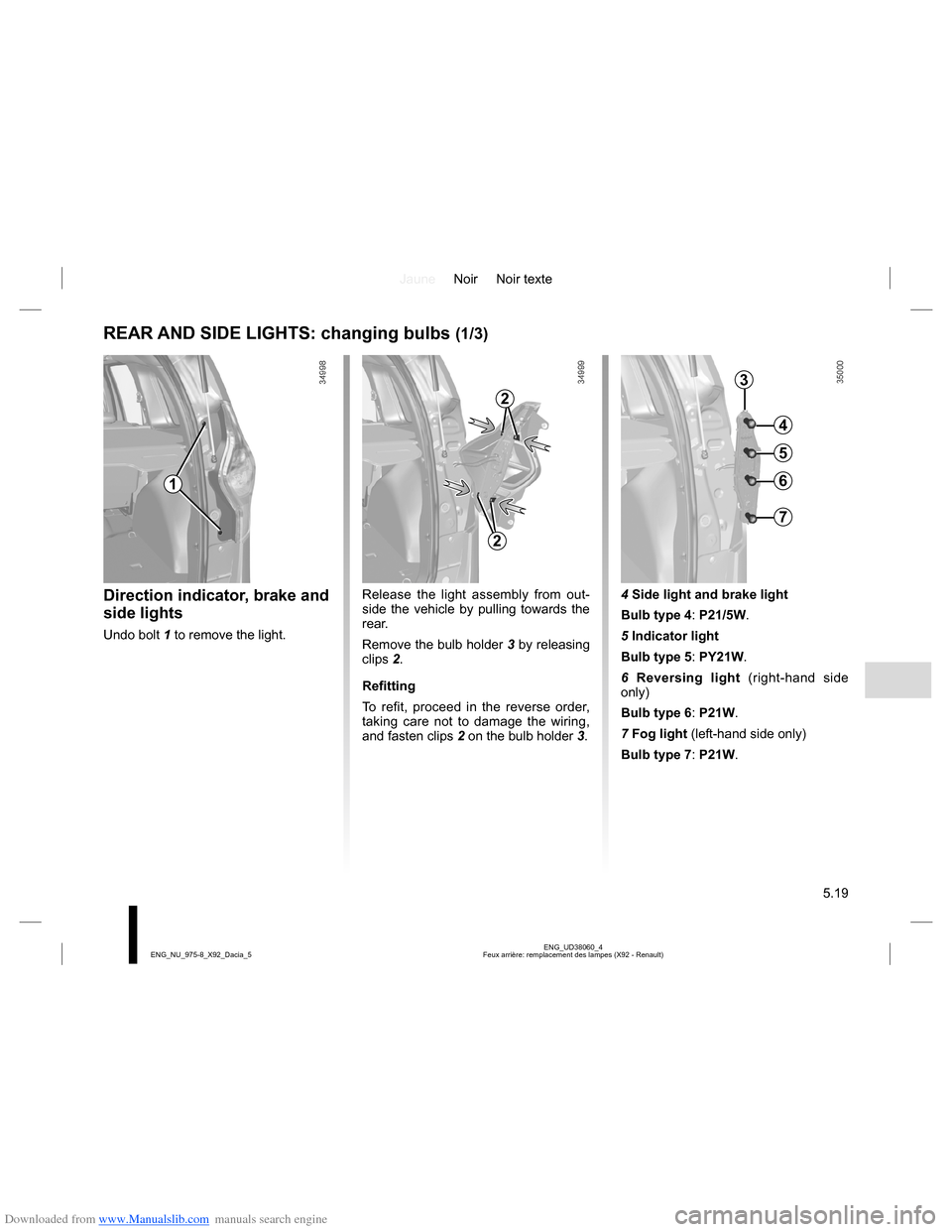

Direction indicator, brake and
side lights
Undo bolt 1 to remove the light.Release the light assembly from out-
side the vehicle by pulling towards the
rear.
Remove the bulb holder 3 by releasing
clips 2.
Refitting
To refit, proceed in the reverse order,
taking care not to damage the wiring,
and fasten clips 2 on the bulb holder 3.4 Side light and brake light
Bulb type 4: P21/5W.
5 Indicator light
Bulb type 5: PY21W.
6 Reversing light (right-hand side
only)
Bulb type 6: P21W.
7 Fog light (left-hand side only)
Bulb type 7: P21W.
3
4
5
61
7
2
2

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.20
ENG_UD38060_4
Feux arrière: remplacement des lampes (X92 - Renault) ENG_NU_975-8_X92_Dacia_5
REAR AND SIDE LIGHTS: changing bulbs (2/3)

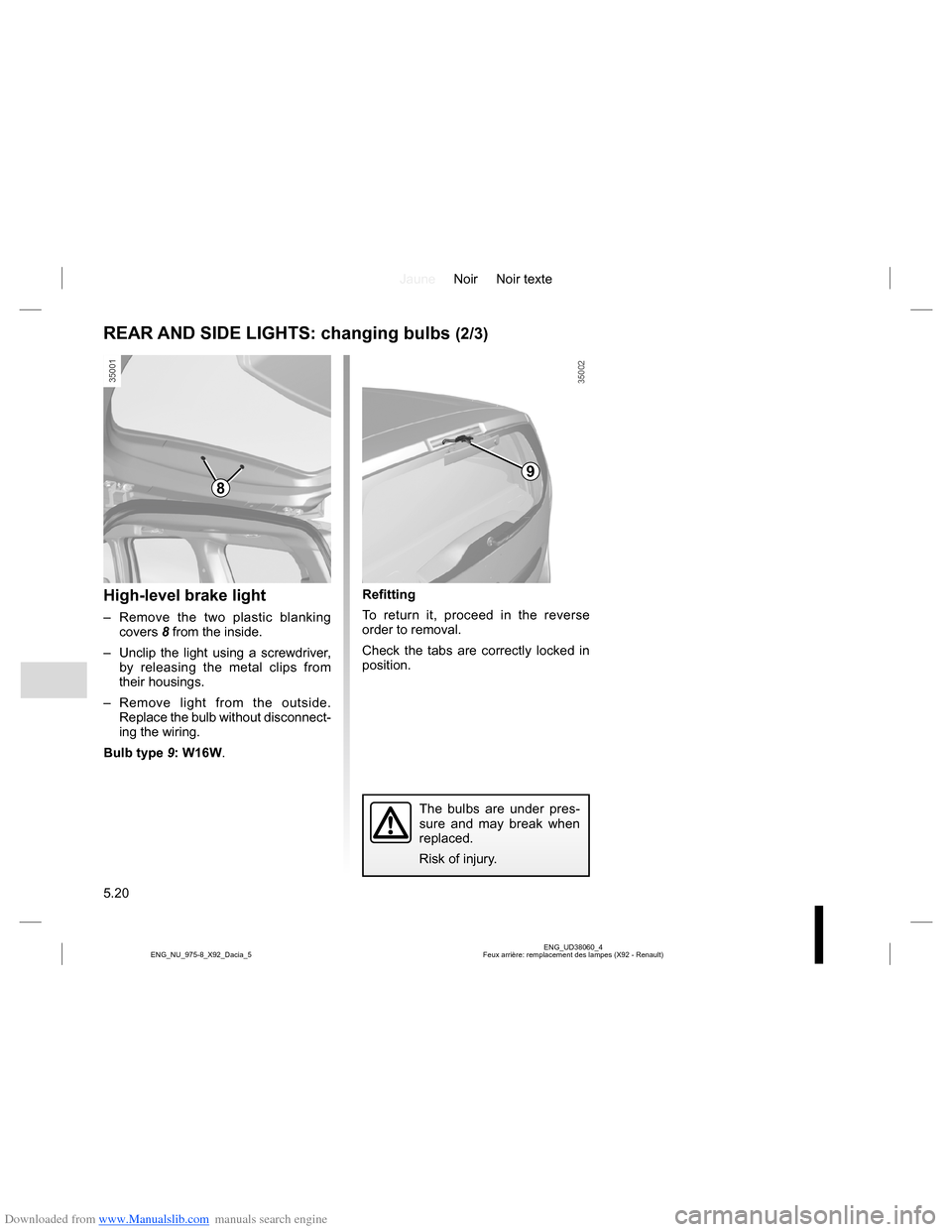

High-level brake light
– Remove the two plastic blanking
covers 8 from the inside.
– Unclip the light using a screwdriver,
by releasing the metal clips from
their housings.
– Remove light from the outside.
Replace the bulb without disconnect-
ing the wiring.
Bulb type 9: W16W.
Refitting
To return it, proceed in the reverse
order to removal.
Check the tabs are correctly locked in
position.
The bulbs are under pres-
sure and may break when
replaced.
Risk of injury.
9
8

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.21
ENG_UD38060_4
Feux arrière: remplacement des lampes (X92 - Renault) ENG_NU_975-8_X92_Dacia_5
REAR AND SIDE LIGHTS: changing bulbs (3/3)

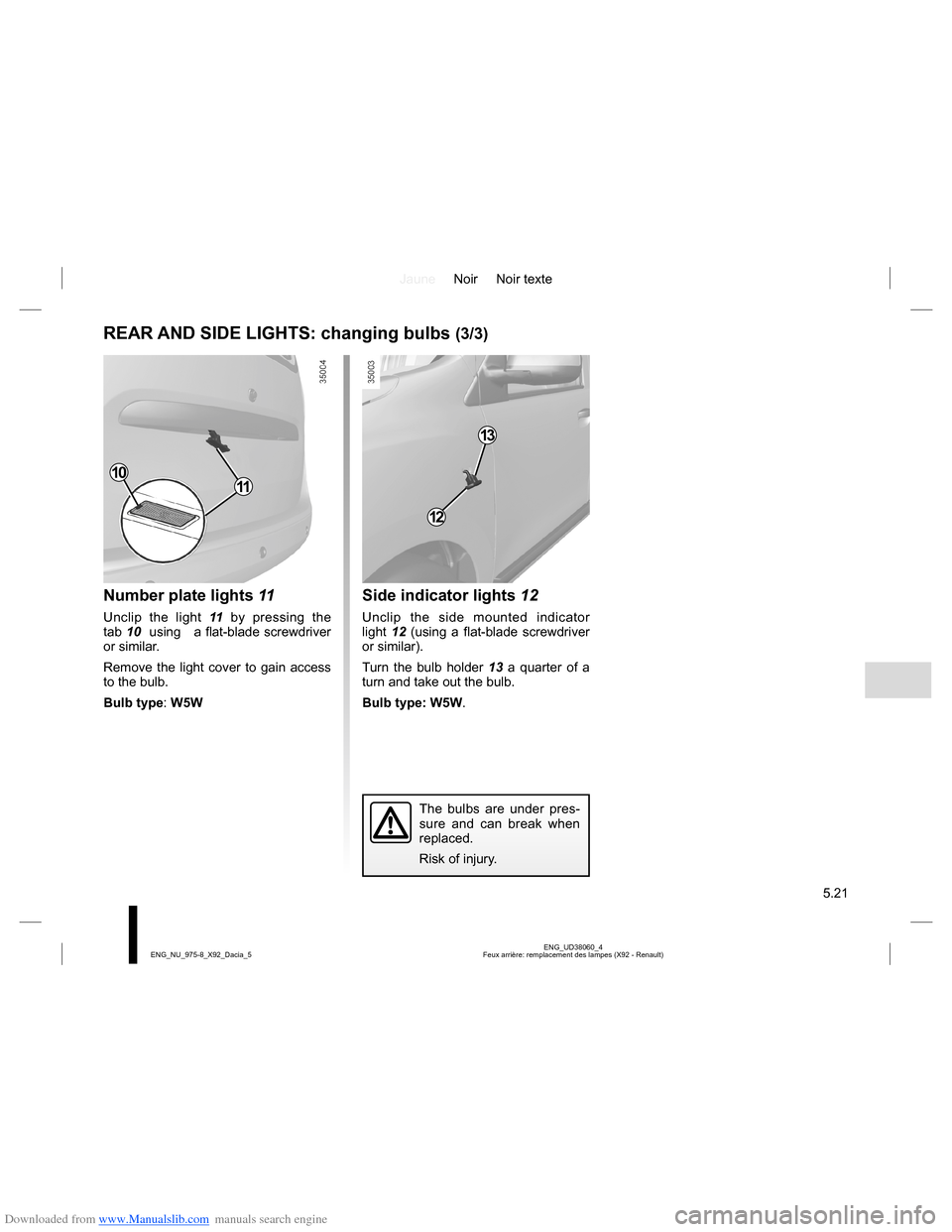

Number plate lights 11
Unclip the light 11 by pressing the
tab 10 using a flat-blade screwdriver
or similar.
Remove the light cover to gain access
to the bulb.
Bulb type: W5W
1110
Side indicator lights 12
Unclip the side mounted indicator
light 12 (using a flat-blade screwdriver
or similar).
Turn the bulb holder 13 a quarter of a
turn and take out the bulb.
Bulb type: W5W.
13
12
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.22
ENG_UD38162_3
Eclaireurs intérieurs: remplacement des lampes (X92 - Renault) ENG_NU_975-8_X92_Dacia_5
INTERIOR LIGHTING: changing bulbs (1/2)

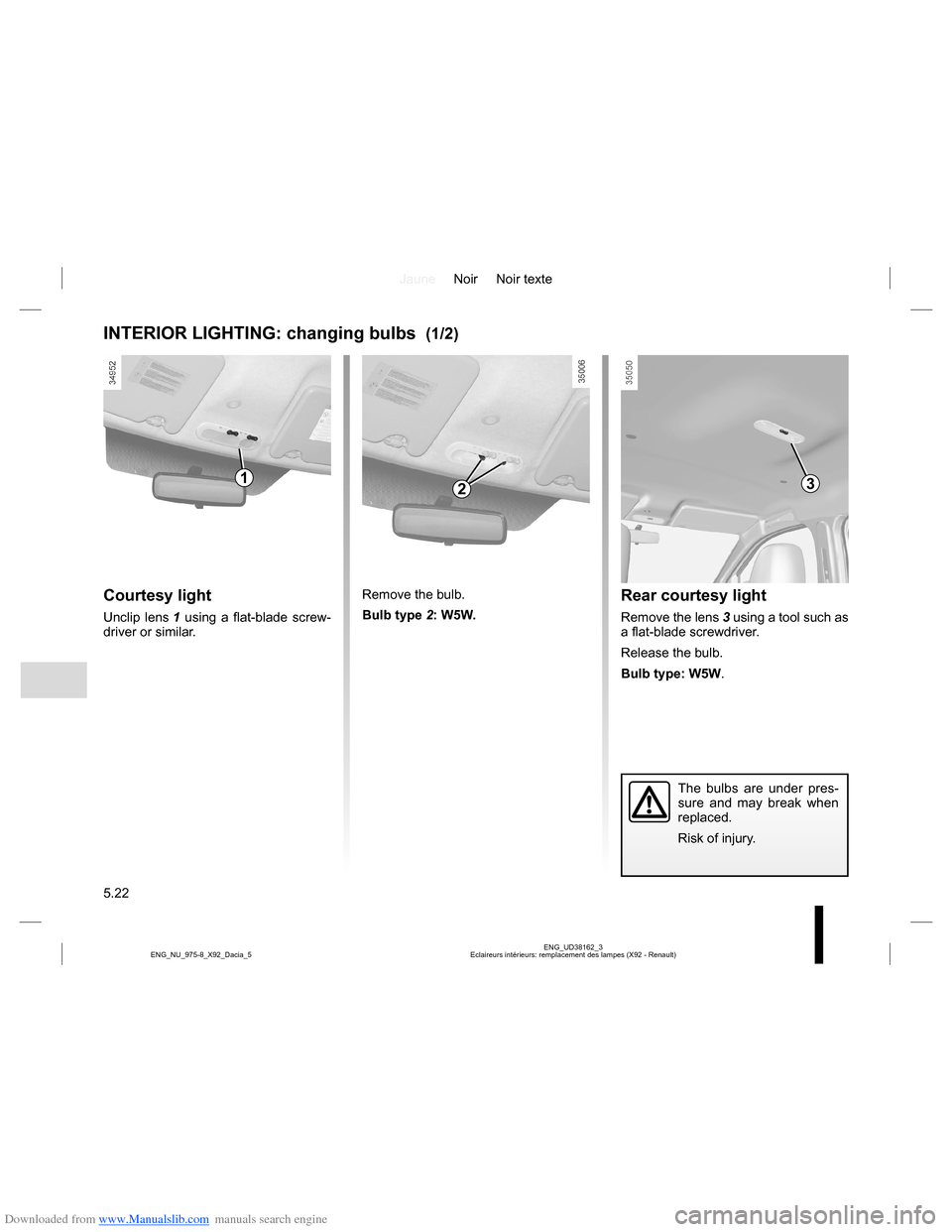

Courtesy light
Unclip lens 1 using a flat-blade screw-
driver or similar.Remove the bulb.
Bulb type 2: W5W.
Rear courtesy light
Remove the lens 3 using a tool such as
a flat-blade screwdriver.
Release the bulb.
Bulb type: W5W.
123
The bulbs are under pres-
sure and may break when
replaced.
Risk of injury.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.23
ENG_UD38162_3
Eclaireurs intérieurs: remplacement des lampes (X92 - Renault) ENG_NU_975-8_X92_Dacia_5
INTERIOR LIGHTING: changing bulbs (2/2)

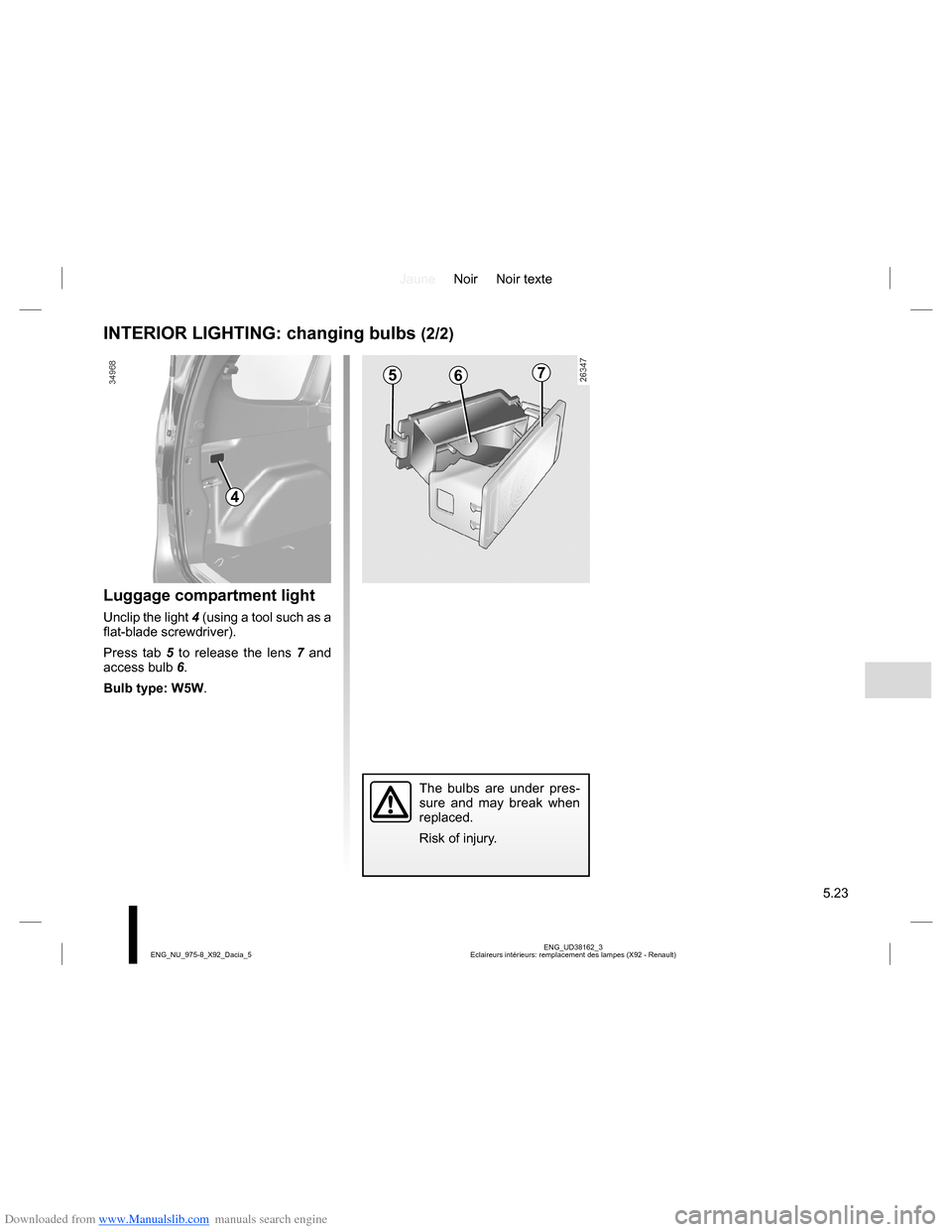

Luggage compartment light
Unclip the light 4 (using a tool such as a
flat-blade screwdriver).
Press tab 5 to release the lens 7 and
access bulb 6.
Bulb type: W5W.
The bulbs are under pres-
sure and may break when
replaced.
Risk of injury.
567
4

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.24
ENG_UD38160_5
Fusibles (X92 - Renault) ENG_NU_975-8_X92_Dacia_5
Fuses in passenger compartment A
If any electrical component does not
work, check the condition of the fuses.
Unclip the access flap A.
Check the fuse in question
and replace it, if necessary,
with a fuse of the same
rating.
If a fuse is fitted where the rating is
too high, it may cause the electrical
circuit to overheat (risk of fire) in the
event of an item of equipment using
an excessive amount of current.
FUSES (1/4)
A
To comply with current legislation,
or as a precaution, you can obtain
an emergency kit from your appro-
ved dealer containing a set of spare
bulbs and fuses.
Clip 1
Remove the fuse using tweezers 1, lo-
cated at the back of flap A.
To remove the fuse from the tweezers,
slide the fuse to the side.
It is not advisable to use the free fuse
locations.
1
