DAEWOO NUBIRA 2004 Service Repair Manual

ELECTRICAL WIRING DIAGRAMSW5–171
c. POSITION OF CONNECTORS AND GROUNDS
S W/H INSTRUMENT PANEL
d. SPLICE PACK
S203
S204

5–172WELECTRICAL WIRING DIAGRAMS

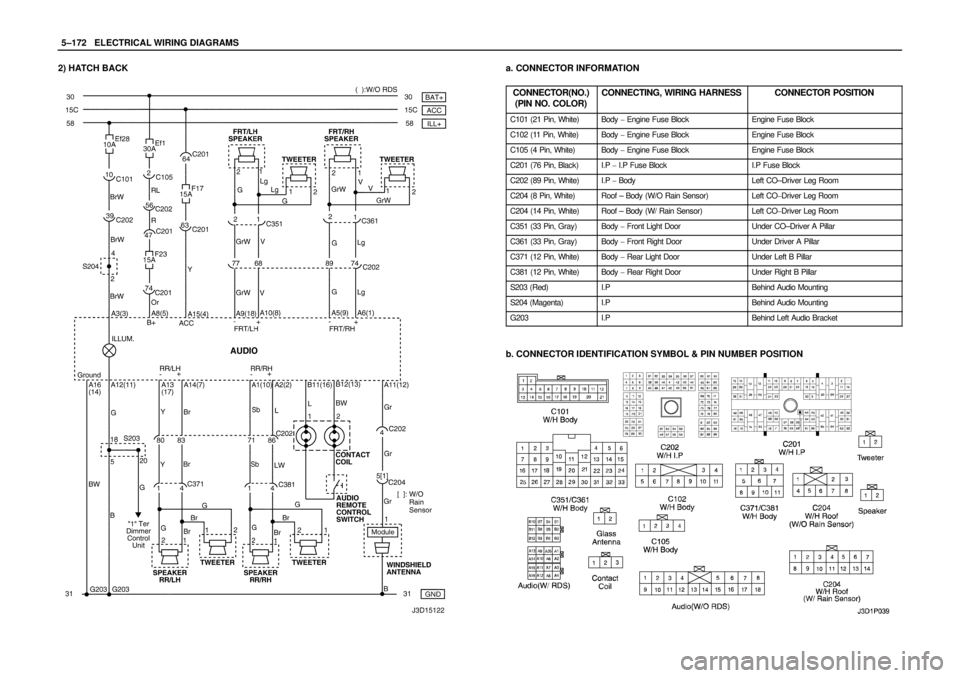

2) HATCH BACKa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C105 (4 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C204 (8 Pin, White)Roof – Body (W/O Rain Sensor)Left CO
Driver Leg Room
C204 (14 Pin, White)Roof – Body (W/ Rain Sensor)Left CO
Driver Leg Room
C351 (33 Pin, Gray)Body
Front Light DoorUnder CO–Driver A Pillar
C361 (33 Pin, Gray)Body
Front Right DoorUnder Driver A Pillar
C371 (12 Pin, White)Body
Rear Light DoorUnder Left B Pillar
C381 (12 Pin, White)Body
Rear Right DoorUnder Right B Pillar
S203 (Red)I.PBehind Audio Mounting
S204 (Magenta)I.PBehind Audio Mounting
G203I.PBehind Left Audio Bracket
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

ELECTRICAL WIRING DIAGRAMSW5–173
c. POSITION OF CONNECTORS AND GROUNDS
S W/H INSTRUMENT PANEL
S W/H DRIVE DOOR
d. SPLICE PACK
S203
S204

5–174WELECTRICAL WIRING DIAGRAMS
27. ABS (ANTILOCK BRAKE SYSTEM)
1) POWER SUPPLY, WHEEL SPEED SENSOR & BRAKE SWITCH CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C107 (2 Pin, White)ABS
Engine Fuse BlockEngine Fuse Block
C110 (12 Pin, White)ABS
BodyBelow Engine Fuse Block
C 111 ( 2 P i n , B l a c k )ABS
FrontBelow Engine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C302 (4 Pin, Black)RR. ABS
BodyCenter Rear Cross member
S301 (Blue)BodyLeft CO–Driver Leg Room
G106ABSBelow EBCM
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P067

ELECTRICAL WIRING DIAGRAMSW5–175
c. POSITION OF CONNECTORS AND GROUNDS
S W/H BODY
S W/H ABS
S W/H REAR ABS
d. SPLICE PACK
S301 (NOTCH BACK)
S301 (HATCH BACK)

5–176WELECTRICAL WIRING DIAGRAMS

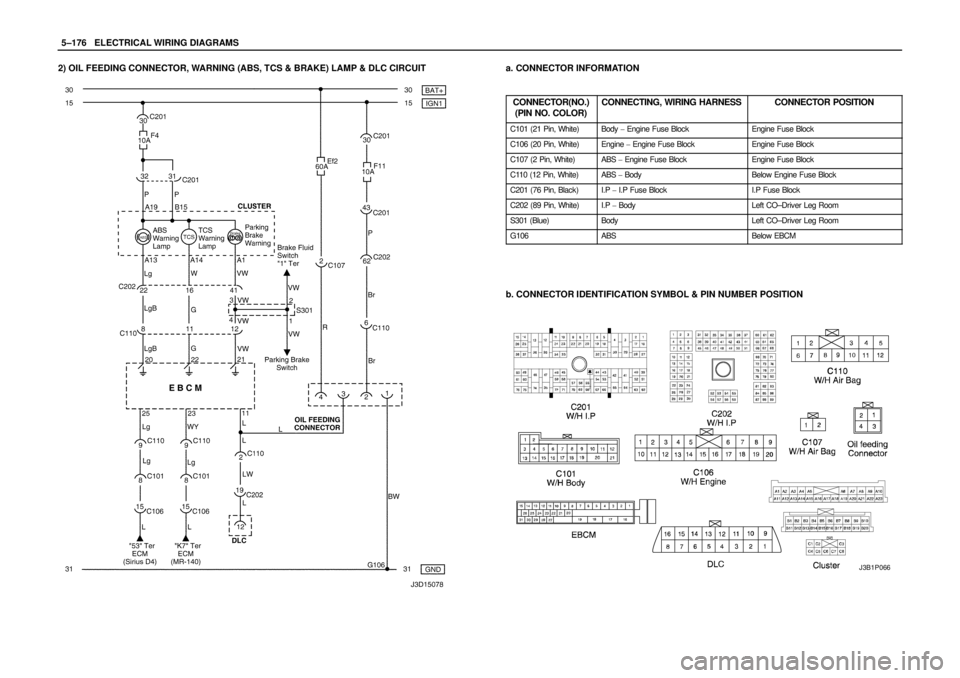

2) OIL FEEDING CONNECTOR, WARNING (ABS, TCS & BRAKE) LAMP & DLC CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C107 (2 Pin, White)ABS
Engine Fuse BlockEngine Fuse Block
C110 (12 Pin, White)ABS
BodyBelow Engine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
S301 (Blue)BodyLeft CO–Driver Leg Room
G106ABSBelow EBCM
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P066

ELECTRICAL WIRING DIAGRAMSW5–177
c. POSITION OF CONNECTORS AND GROUNDS
S W/H INSTRUMENT PANEL
S W/H ABS
d. SPLICE PACK
S301 (NOTCH BACK)
S301 (HATCH BACK)

5–178WELECTRICAL WIRING DIAGRAMS

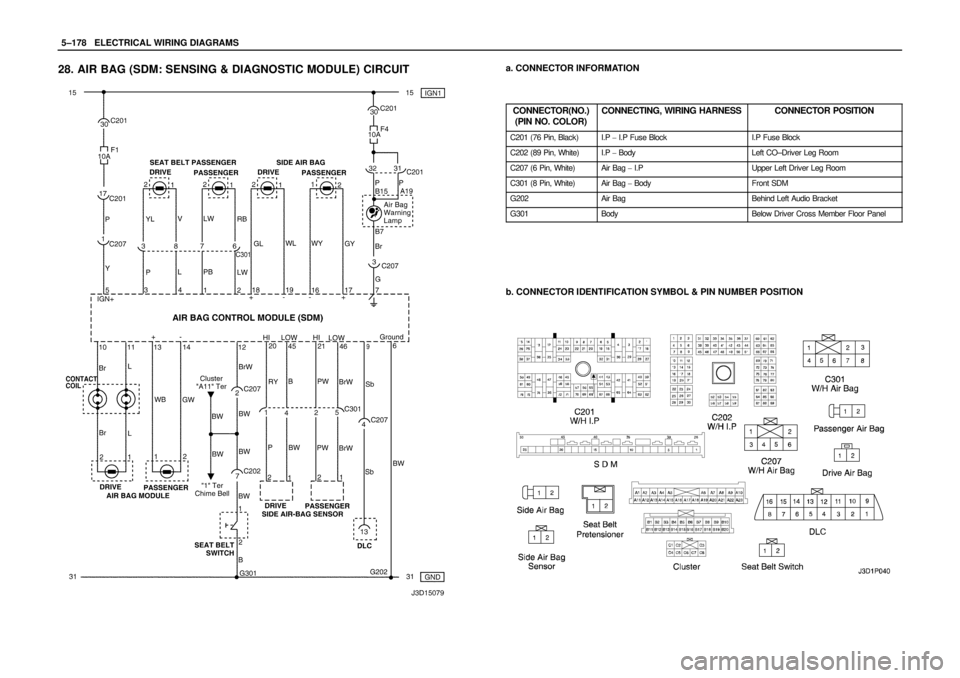

28. AIR BAG (SDM: SENSING & DIAGNOSTIC MODULE) CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C207 (6 Pin, White)Air Bag
I.PUpper Left Driver Leg Room
C301 (8 Pin, White)Air Bag
BodyFront SDM
G202Air BagBehind Left Audio Bracket
G301BodyBelow Driver Cross Member Floor Panel
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

ELECTRICAL WIRING DIAGRAMSW5–179
c. POSITION OF CONNECTORS AND GROUNDS
S W/H AIR BAG
S W/H INSTRUMENT PANEL

5–180WELECTRICAL WIRING DIAGRAMS

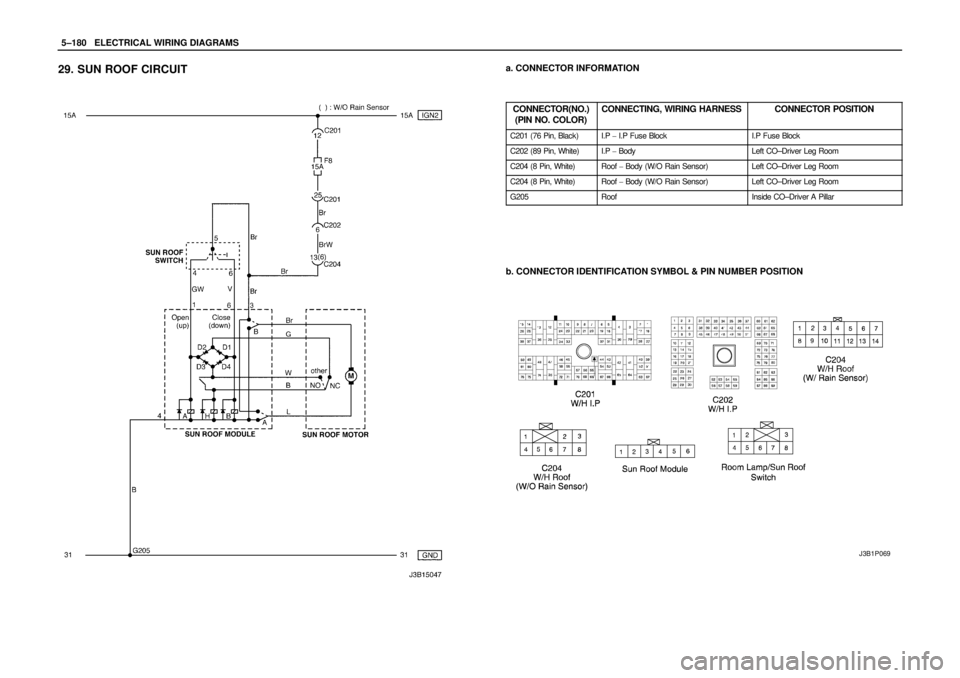

29. SUN ROOF CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C204 (8 Pin, White)Roof
Body (W/O Rain Sensor)Left CO–Driver Leg Room
C204 (8 Pin, White)Roof
Body (W/O Rain Sensor)Left CO–Driver Leg Room
G205RoofInside CO–Driver A Pillar
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
