DAEWOO NUBIRA 2004 Service Repair Manual

ELECTRICAL WIRING DIAGRAMSW5–151
c. POSITION OF CONNECTORS AND GROUNDS
S W/H INSTRUMENT PANEL
S W/H DRIVE DOOR

5–152WELECTRICAL WIRING DIAGRAMS

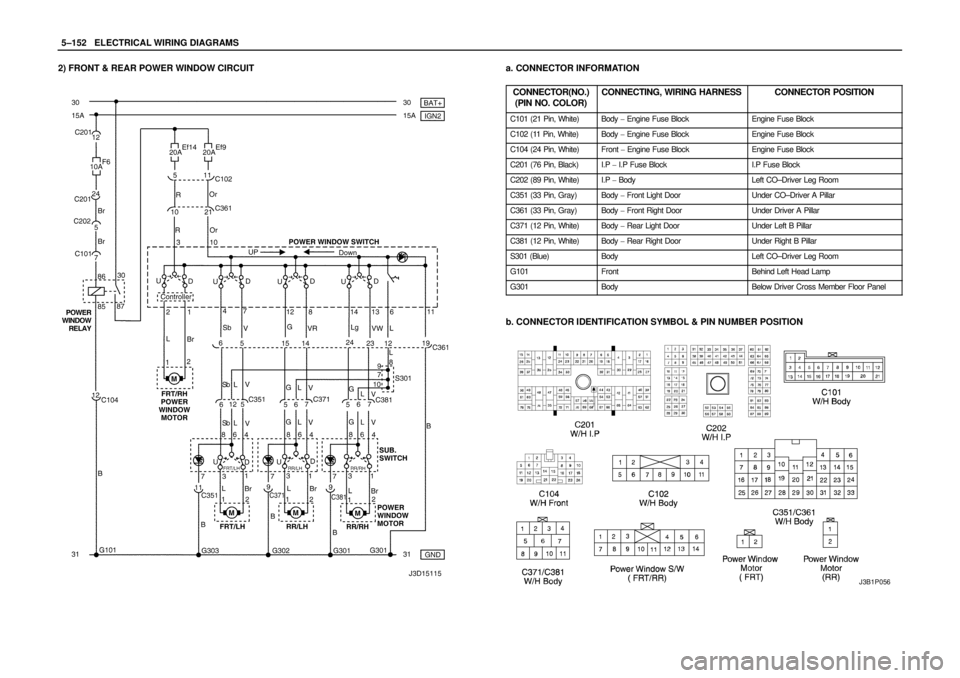

2) FRONT & REAR POWER WINDOW CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C104 (24 Pin, White)Front
Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C351 (33 Pin, Gray)Body
Front Light DoorUnder CO–Driver A Pillar
C361 (33 Pin, Gray)Body
Front Right DoorUnder Driver A Pillar
C371 (12 Pin, White)Body
Rear Light DoorUnder Left B Pillar
C381 (12 Pin, White)Body
Rear Right DoorUnder Right B Pillar
S301 (Blue)BodyLeft CO–Driver Leg Room
G101FrontBehind Left Head Lamp
G301BodyBelow Driver Cross Member Floor Panel
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P056

ELECTRICAL WIRING DIAGRAMSW5–153
c. POSITION OF CONNECTORS AND GROUNDS
S W/H DRIVE DOOR
S W/H REAR DOOR
S W/H INSTRUMENT PANEL
d. SPLICE PACK
S301 (NOTCH BACK)
S301 (HATCH BACK)

5–154WELECTRICAL WIRING DIAGRAMS

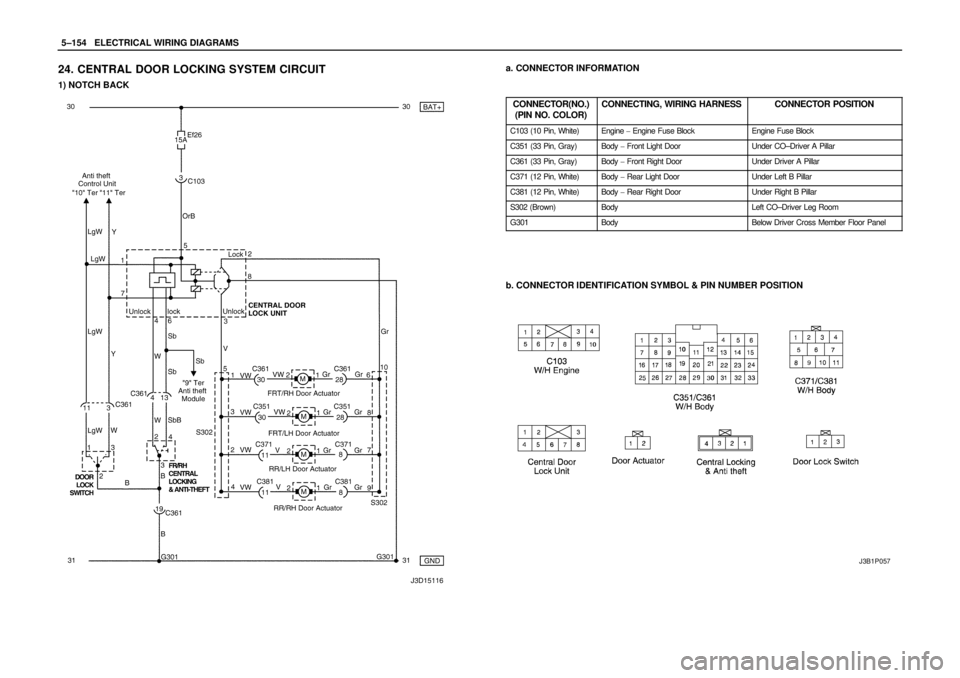

24. CENTRAL DOOR LOCKING SYSTEM CIRCUIT
1) NOTCH BACK
a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C103 (10 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C351 (33 Pin, Gray)Body
Front Light DoorUnder CO–Driver A Pillar
C361 (33 Pin, Gray)Body
Front Right DoorUnder Driver A Pillar
C371 (12 Pin, White)Body
Rear Light DoorUnder Left B Pillar
C381 (12 Pin, White)Body
Rear Right DoorUnder Right B Pillar
S302 (Brown)BodyLeft CO–Driver Leg Room
G301BodyBelow Driver Cross Member Floor Panel
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P057

ELECTRICAL WIRING DIAGRAMSW5–155
c. POSITION OF CONNECTORS AND GROUNDS
S W/H DRIVE DOOR
S W/H REAR DOOR
S W/H INSTRUMENT PANEL
d. SPLICE PACK
S302

5–156WELECTRICAL WIRING DIAGRAMS

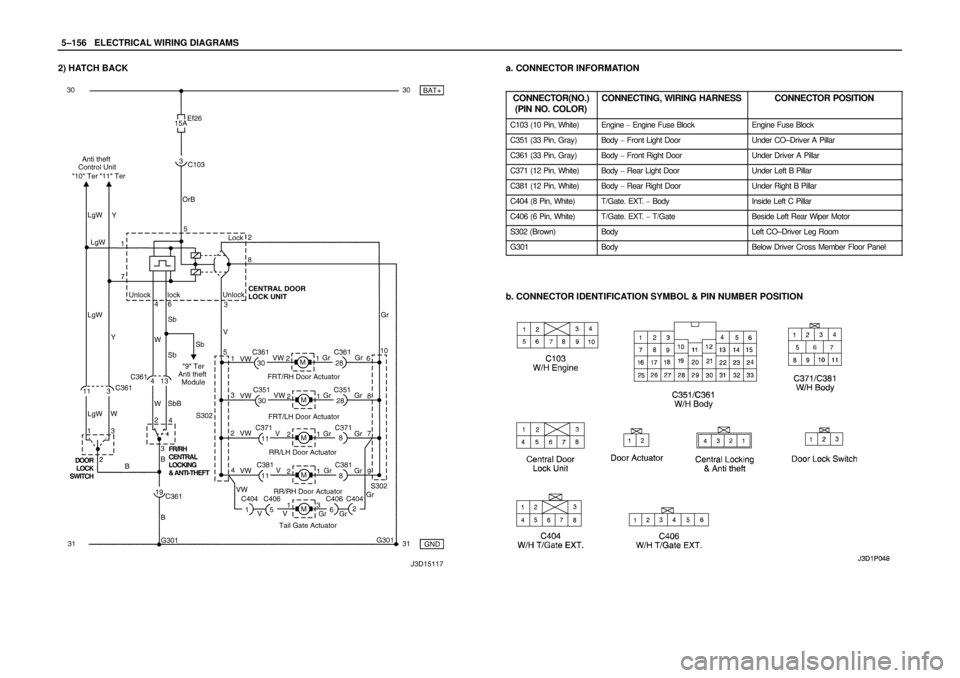

2) HATCH BACKa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C103 (10 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C351 (33 Pin, Gray)Body
Front Light DoorUnder CO–Driver A Pillar
C361 (33 Pin, Gray)Body
Front Right DoorUnder Driver A Pillar
C371 (12 Pin, White)Body
Rear Light DoorUnder Left B Pillar
C381 (12 Pin, White)Body
Rear Right DoorUnder Right B Pillar
C404 (8 Pin, White)T/Gate. EXT.
BodyInside Left C Pillar
C406 (6 Pin, White)T/Gate. EXT.
T/GateBeside Left Rear Wiper Motor
S302 (Brown)BodyLeft CO–Driver Leg Room
G301BodyBelow Driver Cross Member Floor Panel
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

ELECTRICAL WIRING DIAGRAMSW5–157
c. POSITION OF CONNECTORS AND GROUNDS
S W/H DRIVE DOOR
S W/H REAR DOOR
S W/H INSTRUMENT PANEL
d. SPLICE PACK
S302

5–158WELECTRICAL WIRING DIAGRAMS

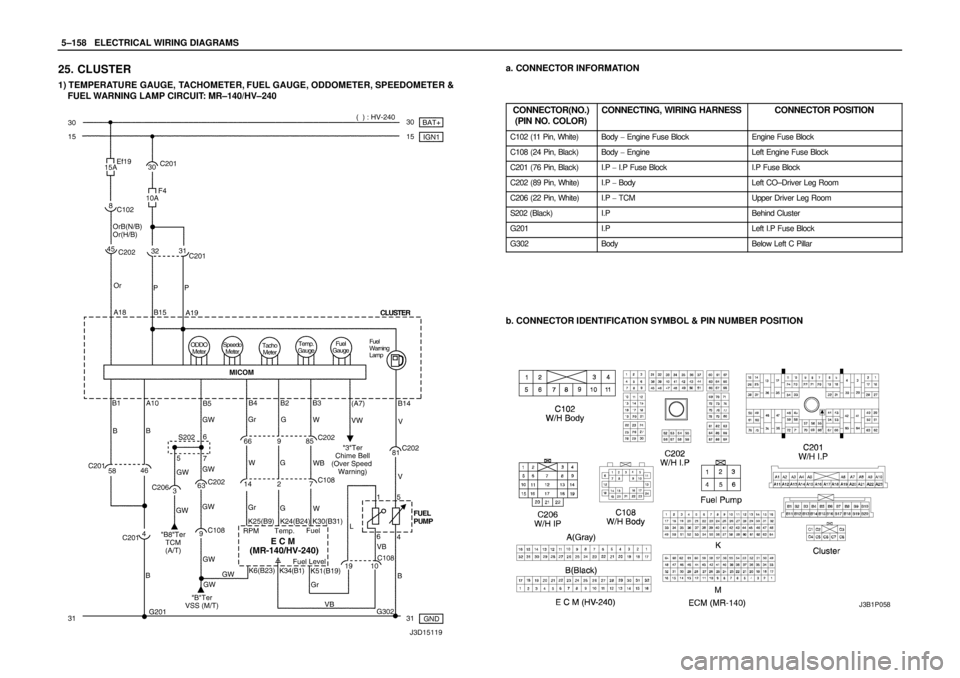

25. CLUSTER
1) TEMPERATURE GAUGE, TACHOMETER, FUEL GAUGE, ODDOMETER, SPEEDOMETER &
FUEL WARNING LAMP CIRCUIT: MR–140/HV–240
a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P
TCMUpper Driver Leg Room
S202 (Black)I.PBehind Cluster
G201I.PLeft I.P Fuse Block
G302BodyBelow Left C Pillar
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P058

ELECTRICAL WIRING DIAGRAMSW5–159
c. POSITION OF CONNECTORS AND GROUNDS
S W/H INSTRUMENT PANEL
d. SPLICE PACK
S202

5–160WELECTRICAL WIRING DIAGRAMS

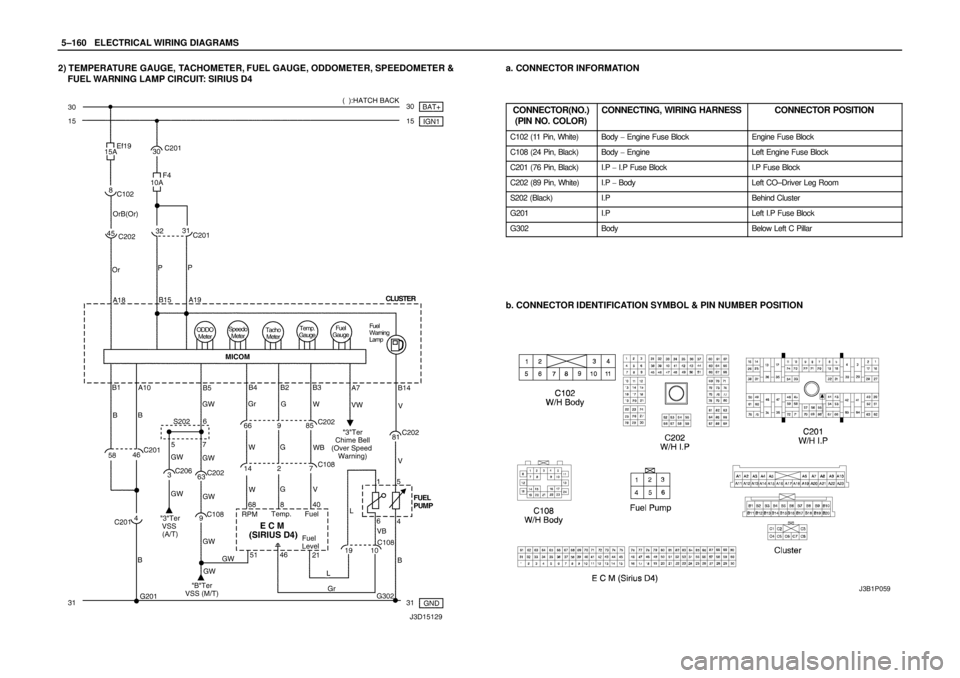

2) TEMPERATURE GAUGE, TACHOMETER, FUEL GAUGE, ODDOMETER, SPEEDOMETER &
FUEL WARNING LAMP CIRCUIT: SIRIUS D4a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
S202 (Black)I.PBehind Cluster
G201I.PLeft I.P Fuse Block
G302BodyBelow Left C Pillar
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P059
