Page 1341 of 2643
ELECTRICAL WIRING DIAGRAMSW5–181
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ROOF
S W/H INSTRUMENT PANEL
Page 1342 of 2643
5–182WELECTRICAL WIRING DIAGRAMS

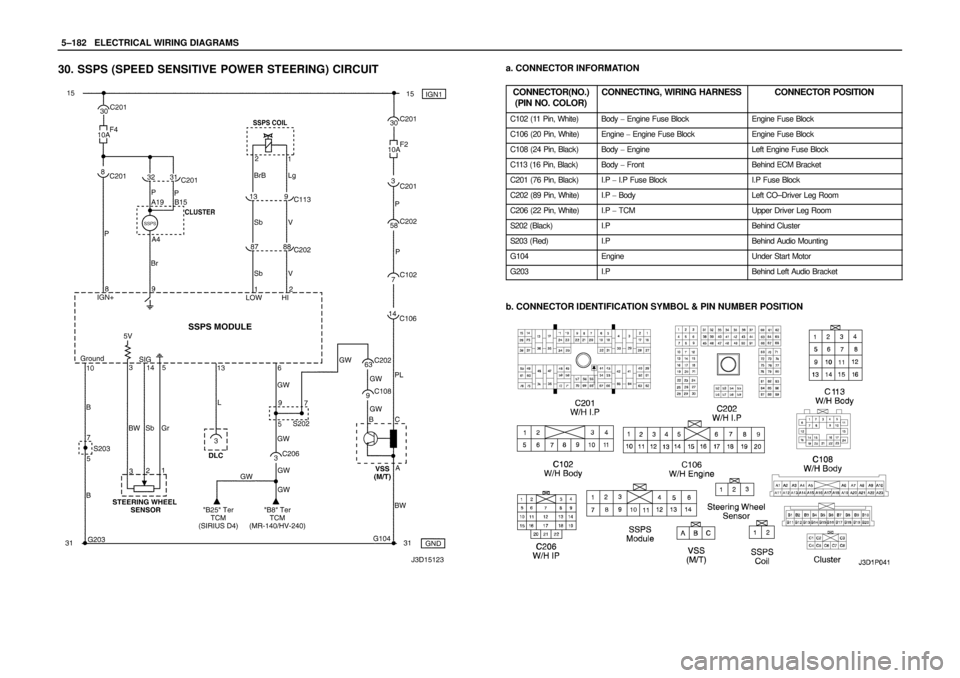

30. SSPS (SPEED SENSITIVE POWER STEERING) CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body EngineLeft Engine Fuse Block
C113 (16 Pin, Black)Body FrontBehind ECM Bracket
C201 (76 Pin, Black)I.P I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P TCMUpper Driver Leg Room
S202 (Black)I.PBehind Cluster
S203 (Red)I.PBehind Audio Mounting
G104EngineUnder Start Motor
G203I.PBehind Left Audio Bracket
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
Page 1343 of 2643
ELECTRICAL WIRING DIAGRAMSW5–183
c. POSITION OF CONNECTORS AND GROUNDS
S W/H INSTRUMENT PANEL
d. SPLICE PACK
S202
S203
Page 1344 of 2643
5–184WELECTRICAL WIRING DIAGRAMS

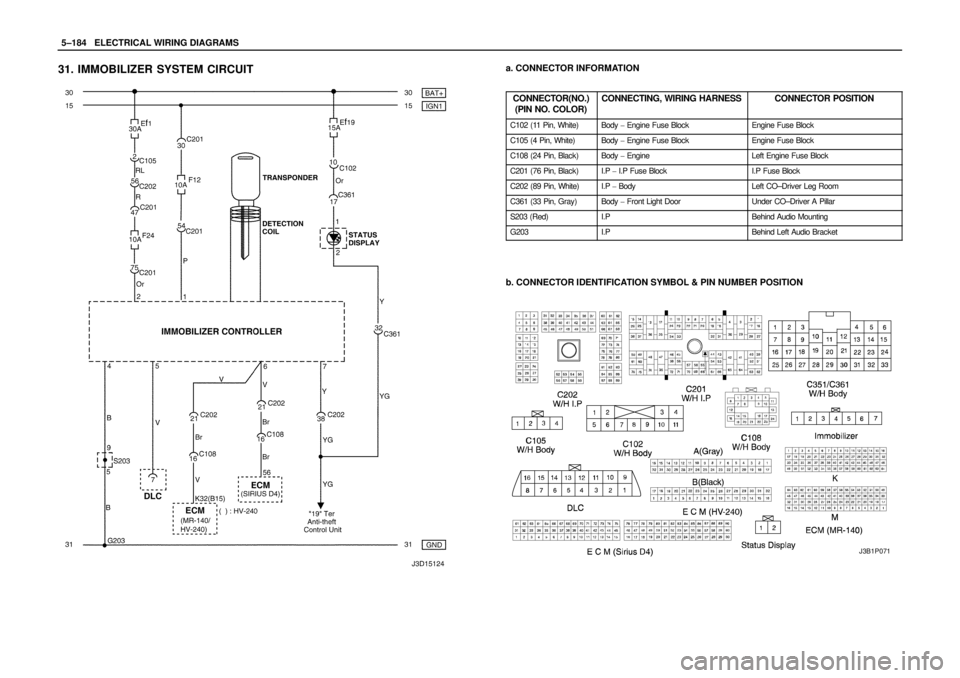

31. IMMOBILIZER SYSTEM CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body Engine Fuse BlockEngine Fuse Block
C105 (4 Pin, White)Body Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body EngineLeft Engine Fuse Block
C201 (76 Pin, Black)I.P I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P BodyLeft CO–Driver Leg Room
C361 (33 Pin, Gray)Body Front Light DoorUnder CO–Driver A Pillar
S203 (Red)I.PBehind Audio Mounting
G203I.PBehind Left Audio Bracket
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P071
Page 1345 of 2643
ELECTRICAL WIRING DIAGRAMSW5–185
c. POSITION OF CONNECTORS AND GROUNDS
S W/H INSTRUMENT PANEL
d. SPLICE PACK
S203
Page 1346 of 2643
5–186WELECTRICAL WIRING DIAGRAMS

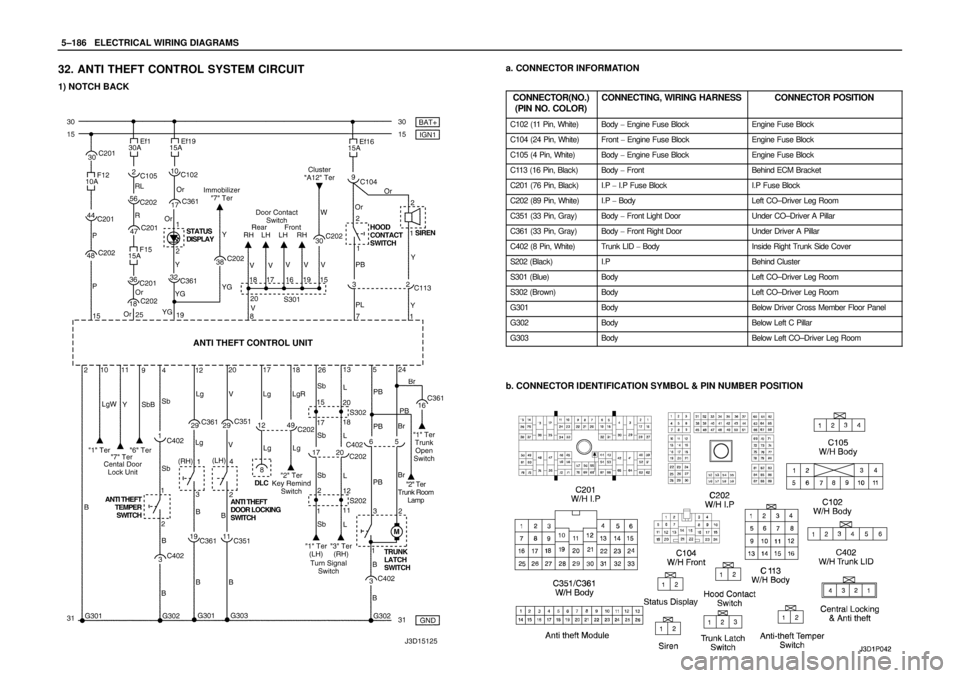

32. ANTI THEFT CONTROL SYSTEM CIRCUIT
1) NOTCH BACK
a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body Engine Fuse BlockEngine Fuse Block
C104 (24 Pin, White)Front Engine Fuse BlockEngine Fuse Block
C105 (4 Pin, White)Body Engine Fuse BlockEngine Fuse Block
C113 (16 Pin, Black)Body FrontBehind ECM Bracket
C201 (76 Pin, Black)I.P I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P BodyLeft CO–Driver Leg Room
C351 (33 Pin, Gray)Body Front Light DoorUnder CO–Driver A Pillar
C361 (33 Pin, Gray)Body Front Right DoorUnder Driver A Pillar
C402 (8 Pin, White)Trunk LID BodyInside Right Trunk Side Cover
S202 (Black)I.PBehind Cluster
S301 (Blue)BodyLeft CO–Driver Leg Room
S302 (Brown)BodyLeft CO–Driver Leg Room
G301BodyBelow Driver Cross Member Floor Panel
G302BodyBelow Left C Pillar
G303BodyBelow Left CO–Driver Leg Room
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
Page 1347 of 2643
ELECTRICAL WIRING DIAGRAMSW5–187
c. POSITION OF CONNECTORS AND GROUNDS
S W/H BODY
d. SPLICE PACK
S202
S301
S302
Page 1348 of 2643
5–188WELECTRICAL WIRING DIAGRAMS
2) HATCH BACKa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body Engine Fuse BlockEngine Fuse Block
C104 (24 Pin, White)Front Engine Fuse BlockEngine Fuse Block
C105 (4 Pin, White)Body Engine Fuse BlockEngine Fuse Block
C113 (16 Pin, Black)Body FrontBehind ECM Bracket
C201 (76 Pin, Black)I.P I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P BodyLeft CO–Driver Leg Room
C351 (33 Pin, Gray)Body Front Light DoorUnder CO–Driver A Pillar
C361 (33 Pin, Gray)Body Front Right DoorUnder Driver A Pillar
C404 (8 Pin, White)T/Gate. EXT. BodyInside Left C Pillar
C405 (8 Pin, White)T/Gate. EXT. T/GateBeside Left Rear Wiper Motor
C406 (6 Pin, White)T/Gate. EXT. T/GateBeside Left Rear Wiper Motor
S202 (Black)I.PBehind Cluster
S301 (Blue)BodyLeft CO–Driver Leg Room
S302 (Brown)BodyLeft CO–Driver Leg Room
G301BodyBelow Driver Cross Member Floor Panel
G302BodyBelow Left C Pillar
G303BodyBelow Left CO–Driver Leg Room
G402T/Gate. EXT.Inside Driver C Pillar
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
Page 1349 of 2643
ELECTRICAL WIRING DIAGRAMSW5–189
c. POSITION OF CONNECTORS AND GROUNDS
S W/H BODY
d. SPLICE PACK
S202
S301
S302
Page 1350 of 2643
SECTION : 5A1
ZF 4 HP 16 AUTOMATIC TRANSAXLE
CAUTION : Disconnect the negative battery cable before removing or installing any electrical unit or when a tool
or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable will help
prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwise noted.
TABLE OF CONTENTS
INTRODUCTION5A1–3 . . . . . . . . . . . . . . . . . . . . . . . . . . .
ZF 4HP 16 Automatic Transaxle 5A1–3. . . . . . . . . . . .
Transaxle Components 5A1–4. . . . . . . . . . . . . . . . . . . .
SPECIFICATIONS5A1–5 . . . . . . . . . . . . . . . . . . . . . . . . .
General Specifications 5A1–5. . . . . . . . . . . . . . . . . . . .
Transaxle Gear Ratio 5A1–5. . . . . . . . . . . . . . . . . . . . . .
Fluid Capacity 5A1–5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fastener Tightening Specifications 5A1–5. . . . . . . . . .
Shift Speed Chart 5A1–7. . . . . . . . . . . . . . . . . . . . . . . . .
Line Pressure 5A1–8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
SPECIAL TOOLS5A1–9 . . . . . . . . . . . . . . . . . . . . . . . . . .
Special Tools Table 5A1–9. . . . . . . . . . . . . . . . . . . . . . .
SCHEMATIC AND ROUTING DIAGRAMS5A1–11 . . .
Transaxle Control Module (1 of 2) 5A1–11. . . . . . . . . .
Transaxle Control Module (2 of 2) 5A1–12. . . . . . . . . .
Shift Mode Diagram 5A1–13. . . . . . . . . . . . . . . . . . . . . .
Power Flow Diagram 5A1–17. . . . . . . . . . . . . . . . . . . . .
COMPONENT LOCATOR5A1–33 . . . . . . . . . . . . . . . . . .
Transaxle Identification Information 5A1–33. . . . . . . .
Torque Converter 5A1–34. . . . . . . . . . . . . . . . . . . . . . . .
Transaxle Housing 5A1–35. . . . . . . . . . . . . . . . . . . . . . .
Oil Pump 5A1–36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Cover & Oil Pan Cover 5A1–37. . . . . . . . . . . . . .
Parking Lever 5A1–38. . . . . . . . . . . . . . . . . . . . . . . . . . .
Input Shaft & Shift Gear 5A1–39. . . . . . . . . . . . . . . . . .
Valve Body 5A1–41. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gear Shift Control 5A1–42. . . . . . . . . . . . . . . . . . . . . . .
DIAGNOSTIC INFORMATION AND PROCEDURES
DIAGNOSIS5A1–43 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Basic Knowledge Required 5A1–43. . . . . . . . . . . . . . . .
Functional Check Procedure 5A1–43. . . . . . . . . . . . . .
Line Pressure Check Procedure 5A1–43. . . . . . . . . . .
Clutch Plate Diagnosis 5A1–45. . . . . . . . . . . . . . . . . . .
Cooler Flushing and Flow Test 5A1–45. . . . . . . . . . . . . Transaxle Fluid Level Service Procedure 5A1–45. . . .
Electrical/Garage Shift Test 5A1–47. . . . . . . . . . . . . . .
Road Test Procedure 5A1–47. . . . . . . . . . . . . . . . . . . . .
Torque Converter Lock–Up Clutch(TCC)
Diagnosis 5A1–48. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TCM Initialization Procedure 5A1–50. . . . . . . . . . . . . .
Shift Speed Chart 5A1–51. . . . . . . . . . . . . . . . . . . . . . . .
Internal Wiring Harness Check 5A1–51. . . . . . . . . . . .
Transaxle Wiring Harness Connector 5A1–54. . . . . . .
Symptom Diagnosis 5A1–56. . . . . . . . . . . . . . . . . . . . . .
DIAGNOSTIC TROUBLE CODE DIAGNOSIS5A1–60
Diagnostic Trouble Code (DTC) Identification 5A1–60
DTC P0562 – System Voltage Low 5A1–68. . . . . . . . .
DTC P0563 – System Voltage High 5A1–71. . . . . . . .
DTC P0601 – Internal Control Module Memory
Checksum Error 5A1–74. . . . . . . . . . . . . . . . . . . . . . .
DTC P0603 – Internal Control Module Keep
Alive Memory(KAM) Error 5A1–76. . . . . . . . . . . . . . .
DTC P0604 – Internal Control Module Random
Access Memory(RAM) Error 5A1–78. . . . . . . . . . . . .
DTC P0606 – Transaxle Control Module
Processor Fault 5A1–80. . . . . . . . . . . . . . . . . . . . . . . .
DTC P0703 – Brake Switch Circuit
Malfunction 5A1–83. . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0705 – Transmission Range Sensor
Circuit Malfunction(PRNDL Input) 5A1–86. . . . . . . .
DTC P0710 – Transmission Fluid Temperature
Sensor Circuit Malfunction 5A1–89. . . . . . . . . . . . . .
DTC P0715 – Input Speed Sensor(ISS) Circuit
Malfunction 5A1–92. . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0716 – Input Speed Sensor(ISS) Circuit
Range/Performance 5A1–95. . . . . . . . . . . . . . . . . . . .
DTC P0717 – Input Speed Sensor(ISS) Circuit
No Signal 5A1–98. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0720 – Output Speed Sensor(OSS)
Circuit Malfunction 5A1–101. . . . . . . . . . . . . . . . . . . .
DTC P0721 – Output Speed Sensor(OSS)
Circuit Range/Performance 5A1–104. . . . . . . . . . . . .
