DODGE CHARGER 2021 Owners Manual

SERVICING AND MAINTENANCE269
F38 –20 Amp Yellow Media Hub / Console APO
F42 30 Amp Pink –Rear Defrost
F43 –20 Amp Yellow RR Heated Seat */ Heated Steering Wheel *
F44 –10 Amp Red Park Assist / Blind Spot / Rear View Camera *
F45 –15 Amp Blue Cluster / Rearview Mirror / Lane Departure
F46 – –Spare
F47 –10 Amp Red Adaptive Front Lighting / Day Time Running Lamps *
F49 – –Spare
F50 – –Spare
F51 –20 Amp Yellow Front Heated / Vented Seats *
F52 –10 Amp Red Heated Cupholders / Rear Heated Seat Switches *
F53 –10 Amp Red HVAC Module / In Vehicle Temperature Sensor
F54 – –Spare
F55 – –Spare
F56 – –Spare
F57 – –Spare
F58 –10 Amp Red Airbag Module
CavityCartridge Fuse Mini-Fuse Description
* If Equipped
8

21_LD_OM_EN_USC_t.book Page 269

270SERVICING AND MAINTENANCE
F59 –20 Amp Yellow Adjustable Pedals (Police)
F60 – –Spare
F61 – –Spare
F62 – –Spare
F63 – –Spare
F64 –25 Amp Breaker Rear Windows (Charger / 300) (Circuit Breaker)
F65 –10 Amp Red Airbag Module
F66 – –Spare
F67 –10 Amp RedRain and Light Sensor / Sunroof / Inside RR View Mirror / Police Run Acc
Relay
F68 –10 Amp Red RR USB Timer/ RR Sunshade *
F69 – –Spare
F70 – –Spare
Cavity Cartridge Fuse Mini-Fuse Description
* If Equipped

21_LD_OM_EN_USC_t.book Page 270

SERVICING AND MAINTENANCE271

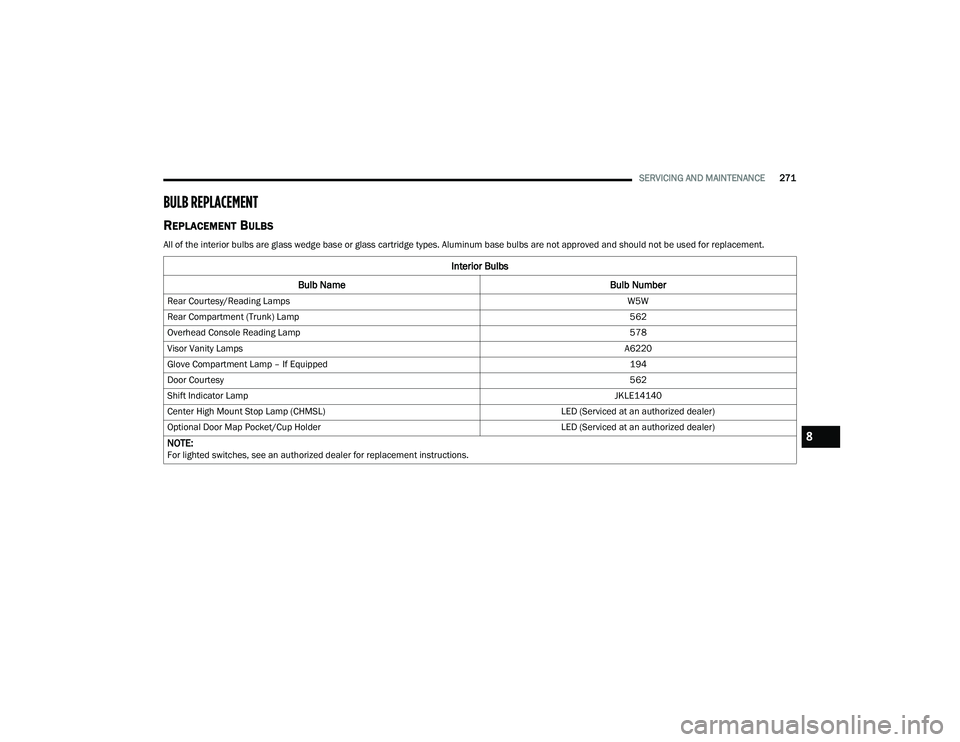

BULB REPLACEMENT
REPLACEMENT BULBS
All of the interior bulbs are glass wedge base or glass cartridge types. Aluminum base bulbs are not approved and should not be used for replacement.
Interior Bulbs
Bulb Name Bulb Number
Rear Courtesy/Reading Lamps W5W
Rear Compartment (Trunk) Lamp 562
Overhead Console Reading Lamp 578
Visor Vanity Lamps A6220
Glove Compartment Lamp – If Equipped 194
Door Courtesy 562
Shift Indicator Lamp JKLE14140
Center High Mount Stop Lamp (CHMSL) LED (Serviced at an authorized dealer)
Optional Door Map Pocket/Cup Holder LED (Serviced at an authorized dealer)
NOTE:For lighted switches, see an authorized dealer for replacement instructions.
8

21_LD_OM_EN_USC_t.book Page 271

272SERVICING AND MAINTENANCE

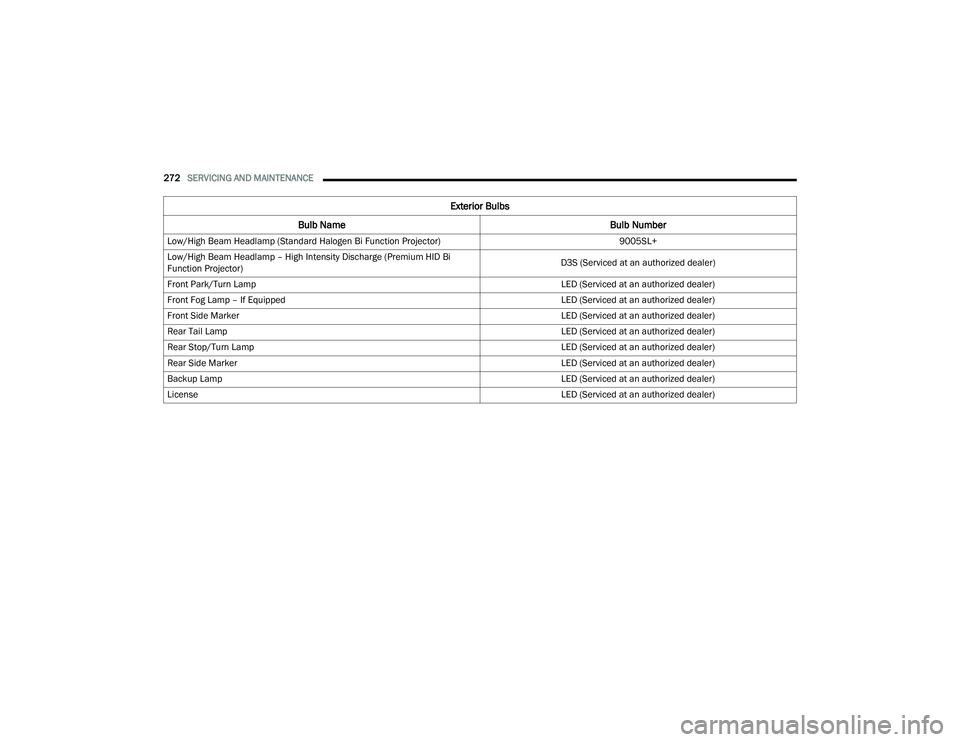

Exterior Bulbs
Bulb Name Bulb Number
Low/High Beam Headlamp (Standard Halogen Bi Function Projector) 9005SL+
Low/High Beam Headlamp – High Intensity Discharge (Premium HID Bi
Function Projector) D3S (Serviced at an authorized dealer)
Front Park/Turn Lamp LED (Serviced at an authorized dealer)
Front Fog Lamp – If Equipped LED (Serviced at an authorized dealer)
Front Side Marker LED (Serviced at an authorized dealer)
Rear Tail Lamp LED (Serviced at an authorized dealer)
Rear Stop/Turn Lamp LED (Serviced at an authorized dealer)
Rear Side Marker LED (Serviced at an authorized dealer)
Backup Lamp LED (Serviced at an authorized dealer)
License LED (Serviced at an authorized dealer)

21_LD_OM_EN_USC_t.book Page 272

SERVICING AND MAINTENANCE273

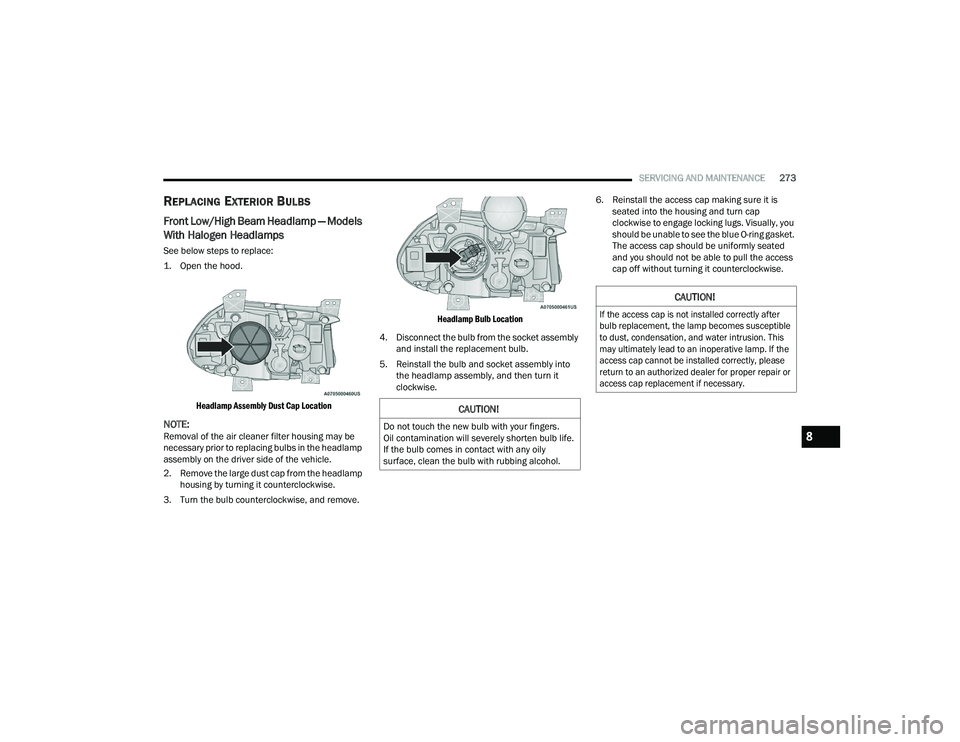

REPLACING EXTERIOR BULBS
Front Low/High Beam Headlamp — Models
With Halogen Headlamps
See below steps to replace:

1. Open the hood.

Headlamp Assembly Dust Cap Location

NOTE:Removal of the air cleaner filter housing may be
necessary prior to replacing bulbs in the headlamp
assembly on the driver side of the vehicle.
2. Remove the large dust cap from the headlamp housing by turning it counterclockwise.
3. Turn the bulb counterclockwise, and remove.
Headlamp Bulb Location

4. Disconnect the bulb from the socket assembly and install the replacement bulb.
5. Reinstall the bulb and socket assembly into the headlamp assembly, and then turn it
clockwise. 6. Reinstall the access cap making sure it is
seated into the housing and turn cap
clockwise to engage locking lugs. Visually, you
should be unable to see the blue O-ring gasket.
The access cap should be uniformly seated
and you should not be able to pull the access
cap off without turning it counterclockwise.
CAUTION!
Do not touch the new bulb with your fingers.
Oil contamination will severely shorten bulb life.
If the bulb comes in contact with any oily
surface, clean the bulb with rubbing alcohol.
CAUTION!

If the access cap is not installed correctly after
bulb replacement, the lamp becomes susceptible
to dust, condensation, and water intrusion. This
may ultimately lead to an inoperative lamp. If the
access cap cannot be installed correctly, please
return to an authorized dealer for proper repair or
access cap replacement if necessary.

8

21_LD_OM_EN_USC_t.book Page 273

274SERVICING AND MAINTENANCE
Front Low/High Beam Headlamp — Models
With High Intensity Discharge (HID)
Headlamps
The headlamps are a type of high voltage
discharge tube. High voltage can remain in the
circuit even with the headlamp switch off and the
key removed. Because of this, you should not
attempt to service a headlamp bulb yourself. If a
headlamp bulb fails, take your vehicle to an
authorized dealer for service.
NOTE:On vehicles equipped with HID headlamps, when
the headlamps are turned on, there is a blue hue
to the lights. This diminishes and becomes more
white after approximately 10 seconds, as the
system charges.
Front/Rear Side Marker Lamp

The Side Markers use LED lamps that are not
serviceable separately. The Side Markers must be
replaced as an assembly, see an authorized dealer.

Front Fog Lamp
The Front Fog Lamps use LED sources that are not
serviceable separately. The Front Fog Lamp must
be replaced as an assembly; see an authorized
dealer.
Front Turn Signal Lamps
The Front Park/Turn function is part of the
headlamp assembly and use LED lamps that are
not serviceable separately. The headlamps must
be replaced as an assembly, see an authorized
dealer.
Backup Lamps
The Backup Lamps use LED sources that are not
serviceable separately. The Applique must be
replaced as an assembly; see an authorized
dealer.
License Lamp
The License Lamp uses an LED source that is not
serviceable separately. The License Lamp must be
replaced as an assembly; see an authorized
dealer.
Center High Mounted Stop Lamp (CHMSL)
The CHMSL Lamp uses LED sources that are not
serviceable separately. The CHMSL Lamp must be
replaced as an assembly; see an authorized
dealer.
WARNING!
A transient high voltage occurs at the bulb
sockets of HID headlamps when the headlamp
switch is turned ON. It may cause serious
electrical shock or electrocution if not serviced
properly. See an authorized dealer for service.

21_LD_OM_EN_USC_t.book Page 274

SERVICING AND MAINTENANCE275

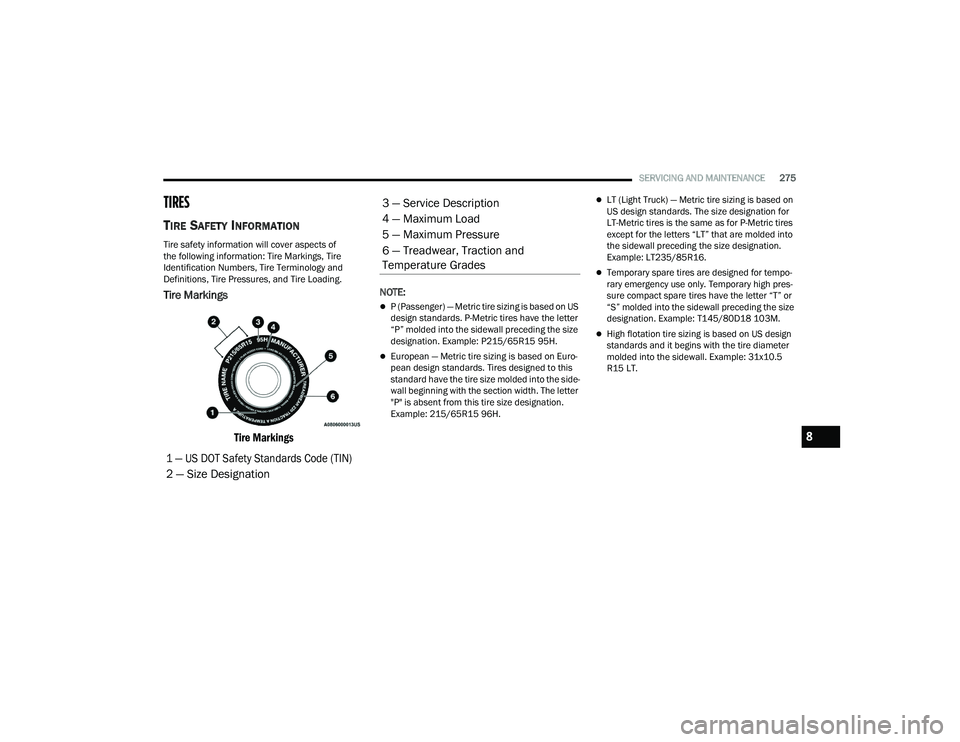

TIRES
TIRE SAFETY INFORMATION
Tire safety information will cover aspects of
the following information: Tire Markings, Tire
Identification Numbers, Tire Terminology and
Definitions, Tire Pressures, and Tire Loading.
Tire Markings

Tire Markings

NOTE:
P (Passenger) — Metric tire sizing is based on US
design standards. P-Metric tires have the letter
“P” molded into the sidewall preceding the size
designation. Example: P215/65R15 95H.
European — Metric tire sizing is based on Euro -
pean design standards. Tires designed to this
standard have the tire size molded into the side -
wall beginning with the section width. The letter
"P" is absent from this tire size designation.
Example: 215/65R15 96H.
LT (Light Truck) — Metric tire sizing is based on
US design standards. The size designation for
LT-Metric tires is the same as for P-Metric tires
except for the letters “LT” that are molded into
the sidewall preceding the size designation.
Example: LT235/85R16.
Temporary spare tires are designed for tempo -
rary emergency use only. Temporary high pres -
sure compact spare tires have the letter “T” or
“S” molded into the sidewall preceding the size
designation. Example: T145/80D18 103M.
High flotation tire sizing is based on US design
standards and it begins with the tire diameter
molded into the sidewall. Example: 31x10.5
R15 LT.

1 — US DOT Safety Standards Code (TIN)

2 — Size Designation
3 — Service Description
4 — Maximum Load
5 — Maximum Pressure
6 — Treadwear, Traction and
Temperature Grades
8

21_LD_OM_EN_USC_t.book Page 275

276SERVICING AND MAINTENANCE

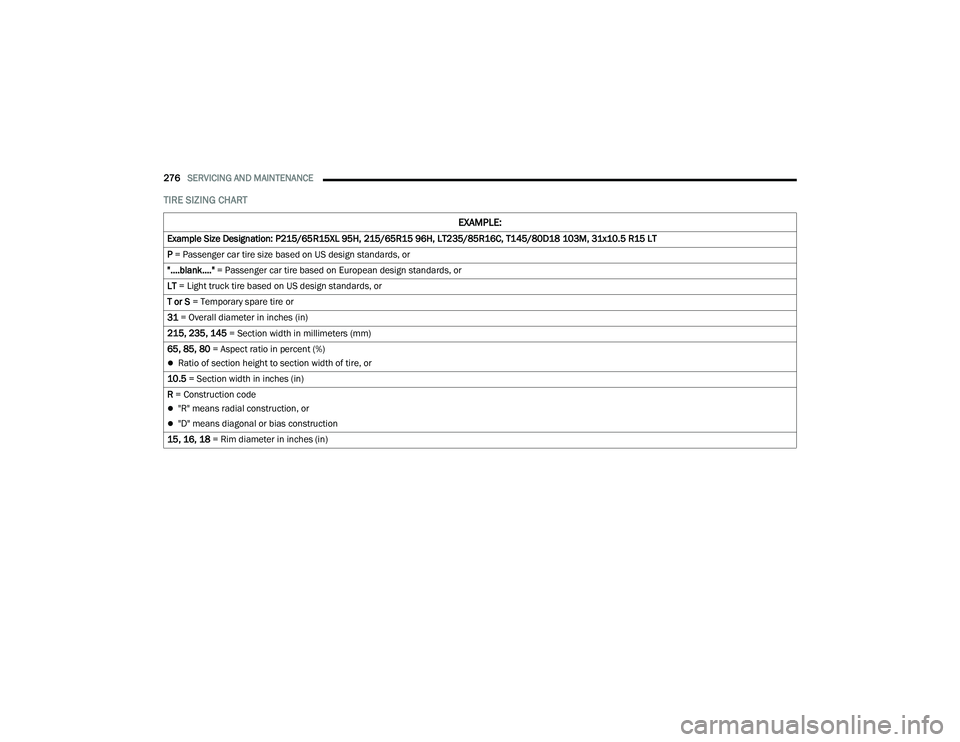

TIRE SIZING CHART
EXAMPLE:
Example Size Designation: P215/65R15XL 95H, 215/65R15 96H, LT235/85R16C, T145/80D18 103M, 31x10.5 R15 LT
P = Passenger car tire size based on US design standards, or
"....blank...." = Passenger car tire based on European design standards, or
LT = Light truck tire based on US design standards, or
T or S = Temporary spare tire or
31 = Overall diameter in inches (in)
215, 235, 145 = Section width in millimeters (mm)
65, 85, 80 = Aspect ratio in percent (%)
Ratio of section height to section width of tire, or
10.5 = Section width in inches (in)
R = Construction code
"R" means radial construction, or
"D" means diagonal or bias construction
15, 16, 18 = Rim diameter in inches (in)

21_LD_OM_EN_USC_t.book Page 276

SERVICING AND MAINTENANCE277

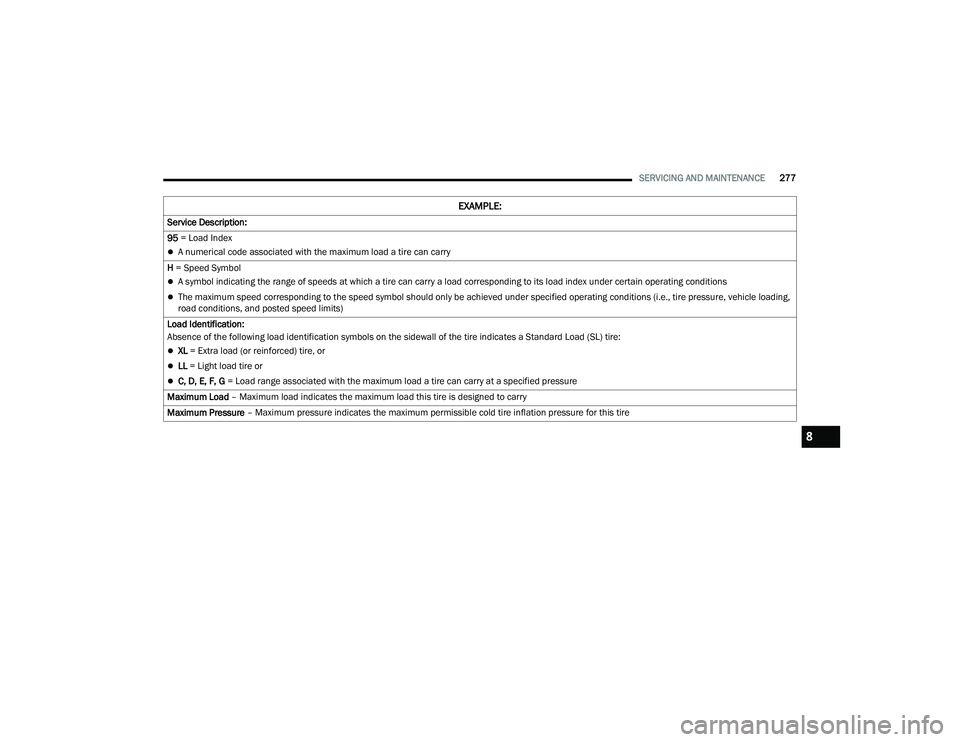

Service Description:
95 = Load Index
A numerical code associated with the maximum load a tire can carry
H = Speed Symbol
A symbol indicating the range of speeds at which a tire can carry a load corresponding to its load index under certain operating conditions
The maximum speed corresponding to the speed symbol should only be achieved under specified operating conditions (i.e., tire pressure, vehicle loading,
road conditions, and posted speed limits)
Load Identification:
Absence of the following load identification symbols on the sidewall of the tire indicates a Standard Load (SL) tire:
XL = Extra load (or reinforced) tire, or
LL = Light load tire or
C, D, E, F, G = Load range associated with the maximum load a tire can carry at a specified pressure
Maximum Load – Maximum load indicates the maximum load this tire is designed to carry
Maximum Pressure – Maximum pressure indicates the maximum permissible cold tire inflation pressure for this tire
EXAMPLE:
8

21_LD_OM_EN_USC_t.book Page 277

278SERVICING AND MAINTENANCE

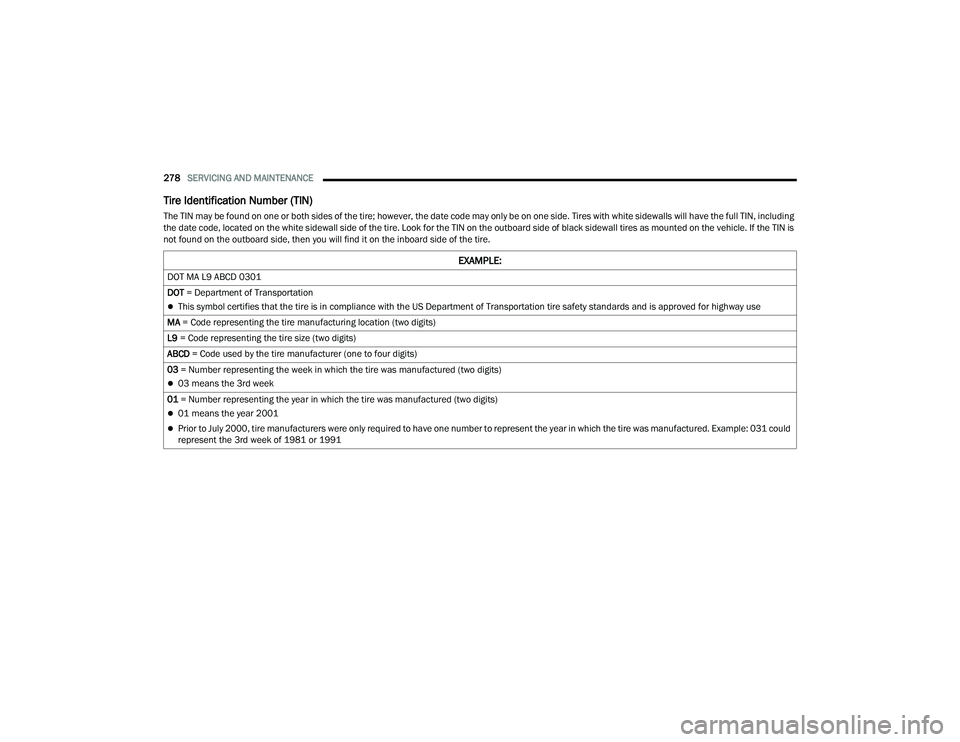

Tire Identification Number (TIN)
The TIN may be found on one or both sides of the tire; however, the date code may only be on one side. Tires with white sidewalls will have the full TIN, including
the date code, located on the white sidewall side of the tire. Look for the TIN on the outboard side of black sidewall tires as mounted on the vehicle. If the TIN is
not found on the outboard side, then you will find it on the inboard side of the tire.
EXAMPLE:
DOT MA L9 ABCD 0301
DOT = Department of Transportation
This symbol certifies that the tire is in compliance with the US Department of Transportation tire safety standards and is approved for highway use
MA = Code representing the tire manufacturing location (two digits)
L9 = Code representing the tire size (two digits)
ABCD = Code used by the tire manufacturer (one to four digits)
03 = Number representing the week in which the tire was manufactured (two digits)
03 means the 3rd week
01 = Number representing the year in which the tire was manufactured (two digits)
01 means the year 2001
Prior to July 2000, tire manufacturers were only required to have one number to represent the year in which the tire was manufactured. Example: 031 could
represent the 3rd week of 1981 or 1991
