DODGE CHARGER 2021 Owners Manual

TECHNICAL SPECIFICATIONS299
METHYLCYCLOPENTADIENYL MANGANESE TRICARBONYL (MMT) IN GASOLINE
MMT is a manganese-containing metallic additive that is blended into some gasoline to increase octane. Gasoline blended with MMT provides no performance
advantage beyond gasoline of the same octane number without MMT. Gasoline blended with MMT reduces spark plug life and reduces emissions system
performance in some vehicles. The manufacturer recommends that gasoline without MMT be used in your vehicle. The MMT content of gasoline may not be
indicated on the gasoline pump; therefore, you should ask your gasoline retailer whether the gasoline contains MMT. MMT is prohibited in Federal and California
reformulated gasoline.
FLUID CAPACITIES
USMetric
Fuel (Approximate)
All Engines 18.5 Gallons70 Liters
Engine Oil With Filter
3.6L Engine 6 Quarts5.6 Liters
5.7L Engine 7 Quarts6.6 Liters
Cooling System*
3.6L Engine 10 Quarts9.5 Liters
5.7L Engine – without Severe Duty II Cooling System 14.5 Quarts13.9 Liters
5.7L Engine – with Severe Duty II Cooling System 15 Quarts14.3 Liters
* Includes heater and coolant recovery bottle filled to MAX level
9

21_LD_OM_EN_USC_t.book Page 299

300TECHNICAL SPECIFICATIONS
ENGINE FLUIDS AND LUBRICANTS
Component Fluid, Lubricant, or Genuine Part
Engine CoolantWe recommend you use Mopar® Antifreeze/Coolant 10 Year/150,000 Mile (240,000 km) Formula OAT
(Organic Additive Technology).
Engine Oil – 3.6L/5.7L Engine We recommend you use API Certified SAE 5W-20 Engine Oil, meeting the requirements of the manufacturer
Material Standard MS-6395 such as Mopar®, Pennzoil, and Shell Helix Ultra. Refer to your engine oil filler cap
for correct SAE grade.
Engine Oil Filter We recommend you use a Mopar® Engine Oil Filter. If a Mopar® Engine Oil Filter is unavailable only use filters
that meet or exceed SAE/USCAR-36 Filter Performance Requirements.
Fuel Selection – 3.6L Engine 87 Octane (R+M)/2 Method, 0-15% Ethanol.
Fuel Selection – 5.7L Engine 89 Octane Recommended – 87 Octane acceptable (R+M)/2 Method, 0-15% Ethanol.
CAUTION!
Mixing of engine coolant (antifreeze) other than specified Organic Additive Technology (OAT) engine coolant (antifreeze), may result in engine damage and
may decrease corrosion protection. Organic Additive Technology (OAT) engine coolant is different and should not be mixed with Hybrid Organic Additive Tech -
nology (HOAT) engine coolant (antifreeze) or any “globally compatible” coolant (antifreeze). If a non-OAT engine coolant (antifreeze) is introduced into the
cooling system in an emergency, the cooling system will need to be drained, flushed, and refilled with fresh OAT coolant (conforming to MS.90032), by an
authorized dealer as soon as possible.
Do not use water alone or alcohol-based engine coolant (antifreeze) products. Do not use additional rust inhibitors or antirust products, as they may not be
compatible with the radiator engine coolant and may plug the radiator.
This vehicle has not been designed for use with propylene glycol-based engine coolant (antifreeze). Use of propylene glycol-based engine coolant (antifreeze)
is not recommended.

21_LD_OM_EN_USC_t.book Page 300

TECHNICAL SPECIFICATIONS301
CHASSIS FLUIDS AND LUBRICANTS
Component Fluid, Lubricant, Or Genuine Part
Automatic TransmissionUse only Mopar® ZF 8 & 9 Speed ATF Automatic Transmission Fluid, or equivalent. Failure to use the correct
fluid may affect the function or performance of your transmission.
Brake Master Cylinder We recommend you use Mopar® DOT 3, SAE J1703.
Front Axle – AWD (If Equipped) We recommend you use Mopar® Synthetic Gear Lubricant SAE 75W90 (API GL-5).
Rear Axle – 3.6/5.7 Engine We recommend you use Mopar® OD Synthetic Gear Lubricant SAE 75W85 (API GL-5).
Transfer Case – AWD (If Equipped) We recommend you use Mopar® Transfer Case Lubricant for BorgWarner 44–40.
9

21_LD_OM_EN_USC_t.book Page 301

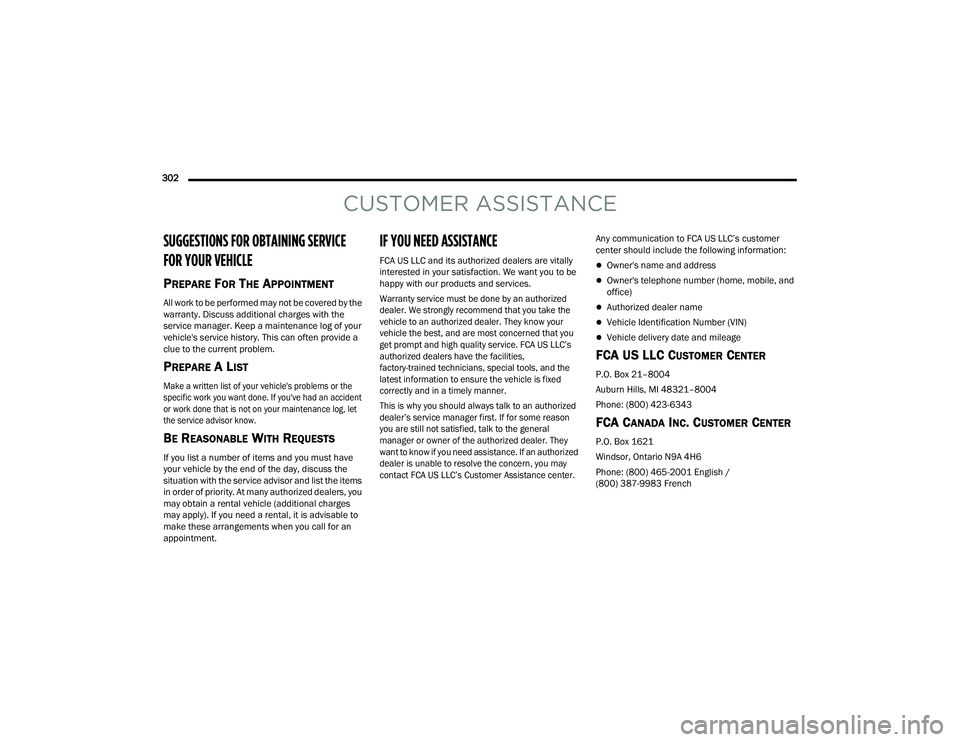

302
CUSTOMER ASSISTANCE
SUGGESTIONS FOR OBTAINING SERVICE
FOR YOUR VEHICLE
PREPARE FOR THE APPOINTMENT
All work to be performed may not be covered by the
warranty. Discuss additional charges with the
service manager. Keep a maintenance log of your
vehicle's service history. This can often provide a
clue to the current problem.
PREPARE A LIST

Make a written list of your vehicle's problems or the
specific work you want done. If you've had an accident
or work done that is not on your maintenance log, let
the service advisor know.

BE REASONABLE WITH REQUESTS
If you list a number of items and you must have
your vehicle by the end of the day, discuss the
situation with the service advisor and list the items
in order of priority. At many authorized dealers, you
may obtain a rental vehicle (additional charges
may apply). If you need a rental, it is advisable to
make these arrangements when you call for an
appointment.
IF YOU NEED ASSISTANCE
FCA US LLC and its authorized dealers are vitally
interested in your satisfaction. We want you to be
happy with our products and services.

Warranty service must be done by an authorized
dealer. We strongly recommend that you take the
vehicle to an authorized dealer. They know your
vehicle the best, and are most concerned that you
get prompt and high quality service. FCA US LLC’s
authorized dealers have the facilities,
factory-trained technicians, special tools, and the
latest information to ensure the vehicle is fixed
correctly and in a timely manner.
This is why you should always talk to an authorized
dealer’s service manager first. If for some reason
you are still not satisfied, talk to the general
manager or owner of the authorized dealer. They
want to know if you need assistance. If an authorized
dealer is unable to resolve the concern, you may
contact FCA US LLC’s Customer Assistance center.
Any communication to FCA US LLC’s customer
center should include the following information:Owner's name and address
Owner's telephone number (home, mobile, and
office)
Authorized dealer name
Vehicle Identification Number (VIN)
Vehicle delivery date and mileage
FCA U S LLC CUSTOMER CENTER
P.O. Box 21–8004
Auburn Hills, MI 48321–8004
Phone: (800) 423-6343
FCA CANADA INC. CUSTOMER CENTER
P.O. Box 1621
Windsor, Ontario N9A 4H6
Phone: (800) 465-2001 English /
(800) 387-9983 French

21_LD_OM_EN_USC_t.book Page 302

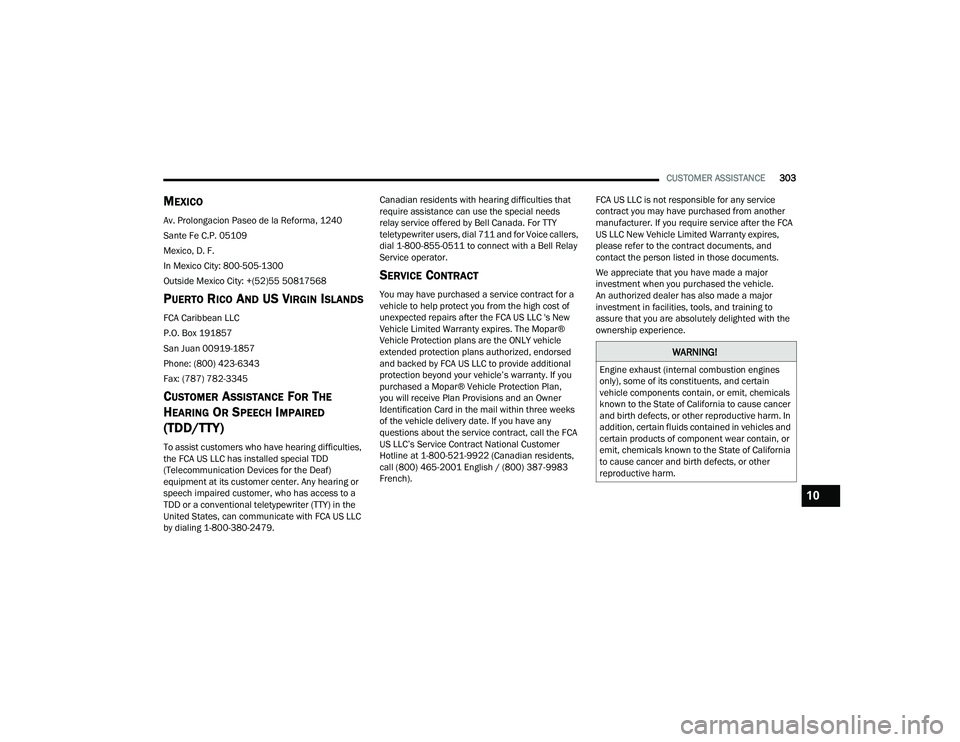

CUSTOMER ASSISTANCE303
MEXICO
Av. Prolongacion Paseo de la Reforma, 1240
Sante Fe C.P. 05109
Mexico, D. F.
In Mexico City: 800-505-1300
Outside Mexico City: +(52)55 50817568
PUERTO RICO AND US VIRGIN ISLANDS
FCA Caribbean LLC
P.O. Box 191857
San Juan 00919-1857
Phone: (800) 423-6343
Fax: (787) 782-3345
CUSTOMER ASSISTANCE FOR THE
H
EARING OR SPEECH IMPAIRED
(TDD/TTY)
To assist customers who have hearing difficulties,
the FCA US LLC has installed special TDD
(Telecommunication Devices for the Deaf)
equipment at its customer center. Any hearing or
speech impaired customer, who has access to a
TDD or a conventional teletypewriter (TTY) in the
United States, can communicate with FCA US LLC
by dialing 1-800-380-2479. Canadian residents with hearing difficulties that
require assistance can use the special needs
relay service offered by Bell Canada. For TTY
teletypewriter users, dial 711 and for Voice callers,
dial 1-800-855-0511 to connect with a Bell Relay
Service operator.
SERVICE CONTRACT
You may have purchased a service contract for a
vehicle to help protect you from the high cost of
unexpected repairs after the FCA US LLC 's New
Vehicle Limited Warranty expires. The Mopar®
Vehicle Protection plans are the ONLY vehicle
extended protection plans authorized, endorsed
and backed by FCA US LLC to provide additional
protection beyond your vehicle’s warranty. If you
purchased a Mopar® Vehicle Protection Plan,
you will receive Plan Provisions and an Owner
Identification Card in the mail within three weeks
of the vehicle delivery date. If you have any
questions about the service contract, call the FCA
US LLC’s Service Contract National Customer
Hotline at 1-800-521-9922 (Canadian residents,
call (800) 465-2001 English / (800) 387-9983
French).
FCA US LLC is not responsible for any service
contract you may have purchased from another
manufacturer. If you require service after the FCA
US LLC New Vehicle Limited Warranty expires,
please refer to the contract documents, and
contact the person listed in those documents.
We appreciate that you have made a major
investment when you purchased the vehicle.
An authorized dealer has also made a major
investment in facilities, tools, and training to
assure that you are absolutely delighted with the
ownership experience.
WARNING!
Engine exhaust (internal combustion engines
only), some of its constituents, and certain
vehicle components contain, or emit, chemicals
known to the State of California to cause cancer
and birth defects, or other reproductive harm. In
addition, certain fluids contained in vehicles and
certain products of component wear contain, or
emit, chemicals known to the State of California
to cause cancer and birth defects, or other
reproductive harm.
10

21_LD_OM_EN_USC_t.book Page 303

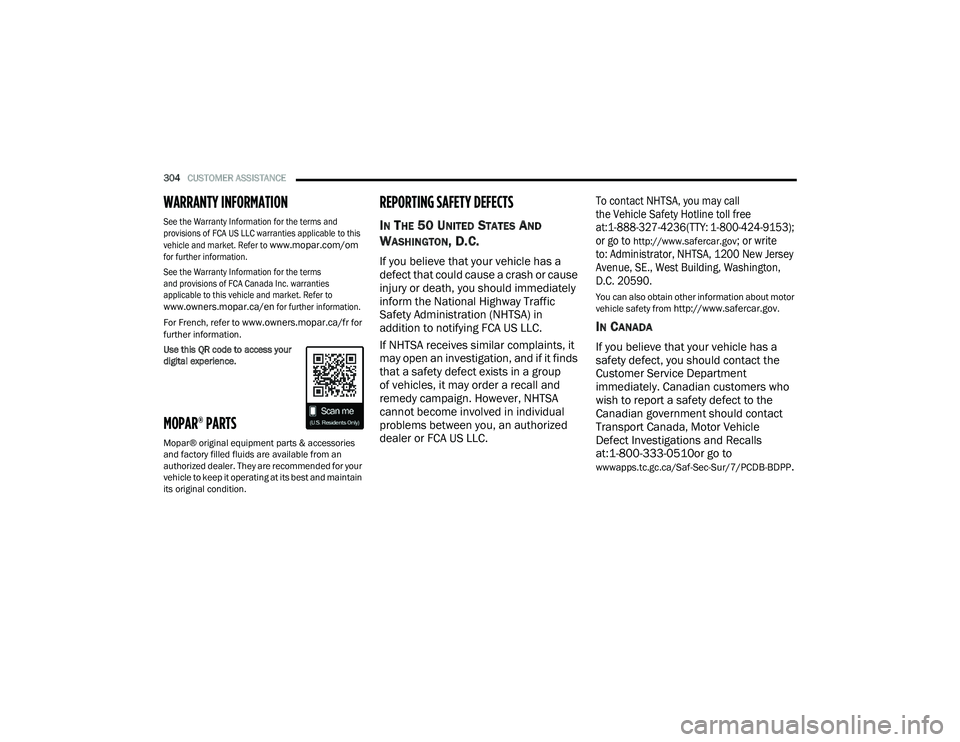

304CUSTOMER ASSISTANCE
WARRANTY INFORMATION

See the Warranty Information for the terms and
provisions of FCA US LLC warranties applicable to this
vehicle and market. Refer to

www.mopar.com/om

for further information.
See the Warranty Information for the terms
and provisions of FCA Canada Inc. warranties
applicable to this vehicle and market. Refer to

www.owners.mopar.ca/en
for further information.

For French, refer to
www.owners.mopar.ca/fr for
further information.
Use this QR code to access your
digital experience.
MOPAR® PARTS
Mopar® original equipment parts & accessories
and factory filled fluids are available from an
authorized dealer. They are recommended for your
vehicle to keep it operating at its best and maintain
its original condition.
REPORTING SAFETY DEFECTS
IN THE 50 UNITED STATES AND
W
ASHINGTON, D.C.
If you believe that your vehicle has a
defect that could cause a crash or cause
injury or death, you should immediately
inform the National Highway Traffic
Safety Administration (NHTSA) in
addition to notifying FCA US LLC.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group
of vehicles, it may order a recall and
remedy campaign. However, NHTSA
cannot become involved in individual
problems between you, an authorized
dealer or FCA US LLC.
To contact NHTSA, you may call
the Vehicle Safety Hotline toll free
at:1-888-327-4236(TTY: 1-800-424-9153);
or go to

http://www.safercar.gov
; or write
to: Administrator, NHTSA, 1200 New Jersey
Avenue, SE., West Building, Washington,
D.C. 20590.

You can also obtain other information about motor
vehicle safety from http://www.safercar.gov.
IN CANADA
If you believe that your vehicle has a
safety defect, you should contact the
Customer Service Department
immediately. Canadian customers who
wish to report a safety defect to the
Canadian government should contact
Transport Canada, Motor Vehicle
Defect Investigations and Recalls
at:1-800-333-0510or go to
wwwapps.tc.gc.ca/Saf-Sec-Sur/7/PCDB-BDPP.

21_LD_OM_EN_USC_t.book Page 304

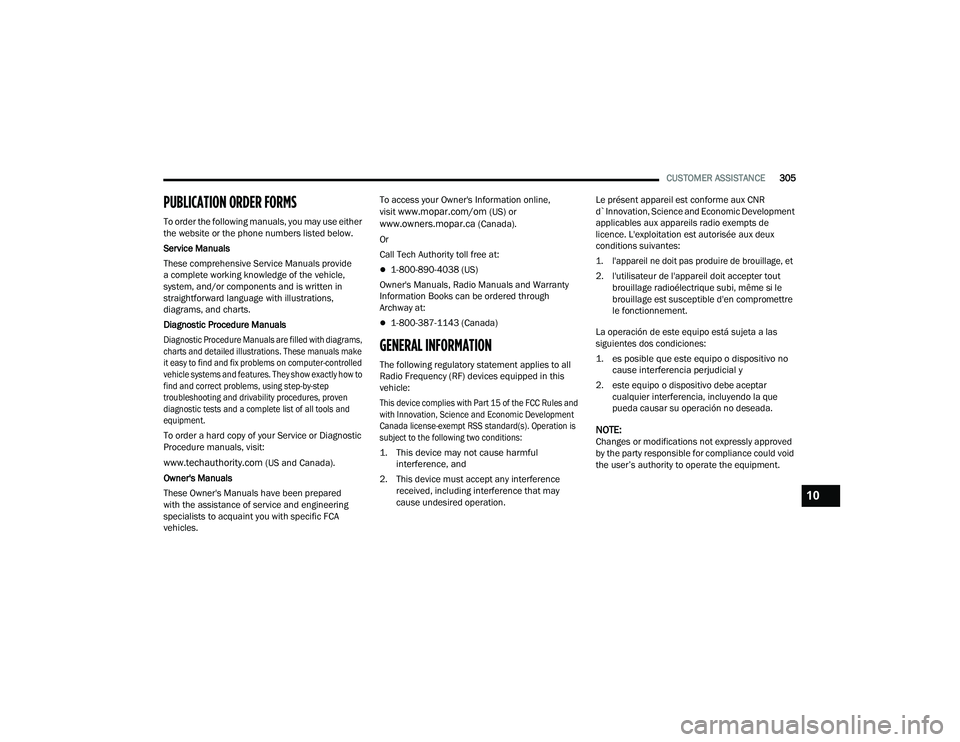

CUSTOMER ASSISTANCE305
PUBLICATION ORDER FORMS
To order the following manuals, you may use either
the website or the phone numbers listed below.
Service Manuals
These comprehensive Service Manuals provide
a complete working knowledge of the vehicle,
system, and/or components and is written in
straightforward language with illustrations,
diagrams, and charts.
Diagnostic Procedure Manuals

Diagnostic Procedure Manuals are filled with diagrams,
charts and detailed illustrations. These manuals make
it easy to find and fix problems on computer-controlled
vehicle systems and features. They show exactly how to
find and correct problems, using step-by-step
troubleshooting and drivability procedures, proven
diagnostic tests and a complete list of all tools and
equipment.

To order a hard copy of your Service or Diagnostic
Procedure manuals, visit:
www.techauthority.com (US and Canada).
Owner's Manuals
These Owner's Manuals have been prepared
with the assistance of service and engineering
specialists to acquaint you with specific FCA
vehicles. To access your Owner's Information online,
visit
www.mopar.com/om (US) or www.owners.mopar.ca (Canada).
Or
Call Tech Authority toll free at:
1-800-890-4038 (US)
Owner's Manuals, Radio Manuals and Warranty
Information Books can be ordered through
Archway at:
1-800-387-1143 (Canada)
GENERAL INFORMATION
The following regulatory statement applies to all
Radio Frequency (RF) devices equipped in this
vehicle:

This device complies with Part 15 of the FCC Rules and
with Innovation, Science and Economic Development
Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may
cause undesired operation. Le présent appareil est conforme aux CNR
d`Innovation, Science and Economic Development
applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux
conditions suivantes:

1. l'appareil ne doit pas produire de brouillage, et

2. l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre
le fonctionnement.
La operación de este equipo está sujeta a las
siguientes dos condiciones:

1. es posible que este equipo o dispositivo no cause interferencia perjudicial y

2. este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que
pueda causar su operación no deseada.
NOTE:Changes or modifications not expressly approved
by the party responsible for compliance could void
the user’s authority to operate the equipment.
10

21_LD_OM_EN_USC_t.book Page 305

306
INDEX
A
About Your Brakes......................................... 296Adaptive Cruise Control (ACC)
(Cruise Control)................................................ 96Adding Engine Coolant (Antifreeze)............... 260Adding Fuel.................................................... 113Adding Washing Fluid.................................... 251Additives, Fuel............................................... 298AdjustForward....................................................... 31Rearward..................................................... 31Advance Phone Connectivity......................... 161Air Bag........................................................... 201Advance Front Air Bag............................... 201Air Bag Operation...................................... 203Air Bag Warning Light................................ 201Driver Knee Air Bag................................... 203Enhanced Accident Response......... 207, 244Event Data Recorder (EDR)....................... 244Front Air Bag............................................. 201If Deployment Occurs................................ 206Knee Impact Bolsters................................ 203Maintaining Your Air Bag System.............. 207Maintenance............................................. 207Redundant Air Bag Warning Light.............201Side Air Bags............................................. 203
Air Bag Light.................................. 74, 201, 220Air Cleaner, Engine
(Engine Air Cleaner Filter)............................. 254Air Conditioner Maintenance........................ 254Air Conditioner Refrigerant.................. 254, 255Air Conditioner System................................. 254Air Conditioning......................................... 48, 51Air Conditioning Filter..............................54, 255Air Conditioning, Operating Tips....................... 54Air Filter........................................................ 254Air PressureTires......................................................... 283AlarmArm The System.......................................... 20Rearm The System...................................... 20Security Alarm...................................... 20, 77Alarm SystemSecurity Alarm............................................. 20All Wheel DriveTowing...................................................... 244Alterations/ModificationsVehicle........................................................... 9Android Auto........................................ 163, 164Android Auto™
b
....................................... 163Antifreeze (Engine Coolant)................. 260, 299Disposal................................................... 261
Anti-Lock Brake System (ABS)....................... 180Anti-Lock Warning Light...................................77Apple CarPlay....................................... 163, 166Apple CarPlay®
b
...................................... 165Arming SystemSecurity Alarm.............................................20Assist, Hill Start............................................. 184Audio Settings............................................... 148Audio Systems (Radio).................................. 124Auto Down Power Windows..............................59Automatic Door Locks......................................24Automatic Headlights.......................................43Automatic High Beams.....................................43Automatic Temperature Control (ATC).......48, 53Automatic Transmission......................... 89, 263Adding Fluid..................................... 263, 301Fluid And Filter Change............................. 263Fluid Change............................................. 263Fluid Level Check...................................... 263Fluid Type........................................ 263, 301Special Additives...................................... 263Automatic Transmission Limp Home
Mode.........................................................24, 92AutoPark..........................................................84AutostickOperation.....................................................92

21_LD_OM_EN_USC_t.book Page 306

307
AUX
................................................................ 220AUX Cord.......................................................... 56Auxiliary Electrical Outlet (Power Outlet).......... 57AWD Towing....................................................... 244Axle Fluid....................................................... 301Axle Lubrication............................................. 301
B
Back-Up......................................................... 112Battery.................................................... 75, 252Charging System Light................................. 75Keyless Key Fob Replacement.................... 14Location.................................................... 252Battery Saver Feature...................................... 45Belts, Seat..................................................... 220BluetoothConnecting To A Particular Mobile Phone Or Audio Device After Pairing
................156Body Mechanism Lubrication........................ 256B-Pillar Location............................................. 280Brake Assist System...................................... 181Brake Control System.................................... 181Brake Fluid.......................................... 262, 301Brake System...................................... 262, 296Fluid Check..................................... 262, 301Master Cylinder......................................... 262Parking........................................................ 87Warning Light..................................... 74, 296Brake/Transmission Interlock......................... 89
Break-In Recommendations, New Vehicle....... 86Brightness, Interior Lights................................ 46Bulb Replacement........................................ 271Bulbs, Light.......................................... 222, 271
C
Camera, Rear................................................ 112Capacities, Fluid........................................... 299Caps, FillerOil (Engine)............................................... 249Radiator (Coolant Pressure)..................... 261Car Washes................................................... 293Carbon Monoxide Warning............................ 222CargoVehicle Loading........................................ 114Cargo Area Cover............................................. 64Cargo Compartment........................................ 64CD................................................................. 150Certification Label......................................... 114Chains, Tire................................................... 290Chart, Tire Sizing........................................... 276Check Engine Light (Malfunction
Indicator Light)................................................. 82Checking Your Vehicle For Safety................. 220Checks, Safety.............................................. 220Child Restraint.............................................. 208Child RestraintsBooster Seats........................................... 211Child Seat Installation.............................. 218
How To Stow An unused ALR Seat Belt..... 216Infant And Child Restraints....................... 210Lower Anchors And Tethers For Children.. 213Older Children And Child Restraints.......... 210Seating Positions...................................... 212Child Safety Locks............................................24Clean Air Gasoline......................................... 297CleaningWheels...................................................... 289Climate Control................................................48Automatic....................................................48Manual........................................................51Coin Holder......................................................55Cold Weather Operation...................................85Compact Spare Tire...................................... 287ConsoleFloor............................................................55Contract, Service........................................... 303Controls........................................................ 141Cooling Pressure Cap (Radiator Cap)............ 261Cooling System............................................. 259Adding Coolant (Antifreeze)...................... 260Coolant Level................................... 260, 261Cooling Capacity....................................... 299Disposal Of Used Coolant......................... 261Drain, Flush, And Refill............................. 260Inspection................................................. 261Points To Remember................................ 26111

21_LD_OM_EN_USC_t.book Page 307

308 Pressure Cap
............................................. 261Radiator Cap............................................. 261Selection Of Coolant (Antifreeze)........................ 260, 299, 300Corrosion Protection...................................... 293Cruise Control (Speed Control)................. 95, 96Cruise Light..................................................... 80Customer Assistance..................................... 302Customer Programmable Features................125Cybersecurity................................................. 124
D
Daytime Running Lights................................... 42Deck LidPower Release............................................ 63Defroster, Windshield.................................... 220De-Icer, Remote Start...................................... 19Deleting A Phone........................................... 157Diagnostic System, Onboard........................... 81Dimmer SwitchHeadlight..................................................... 43DipsticksOil (Engine)................................................ 251Disabled Vehicle Towing................................ 243Disc Drive...................................................... 150Disconnecting................................................ 157DisposalAntifreeze (Engine Coolant)....................... 261Disturb........................................................... 159Door Ajar.......................................................... 75
Door Ajar Light................................................. 75Door LocksAutomatic.................................................... 24Child-Protection Door Lock — Rear Doors.... 24Doors............................................................... 21Drag & Drop.................................................. 140Drive Modes.................................................. 174Driver Memory Presets................................. 148Driver’s Seat Back Tilt...................................... 29DrivingThrough Flowing, Rising, Or Shallow Standing Water
.................................... 122
E
Electric Brake Control System....................... 181Anti-Lock Brake System............................ 180Electronic Roll Mitigation................. 181, 185Electric Remote Mirrors................................... 37Electronic Power Distribution
Center (Fuses).............................................. 264Electronic Speed Control (Cruise Control)........ 95Electronic Stability Control (ESC).................. 182Electronic Throttle Control Warning Light......... 75Emergency Gas Can Refueling...................... 238Emergency, In Case OfFreeing Vehicle When Stuck..................... 242Hazard Warning Flasher........................... 223Jacking..................................................... 226Jump Starting.................................. 236, 237Towing...................................................... 243
Emission Control System Maintenance............82Engine.................................................. 249, 250Air Cleaner................................................ 254Block Heater................................................86Break-In Recommendations........................86Checking Oil Level.................................... 251Compartment.................................. 249, 250Compartment Identification...................... 249Coolant (Antifreeze)......................... 260, 300Cooling...................................................... 259Exhaust Gas Caution................................ 222Fails To Start................................................85Flooded, Starting.........................................85Fuel Requirements.......................... 297, 299Jump Starting.................................. 236, 237Oil...........................................253, 299, 300Oil Filler Cap............................................. 249Oil Filter.................................................... 254Oil Selection..................................... 253, 299Oil Synthetic.............................................. 253Overheating.............................................. 239Starting........................................................83Enhanced Accident Response
Feature................................................ 207, 244Ethanol.......................................................... 298Exhaust Gas Cautions................................... 222Exhaust System................................... 222, 258Exterior Lighting...............................................41Exterior Lights........................................ 41, 222

21_LD_OM_EN_USC_t.book Page 308
