DODGE CHARGER SRT 2015 7.G Uconnect 5

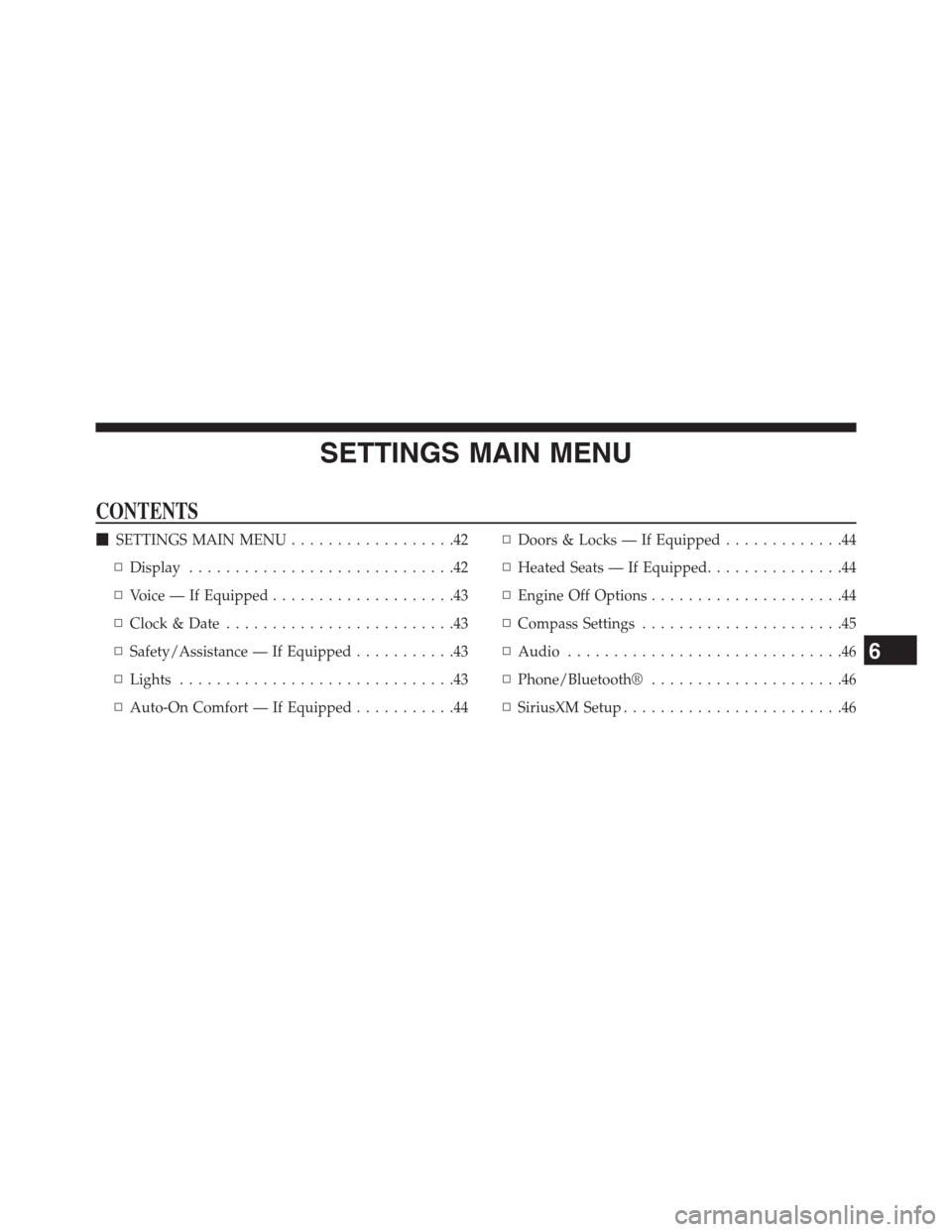

SETTINGS MAIN MENU
CONTENTS
!SETTINGS MAIN MENU. . . . . . . . . . . . . . . . . .42
▫Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
▫Voice — If Equipped. . . . . . . . . . . . . . . . . . . .43
▫Clock & Date. . . . . . . . . . . . . . . . . . . . . . . . .43
▫Safety/Assistance — If Equipped. . . . . . . . . . .43
▫Lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
▫Auto-On Comfort — If Equipped. . . . . . . . . . .44
▫Doors & Locks — If Equipped. . . . . . . . . . . . .44
▫Heated Seats — If Equipped. . . . . . . . . . . . . . .44
▫Engine Off Options. . . . . . . . . . . . . . . . . . . . .44
▫Compass Settings. . . . . . . . . . . . . . . . . . . . . .45
▫Audio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
▫Phone/Bluetooth®. . . . . . . . . . . . . . . . . . . . .46
▫SiriusXM Setup. . . . . . . . . . . . . . . . . . . . . . . .46
6

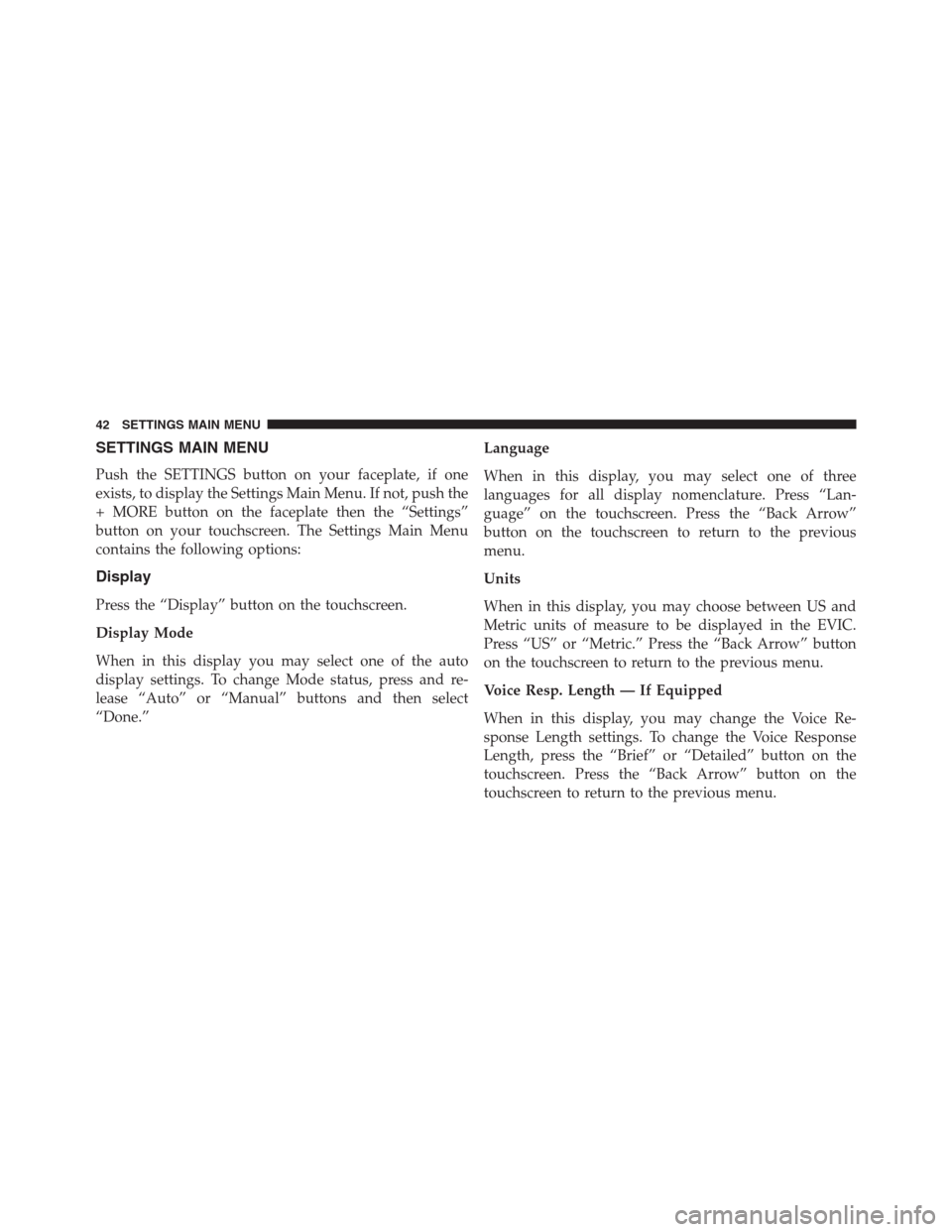

SETTINGS MAIN MENU
Push the SETTINGS button on your faceplate, if one
exists, to display the Settings Main Menu. If not, push the
+ MORE button on the faceplate then the “Settings”
button on your touchscreen. The Settings Main Menu
contains the following options:
Display
Press the “Display” button on the touchscreen.
Display Mode
When in this display you may select one of the auto
display settings. To change Mode status, press and re-
lease “Auto” or “Manual” buttons and then select
“Done.”
Language
When in this display, you may select one of three
languages for all display nomenclature. Press “Lan-
guage” on the touchscreen. Press the “Back Arrow”
button on the touchscreen to return to the previous
menu.
Units
When in this display, you may choose between US and
Metric units of measure to be displayed in the EVIC.
Press “US” or “Metric.” Press the “Back Arrow” button
on the touchscreen to return to the previous menu.
Voice Resp. Length — If Equipped
When in this display, you may change the Voice Re-
sponse Length settings. To change the Voice Response
Length, press the “Brief” or “Detailed” button on the
touchscreen. Press the “Back Arrow” button on the
touchscreen to return to the previous menu.
42 SETTINGS MAIN MENU

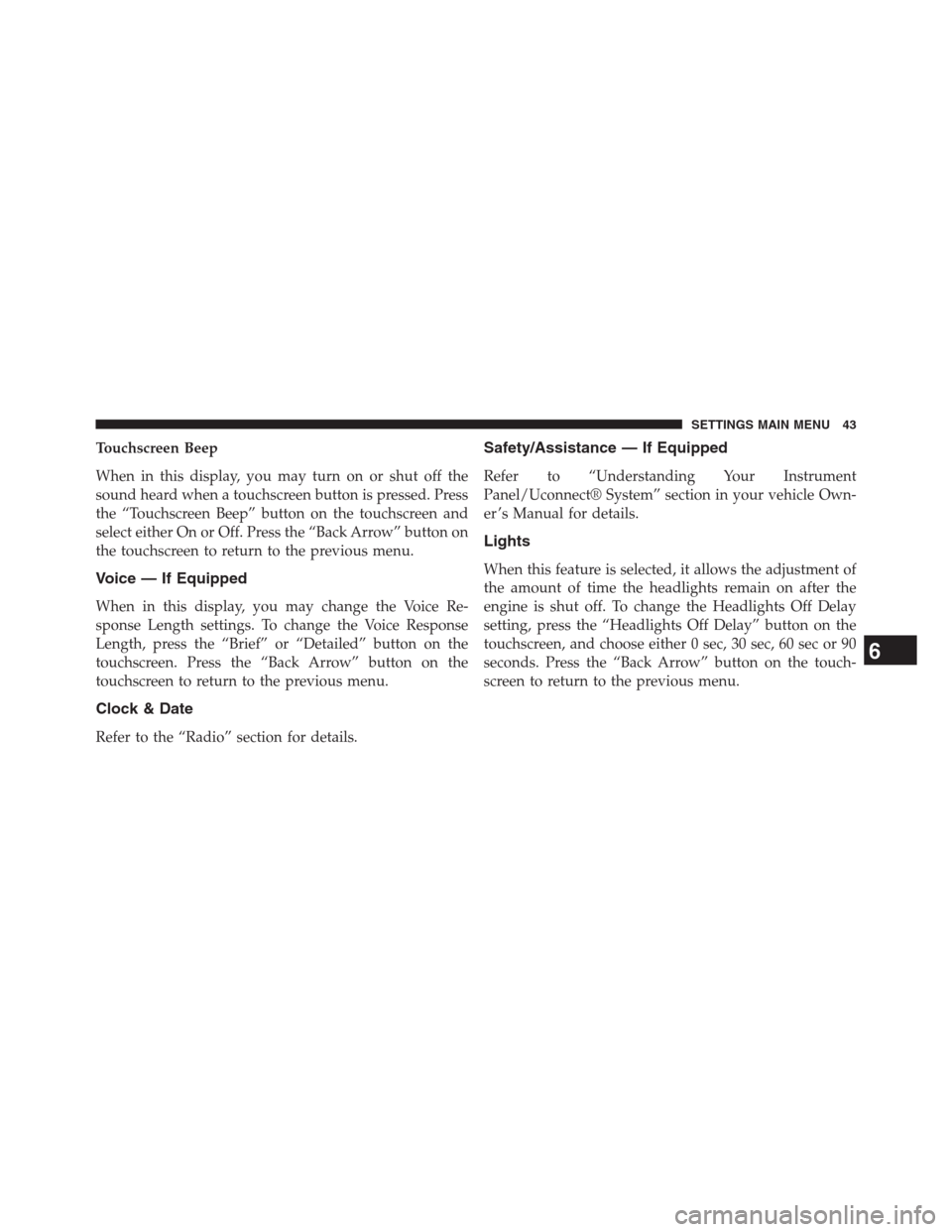

Touchscreen Beep
When in this display, you may turn on or shut off the
sound heard when a touchscreen button is pressed. Press
the “Touchscreen Beep” button on the touchscreen and
select either On or Off. Press the “Back Arrow” button on
the touchscreen to return to the previous menu.
Voice — If Equipped
When in this display, you may change the Voice Re-
sponse Length settings. To change the Voice Response
Length, press the “Brief” or “Detailed” button on the
touchscreen. Press the “Back Arrow” button on the
touchscreen to return to the previous menu.
Clock & Date
Refer to the “Radio” section for details.
Safety/Assistance — If Equipped
Refer to “Understanding Your Instrument
Panel/Uconnect® System” section in your vehicle Own-
er ’s Manual for details.
Lights
When this feature is selected, it allows the adjustment of
the amount of time the headlights remain on after the
engine is shut off. To change the Headlights Off Delay
setting, press the “Headlights Off Delay” button on the
touchscreen, and choose either 0 sec, 30 sec, 60 sec or 90
seconds. Press the “Back Arrow” button on the touch-
screen to return to the previous menu.
6
SETTINGS MAIN MENU 43

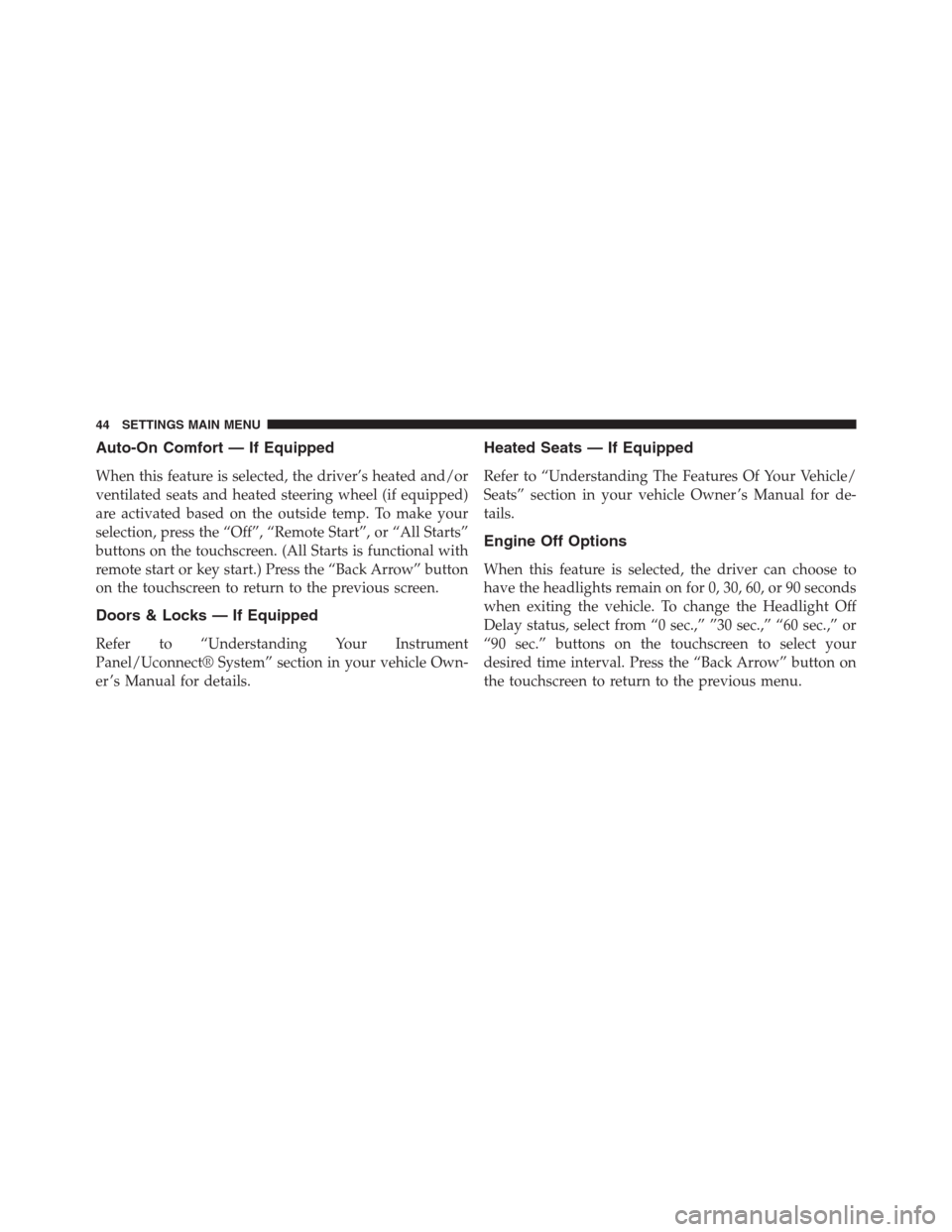

Auto-On Comfort — If Equipped
When this feature is selected, the driver’s heated and/or
ventilated seats and heated steering wheel (if equipped)
are activated based on the outside temp. To make your
selection, press the “Off”, “Remote Start”, or “All Starts”
buttons on the touchscreen. (All Starts is functional with
remote start or key start.) Press the “Back Arrow” button
on the touchscreen to return to the previous screen.
Doors & Locks — If Equipped
Refer to “Understanding Your Instrument
Panel/Uconnect® System” section in your vehicle Own-
er ’s Manual for details.
Heated Seats — If Equipped
Refer to “Understanding The Features Of Your Vehicle/
Seats” section in your vehicle Owner ’s Manual for de-
tails.
Engine Off Options
When this feature is selected, the driver can choose to
have the headlights remain on for 0, 30, 60, or 90 seconds
when exiting the vehicle. To change the Headlight Off
Delay status, select from “0 sec.,” ”30 sec.,” “60 sec.,” or
“90 sec.” buttons on the touchscreen to select your
desired time interval. Press the “Back Arrow” button on
the touchscreen to return to the previous menu.
44 SETTINGS MAIN MENU

Compass Settings
Compass Variance
Compass Variance is the difference between Magnetic
North and Geographic North. To compensate for the
differences the variance should be set for the zone where
the vehicle is driven, per the zone map. Once properly
set, the compass will automatically compensate for the
differences, and provide the most accurate compass
heading.
NOTE:Keep magnetic materials away from the top of the
instrument panel, such as iPod’s, Mobile Phones, Laptop
Computers and Radar Detectors. This is where the com-
pass module is located, and it can cause interference with
the compass sensor, and it may give false readings.
Compass will not show if vehicle has GPS activated.
Compass Variance Map6
SETTINGS MAIN MENU 45

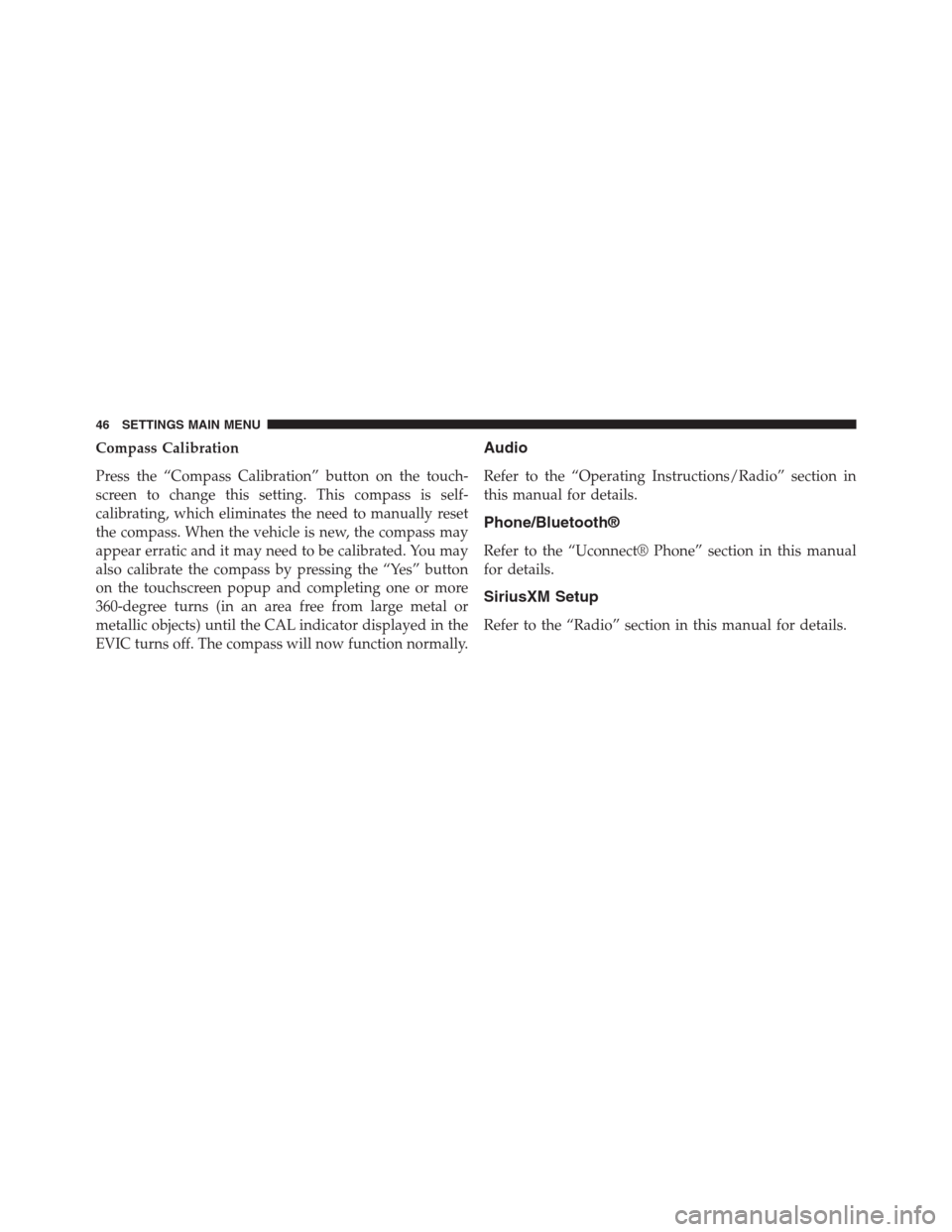

Compass Calibration
Press the “Compass Calibration” button on the touch-
screen to change this setting. This compass is self-
calibrating, which eliminates the need to manually reset
the compass. When the vehicle is new, the compass may
appear erratic and it may need to be calibrated. You may
also calibrate the compass by pressing the “Yes” button
on the touchscreen popup and completing one or more
360-degree turns (in an area free from large metal or
metallic objects) until the CAL indicator displayed in the
EVIC turns off. The compass will now function normally.
Audio
Refer to the “Operating Instructions/Radio” section in
this manual for details.
Phone/Bluetooth®
Refer to the “Uconnect® Phone” section in this manual
for details.
SiriusXM Setup
Refer to the “Radio” section in this manual for details.
46 SETTINGS MAIN MENU

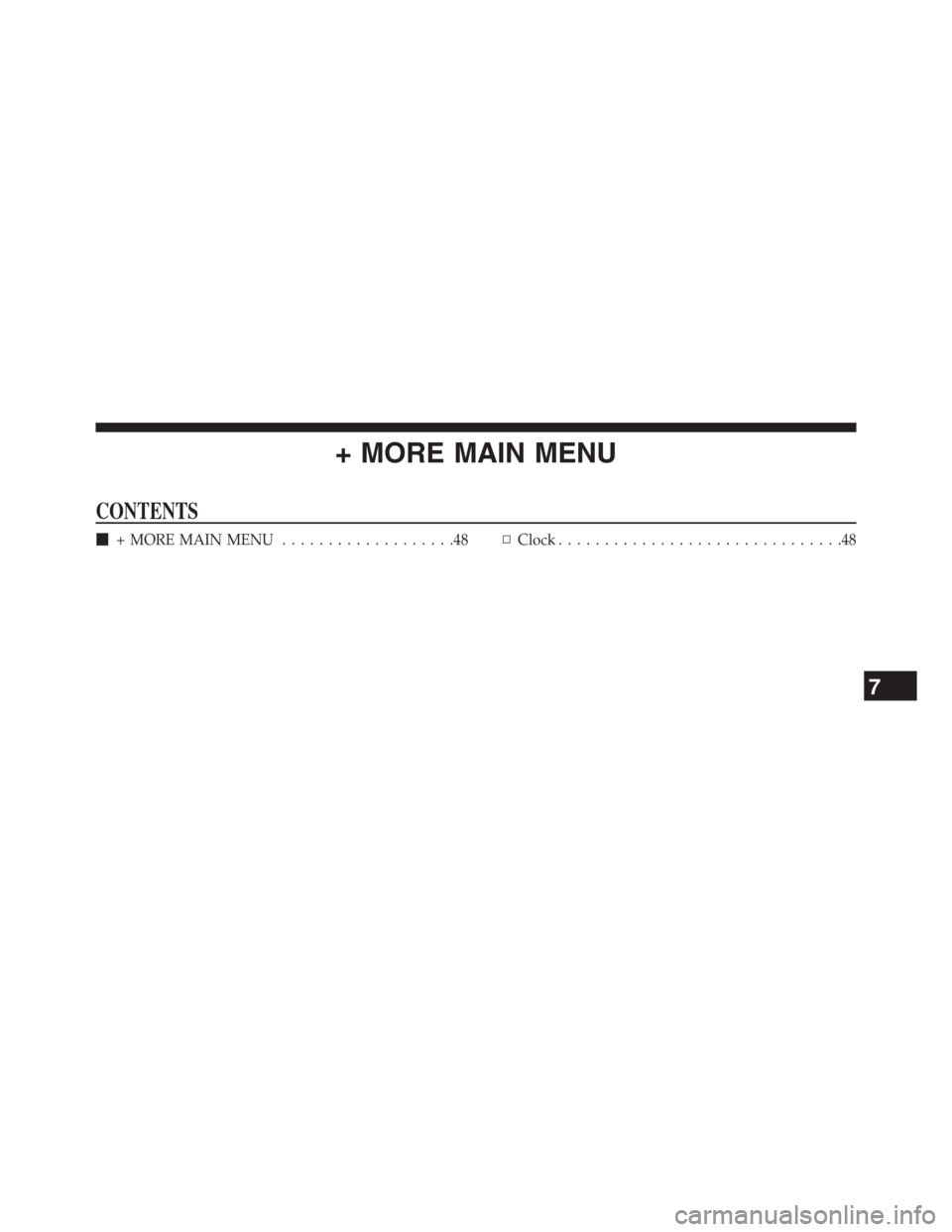

+ MORE MAIN MENU
CONTENTS
!+ MORE MAIN MENU. . . . . . . . . . . . . . . . . . .48▫Clock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
7

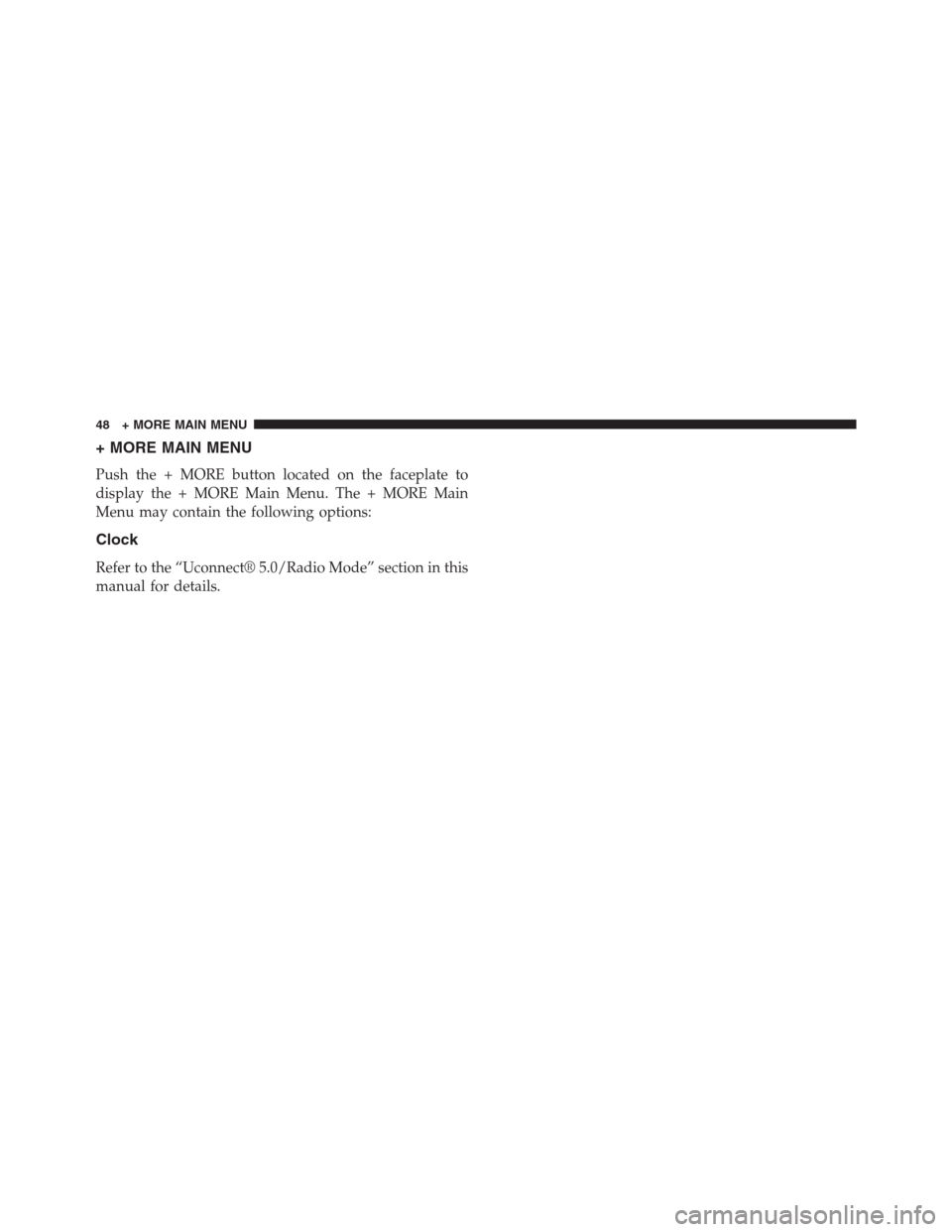

+ MORE MAIN MENU
Push the + MORE button located on the faceplate to
display the + MORE Main Menu. The + MORE Main
Menu may contain the following options:
Clock
Refer to the “Uconnect® 5.0/Radio Mode” section in this
manual for details.
48 + MORE MAIN MENU

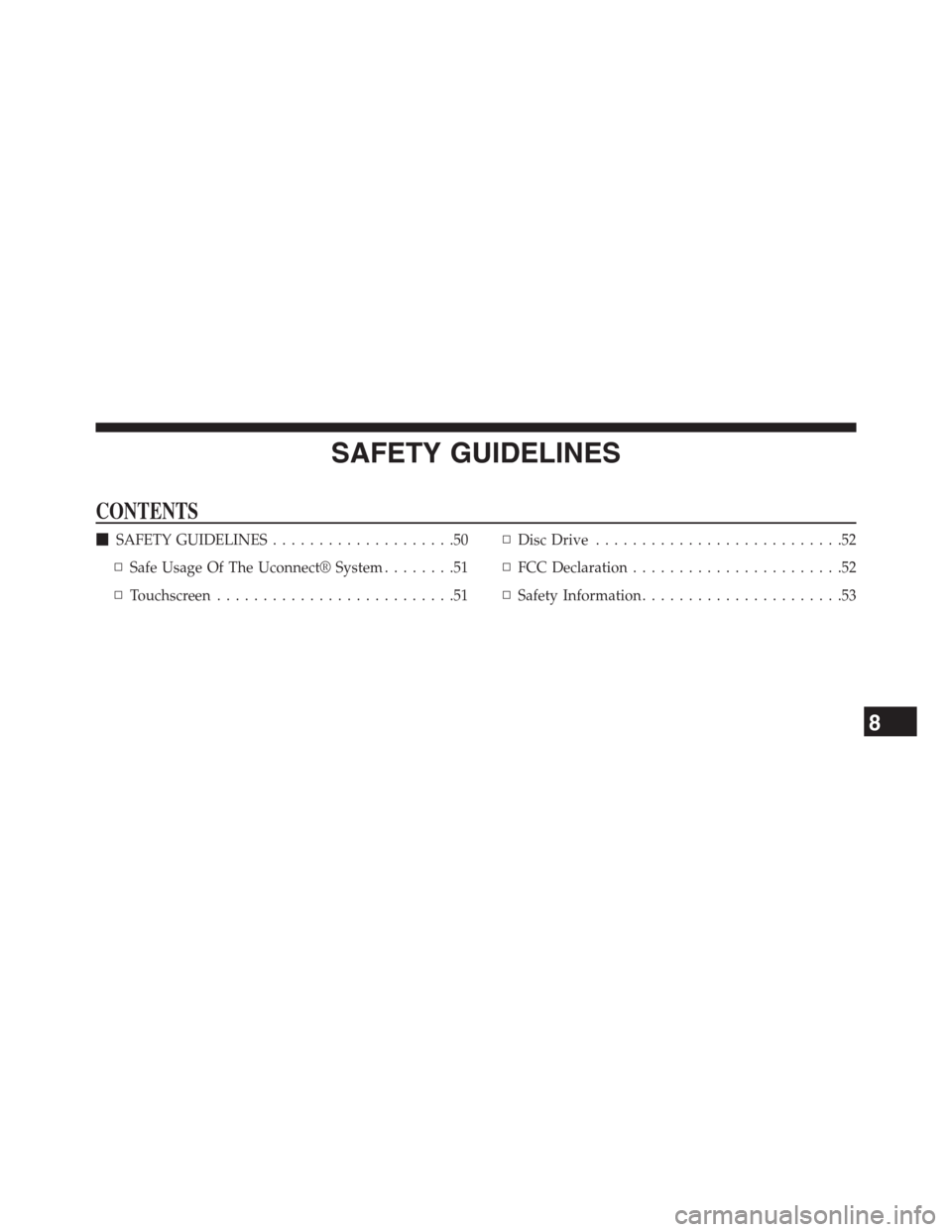

SAFETY GUIDELINES
CONTENTS
!SAFETY GUIDELINES. . . . . . . . . . . . . . . . . . . .50
▫Safe Usage Of The Uconnect® System. . . . . . . .51
▫Touchscreen. . . . . . . . . . . . . . . . . . . . . . . . . .51
▫Disc Drive. . . . . . . . . . . . . . . . . . . . . . . . . . .52
▫FCC Declaration. . . . . . . . . . . . . . . . . . . . . . .52
▫Safety Information. . . . . . . . . . . . . . . . . . . . . .53
8
