DODGE DART 2015 PF / 1.G User Guide

5. Battery
6. Washer Fluid Reservoir
7. Engine Oil Dipstick
8. Air Cleaner Filter
MAINTAINING YOUR VEHICLE
129

2.4L Engine
1. Engine Coolant Reservoir
2. Engine Oil Fill
3. Brake Fluid Reservoir
4. Power Distribution Center (Fuses)
MAINTAINING YOUR VEHICLE
130

5. Battery
6. Washer Fluid Reservoir
7. Engine Oil Dipstick
8. Air Cleaner Filter
MAINTAINING YOUR VEHICLE
131

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
Fuel (1.4L Engines)13.2 Gallons 50 Liters
Fuel (2.0L/2.4L Engines)14.2 Gallons 54 Liters
Fuel (2.4L GT models only)15.8 Gallons 60 Liters
Engine Oil With Filter
1.4L Turbo Engine (SAE 5W-40 Synthetic, APICertified)4Quarts 3.8Liters
2.0L Engine (SAE 0W-20, API Certified)5Quarts 4.7Liters
2.4L Engine (SAE 0W-20, API Certified)5.5 Quarts 5.2 Liters
Cooling System*
1.4L Turbo Engine (MOPAR®OAT Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula orequivalent)5.8 Quarts 5.5 Liters
2.0L and 2.4L Engine (MOPAR®OAT Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula orequivalent)7.2 Quarts 6.8 Liters
*IncludesheaterandpressurizedcoolantbottlefilledtoMAXlevel.
FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine CoolantWe recommend you use MOPAR®Antifreeze/Coolant 10 Year/150,000 Mile Formula OAT (Organic Additive Technology) orequivalent meeting the requirements of Chrysler MaterialStandard MS-12106.
Engine Oil – 1.4L TurboEngineWe recommend you use SAE 5W-40 API Certified SyntheticEngine Oil, meeting the requirements of Chrysler MaterialStandard MS-12991 such as MOPAR®,Pennzoil®,andShellHelix®.RefertoyourengineoilfillercapforcorrectSAEgrade. Refer to your engine oil filler cap for correct SAE grade.
Engine Oil – 2.0L and2.4L EngineWe recommend you use SAE 0W-20 API Certified Engine Oil,meeting the requirements of Chrysler Material StandardMS-6395 such as MOPAR®,Pennzoil®,andShellHelix®.Refer to your engine oil filler cap for correct SAE grade.
Engine Oil Filter We recommend you use MOPAR®Engine Oil Filter or equiva-lent.
Spark Plugs We recommend you use MOPAR®Spark Plugs.
Fuel Selection – 1.4L TurboEngine91 Octane Recommended – 87 Octane Acceptable.
Fuel Selection – 2.0L and2.4L Engine87 Octane.
MAINTAINING YOUR VEHICLE
132

CAUTION!
•Mixingofenginecoolant(antifreeze)otherthanspecifiedOrganicAdditiveTech-
nology (OAT) engine coolant (antifreeze), may result in engine damage and may
decrease corrosion protection. Organic Additive Technology (OAT) engine coolant is
different and should not be mixed with Hybrid Organic Additive Technology (HOAT)
engine coolant (antifreeze) or any “globally compatible” coolant (antifreeze). If a
non-OAT engine coolant (antifreeze) is introduced into the cooling system in an
emergency, the cooling system will need to be drained, flushed, and refilled with
fresh OAT coolant (conforming to MS-12106), by an authorized dealer as soon as
possible.
•Donotusewateraloneoralcohol-basedenginecoolant(antifreeze)products.Do
not use additional rust inhibitors or antirust products, as they may not be compat-
ible with the radiator engine coolant and may plug the radiator.
•Thisvehiclehasnotbeendesignedforusewithpropyleneglycol-basedengine
coolant (antifreeze). Use of propylene glycol-based engine coolant (antifreeze) is
not recommended.
Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission(1.4L Turbo Engine) – IfEquipped
Gear Oil:UseonlyMOPAR®CSeriesManual&DualDryClutch Transmission Fluid or equivalent.Control system:UseonlyMOPAR®CSeriesDDCTSAE75W Hydraulic Fluid or equivalent.Failure to use the correct fluid may affect the function orperformance of your transmission.
Automatic Transmission(2.0L And 2.4L Engine) – IfEquipped
Use only MOPAR®SP-IV Automatic Transmission Fluid orequivalent. Failure to use the correct fluid may affect thefunction or performance of your transmission
Manual Transmission – IfEquippedWe recommend you use MOPAR®CSeriesManual&DualDry Clutch Transmission Fluid.
Brake Master Cylinder We recommend you use MOPAR®DOT 3, SAE J1703. IfDOT 3, SAE J1703 brake fluid is not available, then DOT 4is acceptable.
MAINTENANCE PROCEDURES
For information on the maintenance procedures for your vehicle, please refer to “Main-
tenance Procedures” in “Maintaining Your Vehicle” in your Owner’s Manual or applicable
supplement on the DVD for further details.
MAINTAINING YOUR VEHICLE
133

MAINTENANCE SCHEDULE
Yo u r v e h i c l e i s e q u i p p e d w i t h a n a u t o m a t i c o i l c h a n g e i n d i c a t o r s y s t e m . T h e o i l c h a n g e
indicator system will remind you that it is time to take your vehicle in for scheduled
maintenance.
Based on engine operation conditions, the oil change indicator message will illuminate.
This means that service is required for your vehicle. Operating conditions such as frequent
short-trips, trailer tow, extremely hot or cold ambient temperatures, and E85 fuel usage
will influence when the “Change Oil” message is displayed. Severe Operating Conditions
can cause the change oil message to illuminate as early as 3,500 miles (5,600 km) since
last reset. Have your vehicle serviced as soon as possible, within the next 500 miles
(805 km).
Yo u r a u t h o r i z e d d e a l e r w i l l r e s e t t h e o i l c h a n g e i n d i c a t o r m e s s a g e a f t e r c o m p l e t i n g t h e
scheduled oil change. If a scheduled oil change is performed by someone other than your
authorized dealer, the message can be reset by referring to the steps described under
“Instrument Cluster Warning Lights” in “What To Do In Emergencies” in this guide or
“Electronic Vehicle Information Center (EVIC)/Driver Information Display (DID)” in “Un-
derstanding Your Instrument Panel” in your Owners Manual on the DVD for further
information.
NOTE:
Under no circumstances should oil change intervals exceed 10,000 miles
(16,000 km) or twelve months, whichever comes first.
Severe Duty All Models
Change Engine Oil at 4000 miles (6,500 km) if the vehicle is operated in a dusty and off
road environment. This type of vehicle use is considered Severe Duty.
• Once A Month Or Before A Long Trip:
•Checkengineoillevel.
•Checkwindshieldwasherfluidlevel.
•Checkthetireinflationpressuresandlookforunusualwearordamage.
•Checkthefluidlevelsofthecoolantreservoir,andbrakemastercylinderasneeded.
•Checkfunctionofallinteriorandexteriorlights.
MAINTAINING YOUR VEHICLE
134

Required Maintenance
Refer to the Maintenance Schedules on the following pages for required maintenance.
At Every Oil Change Interval As Indicated By Oil Change Indicator System:
•Change engine oil and filter.
•Rotatethetires.Rotate at the first sign of irregular wear, even if it occurs before the oil
indicator system turns on.
•Inspect battery and clean and tighten terminals as required.
•Inspect brake pads, shoes, rotors, drums, hoses and park brake.
•Inspect engine cooling system protection and hoses.
•Inspect exhaust system.
•Inspect engine air cleaner if using in dusty or off-road conditions.
MAINTAINING YOUR VEHICLE
135

Maintenance Chart
Mileage Or Time Passed (Whichever Comes First)
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000
Additional InspectionsInspect CV joint boots. X X X X XInspect front suspension, tie rod ends and replace as necessary. X X X X X X XInspect brake linings, parking brake function. X X X X X X XAdditional MaintenanceReplace the cabin/air conditioning filter. X X X X X X XReplace the engine air cleaner filter. X X X X XReplace the spark plugs (1.4L Turbo Engine).** X X X X XReplace the spark plugs (2.0L and 2.4L Engine).**
X
Flush and replace the engine coolant at 10 years or 150,000 miles(240,000 km) whichever comes first.
XX
Change the transmission fluid (manual, or 1.4L turbo automatic) if using yourvehicle for any of the following: trailer towing, heavy loading, taxi, police, deliv-ery service (commercial service), off-road, desert operation or more than 50% ofyour driving is at sustained speeds during hot weather, above 90°F (32°C).
XX X
Change the automatic transmission fluid and filter (2.0L, 2.4L engines only)if you frequently drive: on rough or unpaved roads, on mountain roads, onshort trips, in heavy city traffic during hot weather, or while towing a trailer, orif you use the vehicle for police, taxi, or in a commercial fleet.
XX
Inspect and replace PCV valve if necessary.
X
Replace the timing belt (1.4L Turbo Engine).
X
** The spark plug change interval is mileage based only, yearly intervals do not apply.
MAINTAINING YOUR VEHICLE
136

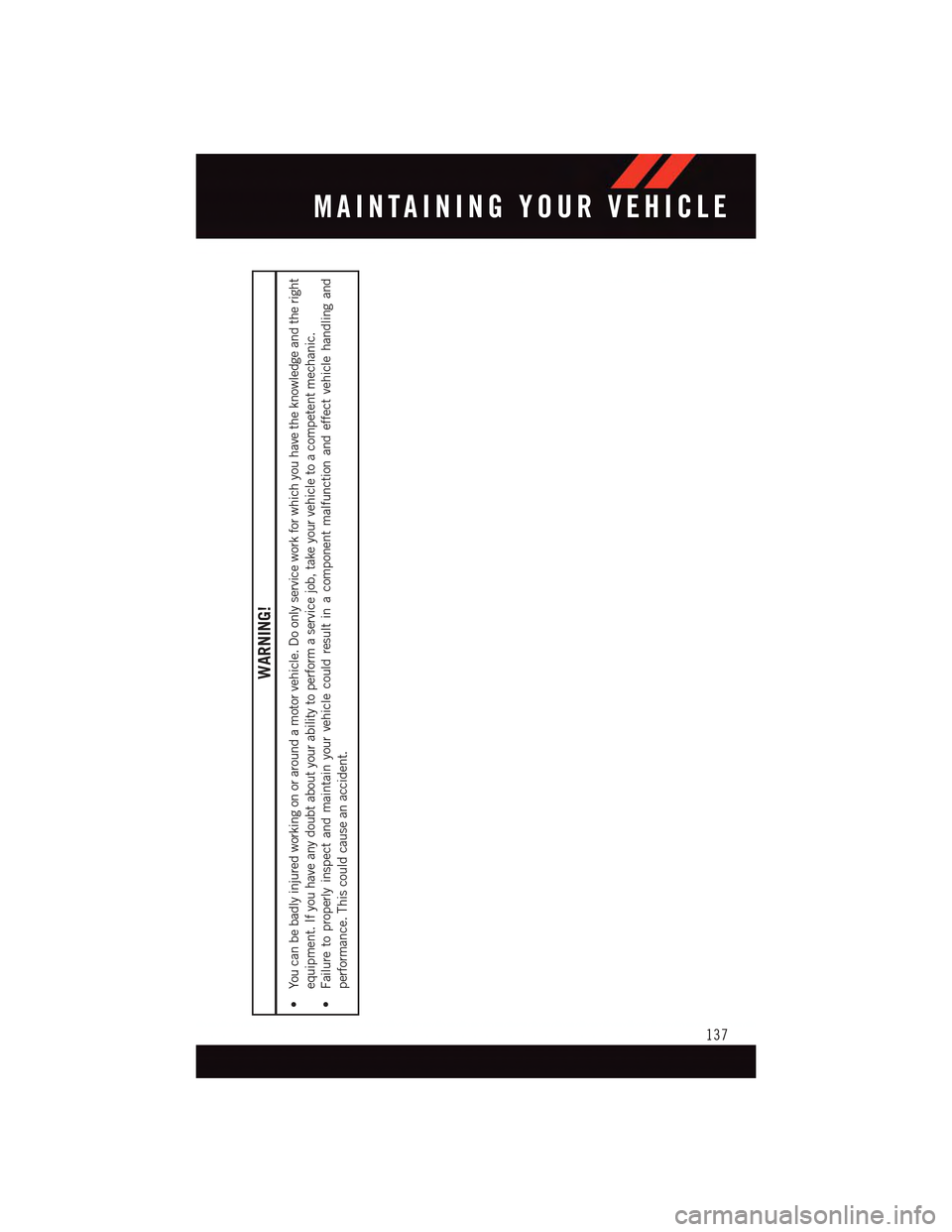

WARNING!
•Youcanbebadlyinjuredworkingonoraroundamotorvehicle.Doonlyserviceworkforwhichyouhavetheknowledgeandtheright
equipment. If you have any doubt about your ability to perform a service job, take your vehicle to a competent mechanic.
•Failuretoproperlyinspectandmaintainyourvehiclecouldresultinacomponentmalfunctionandeffectvehiclehandlingand
performance. This could cause an accident.
MAINTAINING YOUR VEHICLE
137

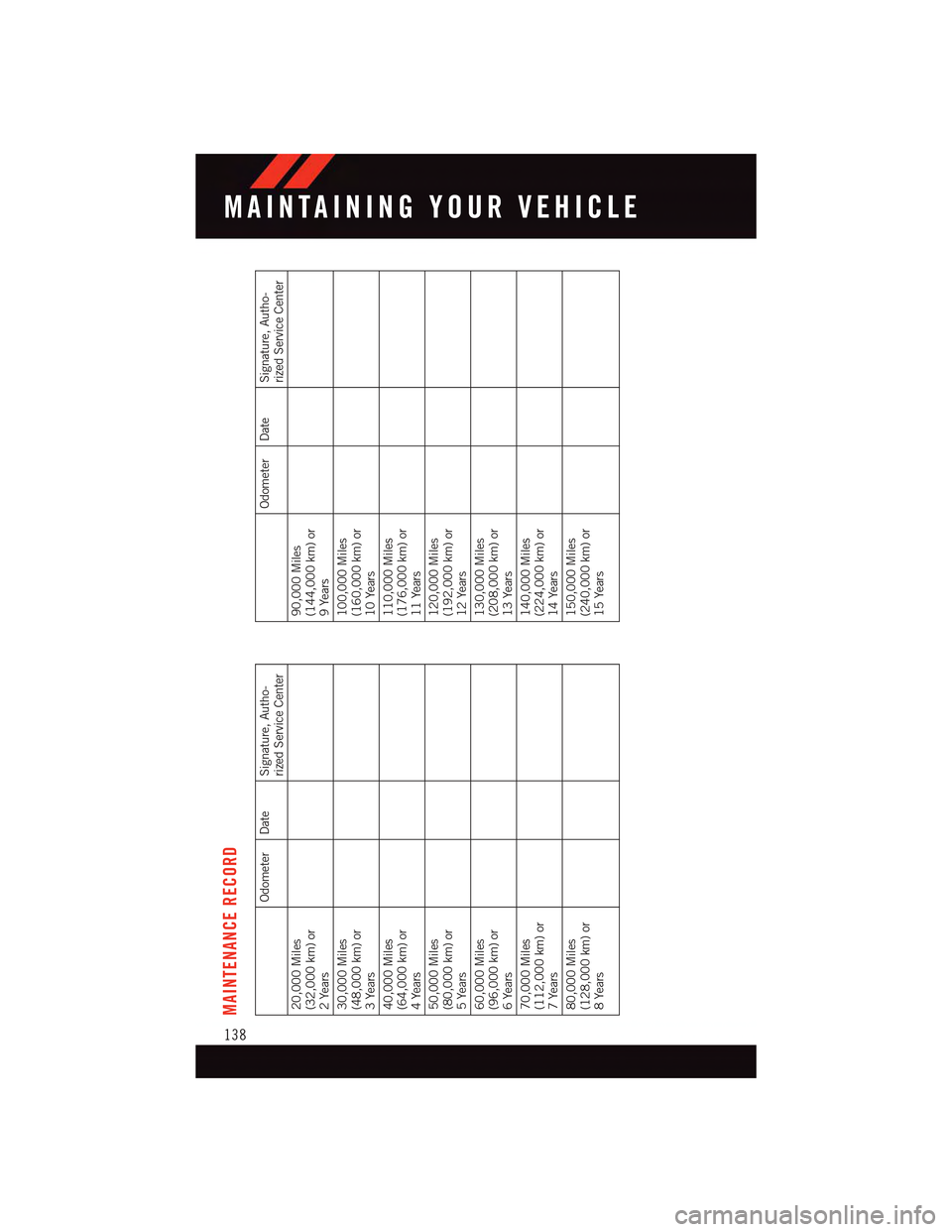

MAINTENANCE RECORD
Odometer Date Signature, Autho-
rized Service Center
20,000 Miles(32,000 km) or2Years30,000 Miles(48,000 km) or3Years40,000 Miles(64,000 km) or4Years50,000 Miles(80,000 km) or5Years60,000 Miles(96,000 km) or6Years70,000 Miles(112,000 km) or7Years80,000 Miles(128,000 km) or8Years
Odometer Date Signature, Autho-
rized Service Center
90,000 Miles(144,000 km) or9Years100,000 Miles(160,000 km) or10 Years110,000 Miles(176,000 km) or11 Years120,000 Miles(192,000 km) or12 Years130,000 Miles(208,000 km) or13 Years140,000 Miles(224,000 km) or14 Years150,000 Miles(240,000 km) or15 Years
MAINTAINING YOUR VEHICLE
138
