DODGE DURANGO 2005 2.G Owners Manual

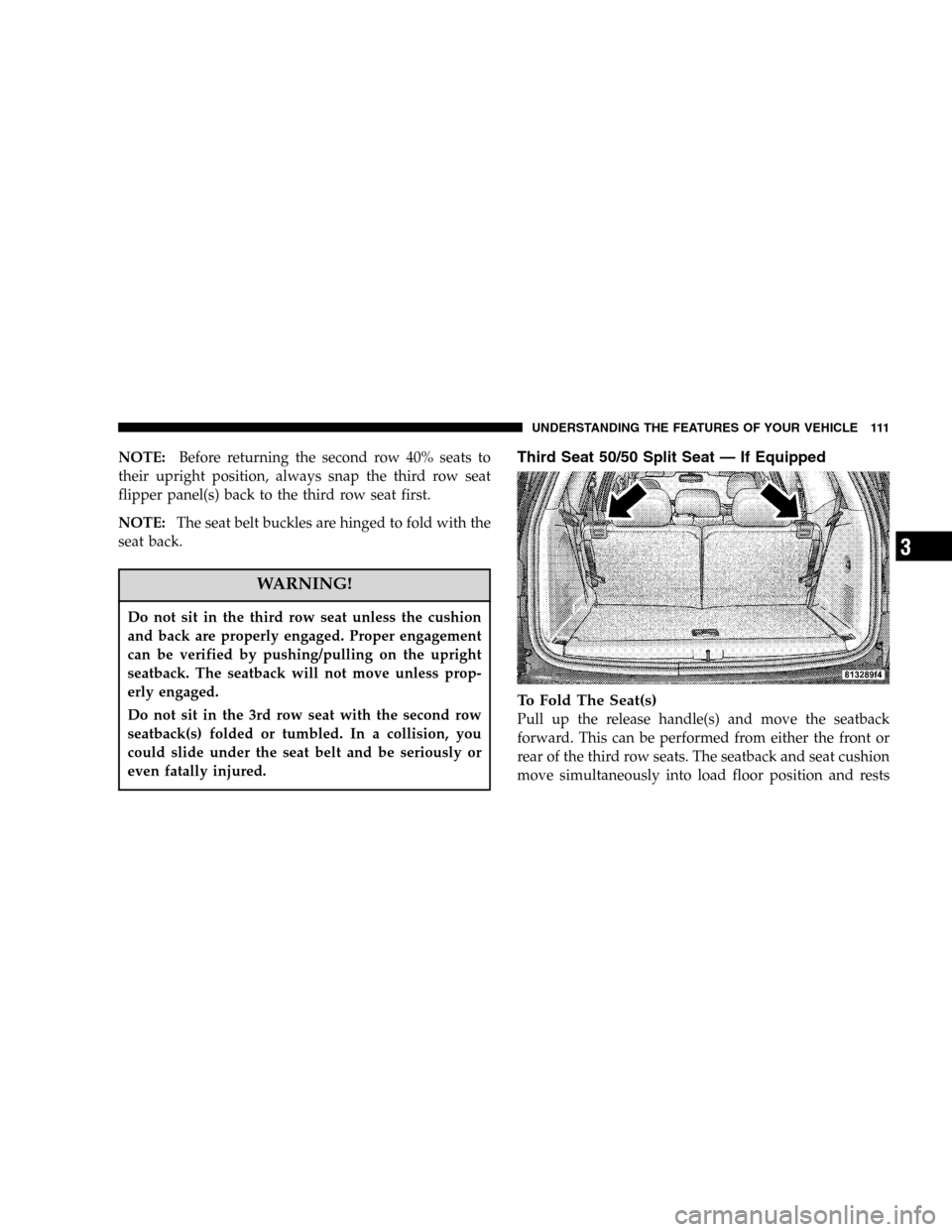

NOTE:Before returning the second row 40% seats to
their upright position, always snap the third row seat
flipper panel(s) back to the third row seat first.
NOTE:The seat belt buckles are hinged to fold with the
seat back.
WARNING!
Do not sit in the third row seat unless the cushion
and back are properly engaged. Proper engagement
can be verified by pushing/pulling on the upright
seatback. The seatback will not move unless prop-
erly engaged.
Do not sit in the 3rd row seat with the second row
seatback(s) folded or tumbled. In a collision, you
could slide under the seat belt and be seriously or
even fatally injured.
Third Seat 50/50 Split Seat — If Equipped
To Fold The Seat(s)
Pull up the release handle(s) and move the seatback
forward. This can be performed from either the front or
rear of the third row seats. The seatback and seat cushion
move simultaneously into load floor position and rests
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 111
3

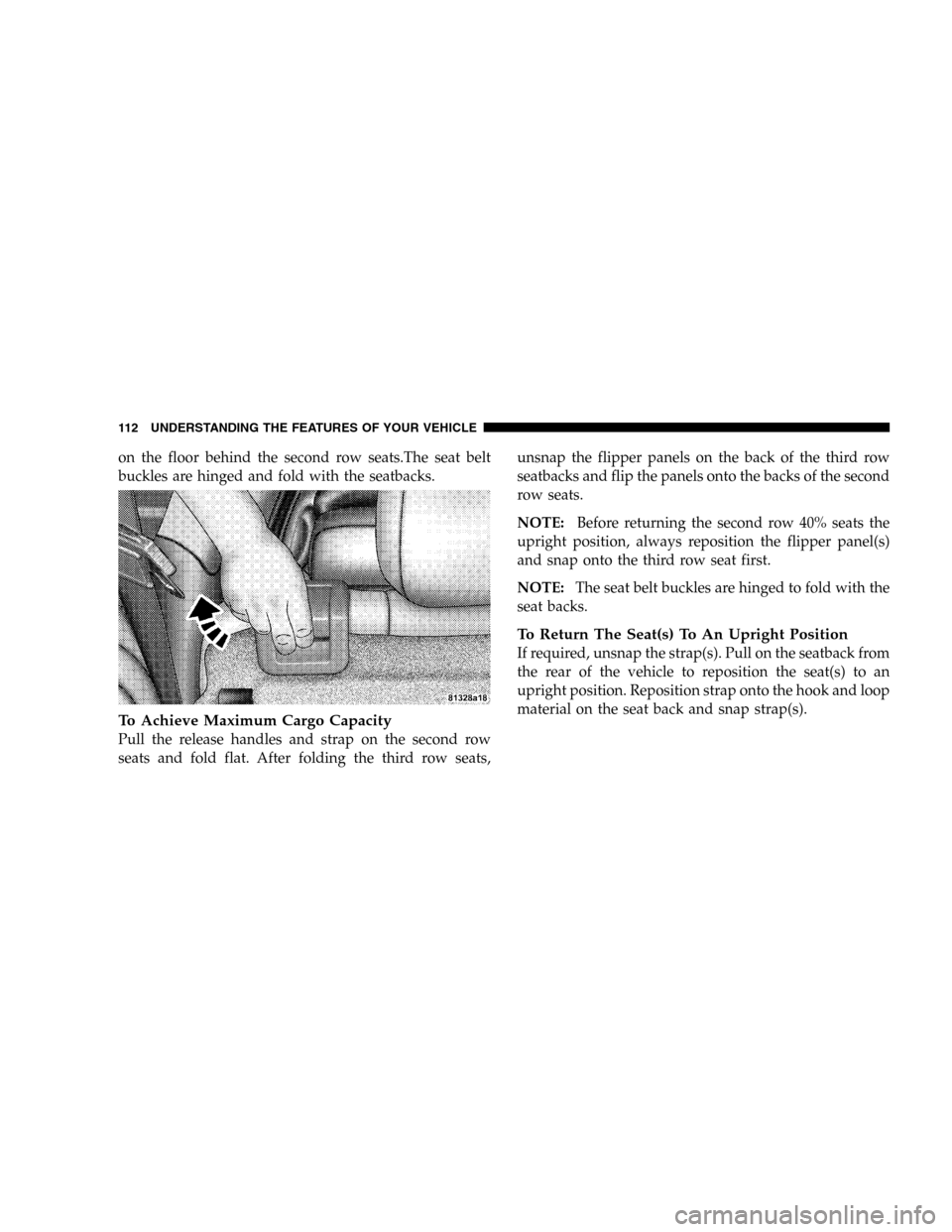

on the floor behind the second row seats.The seat belt
buckles are hinged and fold with the seatbacks.
To Achieve Maximum Cargo Capacity
Pull the release handles and strap on the second row
seats and fold flat. After folding the third row seats,unsnap the flipper panels on the back of the third row
seatbacks and flip the panels onto the backs of the second
row seats.
NOTE:Before returning the second row 40% seats the
upright position, always reposition the flipper panel(s)
and snap onto the third row seat first.
NOTE:The seat belt buckles are hinged to fold with the
seat backs.
To Return The Seat(s) To An Upright Position
If required, unsnap the strap(s). Pull on the seatback from
the rear of the vehicle to reposition the seat(s) to an
upright position. Reposition strap onto the hook and loop
material on the seat back and snap strap(s).
112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

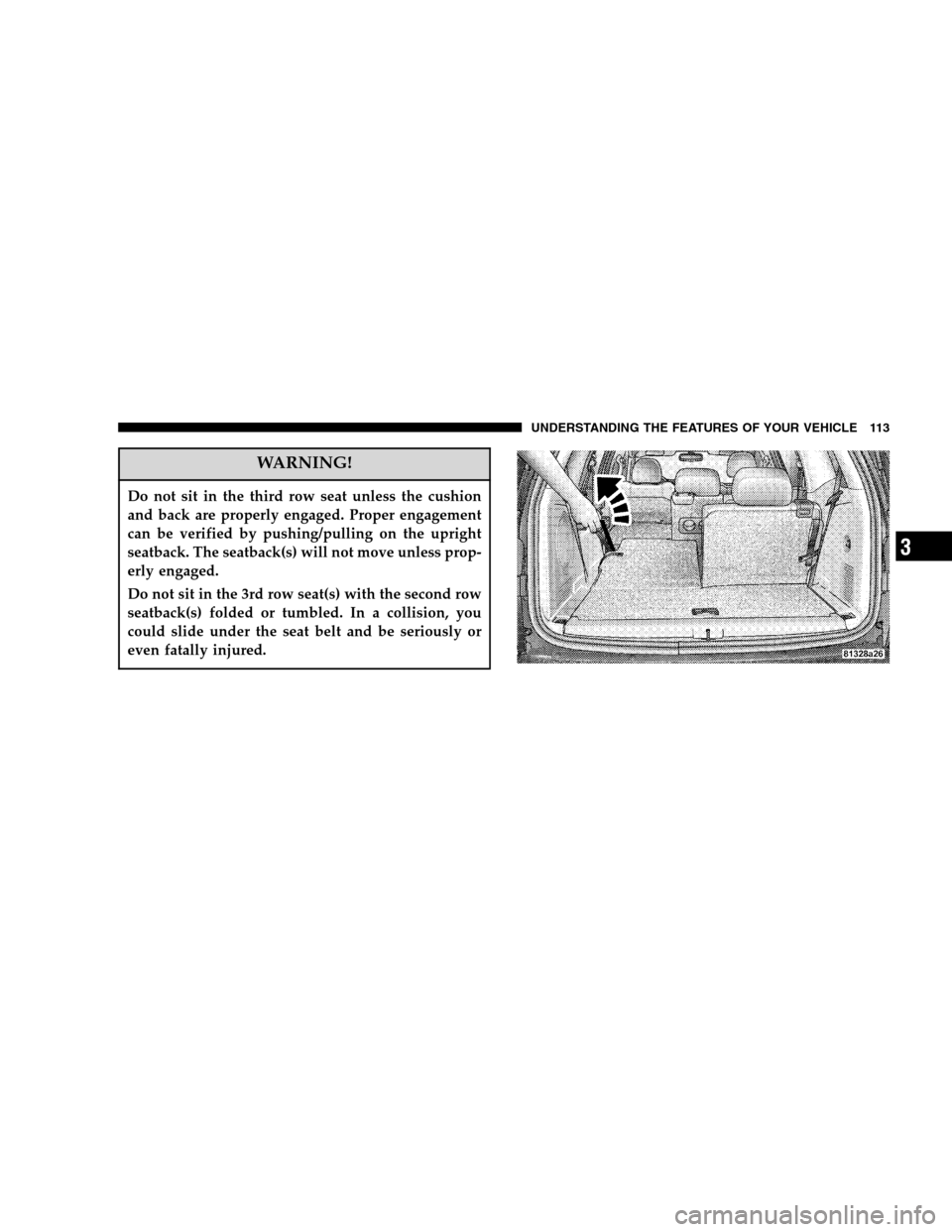

WARNING!
Do not sit in the third row seat unless the cushion
and back are properly engaged. Proper engagement
can be verified by pushing/pulling on the upright
seatback. The seatback(s) will not move unless prop-
erly engaged.
Do not sit in the 3rd row seat(s) with the second row
seatback(s) folded or tumbled. In a collision, you
could slide under the seat belt and be seriously or
even fatally injured.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113
3

DRIVER MEMORY SYSTEM — IF EQUIPPED
Once programmed, the memory buttons 1 and 2 on the
driver’s door panel can be used to recall the driver’s seat
position, driver’s outside mirror position, adjustable
brake and accelerator pedals position, Automatic Tem-
perature Control (ATC) temperature and radio station
preset settings. Your Remote Keyless Entry transmitters
can also be programmed to recall the same positions
when the UNLOCK button is pressed.
Your vehicle was delivered with two Remote Keyless
Entry transmitters. One or both transmitters can be
linked to either memory position. The memory system
can accommodate up to two transmitters, each transmit-
ter linked to either of the two memory positions.
114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Setting Memory Positions and Linking Remote
Keyless Entry Transmitter to Memory
NOTE:Each time the SET (S) button and a numbered
button (1 or 2) are pressed, you erase the memory settings
for that button and store new settings.
1. Adjust the driver’s seat, recliner, and both side view
mirrors to the desired positions.
NOTE:Not all motors may be moved at one time.
Please refer to the 8-way power seat description.
2. Adjust the brake and accelerator pedals to the desired
positions.
3. Turn on the radio and set the radio station presets (up
to 10 AM and 10 FM stations can be set).
4. Adjust the Automatic Temperature Control (ATC)
while the ATC is in Auto mode.5. Press and release the SET (S) button located on the
driver’s door.
6. Within 5 seconds, press and release memory button 1
or 2 on the driver’s door. The next step must be per-
formed within 10 seconds if you desire to also use a
Remote Keyless Entry transmitter to recall memory po-
sitions.
7. Press and release the LOCK button on one of the
transmitters.
8. Insert the ignition key and turn the ignition switch to
the ON position.
9. Repeat the above steps to set the next memory posi-
tion using the other numbered memory button or to link
another Remote Keyless Entry transmitter to memory.
NOTE:A chime sound may be heard if Setting Memory
was inhibited for any reason.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115
3

Memory Position Recall
NOTE:
•The driver’s seat belt must be unbuckled to recall
memory positions.
•The vehicle must be in Park to recall memory posi-
tions.
•Not all motors may be moved at one time. Please refer
to the 8-way power seat description.
To recall the memory settings for driver one, press
memory button number 1 on the driver’s door or the
Unlock button on the Remote Keyless Entry transmitter
linked to memory position 1.
To recall the memory setting for driver two, press
memory button number 2 on the driver’s door or the
Unlock button on the Remote Keyless Entry transmitter
linked to memory position 2.A recall can be cancelled by pressing any of the memory
buttons on the drivers door during a recall (S, 1, or 2), or
pressing any one of the power seat buttons, or pressing
the adjustable pedals button, or pressing either the LOCK
or UNLOCK button on the remote keyless entry trans-
mitter when not in the ignition switch. When a recall is
cancelled, the driver’s seat, and the pedals stop moving.
A delay of one second will occur before another recall can
be selected.
NOTE:A chime sound may be heard if Setting Memory
was inhibited for any reason.
To Disable A Transmitter Linked to Memory
1. Turn the ignition switch to the OFF position and
remove the key.
2. Press and release the memory SET (S) button located
on the driver’s door.
116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

3. Within 10 seconds, press and release the UNLOCK
button on the Remote Keyless Entry transmitter.
To disable another transmitter linked to either memory
position, repeat steps 1-3 for each transmitter.
NOTE:The capability to link Remote Keyless Entry
transmitters to memory is enabled when delivered from
the factory. The capability to link Remote Keyless Entry
transmitters to memory can be disabled (or later reen-
abled) by a qualified DaimlerChrysler representative.
Self-Limiting Control
To improve vehicle reliability, the memory system in-
cludes a self-limiting control for full travel positioning of
power seat and Adjustable Pedal movement (all direc-
tions). This self-limiting control may however develop an
unintended movement limitation if an obstruction is
encountered at sometime during usage. One example of
such an occurrence may include a box or package ob-
structing the full rearward movement of the driver’s seat.Once the obstruction is removed, the self-limiting control
may be restored to maximum position. The self-limiting
control may be restored by first reaching the recently
limited or obstructed position, then release and reactivate
the same button or buttons. Continued seat travel beyond
the obstructed position will indicate the recently encoun-
tered self-limitation has been cleared.
Driver Easy Exit and Easy Entry Control
This additional feature provides automatic driver’s seat
positioning which will enhance driver mobility out of
and into the vehicle. The seat cushion will move rear-
ward approximately 2.5 inches (60 mm) when the key is
removed from the ignition switch. The seat will move
forward approximately 2.5 inches (60 mm) when the key
is placed into the ignition and turned out of the LOCK
position. Each stored memory setting will have an asso-
ciated Easy Exit and Easy Entry position. The Easy Exit
and Easy Entry feature may be automatically disabled if
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117
3

the seat is positioned rearward enough and no benefit
from moving the seat any farther rearward.
NOTE:The Easy Exit Easy Entry feature is not enabled
when delivered from the factory. The Easy Exit Easy
Entry feature may be enabled (or later disabled) by a
qualified DaimlerChrysler service representative.
Tilt Mirrors in Reverse
This additional feature provides automatic outside mir-
ror positioning which will aid the driver’s view of the
ground rearward of the front doors. The outside mirrors
will move slightly downward from the present position
when the vehicle is shifted into Reverse position. The
outside mirrors will then return to the original position
when the vehicle is shifted out of Reverse position. Each
stored memory setting will have an associated Tilt Mir-
rors in Reverse position.
NOTE:The Tilt Mirrors in Reverse feature is not en-
abled when delivered from the factory. The Tilt Mirrors inReverse feature may be enabled (or later disabled) by a
qualified DaimlerChrysler service representative.
TO OPEN AND CLOSE THE HOOD
To open the hood, two latches must be released. First pull
the hood release lever located under the left side of the
instrument panel.
118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

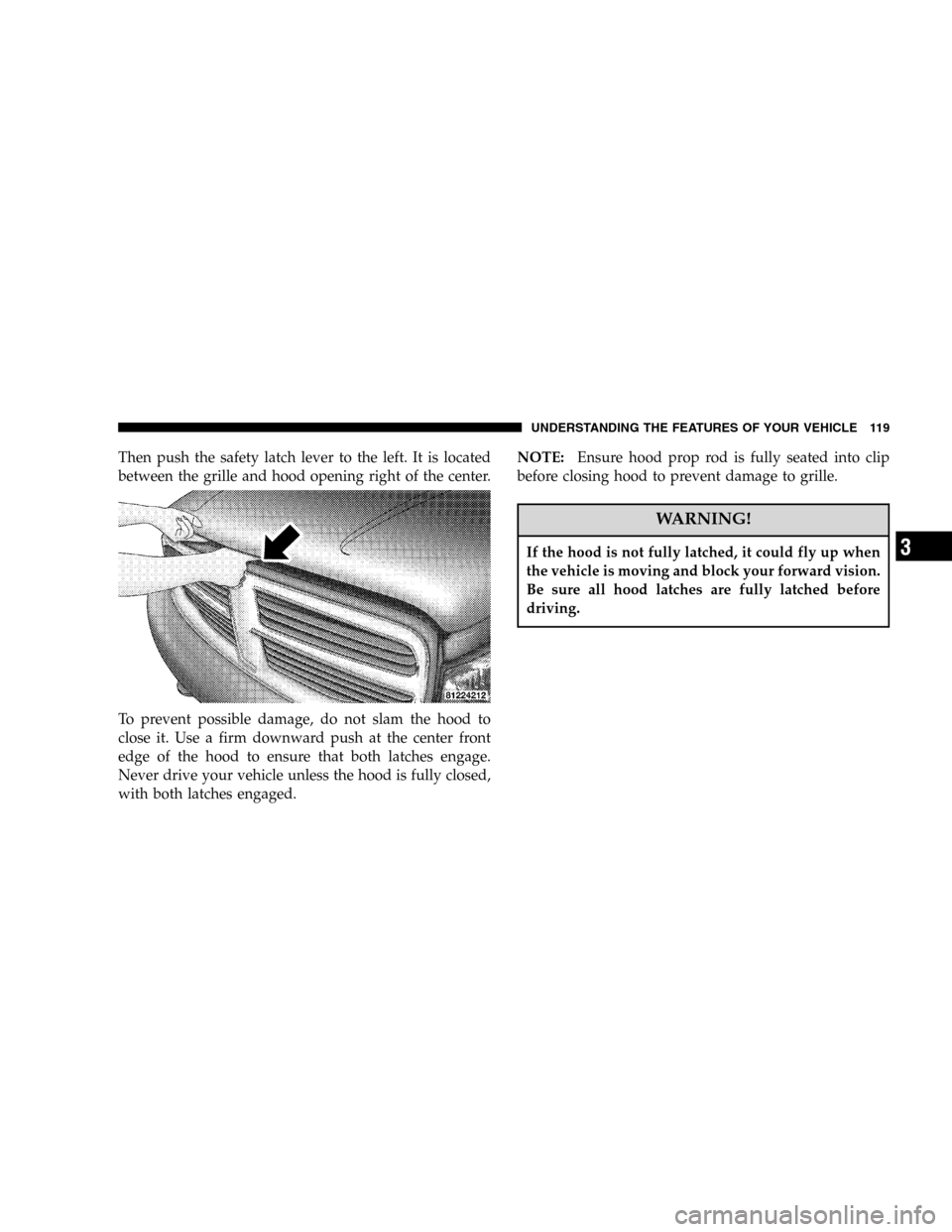

Then push the safety latch lever to the left. It is located
between the grille and hood opening right of the center.
To prevent possible damage, do not slam the hood to
close it. Use a firm downward push at the center front
edge of the hood to ensure that both latches engage.
Never drive your vehicle unless the hood is fully closed,
with both latches engaged.NOTE:Ensure hood prop rod is fully seated into clip
before closing hood to prevent damage to grille.
WARNING!
If the hood is not fully latched, it could fly up when
the vehicle is moving and block your forward vision.
Be sure all hood latches are fully latched before
driving.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119
3

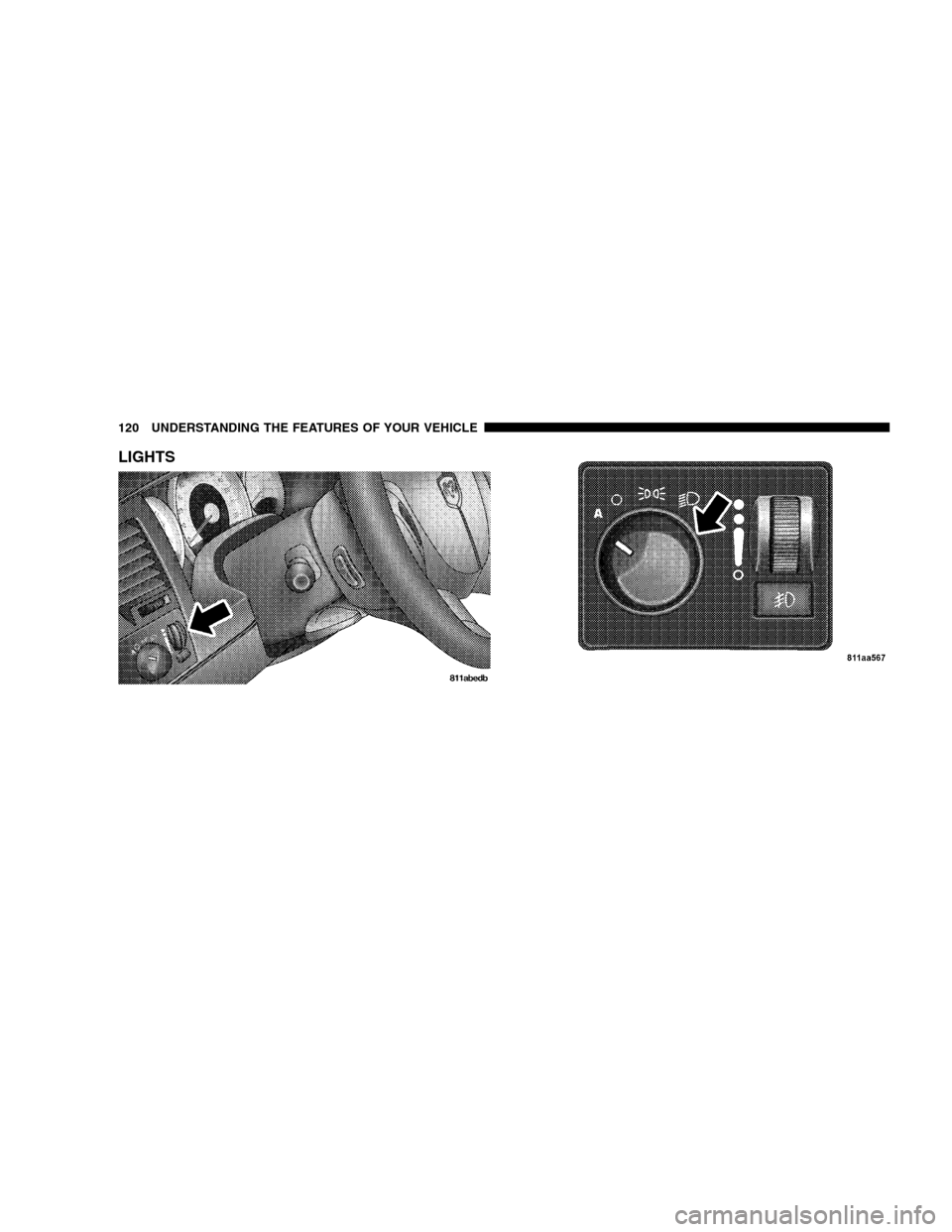

LIGHTS
120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
