Help Command
If you need assistance at any prompt or if you want to
know what your options are at any prompt, sayHelp
following the voice on beep. The UConnect™ system will
play all the options at any prompt if you ask for help.
To activate the UConnect™ system from idle, simply
press the ’Phone’ button and follow audible prompts for
directions. All UConnect™ system sessions begin with a
press of the ’Phone’ button on the mirror.
Cancel Command
At any prompt, after the voice on beep, you can say
Canceland you will be returned to the main menu.
However, in a few instances the system will take you
back to the previous menu.
Pair (Link) UConnect™ System to a Cellular Phone
To begin using your UConnect™ system, you must pair
your compatible Bluetooth™ enabled cellular phone (re-
fer toIntroductionsection to learn about the phonetype). To complete the pairing process, you will need to
reference your cellular phone owner’s manual. One of the
following vehicle specific websites may also provide
detailed instructions for pairing with the brand of phone
that you have:
NOTE:
•www.chrysler.com/uconnect
•www.dodge.com/uconnect
•www.jeep.com/uconnect
The following are general phone to UConnect™ System
pairing instructions:
•Press the ’Phone’ button to begin.
•After theReadyprompt and the following beep, say
Setup Phone Pairing.
•When prompted, after the voice on beep, sayPair a
Phone.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 81
3

•You will be asked to say a four-digit pin number which
you will later need to enter into your cellular. You can
enter any four-digit pin number. You will not need to
remember this pin number after the initial pairing
process.
•The UConnect™ system will then prompt you to begin
the cellular phone pairing process on your cellular
phone. Before attempting to pair phone, please see
your cellular phone’s user manual (Bluetooth section)
for instructions on how to complete this step.
•For identification purposes, you will be prompted to
give the UConnect™ system a name for your cellular
phone. Each cellular phone that is paired should be
given a unique phone name.
•You will then be asked to give your cellular phone a
priority level between 1 and 7, 1 being the highest
priority. You can pair up to seven cellular phones to
your UConnect™ system. However, at any given time,only one cellular phone can be in use, connected to
your UConnect™ System. The priority allows the
UConnect™ system to know which cellular phone to
use if multiple cellular phones are in the vehicle at the
same time. For example, if priority 3 and priority 5
phones are present in the vehicle, the UConnect™
system will use the priority 3 cellular phone when you
make a call. You can select to use a lower priority
cellular phone at any time (refer toAdvanced Phone
Connectivitysection).
Dial by Saying a Number
•
Press the ’Phone’ button to begin.
•After theReadyprompt and the following beep, say
Dial.
•System will prompt you to say the number you want
call.
82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

•For example, you can say234-567-8901.The phone
number that you enter must be of valid length and
combination. The UConnect™ limits the user from
dialing invalid combination of numbers. For example,
234-567-890 is nine digits long, which is not a valid
phone number - the closest valid phone number has
ten digits.
•The UConnect™ system will confirm the phone num-
ber and then dial. The number will appear in the
display of certain radios.
Call by Saying a Name
•
Press the “Phone” button to begin.
•After theReadyprompt and the following beep, say
Call.
•System will prompt you to say the name of the person
you want call.
•After theReadyprompt and the following beep, say
the name of the person you want to call. For example,
you can sayJohn Doe,where John Doe is a previ-
ously stored name entry in the UConnect™ phone-
book. Refer to sectionAdd Names to Your UCon-
nect™ Phonebook,to learn how to store a name in the
phonebook.
•The UConnect™ system will confirm the name and
then dial the corresponding phone number, which
may appear in the display of certain radios.
Add Names to Your UConnect™ Phonebook
NOTE:Adding names to phonebook is recommended
when vehicle is not in motion.
•Press the “Phone” button to begin.
•After theReadyprompt and the following beep, say
Phonebook New Entry.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83
3

•When prompted, say the name of the new entry. Use of
long names helps the voice recognition and is recom-
mended. For example, sayRobert SmithorRobert
instead ofBob.
•When prompted, enter the number designation (e.g.:
Home,Work,Mobile,orPager). This will allow
you to store multiple numbers for each phonebook
entry, if desired.
•When prompted, recite the phone number for the
phonebook entry that you are adding.
After you are finished adding an entry into the phone-
book, you will be given the opportunity to add more
phone numbers to the current entry or to return to the
main menu.
The UConnect™ system will allow you to enter up to 32
names in the phonebook with each name having up tofour associated phone numbers and designations. Each
language has a separate 32 name phonebook accessible
only in that language.
Edit Entries in the UConnect™ Phonebook
NOTE:Adding names to phonebook is recommended
when vehicle is not in motion.
•Press the ’Phone’ button to begin.
•After theReadyprompt and the following beep, say
Phonebook Edit.
•You will then be asked for the name of the phonebook
entry that you wish to edit.
•Next, choose the number designation (home, work,
mobile, or pager) that you wish to edit.
•When prompted, recite the new phone number for the
phonebook entry that you are editing.
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

After you are finished editing an entry in the phonebook,
you will be given the opportunities to edit another entry
in the phonebook, call the number you just edited, or
return to the main menu.
Phonebook Editcan be used to add another phone
number to a name entry that already exists in the
phonebook. For example, the entry John Doe may have a
mobile and a home number, but you can add John Doe’s
work number later using thePhonebook Editfeature.
Delete Entries in the UConnect™ Phonebook
•
Press the ’Phone’ button to begin.
•After theReadyprompt and the following beep, say
Phonebook Delete.
•After you enter the Phonebook Delete menu, you will
then be asked for the name of the entry that you wish
to delete. You can either say the name of a phonebook
entry that you wish to delete or you can sayListNamesto hear a list of the entries in the phonebook
from which you choose. To select one of the entries
from the list, press theVoice Recognitionbutton
while the UConnect™ system is playing the desired
entry and sayDelete.
•After you enter the name, the UConnect™ system will
ask you which designation you wish to delete: home,
work, mobile or pager. Say the designation you wish
to delete.
After confirmation, the phonebook entries will be de-
leted. Note that only the phonebook in the current
language is deleted.
Delete All Entries in the UConnect™ Phonebook
•
Press the ’Phone’ button to begin.
•After theReadyprompt and the following beep, say
Phonebook Erase All.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85
3

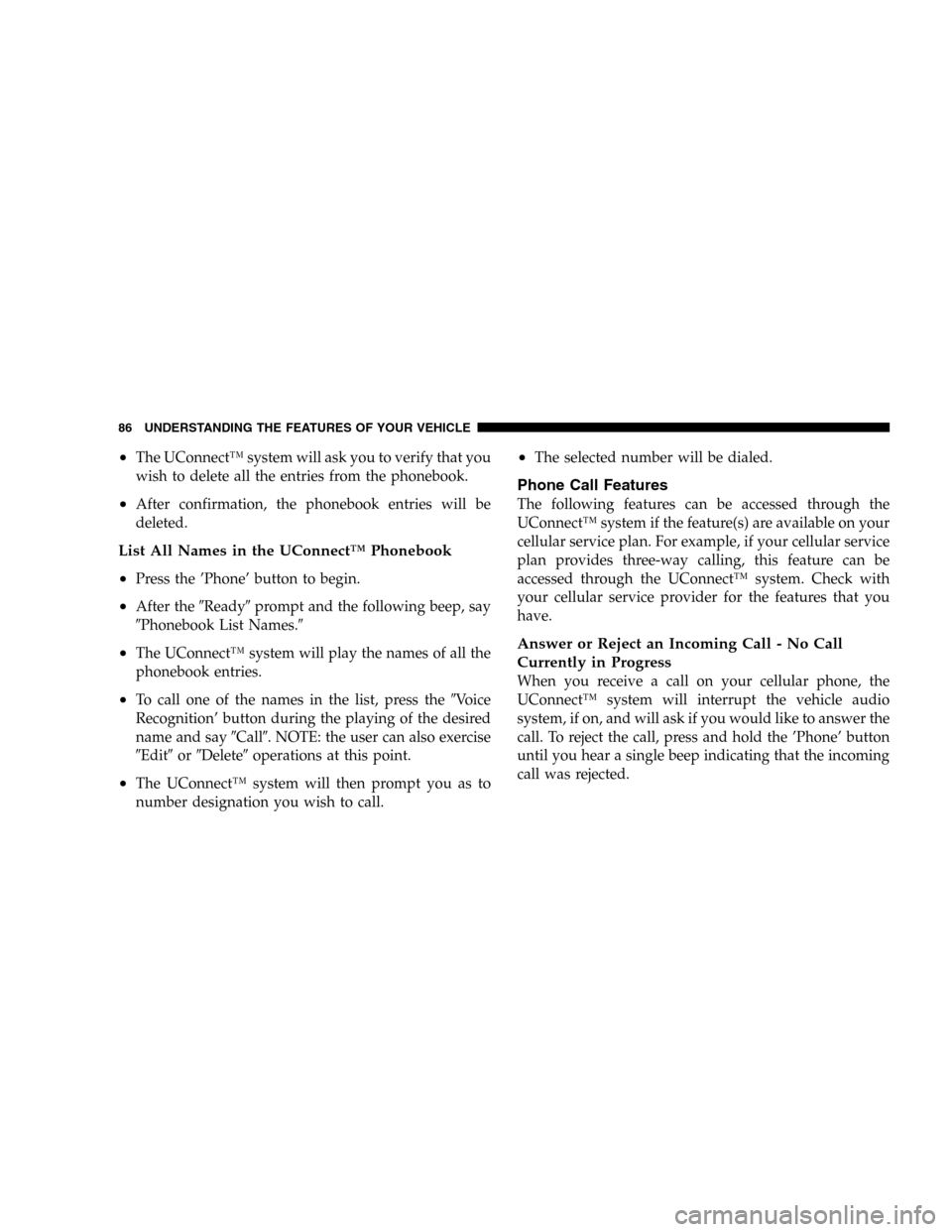

•The UConnect™ system will ask you to verify that you
wish to delete all the entries from the phonebook.
•After confirmation, the phonebook entries will be
deleted.
List All Names in the UConnect™ Phonebook
•
Press the ’Phone’ button to begin.
•After theReadyprompt and the following beep, say
Phonebook List Names.
•The UConnect™ system will play the names of all the
phonebook entries.
•To call one of the names in the list, press theVoice
Recognition’ button during the playing of the desired
name and sayCall. NOTE: the user can also exercise
EditorDeleteoperations at this point.
•The UConnect™ system will then prompt you as to
number designation you wish to call.
•The selected number will be dialed.
Phone Call Features
The following features can be accessed through the
UConnect™ system if the feature(s) are available on your
cellular service plan. For example, if your cellular service
plan provides three-way calling, this feature can be
accessed through the UConnect™ system. Check with
your cellular service provider for the features that you
have.
Answer or Reject an Incoming Call - No Call
Currently in Progress
When you receive a call on your cellular phone, the
UConnect™ system will interrupt the vehicle audio
system, if on, and will ask if you would like to answer the
call. To reject the call, press and hold the ’Phone’ button
until you hear a single beep indicating that the incoming
call was rejected.
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

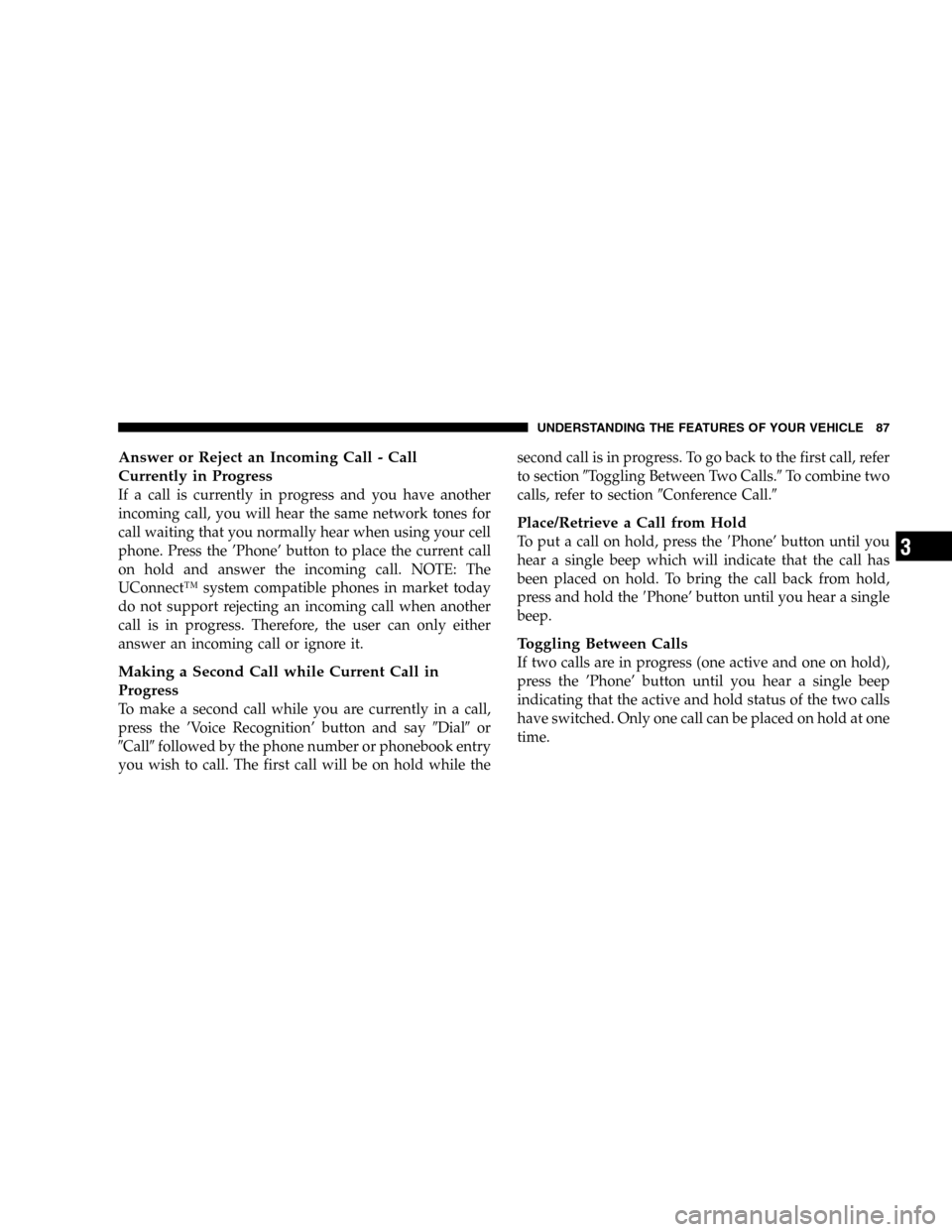

Answer or Reject an Incoming Call - Call
Currently in Progress
If a call is currently in progress and you have another
incoming call, you will hear the same network tones for
call waiting that you normally hear when using your cell
phone. Press the ’Phone’ button to place the current call
on hold and answer the incoming call. NOTE: The
UConnect™ system compatible phones in market today
do not support rejecting an incoming call when another
call is in progress. Therefore, the user can only either
answer an incoming call or ignore it.
Making a Second Call while Current Call in
Progress
To make a second call while you are currently in a call,
press the ’Voice Recognition’ button and sayDialor
Callfollowed by the phone number or phonebook entry
you wish to call. The first call will be on hold while thesecond call is in progress. To go back to the first call, refer
to sectionToggling Between Two Calls.To combine two
calls, refer to sectionConference Call.
Place/Retrieve a Call from Hold
To put a call on hold, press thePhone’ button until you
hear a single beep which will indicate that the call has
been placed on hold. To bring the call back from hold,
press and hold thePhone’ button until you hear a single
beep.
Toggling Between Calls
If two calls are in progress (one active and one on hold),
press the ’Phone’ button until you hear a single beep
indicating that the active and hold status of the two calls
have switched. Only one call can be placed on hold at one
time.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87
3

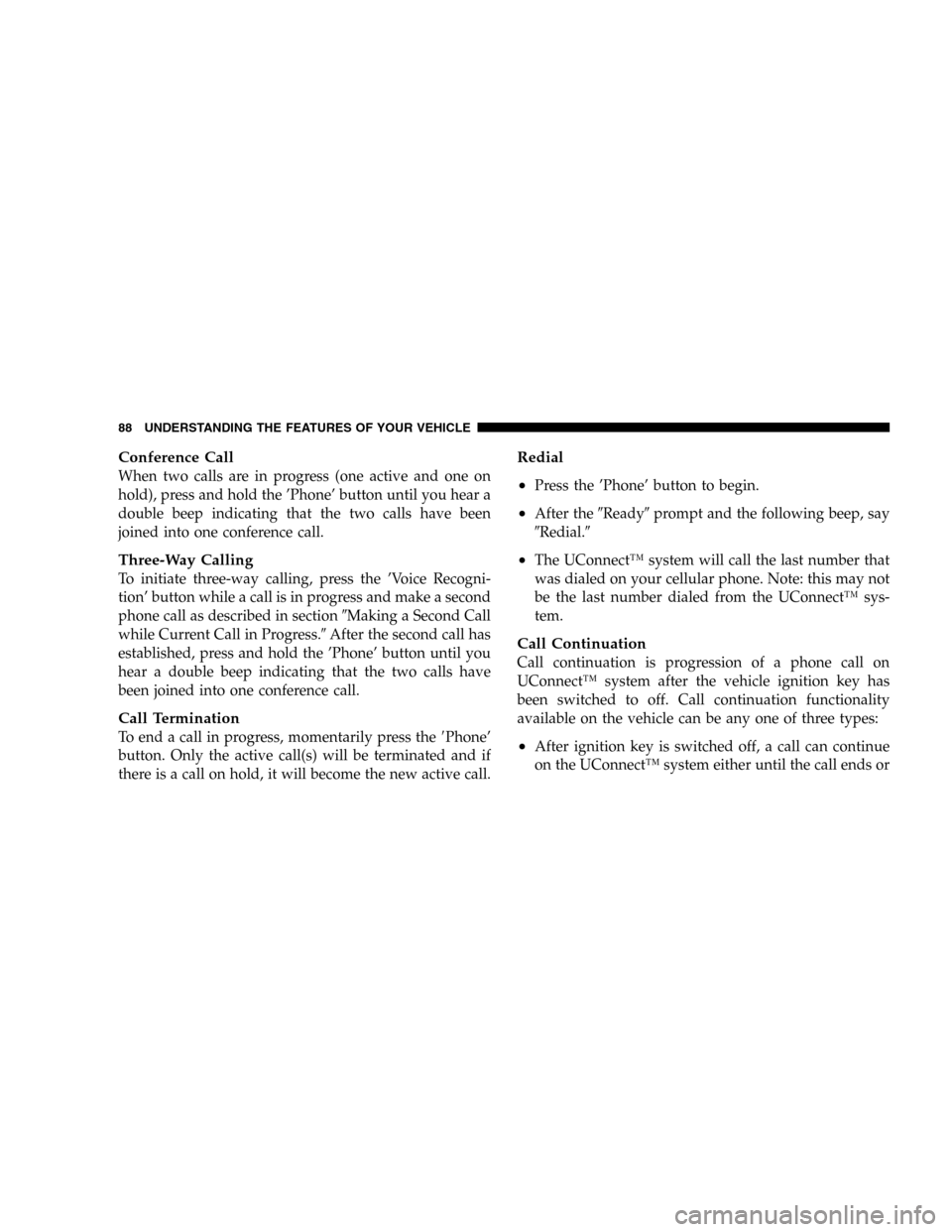

Conference Call
When two calls are in progress (one active and one on
hold), press and hold the ’Phone’ button until you hear a
double beep indicating that the two calls have been
joined into one conference call.
Three-Way Calling
To initiate three-way calling, press the ’Voice Recogni-
tion’ button while a call is in progress and make a second
phone call as described in sectionMaking a Second Call
while Current Call in Progress.After the second call has
established, press and hold the ’Phone’ button until you
hear a double beep indicating that the two calls have
been joined into one conference call.
Call Termination
To end a call in progress, momentarily press thePhone’
button. Only the active call(s) will be terminated and if
there is a call on hold, it will become the new active call.
Redial
•
Press the ’Phone’ button to begin.
•After theReadyprompt and the following beep, say
Redial.
•The UConnect™ system will call the last number that
was dialed on your cellular phone. Note: this may not
be the last number dialed from the UConnect™ sys-
tem.
Call Continuation
Call continuation is progression of a phone call on
UConnect™ system after the vehicle ignition key has
been switched to off. Call continuation functionality
available on the vehicle can be any one of three types:
•After ignition key is switched off, a call can continue
on the UConnect™ system either until the call ends or
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

until the vehicle battery condition dictates cessation of
the call on the UConnect™ system and transfer of the
call to the mobile phone.
•After ignition key is switched to off, a call can continue
on the UConnect™ system for certain duration, after
which the call is automatically transferred from the
UConnect™ system to the mobile phone.
•An active call is automatically transferred to the
mobile phone after ignition key is switched to off.
UConnect™ System Features
Language Selection
To change the language that the UConnect™ system is
using,
•Press the ’Phone’ button to begin.
•After theReadyprompt and the following beep, say
the name of the language you wish to switch to
(English, Espanol, or Francais, if so equipped).
•Continue to follow the system prompts to complete
language selection.
After selecting one of the languages, all prompts and
voice commands will be in that language.
NOTE:After every UConnect™ language change op-
eration, only the language specific 32 name phonebook is
usable. The phone pairing is not language specific and
usable across all languages.
Emergency Assistance
If you are in an emergency and the mobile phone is
reachable:
•Pick up the phone and manually dial the emergency
number for your area.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89
3

If the phone is not reachable and the UConnect™ system
is operational, you may reach the emergency number as
follows:
•Press the ’Phone’ button to begin.
•After theReadyprompt and the following beep, say
Emergencyand the UConnect™ system will instruct
the paired cellular phone to call the emergency num-
ber. This feature is only supported in the USA.
NOTE:The emergency number dialed is based on the
Country where the vehicle is purchased (911 for USA/
Canada and 060 for Mexico). The number called may not
be applicable with the available cellular service and area.
The UConnect™ system does slightly lower your chances
of successfully making a phone call as to that for the cell
phone directly.
Your phone must be turned on and paired to the UCon-
nect™ system to allow use of this vehicle feature inemergency situations when the cell phone has network
coverage and stays paired to the UConnect™ system.
Towing Assistance
If you need towing assistance,
•Press the ’Phone’ button to begin.
•After theReadyprompt and the following beep, say
Towing Assistance.
NOTE:The Towing Assistance number dialed is based
on the Country where the vehicle is purchased (1-800-
528-2069 for USA, 1-877-213-4525 for Canada, 55-14-3454
for Mexico city and 1-800-712-3040 for outside Mexico
city in Mexico).
Please refer to the 24-Hour Towing Assistance coverage
details in the DaimlerChrysler Corporation 24-Hour
Towing Assistance Program Guide.
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
