SERVICING AND MAINTENANCE269
AUTOMATIC TRANSMISSION
Special Additives
The manufacturer strongly recommends against
using any special additives in the transmission.
Automatic Transmission Fluid (ATF) is an
engineered product and its performance may be
impaired by supplemental additives. Therefore, do
not add any fluid additives to the transmission.
Avoid using transmission sealers as they may
adversely affect seals.
Fluid Level Check
The fluid level is preset at the factory and does not
require adjustment under normal operating
conditions. Routine fluid level checks are not
required; therefore the transmission has no
dipstick. An authorized dealer can check your
transmission fluid level using special service tools.
If you notice fluid leakage or transmission
malfunction, visit an authorized dealer
immediately to have the transmission fluid level
checked. Operating the vehicle with an improper
fluid level can cause severe transmission damage.
Fluid And Filter Changes
Under normal operating conditions, the fluid
installed at the factory will provide satisfactory
lubrication for the life of the vehicle.
Routine fluid and filter changes are not required.
However, change the fluid and filter if the fluid
becomes contaminated (with water, etc.), or if the
transmission is disassembled for any reason.
Selection Of Lubricant
It is important to use the proper transmission fluid
to ensure optimum transmission performance and
life. Use only the manufacturer's specified
transmission fluid Úpage 307. It is important to
maintain the transmission fluid at the correct level
using the recommended fluid.
NOTE:No chemical flushes should be used in any trans -
mission; only the approved lubricant should be
used.
FRONT/REAR AXLE FLUID
For normal service, periodic fluid level checks are
not required. When the vehicle is serviced for other
reasons the exterior surfaces of the axle assembly
should be inspected. If gear oil leakage is
suspected inspect the fluid level.
Front Axle Fluid Level Check
The front axle oil level needs to be no lower than
1/8 inch (3 mm) below the bottom of the fill hole.
The front axle fill and drain plugs should be
tightened to 22 to 29 ft lbs (30 to 40 N·m).
CAUTION!
Do not use chemical flushes in your
transmission as the chemicals can damage your
transmission components. Such damage is not
covered by the New Vehicle Limited Warranty.
CAUTION!
If a transmission fluid leak occurs, visit an
authorized dealer immediately. Severe
transmission damage may occur. An authorized
dealer has the proper tools to adjust the fluid
level accurately.
CAUTION!
Using a transmission fluid other than the
manufacturer recommended fluid may cause
deterioration in transmission shift quality and/or
torque converter shudder Ú page 307.
CAUTION!
Do not overtighten the plugs as it could damage
them and cause them to leak.
8

23_WD_OM_EN_USC_t.book Page 269

270SERVICING AND MAINTENANCE
(Continued)
Rear Axle Fluid Level Check
The rear axle oil level needs to be no lower than
1/8 inch (3 mm) below the bottom of the fill hole.
The rear axle fill and drain plugs should be
tightened to 22 to 29 ft lbs (30 to 40 N·m).
Selection Of Lubricant
Use only the manufacturer's recommended fluid
Úpage 307.
TRANSFER CASE
Fluid Level Check
For normal service, periodic fluid level checks are
not required. When the vehicle is serviced for other
reasons the exterior surfaces of the transfer case
assembly should be inspected. If oil leakage is
suspected inspect the fluid level.
Adding Fluid
With the vehicle in a level position, fill the transfer
case to bottom edge of fill plug opening.
Drain
First remove fill plug, then remove drain plug.
Recommended tightening torque for drain and fill
plugs is 15 to 25 ft lbs (20 to 34 N·m).
Selection Of Lubricant
Use only the manufacturer's recommended fluid
Úpage 307.
FUSES
General Information
CAUTION!
Do not overtighten the plugs as it could damage
them and cause them to leak.CAUTION!
When installing plugs, do not overtighten. You
could damage them and cause them to leak.
WARNING!
When replacing a blown fuse, always use an
appropriate replacement fuse with the same
amp rating as the original fuse. Never replace
a fuse with another fuse of higher amp rating.
The use of a fuse with a rating other than indi -
cated may result in a dangerous electrical
system overload. If a properly rated fuse
continues to blow, it indicates a problem in the
circuit that must be corrected. Never replace a
blown fuse with metal wires or any other mate -
rial. Do not place a fuse inside a circuit
breaker cavity or vice versa. Failure to use
proper fuses may result in serious personal
injury, fire and/or property damage.
Before replacing a fuse, make sure that the
ignition is off and that all the other services
are switched off and/or disengaged.

23_WD_OM_EN_USC_t.book Page 270

SERVICING AND MAINTENANCE271
The fuses protect electrical systems against
excessive current.
When a device does not work, you must check the
fuse element inside the blade fuse for a break/
melt.
Also, please be aware that using power outlets for
extended periods of time with the engine off may
result in vehicle battery discharge.
Blade Fuses

Underhood Fuses
The Power Distribution Center is located in the
engine compartment near the battery jump start
posts. This center contains cartridge fuses, micro
fuses, relays, and circuit breakers. A description of
each fuse and component may be stamped on the
inside cover, otherwise the cavity number of each
fuse is stamped on the inside cover that
corresponds to the following chart.If the replaced fuse blows again, contact an
authorized dealer.
If a general protection fuse for safety systems
(air bag system, braking system), power unit
systems (engine system, transmission
system) or steering system blows, contact an
authorized dealer.
WARNING!
1 — Fuse Element
2 — Blade Fuse with a good/functional fuse
element
3 — Blade fuse with a bad/not functional fuse
element (blown fuse)
CAUTION!
When installing the power distribution center
cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to
do so may allow water to get into the power
distribution center and possibly result in an
electrical system failure.
8

23_WD_OM_EN_USC_t.book Page 271

272SERVICING AND MAINTENANCE

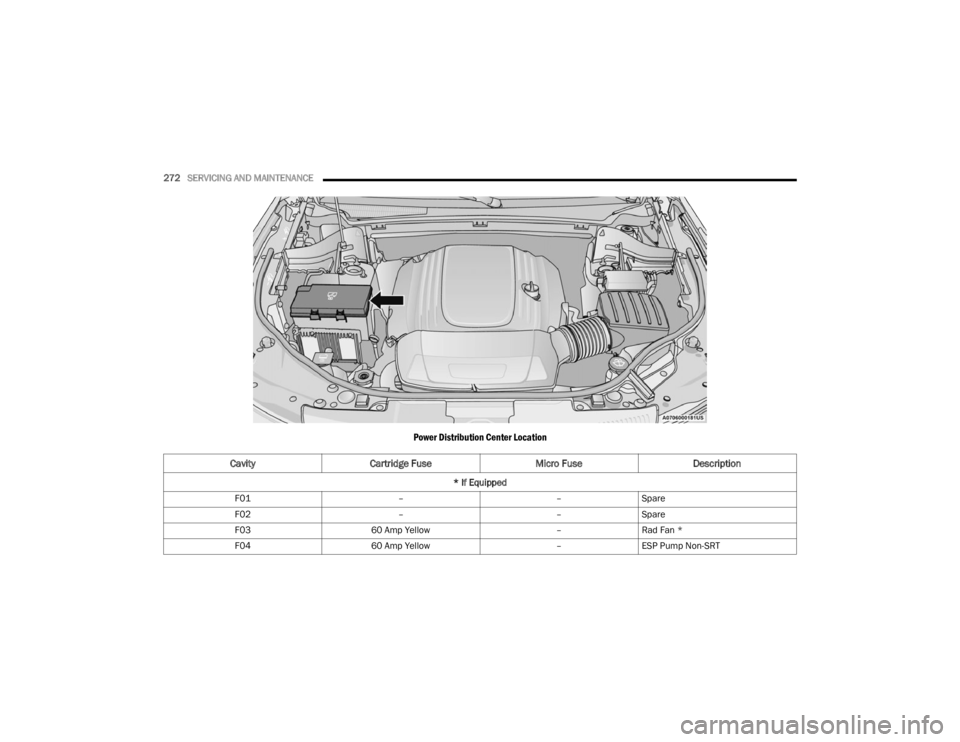

Power Distribution Center Location
Cavity Cartridge Fuse Micro FuseDescription
* If Equipped
F01 ––Spare
F02 ––Spare
F03 60 Amp Yellow –Rad Fan *
F04 60 Amp Yellow –ESP Pump Non-SRT

23_WD_OM_EN_USC_t.book Page 272

SERVICING AND MAINTENANCE273
F05 ––Air Suspension Comp *
F06 40 Amp Green –ABS Pump SRT
F07 30 Amp Pink –Starter Solenoid
F08 ––Spare
F09 30 Amp Pink –Diesel Fuel Htr * / VAC PUMP *
F10 40 Amp Green –CBC #2 / EXT Light
F11 30 Amp Pink –Trlr Tow Brake *
F12 40 Amp Green –CBC #3 / Pwr Locks
F13 40 Amp Green –HVAC BLWR MTR
F14 40 Amp Green –CBC #4 / Ext Light
F15 40 Amp Green –LTR Engine Cooling *
F16 ––Spare
F17 ––HDLP Washers *
F18 ––Spare
F19 20 Amp Blue –Solenoid Headrest *
F20 30 Amp Pink –Pass Door Mod
F21 ––Spare
F22 20 Amp Blue –ECM * / PCM *
F23 30 Amp Pink –CBC #1 / Int Light
F24 30 Amp Pink –Driver Door Mod
Cavity Cartridge Fuse Micro FuseDescription
* If Equipped
8

23_WD_OM_EN_USC_t.book Page 273

274SERVICING AND MAINTENANCE
F25 30 Amp Pink –Ft Wiper
F26 30 Amp Pink –ESP / ECU Valves
F27 ––Spare
F28 20 Amp Blue –Trlr Tow B/U *
F29 20 Amp Blue –Trlr Tow Park *
F30 30 Amp Pink –Trlr Tow Pwr *
F31 ––Spare
F32 30 Amp Pink –DTCM
F33 ––Spare
F34 30 Amp Pink –ELSD *
F35 30 Amp Pink –Sunroof *
F36 30 Amp Pink –EBL
F37 25 Amp Clear –HVAC RR Blower MTR *
F38 30 Amp Pink –Power Inverter
F39 30 Amp Pink –PLG
F40 –10 Amp RedDRL / HEADLAMP LVL *
F41 ––Spare
F42 –20 Amp YellowHorn
F43 ––Spare
F44 –10 Amp RedDiagnostic Port
Cavity Cartridge Fuse Micro FuseDescription
* If Equipped

23_WD_OM_EN_USC_t.book Page 274

SERVICING AND MAINTENANCE275
F45 –5 Amp TanCyber Security MOD
F46 ––Spare
F47 ––Spare
F48 ––Spare
F49 –10 Amp RedICS / HVAC
F50 –20 Amp YellowAir Suspension Mod * / ELSD *
F51 –15 Amp BlueKIN / RF HUB / ESCL *
F52 ––Spare
F53 –20 Amp YellowTrlr Tow LT Turn / Stop *
F54 ––Spare
F55 ––Spare
F56 ––PCM *
F57 ––
NOX Snsrs * / PM Snsrs * / Fuel HTR *

F58 –15 Amp BlueHID Headlamps LT *
F59 ––SCR Pump Relay *
F60 –15 Amp BlueTCM
F61 ––PM Sensor *
F62 –10 Amp RedA/C Clutch
F63 –20 Amp YellowIgnition Coils */ Ignition Coil
Capacitors*
Cavity
Cartridge Fuse Micro FuseDescription
* If Equipped
8

23_WD_OM_EN_USC_t.book Page 275

276SERVICING AND MAINTENANCE
F64 –25 Amp ClearFuel Injectors / ECM
F65 ––Spare
F66 –10 Amp RedSunroof */ LRSM */ RVM / DSRC /
USB Port / DTV * / WCP *
F67 –15 Amp BlueCDM/UCI Port/USB Port
F68 –20 Amp YellowRR Wiper Mtr
F69 –15 Amp BlueSpot Light Feed *
F70 –20 Amp YellowFuel Pump Mtr
F71 –30 Amp GreenAmplifier */ ANCM *
F72 –10 Amp RedECM * / PCM *
F73 –15 Amp BlueHID Headlamp RT *
F74 ––Spare
F75 –10 Amp RedDual Batt Ctrl *
F76 –10 Amp RedESP
F77 –10 Amp RedDTCM / ELSD *
F78 –10 Amp RedECM / PCM * / EPS
F79 ––Spare
F80 –10 Amp RedUGDO
F81 –20 Amp YellowTrlr Tow RT Turn / Stop *
F82 –10 Amp RedSCCM / Cruise Control / DTV *
Cavity Cartridge Fuse Micro FuseDescription
* If Equipped

23_WD_OM_EN_USC_t.book Page 276

SERVICING AND MAINTENANCE277
F83 –10 Amp RedFuel Door
F84 –15 Amp BlueCluster
F85 –10 Amp RedORC (Airbag)
F86 –10 Amp RedORC (Airbag)
F87 ––Air Suspension Mod *
F88 –15 Amp BlueCluster / CSG * / ITBM *
F89 ––Spare
F90 ––Spare
F91 –20 Amp YellowPwr Outlet Cargo Area
F92 –10 Amp RedRr Console Lamp * / RR Pwr Outlet
F93 –20 Amp YellowCigar Lighter
F94 –10 Amp RedSbw / Tcase Sw
F95 –10 Amp RedRr Cam / Blind Spot Snsr *
F96 –10 Amp RedRr Seat Heater Sw*
F97 –20 Amp YellowRr Htd Sts / Htd Str Wheel *
F98 –20 Amp YellowFront Htd Sts * / Vent Sts
F99 –10 Amp RedHvac / Dash / Hlfm/ Prktronx
F100 –10 Amp RedActive Damping *
F101 –15 Amp BlueIn Car Temp Sensor / Humidity
Sensor
Cavity
Cartridge Fuse Micro FuseDescription
* If Equipped
8

23_WD_OM_EN_USC_t.book Page 277

278SERVICING AND MAINTENANCE
BULB REPLACEMENT
Replacement Bulbs, Names, And Part Numbers
In the instance a bulb needs to be replaced, this section includes bulb description and replacement part numbers.
NOTE:See an authorized dealer for LED bulb replacement.F102
–15 Amp BlueSpare
F103 –10 Amp RedPTC / RR HVAC *
F104 –20 Amp YellowPWR OUT-IP / Console / Trnk
Cavity Cartridge Fuse Micro FuseDescription
* If Equipped
Interior Bulbs
Bulb Name Bulb Number
Glove Compartment Lamp 194
Grab Handle Lamp L002825W5W
Overhead Console Reading Lamps VT4976
Visor Vanity Lamp V26377
Rear Cargo Lamp 214–2
Underpanel Courtesy Lamps 906
Instrument Cluster (General Illumination) 103
Telltale/Hazard Lamp 74
