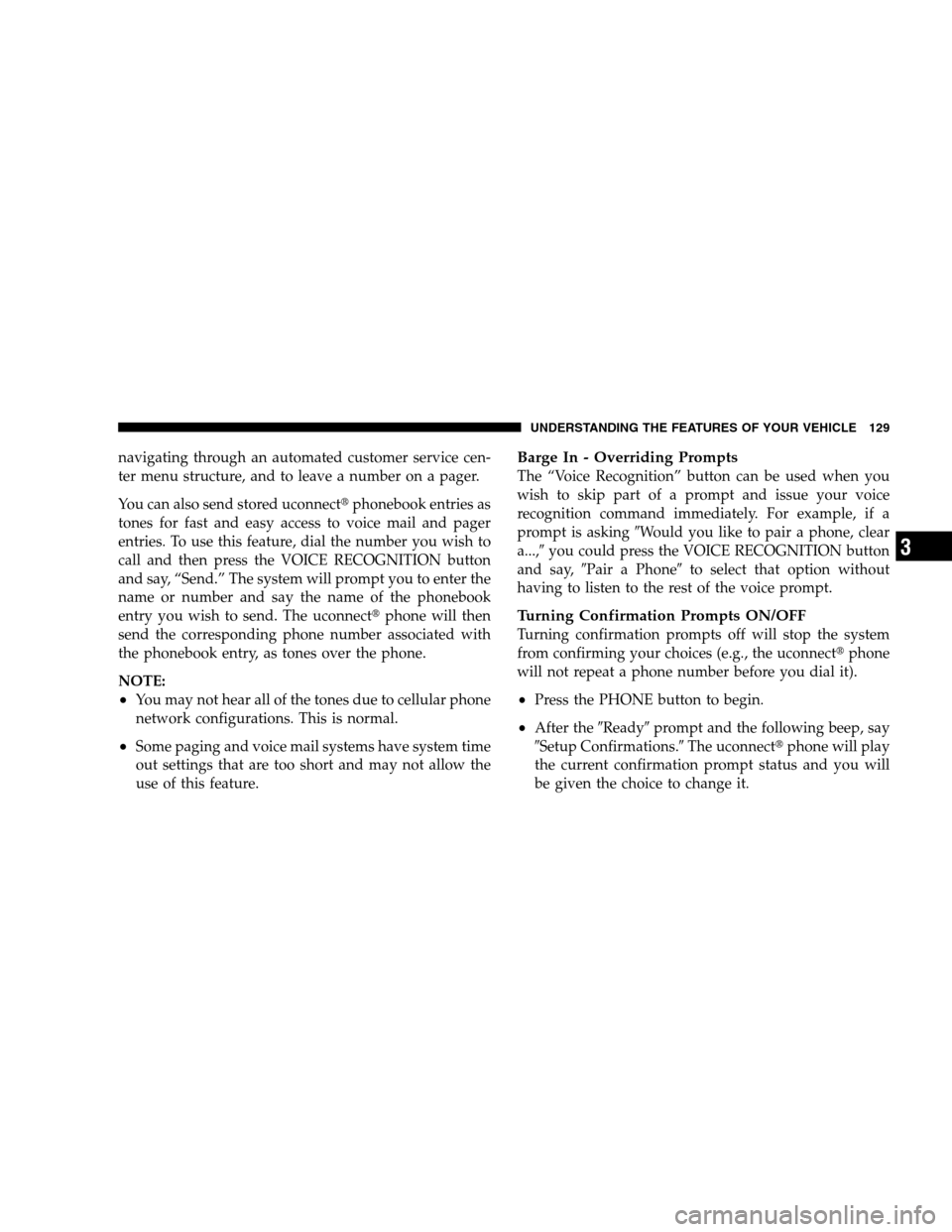

Page 131 of 535

navigating through an automated customer service cen-
ter menu structure, and to leave a number on a pager.
You can also send stored uconnecttphonebook entries as
tones for fast and easy access to voice mail and pager
entries. To use this feature, dial the number you wish to
call and then press the VOICE RECOGNITION button
and say, “Send.” The system will prompt you to enter the
name or number and say the name of the phonebook
entry you wish to send. The uconnectt phone will then
send the corresponding phone number associated with
the phonebook entry, as tones over the phone.
NOTE:
You may not hear all of the tones due to cellular phone
network configurations. This is normal.
Some paging and voice mail systems have system time
out settings that are too short and may not allow the
use of this feature.
Barge In - Overriding Prompts
The “Voice Recognition” button can be used when you
wish to skip part of a prompt and issue your voice
recognition command immediately. For example, if a
prompt is asking 9Would you like to pair a phone, clear
a...,9 you could press the VOICE RECOGNITION button
and say, 9Pair a Phone9 to select that option without
having to listen to the rest of the voice prompt.
Turning Confirmation Prompts ON/OFF
Turning confirmation prompts off will stop the system
from confirming your choices (e.g., the uconnectt phone
will not repeat a phone number before you dial it).
Press the PHONE button to begin.
After the 9Ready9prompt and the following beep, say
9Setup Confirmations.9 The uconnecttphone will play
the current confirmation prompt status and you will
be given the choice to change it.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129 3

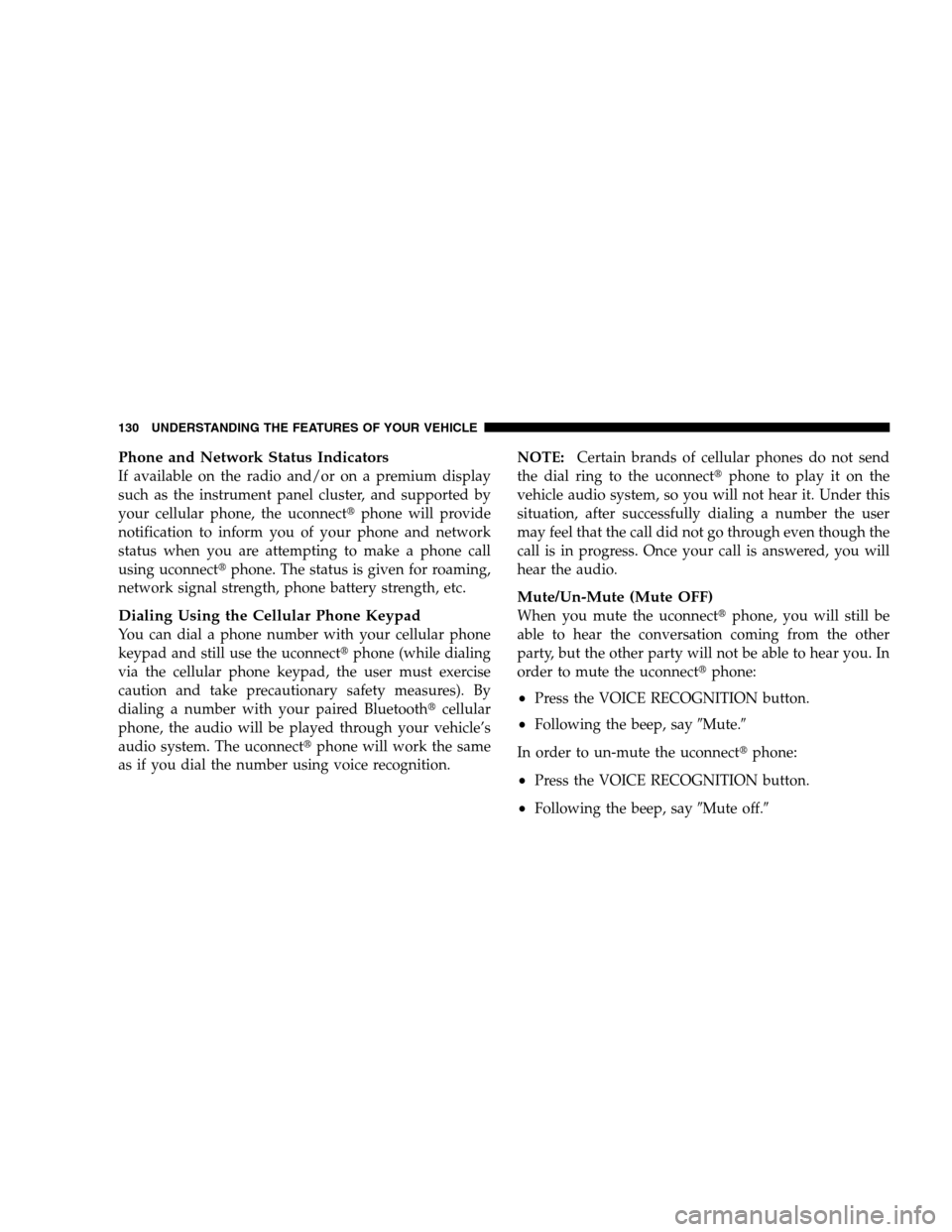

Page 132 of 535

Phone and Network Status IndicatorsIf available on the radio and/or on a premium display
such as the instrument panel cluster, and supported by
your cellular phone, the uconnectt
phone will provide
notification to inform you of your phone and network
status when you are attempting to make a phone call
using uconnectt phone. The status is given for roaming,
network signal strength, phone battery strength, etc.
Dialing Using the Cellular Phone Keypad
You can dial a phone number with your cellular phone
keypad and still use the uconnectt phone (while dialing
via the cellular phone keypad, the user must exercise
caution and take precautionary safety measures). By
dialing a number with your paired Bluetootht cellular
phone, the audio will be played through your vehicle’s
audio system. The uconnectt phone will work the same
as if you dial the number using voice recognition. NOTE:
Certain brands of cellular phones do not send
the dial ring to the uconnectt phone to play it on the
vehicle audio system, so you will not hear it. Under this
situation, after successfully dialing a number the user
may feel that the call did not go through even though the
call is in progress. Once your call is answered, you will
hear the audio.
Mute/Un-Mute (Mute OFF)
When you mute the uconnectt phone, you will still be
able to hear the conversation coming from the other
party, but the other party will not be able to hear you. In
order to mute the uconnectt phone:
Press the VOICE RECOGNITION button.
Following the beep, say9Mute.9
In order to un-mute the uconnectt phone:
Press the VOICE RECOGNITION button.
Following the beep, say9Mute off.9
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

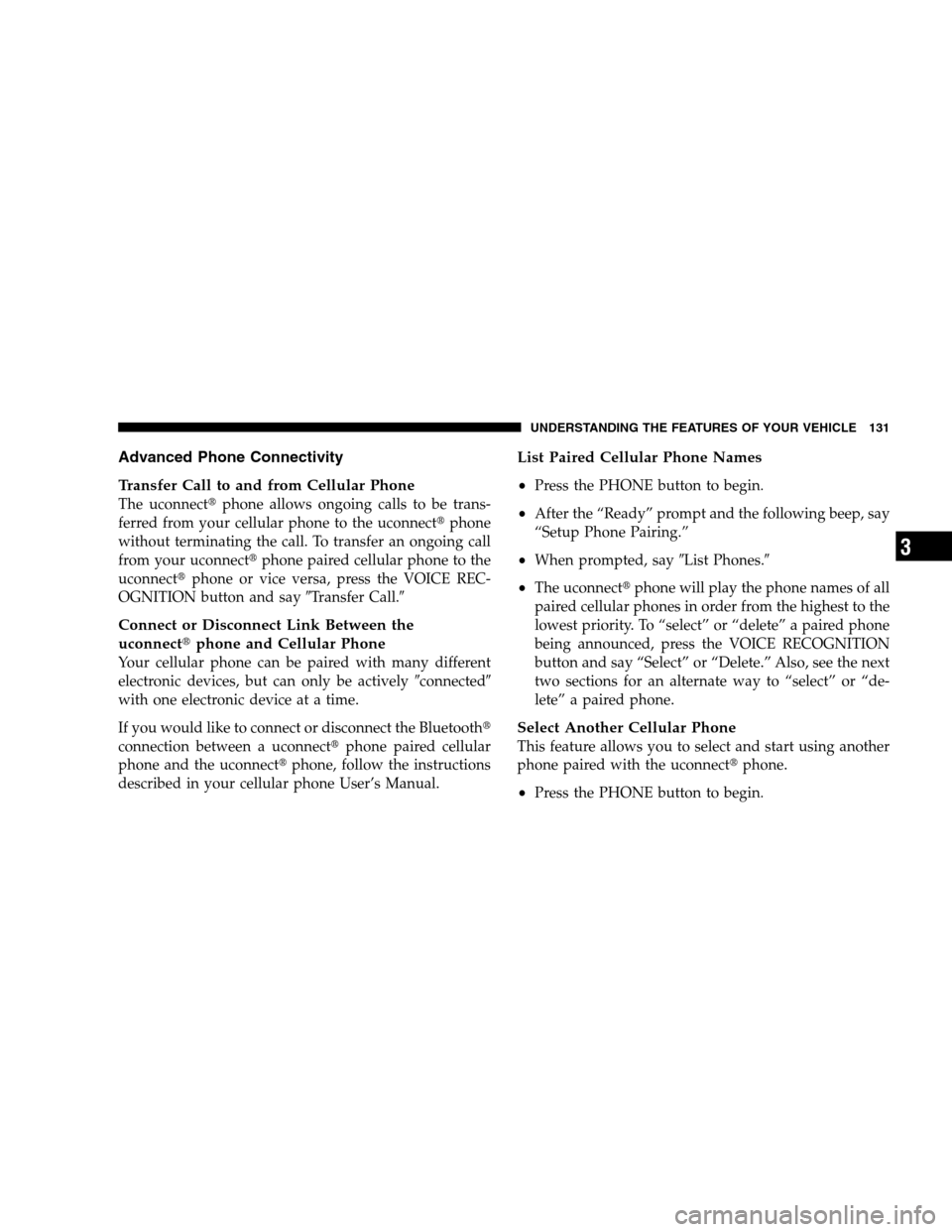

Page 133 of 535

Advanced Phone Connectivity
Transfer
Call to and from Cellular Phone
The uconnectt phone allows ongoing calls to be trans-
ferred from your cellular phone to the uconnectt phone
without terminating the call. To transfer an ongoing call
from your uconnectt phone paired cellular phone to the
uconnectt phone or vice versa, press the VOICE REC-
OGNITION button and say 9Transfer Call.9
Connect or Disconnect Link Between the
uconnecttphone and Cellular Phone
Your cellular phone can be paired with many different
electronic devices, but can only be actively 9connected9
with one electronic device at a time.
If you would like to connect or disconnect the Bluetootht
connection between a uconnectt phone paired cellular
phone and the uconnectt phone, follow the instructions
described in your cellular phone User’s Manual.
List Paired Cellular Phone Names
Press the PHONE button to begin.
After the “Ready” prompt and the following beep, say
“Setup Phone Pairing.”
When prompted, say 9List Phones.9
The uconnecttphone will play the phone names of all
paired cellular phones in order from the highest to the
lowest priority. To “select” or “delete” a paired phone
being announced, press the VOICE RECOGNITION
button and say “Select” or “Delete.” Also, see the next
two sections for an alternate way to “select” or “de-
lete” a paired phone.
Select Another Cellular Phone
This feature allows you to select and start using another
phone paired with the uconnectt phone.
Press the PHONE button to begin.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131 3

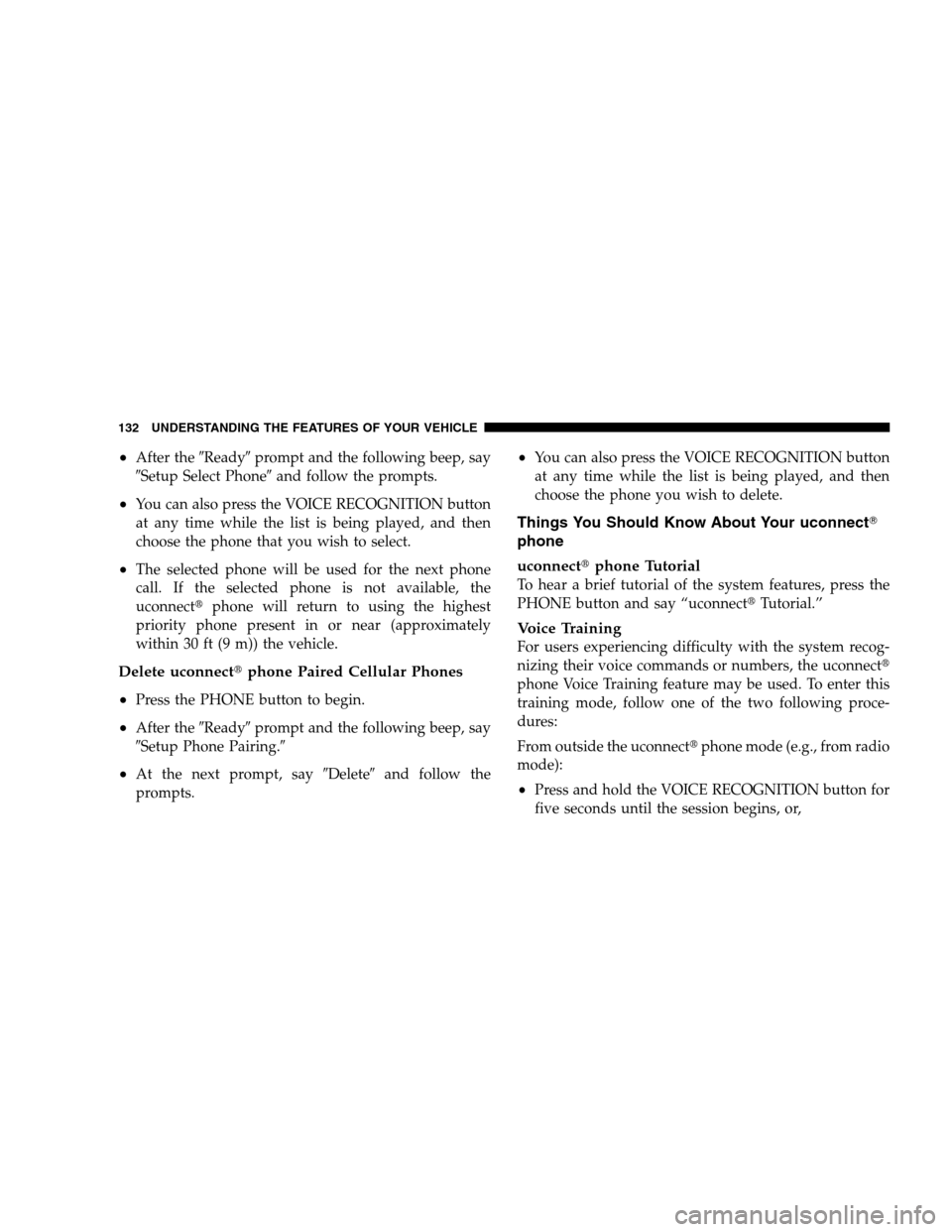

Page 134 of 535

After the
9Ready9prompt and the following beep, say
9Setup Select Phone9 and follow the prompts.
You can also press the VOICE RECOGNITION button
at any time while the list is being played, and then
choose the phone that you wish to select.
The selected phone will be used for the next phone
call. If the selected phone is not available, the
uconnecttphone will return to using the highest
priority phone present in or near (approximately
within 30 ft (9 m)) the vehicle.
Delete uconnectt phone Paired Cellular Phones
Press the PHONE button to begin.
After the 9Ready9prompt and the following beep, say
9Setup Phone Pairing.9
At the next prompt, say 9Delete9and follow the
prompts.
You can also press the VOICE RECOGNITION button
at any time while the list is being played, and then
choose the phone you wish to delete.
Things You Should Know About Your uconnectT
phone
uconnectt phone Tutorial
To hear a brief tutorial of the system features, press the
PHONE button and say “uconnectt Tutorial.”
Voice Training
For users experiencing difficulty with the system recog-
nizing their voice commands or numbers, the uconnectt
phone Voice Training feature may be used. To enter this
training mode, follow one of the two following proce-
dures:
From outside the uconnecttphone mode (e.g., from radio
mode):
Press and hold the VOICE RECOGNITION button for
five seconds until the session begins, or,
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

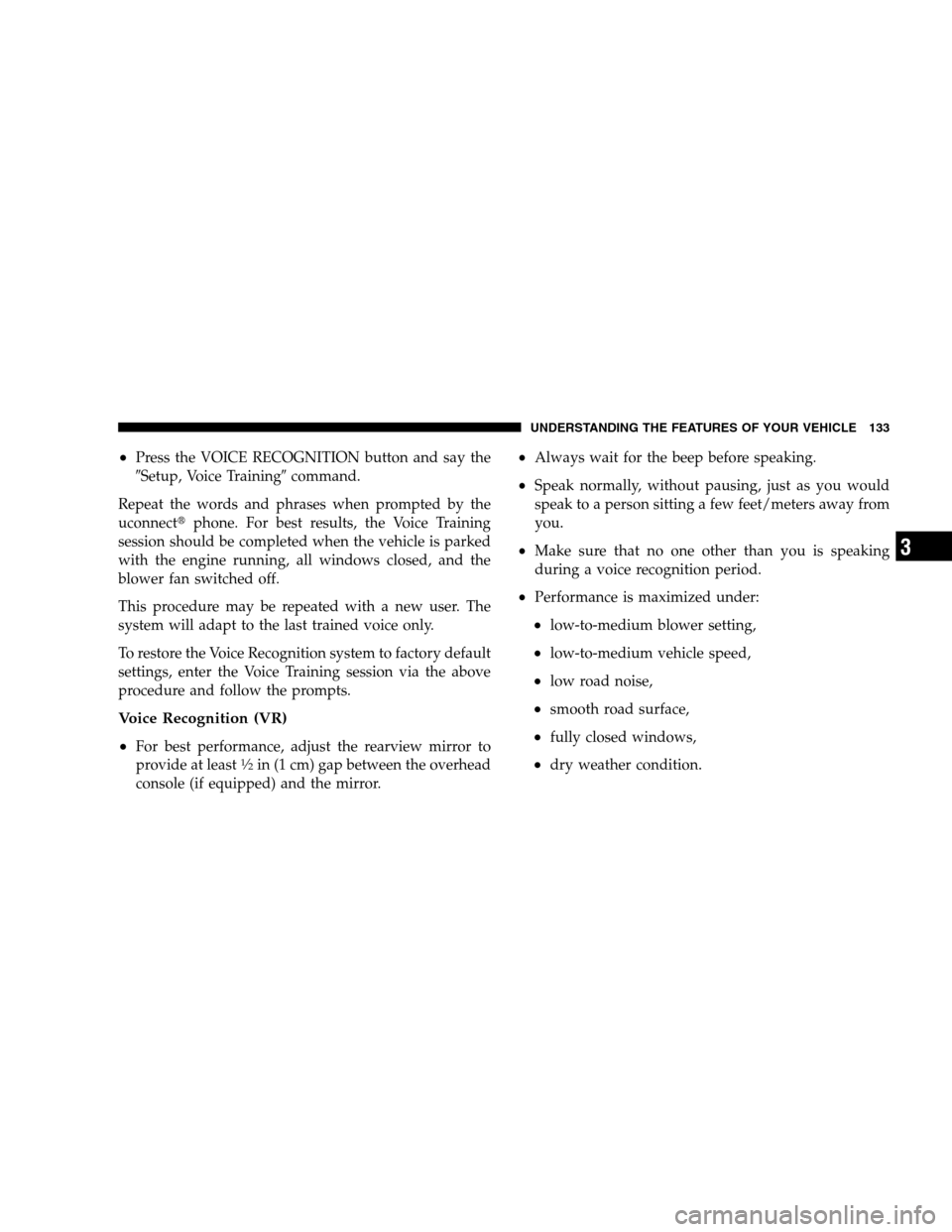

Page 135 of 535

Press the VOICE RECOGNITION button and say the
9Setup, Voice Training9
command.
Repeat the words and phrases when prompted by the
uconnectt phone. For best results, the Voice Training
session should be completed when the vehicle is parked
with the engine running, all windows closed, and the
blower fan switched off.
This procedure may be repeated with a new user. The
system will adapt to the last trained voice only.
To restore the Voice Recognition system to factory default
settings, enter the Voice Training session via the above
procedure and follow the prompts.
Voice Recognition (VR)
For best performance, adjust the rearview mirror to
provide at least1 2in (1 cm) gap between the overhead
console (if equipped) and the mirror.
Always wait for the beep before speaking.
Speak normally, without pausing, just as you would
speak to a person sitting a few feet/meters away from
you.
Make sure that no one other than you is speaking
during a voice recognition period.
Performance is maximized under:
low-to-medium blower setting,
low-to-medium vehicle speed,
low road noise,
smooth road surface,
fully closed windows,
dry weather condition.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133 3

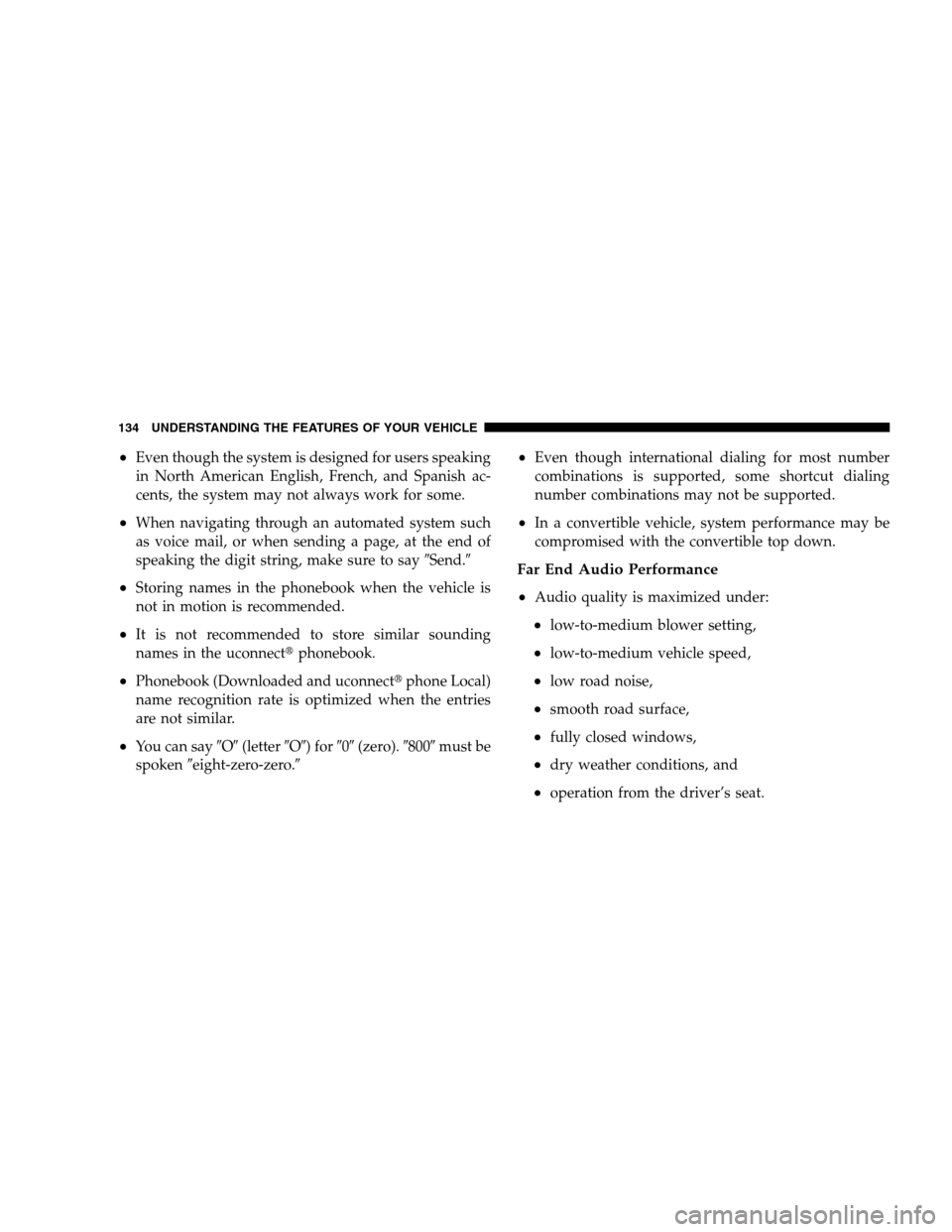

Page 136 of 535

Even though the system is designed for users speaking
in North American English, French, and Spanish ac-
cents, the system may not always work for some.
When navigating through an automated system such
as voice mail, or when sending a page, at the end of
speaking the digit string, make sure to say
9Send.9
Storing names in the phonebook when the vehicle is
not in motion is recommended.
It is not recommended to store similar sounding
names in the uconnecttphonebook.
Phonebook (Downloaded and uconnectt phone Local)
name recognition rate is optimized when the entries
are not similar.
You can say 9O9(letter 9O9) for 909(zero). 98009must be
spoken 9eight-zero-zero.9
Even though international dialing for most number
combinations is supported, some shortcut dialing
number combinations may not be supported.
In a convertible vehicle, system performance may be
compromised with the convertible top down.
Far End Audio Performance
Audio quality is maximized under:
low-to-medium blower setting,
low-to-medium vehicle speed,
low road noise,
smooth road surface,
fully closed windows,
dry weather conditions, and
operation from the driver’s seat.
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

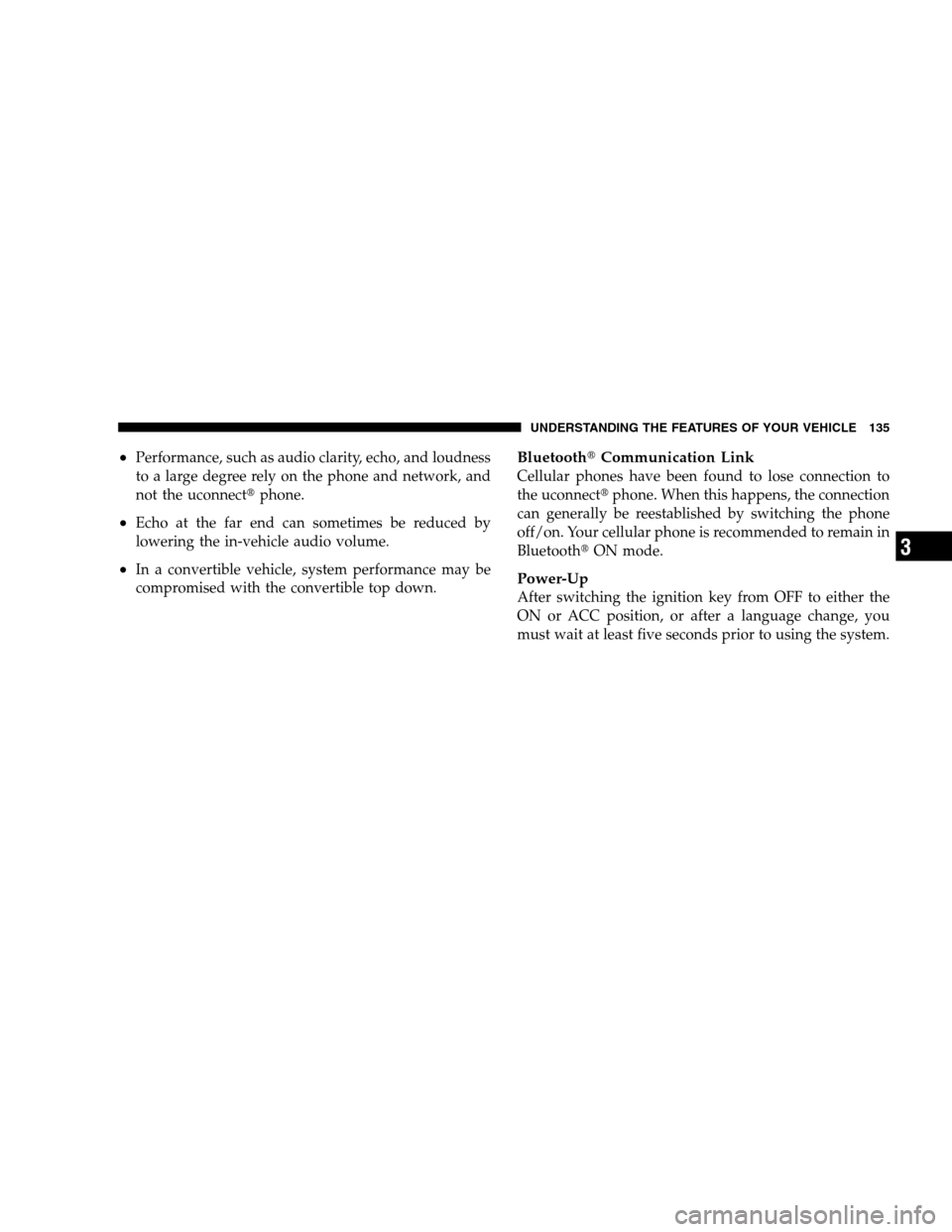

Page 137 of 535

Performance, such as audio clarity, echo, and loudness
to a large degree rely on the phone and network, and
not the uconnectt
phone.
Echo at the far end can sometimes be reduced by
lowering the in-vehicle audio volume.
In a convertible vehicle, system performance may be
compromised with the convertible top down.
BluetoothtCommunication Link
Cellular phones have been found to lose connection to
the uconnectt phone. When this happens, the connection
can generally be reestablished by switching the phone
off/on. Your cellular phone is recommended to remain in
Bluetootht ON mode.
Power-Up
After switching the ignition key from OFF to either the
ON or ACC position, or after a language change, you
must wait at least five seconds prior to using the system.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135 3

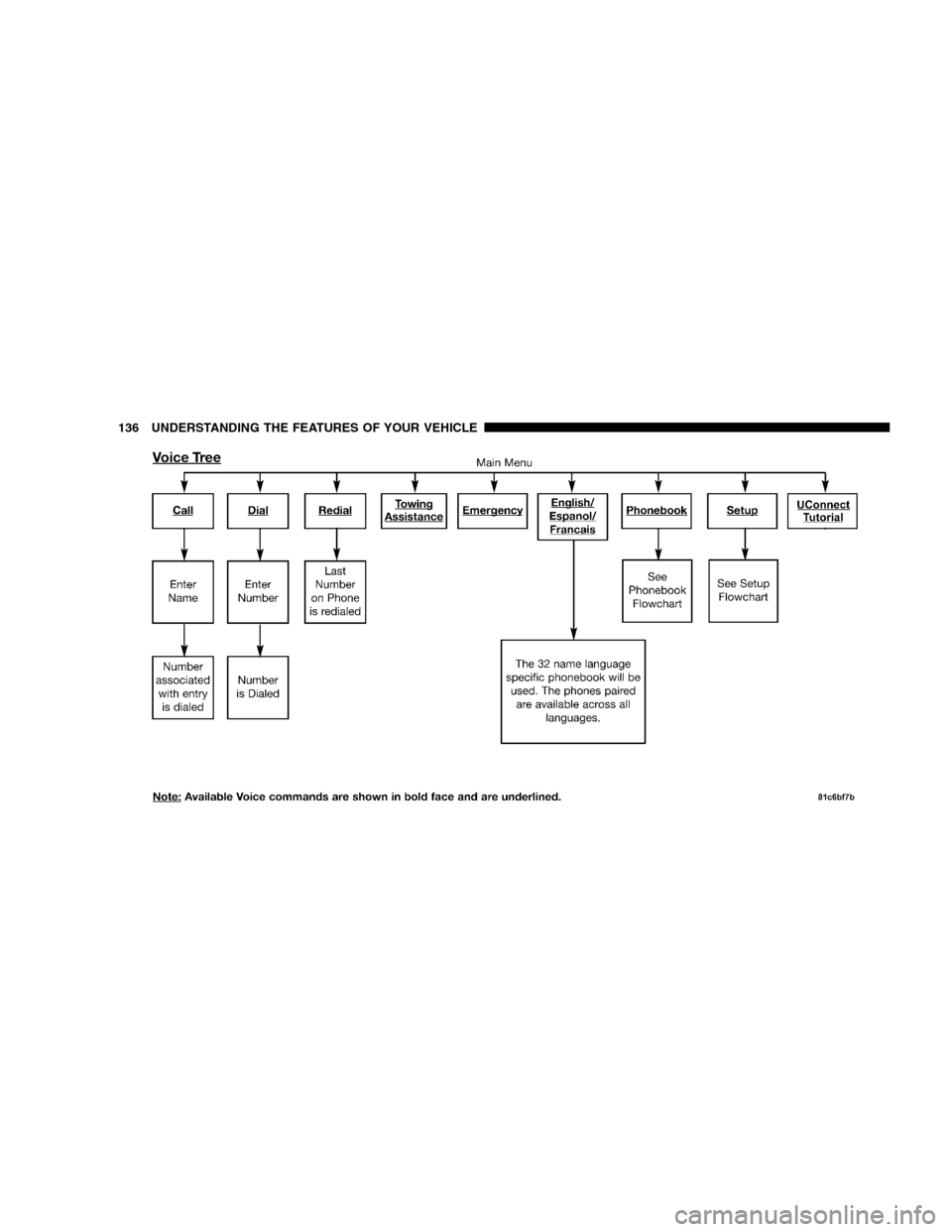

Page 138 of 535

136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

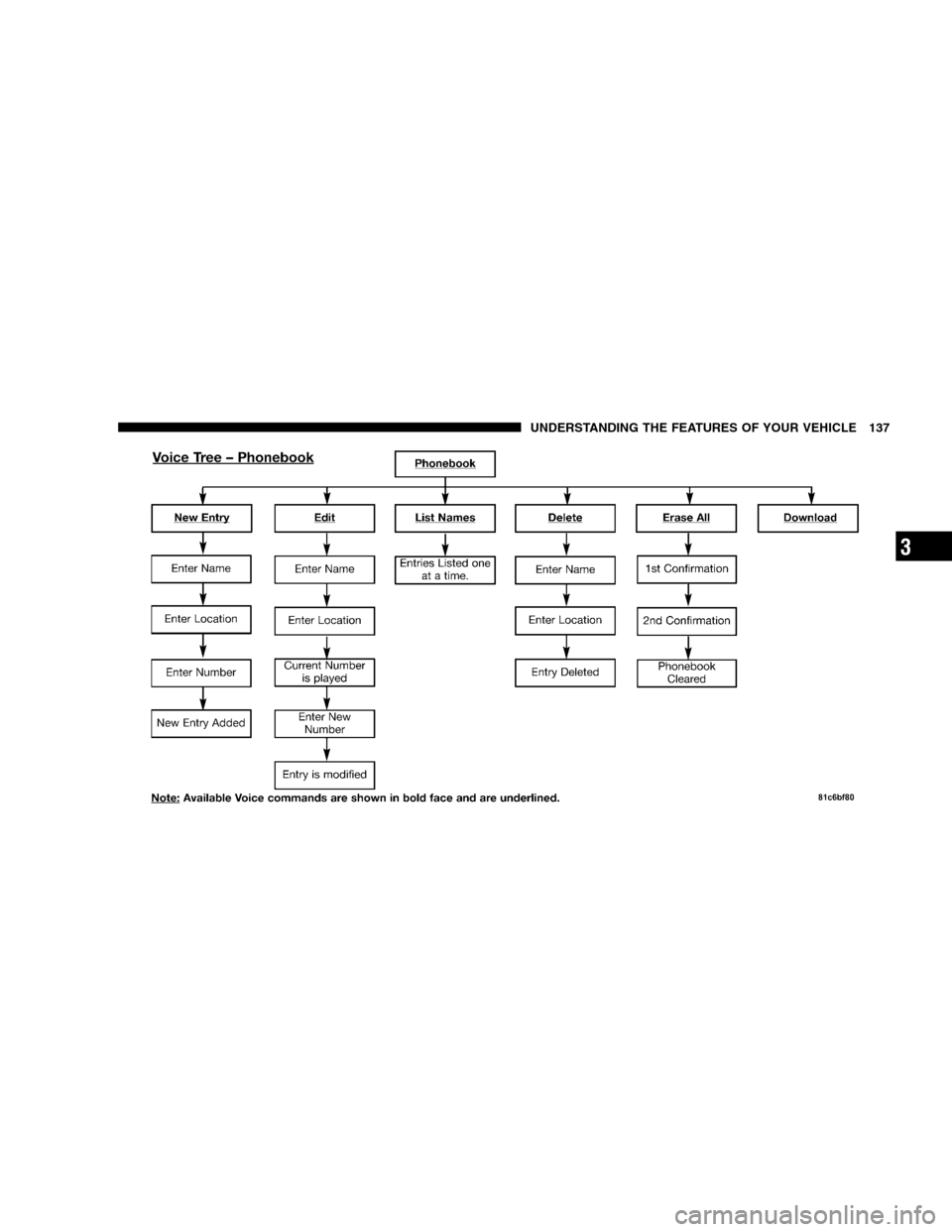

Page 139 of 535

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137
3

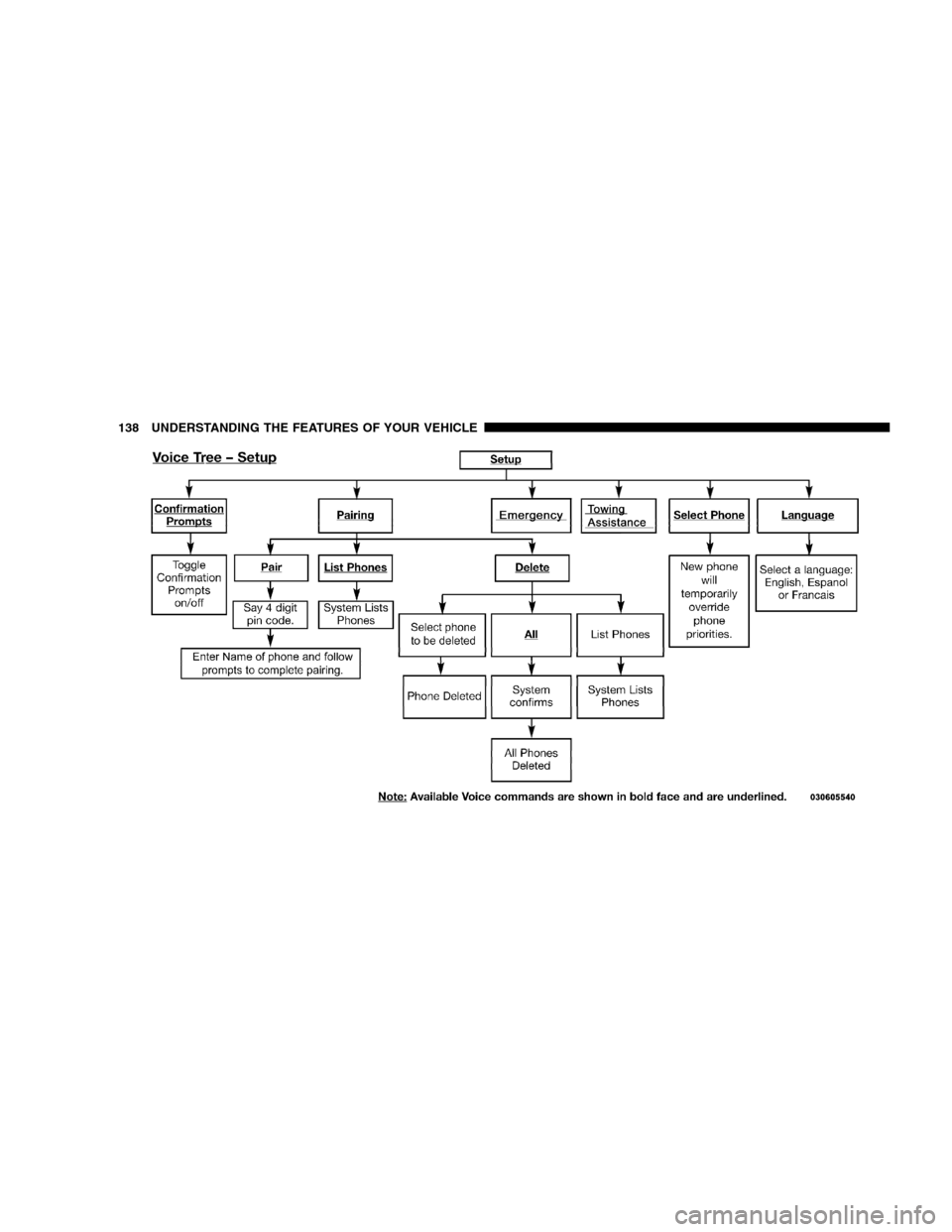

Page 140 of 535

138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
