DODGE JOURNEY 2009 1.G User Guide

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A Word About Your Keys ..................12
▫ Wireless Ignition Node (WIN) .............12
▫ FOB With Integrated Key .................13
▫ Tip Start Feature .......................14
▫ Ignition Key Removal ...................14
▫ Key-In-Ignition Reminder ................15
 Sentry Key Immobilizer System .............15
▫ Replacement Keys ......................16
▫ Customer Key Programming ..............17▫
General Information ....................18
 Security Alarm System — If Equipped .........18
▫ Rearming Of The System .................18
▫ To Arm The System .....................19
▫ To Disarm The System ...................19
 Illuminated Entry System ..................20
 Remote Keyless Entry (RKE) ................20
▫ To Unlock The Doors And Liftgate ..........21
▫ To Lock The Doors And Liftgate ............23
2

▫Using The Panic Alarm ..................24
▫ Express Down Window Feature ............25
▫ Programming Additional Transmitters ........25
▫ Transmitter Battery Service ...............25
▫ General Information ....................26
 Remote Starting System — If Equipped ........27
▫ How To Use Remote Start ................27
 Door Locks ............................28
▫ Manual Door Locks .....................28
▫ Power Door Locks .....................30
▫ Child Protection Door Lock System
(Rear Doors) ..........................32
Windows .............................34
▫ Power Windows .......................34
▫ Wind Buffeting ........................37
 Liftgate ...............................38
 Occupant Restraints ......................39
▫ Lap/Shoulder Belts .....................41
▫ Lap/Shoulder Belt Untwisting Procedure .....47
▫ Seat Belt Pretensioners ...................47
▫ Enhanced Seat Belt Reminder
System (BeltAlert) .....................48
▫ Automatic Locking Mode ................49
▫ Seat Belts And Pregnant Women ............50
▫ Seat Belt Extender ......................50
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫Driver And Front Passenger Supplemental
Restraint System (SRS) - Airbag ............50
▫ Event Data Recorder (EDR) ...............63
▫ Child Restraint ........................65
 Engine Break-In Recommendations ...........77
 Safety Tips ............................78
▫ Transporting Passengers .................78 ▫
Lock Your Vehicle ......................79
▫ Exhaust Gas ..........................79
▫ Safety Checks You Should Make Inside
The Vehicle ..........................80
▫ Periodic Safety Checks You Should Make
Outside The Vehicle ....................81
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
2

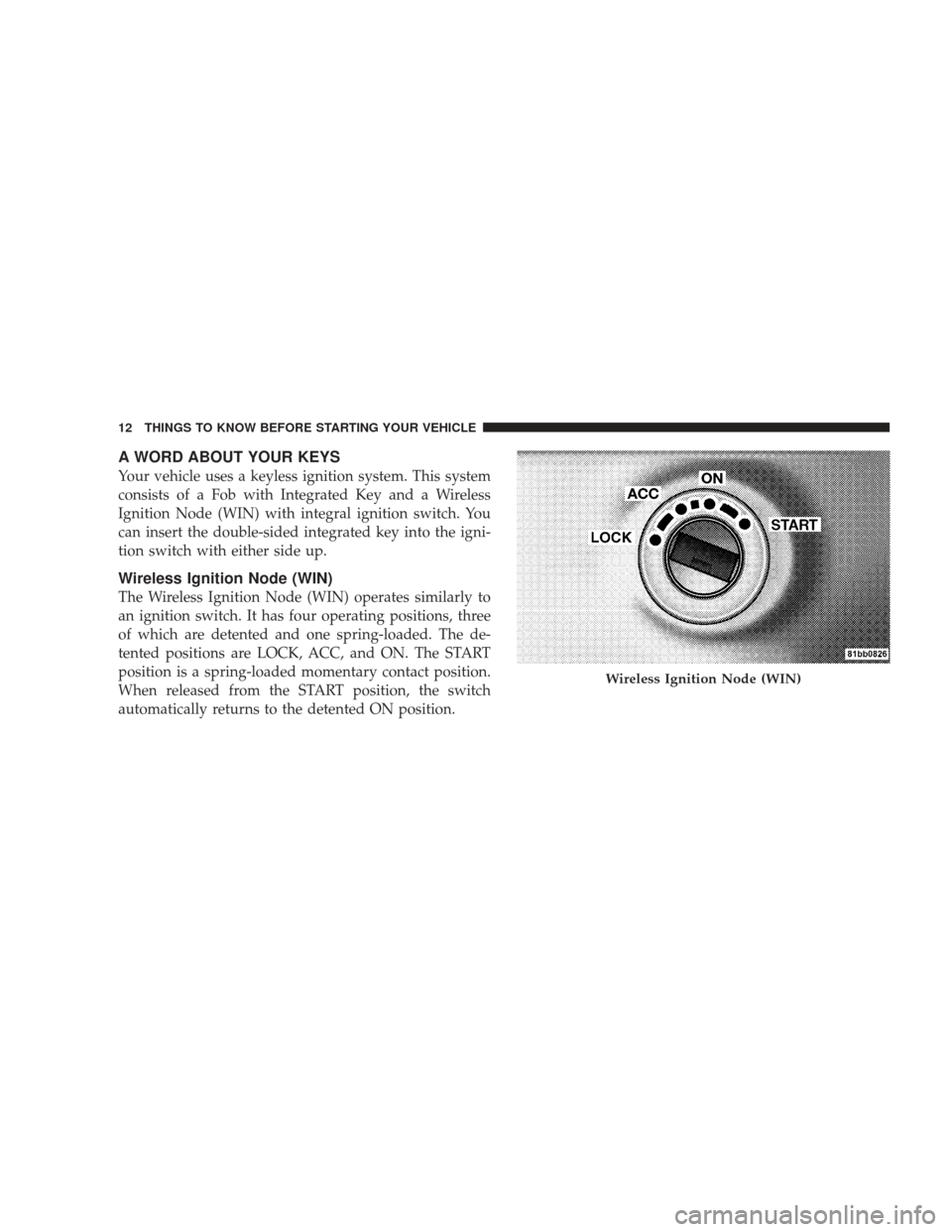

A WORD ABOUT YOUR KEYS
Your vehicle uses a keyless ignition system. This system
consists of a Fob with Integrated Key and a Wireless
Ignition Node (WIN) with integral ignition switch. You
can insert the double-sided integrated key into the igni-
tion switch with either side up.
Wireless Ignition Node (WIN)
The Wireless Ignition Node (WIN) operates similarly to
an ignition switch. It has four operating positions, three
of which are detented and one spring-loaded. The de-
tented positions are LOCK, ACC, and ON. The START
position is a spring-loaded momentary contact position.
When released from the START position, the switch
automatically returns to the detented ON position.
Wireless Ignition Node (WIN)
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Fob With Integrated Key
The Fob with Integrated Key operates the ignition switch.
It also contains the Remote Keyless Entry (RKE) trans-
mitter and a valet key, which stores in the rear of the Fob.
The valet key allows for entry into the vehicle should the
battery in the vehicle or the Fob go dead. You can keep
the valet key with you when valet parking.
To remove the valet key from the Fob, slide the mechani-
cal latch at the top of the Fob sideways with your thumb
and then pull the key out of the Fob with your other
hand.NOTE:
•You can insert the double-sided valet key into the lock
cylinder with either side up.
•Only the drivers door is equipped with a lock cylinder.
Valet Key Removal
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2

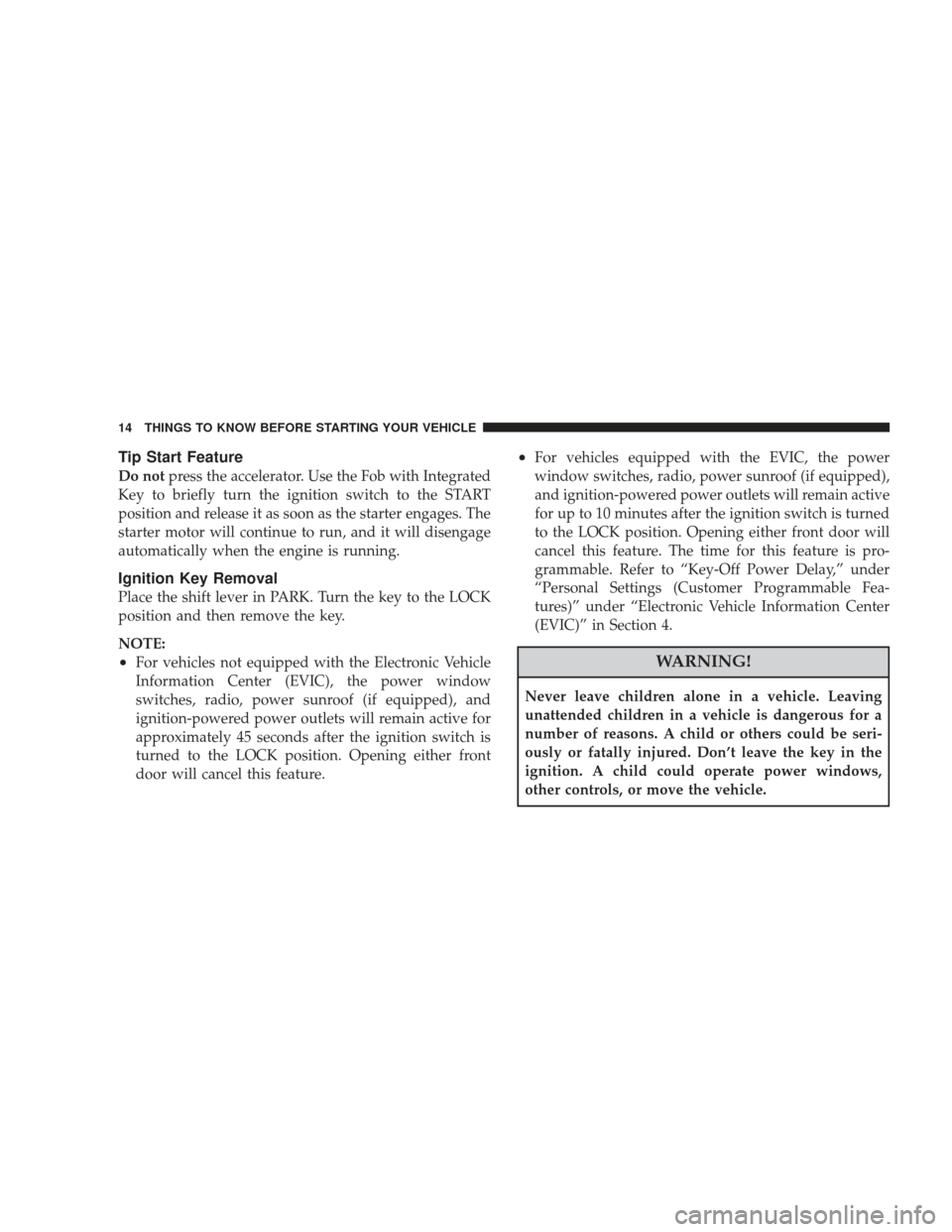

Tip Start Feature
Do notpress the accelerator. Use the Fob with Integrated
Key to briefly turn the ignition switch to the START
position and release it as soon as the starter engages. The
starter motor will continue to run, and it will disengage
automatically when the engine is running.
Ignition Key Removal
Place the shift lever in PARK. Turn the key to the LOCK
position and then remove the key.
NOTE:
•For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC), the power window
switches, radio, power sunroof (if equipped), and
ignition-powered power outlets will remain active for
approximately 45 seconds after the ignition switch is
turned to the LOCK position. Opening either front
door will cancel this feature.
•For vehicles equipped with the EVIC, the power
window switches, radio, power sunroof (if equipped),
and ignition-powered power outlets will remain active
for up to 10 minutes after the ignition switch is turned
to the LOCK position. Opening either front door will
cancel this feature. The time for this feature is pro-
grammable. Refer to “Key-Off Power Delay,” under
“Personal Settings (Customer Programmable Fea-
tures)” under “Electronic Vehicle Information Center
(EVIC)” in Section 4.
WARNING!
Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Don’t leave the key in the
ignition. A child could operate power windows,
other controls, or move the vehicle.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

CAUTION!
An unlocked car is an invitation to thieves. Always
remove the key from the ignition and lock all doors
when leaving the vehicle unattended.
Key-In-Ignition Reminder
If you open the driver’s door and the key is in the
ignition, a chime will sound to remind you to remove the
key.
NOTE:The Key-In-Ignition reminder only sounds
when the ignition key is placed in the LOCK or ACC
position.
SENTRY KEY IMMOBILIZER SYSTEM
The Sentry Key Immobilizer system prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses the factory-mated Remote Keyless Entry
(RKE) transmitter with integrated key and Wireless Igni-
tion Node (WIN) to prevent unauthorized vehicle opera-
tion. Therefore, only RKE transmitters that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will not allow the engine to crank
if an invalid RKE transmitter is used to operate the
ignition switch.
After turning the ignition switch to the ON position, the
Vehicle Security Light will turn on for three seconds for a
bulb check. If the light remains on after the bulb check, it
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

indicates that there is a problem with the electronics. This
condition will result in the engine being shut off after two
seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10
seconds), it indicates that there is a fault in the electron-
ics. Should this occur, have the vehicle serviced as soon
as possible.
NOTE:
•The Sentry KeyImmobilizer system is not compatible
with aftermarket remote starting systems. Use of these
systems may result in vehicle starting problems and
loss of security protection.
•Exxon/Mobil Speedpass™, additional RKE transmit-
ters, or any other transponder-equipped components
on the same key chain will notcause a fault unless the additional part is
physically held against the trans-
mitter being used to start the vehicle. Cell phones,
pagers, or other RF electronics will not cause interfer-
ence with this system.
All of the RKE transmitters provided with your new
vehicle have been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only RKE transmitters that are programmed to
the vehicle electronics can be used to start and operate
the vehicle. Once a transmitter is programmed to a
vehicle, it cannot be programmed to any other vehicle.
CAUTION!
Always remove the keys from the vehicle and lock all
doors when leaving the vehicle unattended.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

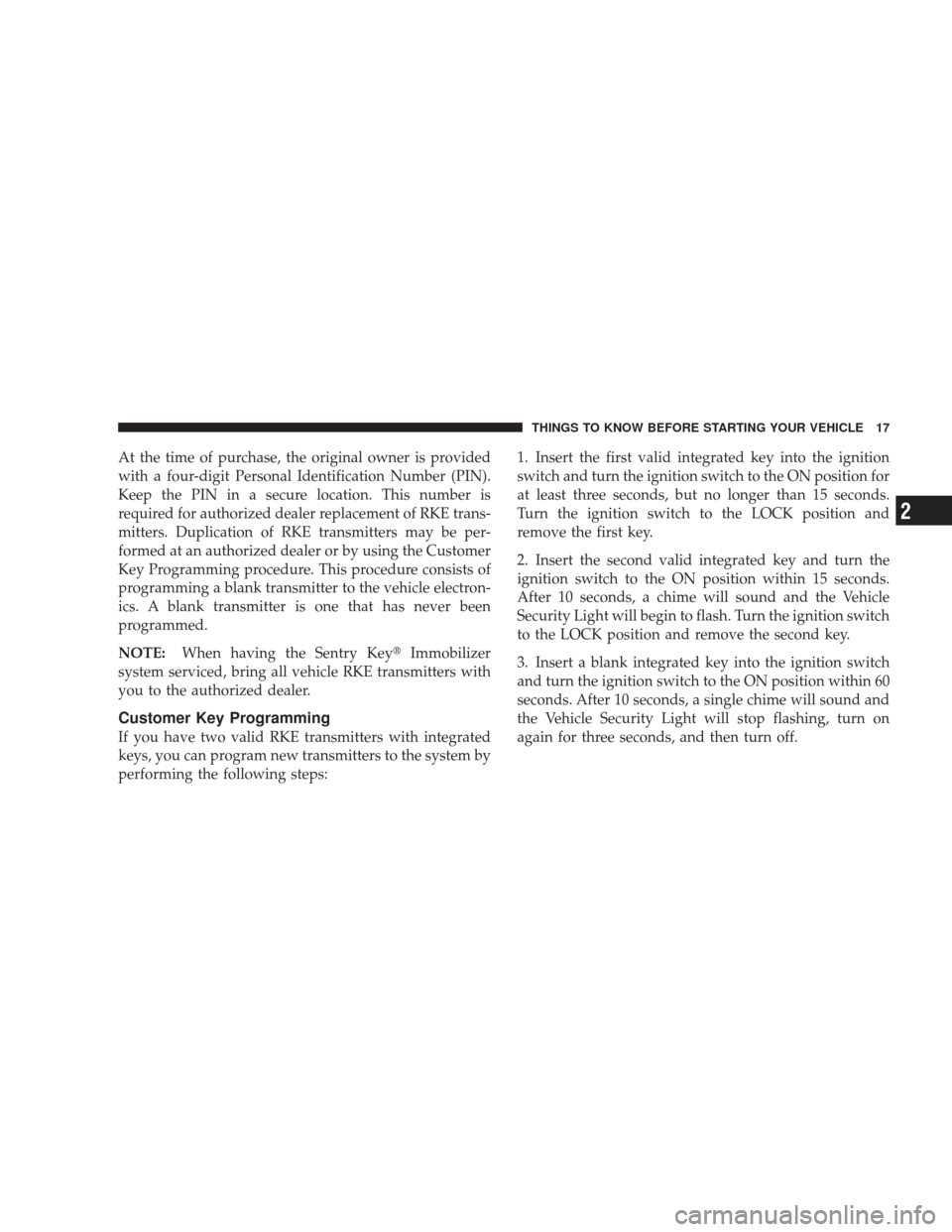

At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of RKE trans-
mitters. Duplication of RKE transmitters may be per-
formed at an authorized dealer or by using the Customer
Key Programming procedure. This procedure consists of
programming a blank transmitter to the vehicle electron-
ics. A blank transmitter is one that has never been
programmed.
NOTE:When having the Sentry Key Immobilizer
system serviced, bring all vehicle RKE transmitters with
you to the authorized dealer.
Customer Key Programming
If you have two valid RKE transmitters with integrated
keys, you can program new transmitters to the system by
performing the following steps: 1. Insert the first valid integrated key into the ignition
switch and turn the ignition switch to the ON position for
at least three seconds, but no longer than 15 seconds.
Turn the ignition switch to the LOCK position and
remove the first key.
2. Insert the second valid integrated key and turn the
ignition switch to the ON position within 15 seconds.
After 10 seconds, a chime will sound and the Vehicle
Security Light will begin to flash. Turn the ignition switch
to the LOCK position and remove the second key.
3. Insert a blank integrated key into the ignition switch
and turn the ignition switch to the ON position within 60
seconds. After 10 seconds, a single chime will sound and
the Vehicle Security Light will stop flashing, turn on
again for three seconds, and then turn off.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
2

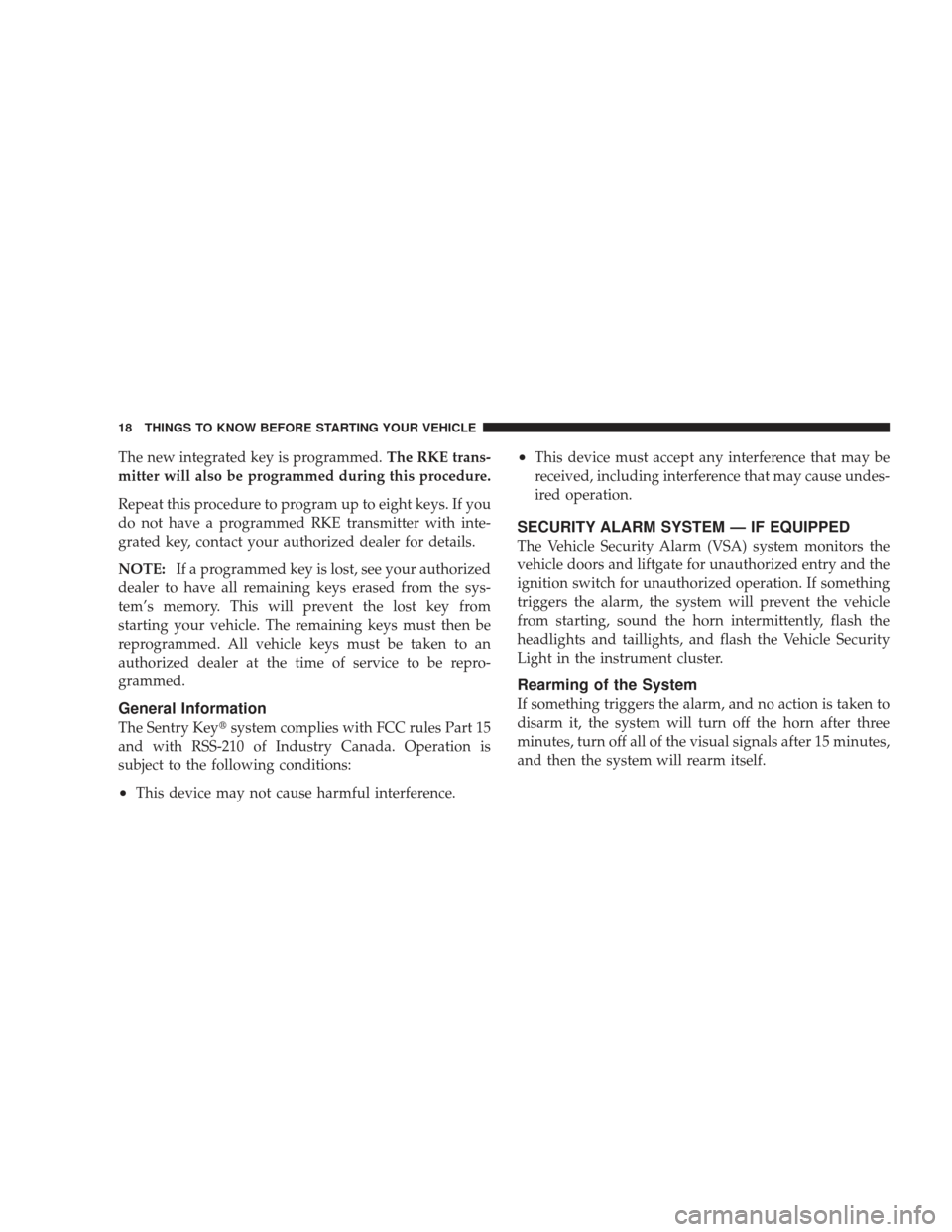

The new integrated key is programmed.The RKE trans-
mitter will also be programmed during this procedure.
Repeat this procedure to program up to eight keys. If you
do not have a programmed RKE transmitter with inte-
grated key, contact your authorized dealer for details.
NOTE: If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be repro-
grammed.
General Information
The Sentry Key system complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
SECURITY ALARM SYSTEM — IF EQUIPPED
The Vehicle Security Alarm (VSA) system monitors the
vehicle doors and liftgate for unauthorized entry and the
ignition switch for unauthorized operation. If something
triggers the alarm, the system will prevent the vehicle
from starting, sound the horn intermittently, flash the
headlights and taillights, and flash the Vehicle Security
Light in the instrument cluster.
Rearming of the System
If something triggers the alarm, and no action is taken to
disarm it, the system will turn off the horn after three
minutes, turn off all of the visual signals after 15 minutes,
and then the system will rearm itself.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
