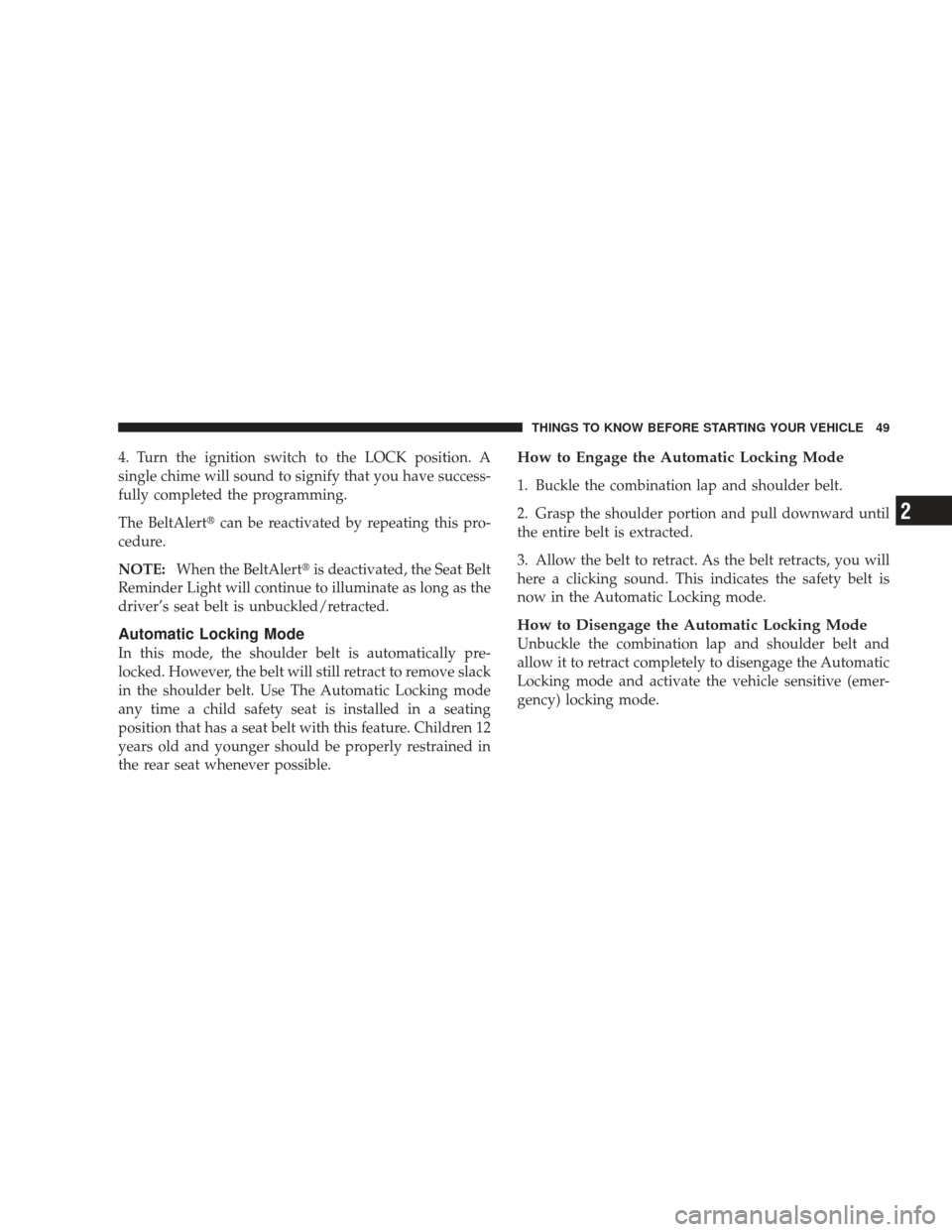

4. Turn the ignition switch to the LOCK position. A
single chime will sound to signify that you have success-
fully completed the programming.
The BeltAlertcan be reactivated by repeating this pro-
cedure.
NOTE: When the BeltAlert is deactivated, the Seat Belt
Reminder Light will continue to illuminate as long as the
driver’s seat belt is unbuckled/retracted.
Automatic Locking Mode
In this mode, the shoulder belt is automatically pre-
locked. However, the belt will still retract to remove slack
in the shoulder belt. Use The Automatic Locking mode
any time a child safety seat is installed in a seating
position that has a seat belt with this feature. Children 12
years old and younger should be properly restrained in
the rear seat whenever possible.
How to Engage the Automatic Locking Mode
1. Buckle the combination lap and shoulder belt.
2. Grasp the shoulder portion and pull downward until
the entire belt is extracted.
3. Allow the belt to retract. As the belt retracts, you will
here a clicking sound. This indicates the safety belt is
now in the Automatic Locking mode.
How to Disengage the Automatic Locking Mode
Unbuckle the combination lap and shoulder belt and
allow it to retract completely to disengage the Automatic
Locking mode and activate the vehicle sensitive (emer-
gency) locking mode.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 49
2

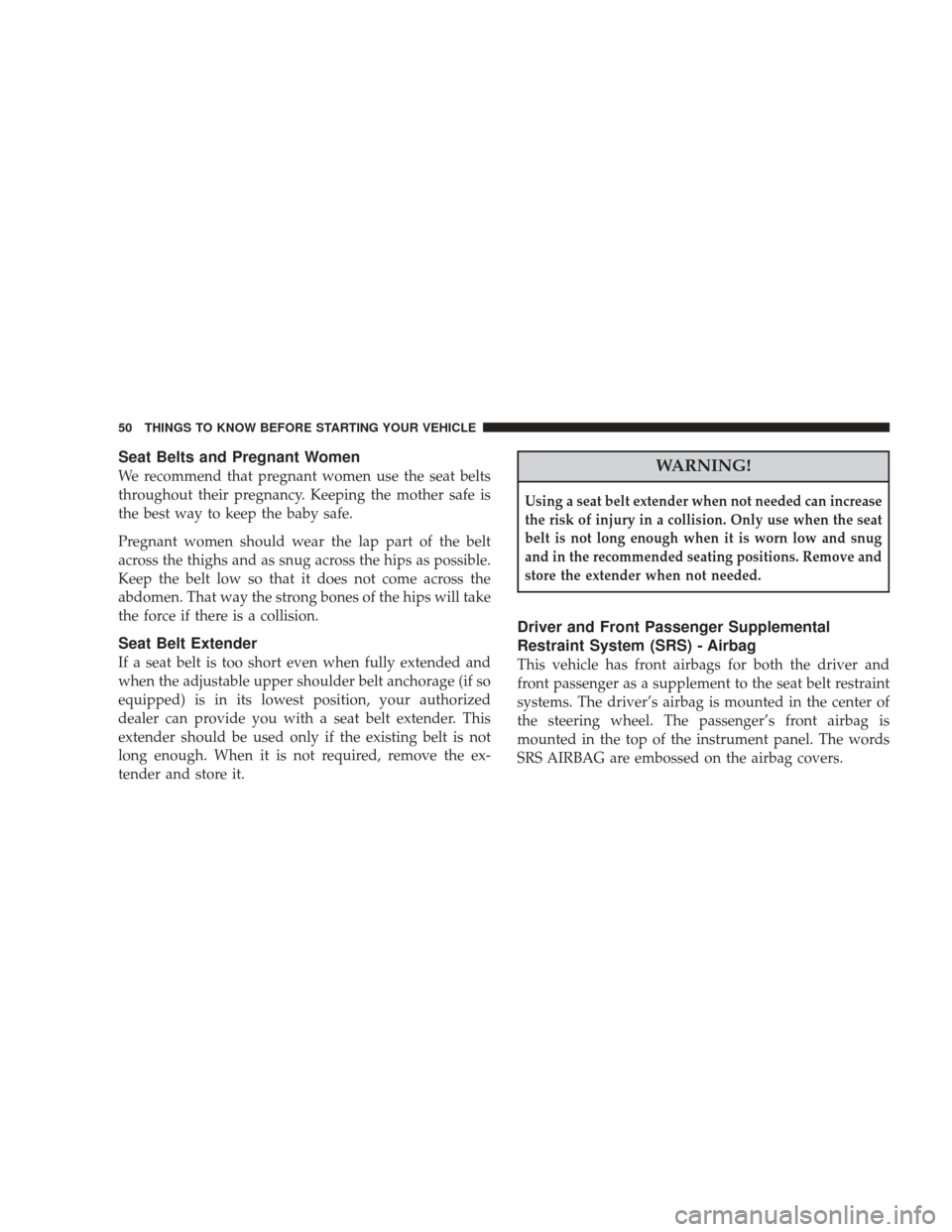

Seat Belts and Pregnant Women
We recommend that pregnant women use the seat belts
throughout their pregnancy. Keeping the mother safe is
the best way to keep the baby safe.
Pregnant women should wear the lap part of the belt
across the thighs and as snug across the hips as possible.
Keep the belt low so that it does not come across the
abdomen. That way the strong bones of the hips will take
the force if there is a collision.
Seat Belt Extender
If a seat belt is too short even when fully extended and
when the adjustable upper shoulder belt anchorage (if so
equipped) is in its lowest position, your authorized
dealer can provide you with a seat belt extender. This
extender should be used only if the existing belt is not
long enough. When it is not required, remove the ex-
tender and store it.
WARNING!
Using a seat belt extender when not needed can increase
the risk of injury in a collision. Only use when the seat
belt is not long enough when it is worn low and snug
and in the recommended seating positions. Remove and
store the extender when not needed.
Driver and Front Passenger Supplemental
Restraint System (SRS) - Airbag
This vehicle has front airbags for both the driver and
front passenger as a supplement to the seat belt restraint
systems. The driver’s airbag is mounted in the center of
the steering wheel. The passenger’s front airbag is
mounted in the top of the instrument panel. The words
SRS AIRBAG are embossed on the airbag covers.
50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

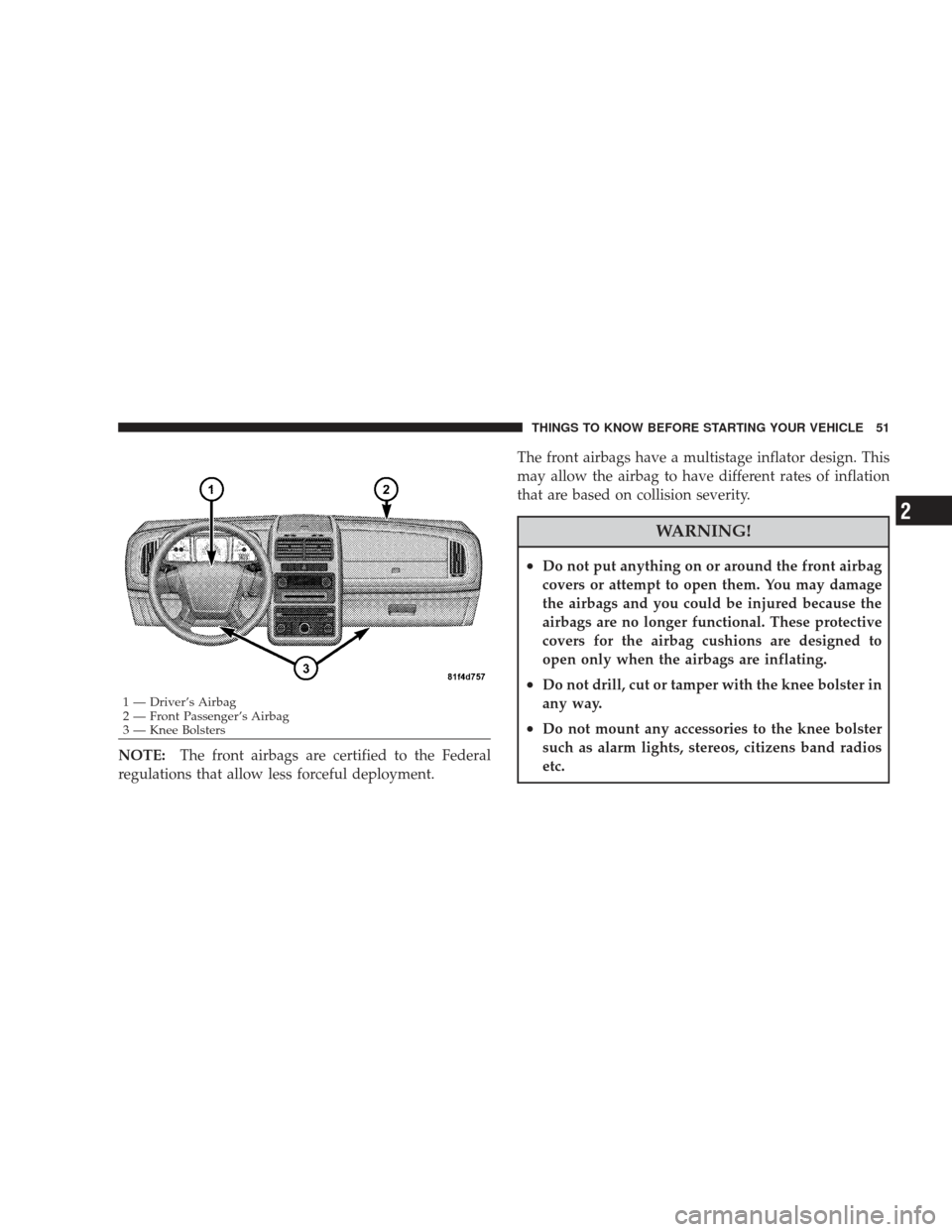

NOTE:The front airbags are certified to the Federal
regulations that allow less forceful deployment. The front airbags have a multistage inflator design. This
may allow the airbag to have different rates of inflation
that are based on collision severity.
WARNING!
•Do not put anything on or around the front airbag
covers or attempt to open them. You may damage
the airbags and you could be injured because the
airbags are no longer functional. These protective
covers for the airbag cushions are designed to
open only when the airbags are inflating.
•Do not drill, cut or tamper with the knee bolster in
any way.
•Do not mount any accessories to the knee bolster
such as alarm lights, stereos, citizens band radios
etc.
1 — Driver’s Airbag
2 — Front Passenger’s Airbag
3 — Knee Bolsters THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51
2

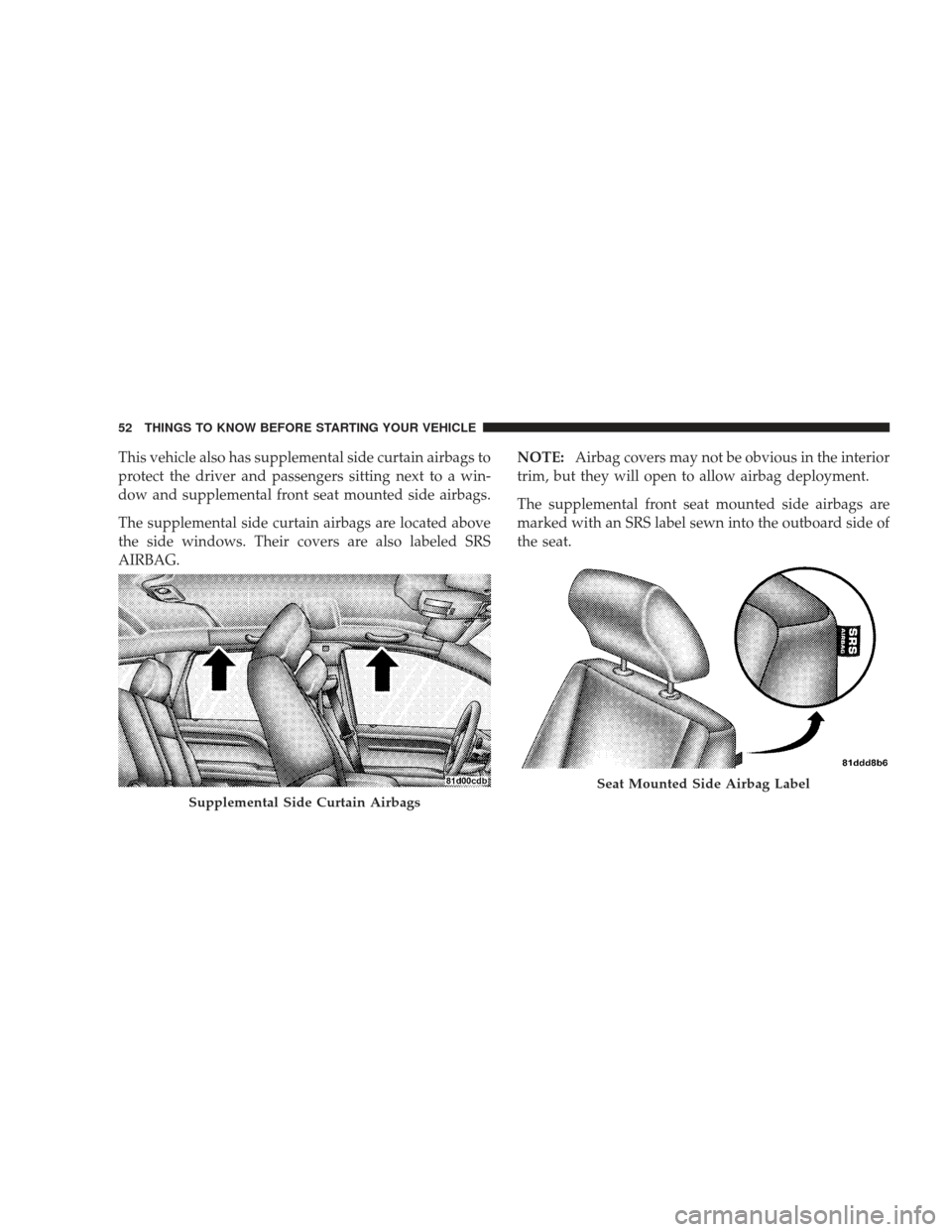

This vehicle also has supplemental side curtain airbags to
protect the driver and passengers sitting next to a win-
dow and supplemental front seat mounted side airbags.
The supplemental side curtain airbags are located above
the side windows. Their covers are also labeled SRS
AIRBAG.NOTE:
Airbag covers may not be obvious in the interior
trim, but they will open to allow airbag deployment.
The supplemental front seat mounted side airbags are
marked with an SRS label sewn into the outboard side of
the seat.
Supplemental Side Curtain Airbags
Seat Mounted Side Airbag Label
52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!
•Do not stack luggage or other cargo up high enough
to block the location of the side curtain airbag. The
area where the side curtain airbag is located should
remain free from any obstructions. Do not have any
accessory items installed which will alter the roof,
including adding a sunroof to your vehicle. Do not
add roof racks that require permanent attachments
(bolts or screws) for installation on the vehicle roof.
Do not drill into the roof of the vehicle for any reason.
• Do not use accessory seat covers or place objects
between you and the supplemental front seat
mounted side airbags; the performance could be
adversely affected and/or objects could be pushed
into you, causing serious injury.
• Do not attach cupholders or any other objects on or
around the door. The inflating supplemental front
seat mounted side airbags could drive the object into
occupants, causing serious injury.
NOTE: Do not use a clothing bar mounted to the coat
hooks in this vehicle. A clothing bar will impede the
proper performance of the curtain airbags.
Along with the seat belts, front airbags work with the
instrument panel knee bolsters to provide improved
protection for the driver and front passenger. Side curtain
and seat airbags also work with seat belts to improve
occupant protection.
While the seat belts are designed to protect you in many
types of collisions, the front airbags will deploy in
moderate to severe frontal collisions. The supplemental
side curtain airbag and supplemental front seat mounted
side airbag on the crash side of the vehicle will also
trigger in moderate to severe side collisions. However,
even in collisions where the airbags deploy, you need the
seat belts to keep you in the correct position for the
airbags to protect you properly.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 53
2

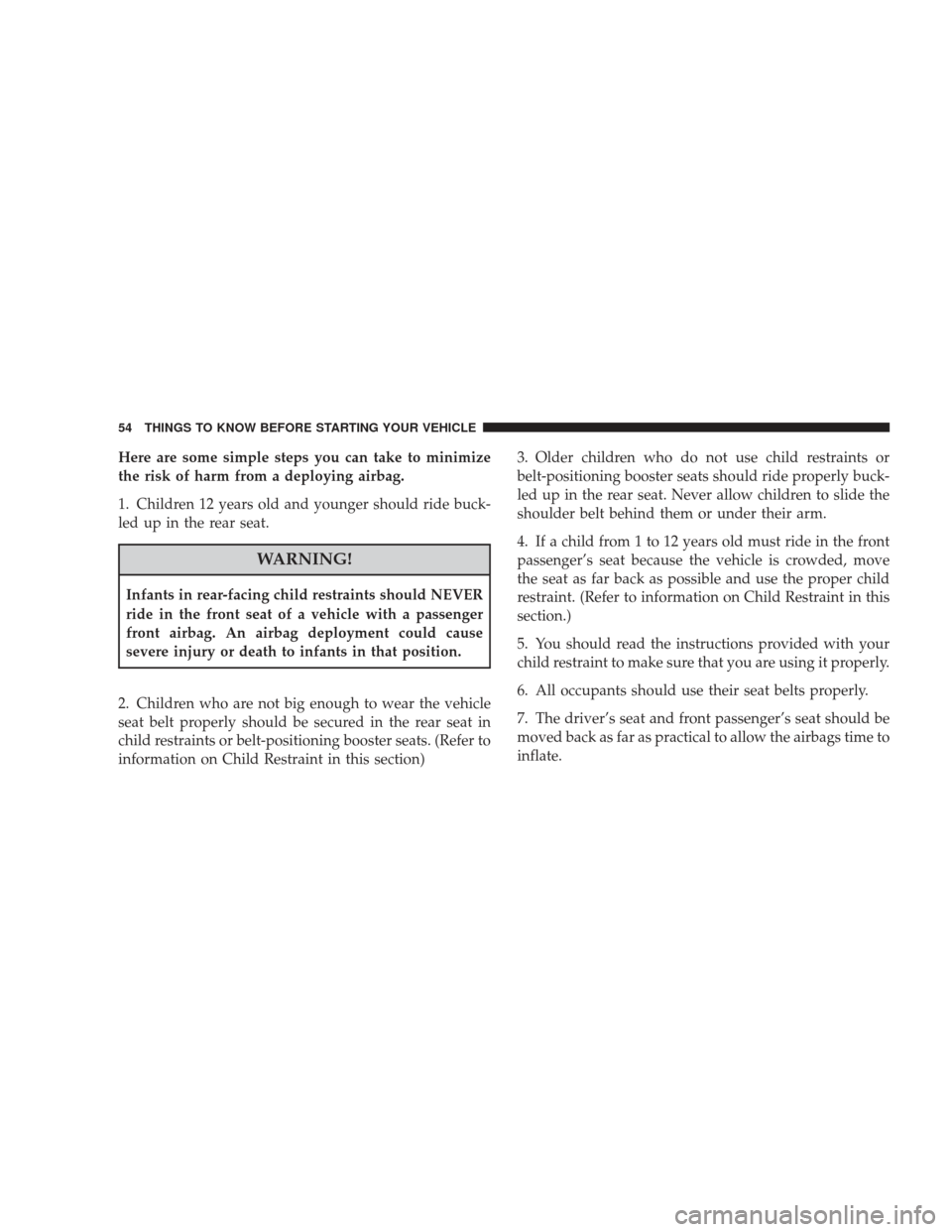

Here are some simple steps you can take to minimize
the risk of harm from a deploying airbag.
1. Children 12 years old and younger should ride buck-
led up in the rear seat.
WARNING!
Infants in rear-facing child restraints should NEVER
ride in the front seat of a vehicle with a passenger
front airbag. An airbag deployment could cause
severe injury or death to infants in that position.
2. Children who are not big enough to wear the vehicle
seat belt properly should be secured in the rear seat in
child restraints or belt-positioning booster seats. (Refer to
information on Child Restraint in this section) 3. Older children who do not use child restraints or
belt-positioning booster seats should ride properly buck-
led up in the rear seat. Never allow children to slide the
shoulder belt behind them or under their arm.
4. If a child from 1 to 12 years old must ride in the front
passenger’s seat because the vehicle is crowded, move
the seat as far back as possible and use the proper child
restraint. (Refer to information on Child Restraint in this
section.)
5. You should read the instructions provided with your
child restraint to make sure that you are using it properly.
6. All occupants should use their seat belts properly.
7. The driver’s seat and front passenger’s seat should be
moved back as far as practical to allow the airbags time to
inflate.
54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

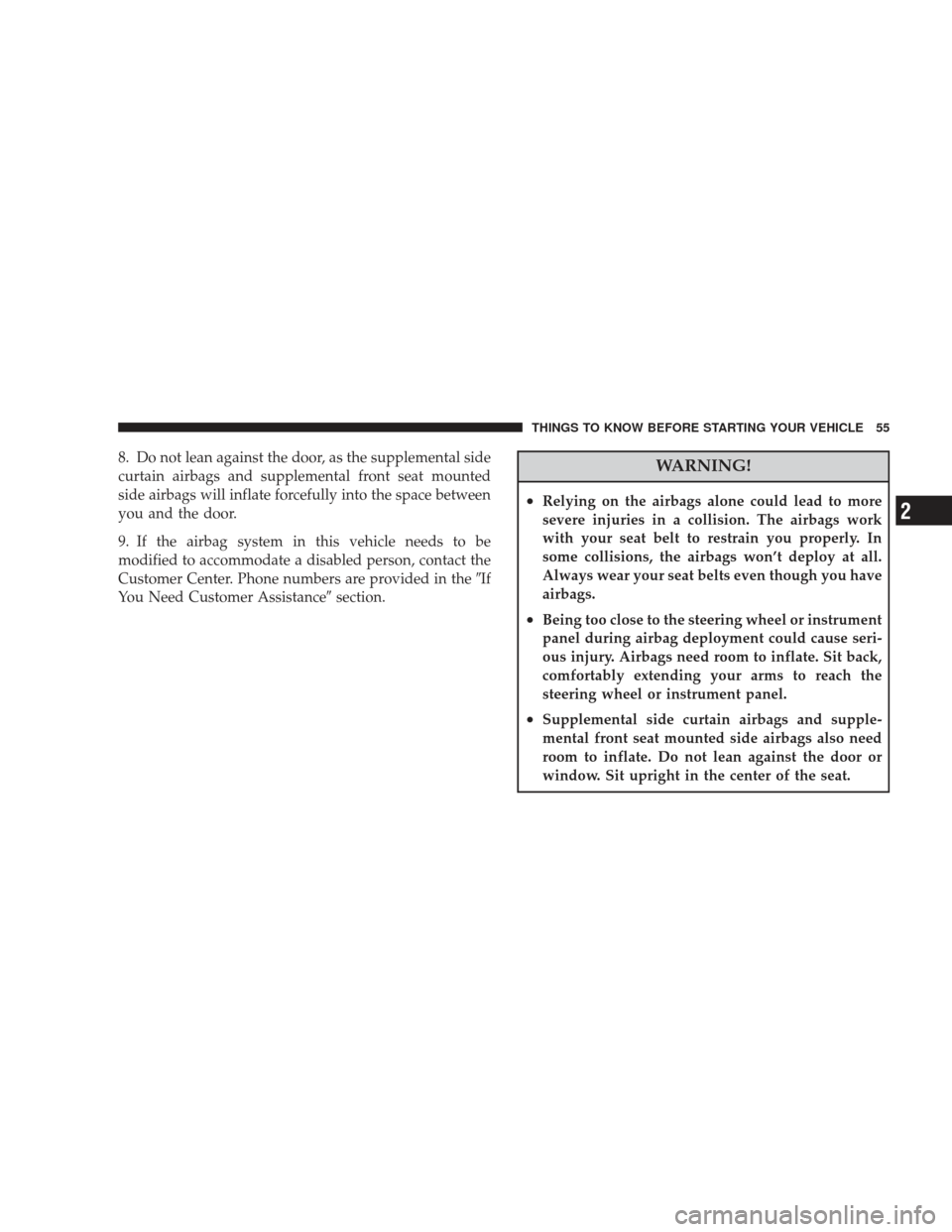

8. Do not lean against the door, as the supplemental side
curtain airbags and supplemental front seat mounted
side airbags will inflate forcefully into the space between
you and the door.
9. If the airbag system in this vehicle needs to be
modified to accommodate a disabled person, contact the
Customer Center. Phone numbers are provided in theIf
You Need Customer Assistance section.WARNING!
•Relying on the airbags alone could lead to more
severe injuries in a collision. The airbags work
with your seat belt to restrain you properly. In
some collisions, the airbags won’t deploy at all.
Always wear your seat belts even though you have
airbags.
•Being too close to the steering wheel or instrument
panel during airbag deployment could cause seri-
ous injury. Airbags need room to inflate. Sit back,
comfortably extending your arms to reach the
steering wheel or instrument panel.
•Supplemental side curtain airbags and supple-
mental front seat mounted side airbags also need
room to inflate. Do not lean against the door or
window. Sit upright in the center of the seat.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 55
2

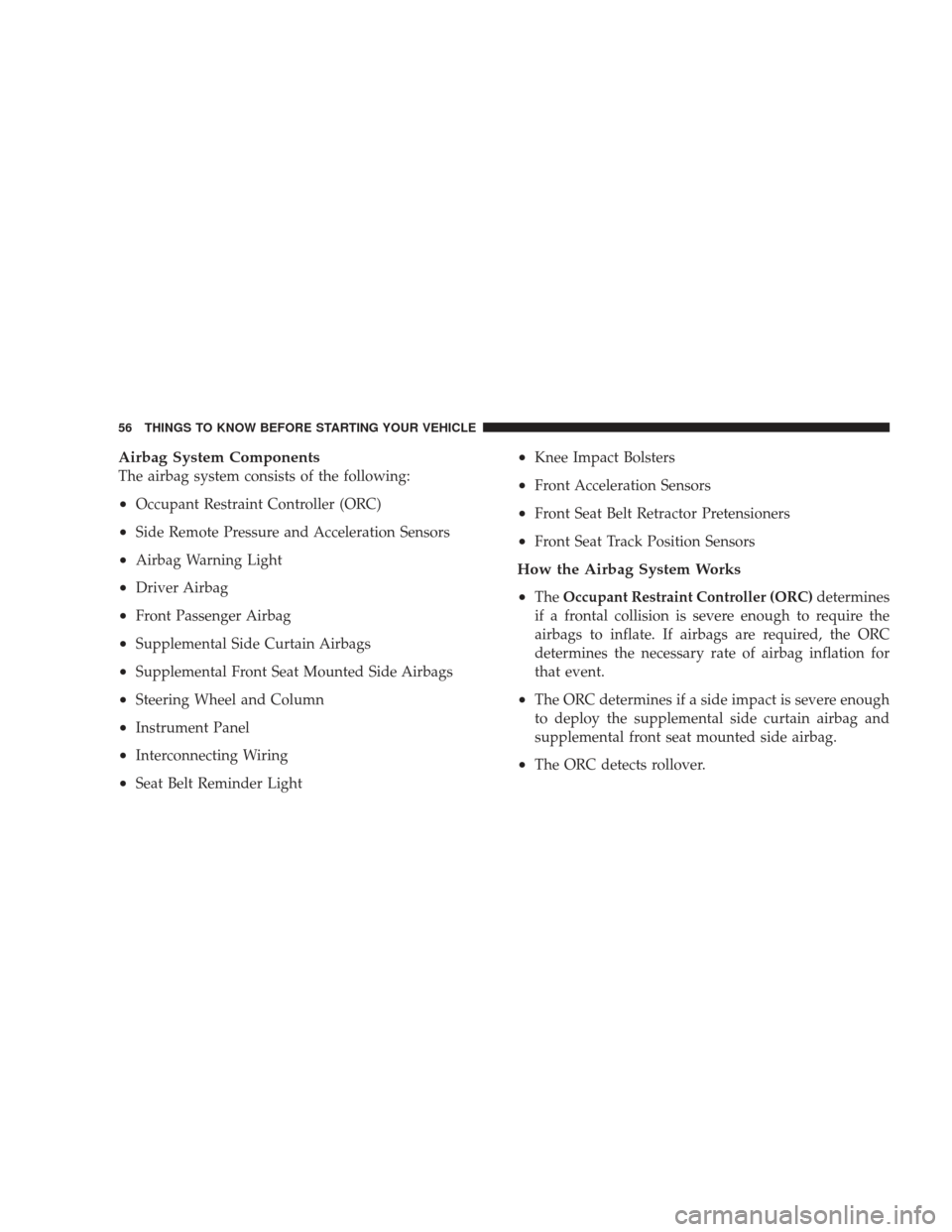

Airbag System Components
The airbag system consists of the following:
•Occupant Restraint Controller (ORC)
•Side Remote Pressure and Acceleration Sensors
•Airbag Warning Light
•Driver Airbag
•Front Passenger Airbag
•Supplemental Side Curtain Airbags
•Supplemental Front Seat Mounted Side Airbags
•Steering Wheel and Column
•Instrument Panel
•Interconnecting Wiring
•Seat Belt Reminder Light
•Knee Impact Bolsters
•Front Acceleration Sensors
•Front Seat Belt Retractor Pretensioners
•Front Seat Track Position Sensors
How the Airbag System Works
•
TheOccupant Restraint Controller (ORC) determines
if a frontal collision is severe enough to require the
airbags to inflate. If airbags are required, the ORC
determines the necessary rate of airbag inflation for
that event.
•The ORC determines if a side impact is severe enough
to deploy the supplemental side curtain airbag and
supplemental front seat mounted side airbag.
•The ORC detects rollover.
56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

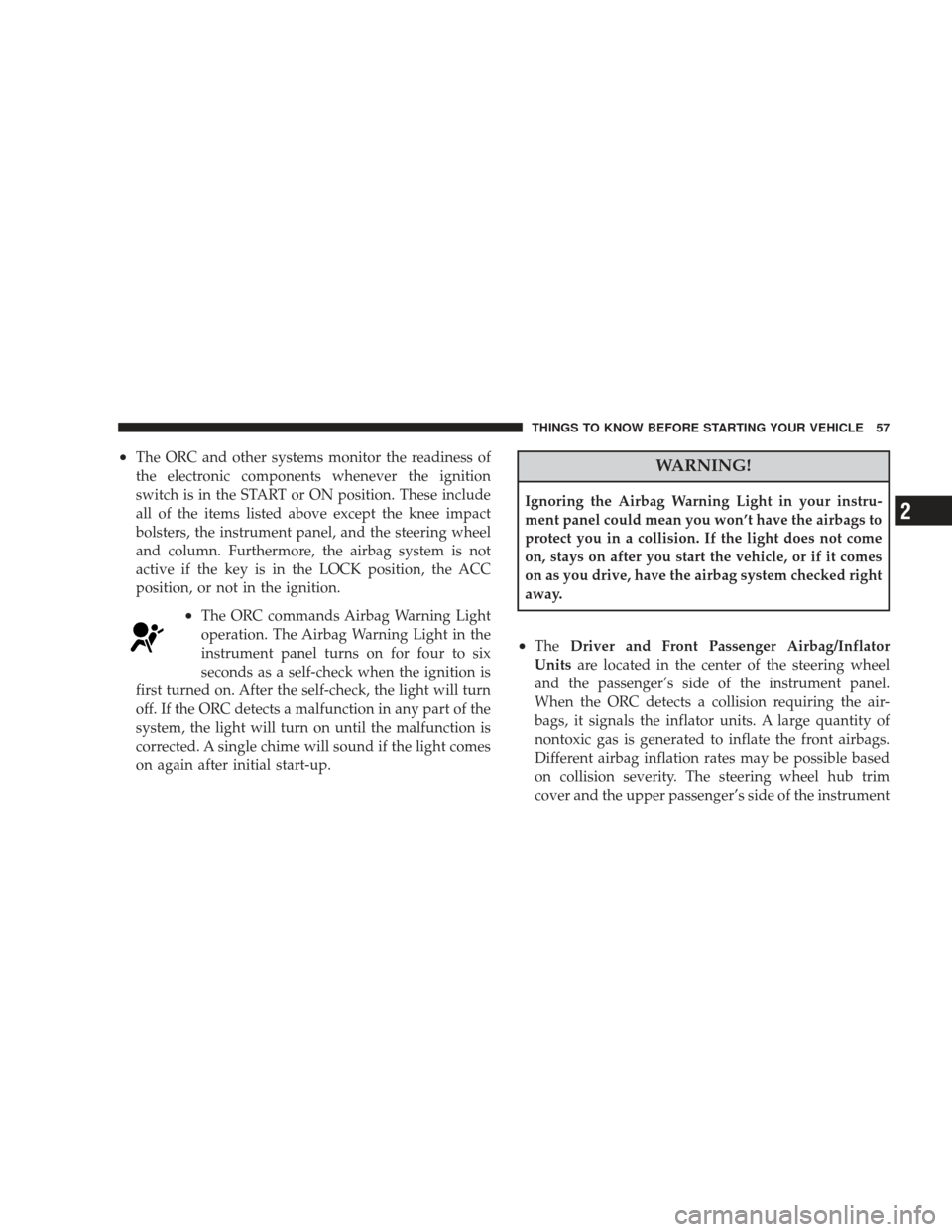

•The ORC and other systems monitor the readiness of
the electronic components whenever the ignition
switch is in the START or ON position. These include
all of the items listed above except the knee impact
bolsters, the instrument panel, and the steering wheel
and column. Furthermore, the airbag system is not
active if the key is in the LOCK position, the ACC
position, or not in the ignition.
•The ORC commands Airbag Warning Light
operation. The Airbag Warning Light in the
instrument panel turns on for four to six
seconds as a self-check when the ignition is
first turned on. After the self-check, the light will turn
off. If the ORC detects a malfunction in any part of the
system, the light will turn on until the malfunction is
corrected. A single chime will sound if the light comes
on again after initial start-up.
WARNING!
Ignoring the Airbag Warning Light in your instru-
ment panel could mean you won’t have the airbags to
protect you in a collision. If the light does not come
on, stays on after you start the vehicle, or if it comes
on as you drive, have the airbag system checked right
away.
•The Driver and Front Passenger Airbag/Inflator
Units are located in the center of the steering wheel
and the passenger’s side of the instrument panel.
When the ORC detects a collision requiring the air-
bags, it signals the inflator units. A large quantity of
nontoxic gas is generated to inflate the front airbags.
Different airbag inflation rates may be possible based
on collision severity. The steering wheel hub trim
cover and the upper passenger’s side of the instrument
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 57
2

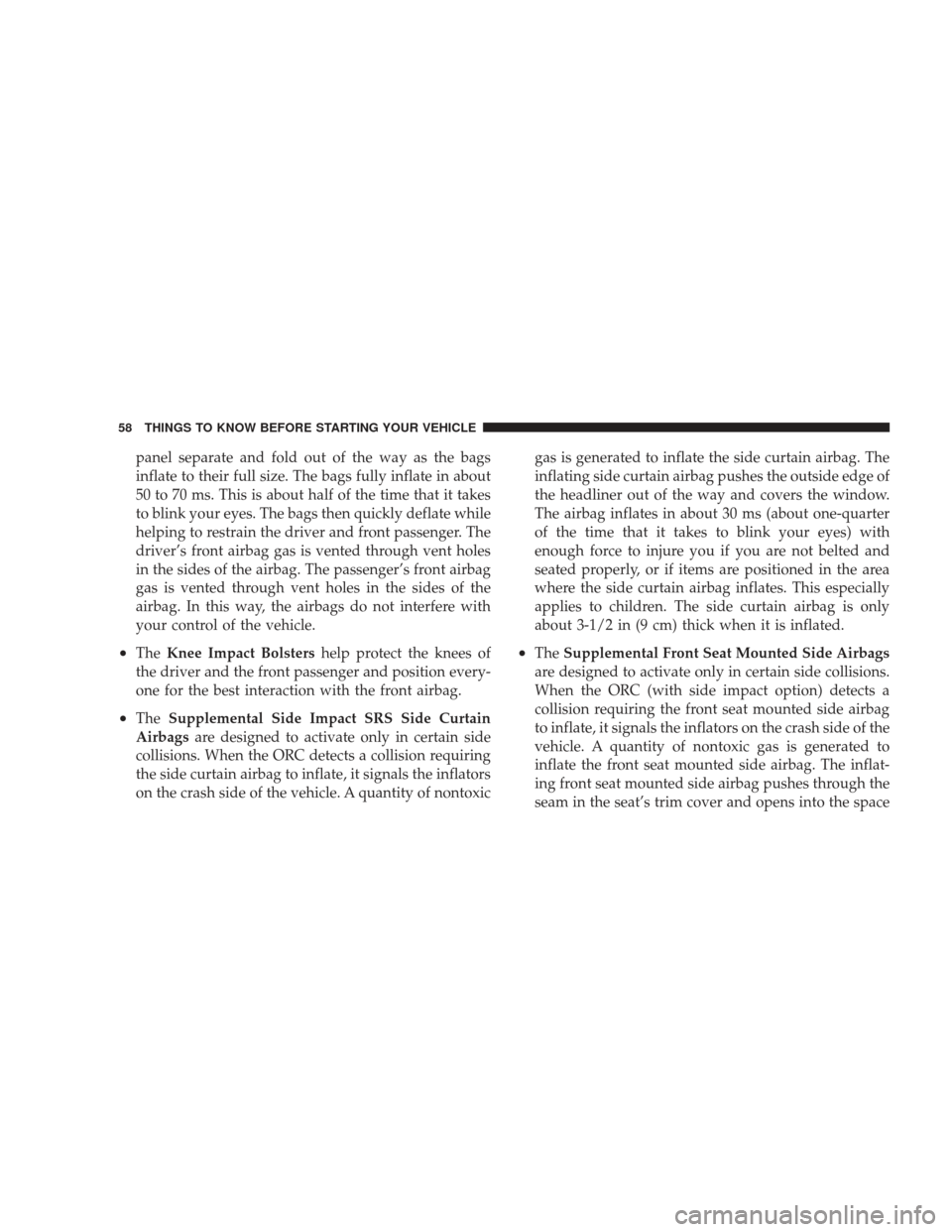

panel separate and fold out of the way as the bags
inflate to their full size. The bags fully inflate in about
50 to 70 ms. This is about half of the time that it takes
to blink your eyes. The bags then quickly deflate while
helping to restrain the driver and front passenger. The
driver’s front airbag gas is vented through vent holes
in the sides of the airbag. The passenger’s front airbag
gas is vented through vent holes in the sides of the
airbag. In this way, the airbags do not interfere with
your control of the vehicle.
•TheKnee Impact Bolsters help protect the knees of
the driver and the front passenger and position every-
one for the best interaction with the front airbag.
•The Supplemental Side Impact SRS Side Curtain
Airbags are designed to activate only in certain side
collisions. When the ORC detects a collision requiring
the side curtain airbag to inflate, it signals the inflators
on the crash side of the vehicle. A quantity of nontoxic gas is generated to inflate the side curtain airbag. The
inflating side curtain airbag pushes the outside edge of
the headliner out of the way and covers the window.
The airbag inflates in about 30 ms (about one-quarter
of the time that it takes to blink your eyes) with
enough force to injure you if you are not belted and
seated properly, or if items are positioned in the area
where the side curtain airbag inflates. This especially
applies to children. The side curtain airbag is only
about 3-1/2 in (9 cm) thick when it is inflated.
•The
Supplemental Front Seat Mounted Side Airbags
are designed to activate only in certain side collisions.
When the ORC (with side impact option) detects a
collision requiring the front seat mounted side airbag
to inflate, it signals the inflators on the crash side of the
vehicle. A quantity of nontoxic gas is generated to
inflate the front seat mounted side airbag. The inflat-
ing front seat mounted side airbag pushes through the
seam in the seat’s trim cover and opens into the space
58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
