DODGE JOURNEY 2017 1.G Owners Manual

4. If using another vehicle to jump-start the battery, parkthe vehicle within the jumper cables reach, set the
parking brake and make sure the ignition is OFF.
WARNING!
Do not allow vehicles to touch each other as this could
establish a ground connection and personal injury
could result.
Jump-Starting Procedure
WARNING!
Failure to follow this jump-starting procedure could
result in personal injury or property damage due to
battery explosion.
CAUTION!
Failure to follow these procedures could result in
damage to the charging system of the booster vehicle
or the discharged vehicle. Connecting The Jumper Cables
1. Connect the positive
(+)end of the jumper cable to the
remote positive (+)post of the discharged vehicle.
2. Connect the opposite end of the positive (+)jumper
cable to the positive (+)post of the booster battery.
3. Connect the negative end (-)of the jumper cable to the
negative (-)post of the booster battery.
4. Connect the opposite end of the negative (-)jumper
cable to the remote negative (-)post of the vehicle with
the discharged battery.
WARNING!
Do not connect the jumper cable to the negative (-) post
of the discharged battery. The resulting electrical spark
could cause the battery to explode and could result in
personal injury. Only use the specific ground point, do
not use any other exposed metal parts.
5. Start the engine in the vehicle that has the booster battery, let the engine idle a few minutes, and then start
the engine in the vehicle with the discharged battery.
6
WHAT TO DO IN EMERGENCIES 419

6. Once the engine is started, remove the jumper cables inthe reverse sequence:
Disconnecting The Jumper Cables
1. Disconnect the negative (-)jumper cable from the re-
mote negative (-)post of the vehicle with the discharged
battery.
2. Disconnect the negative end (-)of the jumper cable from
the negative (-)post of the booster battery.
3. Disconnect the opposite end of the positive (+)jumper
cable from the positive (+)post of the booster battery.
4. Disconnect the positive (+)end of the jumper cable from
the remote positive (+)post of the discharged vehicle.
5. Reinstall the protective cover over the remote positive (+) battery post of the discharged vehicle.
If frequent jump-starting is required to start your vehicle,
you should have the battery and charging system in-
spected at your authorized dealer.CAUTION!
Accessories plugged into the vehicle power outlets
draw power from the vehicle’s battery, even when not
in use (i.e., cellular devices, etc.). Eventually, if plugged
in long enough without engine operation, the vehicle’s
battery will discharge sufficiently to degrade battery
life and/or prevent the engine from starting.
FREEING A STUCK VEHICLE
If your vehicle becomes stuck in mud, sand, or snow, it can
often be moved using a rocking motion. Turn the steering
wheel right and left to clear the area around the front
wheels. Then shift back and forth between DRIVE and
REVERSE while gently pressing the accelerator. Use the
least amount of accelerator pedal pressure that will main-
tain the rocking motion, without spinning the wheels or
racing the engine.
CAUTION!
Racing the engine or spinning the wheels may lead to
transmission overheating and failure. Allow the en-
gine to idle with the transmission in NEUTRAL for at
(Continued)
420 WHAT TO DO IN EMERGENCIES

CAUTION!(Continued)
least one minute after every five rocking-motion
cycles. This will minimize overheating and reduce the
risk of transmission failure during prolonged efforts to
free a stuck vehicle.
Push the ESC Off switch, to place the Electronic
Stability Control (ESC) system in ESC Partial
Off mode, before rocking the vehicle. Refer to
“Electronic Brake Control” in “Starting And Op-
erating” for further information. Once the vehicle has been
freed, push the ESC Offswitch again to restore ESC On
mode.
WARNING!
Fast spinning tires can be dangerous. Forces generated
by excessive wheel speeds may cause damage, or even
failure, of the axle and tires. A tire could explode and
injure someone. Do not spin your vehicle’s wheels
faster than 30 mph (48 km/h) or for longer than 30
seconds continuously without stopping when you are
stuck and do not let anyone near a spinning wheel, no
matter what the speed.
CAUTION!
• When “rocking” a stuck vehicle by shifting between
DRIVE and REVERSE, do not spin the wheels faster
than 15 mph (24 km/h), or drivetrain damage may
result.
• Revving the engine or spinning the wheels too fast
may lead to transmission overheating and failure. It
can also damage the tires. Do not spin the wheels
above 30 mph (48 km/h) while in gear (no transmis-
sion shifting occurring).
GEAR SELECTOR OVERRIDE
If a malfunction occurs and the gear selector cannot be
moved out of the PARK position, you can use the following
procedure to temporarily move the gear selector:
1. Turn the engine OFF.
2. Firmly apply the parking brake.
3. Open the center console and remove the gear selector override access cover (located in the front lower right
corner of the console storage bin).
6
WHAT TO DO IN EMERGENCIES 421

4. Press and maintain firm pressure on the brake pedal.
5. Insert a screwdriver or similar small tool into the accessport, and push and hold the override release lever
forward.
6. Move the gear selector to the NEUTRAL position.
7. The vehicle may then be started in NEUTRAL.
8. Reinstall the gear selector override access cover.
Gear Selector Override Access Cover
422 WHAT TO DO IN EMERGENCIES

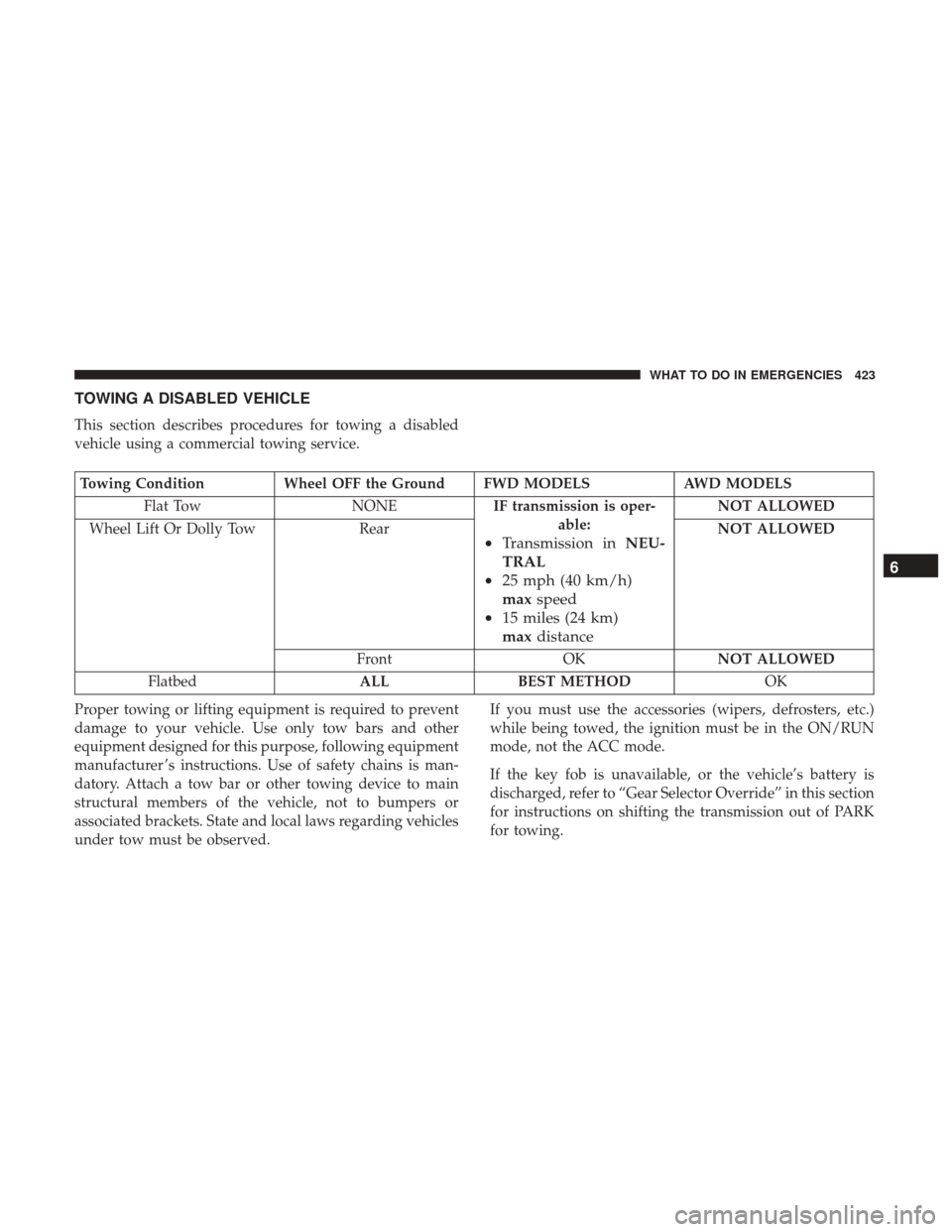

TOWING A DISABLED VEHICLE
This section describes procedures for towing a disabled
vehicle using a commercial towing service.
Towing ConditionWheel OFF the Ground FWD MODELS AWD MODELS
Flat Tow NONEIF transmission is oper-
able:
•Transmission in NEU-
TRAL
• 25 mph (40 km/h)
max speed
• 15 miles (24 km)
max distance
NOT ALLOWED
Wheel Lift Or Dolly Tow Rear NOT ALLOWED
Front OKNOT ALLOWED
Flatbed ALLBEST METHOD OK
Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equipment
manufacturer ’s instructions. Use of safety chains is man-
datory. Attach a tow bar or other towing device to main
structural members of the vehicle, not to bumpers or
associated brackets. State and local laws regarding vehicles
under tow must be observed. If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
mode, not the ACC mode.
If the key fob is unavailable, or the vehicle’s battery is
discharged, refer to “Gear Selector Override” in this section
for instructions on shifting the transmission out of PARK
for towing.
6
WHAT TO DO IN EMERGENCIES 423

CAUTION!
•Do not use sling type equipment when towing.
Vehicle damage may occur.
• When securing the vehicle to a flatbed truck, do not
attach to front or rear suspension components. Dam-
age to your vehicle may result from improper towing.
• Do not push or tow this vehicle with another vehicle
as damage to the bumper fascia and transmission
may result.
All-Wheel Drive (AWD) Models
The manufacturer requires towing with all four wheels
OFF the ground. Acceptable methods are to tow the vehicle
on a flatbed, or with one end of the vehicle raised and the
opposite end on a towing dolly.
CAUTION!
Towing this vehicle in violation of the above require-
ments can cause severe transmission and/or power
transfer unit damage. Damage from improper towing
is not covered under the New Vehicle Limited War-
ranty.
Front-Wheel Drive (FWD) Models
The manufacturer recommends towing your vehicle with
all four wheels OFFthe ground using a flatbed.
If flatbed equipment is not available, and the transmission
is operable, the vehicle may be flat towed (with all four
wheels on the ground) under the following conditions:
• The transmission must be in NEUTRAL.
• The towing distance must not exceed 15 miles (24 km).
• The towing speed must not exceed 25 mph (40 km/h).
If the transmission is not operable, or the vehicle must be
towed faster than 25 mph (40 km/h) or farther than 15
miles (24 km), it must be towed with the front wheels
OFF the ground (using a flatbed truck, towing dolly, or
wheel lift equipment with the front wheels raised).
CAUTION!
Towing faster than 25 mph (40 km/h) or farther than 15
mi (24 km) with front wheels on the ground can cause
severe transmission damage. Damage from improper
towing is not covered by the New Vehicle Limited
Warranty.
424 WHAT TO DO IN EMERGENCIES

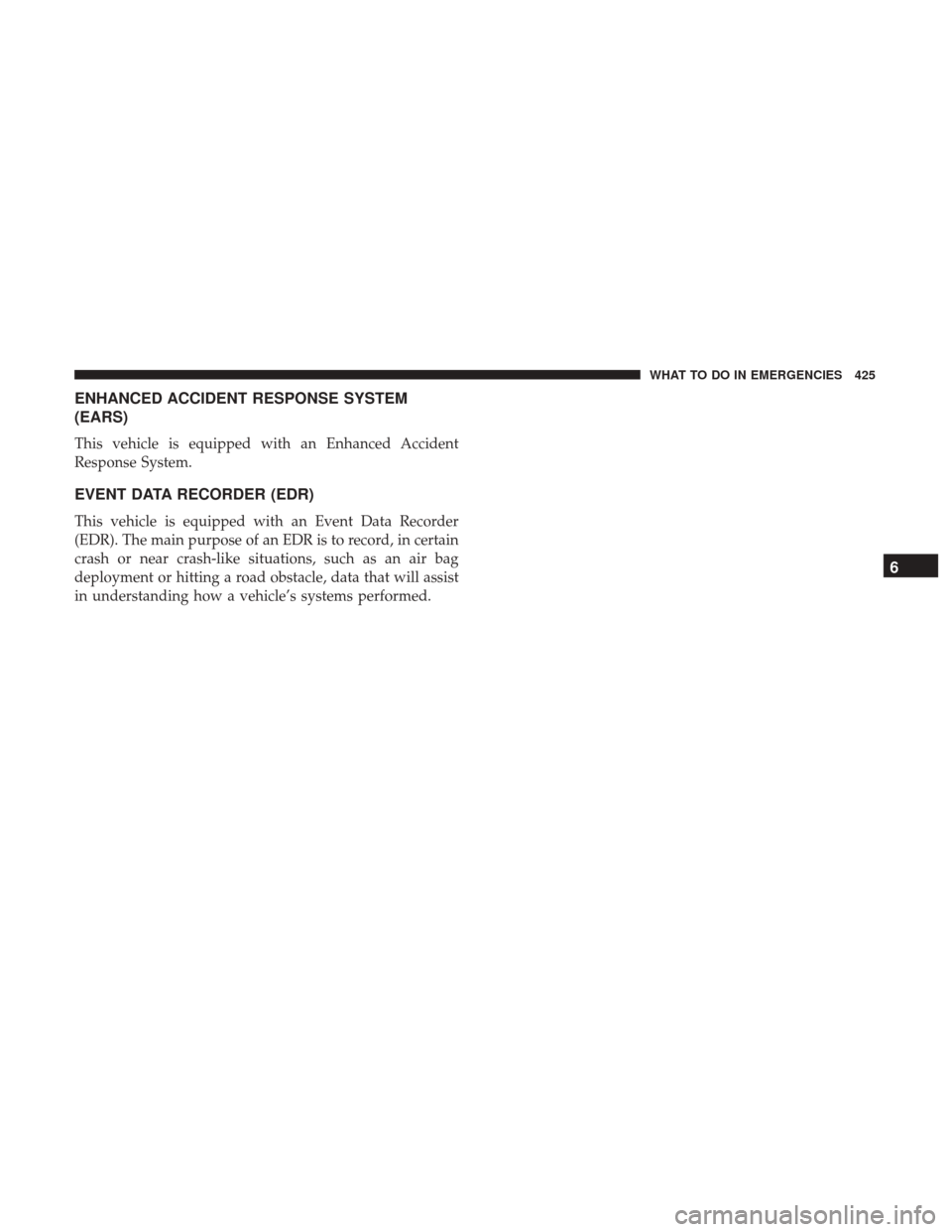

ENHANCED ACCIDENT RESPONSE SYSTEM
(EARS)
This vehicle is equipped with an Enhanced Accident
Response System.
EVENT DATA RECORDER (EDR)
This vehicle is equipped with an Event Data Recorder
(EDR). The main purpose of an EDR is to record, in certain
crash or near crash-like situations, such as an air bag
deployment or hitting a road obstacle, data that will assist
in understanding how a vehicle’s systems performed.
6
WHAT TO DO IN EMERGENCIES 425

MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 2.4L ...........429
 ENGINE COMPARTMENT — 3.6L ...........430
 ONBOARD DIAGNOSTIC SYSTEM — OBD II . . .430
▫ Onboard Diagnostic System (OBD II)
Cybersecurity ........................ .431
▫ Loose Fuel Filler Cap Message .............431
 EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS .......................... .432
 REPLACEMENT PARTS ...................433
 DEALER SERVICE ...................... .433
 MAINTENANCE PROCEDURES .............434
▫ Engine Oil .......................... .434
▫ Engine Oil Filter ...................... .437
▫ Engine Air Cleaner Filter .................437
▫ Maintenance-Free Battery .................437 ▫
Air Conditioner Maintenance ..............438
▫ A/C Air Filter — If Equipped .............439
▫ Body Lubrication ..................... .441
▫ Windshield Wiper Blades .................441
▫ Adding Washer Fluid ...................443
▫ Exhaust System ....................... .443
▫ Cooling System ....................... .445
▫ Brake System ........................ .449
▫ Automatic Transmission ..................451
▫ Rear Drive Assembly (RDA) – AWD Models
Only .............................. .454
▫ Power Transfer Unit (PTU) – AWD Models
Only .............................. .454
▫ Appearance Care And Protection From
Corrosion ........................... .454
7

▫Cleaning The Cupholders ................459
 FUSES ............................... .459
▫ Interior Fuses ........................ .460
▫ Underhood Fuses (Power Distribution Center) . .462
 REPLACEMENT BULBS ...................465
 BULB REPLACEMENT ....................467
▫ Front Low/High Beam Headlamp, Turn
Signal/Park Lamp, And Side Marker Lamp . . . .467 ▫
Front Fog Lamp ...................... .468
▫ Rear Turn Signal And Backup Lamp .........469
▫ License Plate Lamp .....................471
 FLUID CAPACITIES ..................... .472
 FLUIDS, LUBRICANTS, AND GENUINE
PARTS .............................. .473
▫ Engine ............................. .473
▫ Chassis ............................ .475
428 MAINTAINING YOUR VEHICLE
