sensor DODGE RAM 2002 Service Repair Manual

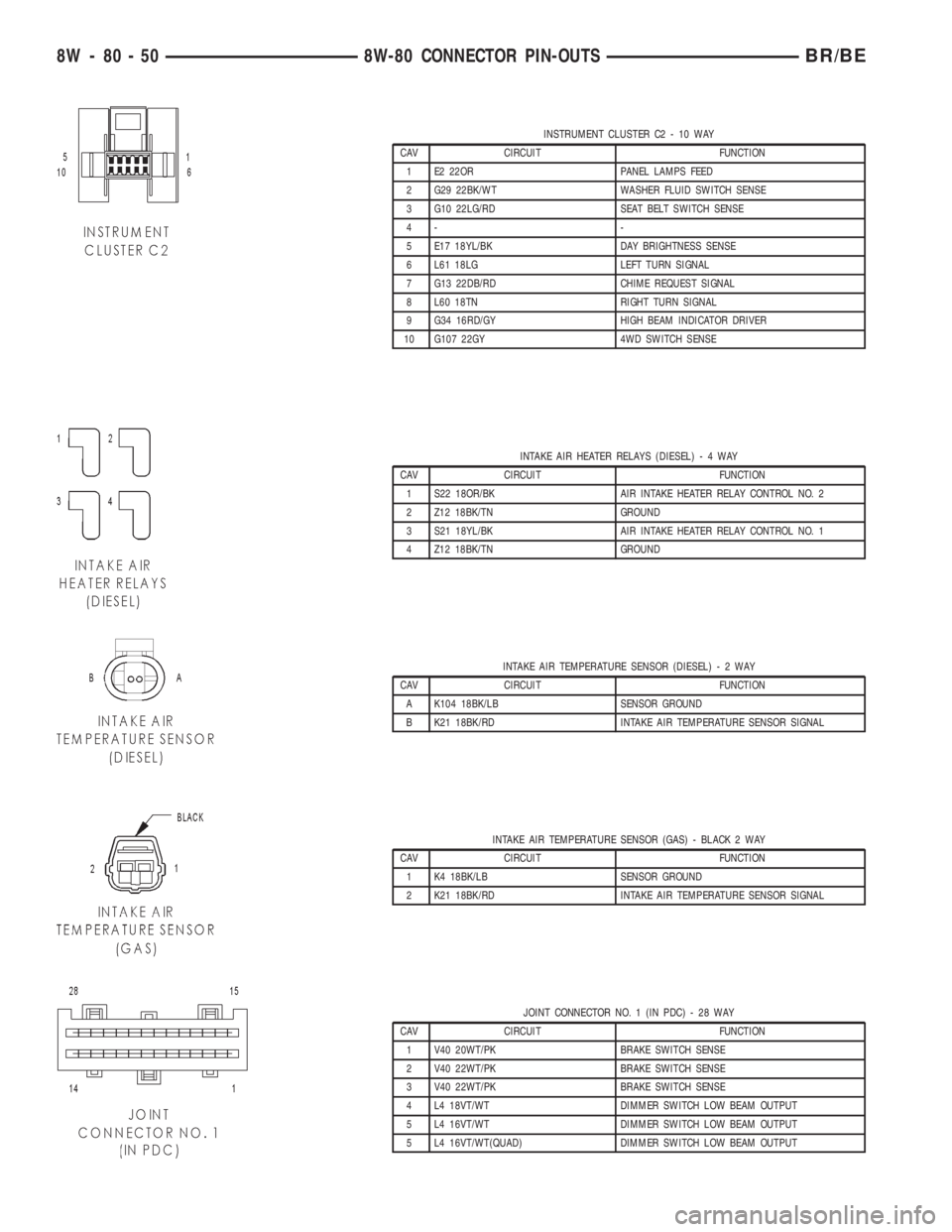

INSTRUMENT CLUSTER C2 - 10 WAY
CAV CIRCUIT FUNCTION
1 E2 22OR PANEL LAMPS FEED
2 G29 22BK/WT WASHER FLUID SWITCH SENSE
3 G10 22LG/RD SEAT BELT SWITCH SENSE
4- -
5 E17 18YL/BK DAY BRIGHTNESS SENSE
6 L61 18LG LEFT TURN SIGNAL
7 G13 22DB/RD CHIME REQUEST SIGNAL
8 L60 18TN RIGHT TURN SIGNAL
9 G34 16RD/GY HIGH BEAM INDICATOR DRIVER
10 G107 22GY 4WD SWITCH SENSE
INTAKE AIR HEATER RELAYS (DIESEL)-4WAY
CAV CIRCUIT FUNCTION
1 S22 18OR/BK AIR INTAKE HEATER RELAY CONTROL NO. 2
2 Z12 18BK/TN GROUND
3 S21 18YL/BK AIR INTAKE HEATER RELAY CONTROL NO. 1
4 Z12 18BK/TN GROUND
INTAKE AIR TEMPERATURE SENSOR (DIESEL)-2WAY
CAV CIRCUIT FUNCTION
A K104 18BK/LB SENSOR GROUND
B K21 18BK/RD INTAKE AIR TEMPERATURE SENSOR SIGNAL
INTAKE AIR TEMPERATURE SENSOR (GAS) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K4 18BK/LB SENSOR GROUND
2 K21 18BK/RD INTAKE AIR TEMPERATURE SENSOR SIGNAL
JOINT CONNECTOR NO. 1 (IN PDC) - 28 WAY
CAV CIRCUIT FUNCTION
1 V40 20WT/PK BRAKE SWITCH SENSE
2 V40 22WT/PK BRAKE SWITCH SENSE
3 V40 22WT/PK BRAKE SWITCH SENSE
4 L4 18VT/WT DIMMER SWITCH LOW BEAM OUTPUT
5 L4 16VT/WT DIMMER SWITCH LOW BEAM OUTPUT
5 L4 16VT/WT(QUAD) DIMMER SWITCH LOW BEAM OUTPUT
8W - 80 - 50 8W-80 CONNECTOR PIN-OUTSBR/BE

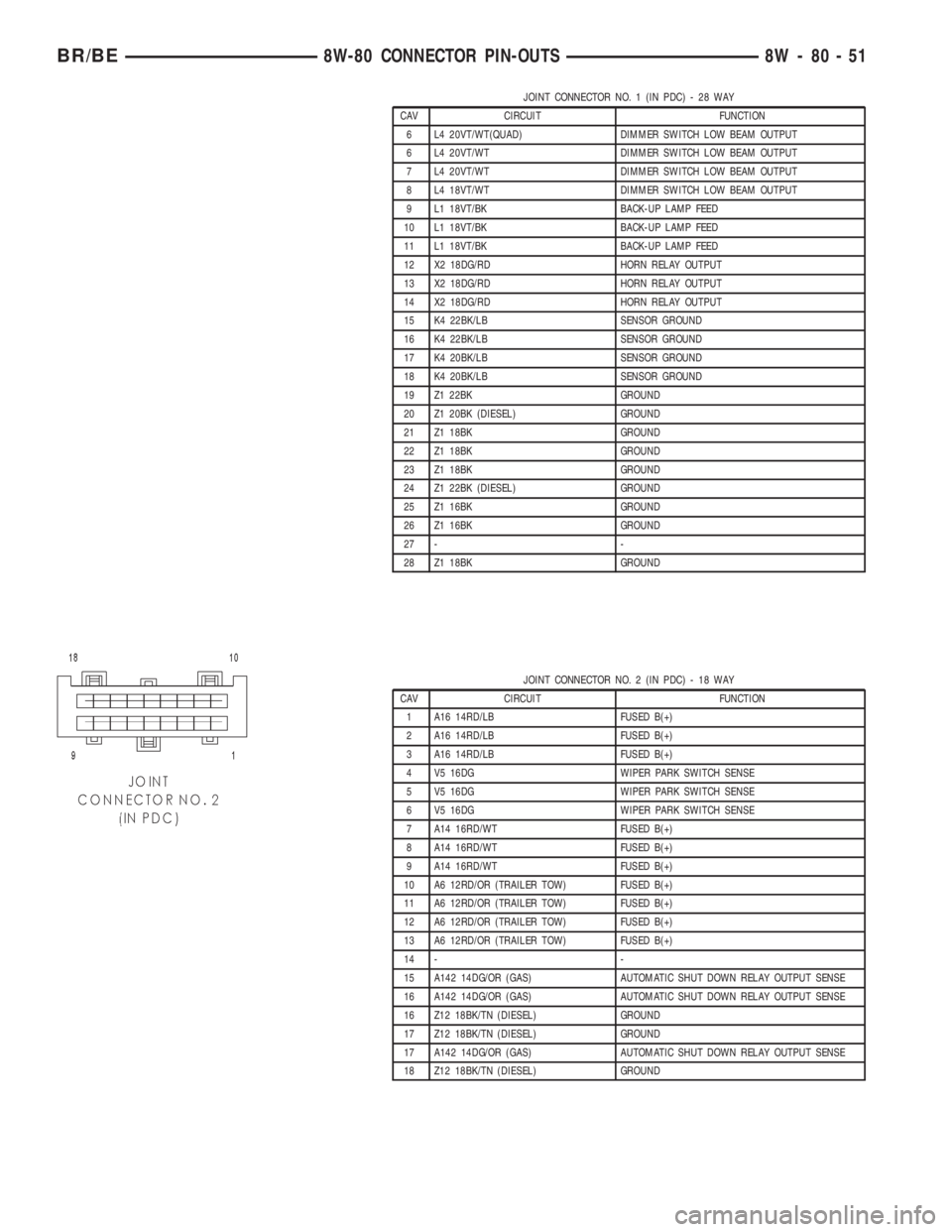

JOINT CONNECTOR NO. 1 (IN PDC) - 28 WAY
CAV CIRCUIT FUNCTION
6 L4 20VT/WT(QUAD) DIMMER SWITCH LOW BEAM OUTPUT
6 L4 20VT/WT DIMMER SWITCH LOW BEAM OUTPUT
7 L4 20VT/WT DIMMER SWITCH LOW BEAM OUTPUT
8 L4 18VT/WT DIMMER SWITCH LOW BEAM OUTPUT
9 L1 18VT/BK BACK-UP LAMP FEED
10 L1 18VT/BK BACK-UP LAMP FEED
11 L1 18VT/BK BACK-UP LAMP FEED
12 X2 18DG/RD HORN RELAY OUTPUT
13 X2 18DG/RD HORN RELAY OUTPUT
14 X2 18DG/RD HORN RELAY OUTPUT
15 K4 22BK/LB SENSOR GROUND
16 K4 22BK/LB SENSOR GROUND
17 K4 20BK/LB SENSOR GROUND
18 K4 20BK/LB SENSOR GROUND
19 Z1 22BK GROUND
20 Z1 20BK (DIESEL) GROUND
21 Z1 18BK GROUND
22 Z1 18BK GROUND
23 Z1 18BK GROUND
24 Z1 22BK (DIESEL) GROUND
25 Z1 16BK GROUND
26 Z1 16BK GROUND
27 - -
28 Z1 18BK GROUND
JOINT CONNECTOR NO. 2 (IN PDC) - 18 WAY
CAV CIRCUIT FUNCTION
1 A16 14RD/LB FUSED B(+)
2 A16 14RD/LB FUSED B(+)
3 A16 14RD/LB FUSED B(+)
4 V5 16DG WIPER PARK SWITCH SENSE
5 V5 16DG WIPER PARK SWITCH SENSE
6 V5 16DG WIPER PARK SWITCH SENSE
7 A14 16RD/WT FUSED B(+)
8 A14 16RD/WT FUSED B(+)
9 A14 16RD/WT FUSED B(+)
10 A6 12RD/OR (TRAILER TOW) FUSED B(+)
11 A6 12RD/OR (TRAILER TOW) FUSED B(+)
12 A6 12RD/OR (TRAILER TOW) FUSED B(+)
13 A6 12RD/OR (TRAILER TOW) FUSED B(+)
14 - -
15 A142 14DG/OR (GAS) AUTOMATIC SHUT DOWN RELAY OUTPUT SENSE
16 A142 14DG/OR (GAS) AUTOMATIC SHUT DOWN RELAY OUTPUT SENSE
16 Z12 18BK/TN (DIESEL) GROUND
17 Z12 18BK/TN (DIESEL) GROUND
17 A142 14DG/OR (GAS) AUTOMATIC SHUT DOWN RELAY OUTPUT SENSE
18 Z12 18BK/TN (DIESEL) GROUND
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 51

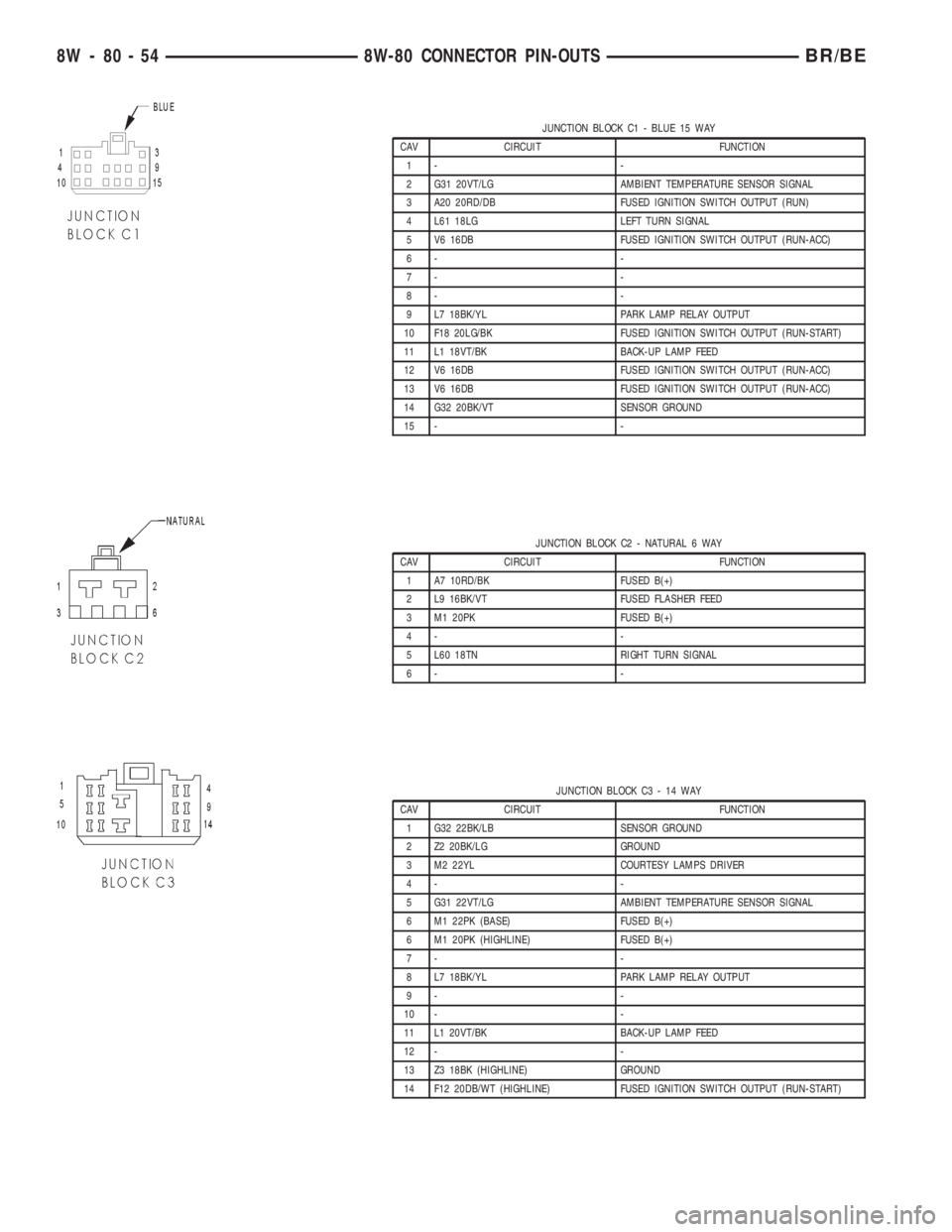

JUNCTION BLOCK C1 - BLUE 15 WAY
CAV CIRCUIT FUNCTION
1- -
2 G31 20VT/LG AMBIENT TEMPERATURE SENSOR SIGNAL
3 A20 20RD/DB FUSED IGNITION SWITCH OUTPUT (RUN)
4 L61 18LG LEFT TURN SIGNAL
5 V6 16DB FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
6- -
7- -
8- -
9 L7 18BK/YL PARK LAMP RELAY OUTPUT
10 F18 20LG/BK FUSED IGNITION SWITCH OUTPUT (RUN-START)
11 L1 18VT/BK BACK-UP LAMP FEED
12 V6 16DB FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
13 V6 16DB FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
14 G32 20BK/VT SENSOR GROUND
15 - -
JUNCTION BLOCK C2 - NATURAL 6 WAY
CAV CIRCUIT FUNCTION
1 A7 10RD/BK FUSED B(+)
2 L9 16BK/VT FUSED FLASHER FEED
3 M1 20PK FUSED B(+)
4- -
5 L60 18TN RIGHT TURN SIGNAL
6- -
JUNCTION BLOCK C3 - 14 WAY
CAV CIRCUIT FUNCTION
1 G32 22BK/LB SENSOR GROUND
2 Z2 20BK/LG GROUND
3 M2 22YL COURTESY LAMPS DRIVER
4- -
5 G31 22VT/LG AMBIENT TEMPERATURE SENSOR SIGNAL
6 M1 22PK (BASE) FUSED B(+)
6 M1 20PK (HIGHLINE) FUSED B(+)
7- -
8 L7 18BK/YL PARK LAMP RELAY OUTPUT
9- -
10 - -
11 L1 20VT/BK BACK-UP LAMP FEED
12 - -
13 Z3 18BK (HIGHLINE) GROUND
14 F12 20DB/WT (HIGHLINE) FUSED IGNITION SWITCH OUTPUT (RUN-START)
8W - 80 - 54 8W-80 CONNECTOR PIN-OUTSBR/BE

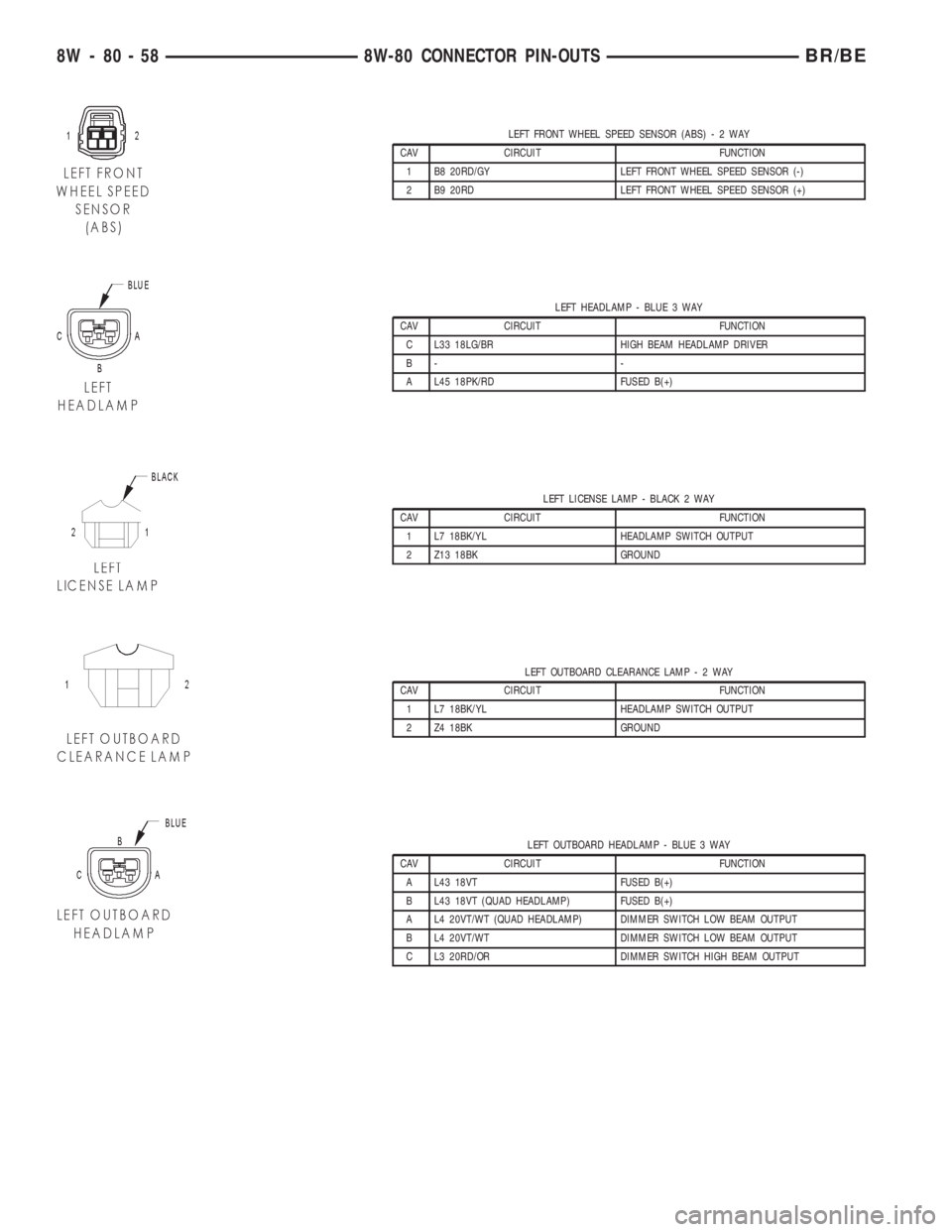

LEFT FRONT WHEEL SPEED SENSOR (ABS)-2WAY
CAV CIRCUIT FUNCTION
1 B8 20RD/GY LEFT FRONT WHEEL SPEED SENSOR (-)
2 B9 20RD LEFT FRONT WHEEL SPEED SENSOR (+)
LEFT HEADLAMP - BLUE 3 WAY
CAV CIRCUIT FUNCTION
C L33 18LG/BR HIGH BEAM HEADLAMP DRIVER
B- -
A L45 18PK/RD FUSED B(+)
LEFT LICENSE LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 L7 18BK/YL HEADLAMP SWITCH OUTPUT
2 Z13 18BK GROUND
LEFT OUTBOARD CLEARANCE LAMP-2WAY
CAV CIRCUIT FUNCTION
1 L7 18BK/YL HEADLAMP SWITCH OUTPUT
2 Z4 18BK GROUND
LEFT OUTBOARD HEADLAMP - BLUE 3 WAY
CAV CIRCUIT FUNCTION
A L43 18VT FUSED B(+)
B L43 18VT (QUAD HEADLAMP) FUSED B(+)
A L4 20VT/WT (QUAD HEADLAMP) DIMMER SWITCH LOW BEAM OUTPUT
B L4 20VT/WT DIMMER SWITCH LOW BEAM OUTPUT
C L3 20RD/OR DIMMER SWITCH HIGH BEAM OUTPUT
8W - 80 - 58 8W-80 CONNECTOR PIN-OUTSBR/BE

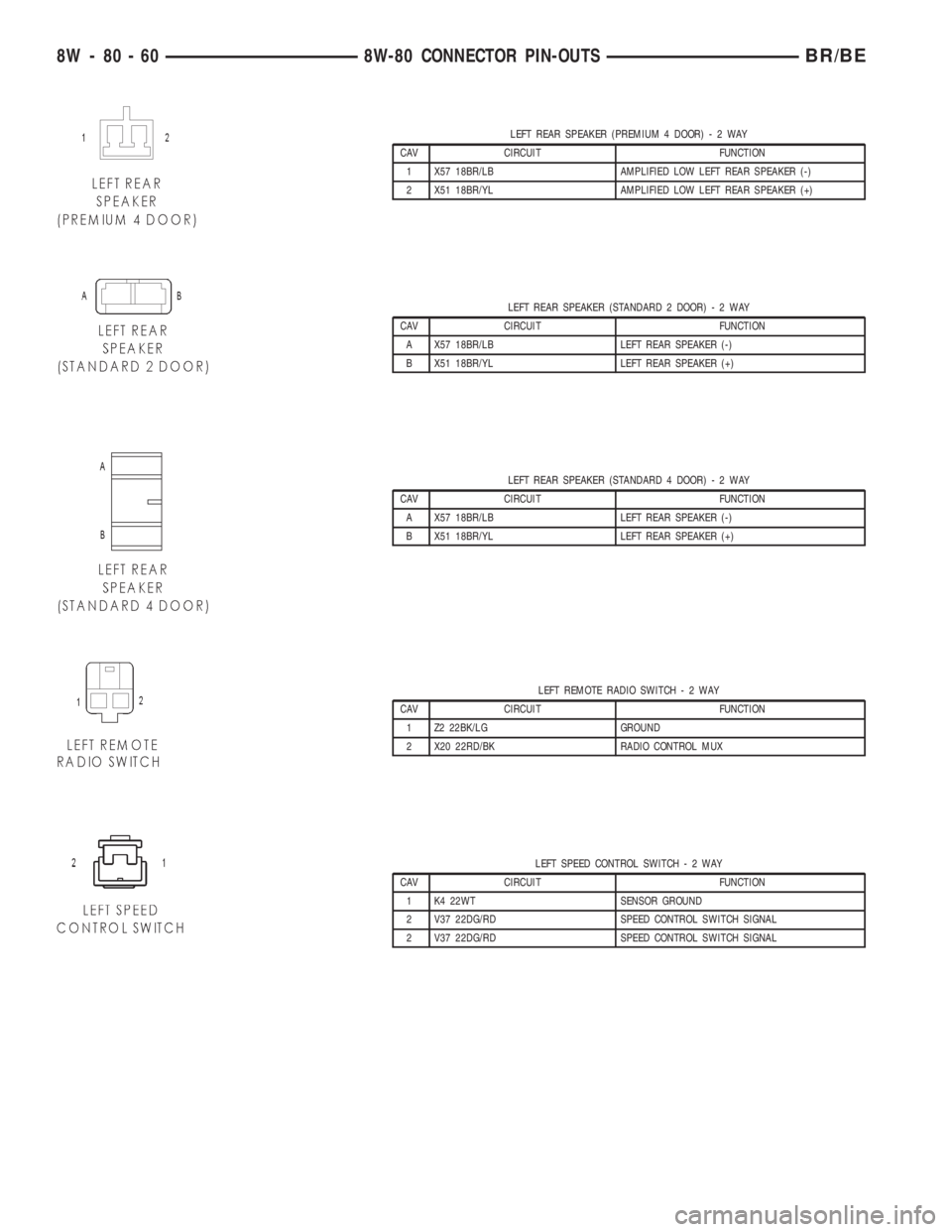

LEFT REAR SPEAKER (PREMIUM 4 DOOR)-2WAY
CAV CIRCUIT FUNCTION
1 X57 18BR/LB AMPLIFIED LOW LEFT REAR SPEAKER (-)
2 X51 18BR/YL AMPLIFIED LOW LEFT REAR SPEAKER (+)
LEFT REAR SPEAKER (STANDARD 2 DOOR)-2WAY
CAV CIRCUIT FUNCTION
A X57 18BR/LB LEFT REAR SPEAKER (-)
B X51 18BR/YL LEFT REAR SPEAKER (+)
LEFT REAR SPEAKER (STANDARD 4 DOOR)-2WAY
CAV CIRCUIT FUNCTION
A X57 18BR/LB LEFT REAR SPEAKER (-)
B X51 18BR/YL LEFT REAR SPEAKER (+)
LEFT REMOTE RADIO SWITCH-2WAY
CAV CIRCUIT FUNCTION
1 Z2 22BK/LG GROUND
2 X20 22RD/BK RADIO CONTROL MUX
LEFT SPEED CONTROL SWITCH-2WAY
CAV CIRCUIT FUNCTION
1 K4 22WT SENSOR GROUND
2 V37 22DG/RD SPEED CONTROL SWITCH SIGNAL
2 V37 22DG/RD SPEED CONTROL SWITCH SIGNAL
8W - 80 - 60 8W-80 CONNECTOR PIN-OUTSBR/BE

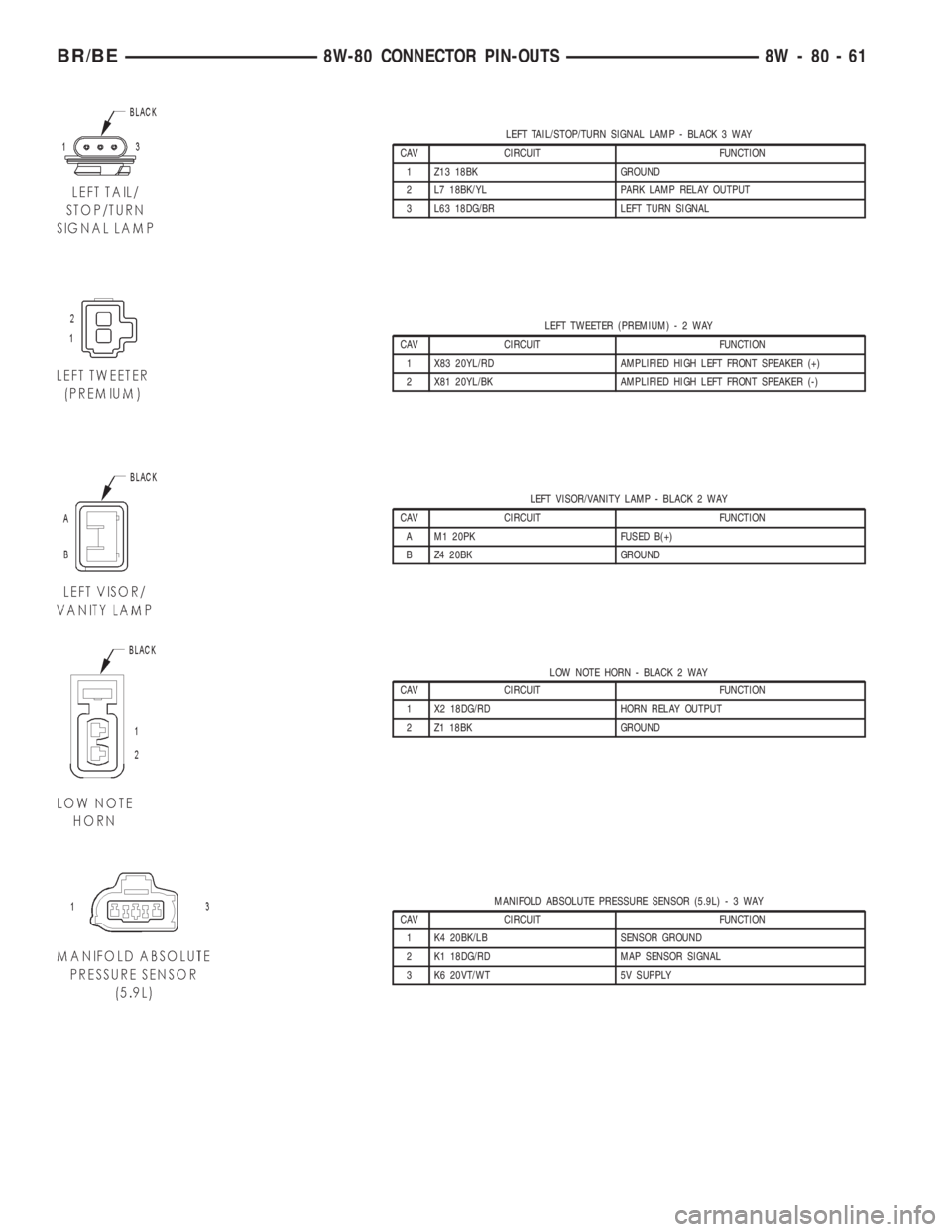

LEFT TAIL/STOP/TURN SIGNAL LAMP - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 Z13 18BK GROUND
2 L7 18BK/YL PARK LAMP RELAY OUTPUT
3 L63 18DG/BR LEFT TURN SIGNAL
LEFT TWEETER (PREMIUM)-2WAY
CAV CIRCUIT FUNCTION
1 X83 20YL/RD AMPLIFIED HIGH LEFT FRONT SPEAKER (+)
2 X81 20YL/BK AMPLIFIED HIGH LEFT FRONT SPEAKER (-)
LEFT VISOR/VANITY LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
A M1 20PK FUSED B(+)
B Z4 20BK GROUND
LOW NOTE HORN - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X2 18DG/RD HORN RELAY OUTPUT
2 Z1 18BK GROUND
MANIFOLD ABSOLUTE PRESSURE SENSOR (5.9L)-3WAY
CAV CIRCUIT FUNCTION
1 K4 20BK/LB SENSOR GROUND
2 K1 18DG/RD MAP SENSOR SIGNAL
3 K6 20VT/WT 5V SUPPLY
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 61

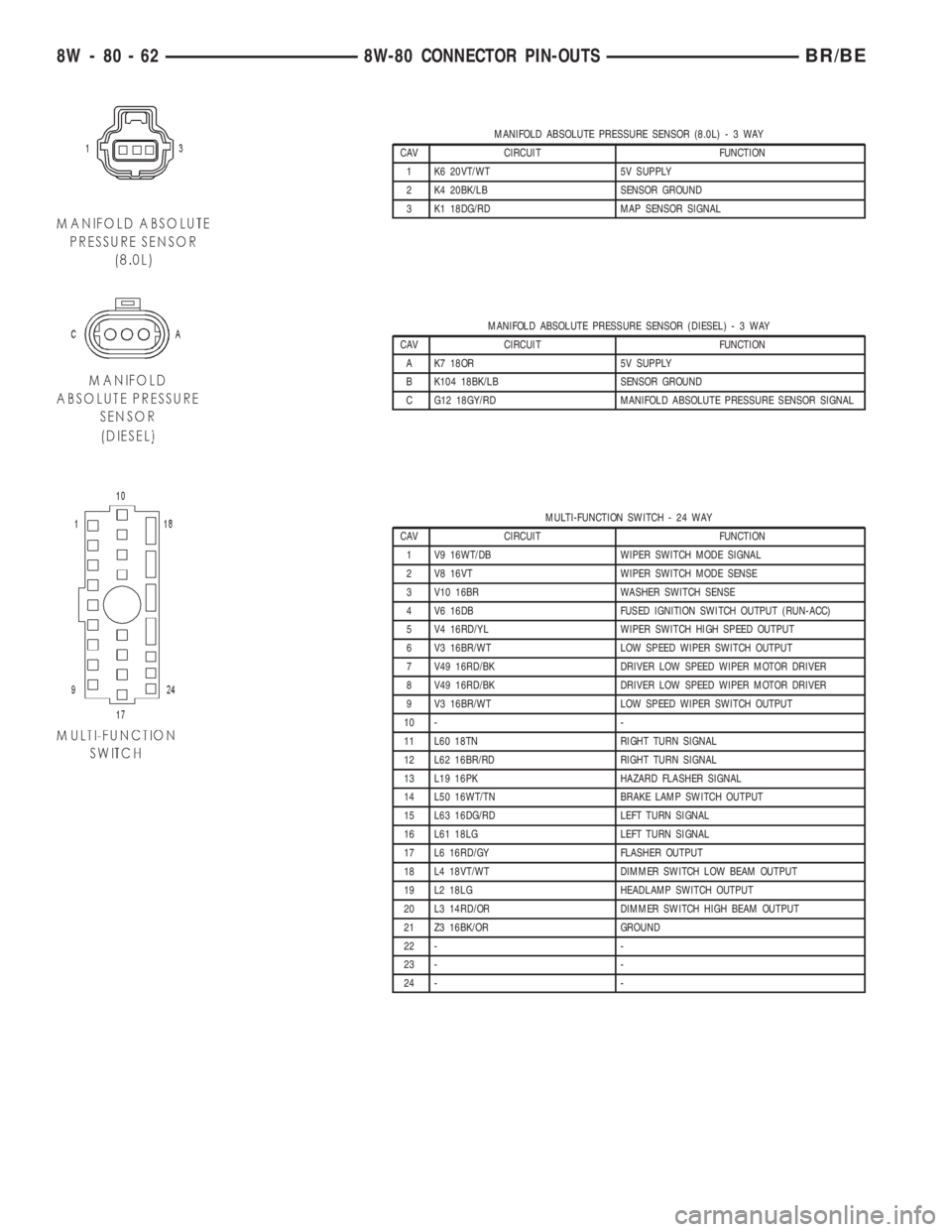

MANIFOLD ABSOLUTE PRESSURE SENSOR (8.0L)-3WAY
CAV CIRCUIT FUNCTION
1 K6 20VT/WT 5V SUPPLY
2 K4 20BK/LB SENSOR GROUND
3 K1 18DG/RD MAP SENSOR SIGNAL
MANIFOLD ABSOLUTE PRESSURE SENSOR (DIESEL)-3WAY
CAV CIRCUIT FUNCTION
A K7 18OR 5V SUPPLY
B K104 18BK/LB SENSOR GROUND
C G12 18GY/RD MANIFOLD ABSOLUTE PRESSURE SENSOR SIGNAL
MULTI-FUNCTION SWITCH - 24 WAY
CAV CIRCUIT FUNCTION
1 V9 16WT/DB WIPER SWITCH MODE SIGNAL
2 V8 16VT WIPER SWITCH MODE SENSE
3 V10 16BR WASHER SWITCH SENSE
4 V6 16DB FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
5 V4 16RD/YL WIPER SWITCH HIGH SPEED OUTPUT
6 V3 16BR/WT LOW SPEED WIPER SWITCH OUTPUT
7 V49 16RD/BK DRIVER LOW SPEED WIPER MOTOR DRIVER
8 V49 16RD/BK DRIVER LOW SPEED WIPER MOTOR DRIVER
9 V3 16BR/WT LOW SPEED WIPER SWITCH OUTPUT
10 - -
11 L60 18TN RIGHT TURN SIGNAL
12 L62 16BR/RD RIGHT TURN SIGNAL
13 L19 16PK HAZARD FLASHER SIGNAL
14 L50 16WT/TN BRAKE LAMP SWITCH OUTPUT
15 L63 16DG/RD LEFT TURN SIGNAL
16 L61 18LG LEFT TURN SIGNAL
17 L6 16RD/GY FLASHER OUTPUT
18 L4 18VT/WT DIMMER SWITCH LOW BEAM OUTPUT
19 L2 18LG HEADLAMP SWITCH OUTPUT
20 L3 14RD/OR DIMMER SWITCH HIGH BEAM OUTPUT
21 Z3 16BK/OR GROUND
22 - -
23 - -
24 - -
8W - 80 - 62 8W-80 CONNECTOR PIN-OUTSBR/BE

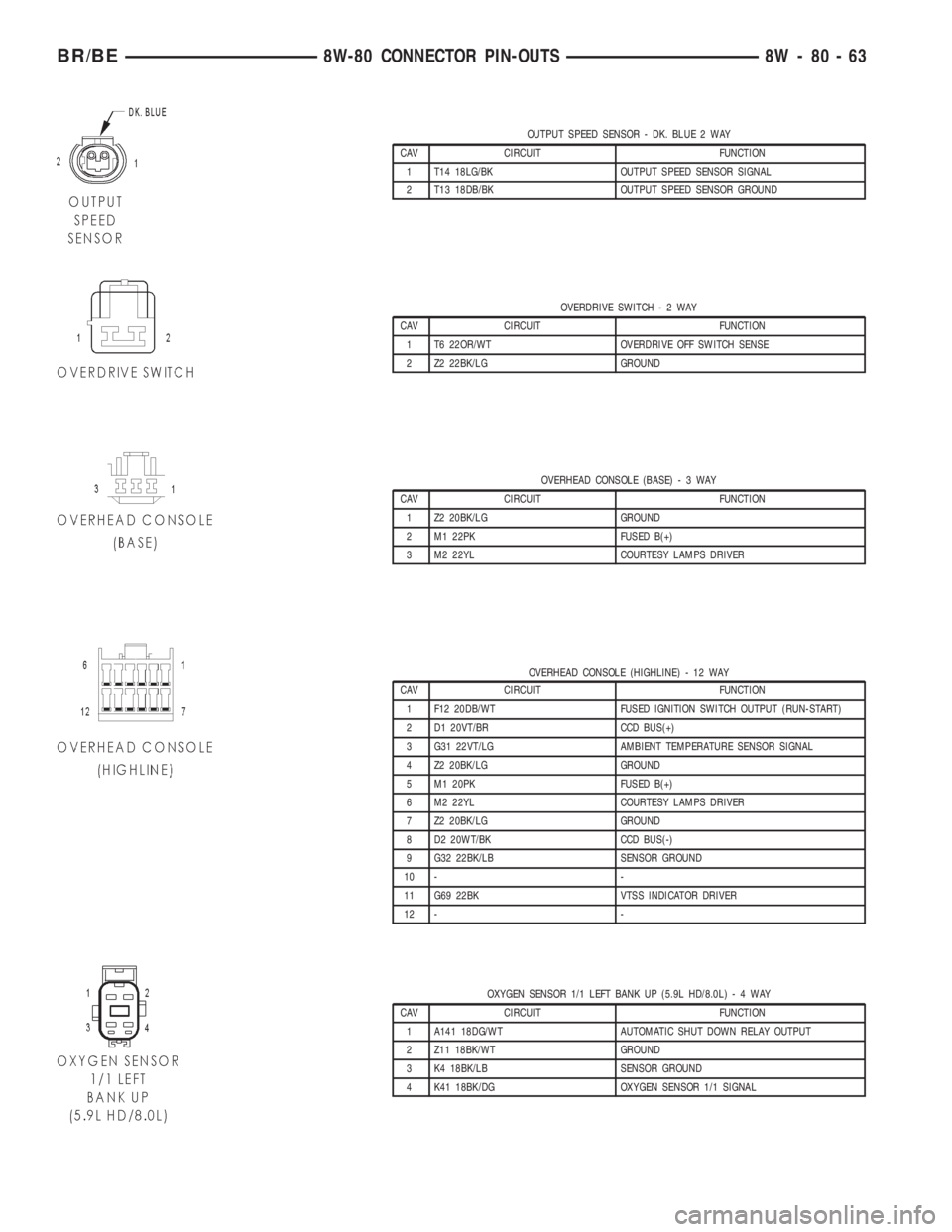

OUTPUT SPEED SENSOR - DK. BLUE 2 WAY
CAV CIRCUIT FUNCTION
1 T14 18LG/BK OUTPUT SPEED SENSOR SIGNAL
2 T13 18DB/BK OUTPUT SPEED SENSOR GROUND
OVERDRIVE SWITCH-2WAY
CAV CIRCUIT FUNCTION
1 T6 22OR/WT OVERDRIVE OFF SWITCH SENSE
2 Z2 22BK/LG GROUND
OVERHEAD CONSOLE (BASE)-3WAY
CAV CIRCUIT FUNCTION
1 Z2 20BK/LG GROUND
2 M1 22PK FUSED B(+)
3 M2 22YL COURTESY LAMPS DRIVER
OVERHEAD CONSOLE (HIGHLINE) - 12 WAY
CAV CIRCUIT FUNCTION
1 F12 20DB/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
2 D1 20VT/BR CCD BUS(+)
3 G31 22VT/LG AMBIENT TEMPERATURE SENSOR SIGNAL
4 Z2 20BK/LG GROUND
5 M1 20PK FUSED B(+)
6 M2 22YL COURTESY LAMPS DRIVER
7 Z2 20BK/LG GROUND
8 D2 20WT/BK CCD BUS(-)
9 G32 22BK/LB SENSOR GROUND
10 - -
11 G69 22BK VTSS INDICATOR DRIVER
12 - -
OXYGEN SENSOR 1/1 LEFT BANK UP (5.9L HD/8.0L)-4WAY
CAV CIRCUIT FUNCTION
1 A141 18DG/WT AUTOMATIC SHUT DOWN RELAY OUTPUT
2 Z11 18BK/WT GROUND
3 K4 18BK/LB SENSOR GROUND
4 K41 18BK/DG OXYGEN SENSOR 1/1 SIGNAL
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 63

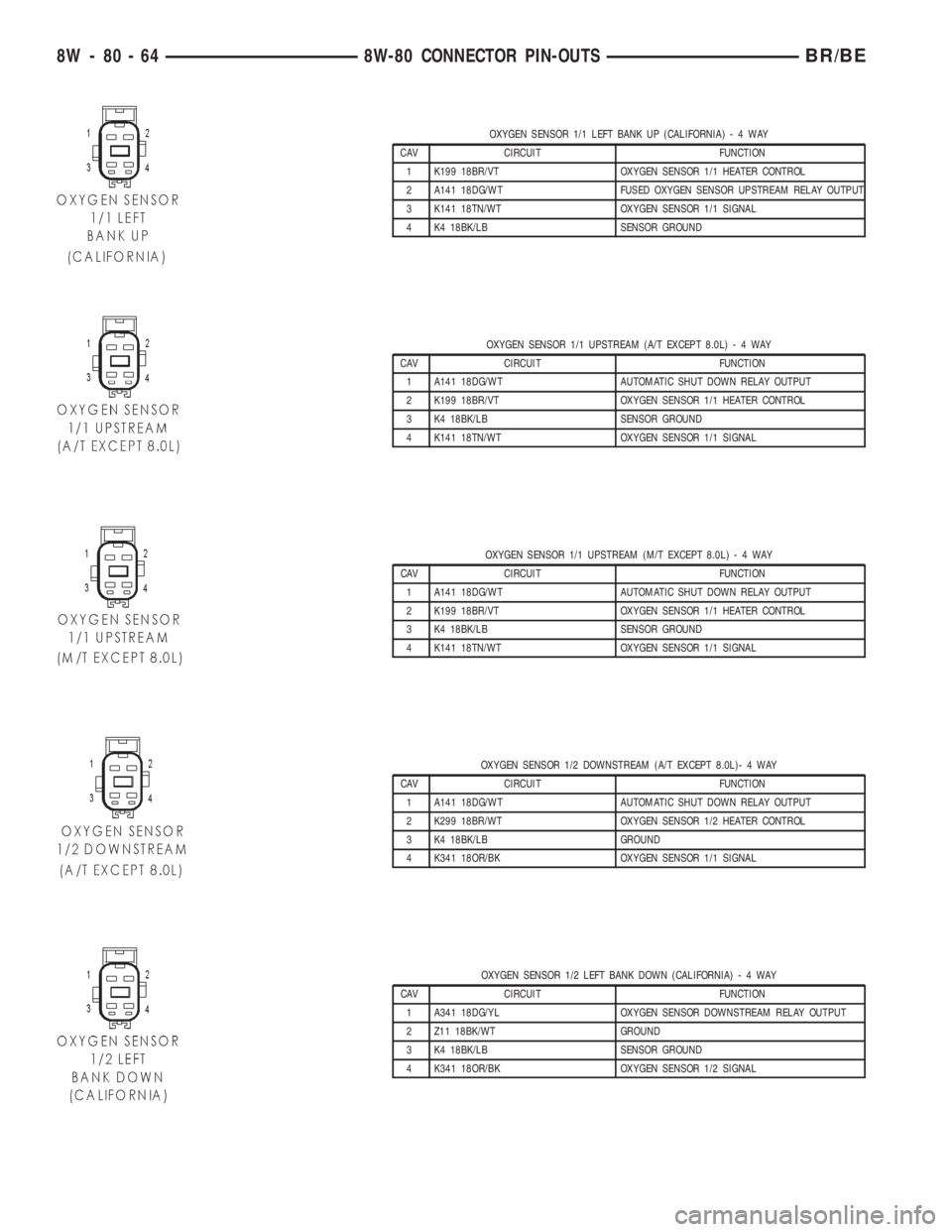

OXYGEN SENSOR 1/1 LEFT BANK UP (CALIFORNIA)-4WAY
CAV CIRCUIT FUNCTION
1 K199 18BR/VT OXYGEN SENSOR 1/1 HEATER CONTROL
2 A141 18DG/WT FUSED OXYGEN SENSOR UPSTREAM RELAY OUTPUT
3 K141 18TN/WT OXYGEN SENSOR 1/1 SIGNAL
4 K4 18BK/LB SENSOR GROUND
OXYGEN SENSOR 1/1 UPSTREAM (A/T EXCEPT 8.0L)-4WAY
CAV CIRCUIT FUNCTION
1 A141 18DG/WT AUTOMATIC SHUT DOWN RELAY OUTPUT
2 K199 18BR/VT OXYGEN SENSOR 1/1 HEATER CONTROL
3 K4 18BK/LB SENSOR GROUND
4 K141 18TN/WT OXYGEN SENSOR 1/1 SIGNAL
OXYGEN SENSOR 1/1 UPSTREAM (M/T EXCEPT 8.0L)-4WAY
CAV CIRCUIT FUNCTION
1 A141 18DG/WT AUTOMATIC SHUT DOWN RELAY OUTPUT
2 K199 18BR/VT OXYGEN SENSOR 1/1 HEATER CONTROL
3 K4 18BK/LB SENSOR GROUND
4 K141 18TN/WT OXYGEN SENSOR 1/1 SIGNAL
OXYGEN SENSOR 1/2 DOWNSTREAM (A/T EXCEPT 8.0L)- 4 WAY
CAV CIRCUIT FUNCTION
1 A141 18DG/WT AUTOMATIC SHUT DOWN RELAY OUTPUT
2 K299 18BR/WT OXYGEN SENSOR 1/2 HEATER CONTROL
3 K4 18BK/LB GROUND
4 K341 18OR/BK OXYGEN SENSOR 1/1 SIGNAL
OXYGEN SENSOR 1/2 LEFT BANK DOWN (CALIFORNIA)-4WAY
CAV CIRCUIT FUNCTION
1 A341 18DG/YL OXYGEN SENSOR DOWNSTREAM RELAY OUTPUT
2 Z11 18BK/WT GROUND
3 K4 18BK/LB SENSOR GROUND
4 K341 18OR/BK OXYGEN SENSOR 1/2 SIGNAL
8W - 80 - 64 8W-80 CONNECTOR PIN-OUTSBR/BE

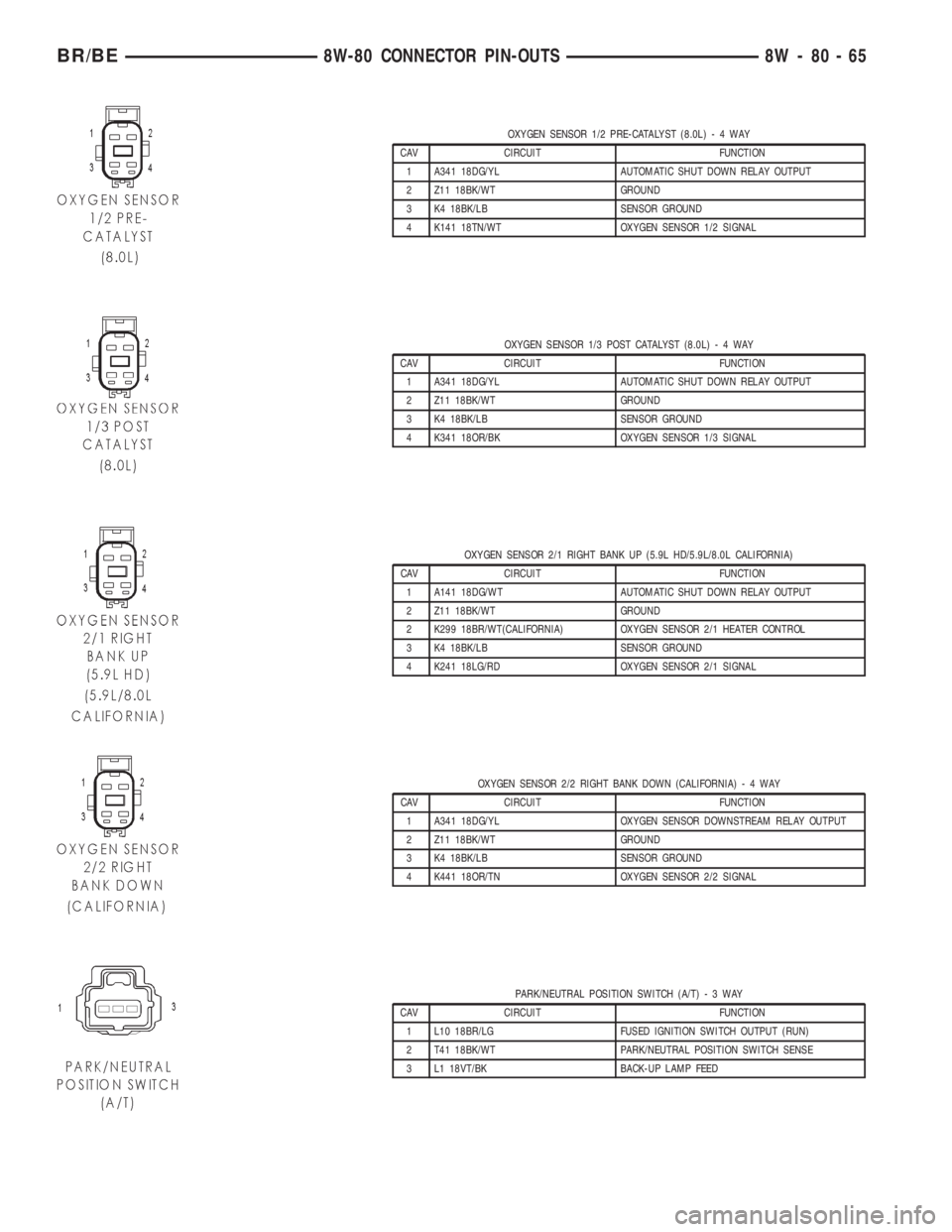

OXYGEN SENSOR 1/2 PRE-CATALYST (8.0L)-4WAY
CAV CIRCUIT FUNCTION
1 A341 18DG/YL AUTOMATIC SHUT DOWN RELAY OUTPUT
2 Z11 18BK/WT GROUND
3 K4 18BK/LB SENSOR GROUND
4 K141 18TN/WT OXYGEN SENSOR 1/2 SIGNAL
OXYGEN SENSOR 1/3 POST CATALYST (8.0L)-4WAY
CAV CIRCUIT FUNCTION
1 A341 18DG/YL AUTOMATIC SHUT DOWN RELAY OUTPUT
2 Z11 18BK/WT GROUND
3 K4 18BK/LB SENSOR GROUND
4 K341 18OR/BK OXYGEN SENSOR 1/3 SIGNAL
OXYGEN SENSOR 2/1 RIGHT BANK UP (5.9L HD/5.9L/8.0L CALIFORNIA)
CAV CIRCUIT FUNCTION
1 A141 18DG/WT AUTOMATIC SHUT DOWN RELAY OUTPUT
2 Z11 18BK/WT GROUND
2 K299 18BR/WT(CALIFORNIA) OXYGEN SENSOR 2/1 HEATER CONTROL
3 K4 18BK/LB SENSOR GROUND
4 K241 18LG/RD OXYGEN SENSOR 2/1 SIGNAL
OXYGEN SENSOR 2/2 RIGHT BANK DOWN (CALIFORNIA)-4WAY
CAV CIRCUIT FUNCTION
1 A341 18DG/YL OXYGEN SENSOR DOWNSTREAM RELAY OUTPUT
2 Z11 18BK/WT GROUND
3 K4 18BK/LB SENSOR GROUND
4 K441 18OR/TN OXYGEN SENSOR 2/2 SIGNAL
PARK/NEUTRAL POSITION SWITCH (A/T)-3WAY
CAV CIRCUIT FUNCTION
1 L10 18BR/LG FUSED IGNITION SWITCH OUTPUT (RUN)
2 T41 18BK/WT PARK/NEUTRAL POSITION SWITCH SENSE
3 L1 18VT/BK BACK-UP LAMP FEED
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 65
